IPH-01996LOW POWER TRANSMITTER

TITLE SIZE PART NO: REV: SCALE Sheet Of Files The following files have been archived under the above ARCHIVE FILENAME. File NameFile Contents 190-01500-03_0A.inddInDesign CS4 for PC, Formatted manual 190-01500-03_0A_Spec.inddInDesign CS4 for PC, Document specification sheet 190-01500-03_0A.pdfPortable Document Format, Manual and specification sheet for printing LinksGraphic files (eps, bmp, etc.) FontsFont files Alpha_ISPI_EN.pdfPortable Document Format, for online SPECIFICATION CONTROL DRAWING Revisions Rev.DateDescriptionECO No. A 6/12/12 Production Release– – – – CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Garmin Ltd. or its subsidiaries C/O Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. InitialsDateISPI, Alpha TT10 (EN) Drawn By:KEG6/12/12 A190-01500-03AChecked By: Project Manager: N/A Approved By: 15 Specifications 1. DescriptionProduct documentation, ISPI, Alpha TT10 (EN) 2. SizeTrimmed: Width = 9.5" Height = 4.75". Finished, Folded: Width = 4.75", Height = 4.75". 3. Tolerance±0.0787" (±2 mm) 4. Pagination4 pages 5. Material80-lb Woodfree. Approved Equivalents Allowed 6. FinishN/A 7. ColorBlack and white 8. BinderyN/A 9. FoldsOne down center 10. Electronic ArtworkShall conform to Garmin Archive 190-01500-03_0A.zip 11. Languages 12. NotesThis part shall comply with Garmin Banned & Restricted Substances (GPN 001-00211-00). 4.75" 4.75" 4.75" 9.5" Trimmed dimensionsTrimmed and bound dimensions Binding Cover Spread layout Dimensions and drawings for reference only. Drawings are not to scale. CoverCover 1 Important Safety and Product Information  WARNING Failuretoavoidthefollowingpotentiallyhazardoussituations couldresultinanaccidentorcollisionresultingindeathor seriousinjury. Installation Warnings •Wheninstallingthedeviceinavehicle,placethedevice securelysoitdoesnotobstructthedriver’sviewoftheroad ➊orinterferewithvehicleoperatingcontrols,suchasthe steeringwheel,footpedals,ortransmissionlevers.Donot placeunsecuredonthevehicledashboard➋.Donotplace thedeviceinfrontoforaboveanyairbag➌. ➋ ➌ ➊ •Thewindshieldmountmaynotstayattachedtothe windshieldinallcircumstances.Donotplacethemount whereitwillbecomeadistractionifitshouldbecome detached.Keepyourwindshieldcleantohelpensurethat themountstaysonthewindshield. Off-Road Navigation Warnings SomeGarminrecreationalproductsareabletosuggest off-roadroutesforvariousoutdooractivities,suchasbiking, hiking,andall-terrainvehicles.Followtheseguidelinesto ensuresafeoff-roadnavigation. •Alwaysuseyourbestjudgmentandexercisecommon sensewhenmakingoff-roadnavigationaldecisions.The Garmindeviceisdesignedtoprovideroutesuggestions only.Itisnotareplacementforattentivenessandproper preparationforoutdooractivities.Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. •Alwayscarefullycompareinformationdisplayedonthe devicetoallavailablenavigationsources,includingtrail signs,trailconditions,weatherconditions,andotherfactors thatmayaffectsafetywhilenavigating.Forsafety,always resolveanydiscrepanciesbeforecontinuingnavigation, anddefertopostedsignsandconditions. •Alwaysbemindfuloftheeffectsoftheenvironmentand theinherentrisksoftheactivitybeforeembarkingon off-roadactivities,especiallytheimpactthatweatherand weather-relatedtrailconditionscanhaveonthesafetyof youractivity.Ensurethatyouhavethepropergearand suppliesforyouractivitybeforenavigatingalongunfamiliar pathsandtrails. Street Navigation Warnings SomeGarminrecreationalproductsareabletoacceptstreet mapsandsuggestroutesthatfollowroads.Followthese guidelinestoensuresafeon-roadnavigation. •Alwaysuseyourbestjudgment,andoperatethevehiclein asafemanner.Do not become distracted by the device while driving, and always be fully aware of all driving conditions.Minimizetheamountoftimespentviewingthe devicescreenwhiledriving. •Donotinputdestinations,changesettings,oraccessany functionsrequiringprolongeduseofthedevicecontrols whiledriving.Pulloverinasafeandlegalmannerbefore attemptingsuchoperations. •Whennavigating,carefullycompareinformationdisplayed onthedevicetoallavailablenavigationsources,including roadsigns,roadclosures,roadconditions,traffic congestion,weatherconditions,andotherfactorsthatmay affectsafetywhiledriving.Forsafety,alwaysresolveany discrepanciesbeforecontinuingnavigation,anddeferto postedsignsandconditions. •Thedeviceisdesignedtoprovideroutesuggestions.It isnotareplacementfordriverattentivenessandgood judgement.Do not follow route suggestions if they suggest an illegal maneuver or would place the vehicle in an unsafe situation. Battery Warnings Thehandhelddeviceanddogdeviceuseuser-replaceable lithium-ionbatteries.Iftheseguidelinesarenotfollowed, thebatteriesmayexperienceashortenedlifespanormay presentariskofdamagetothedeviceordogdevice,fire, chemicalburn,electrolyteleak,and/orbodilyinjury. 190-01500-03_0A.indd 16/6/2012 8:40:43 AM 2 •Donotleavethedevicesexposedtoaheatsourceor inahigh-temperaturelocation,suchasinthesuninan unattendedvehicle.Topreventdamage,removethe devicesfromthevehicleorstorethemoutofdirectsunlight, suchasintheglovebox. •Donotuseasharpobjecttoremovethebatteries. •Keepthebatteriesawayfromchildrenandpets. •Donotdisassemble,puncture,incinerate,ordamagethe devic…

Text truncated - open the document above for the full version.

TITLE SIZE PART NO: REV: SCALE Sheet Of Files The following files have been archived under the above ARCHIVE FILENAME. File NameFile Contents 190-01500-00_0A.inddInDesign CS4 for PC, Formatted manual 190-01500-00_0A_Spec.indd InDesign CS4 for PC, Document specification sheet 190-01500-00_0A.pdfPortable Document Format, Manual and specification sheet for printing LinksGraphic files (eps, bmp, etc.) FontsFont files Alpha-TT_OM_EN.pdfPortable Document Format, for online SPECIFICATION CONTROL DRAWING Revisions Rev. DateDescriptionECO No. A 7/13/12 Production Release– – – – CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Garmin Ltd. or its subsidiaries C/O Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. InitialsDateAlpha TT Owner's Manual (EN) Drawn By:KEG7/13/12 A190-01500-00AChecked By: Project Manager: N/A Approved By: 172 Specifications 1. DescriptionProduct documentation, Alpha TT Owner's Mnual (EN) 2. SizeTrimmed: Width = 9.5" Height = 4.75". Finished, Folded: Width = 4.75", Height = 4.75". 3. Tolerance±0.0787" (±2 mm) 4. Pagination70 pages 5. MaterialCover: 200-lb coated ivory board. Text: 100-lb matte-finish offset. Approved Equivalents Allowed 6. FinishCover: High gloss. Text: Matte. Approved Equivalents Allowed. 7. ColorCover: 4-color process. Text: Black and white 8. BinderySaddle-stitched (72 pages maximum), Perfect-bound. Approved Equivalents Allowed. 9. FoldsN/A 10. Electronic Artwork Shall conform to Garmin Archive 190-01500-00_0A.zip 11. Languages 12. NotesThis part shall comply with Garmin Banned & Restricted Substances (GPN 001-00211-00). 4.75" 4.75" 4.75" 9.5" Trimmed dimensionsTrimmed and bound dimensions Binding Cover Spread layout Dimensions and drawings for reference only. Drawings are not to scale. CoverCover DRAFT Alpha ™ 100 and TT ™ 10 Owner’s Manual July 2012190-01500-00_01Printed in Taiwan DRAFT All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product. Garmin ® , the Garmin logo, BlueChart ® , and City Navigator ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Alpha™, ANT+™, BaseCamp™, and TT™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. microSD™ is a trademark of SD-3C, LLC. Windows ® and Windows NT ® are registered trademarks of Microsoft Corporation in the United States and other countries. Mac ® is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. DRAFT Table of Contents Getting Started...............................1 Setting Up the Alpha System .................. 1 Device Overviews................................... 1 Alpha 100 Handheld Device............. 1 TT 10 Dog Collar Device...................2 Getting More Information........................ 2 Registering Your Device......................... 2 Installing the Battery in the Handheld Device..................................................... 2 Charging the Handheld Device............... 3 Charging the Dog Collar Device............. 4 Turning On the Devices.......................... 4 Turning Off the Devices.................... 4 Acquiring Satellite Signals...................... 5 Using the Touchscreen........................... 5 Locking the Touchscreen........................5 Unlocking the Touchscreen ............. 5 Profiles.................................................... 5 Changing Profiles..............................5 Creating a Custom Profile................. 6 Editing a Profile Name...................... 6 Dog Collar Device Setup............... 6 Methods to Add a Dog to a Handheld Device..................................................... 6 Adding a Dog Over MURS/VHF........7 Adding a Dog Using the Track and Train Codes......................................7 Finding the Dog ID and Track and Train Codes .................................8 Sharing a Dog Wirelessly Over ANT+ 8 Editing Dog Information ......................... 9 Resetting a Dog's Statistics and Track................................................. 9 Changing the Length of the Dog's Track................................................. 9 Changing the Dog Name.................. 9 Changing the Color of the Dog's Track................................................. 9 Changing the Dog Type.................... 9 Changing the Dog ID ....................... 9 Setting Dog Alerts........................... 10 Removing a Dog............................. 10 Attaching the Collar on Your Dog......... 10 Communication with the Collar............. 11 Dog Tracking................................ 12 Tracking Your Dog on the Map............. 13 Dog Status Icons...................................13 Dog Tracking Compass........................ 14 Navigating to Your Dog.........................14 Table of Contentsi DRAFT Tracking with BaseCamp™ BaseStation.......................................... 14 Pausing Dog Tracking...........................15 Pausing All Dog Tracking......................15 Location Alerts...................................... 15 Setting a Geofence Alert................. 15 Setting a Radius Alert..................... 16 Editing Location Alerts.................... 16 Dog Training................................. 16 Selecting and Installing the Contact Points.................................................... 17 Removing the Contact Points......... 17 Setting the …

Text truncated - open the document above for the full version.

Page 1 of 2 July 9, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-01996 PRODUCT: Low power Transmitter operated under 15.249 Dear Sirs: Garmin International, Inc. requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia 01996 DXX.pdf Conf OpDes 01996 DXX.pdf Conf Schem 01996 DXX.pdf Conf PartList 01996 DXX.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-01996 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

July 9, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-01996 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-01996 Product: Low power Transmitters operated under paragraph 15.249 Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 45 days after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files Exhibit File External Photos Short Term Conf ExtPho 01996 DXX.pdf Internal Photos Short Term Conf IntPho 01996 DXX.pdf Test Setup Photos Short Term Conf TSup 01996 DXX.pdf User Manual Short Term Conf UserMan 01996.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053

July 9, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-01996 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Low power Transmitter operated under 15.249 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Short-term confidential files Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 45 days after the Grant of Equipment Authorization Exhibit File External Photos Short Term Conf ExtPho 01996 DXX.pdf Internal Photos Short Term Conf IntPho 01996 DXX.pdf Test Setup Photos Short Term Conf TSup 01996 DXX.pdf User Manual Short Term Conf UserMan 01996 1.pdf Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem 01996 DXX.pdf Block diagram Conf BlkDia 01996 DXX.pdf Operational Description Conf OpDes 01996 DXX.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

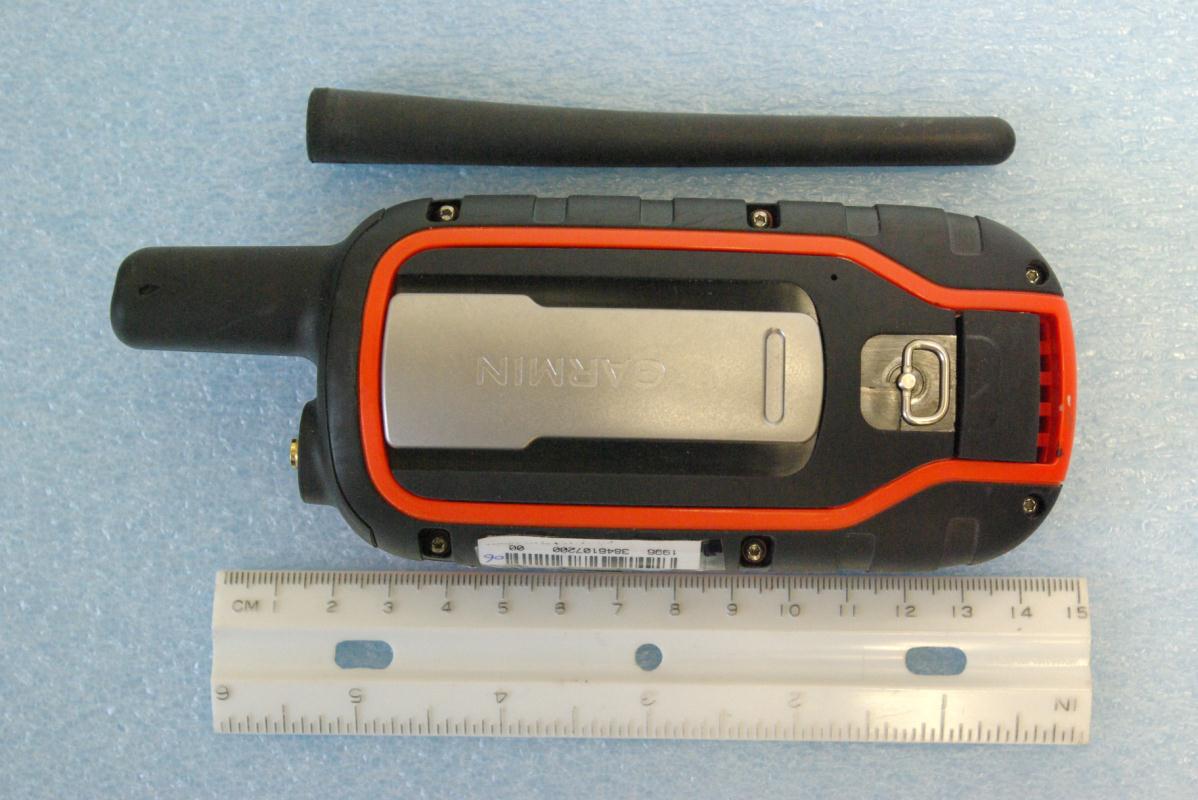

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 9, 2012 Revision 1 File: Short Term Conf ExtPho 01996 DXX Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 9, 2012 Revision 1 File: Short Term Conf ExtPho 01996 DXX Page 2 of 2

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 9, 2012 Revision 1 File: LabelSmpl 01996 DXX Page 1 of 1 FCC ID label and location Label Location L a b e l Marketing name of 011-02842-00

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 9, 2012 Revision 1 File: Short Term Conf IntPho 01996 DXX Page 1 of 1 Internal Photographs PCB Front without shield PCB Back

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 9, 2012 Revision 1 File: TunPro 01996 DXX Page 1 of 1 Tune Up Procedure Each unit is tune during production and performance tested during production against pass/fail criteria. The design provides no provision for user adjustment, only channel selection.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 3, 2012 Revision 1 File: 01996 DXX TstRpt 12052 Page 1 of 35 Application For Grant of Certification FOR Model: 011-02842-00 Low Power Transmitter FCC ID: IPH-01996 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report Number 120529 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 3, 2012 Revision 1 File: 01996 DXX TstRpt 12052 Page 2 of 35 Test Report for Application of Certification For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Model: 011-02842-00 Low Power Transmitter Frequency Range: 2,402-2,480 MHz FCC ID: IPH-01996 Test Report Number: 120529 Test Date: May 29, 2012 Authorized Signatory: Scot D. Rogers Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 3, 2012 Revision 1 File: 01996 DXX TstRpt 12052 Page 3 of 35 Table of Contents TABLE OF CONTENTS .................................................................................................... 3 FORWARD ....................................................................................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................... 5 OPINION / INTERPRETATION OF RESULTS ................................................................. 5 STATEMENT OF MODIFICATIONS AND DEVIATIONS ................................................. 6 ENVIRONMENTAL CONDITIONS.................................................................................... 6 UNITS OF MEASUREMENTS .......................................................................................... 6 TEST SITE LOCATIONS .................................................................................................. 6 LIST OF TEST EQUIPMENT ............................................................................................ 7 APPLICATION FOR CERTIFICATION ............................................................................. 8 EQUIPMENT TESTED SETUP, FUNCTION AND CONFIGURATIONS .......................... 9 Equipment Function and Test Setup ....................................................................................................................... 9 EUT Configuration Options .................................................................................................................................... 10 SUBPART C - INTENTIONAL RADIATORS .................................................................... 12 AC Line Conducted Emission Test Procedure ....................................................................................................... 12 Radiated Emission Test Procedure ......................................................................................................................... 12 ANTENNA REQUIREMENTS ........................................................................................... 12 RESTRICTED BANDS OF OPERATION ......................................................................... 13 Radiated Emissions in Restricted Bands Data ....................................................................................................... 13 Summary of Results for Radiated Emissions in Restricted Bands ....................................................................... 14 AC Line Conducted EMI Procedure ....................................................................................................................... 14 Figure One AC Line Conducted emissions of EUT line 1 (EUT AC Adapter, 362-00069-0x) ............................. 15 Figure Two AC Line Conducted emissions of EUT line 2 (EUT AC Adapter, 362-00069-0x) ............................ 15 Figure Three AC Line Conducted emissions line 1 (EUT/CPU) ........................................................................... 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 3, 2012 Revision 1 File: 01996 DXX TstRpt 12052 Page 4 of 35 Figure Four AC Line Conducted emissions line 2 (EUT/CPU) ............................................................................. 16 Data AC Line Conducted Emissions ...................................................................................................................... 17 Summary of Results for AC Line Conducted Emissions ....................................................................................... 18 General Radiated EMI Testing Procedure ............................................................................................................. 19 General Radiated Emissions Data (worst-case) ..................................................................................................... 19 Summary of Results for General Radia…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 011-02842-00 FCC ID: IPH-01996 Louisburg, KS 66053 Test #:120529 SN: 3846107200 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249 Date: July 9, 2012 Revision 1 File: TSup 01996 DXX Page 1 of 1 Test setup photographs
