IPH-02082LOW POWER TRANSMITTER (2400-2483.5 MHz)

Introduction WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Always consult your physician before you begin or modify any exercise program. Getting Started When using your device the first time, you should complete these tasks to set up the device and learn about the basic features. 1 Install your device using the standard mount (page 3) or the out-front mount ( page 4). 2 Turn on the device (page 4). 3 Locate satellites (page 6). 4 Go for a ride (page 7). 5 Charge the device (page 2). 6 Register the device (page 14). 7 Upload your ride to Garmin Connect™ (page 7). 8 Get the owner's manual (page 15). Charging the Device NOTICE To prevent corrosion, thoroughly dry the mini-USB port, the weather cap, and the surrounding area before charging or connecting to a computer. The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer. NOTE: The device will not charge when outside the temperature range of 32° to 113°F (0° to 45°C). 1 Pull up the weather cap À from the mini-USB port Á . 2 2 Plug the small end of the USB cable into the mini-USB port. 3 Plug the USB end of the cable into the AC adapter or a computer USB port. 4 Plug the AC adapter into a standard wall outlet. When you connect the device to a power source, the device turns on. 5 Charge the device completely. A fully charged battery can run for up to 15 hours before it must be recharged. Installing the Standard Mount For the best GPS reception, position the bike mount so the front of the Edge is oriented toward the sky. You can install the bike mount on the stem or the handlebars. 1 Select a secure location to mount the Edge where it does not interfere with the safe operation of your bike. 2 Place the rubber disk À on the back of the bike mount. The rubber tabs align with the back of the bike mount so it stays in place. 3 Place the bike mount on the bike stem. 4 Attach the bike mount securely using the two bands Á . 5 Align the tabs on the back of the Edge with the bike mount notches  . 6 Press down slightly and turn the Edge clockwise until it locks into place. 3 Installing the Out-Front Mount 1 Select a secure location to mount the Edge where it does not interfere with the safe operation of your bike. 2 Use the hex key to remove the screw À from the handlebar connector Á . 3 If you want to change the orientation of the mount, remove the two screws on the back side of the mount  , rotate the connector à , and replace the screws. 4 If the handlebar diameter is 26 mm, place the rubber pad around the handlebar. 5 Place the handlebar connector around the rubber pad or handlebar (31.8 mm diameter). 6 Replace the screw. NOTE: Garmin ® recommends a torque specification of 7 lbf-in. (0.8 N- m). Check the tightness of the screw periodically. 7 Align the tabs on the back of the Edge with the bike mount notches Ä . 8 Press down slightly and turn the Edge clockwise until it locks into place. Releasing the Edge 1 Turn the Edge clockwise to unlock the device. 2 Lift the Edge off the mount. Turning On the Device The first time you turn on the device, you are prompted to configure system settings and profiles (page 13). 1 Hold . 4 2 Follow the on-screen instructions. 3 If your device included a heart rate monitor and a GSC ™ 10, activate the ANT+™ sensors during configuration. For more information about ANT+ sensors, see page 10. Keys À Select to turn the backlight on and off. Hold to turn the device on and off. Á Select to mark a new lap.  Select to start and stop the timer. Home Screen Overview The home screen gives you quick access to all the features of the Edge. Bike 1Select to change your bike profile. RIDESelect to go for a ride. Road Select to change your activity profile. Select to manage your history, courses, workouts, and personal records. Select to view the map. Select to view the setup menu. Using the Touchscreen • When the timer is running, tap the screen to view the timer overlay. The timer overlay allows you to use the settings and search features during a ride. • Select to save your changes and close the page. • Select to close the page and return to the previous page. • Select to return to the previous page. 5 • Select to return to the home screen. • Select and to scroll. • Select to view the connections page. • Select to search for a location. • Select to search near a location. • Select to search by name. • Select to delete an item. Viewing the Connections Page The connections page displays the status of the satellite signals, ANT+ sensors, and your smartphone. From the home screen, select the status bar at the top of the page. The connections page appears. A flashing icon means the device is searching. You can select any icon to change the settings. Acquiring Satellite Signals Before you can use the GPS tracking and navigation features, you must acquire satellite signals. The device may need a clear view of the sky to acquire satellite signals. The time and date are set automatically based on the GPS position. 1 Go outdoors to an open area. 6 The front of the device should be oriented toward the sky. 2 From the home screen, select RIDE. 3 Wait while the device locates satellites. It may take 30–60 seconds to locate satellite signals. TIP: Do not begin moving until the timer page appears (page 7). Going for a Ride Before you can record speed and distance, you must locate satellite signals (page 6) or pair your device with an optional ANT+ sensor. NOTE: History is recorded only while the timer is running. 1 From the home screen, select RIDE. 2 Wait while the device locates satellites. 3 Select to start the timer. 4 Swipe the screen for additional data pages. 5 If necessary, tap the screen to view the timer overlay. 6 Select to stop the timer. 7 Select Save. Sending Your Ride to Garmin Connect NOTICE To prevent corrosion, thoroughly dry the mini-USB port, the weather…

Text truncated - open the document above for the full version.

TITLE SIZE PART NO: REV: SCALE Sht. Of 4.75” 4.75” 4.75” 9.5” Trimmed dimensionsTrimmed and bound dimensions Binding Cover Spread layout SPECIFICATION CONTROL DRAWING Revisions Rev.DateDescriptionECO No. A12/28/09Production Release- - - - B6/7/10Added GOST mark & update limited warranty72596 C6/06/11Update ICC82068 D10/21/11Added Australian Warranty85765 Specifications 1. Description Product documentation, ISPI, Fitness (ML 12) 2. Size Trimmed: Width = 9.5”, Height = 4.75”. Finished, Bound: Width = 4.75”, Height = 4.75”. 3. Tolerance ±0.0787” (±2 mm) 4. Pagination 36 pages 5. Material 80-lb woodfree (Approved equivalents allowed) 6. Finish N/A 7. Color Black and white 8. Bindery Saddle-stitched 9. Folds N/A 10. Electronic Artwork Shall conform to Garmin Archive 190-00720-23_0D.zip 11. Languages EN, FR, IT, DE, ES, PT, NL, DA, FI, NO, SV, PL 12. Notes This part shall comply with Garmin Banned & Restricted Substances (GPN 001-00211-00) CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Garmin Ltd. or its subsidiaries C/O Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. InitialsDateISPI, Fitness (ML 12) Drawn By: FMS12/28/09 A190-00720-23D Checked By: DTB01/04/10 Project Manager: JTF01/04/10 N/A Approved By: JKF01/05/10 137 Files The following files have been archived under the above ARCHIVE FILENAME. File NameFile Contents 190-00720-23_0D.inddInDesign CS4 for PC, Formatted manual 190-00720-23_0D_Spec.inddInDesign CS4 for PC, Document specification sheet 190-00720-23_0D.pdfPortable Document Format, Manual and specification sheet LinksGraphic files (eps, bmp, etc.) FontsFont files ISPI_Fitness_ML_12.pdfPortable Document Format, for online Dimensions and drawings for reference only. Drawings are not to scale. Important Safety and Product Information ..........................................2 Informations importantes relatives au produit et à la sécurité ............5 Informazioni importanti sulla sicurezza e sul prodotto ........................8 Wichtige Sicherheits- und Produktinformationen ..............................11 Información importante sobre el producto y tu seguridad ................14 Informações importantes de segurança e do produto ......................16 Belangrijke veiligheids- en productinformatie ...................................19 Vigtige produkt- og sikkerhedsinformationer ....................................22 Tärkeitä turvallisuus- ja tuotetietoja ..................................................25 Viktig sikkerhets- og produktinformasjon ..........................................27 Viktig säkerhets- och produktinformation .........................................30 Ważne informacje dotyczące bezpieczeństwa i produktu ................32 190-00720-23_0D.indd 110/21/2011 2:58:00 PM 2 Important Safety and Product Information  WARNING Failure to avoid the following potentially hazardous situations could result in death or serious injury. Health Warnings • Always consult your physician before beginning or modifying any exercise program. If you have a pacemaker or other implanted electronic device, consult your physician before using a heart rate monitor. • The device, the heart rate monitor, and other Garmin accessories are consumer devices, not medical devices, and could suffer from interference from external electrical sources. The heart rate readings are for reference only, and no responsibility is accepted for the consequences of any erroneous readings. • This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This notice is provided in accordance with California’s Proposition 65. See www.garmin.com/prop65 for more information. Navigation Warnings If your device contains or accepts street map products, follow these guidelines as well to ensure safe navigating: • Always use your best judgement, and operate the vehicle in a safe manner. Do not become distracted by the device while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the device screen while driving, and use voice prompts when possible. • Do not input destinations, change settings, or access any functions requiring prolonged use of the device controls while driving. Pull over in a safe and legal manner before attempting such operations. • When navigating, carefully compare information displayed on the device to all available navigation sources, including road signs, road closures, road conditions, traffic congestion, weather conditions, and other factors that may affect safety while driving. For safety, always resolve any discrepancies before continuing navigation, and defer to posted road signs and road conditions. • The device is designed to provide route suggestions. It is not a replacement for driver attentiveness and good judgement. Do not follow route suggestions if they suggest an unsafe or illegal maneuver or would place the vehicle in an unsafe situation. Battery Warnings If these guidelines are not followed, the internal lithium- ion battery may experience a shortened life span or may present a risk of damage to the GPS device, fire, chemical burn, electrolyte leak, and/or injury. • Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. To prevent damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not puncture or incinerate the device or battery. • When storing the device for an extended time, store within the following temperature range: from 32°F to 77°F (from 0°C to 25°C). • Do not operate the device outside of the following temperature range: from -4°F to 131°F (from -20°C to 55°C). • Contac…

Text truncated - open the document above for the full version.

Page 1 of 2 December 7, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-02082 PRODUCT: Low power Transmitters operated under paragraph 15.249. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia F3ACGD00.pdf Conf OpDes F3ACGD00.pdf Conf Schem F3ACGD00.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-02082 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

December 7, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. FCC ID: IPH-02082 1200 East 151st Street CORES number: 0005 0885 88 Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-02082 FCC Rules: Parts 2 and 15.249 Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 45 days after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files Exhibit File External Photos Short Term Conf ExtPho F3ACGD00.pdf Internal Photos Short Term Conf IntPho F3ACGD00.pdf Test Setup Photos Short Term Conf TSup F3ACGD00.pdf User Manual Short Term Conf UserMan F3ACGD001.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: 913 837-3214

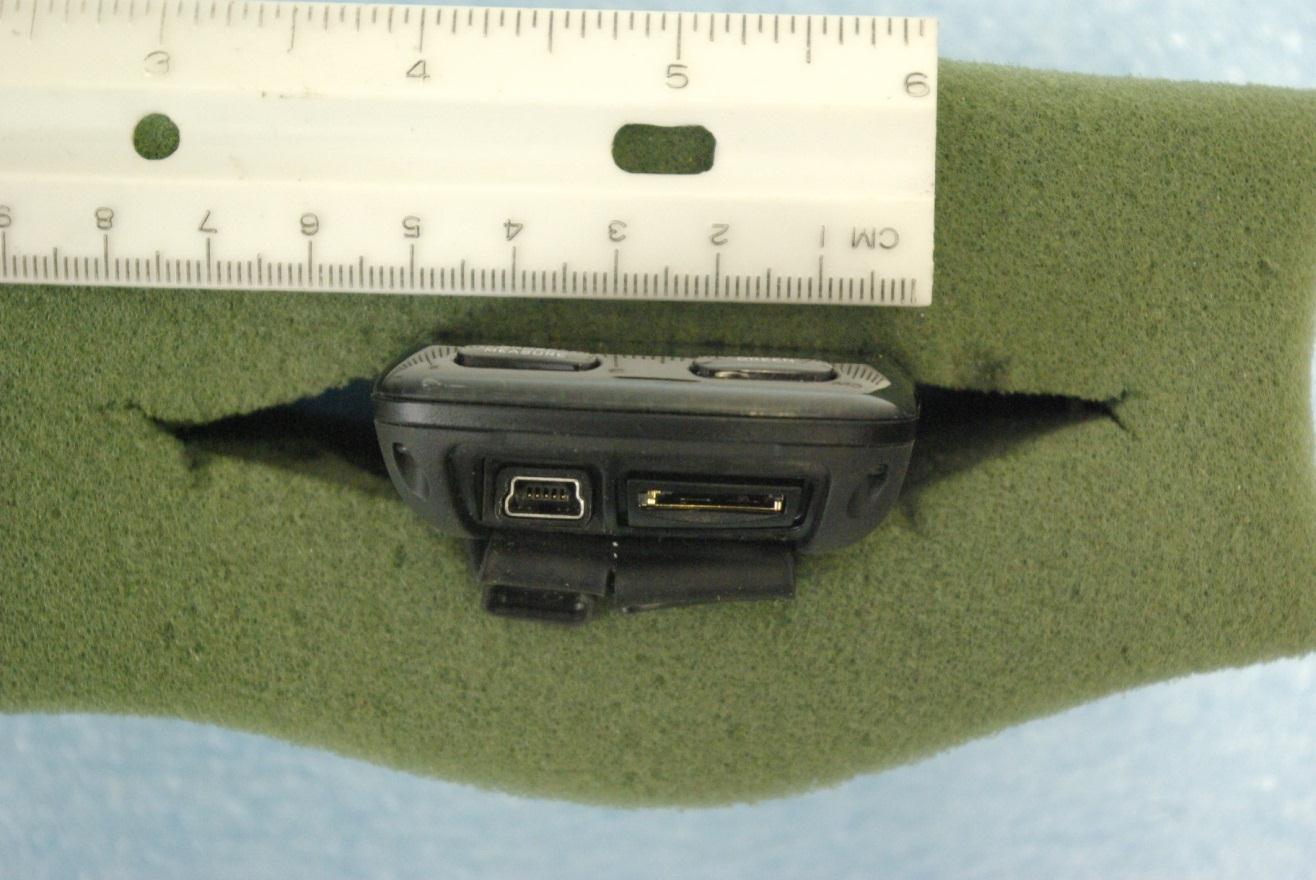

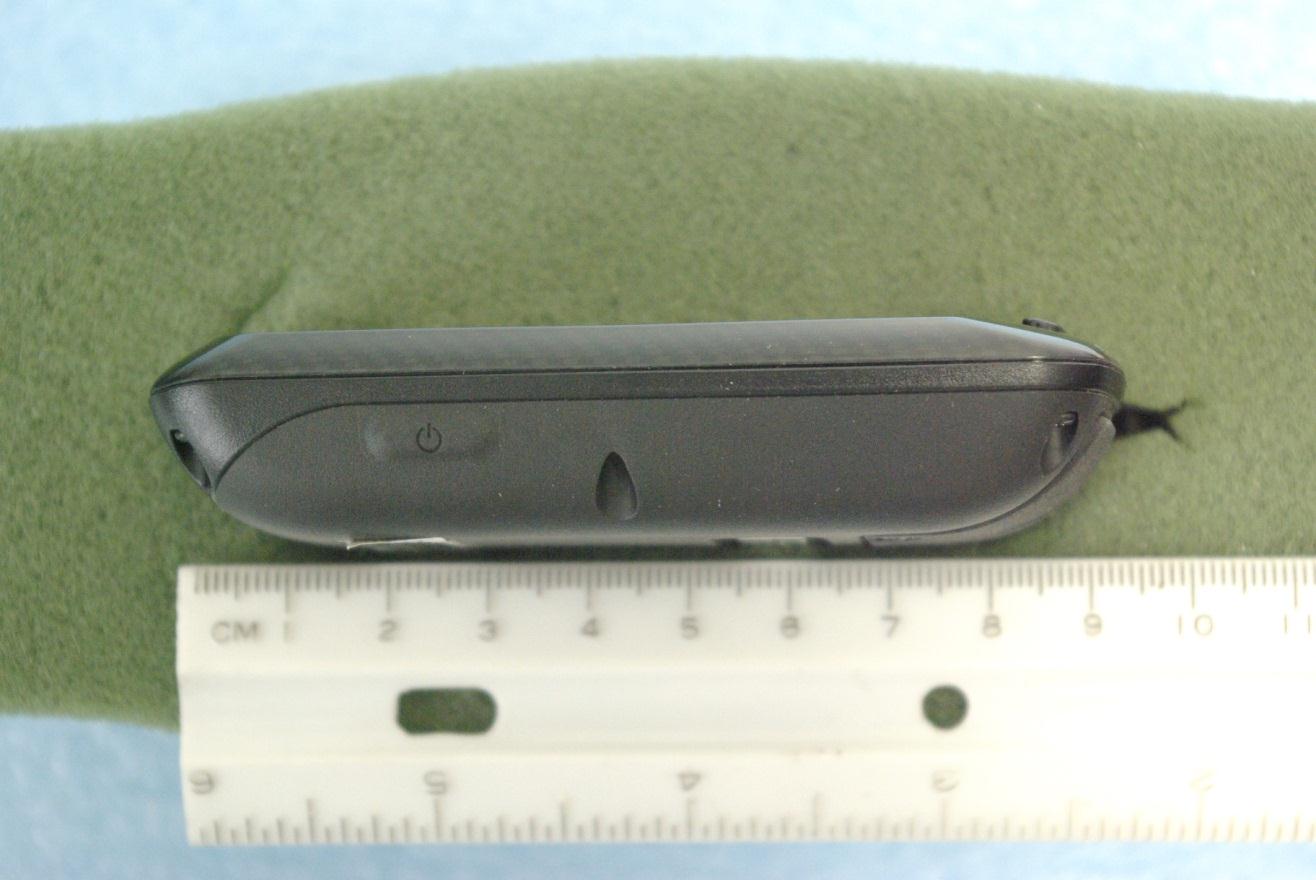

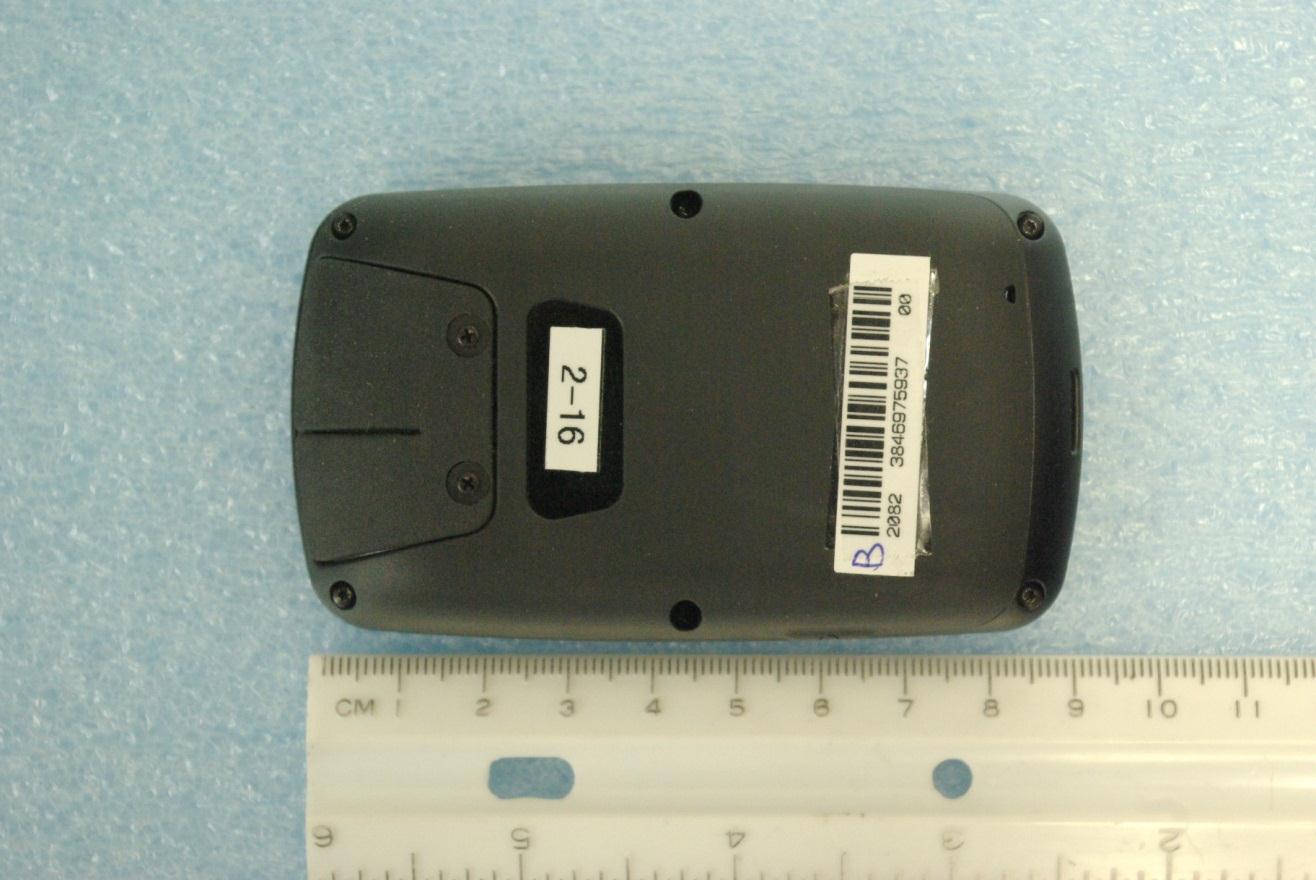

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: Short Term Conf ExtPho F3ACGD00 Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: Short Term Conf ExtPho F3ACGD00 Page 2 of 2

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: LabelSmpl F3ACGD00 Page 1 of 1 ID label and location

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: Short Term Conf IntPho F3ACGD00 Page 1 of 2 Internal Photographs Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: Short Term Conf IntPho F3ACGD00 Page 2 of 2 RF section of PCB

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: TunPro F3ACGD00 Page 1 of 1 Tune-up Procedure Transmitter tune-up procedure ANT/BT is tested during unit production by measuring the output strength of a 2.457 GHz continuous wave with a nearby receiver. The unit is then given pass/fail status based on the measured output strength. The pass/fail threshold is determined by engineering during product development.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 11, 2012 Revision 1 File: F3ACGD00 TstRpt 120613 Page 1 of 36 Test Report for Application of Certification FOR Model: F3ACGD00 GPN 011-03027-00/01 Low Power Transmitter FCC ID: IPH-02082 IC: 1792A-02082 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report Number 120613 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 11, 2012 Revision 1 File: F3ACGD00 TstRpt 120613 Page 2 of 36 Test Report for Application of Certification For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Model: F3ACGD00 GPN 011-03027-00/01 Low Power Transmitter Frequency Range: 2,402-2,480 MHz FCC ID: IPH-02082 IC: 1792A-02082 Test Report Number: 120613 Test Date: June 13, 2012 Authorized Signatory: Scot D. Rogers Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 11, 2012 Revision 1 File: F3ACGD00 TstRpt 120613 Page 3 of 36 Table of Contents TABLE OF CONTENTS .................................................................................................... 3 REVISIONS ....................................................................................................................... 4 FORWARD ....................................................................................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................... 5 OPINION / INTERPRETATION OF RESULTS ................................................................. 5 STATEMENT OF MODIFICATIONS AND DEVIATIONS ................................................. 6 ENVIRONMENTAL CONDITIONS.................................................................................... 6 UNITS OF MEASUREMENTS .......................................................................................... 6 TEST SITE LOCATIONS .................................................................................................. 6 LIST OF TEST EQUIPMENT ............................................................................................ 7 APPLICATION FOR CERTIFICATION ............................................................................. 8 EQUIPMENT TESTED SETUP, FUNCTION AND CONFIGURATIONS .......................... 9 Equipment Function and Test Setup ....................................................................................................................... 9 EUT Configuration Options .................................................................................................................................... 10 SUBPART C - INTENTIONAL RADIATORS .................................................................... 10 AC Line Conducted Emission Test Procedure ....................................................................................................... 10 Diagram 1 Test arrangement for Conducted emissions .......................................................................................... 11 Radiated Emission Test Procedure ......................................................................................................................... 12 Diagram 2 Test arrangement for radiated emissions of tabletop equipment .......................................................... 12 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ............................... 13 ANTENNA REQUIREMENTS ........................................................................................... 14 RESTRICTED BANDS OF OPERATION ......................................................................... 14 Table 1 Radiated Emissions in Restricted Bands Data ........................................................................................... 15 Summary of Results for Radiated Emissions in Restricted Bands ....................................................................... 15 AC LINE CONDUCTED EMI TESTING ............................................................................ 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 11, 2012 Revision 1 File: F3ACGD00 TstRpt 120613 Page 4 of 36 Figure One AC Line Conducted emissions of EUT line 1 (EUT AC Adapter) ..................................................... 17 Figure Two AC Line Conducted emissions of EUT line 2 (EUT AC Adapter) ..................................................... 17 Figure Three AC Line Conducted emissions of EUT line 1 (EUT USB to CPU) .................................................. 18 Figure Four AC Line …

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: Short Term Conf TSup F3ACGD00 Page 1 of 3 Test setup photographs Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: Short Term Conf TSup F3ACGD00 Page 2 of 3 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02082 4405 West 259 th Terrace Model: F3ACGD00 IC: 1792A-02082 Louisburg, KS 66053 Test #:120613 SN: 3846975937 GPN: 011-03027-00/01 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: December 7, 2012 Revision 1 File: Short Term Conf TSup F3ACGD00 Page 3 of 3
