IPH-02114VIRB Elite

VIRB ™ Series Owner’s Manual August 2013190-01627-00_0APrinted in Taiwan All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product. Garmin ® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. VIRB™, ANT+™, and BaseCamp™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. microSD™ and the microSDXC logo are trademarks of SD-3C, LLC. Mac ® is a trademark of Apple Inc. Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation in the United States and other countries. HDMI ® is a registered trademark of HDMI Licensing, LLC. Wi-Fi ® is a registered mark of Wi-Fi Alliance Corporation. Other trademarks and trade names are those of their respective owners. Table of Contents Introduction....................................................................1 Installing a Memory Card...........................................................1 Installing the Battery Pack.........................................................1 Charging the Lithium-Ion Battery Pack......................................1 Keys...........................................................................................2 Mounting the Device..................................................................2 Turning On the Device...............................................................2 Modes........................................................................................3 Viewfinder.......................................................................3 Leveling the Device....................................................................3 Status Page...............................................................................3 Video...............................................................................3 Recording a Video.....................................................................3 Video Settings............................................................................4 Advanced Recording Settings....................................................4 Recording Video Automatically..................................................4 Recording a Time Lapse Video..................................................4 Recording a Video Loop............................................................5 Connecting an External Microphone or Audio Source...............5 Photos.............................................................................5 Taking a Photo...........................................................................5 Photos Settings..........................................................................5 Taking a Delayed Photo.............................................................5 Taking Repeated Photos...........................................................5 Playback.........................................................................5 Viewing Photos and Videos.......................................................5 Viewing Video Over HDMI®.......................................................6 Connecting Headphones...........................................................6 Outputting Composite Video......................................................6 Deleting Photos and Videos.......................................................6 Tracks.............................................................................6 Recorded Track Log Data..........................................................6 Dashboards....................................................................7 Viewing the Dashboards............................................................7 Pairing Your ANT+ Sensors.......................................................7 Remote Control..............................................................7 Controlling the Device Remotely................................................8 Controlling Multiple VIRB Devices Remotely.............................8 Operating the Device Using Your Mobile Device.......................8 Troubleshooting.............................................................8 My device does not turn on........................................................8 My device display is hard to see................................................8 Some information is missing from the dashboards....................8 My video recordings do not look smooth...................................8 My device turns off when I stop recording video........................8 Device Information.........................................................8 System Settings.........................................................................8 Erasing Your Memory Card.......................................................9 Extending the Battery Life..........................................................9 Device Care...............................................................................9 File Types..................................................................................9 Connecting the Device to Your Computer.................................9 Support and Updates.................................................................9 Specifications.............................................................................9 Getting More Information...........................................................9 Index..............................................................................10 Table of Contentsi Introduction WARNING See the Important Safety and Product Information guide in the product box for pr…

Text truncated - open the document above for the full version.

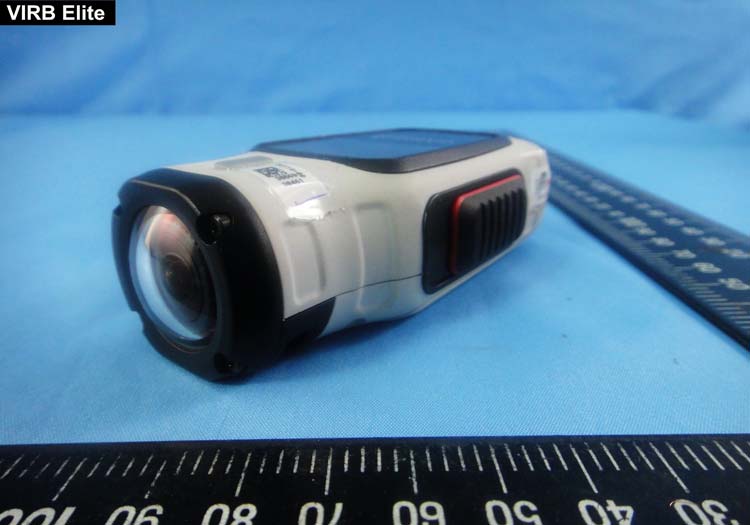

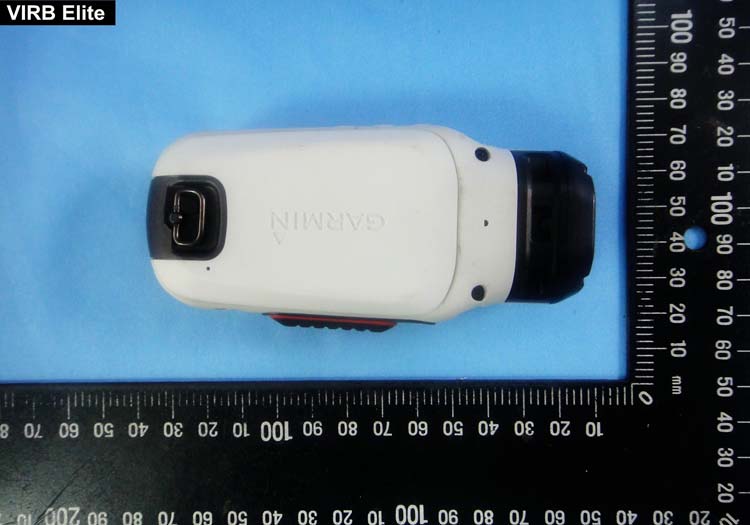

1 of 4 External Photos Model Number: O3AHGT01 FCC ID: IPH-02114 2 of 4 EUT Photo 1 ) EUT Photo 2 ) 3 of 4 EUT Photo 3 ) EUT Photo 4 ) 4 of 4 EUT Photo 5 )

OFSHT. REV. DWG. NO. SCALE SIZE TITLE CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Tag, S/N, Virb Elite 161-03345-01 C A 1 1 1X EXPERIMENTAL RELEASE 7/1/13 1 REV. DATE DESCRIPTION APPRVD. REVISIONS ---- SPECIFICATION CONTROL DRAWING c/o Garmin International, Inc. Garmin Ltd. or its subsidiaries 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. DATEDRWN. RNL 7/1/13 TOLERANCE UNLESS NOTED OTHERWISE .XX +/- .010”, .25 mm .XXX +/- .005”, .13 mm HOLES +/- .003”, .08 mm ANGLES +/- 0 DEG / 30 MIN 2. 9 DIGIT SERIAL NUMBER TO BE PRINTED SEQUENTIALLY AS SHOWN (2D DATA MATRIX BARCODE WITH SEPARATE MATCHING HUMAN READABLE CODE). ALSO PRINT ADDITIONAL TAGS (30 X 7.5) IN QTY INDICATED (BARCODE 39 WITH HUMAN READABLE ONLY). ALL S/N INFO PRINTED WITH INDELIBLE BLACK INK. SERIAL NUMBER RANGE FOR THIS ITEM: 3AP000000-3AP999999 AS INDICATED ON GARMIN PURCHASE ORDER. 1. MATERIAL: VINYL LAMINATE, SECOND SURFACE PRINTED. BACKGROUND - BLACK. NOMENCLATURE - WHITE, SERIAL NUMBER TO BE BLACK. ACRYLIC PERMANENT ADHESIVE ON BACK SIDE WITH PEEL OFF RELEASE LINER. TOTAL PACKAGE THICKNESS EXCLUDING RELEASE LINER IS 0.05-0.13. 3. MAIN TAG AND ADDITIONAL TAG ARE SUPPLIED ON ONE ROLL WITH EQUIVALENT SERIAL NO.S ADJACENT TO EACH OTHER. ALL TAGS ARE “KISS CUT” ON ROLL. 4. PARTS TO BE FABRICATED USING DIGITAL CORELDRAW FILE. 5. THIS PART SHALL COMPLY WITH GARMIN BANNED & RESTRICTED SUBSTANCES DOCUMENT GPN 001-00211-00. 6. THIS PART SHALL NOT CONTAIN HAZARDOUS SUBSTANCES EXCEEDING LEVELS DEFINED BY EU DIRECTIVE 2011/65/EU (RoHS 2). NOTES: Dims: mm 27.30 17.30 R.65, 4x FCC ID: IPH-02114 IC: 1792A-02114 M/N: O3AHGT01 VIRB Elite SCALE: 1X 3AP000000 PRODUCTION RELEASE 104161 7/17/13 A 3AP000000 5V 2A ADD VOLTAGE RATING & UPDATE FCC/IC ID NUMBERS 104463 7/24/13 B Taiwan N20233 МП02

1 of 9 Internal Photos Model Number: O3AHGT01 FCC ID: IPH-02114 2 of 9 EUT Photo 1 ) EUT Photo 2 ) 3 of 9 EUT Photo 3 ) EUT Photo 4 ) 4 of 9 EUT Photo 5 ) EUT Photo 6 ) 5 of 9 EUT Photo 7 ) EUT Photo 8 ) 6 of 9 EUT Photo 9 ) EUT Photo 10 ) 7 of 9 EUT Photo 11 ) EUT Photo 12 ) 8 of 9 EUT Photo 13 ) EUT Photo 14 ) Wi-Fi ANT 9 of 9 EUT Photo 15 )

Report Number: 1307FS12Page 1 of 8 ©2013 A Test Lab Techno Corp. A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR Test Exclusion Evaluation Test Report No. ： 1307FS12 Applicant ： Garmin International Inc. Manufacturer ： Garmin Corporation Product Type ： VIRB Elite Trade Name ： Garmin Model Number ： O3AHGT01 Dates of Received ： May 08, 2013 Dates of Test ： Jul. 02, 2013 Dates of Issued ： Jul. 30, 2013 Test Specification ： 47 CFR § 2.1093 KDB 447498 D01 General RF Exposure Guidance v05r01 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r01 RSS-102 Issue 4 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Yung Tan Tsai ) (Bill Hu) Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. SAR Test Exclusion ...................................................................................................... 4 2.1 Antenna Distance ............................................................................................... 5 2.2 Conducted Power............................................................................................... 6 2.3 Evaluation Results ............................................................................................. 7 Report Number: 1307FS12Page 2 of 8 ©2013 A Test Lab Techno Corp. Report Number: 1307FS12Page 3 of 8 ©2013 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Garmin International Inc. Applicant Address 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Manufacturer Garmin Corporation Manufacturer Address No.68, Zhangshu 2nd Rd., Xizhi Dist., New Taipei City 221, Taiwan Product Type VIRB Elite Trade Name Garmin Model Number O3AHGT01 FCC ID IPH-02114 Frequency Range 2412 - 2462 MHz IEEE 802.11b / IEEE 802.11g 2402 - 2479 MHz 2.4GHz ANT Transmit Power 0.020 W / 12.93 dBm (IEEE 802.11b) (conducted power) 0.009 W / 9.60 dBm (IEEE 802.11g) 0.002 W / 1.77 dBm (2.4G Hz ANT) Antenna Specification IEEE 802.11b, IEEE 802.11g:2.22 dBi 2.4GHz ANT: 2.22 dBi Antenna Designation chip antenna Temperature Range -30 ~ +70°C The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1093 & OET65 Supplement C. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. 2. SAR Test Exclusion As RF exposure evaluation of portable device, SAR test is not required when the evaluation results. According to KDB 447498 4.3.1, unless excluded by specific FCC test procedures, portable devices shall include SAR data for equipment approval. SAR test necessity will be based on the exclusion result. The test exclusion refers KDB 447498 as below: ≤50mm: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR >50mm and <200mm: a) [Power allowed at numeric threshold for 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW, at 100 MHz to 1500 MHz b) [Power allowed at numeric threshold for 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz Report Number: 1307FS12Page 4 of 8 ©2013 A Test Lab Techno Corp. Report Number: 1307FS12Page 5 of 8 ©2013 A Test Lab Techno Corp. 2.1 Antenna Distance Antenna to Side (The evaluated distance available extremity SAR as below): Distance of Antenna to edge Antenna Side Distance (mm) WLAN Side 1 8.09 WLAN Side 2 23.62 WLAN Side 3 74.33 WLAN Side 4 32.77 WLAN Side 5 38.49 WLAN Side 6 6.54 Antenna to Body (The evaluated distance available body SAR as below) Distance of Antenna to edge Antenna Side Distance (mm) WLAN Side 1 23.09 WLAN Side 2 38.62 WLAN Side 3 89.33 WLAN Side 4 47.77 WLAN Side 5 53.49 WLAN Side 6 21.54 Note: The use distance more than 1.5cm, therefore distance of antenna to body should be increased 1.5cm (from antenna to side). 2.2 Conducted Power Band Date Rate CH Frequency (MHz) Time-Avg. Conducted power (dBm) 1 2412.0 12.93 6 2437.0 11.86 1M 11 2462.0 10.95 2M 6 2437.0 11.54 5.5M 6 2437.0 10.41 IEEE 802.11b 11M 6 2437.0 9.12 1 2412.0 9.60 6 2437.0 8.91 6M 11 2462.0 7.88 9M 6 2437.0 8.07 12M 6 2437.0 5.33 18M 6 2437.0 3.69 24M 6 2437.0 0.90 36M 6 2437.0 -0.35 48M 6 2437.0 -3.10 IEEE 802.11g 54M 6 2437.0 -3.24 Band Frequency (MHz) Average Power (dBm) 2402.0 1.77 2457.0 -0.38 2.4GHz ANT 2479.0 -1.07 Report Number: 1307FS12Page 6 of 8 ©2013 A Test Lab Techno Corp. 2.3 Evaluation Results The evaluation of SAR test reduction according to KDB447498 SAR test is not required when the results showed “SAR is not required”. Extremity SAR: ≤ 50 mm PowerFrequencydistancePower exclusion considerations Side Band Channel (dBm)(GHz) (mm) (mW) Result Limit SAR 10g IEEE 802.11b1 12.932.412 8.09 20 3.8 7.5 SAR is not required 1 2.4GHz ANT --- 1.772.402 8.09 2 0.4 7.5 SAR is not required IEEE 802.11b1 12.932.412 23.62 20 1.3 7.5 SAR is not required 2 2.4GHz ANT --- 1.772.402 23.62 2 0.1 7.5 SAR is not required IEEE 802.11b1 12.932.412 32.77 20 0.9 7.5 …

Text truncated - open the document above for the full version.

Report Number: 1307FR13 1 of 46 A Test Lab Techno Corp. FCC 47 CFR PART 15 SUBPART C Product Type ： VIRB Elite Applicant ： Garmin International Inc. Address ： 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Trade Name ： Garmin Model Number ： O3AHGT01 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Receive Date ： May 08, 2013 Test Period ： Jul. 02~Jul.16, 2013 Issue Date ： Jul. 30, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Revision History Rev. Issue Date Revisions Revised By 00 Jul. 30, 2013 Initial Issue Report Number: 1307FR13 2 of 46 A Test Lab Techno Corp. Report Number: 1307FR13 3 of 46 A Test Lab Techno Corp. Verification of Compliance Issued Date: 07/30/2013 Product Type : VIRB Elite Applicant : Garmin International Inc. Address : 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Trade Name : Garmin Model Number : O3AHGT01 FCC ID : IPH-02114 EUT Rated Voltage : DC 5.0V Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Conducted Emission Measurement ........................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................... 10 4.3. Test Setup............................................................................................................................................. 10 4.4. Test Procedure ......................................................................................................................................11 4.5. Test Result............................................................................................................................................ 12 5 Radiated Emission Measurement............................................................................................................... 14 5.1. Limit ...................................................................................................................................................... 14 5.2. Test Instruments ................................................................................................................................... 14 5.3. Setup .................................................................................................................................................... 15 5.4. Test Procedure ..................................................................................................................................... 16 5.5. Test Result............................................................................................................................................ 18 6 Maximum Conducted Output Power Measurement.................................................................................. 23 6.1. Limit ...................................................................................................................................................... 23 6.2. Test Setup.......................................................................................…

Text truncated - open the document above for the full version.

Report Number: 1307FR14 1 of 37 A Test Lab Techno Corp. FCC 47 CFR PART 15 SUBPART C Product Type ： VIRB Elite Applicant ： Garmin International Inc. Address ： 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Trade Name ： Garmin Model Number ： O3AHGT01 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Receive Date ： May 08, 2013 Test Period ： Jul. 02~Jul.25, 2013 Issue Date ： Jul. 30, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Revision History Rev. Issue Date Revisions Revised By 00 Jul. 30, 2013 Initial Issue Report Number: 1307FR14 2 of 37 A Test Lab Techno Corp. Report Number: 1307FR14 3 of 37 A Test Lab Techno Corp. Verification of Compliance Issued Date: 07/30/2013 Product Type : VIRB Elite Applicant : Garmin International Inc. Address : 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Trade Name : Garmin Model Number : O3AHGT01 FCC ID : IPH-02114 EUT Rated Voltage : DC 5.0V Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Conducted Emission Measurement ........................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................... 10 4.3. Test Setup............................................................................................................................................. 10 4.4. Test Procedure ......................................................................................................................................11 4.5. Test Result............................................................................................................................................ 12 5 Radiated Emission Measurement............................................................................................................... 14 5.1. Limit ...................................................................................................................................................... 14 5.2. Test Instruments ................................................................................................................................... 14 5.3. Setup .................................................................................................................................................... 15 5.4. Test Procedure ..................................................................................................................................... 16 5.5. Test Result............................................................................................................................................ 18 6 Maximum Conducted Output Power Measurement.................................................................................. 21 6.1. Limit ...................................................................................................................................................... 21 6.2. Test Setup.......................................................................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Report Number: 1307FR13 1 of 3 A Test Lab Techno Corp. Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1307FR13 2 of 3 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1307FR13 3 of 3 A Test Lab Techno Corp.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Report Number: 1307FR14 1 of 3 A Test Lab Techno Corp. Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1307FR14 2 of 3 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1307FR14 3 of 3 A Test Lab Techno Corp.
