IPH-02156LOW POWER TRANSMITTER (2400-2483.5 MHz)

GNT™ 10 Installation Instructions The GNT 10 extends the range of Garmin ® wireless marine devices, such as a remote control or wireless mouse, and adds additional capabilities to more feature-rich wireless devices, such as the quatix™ watch. The GNT 10 connects to an existing NMEA 2000 ® network on your boat. Additional GNT 10 devices can be installed on your NMEA 2000 network to provide a larger coverage area on your boat. Important Safety Information CAUTION Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. NOTICE When drilling or cutting, always check what is on the opposite side of the surface. Contacting Garmin Product Support • Go to www.garmin.com/support and click Contact Support for in-country support information. • In the USA, call (913) 397.8200 or (800) 800.1020. • In the UK, call 0808 2380000. • In Europe, call +44 (0) 870.8501241. Mounting Considerations NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty. When selecting a mounting location, observe these considerations. • Metal and other dense materials may inhibit communication between this device and Garmin wireless marine devices. The intended mounting location must be tested to make sure this device reliably communicates with your wireless devices everywhere you plan to use them on the boat. • You can use the included screws to mount the device on your boat. If the included screws are not appropriate for the mounting surface, suitable hardware must be purchased separately. Mounting the Device 1 Determine the mounting location. 2 Using the device as a template, mark the two pilot hole locations on the mounting surface. 3 Using a 1 / 8 in. (3 mm) bit, drill the pilot holes. 4 Use the included screws to attach the device to the mounting surface. NMEA 2000 Connection Considerations • This device connects to an existing NMEA 2000 network on your boat. • If you are unfamiliar with NMEA 2000, you should read the “NMEA 2000 Network Fundamentals” chapter of the Technical Reference for NMEA 2000 Products, available on the Garmin web site. Click the “Manuals” link on the product page for your device at www.garmin.com. • If the cable connected to the device is not long enough to reach your NMEA 2000 network, an extension of up to 16.5 ft. (5 m) can be used, according to the NMEA 2000 guidelines. ItemDescription À GNT 10 device Á NMEA 2000 power cable (existing; not included) Â Ignition or in-line switch (existing; not included) Ã 12 Vdc power source Ä NMEA 2000 terminator or backbone cable (existing; not included) Å NMEA 2000 T-connector (included) About the Status LED The device has a two-color LED that you can use to troubleshoot problems, if necessary. The LED is labeled STATUS on the device. ColorStateStatus GreenFlashingThe device is working correctly. SolidThe device software is being updated RedFlashing slowly The device is starting up. If the LED does not change to flashing green after a short time, the device may not be not working correctly. A software update using a Garmin chartplotter connected to the same NMEA 2000 network may correct the problem. Flashing quickly The device is not receiving NMEA 2000 data. The NMEA 2000 network should be checked for proper installation and operation. Auto MOB When paired with a Garmin quatix watch, this device is capable of triggering an automatic man overboard (MOB) event. A Garmin quatix watch must be paired with this device for the auto MOB feature to work properly. The owner's manual provided with your watch contains detailed instructions on pairing and auto MOB setup. After auto MOB is enabled on a paired watch, this device monitors the connection with the watch. When the connection to the watch is lost for ten seconds, this device triggers a system-wide MOB event. During an MOB event, an MOB waypoint and alert appear on all connected Garmin chartplotters. The owner's manual provided with your Garmin chartplotter contains additional information on MOB features and actions. February 2013 190-01576-90_01Printed in Taiwan Specifications SpecificationMeasurement Dimensions (W×H×D) 5 5 / 16 × 2 51 / 64 × 1 11 / 16 in. (135 × 71 × 26 mm) Weight6.63 oz. (188 g) Temperature rangeFrom 5° to 158°F (from -15° to 70°C) MaterialFully gasketed, high-impact plastic, waterproof to IEC 60529 IPX7 standards Compass-safe distance 1 31 / 32 in. (50 mm) NMEA 2000 LEN1 NMEA 2000 PGN Information TypePGNDescription Transmit and receive 059392ISO acknowledgment 060928ISO address claim 126208NMEA ® : Command, request, and acknowledge group function Transmit126464Transmit PGN list group function 126996Product information TypePGNDescription Receive059904ISO request 127250Vessel heading 127258Magnetic variance 127488Engine parameters: Rapid update 127489Engine parameters: Dynamic 127505Fluid level 127508Battery status 128259Speed: Water referenced 128267Water depth 129025Position: Rapid update 129026COG and SOG : Rapid update 129029GNSS position data 129283Cross track error 129284Navigation data 129285Navigation route and waypoint info 130306Wind data 130312Temperature 130314Actual pressure Garmin International, Inc. 1200 East 151st Street Olathe, Kansas 66062, USA Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park Southampton, Hampshire, SO40 9LR UK Garmin Corporation No. 68, Zhangshu 2nd Road, Xizhi Dist. New Taipei City, 221, Taiwan (R.O.C.) Garmin ® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. GNT™ and quatix™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permiss…

Text truncated - open the document above for the full version.

Page 1 of 2 March 6, 2013 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-02156 PRODUCT: Low power Transmitters operated under paragraph 15.249. Dear Sirs: Garmin International, Inc. requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia M3AINA00.pdf Conf OpDes M3AINA00.pdf Conf Schem M3AINA00.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-02156 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

March 6, 2013 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-02156 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 15.249 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem M3AINA00.pdf Block diagram Conf BlkDia M3AINA00.pdf Operational Description Conf OpDes M3AINA00.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

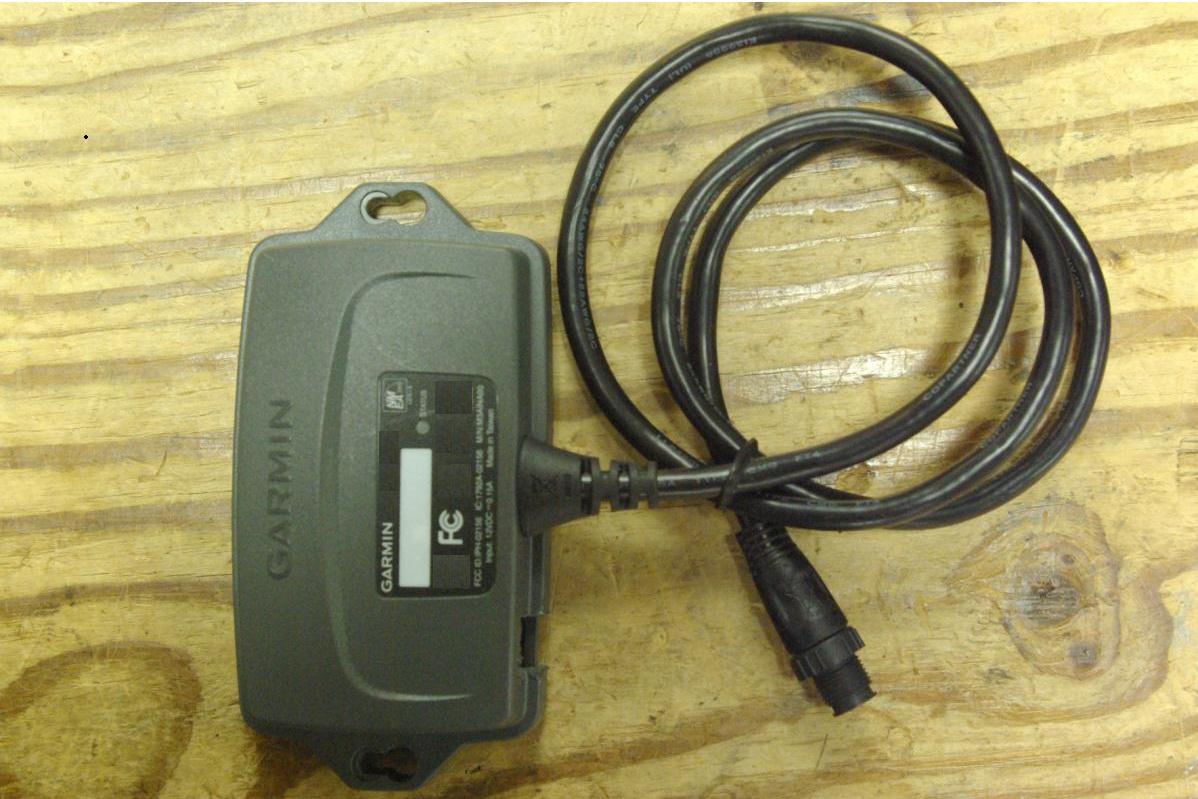

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 19, 2013 Revision 1 File: ExtPho M3AINA00 Page 1 of 1 External photographs of equipment under test

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 19, 2013 Revision 1 File: LabelSmpl M3AINA00 Page 1 of 1 ID label and location

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 6, 2013 Revision 1 File: IntPho M3AINA00 Page 1 of 1 Internal Photographs

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 25, 2013 Revision 1 File: Garmin M3AINA00 TstRpt 130216 Page 1 of 26 Application For Grant of Certification FOR FOR Model: M3AINA00 2402-2479 MHz Low Power Transmitter FCC ID: IPH-02156 IC: 1792A-02156 FOR Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Test Report Number: 130216 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 25, 2013 Revision 1 File: Garmin M3AINA00 TstRpt 130216 Page 2 of 26 Engineering Test Report For Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.249 and Industry Canada RSS-210 License Exempt Intentional Radiator For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Model: M3AINA00 Low Power Transmitter Frequency Range 2402-2479 MHz FCC ID#: IPH-02156 IC: 1792A-02156 Test Date: February 16, 2013 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 25, 2013 Revision 1 File: Garmin M3AINA00 TstRpt 130216 Page 3 of 26 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 7 Equipment Configuration.................................................................................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT TESTING PROCEDURES ........................................................................ 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Diagram 1 Test arrangement for Conducted emissions ....................................................................................... 9 Radiated Emission Test Procedure ................................................................................................................... 10 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 10 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 11 TEST SITE LOCATIONS .............................................................................................. 12 UNITS OF MEASUREMENTS ...................................................................................... 12 ENVIRONMENTAL CONDITIONS................................................................................ 12 LIST OF TEST EQUIPMENT ........................................................................................ 13 INTENTIONAL RADIATORS ........................................................................................ 14 Antenna Requirements ...................................................................................................................................... 14 Restricted Bands of Operation .......................................................................................................................... 14 Table 1 General Radiated Emissions in Restricted Bands Data ........................................................................ 15 Table 2 Harmonic Radiated Emissions in Restricted Bands Data ..................................................................... 15 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 16 General Radiated Emissions Procedure ........................................................................................................... 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 25, 2013 Revision 1 File: Garmin M3AINA00 TstRpt 130216 Page 4 of 26 Table 3 General Radiated Emissions from EUT Data (Highest Emissions) ...................................................... 17 Summary of Results for General Radiated Emissions .................................................................................... 17 Operation in the Band 2400 – 2483…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: M3AINA00 SN: 25 FCC ID#: IPH-02156 Louisburg, KS 66053 Test #: 130216 IC: 1792A-02156 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: March 6, 2013 Revision 1 File: TSup M3AINA00 Page 1 of 1 Test setup photographs
