GPSMAP ® 800 and 1000 Series Installation Instructions Important Safety Information WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product specifications. In addition, connecting the power cable without the appropriate fuse in place will void the product warranty. CAUTION Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. NOTICE When drilling or cutting, always check what is on the opposite side of the surface. Registering Your Device Help us better support you by completing our online registration today. •Go to http://my.garmin.com. •Keep the original sales receipt, or a photocopy, in a safe place. Contacting Garmin Product Support •Go to www.garmin.com/support and click Contact Support for in-country support information. •In the USA, call (913) 397.8200 or (800) 800.1020. •In the UK, call 0808 2380000. •In Europe, call +44 (0) 870.8501241. Tools Needed •Drill and drill bits •#2 Phillips screwdriver •Jigsaw or rotary tool •File and sandpaper •Marine sealant (optional) Mounting Considerations NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty. Using the included hardware and template, you can mount the device using one of two methods. You can use the included bracket and hardware to bail mount the device, or you can use the included template and hardware to flush mount the device in the dashboard. When selecting a mounting location, you should observe these considerations. •The location should provide optimal viewing as you operate your boat. •The location should allow for easy access to all device interfaces, such as the keypad, touchscreen, and card reader, if applicable. •The location must be strong enough to support the weight of the device and protect it from excessive vibration or shock. •To avoid interference with a magnetic compass, the device should not be installed closer to a compass than the compass-safe distance value listed in the product specifications. •The location must allow room for the routing and connection of all cables. Bail Mounting the Device NOTICE If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid any cracking in the gel-coat layer when the screws are tightened. Stainless-steel screws may bind when screwed into fiberglass and overtightened. Garmin ® recommends applying an anti-seize lubricant to the screws before installing them. You can use the included bracket to bail mount the device on a flat surface. 1 Using the bail-mount bracket À as a template, mark the pilot holes Á . 2 Using a 3 mm ( 1 / 8 in.) drill bit, drill the pilot holes. 3 Using the included screws  , secure the bail-mount bracket to the mounting surface. 4 Install the bail-mount knobs à on the sides of the device. 5 Place the device in the bail-mount bracket and tighten the bail-mount knobs. Flush Mounting the Device NOTICE Be careful when cutting the hole to flush mount the device. There is only a small amount of clearance between the case and the mounting holes, and cutting the hole too large could compromise the stability of the device after it is mounted. If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid any cracking in the gel-coat layer when the screws are tightened. October 2013 190-01658-02_0APrinted in Taiwan Stainless-steel screws may bind when screwed into fiberglass and overtightened. Garmin recommends applying an anti-seize lubricant to the screws before installing them. The included template and hardware can be used to mount the device in your dashboard. 1 Trim the template and make sure it fits in the location where you want to mount the device. 2 Remove the protective liner from the back of the template and adhere it to the location where you want to mount the device. 3 Using a 9.5 mm ( 3 / 8 in.) drill bit, drill one or more of the holes inside the corners of the solid line on the template to prepare the mounting surface for cutting. 4 Using a jigsaw or rotary tool, cut the mounting surface along the inside of the solid line indicated on the template. 5 Place the device in the cutout to test the fit. 6 If necessary, use a file and sandpaper to refine the size of the cutout. 7 After the device fits correctly in the cutout, ensure the mounting holes on the device line up with the pilot holes on the template. 8 If the mounting holes on the device do not line up, mark the new pilot-hole locations. 9 Using a 3.2 mm ( 1 / 8 in.) drill bit, drill the pilot holes. 10 Remove the template from the mounting surface. 11 If you will not have access to the back of the device after you mount it, connect all necessary cables to the device before placing it into the cutout. 12 If necessary, cover unused connectors with the attached weather caps to prevent corrosion of the metal contacts. 13 Install the foam gasket À on the back of the device. The pieces of the rubber gasket have adhesive on the back. Make sure you remove the protective liner before installing them on the device. 14 Place the device in the cutout. 15 Secure the device to the mounting surface using the included screws Á . 16 Install the …

Text truncated - open the document above for the full version.

GPSMAP ® Owner’s Manual August 2013190-01658-00_0APrinted in Taiwan DRAFT All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product. Garmin ® , the Garmin logo, BlueChart ® , g2 Vision ® , and MapSource ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. echoMAP™, GXM™, and HomePort™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. iOS ® is a registered trademark of Cisco Systems, Inc. used under license by Apple Inc. microSD™ is a trademark of SD-3C, LLC. NMEA ® , NMEA 2000 ® , and the NMEA 2000 logo are registered trademarks of the National Marine Electronics Association. SiriusXM ® is a registered trademark of SiriusXM Radio Inc. All other trademarks and copyrights are the property of their respective owners. Other trademarks and trade names are those of their respective owners. DRAFT Table of Contents Introduction ................................................................1 Device Front View................................................................. 1 Device Keys.....................................................................1 Downloading the Manuals..................................................... 1 GPS Satellite Signals............................................................ 1 Adjusting the Backlight.......................................................... 1 Adjusting the Color Mode...................................................... 1 Customizing the Home Screen.............................................. 1 Inserting Memory Cards........................................................ 1 Charts and 3D Chart Views....................................... 1 Navigation Chart and Offshore Fishing Chart........................2 Zooming In and Out of the Chart..................................... 2 Panning the Chart with the Keys..................................... 2 Selecting an Item on the Map Using the Device Keys.....2 Chart Symbols................................................................. 2 Viewing Location and Object Information on a Chart...... 2 Navigating to a Point on the Chart...................................3 Viewing Details about Navaids........................................ 3 Premium Charts...............................................................3 Viewing Tide Station Information............................... 3 Showing Satellite Imagery on the Navigation Chart...4 Viewing Aerial Photos of Landmarks......................... 4 Automatic Identification System............................................ 4 AIS Targeting Symbols.................................................... 4 Heading and Projected Course of Activated AIS Targets.............................................................................4 Showing AIS Vessels on a Chart or 3D Chart View........ 5 Activating a Target for an AIS Vessel.............................. 5 Viewing Information about a Targeted AIS Vessel.... 5 Deactivating a Target for an AIS Vessel.................... 5 Viewing a List of AIS Threats...........................................5 Setting the Safe-Zone Collision Alarm.............................5 AIS Distress Signals........................................................ 5 Navigating to a Distress Signal Transmission............5 AIS Distress Signal Device Targeting Symbols......... 5 Enabling AIS Transmission Test Alerts......................5 Turning Off AIS Reception...............................................5 Chart and 3D Chart View Settings.........................................6 Waypoints and Tracks Settings on the Charts and Chart Views............................................................................... 6 Other Vessels Settings on the Charts and Chart Views.. 6 AIS Display Settings.................................................. 6 Navigation and Fishing Chart Setup................................ 6 Overlay Numbers Settings...............................................6 Editing the Data Fields...............................................6 Showing a Navigation Inset............................................. 7 Chart Appearance Settings..............................................7 Fish Eye 3D Settings....................................................... 7 Navigation with a Chartplotter..................................7 Basic Navigation Questions...................................................7 Destinations........................................................................... 8 Searching for a Destination by Name.............................. 8 Selecting a Destination Using the Navigation Chart........ 8 Searching for a Destination Using Nav Info.....................8 Searching for a Marine Services Destination...................8 Courses................................................................................. 8 Setting and Following a Direct Course Using Go To....... 8 Setting and Following a Course Using Auto Guidance....8 Autopilot Navigation.........................................................8 Stopping Navigation.............................................................. 9 Waypoints ..............................................................................9 Marking Your Present Location as a Waypoint................9 Creating a Waypoint at a Different Location.................... 9 Marking and Starting Navigation to an MOB Location.....9 Viewing a List of al…

Text truncated - open the document above for the full version.

Important Safety and Product Information �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������2 Informations importantes sur le produit et la sécurité ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 Informazioni importanti sulla sicurezza e sul prodotto �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Wichtige Sicherheits- und Produktinformationen �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 Información importante sobre el producto y tu seguridad �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Informações Importantes de Segurança e do Produto ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������8 Belangrijke veiligheids- en productinformatie ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9 Vigtige sikkerheds- og produktinformationer �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������10 Tärkeitä turvallisuus- ja tuotetietoja ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 Viktig sikkerhets- og produktinformasjon �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������12 Viktig säkerhets- och produktinformation ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������13 Ważne informacje dotyczące bezpieczeństwa i produktu ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������14 Правила техники безопасности и сведения об изделии ������������������������������������������������������������������������������������������������������������������������������������������������������������������������15 Važne informacije o proizvodu i sigurnosti ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������16 Σημαντικές πληροφορίες για την ασφάλεια και το προϊόν ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������18 重要安全和产品信息 �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������19 ISPI_Marine_Instruments_ML.indd 14/15/2013 10:07:21 AM 2 Important Safety and Product Information  WARNING Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. Operation Warnings • You are responsible for the safe and prudent operation of your vessel. This device is a tool that will enhance your capability to operate your vessel� It does not relieve you from the responsibility of safely operating your vessel� Avoid navigational hazards and never leave the helm unattended� • Use this device only as a navigational aid� Do not attempt to use the device for any purpose requiring precise measurement of direction, distance, location, or topography� • Always be prepared to promptly regain control of the vessel� Use caution near hazards in the water, such as docks, pilings and other vessels� • If the device has navigating capabilities, when navigating, carefully compare information displayed on the device to all available navigation sources, including information from visual sightings, local waterway rules and restrictions, and maps� For safety, always resolve any discrepancies or questions before continuing navigation� • If the device uses maps, use the electronic chart in the device only to facilitate, not to replace, the use of authorized government charts� Official government charts and notices to mariners contain all information needed to navigate safely� • If the device provides depth data, it should not be used as the primary means of preventing grounding or collision� Supplement depth data readings with information from applicable paper charts and visual indicators� Always operate the vessel at slow speeds if you suspect shallow water or submerged objects� Failure to heed this warning could lead to vessel damage or personal injury� • If the device has video input capabilities, do not attempt to operate or watch video input while operating or navigating your vessel� Operating or watching the video input while the vessel is moving could cause an accident or collision resulting in property damage, serious injury, or death� Map Data Information One of the goals of Garmin is to provide customers with the mos…

Text truncated - open the document above for the full version.

Garmin International Inc. 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Tel: 913 -3978200 Fax: 913-3978282 Date 11/12/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on -Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: IPH-02261B Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Garmin International Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description Tune-Up Procedure Antenna Specification Garmin International Inc. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Rock Yang Telephone Number: 886 -2 -2642 -8999 Email : [email protected]

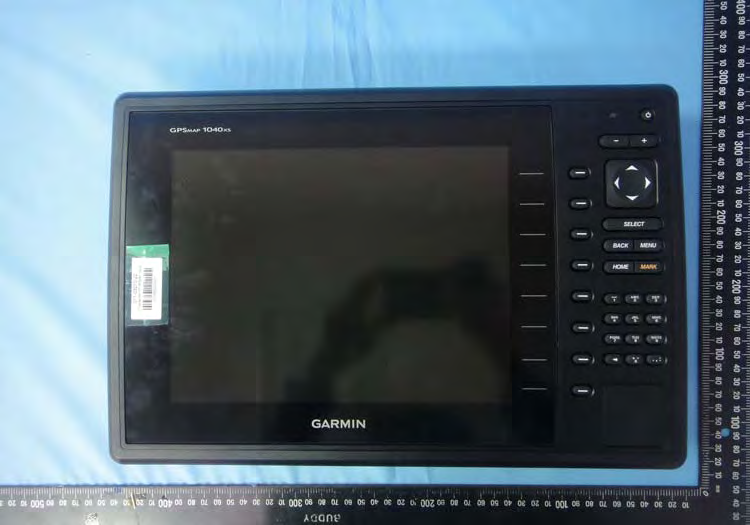

1 of 3 External Photos Model Number: M3BPGL00 FCC ID: IPH-02261B 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 ) EUT Photo 4 )

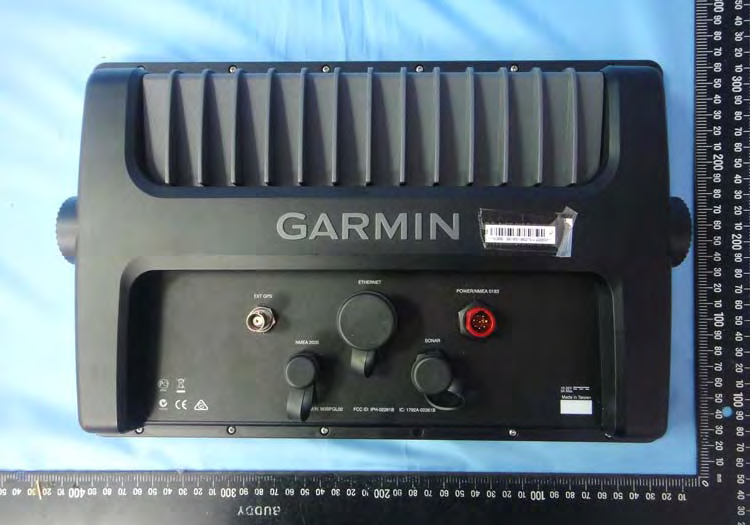

Label location N20233 SONAR POWER/NMEA 0183 ETHERNET NMEA 2000 EXT GPS Made in Taiwan 10-32V 3A Max M/N: M3BPGL00FCC ID: IPH-02261BIC: 1792A-02261B

1 of 7 Internal Photos Model Number: M3BPGL00 FCC ID: IPH-02261B 2 of 7 EUT Photo 1 ) EUT Photo 2 ) 3 of 7 EUT Photo 3 ) EUT Photo 4 ) Wi-Fi ANT. 4 of 7 EUT Photo 5 ) EUT Photo 6 ) 5 of 7 EUT Photo 7 ) EUT Photo 8 ) 6 of 7 EUT Photo 9 ) EUT Photo 10 ) 7 of 7 EUT Photo 11 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1311FS12 Applicant ： Garmin International Inc. Manufacturer ： Garmin Corporation Product Type ： Low Power Transmitter Trade Name ： GARMIN Model Number ： M3BPGL00 Date of Received ： Oct. 23, 2013 Test Period ： Oct. 31 ~ Nov. 01, 2013 Date of Issued ： Nov. 19, 2013 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1311FS12Page 1 of 5 ©2013 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result.....................................................................................................................5 Report Number: 1311FS12Page 2 of 5 ©2013 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Garmin International Inc. Applicant Address 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Manufacturer Garmin Corporation Manufacturer Address No.68, Zhangshu 2nd Rd., Xizhi Dist., New Taipei City 221, Taiwan Product Type Low Power Transmitter Trade Name GARMIN Model Number M3BPGL00 FCC ID IPH-02261B Frequency Range IEEE 802.11b / 802.11g: 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 0.072 W / 18.57 dBm (conducted power) IEEE 802.11g: 0.036 W / 15.53 dBm Antenna Specification IEEE 802.11b, IEEE 802.11g: -0.64 dBi Antenna Designation PIFA Antenna Temperature Range -30 ~ +70°C RF Evaluation 0.12 W/m 2 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1311FS12Page 3 of 5 ©2013 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1311FS12Page 4 of 5 ©2013 A Test Lab Techno Corp. 3. RF Output Power Band Date Rate CH Frequency (MHz) Conducted power Time-Avg. (dBm) 1 2412.0 17.41 6 2437.0 18.07 1M 11 2462.0 18.57 2M 6 2437.0 17.68 5.5M 6 2437.0 16.46 IEEE 802.11b 11M 6 2437.0 15.24 1 2412.0 14.53 6 2437.0 15.06 6M 11 2462.0 15.53 9M 6 2437.0 14.36 12M 6 2437.0 11.08 18M 6 2437.0 9.66 24M 6 2437.0 6.76 36M 6 2437.0 5.44 48M 6 2437.0 3.00 IEEE 802.11g 54M 6 2437.0 2.66 4. Test Result Band Data Rate Frequency (MHz) Limit (mw/cm 2 ) Distance (cm) [R] Max Tune-up Power (upper limit) (dBm) [P] ANT Gain (dBi) Numeric Gain [G] Duty Cycle Power with Duty cycle (mW) [TP] Power Density (mw/cm 2 ) [S] Min. distance (cm) 2412 1 20 18.57 -0.64 0.86 1 61.87 0.012 20 2437 1 20 18.57 -0.64 0.86 1 61.87 0.012 20 IEEE 802.11b 1 M 2462 1 20 18.57 -0.64 0.86 1 61.87 0.012 20 2412 1 20 15.53 -0.64 0.86 1 30.73 0.006 20 2437 1 20 15.53 -0.64 0.86 1 30.73 0.006 20 IEEE 802.11g 6 M 2462 1 20 15.53 -0.64 0.86 1 30.73 0.006 20 Note: The Numeric Gain calculated by 10^(ant. Gain(dBi) /10). Report Number: 1311FS12Page 5 of 5 ©2013 A Test Lab Techno Corp.

A Test Lab Techno Corp. Report Number: 1311FR12-01 1 of 48 FCC 47 CFR PART 15 SUBPART C Product Type ： Low Power Transmitter Applicant ： Garmin International Inc. Address ： 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Trade Name ： GARMIN Model Number ： M3BPGL00 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4:2009 Receive Date ： Oct. 23, 2013 Test Period ： Oct. 31~Nov.16, 2013 Issue Date ： Nov. 28, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1311FR12-01 2 of 48 Revision History Rev. Issue Date Revisions Revised By 00 Nov. 20, 2013 Initial Issue 01 Nov. 28, 2013 Add accessories list. Joyce Liao A Test Lab Techno Corp. Report Number: 1311FR12-01 3 of 48 Verification of Compliance Issued Date: 11/28/2013 Product Type : Low Power Transmitter Applicant : Garmin International Inc. Address : 1200 E., 151st. Street, Olathe, Kansas, United States, 66062 Trade Name : GARMIN Model Number : M3BPGL00 FCC ID : IPH-02261B EUT Rated Voltage : DC 10–32V, 3A Test Voltage : DC 24V Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4:2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Cran Yang) (Testing Engineer) (Fly Lu) TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Conducted Emission Measurement ........................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ..................................................................................................................................…
