GPSMAP ® 62 series quick start manual For use with the GPSMAP 62, 62s, 62st, 62sc, and 62stc DRAFT DRAFT 2 GPSMAP 62 Series Quick Start Manual Getting Started  wARninG See the Important Safety and Product Information guide in the product box for product warnings and other important information When using your device the first time, you should complete the following tasks to set up the device and get to know the basic features. 1. Install the batteries (page 2). 2. Turn on the device (page 3). 3. Acquire satellites (page 3). 4. Mark a waypoint (page 5). 5. Calibrate the compass (page 6). 6. Navigate with the search menu (page 8). 7. Navigate a route (page 8). Getting More information Go to www.garmin.com to download the latest manuals. Battery information The device operates on two AA batteries. Use alkaline, NiMH, or lithium batteries. Use precharged NiMH or lithium batteries for best results. installing the Batteries 1. Remove the battery cover by turning the D-ring 1/4 turn counter- clockwise and pulling up. 2. Insert the batteries, observing polarity. DRAFT GPSMAP 62 Series Quick Start Manual 3 3. Replace the battery cover. For best results, after you install new batteries, update the battery type in the system settings (page 10). Turning the Device On or Off Press and hold . Setting Your Language 1. Turn on the unit. 2. Use the Rocker to select a language. Acquiring Satellite Signals It may take 30 to 60 seconds to acquire signals. 1. Go outdoors to an open area. 2. If necessary, turn on the device. 3. Wait while the device searches for satellites. A question mark flashes while the device determines your location. 4. Quickly press to open the backlight status page. The GPS bars indicate satellite strength. When the bars are green, the device has acquired satellite signals. DRAFT 4 GPSMAP 62 Series Quick Start Manual Buttons Press and hold to turn the device on and off. Quickly press to open the backlight status page. FinDPress FinD to open the search menu MARKPress MARK to save your current location as a waypoint. QUiTPress QUiT to cancel or return to the previous menu or page. EnTERPress EnTER to select options and acknowledge messages. MEnUPress MEnU to open the options menu for the page that is currently open. Press MEnU twice to open the main menu (from any page). PAGEPress PAGE to scroll through the main pages (page 5). RockerPress up, down, right, and left to select menu options and to move the map cursor. inPress in to zoom in on the map. OUTPress OUT to zoom out on the map. DRAFT GPSMAP 62 Series Quick Start Manual 5 waypoints Waypoints are locations you record and store in the device. Creating waypoints 1. From any page, press MARK. 2. Select Done. Editing a waypoint Before you can edit a waypoint, you must create a waypoint. 1. From the main menu, select Waypoint Manager. 2. Select a waypoint. 3. Select an attribute (such as the name or location). 4. Enter the new information. 5. Select Done. Deleting a waypoint 1. From the main menu, select Waypoint Manager. 2. Select a waypoint. 3. Press Menu. 4. Select Delete > Yes. Main Pages The information needed to operate this device is found on the following pages: map, compass, main menu, and trip computer. Map The position icon represents your location on the map. As you travel, the position icon moves and leaves a track log (trail). Waypoint names and symbols also appear on the map. Changing the Map Orientation 1. From the map, press Menu. 2. Select Setup Map > Orientation. 3. Select an orientation: • Select north up to show north at the top of the page. DRAFT 6 GPSMAP 62 Series Quick Start Manual • Select Track up to show your current direction of travel at the top of the page. • Select Automotive Mode to show a perspective view. Measuring Distance You can move the cursor around the map to measure distance from the current location. 1. From the map, press Menu. 2. Select Measure Distance. The device automatically begins measuring from your current location. 3. Move the cursor to a point you want to measure to. The distance appears at the bottom of the page. 4. Press quiT to stop measuring. Compass When navigating to a destination, the bearing pointer points to your destination, regardless of the direction you are moving. When the bearing pointer points toward the top of the electronic compass, you are traveling directly toward your destination. If it points any other direction, turn toward that direction until the arrow is pointing toward the top of the compass. Calibrating the Compass notice Calibrate the electronic compass outdoors. Do not stand near objects that influence magnetic fields, such as cars, buildings, or overhead power lines. nOTe: The three-axis compass is available only with the GPSMAP 62s and GPSMAP 62st. You should calibrate the compass after moving long distances, experiencing DRAFT GPSMAP 62 Series Quick Start Manual 7 temperature changes, or changing the batteries. 1. From the compass, press Menu. 2. Select Calibrate Compass > Start. 3. Follow the on-screen instructions. Calibrating the Barometric Altimeter nOTe: The elevation plot page is available only with the GPSMAP 62s and GPSMAP 62st. You can manually calibrate the barometric altimeter if you know the correct elevation or the correct pressure. 1. From the elevation plot, press Menu. 2. Select Calibrate Altimeter. 3. Follow the on-screen instructions. Trip Computer The trip computer displays your current speed, average speed, maximum speed, trip odometer, and other helpful statistics. Customizing Data Fields You can customize the data fields displayed on each main page. For data field descriptions, see the GPSMAP 62 Series Owner’s Manual. 1. From a main page, press Menu. 2. Select Change Data Fields. 3. Select a data field. 4. Press enTeR. About Tracks Your Garmin device records a track log while you are moving. You can save these tracks and navigate using them later. DRAFT 8 GPSMAP 62 Series Quick Start Manual navigating to a waypoint Using the Sear…

Text truncated - open the document above for the full version.

DRAFT Important Safety and Product Information  WarnIng Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. Installation Warnings • When installing the device in a vehicle, place the device securely so it does not obstruct the driver’s view of the road ➊ or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place unsecured on the vehicle dashboard ➋. Do not place the device in front of or above any airbag ➌. ➋ ➌ ➊ • The windshield mount may not stay attached to the windshield in all circumstances. Do not place the mount where it will become a distraction if it should become detached. Keep your windshield clean to help ensure that the mount stays on the windshield. Off-road navigation Warnings Some Garmin recreational products are able to suggest off- road routes for various outdoor activities, such as biking, hiking, and all-terrain vehicles. Follow these guidelines to ensure safe off-road navigation. • Always use your best judgment and exercise common sense when making of f-road navigational decisions. The Garmin device is designed to provide route suggestions only. It is not a replacement for for attentiveness and proper preparation for outdoor activities. Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. • Always carefully compare information displayed on the device to all available navigation sources, including trail signs, trail conditions, weather conditions, and other factors that may af fect safety while navigating. For safety, always resolve any discrepancies before continuing navigation, and defer to posted signs and conditions. • Always be mindful of the ef fects of the environment and the inherent risks of the activity before embarking on off-road activities, especially the impact that weather and weather-related trail conditions can have on the safety of your activity. Ensure that you have the proper gear and supplies for your activity before navigating along unfamiliar paths and trails. Street navigation Warnings Some Garmin recreational products are able to accept street maps and suggest routes that follow roads. Follow these guidelines to ensure safe on-road navigation. • Always use your best judgement, and operate the vehicle in a safe manner. Do not become distracted by the device while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the device screen while driving. • Do not input destinations, change settings, or access any functions requiring prolonged use of the device controls while driving. Pull over in a safe and legal manner before attempting such operations. • When navigating, carefully compare information displayed on the device to all available navigation sources, including road signs, road closures, road conditions, traffic congestion, weather conditions, and other factors that may af fect safety while driving. For safety, always resolve any discrepancies before DRAFT continuing navigation, and defer to posted signs and conditions. • The device is designed to provide route suggestions. It is not a replacement for driver attentiveness and good judgement. Do not follow route suggestions if they suggest an illegal maneuver or would place the vehicle in an unsafe situation. Health Warning This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This notice is provided in accordance with California’s Proposition 65. See www.garmin.com/prop65 for more information. Battery Warnings Your GPS device uses user-replaceable batteries. If these guidelines are not followed, the batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. To prevent damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not use a sharp object to remove the batteries. • Do not puncture or incinerate the device or battery . • Keep the batteries away from children. • Do not disassemble, puncture, or damage the batteries. • Only replace the battery with the correct replacement battery . Using another battery presents a risk of fire or explosion. • Replaceable coin cell batteries may contain perchlorate material. Special handling may apply . See www.dtsc.ca.gov/hazardouswaste/perchlorate. • Contact your local waste disposal department to dispose of the device/battery in accordance with applicable local laws and regulations. • In addition, the GPS device may use an internal, non- user-replaceable battery for various purposes, such as the real-time clock. Do not remove or attempt to remove the non-user-replaceable battery. Notice Windshield Mounting Legal restrictions Before using the suction cup mount on your windshield, check the state and local laws and ordinances where you drive. Some state laws prohibit drivers from using suction mounts on their windshields while operating motor vehicles. Other state laws allow the suction mount to be located only in specific locations on the windshield. Many other states have enacted restrictions against placing objects on the windshield in locations that obstruct the driver’s vision. It Is the user’s responsIbIlIty to mount the GarmIn DevIce In complIance wIth all applIcable laws anD orDInances. Where required, other Garmin dashboard or friction mount options should be used. Always mount your Garmin device in a location that does not obstruct the driver’s view of the road. Garmin does not assume any responsibility for any fines, penalties, or damages that may be incurred as a result of any state or local law or ordinance relati…

Text truncated - open the document above for the full version.

GPSMAP ® 62 series owner’s manual For use with the GPSMAP 62, 62s, 62st, 62sc, and 62stc DRAFT DRAFT All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® , BlueChart ® , City Navigator ® , and GPSMAP ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. HomePort ™ , BaseCamp ™ , ANT ™ , and ANT+ ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Windows ® is a registered trademark of Microsoft Corporation in the United States and/or other countries. Mac ® is a registered trademarks of Apple Computer, Inc. microSD ™ is a trademark of SanDisk or its subsidiaries. Other trademarks and trade names are those of their respective owners. © 2010–2011 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Zhangshu 2nd Road, Xizhi Dist., New Taipei City, 221, Taiwan (R.O.C.) Tel. 886/2.2642.9199 Fax 886/2.2642.9099 DRAFT Table of Contents Getting Started ....................1 Manual Conventions ..................1 Device Overview........................2 Battery Information ....................2 Installing the Batteries ...............3 Turning the Device On or Off .....3 Acquiring Satellite Signals .........3 Buttons ......................................4 Navigating with Waypoints and Routes ..........................5 Waypoints ..................................5 Routes .......................................6 Additional Maps .........................8 Tracks ..................................9 About Tracks..............................9 Navigating a Saved Track........10 Using the Main Pages .......11 Customizing the Data Fields.....11 Restoring Default Page Settings ..................................11 Map...........................................11 Compass .................................13 Using the Compass .................14 Using Sight ‘N Go ....................14 Elevation Plot...........................15 Opening the Main Menu ..........16 Trip Computer ..........................17 Main Menu Features and Settings .............................18 Geocaches ..............................18 Share Wirelessly......................18 Proximity Alarms ......................19 Profile Change .........................19 Area Calculation ......................19 Satellite ....................................20 Additional Main Menu Tools .....20 Camera and Photos ..........22 Taking a Photo .........................22 Viewing Photos ........................22 DRAFT Customizing Your Device 24 Customizing Data Fields..........24 Data Field Options ...................24 System Settings.......................28 Display Settings .......................29 Setting Up Tones .....................29 Marine Settings........................29 Setting up Marine Alarms ........30 Resetting Data .........................31 Changing the Page Sequence ..............................31 Customizing the Unit Settings .................................32 Time Settings ...........................32 Position Format Settings .........32 Altimeter Settings ....................33 Geocache Settings ..................34 Routing Settings ......................34 Fitness .....................................35 Profiles.....................................35 Appendix ...........................36 Registering Your Device ..........36 Updating the Software .............36 Viewing Important Device Information ............................36 Contacting Garmin Product Support .................................36 Using the Backlight ..................37 Specifications ..........................37 Maximizing Battery Life ...........38 About the Batteries ..................39 Buying Optional Accessories ...40 Using Optional Fitness Accessories ...........................40 Data Management ...................41 Attaching the Wrist Strap .........44 Attaching the Carabiner Clip....45 Caring for the Device ...............45 Troubleshooting .......................46 Index ..................................48 DRAFT GPSMAP 62 Series Owner’s Manual 1 Getting Started Getting Started  WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. When using your device the first time, you should complete the following tasks to set up the device and get to know the basic features. 1. Install the batteries (page 3). 2. Turn on the device (page 3). 3. Acquire satellites (page 3). 4. Mark a waypoint (page 5). 5. Navigate a route (page 7). 6. Record a track (page 9). 7. Calibrate the compass (pag…

Text truncated - open the document above for the full version.

Page 1 of 2 May 31, 2011 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-02416 PRODUCT: Low power Transmitters operated under paragraph 15.249. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Operational Description, Block diagram, and parts list be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia 02416.pdf Conf OpDes 02416.pdf Conf Schem 02416.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-02416 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 4 5 6 7 8 4. Explana competit The mate transmitt have a va 5. Explana Disclosur engineeri would als developm 6. Identific disclosur The infor Internatio agreemen 7. Identific previous To the kn publicly numerou FCC, the this radio 8. Justifica not be av This mat relatively and manu As such, attempt t be emplo Should y Thank yo Sincerel y Scot Rog ation of the d tion: erial for whic ting equipme ariety of com ation of how re would, in ing personne so offer com ment, thereby cation of any re: rmation for w onal, Inc. an nts. cation of wh s disclosure nowledge of heretofore. us disclosure e protection s o technology ation of the p vailable for erial should y frequently, ufacturing te it is importa to use knowl oyed. you require a ou for your c y, gers degree to wh ch confident ent that is of mpeting sour w disclosure n effect, give el, who have mpetitors add y allowing c y measures which confid nd not made a hether the in of the infor f those prepa While the g s in industry sought is nar y. period duri public dis c not be discl , disclosure o echniques th ant that the d ledge of the any further in consideration hich the inf tiality is sou ffered on a h rces. of the info r away the fru e designed th ditional unwa competitors a taken by th dential treatm available to nformation rmation to t aring this app eneral theory y and standar rrowly draw ng which th closure: osed for at l of the design hat could hav design not be design to co nformation, p n in this mat formation co ught is emplo ighly compe rmation cou uits of the la he equipmen arranted insi an advantage he submittin ment is soug third parties is available third parties plication, the y of operatio rds groups a wn and pertai he submittin east 25 year n information ve an adverse e made avail ompromise th please conta tter. oncerns a se oyed in the d etitive basis. uld result in abors of Garm nt and the ma ight into the e, not availab ng party to p ght is kept co s except purs to the publ s: e information on of this eq s well as in r ns to certain ng party ass rs. While im n would lead e competitiv lable to unau he applicatio act the under ervice that i design and m Customers substantial min Internat anufacturing state of the ble to Garmi prevent una onfidential b suant to non- lic and the e n has not be quipment has rule making n specific im serts that th mprovements d to insights ve effect for m uthorized per ons for which rsigned. Page is subject to manufacture o for this equ l competitiv tional, Inc.’s g process. D product in Internatio authorized by Garmin -disclosure extent of any en disclosed s been the su proceedings mplementation he material s in design ar into both de many years rsons who m h the equipm 2 of 2 o of this uipment ve harm: s Disclosure onal, Inc. y d ubject of s of the ns of should re made esign to come. might ment will

May 31, 2011 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-02416 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 15.249 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem 02416.pdf Block diagram Conf BlkDia 02416.pdf Operational Description Conf OpDes 02416.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

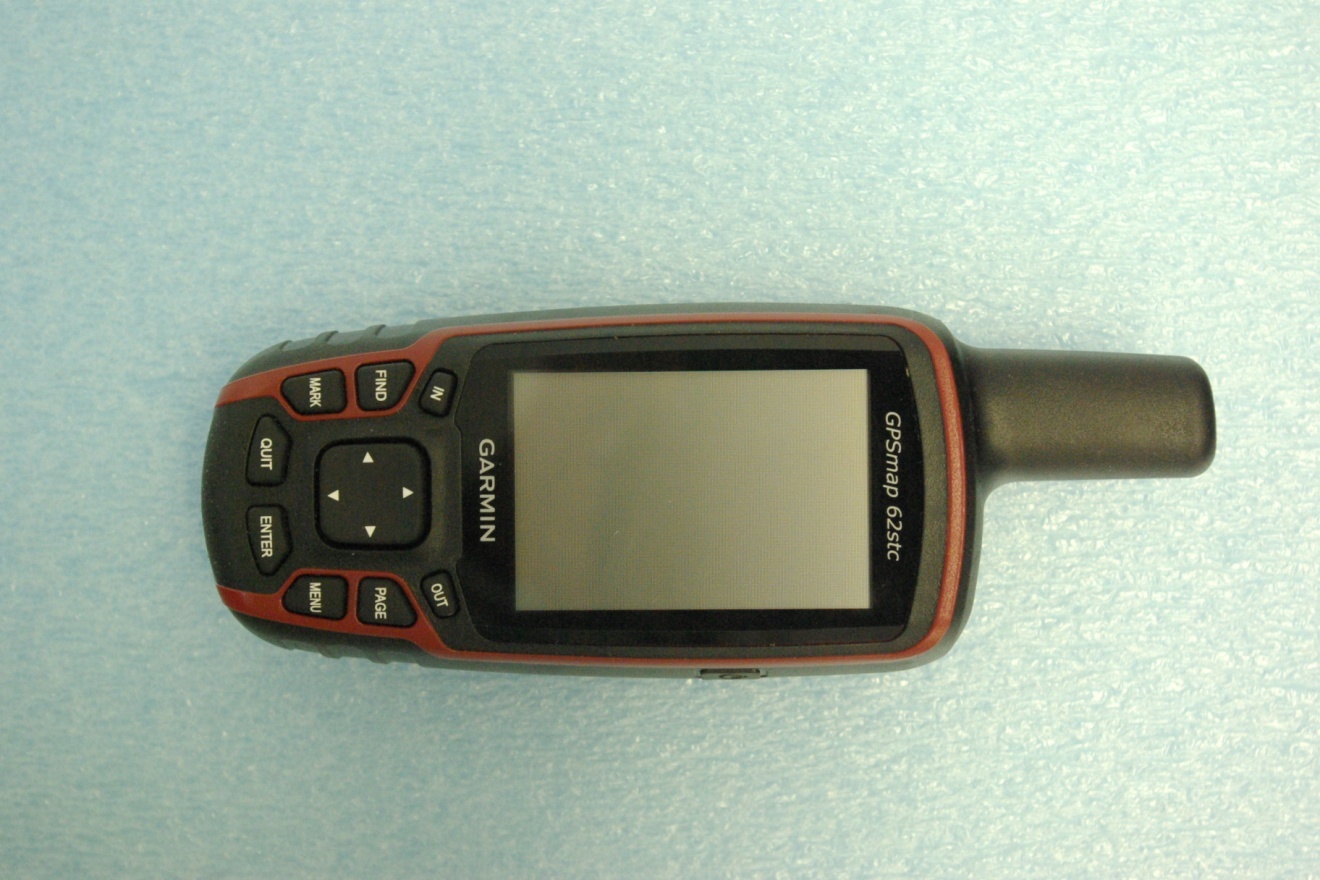

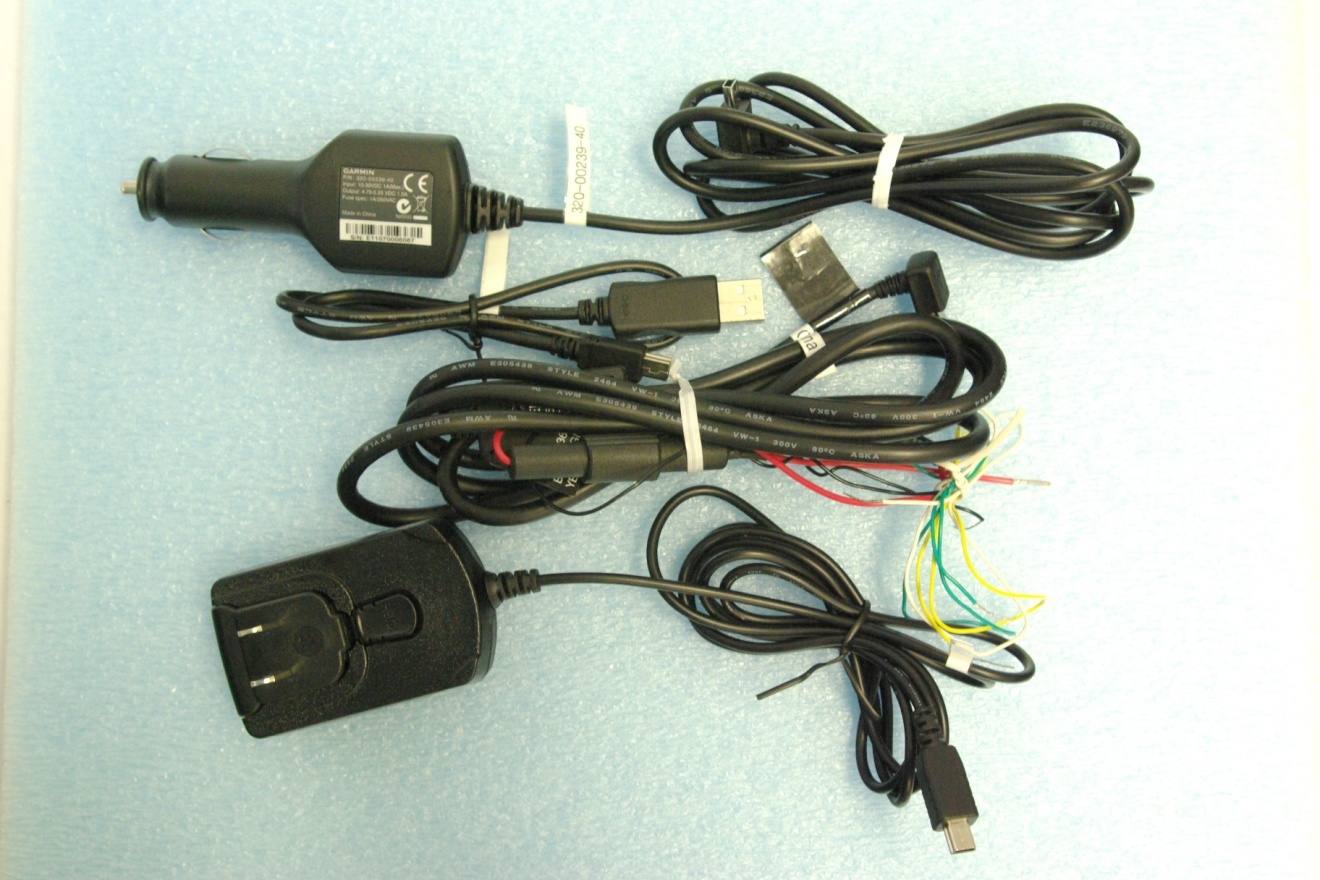

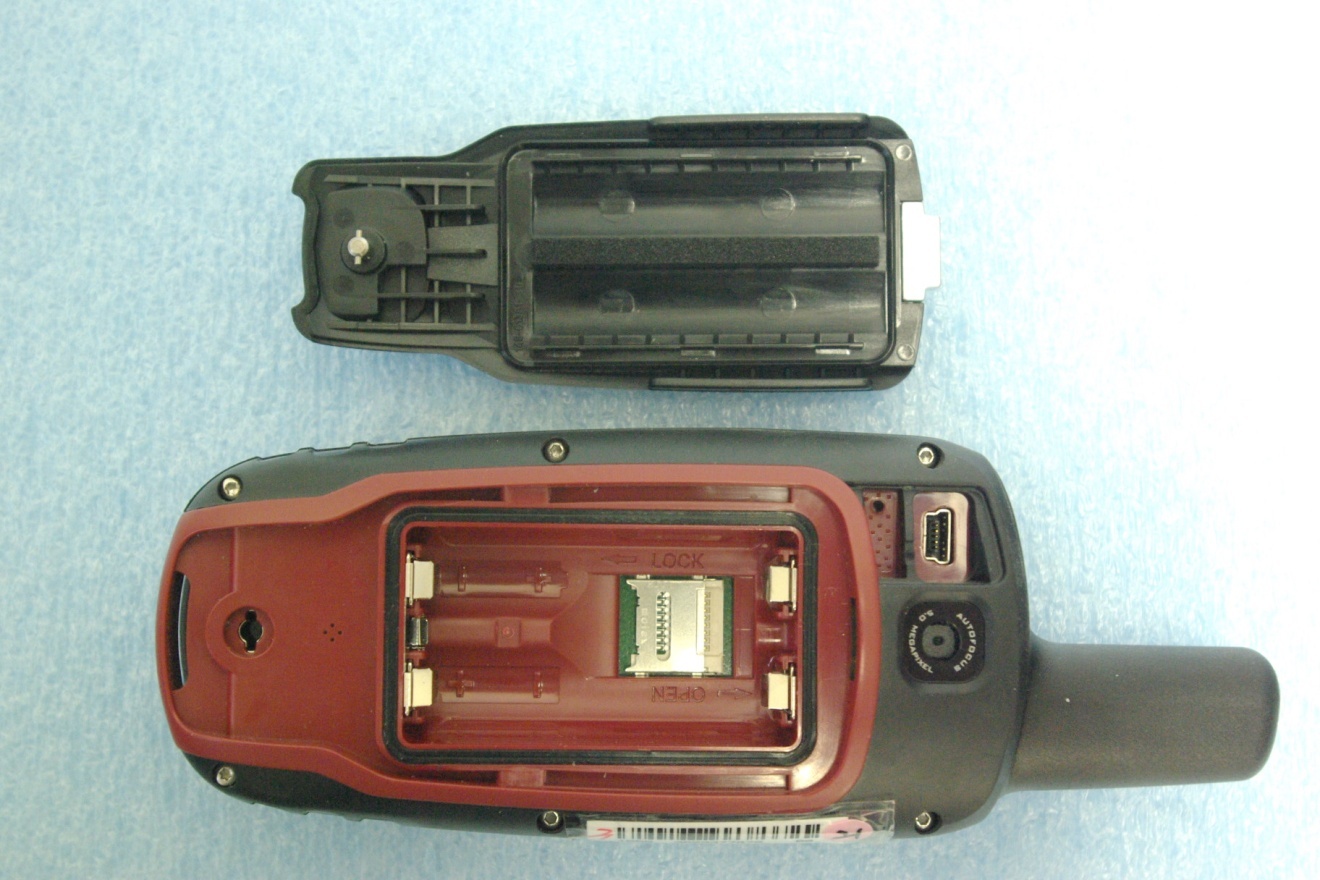

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: ExtPho 02416 Page 1 of 3 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: ExtPho 02416 Page 2 of 3 Inside battery compartment and I/O ports Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: ExtPho 02416 Page 3 of 3 Accessories

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: LabelSmpl 02416 Page 1 of 1 ID label and location Label Location Label Label Placement

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: IntPho 02416 Page 1 of 3 Internal photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: IntPho 02416 Page 2 of 3 Transmitter section Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: IntPho 02416 Page 3 of 3 Camera Section

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: TunPro 02416 Page 1 of 1 Transmitter Tune-Up Procedure No transmitter tune-up is required for the ANT transceiver. Power and deviation are calibrated in the Nordic factory at the time of IC assembly. Frequency reference is determined by crystal oscillator.

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-02416 4405 West 259 th Terrace Models: GPSMAP 62Sc, GPSMAP 62Stc IC: 1792A-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 GPN: 011-02416-2x Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 31, 2011 Revision 1 File: RFExp 02416 Page 1 of 1 MPE Calculation page

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Models: GPSMAP62 Sc/Stc FCC ID#: IPH-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 IC: 1792A-02416 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 23, 2011 Revision 1 File: GPSMAP62 Stc TstRpt 110515 Page 1 of 41 Application Submittal Report For FCC And Industry Canada Grant Of Certification FOR Model: GPSMAP62 Sc/Stc 2402 - 2479 MHz Transmitter FCC ID: IPH-02416 IC: 1792A-02416 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report Number: 110515 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Models: GPSMAP62 Sc/Stc FCC ID#: IPH-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 IC: 1792A-02416 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 23, 2011 Revision 1 File: GPSMAP62 Stc TstRpt 110515 Page 2 of 41 Engineering Test Report For Grant Of Certification Application Submittal CFR47, Part 15C - Intentional Radiators Paragraph 15.249, Industry Canada, RSS-210 Low Power Transmitter For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Models: GPSMAP62 Sc/Stc Frequency 2402 - 2479 MHz FCC ID#: IPH-02416 IC: 1792A-02416 Test Date: May 15, 2011 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Models: GPSMAP62 Sc/Stc FCC ID#: IPH-02416 Louisburg, KS 66053 Test #:110515 SN: ENG1 IC: 1792A-02416 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: May 23, 2011 Revision 1 File: GPSMAP62 Stc TstRpt 110515 Page 3 of 41 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 APPLICABLE STANDARDS & PROCEDURES ............................................................ 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... …
