IPH-02421GSM/GPS enabled tracking device

DRAFT GTU 10 Owner's Manual © 2010 Garmin Ltd. or its subsidiaries All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www .garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® , the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin. DRAFT Owner’s Manual 1 Getting Started  WARninG See the Important Safety and Product Information guide in the product box for product warnings and other important information. When using the device the first time, complete these tasks. 1. Charge the device (page 1). 2. Connect the device to your computer. 3. Register and activate your device. 4. Set up geofences. 5. Turn on the device. 6. Place the device. Connecting to Your Computer notice To prevent corrosion, thoroughly dry the contacts and the surrounding area before charging or connecting to a computer. The device will not charge when the battery is outside the temperature range from 32°F to 113°F (0°C to 45°C) 1. Plug the USB end of the cable into the USB port on your computer. 2. Plug the mini-USB end of the cable into the device. Activating and Registering Your Device You must activate and register your device before you can use it. DRAFT 2 Owner’s Manual 1. Connect the device to your computer (XX). 2. Go to www.my.garmin.com. 3. Follow the onscreen instructions to set up an account and register your device. Geofences A geofence is a safe area you set. You can set alerts to notify you when the device is outside of your geofence. To set alerts, go to www. my.garmin.com. Turning On the Device Press and hold . Putting the Device on Your Dog NOTE: This unit should only be used with the provided case. 1. Turn on the device. 2. Place the device in the case. 3. Use the velcro strap to thread the collar through the case and secure. 4. Attach the collar to your pet. Attaching the Device Using the Carabiner Clip NOTE: Do not use the carabiner clip to attach the device to your pet. 1. XXX 2. XXX DRAFT Owner’s Manual 3 3.XXX Device Modes Continuous Tracking Query Other mode Tips Specifications Battery675 mAh rechargeable lithium-ion Battery lifeSee page 3 Operating temperature range From -4°F to 140°F (from -20°C to 60°C) Battery charging temperature range from 32°F to 113°F (0°C to 45°C About the Battery  WARninG This product contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information. Battery Life Battery Life* Device Use DRAFT 4 Owner’s Manual *The actual battery life of a fully charged battery depends on how much time you use GPS, the backlight, and power save mode. Exposure to extremely cold temperatures will also reduce battery life. Power Save After a period of inactivity, the device goes into power save mode. The device displays the time and date but does not use GPS. You can press OK to exit power save mode. Troubleshooting Resetting the Device If the keys or screen stop responding, you may need to reset the device. 1. Press and hold power until the screen goes blank. 2. Press and hold power until the screen turns on. Clearing User Data Press and hold menu and down simultaneously. DRAFT Owner’s Manual 5 Registering Your Device Help us better support you by completing our online registration today: • Go to http://my.garmin.com. • Keep the original sales receipt, or a photocopy, in a safe place. Getting More information You can find more information about this product on the Garmin Web site. • Go to www.garmin.com /intosports. • Go to www.garmin.com /learningcenter. • Go to http://buy.garmin.com, or contact your Garmin dealer for information about optional accessories and replacement parts. Contacting Garmin Product Support You can contact Garmin Product Support if you have any questions about this product. • In the USA, go to www.garmin .com/support, or contact Garmin USA by phone at (913) 397.8200 or (800) 800.1020. • In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000. • In Europe, go to www.garmin .com/support and click Contact Support for in-country support information, or contact Garmin (Europe) Ltd. by phone at +44 (0) 870.8501241. DRAFT 6 Owner’s Manual Caring for Your Device notice Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage. Avoid chemical cleaners and solvents that can damage plastic components. Cleaning the Device 1. Use a cloth dampened with a mild detergent solution. 2. Wipe it dry. DRAFT For the latest free software updates (excluding map data) throughout the life of your Garmin products, visit the Garmin Web site at www.garmin.com. © 2010 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 st Street, Olathe, Kansas 66062, USA Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK Garmin Corporation No. 68, Jangshu 2 nd Road,…

Text truncated - open the document above for the full version.

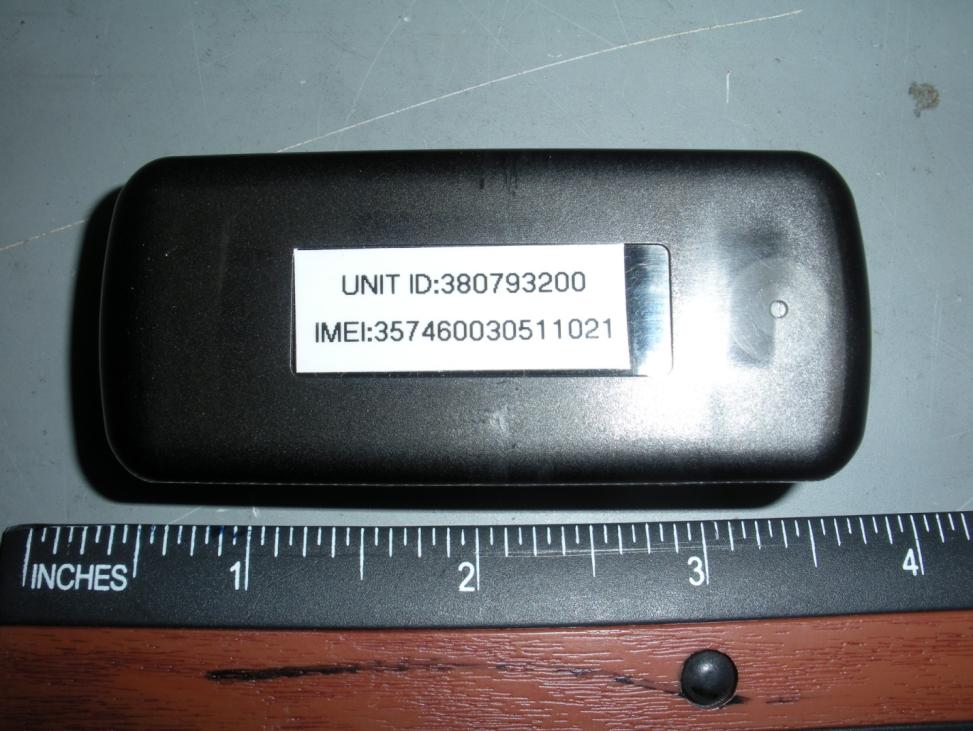

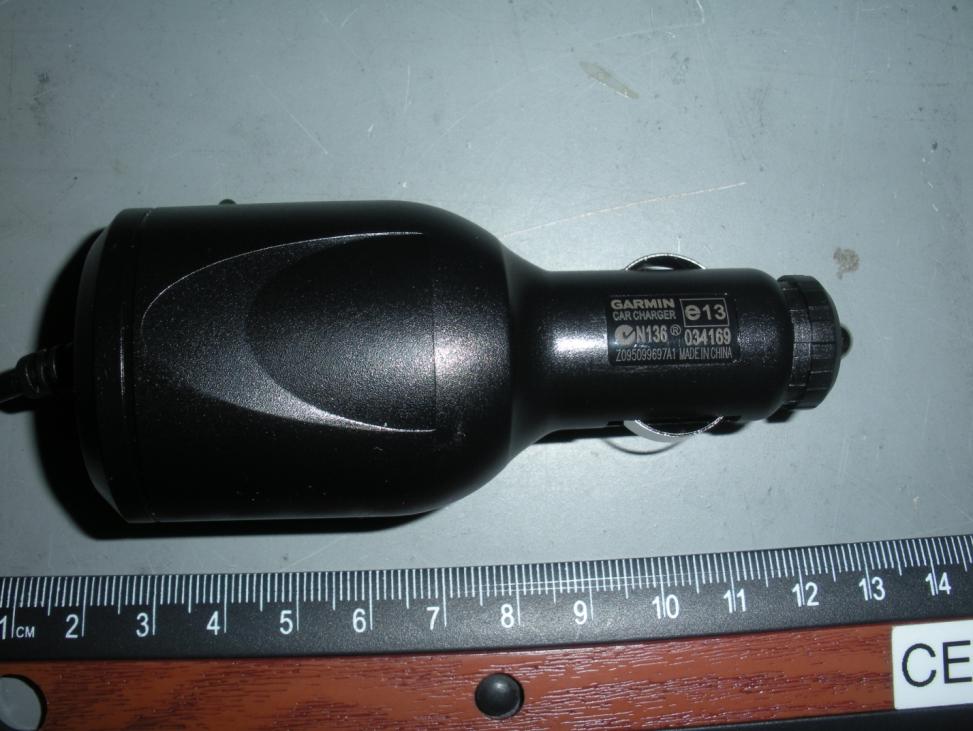

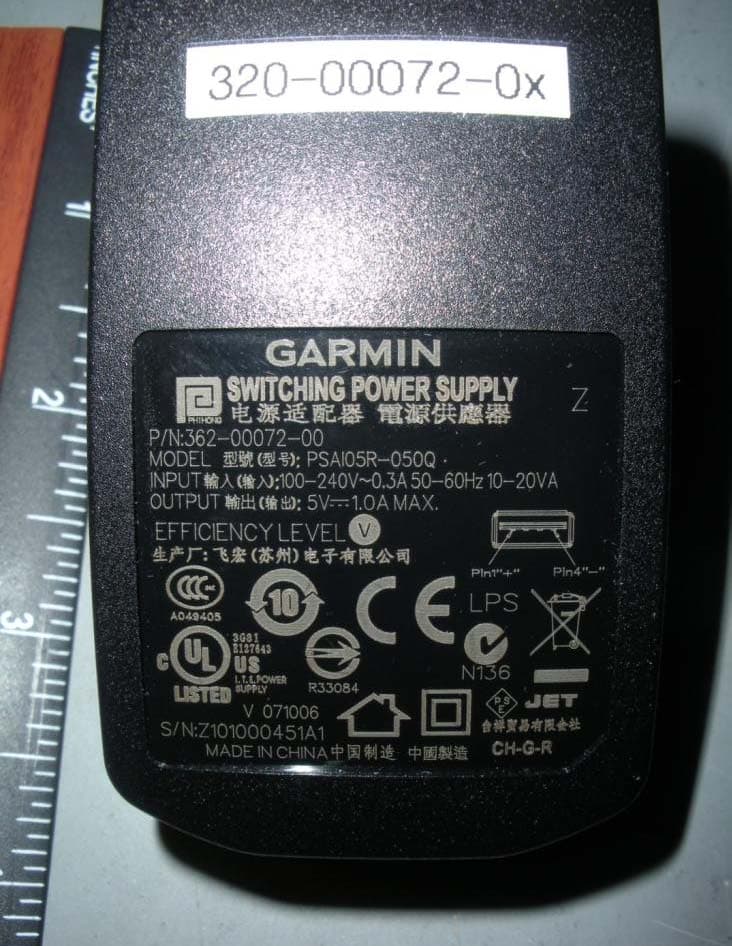

FCC ID: IPH‐02421 IC ID: 1792A‐02421A EXTERNAL PHOTOS DEVICE TOP VIEW –WITH FLAP FCC ID: IPH‐02421 IC ID: 1792A‐02421A DEVICE TOP VIEW –WITHOUT FLAP FCC ID: IPH‐02421 IC ID: 1792A‐02421A DEVICE TOP VIEW –WITH FLAP FCC ID: IPH‐02421 IC ID: 1792A‐02421A TOP VIEW –CAR CHARGER FCC ID: IPH‐02421 IC ID: 1792A‐02421A TOP VIEW –CAR CHARGER FCC ID: IPH‐02421 IC ID: 1792A‐02421A TOP VIEW –AC ADAPTER FCC ID: IPH‐02421 IC ID: 1792A‐02421A TOP VIEW –AC ADAPTER FCC ID: IPH‐02421 IC ID: 1792A‐02421A DEVICE POUCH – SIDE VIEW FCC ID: IPH‐02421 IC ID: 1792A‐02421A DEVICE POUCH – BOTTOM VIEW

FCC ID: IPH‐02421 IC ID: 1792A‐02421A LABEL LOCATION MGR. PROJ. RELEASED BY UNLESS NOTED OTHERWISE ANGLES +/- 0 DEG./30 MIN. HOLES +/-.003”, .08 mm .XXX +/-.005”, .13 mm .XX +/-.010”, .25 mm TOLERANCE CHKD. DRAWN DATE OFSHT. REV. DWG. NO. SCALE SIZE TITLE CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. LBL, S/N, GTU 10 FAM DWG 161-02607-XX A A 1 1 1X BSC BMS HJS MKD 6/25/10 6/28/10 6/28/10 6/29/10 REV. DATE DESCRIPTION APPRVD. REVISIONS SPECIFICATION CONTROL DRAWING c/o Garmin International, Inc. Garmin Ltd. or its subsidiaries 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. 2. 9 DIGIT SERIAL NUMBER TO BE PRINTED SEQUENTIALLY AS SHOWN (2D DATA MATRIX BARCODE WITH SEPARATE MATCHING HUMAN READABLE CODE). ALSO PRINT ADDITIONAL TAG (30 X 7.5) (BARCODE 39 WITH HUMAN READABLE ONLY) ALL SERIAL NUMBER INFO PRINTED WITH INDELIBLE BLACK INK. SEE TABLE FOR SERIAL NUMBER RANGE AS INDICATED ON GARMIN PURCHASE ORDER. 3. TAG IS SUPPLIED ON ONE ROLL WITH EQUIVALENT SERIAL NO.S ADJACENT TO EACH OTHER. ALL TAGS ARE "KISS CUT" ON ROLL. 4. PARTS TO BE FABRICATED USING DIGITAL CORELDRAW FILE. NOTES: 1. MATERIAL: VINYL LAMINATE. SECOND SURFACE PRINTED, ACRYLIC PERMANENT ADHESIVE ON BACK SIDE WITH PEEL OFF RELEASE LINER. TOTAL PACKAGE THICKNESS EXCLUDING RELEASE LINER IS .002-.005 (0.05-0.13). 5. BRIGHTNESS SPEC. = 10 ±5 EXPERIMENTAL RELEASE 6/28/10 1 ----- 22G000000 SCALE: 1X GPNS/N RANGE 161-02607-0022F000000-22F999999 161-02607-0122G000000-22G999999 Pantone Black C Pantone Cool Grey 6C 35.50 1 2 . 1 0 35.50 1 2 . 1 0 -00-01 GTU 10 0242100 Made in Taiwan Hardware Ver:01 22G000000 0682 GTU 10 0242101 Made in Taiwan Hardware Ver:01 22F000000 FCC ID: IPH-02421 PRODUCTION RELEASE 10/11/10 A 75774

FCC ID: IPH‐02421 IC ID: 1792A‐02421A INTERNAL PHOTOS DEVICE TOP HALF FCC ID: IPH‐02421 IC ID: 1792A‐02421A DEVICE TOP HALF FCC ID: IPH‐02421 IC ID: 1792A‐02421A DEVICE TOP HALF FCC ID: IPH‐02421 IC ID: 1792A‐02421A DEVICE BOTTOM HALF

Bluetooth Qualification Test Facility (BQTF) FCC Listed #: A2LA Accredited IC Recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V2.0 2009-11-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM SAR Test Report FOR: Manufacturer: Garmin International Model Name: 0242100 FCC ID: IPH-02421 IC ID: 1792A-02421A Test Report #: SAR_GARMI_029_1000_FCC Date of Report: 2010-10-28 Date of Issue: 2010-10-28 Test Report #: SAR_GARMI_029_10001_FCC_rev1 Date of Report : 2010-10-28 Page 2 of 24 V.2.0 2009-11-30 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. TABLE OF CONTENTS 1. Assessment ............................................................................................................................ 4 2. Administrative Data ............................................................................................................. 5 2.1. Identification of the Testing Laboratory Issuing the EMC Test Report .......................... 5 2.2. Identification of the Client .................................................................................................... 5 2.3. Identification of the Manufacturer ...................................................................................... 5 3. Equipment under Test (EUT) .............................................................................................. 6 3.1. Specification of the Equipment under Test ......................................................................... 6 3.2. Identification of the Equipment Under Test (EUT) ............................................................ 7 3.3. Identification of Accessory equipment ................................................................................. 7 4. Subject of Investigation ....................................................................................................... 8 4.1. The IEEE Standard C95.1 and the FCC Exposure Criteria.............................................. 8 4.2. Distinction Between Exposed Population, Duration of Exposure and Frequencies ........ 8 4.3. Distinction between Maximum Permissible Exposure and SAR Limits ........................... 9 4.4. SAR Limit ............................................................................................................................... 9 5. The FCC Measurement Procedure ................................................................................... 10 5.1. General Requirements ......................................................................................................... 10 5.2. Body-worn and Other Configurations ............................................................................... 10 5.3. Procedure for assessing the peak spatial-average SAR .................................................... 11 5.4. Determination of the largest peak spatial-average SAR .................................................. 13 6. The Measurement System .................................................................................................. 14 6.1. Robot system specification .................................................................................................. 14 6.2. Probe and amplifier specification ....................................................................................... 15 6.3. Phantoms .............................................................................................................................. 15 6.4. SAR measurement procedure ............................................................................................. 16 6.5. SARA2 Interpolation and Extrapolation schemes ............................................................ 16 6.6. Interpolation of 2D area scan ............................................................................................. 17 Test Report #: SAR_GARMI_029_10001_FCC_rev1 Date of Report : 2010-10-28 Page 3 of 24 V.2.0 2009-11-30 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.7. Extrapolation of 3D scan ..................................................................................................... 17 6.8. Interpolation of 3D scan and volume averaging ............................................................... 17 7. Uncertainty Assessment ..................................................................................................... 19 7.1. Measurement Uncertainty Budget ..................................................................................... 20 8. Test results summary ......................................................................................................... 21 8.1. Output Power ....................................................................................................................... 21 8.2. Test Positions and Configurations ...................................................................................... 21 8.3. SAR results ........................................................................................................................... 22 8.4. Dipole verification ................................................................................................................ 22 9. References .......................................................................................................................... 23 10. Report History .................................................................................................................... …

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_GARMI_029_10001_FCC Date of Report: 2010-10-06 Appendix A Plots Page 1 of 6 Plot 1: Bottom 824.2MHz System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 9/20/2010 5:16:35 PM DUT Battery Model/No: Filename: GSM824_Bottom.txt Probe Serial Number: 0116 Ambient Temperature: 20.6°C Liquid Simulant: 850 Device Under Test: Garmin Retriever SN 380793216 Relative Permittivity: 54.31 Relative Humidity: 50.4% Conductivity: 0.971 Phantom S/No: Head04_37.csv Liquid Temperature: 21°C Phantom Rotation: 180° Max SAR X-axis Location: 10.00 mm DUT Position: Bottom in Case Max SAR Y-axis Location: 4.00 mm Antenna Configuration: Integral Max E Field: 26.40 V/m Test Frequency: 824.2MHz SAR 1g: 0.768 W/kg Air Factors: 936.77 / 700.45 / 673.31 SAR 10g: Conversion Factors: 0.24 / 0.27 / 0.26 SAR Start: 0.215 W/kg Type of Modulation: SAR End: 0.209 W/kg Modn. Duty Cycle: SAR Drift during Scan: -4.08 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 09/20/10 Input Power Level: 2 uplink timeslots Extrapolation: poly4 SAR Test Report No.: SAR_GARMI_029_10001_FCC Date of Report: 2010-10-06 Appendix A Plots Page 2 of 6 Plot 2: Bottom 836.6 MHz System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 9/20/2010 4:56:44 PM DUT Battery Model/No: Filename: GSM836_Bottom.txt Probe Serial Number: 0116 Ambient Temperature: 20.6°C Liquid Simulant: 850 Device Under Test: Garmin Retriever SN 380793216 Relative Permittivity: 54.13 Relative Humidity: 50.4% Conductivity: 0.98 Phantom S/No: Head04_37.csv Liquid Temperature: 21°C Phantom Rotation: 180° Max SAR X-axis Location: 13.00 mm DUT Position: Bottom in Case Max SAR Y-axis Location: 4.00 mm Antenna Configuration: Integral Max E Field: 32.15 V/m Test Frequency: 836.6MHz SAR 1g: 1.189 W/kg Air Factors: 936.77 / 700.45 / 673.31 SAR 10g: Conversion Factors: 0.24 / 0.27 / 0.26 SAR Start: 0.341 W/kg Type of Modulation: SAR End: 0.329 W/kg Modn. Duty Cycle: SAR Drift during Scan: -2.43 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 09/20/10 Input Power Level: 2 uplink timeslots Extrapolation: poly4 SAR Test Report No.: SAR_GARMI_029_10001_FCC Date of Report: 2010-10-06 Appendix A Plots Page 3 of 6 Plot 3: Bottom 848.8MHz System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 9/20/2010 5:37:12 PM DUT Battery Model/No: Filename: GSM848_Bottom.txt Probe Serial Number: 0116 Ambient Temperature: 20.6°C Liquid Simulant: 850 Device Under Test: Garmin Retriever SN 380793216 Relative Permittivity: 53.99 Relative Humidity: 50.4% Conductivity: 0.984 Phantom S/No: Head04_37.csv Liquid Temperature: 21°C Phantom Rotation: 180° Max SAR X-axis Location: 11.00 mm DUT Position: Bottom in Case Max SAR Y-axis Location: 4.00 mm Antenna Configuration: Integral Max E Field: 31.18 V/m Test Frequency: 848.8MHz SAR 1g: 1.129 W/kg Air Factors: 936.77 / 700.45 / 673.31 SAR 10g: Conversion Factors: 0.24 / 0.27 / 0.26 SAR Start: 0.308 W/kg Type of Modulation: SAR End: 0.302 W/kg Modn. Duty Cycle: SAR Drift during Scan: -1.95 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 09/20/10 Input Power Level: 2 uplink timeslots Extrapolation: poly4 SAR Test Report No.: SAR_GARMI_029_10001_FCC Date of Report: 2010-10-06 Appendix A Plots Page 4 of 6 Plot 4: Bottom 1880MHz System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 9/20/2010 10:46:30 AM DUT Battery Model/No: Filename: WCDMA836_Right Touch_With Card.txt Probe Serial Number: 0116 Ambient Temperature: 20.6°C Liquid Simulant: 1900 Device Under Test: Garmin Retriever SN 380793216 Relative Permittivity: 51.63 Relative Humidity: 50.4% Conductivity: 1.51 Phantom S/No: Head04_37.csv Liquid Temperature: 21°C Phantom Rotation: 180° Max SAR X-axis Location: -12.00 mm DUT Position: Bottom in Case Max SAR Y-axis Location: -6.00 mm Antenna Configuration: Integral Max E Field: 20.46 V/m Test Frequency: 1880MHz SAR 1g: 0.778 W/kg Air Factors: 936.77 / 700.45 / 673.31 SAR 10g: Conversion Factors: 0.34 / 0.33 / 0.35 SAR Start: 0.142 W/kg Type of Modulation: SAR End: 0.135 W/kg Modn. Duty Cycle: SAR Drift during Scan: -4.57 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 09/20/10 Input Power Level: 2 uplink timeslots Extrapolation: poly4 SAR Test Report No.: SAR_GARMI_029_10001_FCC Date of Report: 2010-10-06 Appendix A Plots Page 5 of 6 Plot 5: Validation 835MHz System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 9/20/2010 2:54:10 PM DUT Battery Model/No: Filename: GSM1880_Bottom.txt Probe Serial Number: 0116 Ambient Temperature: 20.6°C Liquid Simulant: 850 Device Under Test: Systsem Relative Permittivity: 54.14 Relative Humidity: 50.4% Conductivity: 0.981 Phantom S/No: Head04_37.csv Liquid Temperature: 21°C Phantom Rotation: 180° Max SAR X-axis Location: 3.60 mm DUT Position: 15mm Max SAR Y-axis Location: -1.20 mm Antenna Configuration: Dipole Max E Field: 91.29 V/m Test Frequency: 835MHz SAR 1g: 9.889 W/kg Air Factors: 936.77 / 700.45 / 673.31 SAR 10g: Conversion Factors: 0.24 / 0.27 / 0.26 SAR Start: 2.487 W/kg Type of Modulation: SAR End: 2.482 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.19 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 09/20/10 Input Power Level: 1W Extrapolation: poly4 SAR Test Report No.: SAR_GARMI_029_10001_FCC Date of Report: 2010-10-06 Appendix A Plots Page 6 of 6 Plot 6: Validation 1880MHz System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 9/20/2010 9:41:26 AM DUT Battery Model/No: Filename: WCDMA836_Right Touch_With Card.txt Probe Serial Number: 0116 Ambient Temperature: 20.6°C Liquid Simulant: 1900 Device Under Test: System Relative Permittivity: 51.39 Relative Humidity: 50.4% Conductivity: 1.507 Phantom S/No: Head04_37.csv Liquid Temperature: 21°C Phantom Rotation: 180° Max SAR X-axis Location: 2.40 mm DUT Position: 10mm Max SAR Y-axis Location: -8.40 mm Ant…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_GARMI_029_10001 Date of Report: 2010-10-06 Appendix C Page 1 of 4 1. Tissue Parameters SAR measurements were made within 24 hours of the measurement of liquid parameters. 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 60.00% Distilled water 35.00% DGBE 5.00% Salt Date Frequency (MHz) Relative Permittivity Conductivity (S/m) 09/20/10 824.2 54.31 0.971 09/20/10 835 54.14 0.981 09/20/10 836.6 54.13 0.98 09/20/10 848.8 53.99 0.984 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% Distilled water 30.29% DGBE 0.44% Salt Date Frequency (MHz) Relative Permittivity Conductivity (S/m) 09/20/10 1880 51.63 1.51 09/20/10 1900 51.39 1.507 SAR Test Report No.: SAR_GARMI_029_10001 Date of Report: 2010-10-06 Appendix C Page 2 of 4 2. Antenna Location GSM Antenna SAR Test Report No.: SAR_GARMI_029_10001 Date of Report: 2010-10-06 Appendix C Page 3 of 4 3. Test Equipment Instrument description Supplier / Manufacturer Model Serial No. Calibratio n (date) Calibratio n Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA103010 8 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_1 N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 09/20/2010 N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 09/20/2010 N/A 835 MHz Dipole IndexSAR – IEEE 1528 design IXD-835 081 02/13/2009 02/13/2011 1880 MHz Dipole IndexSAR – IEEE 1528 design IXD-245 016 02/13/2009 02/13/2011 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A SAR Probe IndexSAR IXP-050 S/N 0116 10/19/2009 10/19/2010 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A SAR Test Report No.: SAR_GARMI_029_10001 Date of Report: 2010-10-06 Appendix C Page 4 of 4 4. Equipment Calibration/Performance Documents: KDB 450824 states that the return-loss and impedance of dipoles should be measured at least annually to ensure dipoles meed specification. Section 1c) states the return loss should not deviate by more than 20% of the previuos measurement. Section 1d) states the real or imaginary parts of the impedance should not deviate by more than 5 Ω from the previous measurement. Measurements were made with the dipole against the flat phantom, filled with body liquid for the respective frequency. 835MHz Dipole Serial No 081 was measured on September 20, 2010. The return-loss is -20.577 dB, 0.4% deviation from calibration measurement. The real part impedance is 60.221Ω, 0.421 deviation from the calibration measurement. The imaginary part impedance is 1.3672Ω, 4.88 deviation from the calibration measurement. The 835MHz Dipole is within tolerances stated by KDB 450824. 1880MHz Dipole Serial No 016 was measured on September 20, 1010. The return-loss is -20.892 dB, . The return-loss is 0.2% deviation from calibration measurement. The real part impedance is 42.945Ω, -3.855 deviation from the calibration measurement. The imaginary part impedance is -4.5527, 3.65 deviation from the calibration measurement. The 1880MHz dipole is within tolerances stated by KDB 450824 The following pages are calibration reports for: • SAR Probe 0116 • 835MHz Dipole Serial No 081 • 1880MHz Dipole Serial No 016

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: GE865 To: FCC Part 24: 2008 Subpart E, RSS-Gen Issue 2 June 2007 and RSS-133 Issue 5 February 2009 Test Report Serial No: RFI/RPT2/RP74296JD04B Supersedes Test Report Serial No: RFI/RPT1/RP74296JD04B This Test Report Is Issued Under The Authority Of Brian Watson, Operations Director: Checked By: A.HENRIQUES Signature: Date of Issue: 04 June 2009 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI/RPT2/RP74296JD04B ISSUE DATE: 04 JUNE 2009 Page 2 of 26 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI/RPT2/RP74296JD04B ISSUE DATE: 04 JUNE 2009 RFI Global Services Ltd Page 3 of 26 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 7 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 5. Measurements, Examinations and Derived Results ................................................................ 10 6. Measurement Uncertainty .......................................................................................................... 25 Appendix 1. Test Equipment Used ................................................................................................26 TEST REPORT SERIAL NO: RFI/RPT2/RP74296JD04B ISSUE DATE: 04 JUNE 2009 Page 4 of 26 RFI Global Services Ltd 1. Customer Information Company Name: Telit Communications S.p.A. Address: Via Stazione di Prosecco, 5/B I - 34010 Sgonico (Trieste) Italy TEST REPORT SERIAL NO: RFI/RPT2/RP74296JD04B ISSUE DATE: 04 JUNE 2009 RFI Global Services Ltd Page 5 of 26 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2008: Part 24 Subpart E (Personal Communication Services) Specification Reference: RSS-Gen Issue 2 June 2007 Specification Title: General Requirements and Information for the Certification of Radiocommunication Equipment Specification Reference: RSS-133 Issue 5 Feb 2009 Specification Title: 2 GHz Personal Communications Services Specification Reference: SRSP-510 Issue 5 Feb 2009 Specification Title: Technical Requirements for Personal Communications Services in the Bands 1850-1915 MHz and 1930-1995 MHz Site Registration: FCC: 209735 Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 14 April to 17 April 2009 TEST REPORT SERIAL NO: RFI/RPT2/RP74296JD04B ISSUE DATE: 04 JUNE 2009 Page 6 of 26 RFI Global Services Ltd 2.2. Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Port Type Result Part 15.109 RSS-Gen 4.10/6 RSS-133 6.6 Idle Mode Radiated Spurious Emissions Enclosure Part 2.1046(a) RSS-133 6.4 SRSP-510 5.1.2 Transmitter Carrier Output Power Antenna Terminals Part 24.235 RSS-133 6.3 RSS Gen 4.7 Transmitter Frequency Stability (Temperature & Voltage Variation) Antenna Part 2.1049/24.238 RSS-Gen 4.6.1 Transmitter Occupied Bandwidth Antenna Part 2.1053/24.238 RSS-133 6.5 Transmitter Out of Band Radiated Emissions Antenna Part 2.1053/24.238 RSS 133 6.5 Transmitter Band Edge Radiated Emissions Antenna Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI/RPT2/RP74296JD04B ISSUE DATE: 04 JUNE 2009 RFI Global Services Ltd Page 7 of 26 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Telit Model Name or Number: GE865 IMEI Number: 357938029002359 Hardware Version Number: 1 Software Version Number: 10.00.000-B006 Industry Canada ID Number: 5131A-GE865 FCC ID Number: RI7GE865 3.2. Description of EUT The equipment under test is a quad band GSM/GPRS modem mounted on a Telit EVK2 development board. The EUT is mounted to the development board on four support posts and connected by two 40 pin connectors. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI/RPT2/RP74296JD04B ISSUE DATE: 04 JUNE 2009 Page 8 of 26 RFI Global Services Ltd 3.4. Additional Information Related to Testing Technology Tested: PCS1900 Type of Radio Device: Transceiver Mode: GSM/GPRS Modulation Type: GMSK Channel Spacing: 200 kHz Nominal 3.23 V Minimum 3.80 V Power Supply Requirement(s): Maximum 4.37 V GSM 29.6 dBm Maximum Output Power (EIRP): GPRS 29.6 dBm Transmit Frequency Range: 1850 to 1910 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 512 1850.2 Middle 660 1879.8 Transmit Channels Tested: Top 810 1909.8 Receive Fr…

Text truncated - open the document above for the full version.
