IPH-02666Low Power Transmitter (2400-2483.5 MHz)

Instructions Introduction WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Always consult your physician before you begin or modify any exercise program. Charging the Device NOTICE To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer. The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer. NOTE: The device will not charge when outside the approved temperature range (page 10). 1 Pull up the weather cap from the USB port. 2 Plug the small end of the USB cable into the USB port on the device. 3 Plug the large end of the USB cable into an AC adapter or a computer USB port. 4 Plug the AC adapter into a standard wall outlet. DRAFT 5 Charge the device completely. The status LED flashes green while charging. The status LED is solid green when charging is complete. Installing the Mount You can use the mount to install both another ® device and this device. 1 Select a secure location to mount another device and this device where they do not interfere with safe operation . 2 Use the hex key to remove the screw À from the connector Á . 3 If necessary, remove the two screws on the top of the mount  , rotate the connector, and replace the screws to change the orientation of the mount for another device. 4 Place the rubber pad around the mount area: • If the mount diameter is 25.4 mm, use the thicker pad. • If the mount diameter is 31.8 mm, use the thinner pad. 2 DRAFT 5 Place the connector around the rubber pad. 6 Replace and tighten the screw. NOTE: Garmin ® recommends a torque specification of 7 lbf-in. (0.8 N-m). You should check the tightness of the screw periodically. 7 If installing another device, align the tabs on the back of the other device with the notches on the top of the mount à . 8 Press down slightly and the other device and adjust until it locks into place. 9 Align the notches on the top of this device with the tabs on the bottom of the mount Ä . 10 Press up slightly and adjust the device until it locks into place. 3 DRAFT Status LEDs LED ActivityStatus Solid redAn error occurred while charging. Alternating red and green The device is uploading settings from Garmin Express ™ . Flashing green The device is charging. Solid greenCharging is complete. Flashing redThe battery is low. Flashing blueThe device is in smart mode and can be controlled by a paired wireless remote. Key Functions • Hold the device key for 1 second to turn on the device. • With the device turned off, hold the device key for 1 second to enter smart mode. 6 DRAFT The status LED flashes blue. The device can be controlled by a paired wireless remote or other device. • Select the device key to cycle through the modes. • Hold the device key for 2 seconds to turn off the device. Pairing with Your other device 1 Bring the other device within range (3 m) of the sensor. NOTE: Stay 10 m away from other ® sensors while pairing. 2 Turn on the other device. 3 From the home screen, select > Sensors > Add Sensor. 4 On the unit, hold the device key for 1 second to enter smart mode. The status LED flashes blue. When the sensor is paired with your other device, the status icon appears solid on the connections page. 7 DRAFT • . Device Information Specifications Operating temperature range From -20° to 50°C (from -4° to 122°F) Charging temperature range From 0º to 40ºC (from 32º to 104ºF) 10 DRAFT Support and Updates Garmin Express provides easy access to these services for Garmin devices. • Product registration • Product manuals • Software updates Getting the Owner's Manual You can get the most recent owner's manual from the web. 1 Go to www.garmin.com/manuals /. 2 View or download the full owner's manual in your preferred format. 11 DRAFT Garmin ® , the Garmin logo, ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Express ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. M/N: A02666 M/N: A02669 © 2015 Garmin Ltd. or its subsidiaries www.garmin.com/support Printed in Taiwan May 2015190-01906-90_0A DRAFT

Important Safety and Product Information................................ 2 Informations importantes sur le produit et la sécurité ............... 8 Informazioni importanti sulla sicurezza e sul prodotto............ 13 Wichtige Sicherheits- und Produktinformationen.................... 17 Información importante sobre el producto y tu seguridad...... 22 Informações importantes de segurança e do produto............ 27 Belangrijke veiligheids- en productinformatie......................... 31 Vigtige produkt- og sikkerhedsinformationer.......................... 35 Tärkeitä turvallisuus- ja tuotetietoja........................................ 38 Viktig sikkerhets- og produktinformasjon................................ 42 Viktig säkerhets- och produktinformation............................... 45 Ważne informacje dotyczące bezpieczeństwa i produktu...... 49 © 2015 Garmin Ltd. or its subsidiaries June 2015 Printed in Taiwan 190-01918-91 _0A DRAFT Important Safety and Product Information WARNING Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. Health Warnings • Always consult your physician before beginning or modifying any exercise program. If you have a pacemaker or other implanted electronic device, consult your physician before using a heart rate monitor. • The device, the heart rate monitor, and other Garmin ® accessories are consumer devices, not medical devices, and could suffer from interference from external electrical sources. The heart rate readings are for reference only, and no responsibility is accepted for the consequences of any erroneous readings. Bicycle Warnings • Always use your best judgement, and operate the bicycle in a safe manner. • Make sure your bicycle and hardware are properly maintained and that all parts are correctly installed. Battery Warnings A lithium-ion battery can be used in this device. Coin cell batteries can be used in the accessory. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not disassemble, modify, remanufacture, puncture or damage the device or batteries. • Do not immerse or expose the device or batteries to water or other liquids, fire, explosion, or other hazard. • Do not use a sharp object to remove the removable batteries. •KEEP BATTERIES AWAY FROM CHILDREN. •NEVER PUT BATTERIES IN MOUTH. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately. • Replaceable coin cell batteries may contain perchlorate material. Special handling may apply. See www.dtsc.ca.gov /hazardouswaste/perchlorate. • Do not use a power and/or data cable that is not approved or supplied by Garmin. 2 DRAFT • If using an external battery charger, only use the Garmin accessory approved for your product. • Only replace batteries with correct replacement batteries. Using other batteries presents a risk of fire or explosion. To purchase replacement batteries, see your Garmin dealer or the Garmin website. • Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging. • When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging. • Do not remove or attempt to remove the non-user- replaceable battery. • Contact your local waste disposal department to dispose of the device/batteries in accordance with applicable local laws and regulations. Off-Road Navigation Warning Always be mindful of the effects of the environment and the inherent risks of the activity before embarking on off-road activities, especially the impact that weather and weather- related trail conditions can have on the safety of your activity. Ensure that you have the proper gear and supplies for your activity before navigating along unfamiliar paths and trails. NOTICE Legal Restrictions IT IS THE USER'S RESPONSIBILITY TO MOUNT AND OPERATE THE DEVICE IN COMPLIANCE WITH ALL APPLICABLE LAWS AND ORDINANCES. Garmin does not assume any responsibility for any fines, penalties, or damages that may be incurred as a result of any state or local law or ordinance relating to the use of your Garmin device. Product Environmental Programs Information about the Garmin product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. To view the full Declaration of Conformity, go to www.garmin.com/compliance. Industry Canada Compliance Category I radiocommunication devices comply with Industry Canada Standard RSS-210. Category II radiocommunication devices comply with Industry Canada Standard RSS-Gen. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) 3 DRAFT this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF…

Text truncated - open the document above for the full version.

Page 1 of 2 July 14, 2015 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-02666 PRODUCT: Low power Transmitters operated under paragraph 15.249 Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES A02666 Conf BlkDia.pdf A02666 Conf OpDes.pdf A02666 Conf Schem.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: IPH-02666 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

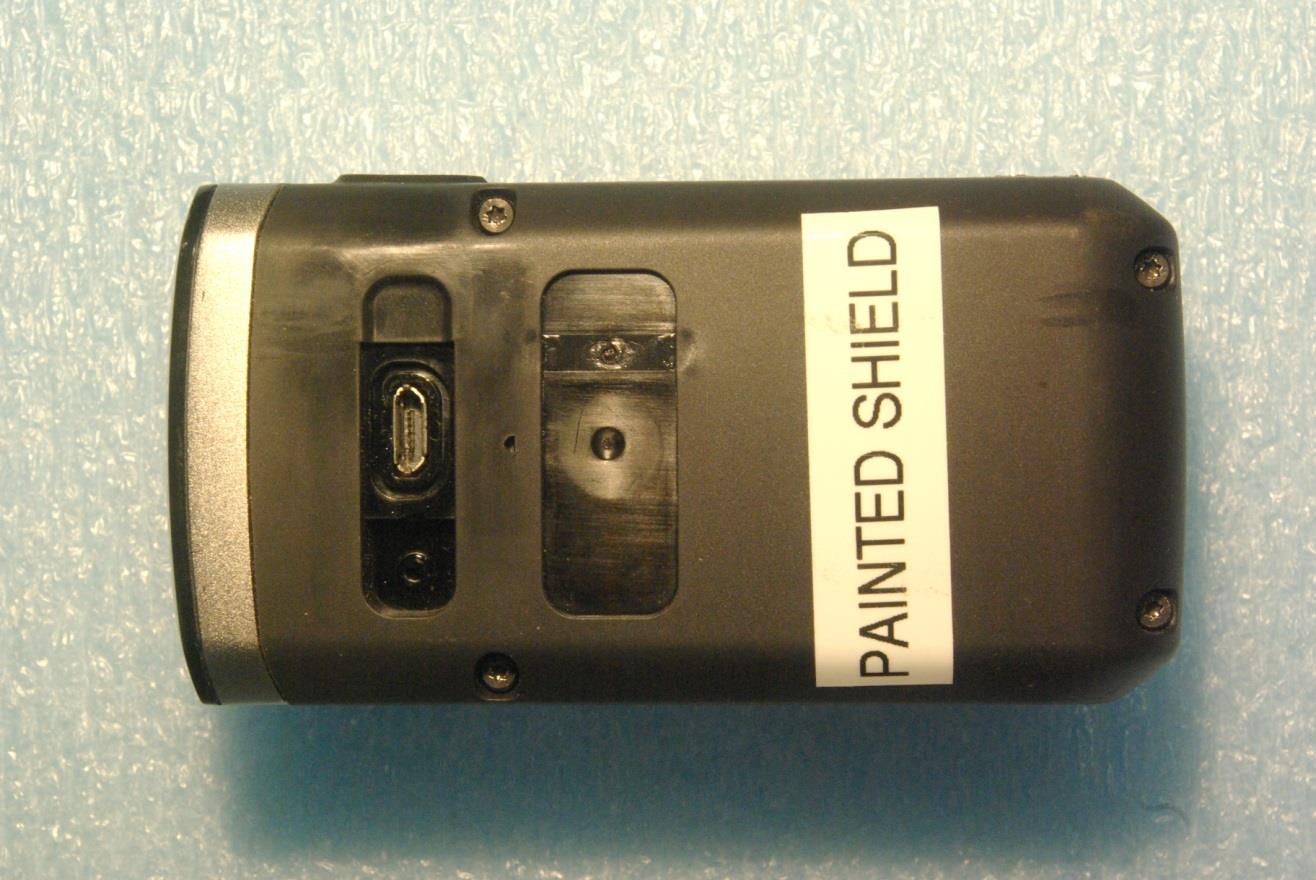

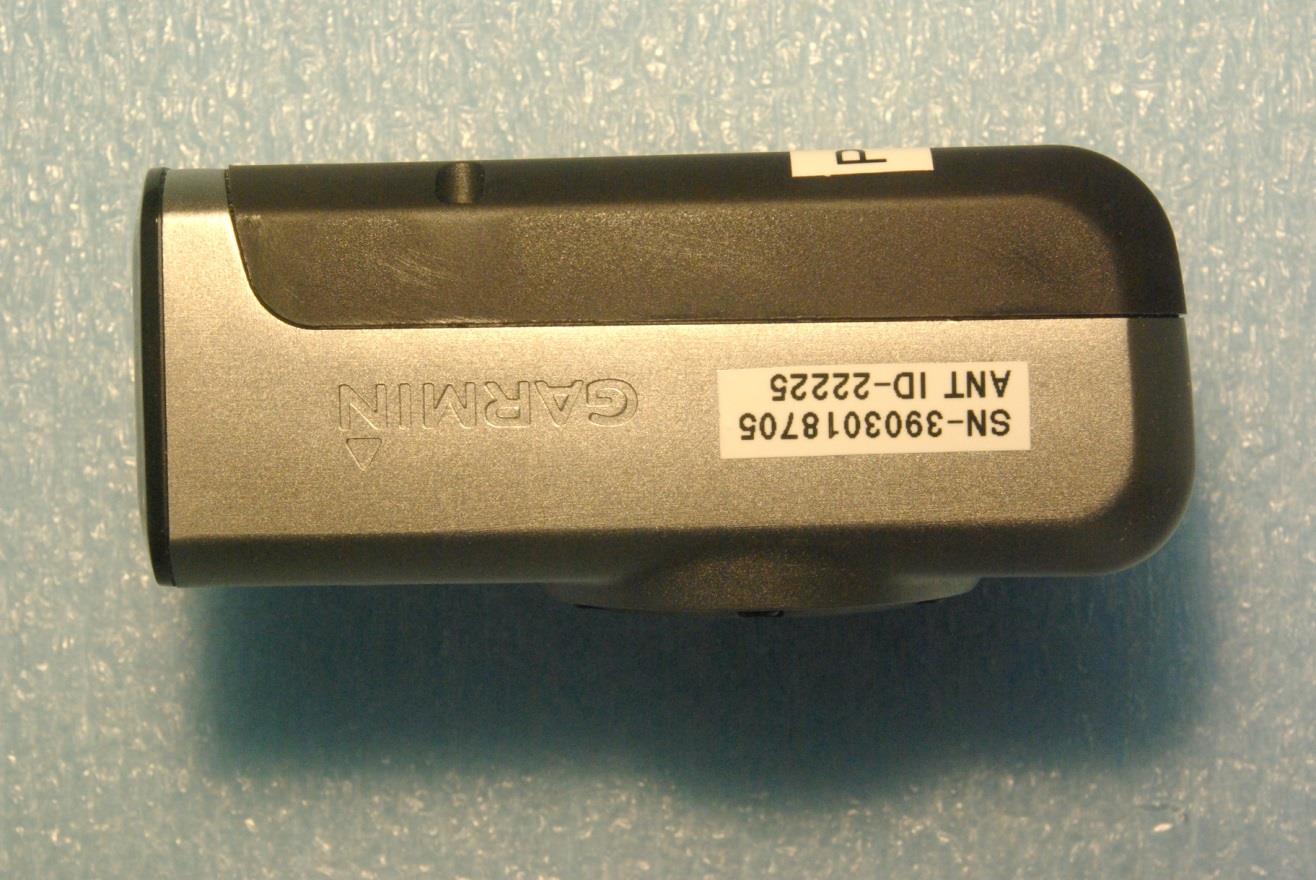

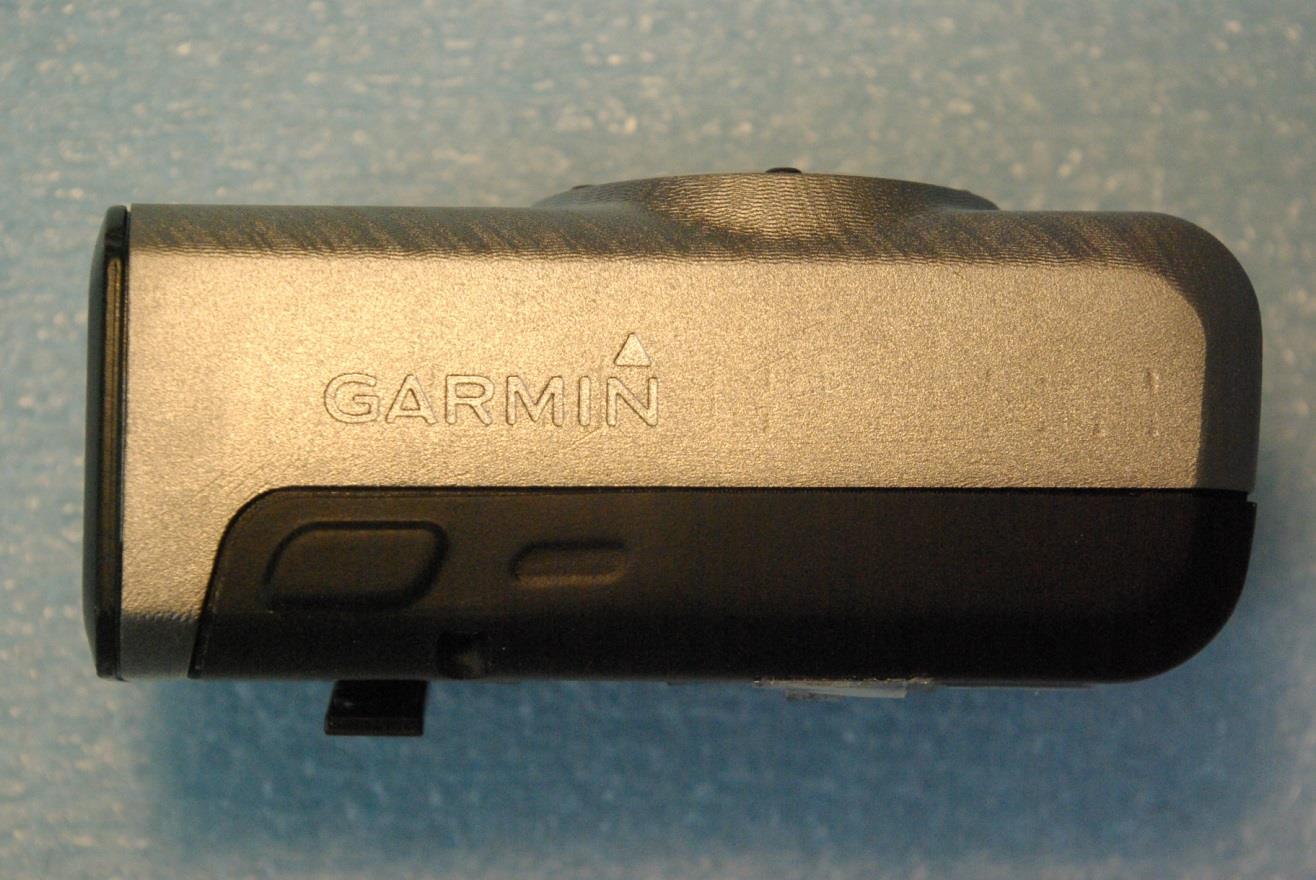

Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 20, 2015 Revision 1 File: A02666 ExtPho Page 1 of 3 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 20, 2015 Revision 1 File: A02666 ExtPho Page 2 of 3 Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 20, 2015 Revision 1 File: A02666 ExtPho Page 3 of 3

Label Drawing and Placement Back of device Label Device

Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 20, 2015 Revision 1 File: A02666 IntPho Page 1 of 1 Internal Photographs

Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 15, 2015 Revision 1 File: TunPro A02666 Page 1 of 1 Tune-up Procedure Each unit is tested during unit production for transmit and receive functionality by a wireless communication test with pass/fail criteria. The unit is then given pass/fail status based on the measured parameters. The pass/fail threshold is determined by engineering during product development. Compliant samples continue through production and non-compliant units are removed. No tuning of software parameters or hardware is required.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-247 Date: July 15, 2015 Revision 1 File: Garmin A02666 FCC TstRpt 150420 Page 1 of 38 Application For Grant of Certification FOR FOR Model: A02666 2402-2480 MHz Low Power Transmitter FCC ID: IPH-02666 IC: 1792A-02666 FOR Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Test Report Number: 150420 IC Test Site Registration: 3041A-1 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-247 Date: July 15, 2015 Revision 1 File: Garmin A02666 FCC TstRpt 150420 Page 2 of 38 Engineering Test Report For Grant of Certification Application FOR 47 CFR, PART 15C - Intentional Radiators 47 CFR Paragraph 15.249 License Exempt Intentional Radiator For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Model: A02666 Low Power Transmitter Frequency Range 2402-2480 MHz FCC ID#: IPH-02666 IC: 1792A-02666 Test Date: April 20, 2015 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-247 Date: July 15, 2015 Revision 1 File: Garmin A02666 FCC TstRpt 150420 Page 3 of 38 Table Of Contents TABLE OF CONTENTS ....................................................................................................... 3 REVISIONS .......................................................................................................................... 4 FORWARD .......................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS .................................................................... 5 EQUIPMENT TESTED ......................................................................................................... 5 EQUIPMENT FUNCTION AND CONFIGURATION............................................................. 6 Equipment Configuration........................................................................................................................................... 7 APPLICATION FOR CERTIFICATION ................................................................................ 8 APPLICABLE STANDARDS & TEST PROCEDURES ....................................................... 9 EQUIPMENT TESTING PROCEDURES ............................................................................. 9 AC Line Conducted Emission Test Procedure ......................................................................................................... 9 Radiated Emission Test Procedure ............................................................................................................................ 9 Diagram 1 Test arrangement for Conducted emissions ............................................................................................ 10 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ............................................................. 11 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) .................................. 12 TEST SITE LOCATIONS ................................................................................................... 12 LIST OF TEST EQUIPMENT ............................................................................................. 13 UNITS OF MEASUREMENTS ........................................................................................... 14 ENVIRONMENTAL CONDITIONS..................................................................................... 14 INTENTIONAL RADIATORS ............................................................................................. 14 Antenna Requirements ............................................................................................................................................. 14 Restricted Bands of Operation ................................................................................................................................. 14 Table 1 Radiated Emissions in Restricted Frequency Bands Data ........................................................................... 15 Summary of Results for Radiated Emissions in Restricted Bands ....................................................................... 15 AC Line Conducted EMI Procedure ....................................................................................................................... 16 Figure 1 AC Line Conducted emissions of EUT line 1 (EUT AC Adapter, 362-00072-00) .................................... 17 Figure 2 AC Line Conducted emissions of EUT line 2 (EUT AC Adapter, 362-00072-00) .................................... 17 Figure 3 AC Line Conducted emissions of EUT line 1 (EUT AC Adapter, SCB0500600P) ................................... 18 Figure 4 AC Line Conducted emissions of EUT line 2 (EUT AC Adapter, SCB0500600P) ................................... 18 Figure 5 AC Line Conducted emissions of EUT line 1 (EUT AC Adapter, 362-00087-00) .......................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 28, 2015 Revision 1 File: A02666 TSup A02666 Page 1 of 4 Test setup photographs Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 28, 2015 Revision 1 File: A02666 TSup A02666 Page 2 of 4 Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 28, 2015 Revision 1 File: A02666 TSup A02666 Page 3 of 4 Rogers Labs, Inc. Garmin International, Inc. SN: 22225 4405 W. 259th Terrace Model: A02666 FCC ID#: IPH-02666 Louisburg, KS 66053 Test #: 150420 IC: 1792A-02666 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 28, 2015 Revision 1 File: A02666 TSup A02666 Page 4 of 4
