IPH-02670Wireless Dog Trainer

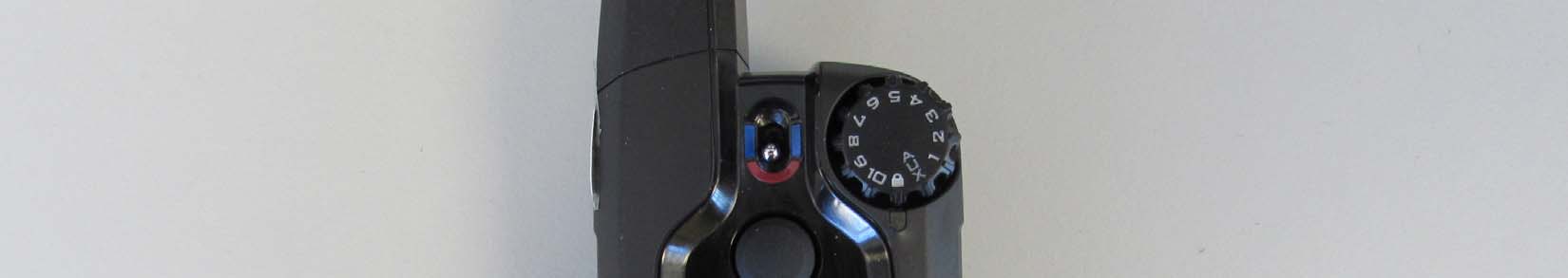

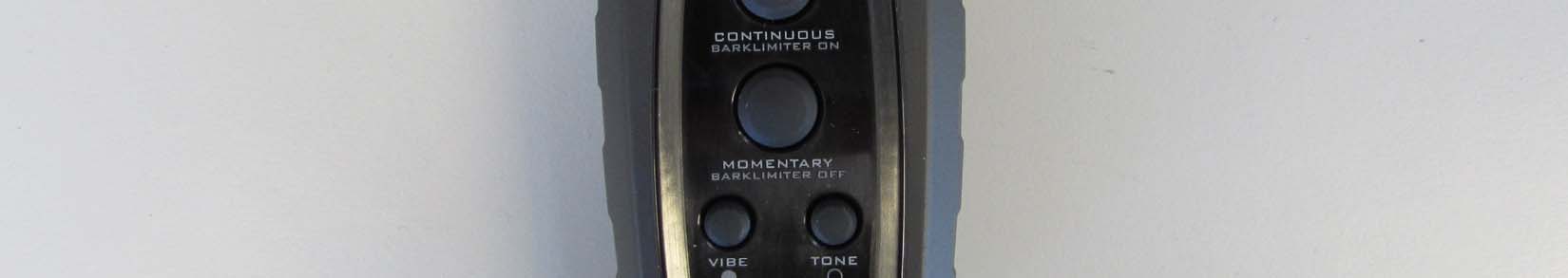

Sport PRO ™ Quick Start Manual April 2015Printed in Taiwan190-01893-01_0A DRAFT Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Setting Up the Sport PRO System Before you can use the Sport PRO system, you must set up the devices. 1 Attach the dog collar device to the collar strap (page 3). 2 Charge the handheld device (page 3). 3 Charge the dog collar device (page 4). 4 Turn on the devices (page 5). 5 If necessary, pair the dog collar device with the handheld device (page 5). Device Overviews Sport PRO Handheld Device À Dog collar device toggle switch Á Intensity level and training mode dial  Continuous stimulation key BarkLimiter ™ on key (AUX mode) à Momentary stimulation key BarkLimiter off key (AUX mode) Ä Vibration key Light on key (AUX mode) Å Tone key Light off key (AUX mode) 2Getting Started DRAFT Sport PRO Dog Device À Power key Á Status LED  Lights à Contact points Ä Charging clip contacts Attaching the Dog Collar Device to the Collar Strap 1 With the buckle À facing outward, insert the end of the collar strap through the slot Á on the collar device. 2 Pull most of the collar strap through the two slots  on the dog device. 3 Insert the end of the collar strap through the slot à on the opposite side of the device. 4 Pull the strap until it is tight across the front of the device. Charging the Handheld Device NOTICE To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer. You should fully charge the battery before you use the device for the first time or whenever the battery is low. It is normal for the battery to discharge in approximately 7 to 10 weeks when the device is not in use. Charging a fully depleted battery takes about 2 hours. NOTE: The device will not charge when it is outside the temperature range of 32° to 104°F (0° to 40°C). 1 Lift the weather cap À . Getting Started3 DRAFT You should fully charge the battery before you use the device for the first time or whenever the battery is low . It is normal for the battery to discharge in approximately 7 to 10 weeks when the device is not in use. Charging a fully depleted battery takes about 2 hours. 2 Plug the small end of the power cable into the mini-USB port Á on the device. 3 Plug the other end of the power cable into an appropriate power source. The status LED is solid red when the device is charging. 4 After the status LED turns solid green, unplug the power cable from the device. Charging the Dog Collar Device NOTICE To prevent corrosion, thoroughly dry the contacts on the collar and the surrounding area before connecting the charging clip. You should fully charge the battery before you use the device for the first time or whenever the battery is low. It is normal for the battery to discharge in approximately 7 to 10 weeks when the device is not in use. Charging a fully depleted battery takes about 2 hours. NOTE: The device will not charge when outside the temperature range of 32° to 104°F (0° to 40°C). 1 Snap the charging clip À onto the device Á . 4Getting Started DRAFT 2 Plug the power cable into a power source. The status LED is solid red when the collar is charging. 3 After the status LED turns solid green, remove the charging clip from the collar. Turning On the Dog Collar Device • On the dog collar device, hold the power key until the status LED turns green and the collar beeps to turn it on in training mode. • On the dog collar device, hold the power key until the status LED turns blue to turn on the BarkLimiter feature. • On the dog collar device, hold the power key until the status LED turns yellow to enter pairing mode (page 5). Turning Off the Device 1 On the dog collar device, hold the power key until the red LED appears. 2 Release the power key. The dog collar device beeps to confirm powering off. NOTE: If the device is powered off in BarkLimiter mode, the LED flashes the number of corrected barks before powering off . Dog Collar Device You can use up to 3 dog collar devices with a single handheld device. Each dog collar device must be paired with the handheld device before it can be used. During the pairing process, each dog collar device is associated with a different color on the handheld device. Pairing a Dog Collar Device with the Handheld Device NOTE: If your handheld device and dog collar device were included in the same package, the devices are paired from the factory. Getting Started5 DRAFT 1 On the handheld device, move the toggle switch and select a key to choose the color associated with the dog collar device. 2 On the handheld device, set the intensity level to a numbered position. 3 On the dog collar device, hold the power key for about 5 seconds until the status LED changes to yellow. 4 On the handheld device, select a training key. The dog collar device beeps when the devices have paired successfully. If the device does not beep, pairing has not been successful. TIP: If the devices did not pair successfully, you should verify the batteries in both devices are fully charged and the intensity level is set to a numbered position. Selecting a Dog Collar Device Before you can select and control a dog collar device, you must pair the dog collar device with the handheld device (page 5). Move the dog collar device toggle switch to select the color associated with a dog collar device. The training keys control the dog collar device associated with the selected color. Dog Training You should research and investigate the training methods best suited for you, your dog, and your needs. When used properly, the Sport PRO training system is an effective training tool to aid your dog in reaching its full potential. The use of the training system should be part of an overall training program. Fitting the Collar on Your Dog CAUTION To prevent irritation from the contact points, remove the collar for at least eight hours…

Text truncated - open the document above for the full version.

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2015\p1530009-Garmin Tr\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CB-7.2.1 – Technical Review RT Form FCC ID: IPH-02670 IC ID: 1792A-02670 CT Project: P1530009 From: Shawn McMillen Date: 06-09-2015 1--The CB-731 form for this application is for another client. DW: Correct one in file. 2--The bill of materials wasn’t included with the long term confidentiality. Is this correct or just an oversight? Client: 6/15/15 - Revised letter provided. 3--The receiver portion of this device does not need to be included with this application as is it not being certified as a system. The theory of operation for the Sport ProDD and the internal/external photos of the receiver can be excluded. DW: Removed. 4--In the EMC report the modulation for F1E appears to have a typo. Should read 8K30F1E. Alex: Updated test report 5--Three modulations are described in the report as being applicable to this device however only one modulation was applied to the emission mask. Alex: Updated test report SM: Please indicate what has been done to the report. There appers to be no changes made. Alex: The test report now describes only one modulation type. This is indicated by the revision table on page 2 of the test report. CT - Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 2 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2015\p1530009-Garmin Tr\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx Response by: Submitted by: Date:

16.30 18.25 OFSHT. REV. DWG. NO. SCALE SIZE TITLE CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Tag, Compliance and S/N, Sport PRO HH 161-04385-00 Dims: mm B A 1 1 1X PRODUCTION RELEASE CHANGE PANTONE COLOR TO 8402C 127855 2/2/15 5/19/15 A B REV. DATE DESCRIPTION APPRVD. REVISIONS ---- SPECIFICATION CONTROL DRAWING c/o Garmin International, Inc. Garmin Ltd. or its subsidiaries 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. DATEDRWN. RNL 2/2/15 TOLERANCE UNLESS NOTED OTHERWISE .XX +/- .010”, .25 mm .XXX +/- .005”, .13 mm HOLES +/- .003”, .08 mm ANGLES +/- 0 DEG / 30 MIN SCALE: 1X 43T000000 Pantone 8402 C NOTES: 1. MATERIAL: VINYL LAMINATE, SECOND SURFACE PRINTED. BACKGROUND - PANTONE BLACK C NOMENCLATURE - SEE CHART, SERIAL NUMBERS TO BE BLACK. ACRYLIC PERMANENT ADHESIVE ON BACK SIDE WITH PEEL OFF RELEASE LINER. TOTAL PACKAGE THICKNESS EXCLUDING RELEASE LINER IS 0.05-0.13mm. 2. 9 DIGIT SERIAL NUMBER TO BE PRINTED SEQUENTIALLY IN FIELDS AS SHOWN (2D, CODE 39 W/HUMAN READABLE OR HUMAN READABLE ONLY WHEN APPLICABLE). PRINT ADDITIONAL TAGS (30 X 7.5) IN QTY INDICATED (BARCODE 39 WITH HUMAN READABLE ONLY). ALL TAGS PRINTED WITH INDELIBLE BLACK INK. S/N RANGE FOR THIS ITEM: 43T000000-43T999999 AS INDICATED ON GARMIN PURCHASE ORDER. 3. MAIN TAG AND ADDITIONAL TAG ARE SUPPLIED ON ONE ROLL WITH EQUIVALENT SERIAL NO’S ADJACENT TO EACH OTHER. ALL TAGS ARE “KISS CUT” ON ROLL. 4. PARTS TO BE FABRICATED USING DIGITAL CORELDRAW FILE. 5. THIS PART SHALL COMPLY WITH GARMIN BANNED & RESTRICTED SUBSTANCES DOCUMENT GPN 001-00211-00. 6. THIS PART SHALL NOT CONTAIN HAZARDOUS SUBSTANCES EXCEEDING LEVELS DEFINED BY EU DIRECTIVE 2011/65/EU (RoHS 2). Pantone Black C IC: 1792A-02670 FCC ID: IPH-02670 TAIWAN M/N: O5AHNH00 s/n 43T000000 IC: 1792A-02670 FCC ID: IPH-02670 TAIWAN M/N: O5AHNH00 18.25 1 6 . 3 5 R1.1, 4x PartInformation ItemAttribution1 of1Item: 161-04385-00 Rev:B ECO#127855Creation Date: 21-May-2015 04:26 PM CST GPN:161-04385-00 Description:Tag, Compliance and S/N, Sport PRO HH Part Type:Label Lifecycle Phase:Production Rev:B ECO#127855 ItemAttribution Document Review Required: Item Notes: Preferred Rating: ESD Sensitive: Moisture Sensitive: Limited Shelf Life: Magnetic Sensitive:

p1530009_FCC_Part 1.1310_Rev 1.0 Page 1 of 4 Test Report Prepared for: Garmin International, Inc. Model: O5AHNH00 Description: Wireless Dog Trainer Serial Number: 43T000000 FCC ID: IPH-02670 To FCC Part 1.1310 Date of Issue: June 5, 2015 On the behalf of the applicant: Garmin International, Inc. 1200 E. 151 St Olathe, KS 66062 Attention of: Paul Phrommany, Senior Compliance Engineer Ph: (913) 397-8200 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1530009 Alex Macon Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1530009_FCC_Part 1.1310_Rev 1.0 Page 2 of 4 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 June 4, 2015 Alex Macon Original Document p1530009_FCC_Part 1.1310_Rev 1.0 Page 3 of 4 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1530009_FCC_Part 1.1310_Rev 1.0 Page 4 of 4 Description The EUT is a handheld transmitter paired with a receiver collar which is used in a dog training application. This is a portable device. Measurement Result Tuned Frequency Conducted Peak Output power (100% Duty Cycle) RF Exposure Limit 27.045 MHz 188 mW 929.41 mW This is a portable device as it is a hand-held transmitter paired with a receiver collar which is used in a dog training application. The SAR exclusion from KDB 447498 Appendix C being applied. Exclusion Ratio Formula 1 from Section 4.3.1 of KDB 447498 D01 Exclusion Threshold = 7.5 Step 1: at 100 MHz and 50 mm, power threshold = (7.5 * 50) / sqrt(0.1) = 1185 mW Step 2a): 1185 + (50 – 50)* (27/150) = 1185 mW Step 3a): 1185 * [1 + log(100/27)] = 1858.83 mW Step 3b): 1858.83/2 = 929.41 mW PER the exclusion requirement of KDB 447498 a SAR measurement is not necessary. END OF TEST REPORT

p1530009_FCC_Part 95_Rev 2.0 Page 1 of 15 Test Report Prepared for: Garmin International Model: O5AHNH00 Description: Wireless Dog Trainer Serial Number: 43T000000 FCC ID: IPH-02670 IC: 1792A-02670 To FCC Part 95 Date of Issue: June 6, 2015 On the behalf of the applicant: Garmin International 1200 East 151 st Street Olathe, KS 66062 Attention of: Paul Phrommany, Compliance Engineer Ph: (913) 397-8200 E-mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1410007 Alex Macon Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1530009_FCC_Part 95_Rev 2.0 Page 2 of 15 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 May 29, 2015 Alex Macon Original Document 2.0 Jun 6, 2015 Alex Macon Removed unneeded bandwidth calculations p1530009_FCC_Part 95_Rev 2.0 Page 3 of 15 Table of Contents Description Page Standard Test Conditions and Engineering Practices 6 Test Result Summary 7 Carrier Output Power (Conducted) 8 Field Strength of Spurious Radiation 9 Emission Masks (Occupied Bandwidth) 12 Frequency Stability (Temperature and Voltage Variation) 13 Necessary Bandwidth Calculations 14 Test Equipment Utilized 15 p1530009_FCC_Part 95_Rev 2.0 Page 4 of 15 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1530009_FCC_Part 95_Rev 2.0 Page 5 of 15 The Applicant has been cautioned as to the following: 15.21: Information to the User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1530009_FCC_Part 95_Rev 2.0 Page 6 of 15 Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II, Part 2, Subpart J, Sections 2.947, 2.1033(c), 2.1041, 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and the following individual Parts 95. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/TIA 603C, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 23.2 – 25.4 31.2 – 35.7 967.8 – 969.2 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: O5AHNH00 Description: Wireless Dog Trainer Additional Information: The EUT is a wireless handheld transmitter. The EUT is an R/C device transmitting in the 27 MHz band to a wireless dog training collar. EUT Operation during Tests EUT was continuous transmit mode during all tests and receiver collar was turned on. Accessories: None Cables: None Modifications: None p1530009_FCC_Part 95_Rev 2.0 Page 7 of 15 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 2.1046 95.639 Carrier Output Power (Conducted) Pass 2.1053 95.635 Field Strength of Spurious Radiation Pass 90.635 2.1049 Emission Masks (Occupied Bandwidth) Pass 95.623 Frequency Stability (Temperature Variation) Pass 95.623 Frequency Stability (Voltage Variation) Pass RSS-Gen Receiver Spurious Emissions Pass 2.202 Necessary Bandwidth Calculation Pass p1530009_FCC_Part 95_Rev 2.0 Page 8 of 15 Carrier Output Power (Conducted) Name of Test: Carrier Output Power (Conducted) Engineer: Alex Macon Test Equipment Utilized: i00379 Test Date: 5/27/15 Measurement Procedur…
