IPH-03616LinkBox

LYWW20 Owner’s Manual Product Outline Main Characteristics Operating temperature range From -10° to 60°C Input voltage From 9 to 16V Maximum Operating Current 2A @12V (typ.) USB Data Communication USB 2.0 HS Charging Current MAX 1.5A Wi-Fi Protocol 802.11a/n/ac (5GHz) Bluetooth To smartphone A2DP AVRCP PBAP SPP HFP ANCS GAP GAVDP GATT To headset A2DP AVRCP HFP Connected Services The device supports SDL (Smart Device Link) service which links your smartphone with the meter to use your smartphone for various features such as music playback, phone, notifications, and navigation. Features may vary by phone make and model. Also, the Apps you have installed in your smartphone. Hard Key Operation Consider to the user’s safety, the device is not allowed to use touch function. All operations need to use the hard keys on the handler. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that Up Right Down Enter Left Back/ Home interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 15cm between the radiator & your body. The device shall be installed to provide a separation of at least 15cm from all persons. Country Code selection feature to be disabled for products marketed to the US/CANADA Industry Canada statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference (2) This device must accept any interference, including interference that may cause undesired operation of the device Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 15cm between the radiator & your body. Professional installation instruction Please be advised that due to the unique function supplied by this product, the device is intended for use with our interactive entertainment software and licensed third-party only. The product will be distributed through controlled distribution channel and installed by trained professional and will not be sold directly to the general public through retail store. 1. Installation personal This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting. 2. Installation location The product shall be installed at a location where the radiating antenna can be kept 15cm from nearby person in normal operation condition to meet regulatory RF exposure requirement. 3. Installation procedure Please refer to user’s manual for the detail. 4. Warning Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty.

LYWW20 Le manuel du propriétaire Aperçu du produit Caractéristiques principales Plage de température de fonctionnement De -10 ° à 60 ° C Tension d'entrée De 9 à 16V Courant de fonctionnement maximum 2A @12V (typ.) USB Communication de données USB 2.0 HS Courant de charge MAX 1.5A Wi-Fi Protocole 802.11a/n/ac (5GHz) Bluetooth Vers smartphone A2DP AVRCP PBAP SPP HFP ANCS GAP GAVDP GATT Vers casque audio A2DP AVRCP HFP Services connectés L'appareil prend en charge le service SDL (Smart Device Link) qui relie votre smartphone au lecteur afin d’utiliser votre smartphone pour diverses fonctionnalités telles que la lecture de musique, les appels téléphoniques, les notifications et la navigation. Les fonctionnalités peuvent varier selon la marque et le modèle du téléphone, ainsi que selon les applications installées sur celui-ci. Fonctionnement des touches physiques En prenant compte de la sécurité de l'utilisateur, l'appareil n'est pas autorisé à utiliser les fonctions tactiles. Toutes les opérations doivent utiliser les touches physiques du controlleur. En haut Droite Vers le bas Entrer La gauche Retour à la maison L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée suivent ces deux conditions: 1) L’appareil ne doit pas produire d’interférences. 2) L’appareil doit accepter toute interference reçue, y compris les interférences susceptibles de provoquer un fonctionnement indésirable. Déclaration d'exposition aux radiations: Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 15cm entre le radiateur et votre corps. Le dispositif doit être installé de manière à assurer une séparation d'au moins 15 cm de toutes les personnes. Instructions d'installation professionnelle Veuillez noter que l'appareil etant dedie a une fonction unique, il doit etre utilise avec notre logiciel proprietaire de divertissement interactif . Ce produit sera propose par un reseau de distribution controle et installe par des professionels; il ne sera pas propose au grand public par le reseau de la grande distribution. 1. Installation Ce produit est destine a un usage specifique et doit etre installe par un personnel qualifie maitrisant les radiofrequences et les regles s'y rapportant. L'installation et les reglages ne doivent pas etre modifies par l'utilisateur final. 2. Emplacement d'installation En usage normal, afin de respecter les exigences reglementaires concernant l'exposition aux radiofrequences, ce produit doit etre installe de facon a respecter une distance de 15 cm entre l'antenne emettrice et les personnes. 3. Procedure d'installation Consulter le manuel d'utilisation. 4. Avertissement Choisir avec soin la position d'installation et s'assurer que la puissance de sortie ne depasse pas les limites en vigueur. La violation de cette regle peut conduire a de serieuses penalites federales.

\ Date:July 6, 2021 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized Gary Chang, International Certification Corp. No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) to act on Garmin’s behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) for equipment FCC authorization. This authorization is limited to FCC ID: IPH-03616. Consistent with the foregoing, Gary Chang is authorized to: 1) Sign Form 731, 2) Sign letters of application, 3) Request confidentiality, and 4) Exchange data and information with the FCC, and authorized TCBs on behalf of Garmin. This authorization is not assignable to other beyond Gary Chang. No party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. Sincerely, William H. Pertner Compliance Team Leader Garmin International Inc. Tel: 913 440-5471 [email protected]

Date: July 19, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: IPH-03616 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant’s company name : International Certification Corp. Applicant’s company address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., Tao Yuan City 333, Taiwan (R.O.C.) Signature : Job Title and Dept. : Manager E-mail : [email protected] Tel. : 886-3-271-8628

Dec. 11, 2020 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue PO Box 11490, Station H Ottawa, Ontario, Canada K2H 8S2 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized the following Garmin International Associates to act on Garmin's behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) and Innovation, Science and Economic Development Canada (ISED) for equipment authorization or certification. Ms. Poojita Bhattu, Compliance Engineer Mr. Doug Burroughs, Senior Compliance Engineer Mr. Jeffrey Hailey, Staff Compliance Eng ineer Mr. Dan Irish, Senior Compliance Engineer Mr. Ben Karsak, Compliance Engineering Team Lead Mr. Kiran Kumar, Senior Compliance Engineer Mr. Tim Olson, Senior Compliance Engineer Mr. Carlos Ortega, Senior Compliance Engineer Mr. William Pertner, Compliance Engineering Team Lead Mr. Cody Riggle, Compliance Engineer Mr. David Utt, Staff Compliance Engineer Mr. Jonathan Shafer, Senior Design Certification Engineer Ms. Sara Jones, Design Certification Engineer 2 Mr. Jay Everett, Team Leader, System Validation As such, the Garmin Associates listed above are authorized to: 1) sign Form 731, 2) sign letters of application, 3) request confidentiality, and 4) exchange data and information with the FCC, IC and/or authorized TCBs on behalf of Garmin. In addition, these individuals shall be considered "authorized individuals" to act on Garmin's behalf where an "authorized individual's" attestation is necessary or preferred. This authorization remains in effect until notified to the contrary by Garmin. Sincerely, Mr. Douglas Kealey, Manager Environmental and Regulatory Affairs

Professional Installation Attestation 28 July 2021 FCC ID: IPH-03616 IC: 1792A-03616 To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Yours sincerely, Applicant’s company name : International Certification Corp. Applicant’s company address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., Tao Yuan City 333, Taiwan (R.O.C.) Signature : Job Title and Dept. : Manager E-mail : [email protected] Tel. : 886-3-271-8628

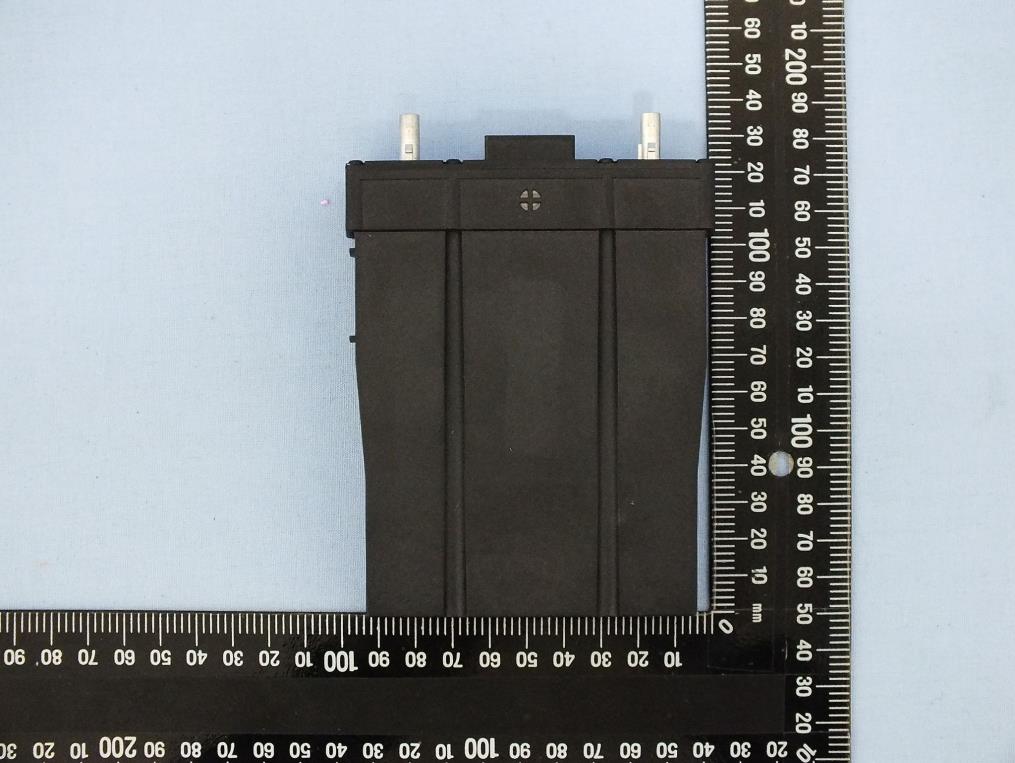

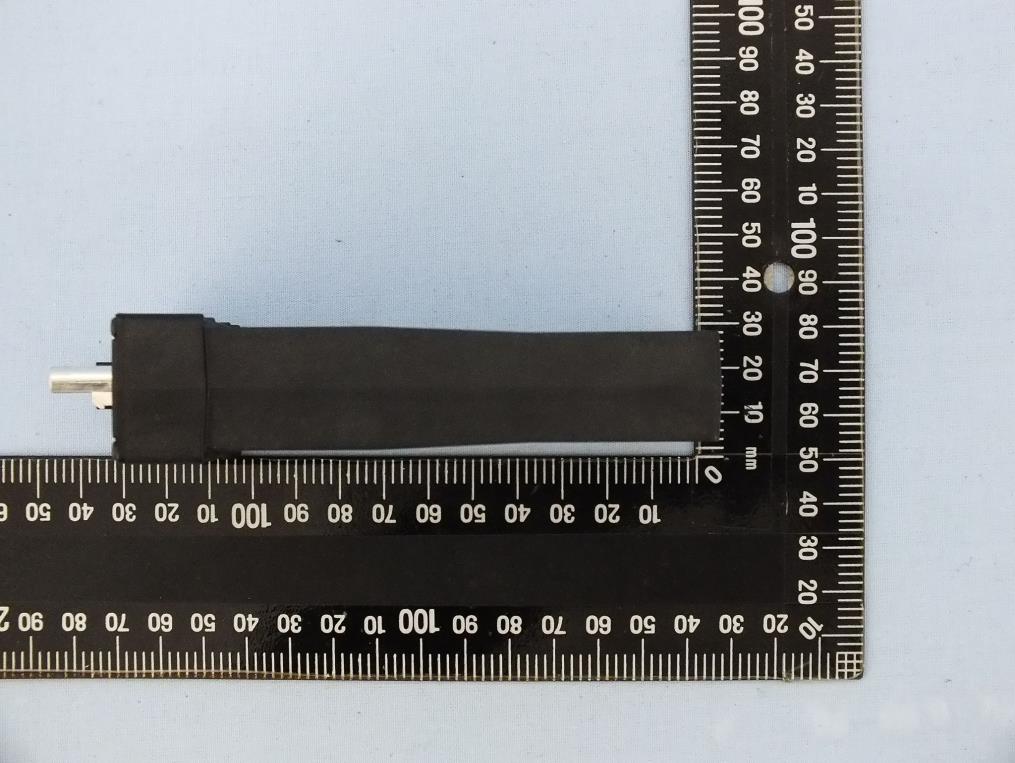

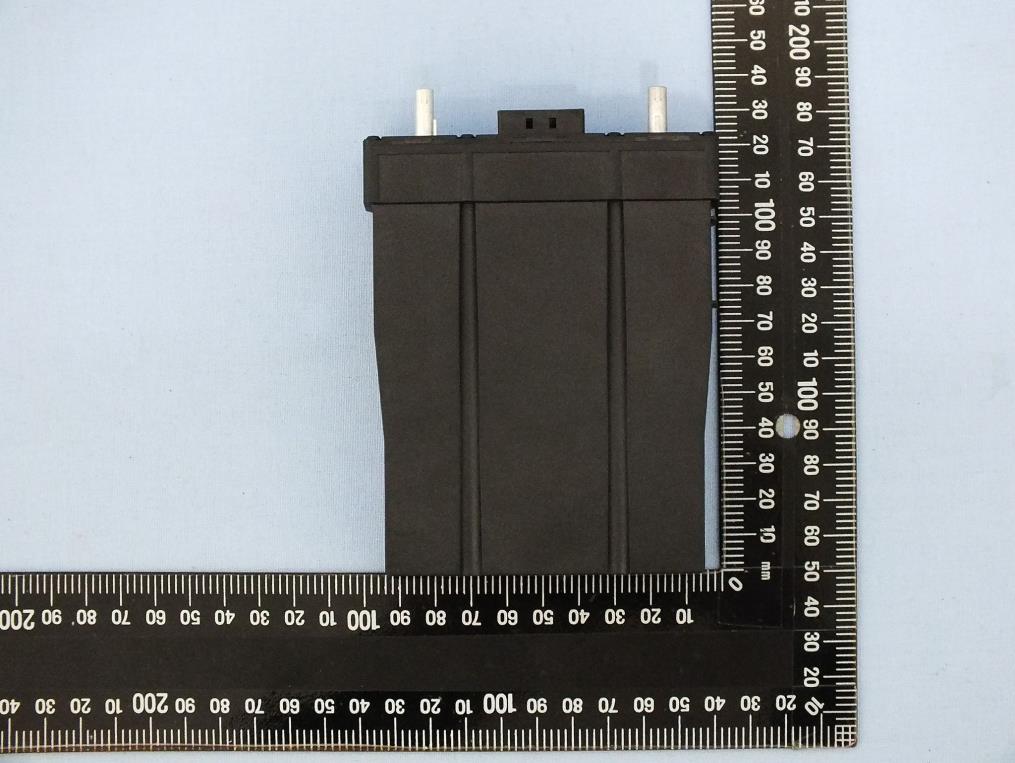

Project No.:EP9D2401-02 Page No. : 1 of 7 Photographs of EUT Project No.:EP9D2401-02 Page No. : 2 of 7 Project No.:EP9D2401-02 Page No. : 3 of 7

XXXXXXXXX 31.0 34.0 GPNSN RANGE 161-05336-006GS000000~6GS099999 161-05336-016GS100000~6GS199999 161-05336-026GS200000~6GS299999 161-05336-036GS300000~6GS399999 161-05336-046GS400000~6GS499999 FCC ID: IPH-03616 IC : 1792A-03616

Project No.:EP9D2401-02 Page No. : 4 of 7 Project No.:EP9D2401-02 Page No. : 5 of 7 Project No.:EP9D2401-02 Page No. : 6 of 7 Project No.:EP9D2401-02 Page No. : 7 of 7

Report No.: FA9D2401-02 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : IPH-03616 Equipment : LinkBox Model No. : LYWW20 Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 2.1093 Received Date : Jun. 03, 2021 Tested Date : Jun. 07 ~ Jun. 15, 2021 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA9D2401-02 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 RF EXPOSURE EVALUATION ............................................................................................................. 4 1.1 SAR TEST EXCLUSION THRESHOLD ................................................................................................. 4 1.2 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.4 EVALUATION RESULTS ....................................................................................................................... 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA9D2401-02 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA9D2401-02 Rev. 01 Initial issue Jul. 01, 2021 Report No.: FA9D2401-02 Page : 4 of 6 Report Version: Rev. 01 1 RF EXPOSURE EVALUATION 1.1 SAR TEST EXCLUSION THRESHOLD Frequency (MHz) 150 Separation distance(mm) 2450 1096 SAR Test Exclusion Threshold (mW) 5800 1062 1.2 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.3 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA9D2401-02 Page : 5 of 6 Report Version: Rev. 01 1.4 EVALUATION RESULTS Mode Maximum Average Power (dBm) Rated Power (dBm) Rated Power (mW) Separation Distance (mm) SAR Test Exclusion Thresholds (mW) Pass / Fail 2402-2480 (BT EDR/Radio chip 1) 4.98 5 3.16 150 1096 Pass 2402-2480 (BT EDR/Radio chip 2) 4.68 5 3.16 150 1096 Pass 2402-2480 (BT LE) 4.56 5 3.16 150 1096 Pass 5725~5850 (Wi-Fi) 10.67 11 12.59 150 1062 Pass Report No.: FA9D2401-02 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corporation (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No.30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan (R.O.C.) No.3-1, Lane 6, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) No.2-1, Lane 6, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) No.14-1, Lane 19, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 333, Taiwan (R.O.C.) If you have any suggestion, please feel free to contact us as below information. Tel: 886-3-271-8666 Fax: 886-3-318-0345 Email: [email protected] ══END══

Report No.: FR9D2401-02AE Page : 1 of 32 Report Version: Rev. 01 FCC Test Report FCC ID : IPH-03616 Equipment : LinkBox Model No. : LYWW20 Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.247 Received Date : Jun. 03, 2021 Tested Date : Jun. 09 ~ Jun. 15, 2021 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR9D2401-02AE Page : 2 of 32 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 Test Equipment List and Calibration Data .............................................................................................. 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Reference Guidance .............................................................................................................................. 9 1.7 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.8 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Facility...................................................................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 6dB and Occupied Bandwidth .............................................................................................................. 11 3.2 RF Output Power .................................................................................................................................. 14 3.3 Power Spectral Density ........................................................................................................................ 16 3.4 Emissions in Restricted Frequency Bands ........................................................................................... 19 3.5 Emissions in non-restricted Frequency Bands ..................................................................................... 29 4 TEST LABORATORY INFORMATION ............................................................................................... 32 Report No.: FR9D2401-02AE Page : 3 of 32 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR9D2401-02AE Rev. 01 Initial issue Jul. 01, 2021 Report No.: FR9D2401-02AE Page : 4 of 32 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions Note N/A 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 50.77MHz 35.14(Margin -4.86dB) - PK Pass 15.247(b)(3) Maximum Output Power Power [dBm]: 4.65 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass N/A means Not Applicable. Note: The EUT consumes DC power from battery, so the test is not required. Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR9D2401-02AE Page : 5 of 32 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 LE 2402-2480 0-39 [40] 1 Mbps Note 1: Bluetooth LE (Low energy) uses GFSK modulation. 1.1.2 Antenna Details Ant. No. Brand Name Model Name Type Connector Gain (dBi) 1 INPAQ TECH CO LTD VGAP-CLB-AS-A1 Chip N/A 2.93 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from battery 1.1.4 Accessories N/A Report No.: FR9D2401-02AE Page : 6 of 32 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 37 2402 9 2422 18 2442 28 2462 0 2404 10 2424 19 2444 29 2464 1 2406 38 2426 20 2446 30 2466 2 2408 11 2428 21 2448 31 2468 3 2410 12 2430 22 2450 32 2470 4 2412 13 2432 23 2452 33 2472 5 2414 14 2434 24 2454 34 2474 6 2416 15 2436 25 2456 35 2476 7 2418 16 2438 26 2458 36 2478 8 2420 …

Text truncated - open the document above for the full version.

Report No.: FR9D2401-02CO Page : 1 of 16 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : IPH-03616 Equipment : LinkBox Model No. : LYWW20 Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Jun. 03, 2021 Tested Date : Jun. 10 ~ Jun. 15, 2021 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR9D2401-02CO Page : 2 of 16 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 6 1.3 Test Standards ....................................................................................................................................... 7 1.4 Reference Guidance .............................................................................................................................. 7 1.5 Deviation from Test Standard and Measurement Procedure ................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Facility........................................................................................................................................ 8 2.2 The Worst Test Modes and Channel Details ......................................................................................... 8 3 TRANSMITTER TEST RESULTS .......................................................................................................... 9 3.1 Unwanted Emissions into Restricted Frequency Bands ........................................................................ 9 4 TEST LABORATORY INFORMATION ............................................................................................... 16 Report No.: FR9D2401-02CO Page : 3 of 16 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR9D2401-02CO Rev. 01 Initial issue Jul. 01, 2021 Report No.: FR9D2401-02CO Page : 4 of 16 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 49.40MHz 36.05 (Margin -3.95dB) - PK Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR9D2401-02CO Page : 5 of 16 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) WLAN Operating Frequency 802.11a/n/ac: 5745 MHz ~ 5825 MHz Antenna Type Chip antenna Modulation Type 802.11a/n/ac: OFDM/OFDMA (BPSK/QPSK/16QAM/64QAM/256QAM) Bluetooth Operating Frequency 2402 MHz ~ 2480 MHz Antenna Type Chip antenna Modulation Type Bluetooth LE: GFSK Bluetooth BR(1Mbps): GFSK Bluetooth EDR (2Mbps): π/4-DQPSK Bluetooth EDR (3Mbps): 8-DPSK 1.1.2 Antenna Details WLAN 5G Ant. No. Brand Name Model Name Type Connector Antenna Gain (dBi) 1 INPAQ TECH CO LTD VGAP-CLB-AS-A1 Chip N/A 3.24 Antenna for Radio chip 1_ Single chip Ant. No. Brand Name Model Name Type Connector Gain (dBi) 1 INPAQ TECH CO LTD VGAP-CLA-AS-A1 Chip No 1.76 Antenna for Radio chip 2_ Combo chip Ant. No. Brand Name Model Name Type Connector Gain (dBi) 1 INPAQ TECH CO LTD VGAP-CLB-AS-A1 Chip No 2.93 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from battery Report No.: FR9D2401-02CO Page : 6 of 16 Report Version: Rev. 01 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber1 / (03CH01-WS) Test Date Jun. 10, 2021 Instrument Brand Model No. Serial No. Calibration Date Calibration Until Receiver R&S ESR3 101657 Mar. 12, 2021 Mar. 11, 2022 Spectrum Analyzer R&S FSV40 101498 Dec. 04, 2020 Dec. 03, 2021 Loop Antenna R&S HFH2-Z2 100330 Nov. 17, 2020 Nov. 16, 2021 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-522 Jul. 10, 2020 Jul. 09, 2021 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120 D BBHA 9120 D 1096 De…

Text truncated - open the document above for the full version.
