IPH-03675Low power and cellular transmitter

2 2 Important Safety and Product Information Informations importantes sur le produit et la sécurité © 2019–2020 Garmin Ltd. or its subsidiaries Printed in Taiwan April 2020 190-00720-3D_0A Important Safety and Product Information WARNING Failure to heed the following warnings could result in an accident resulting in death or serious injury. Battery Warnings A lithium-ion battery is used in this device. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not disassemble, modify, remanufacture, puncture or damage the device or batteries. • Do not remove or attempt to remove the non-user-replaceable battery. • Do not expose the device or batteries to fire, explosion, or other hazard. Device Warnings • Do not immerse the device or batteries in water or other liquids. • Do not install the device in a location exposed to a heat source or in a high-temperature location. To prevent the possibility of damage, install the device out of direct sunlight. • Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging. • When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging. NOTICE Failure to heed the following notice could result in personal or property damage, or negatively impact the device functionality. Battery Notices • Contact your local waste disposal department to dispose of the device/batteries in accordance with applicable local laws and regulations. GPS Notice The navigation device may experience degraded performance if you use it in proximity to any device that uses a terrestrial broadband network operating close to the frequencies used by any Global Navigation Satellite System (GNSS), such as the Global Positioning Service (GPS). Use of such devices may impair reception of GNSS signals. Product Environmental Programs Information about the Garmin ® product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin /environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance. Innovation, Science and Economic Development Canada Compliance This device complies with Innovation, Science and Economic Development Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF exposure compliance requirements, the device should be used as described in the manual. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers. You acknowledge that the Software is the property of Garmin and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its th…

Text truncated - open the document above for the full version.

ONDECK ™ 2 8 Installation Instructions Instructions d'installation Garmin ® , the Garmin logo, ActiveCaptain ® , and are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. OnDeck ™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. NMEA 2000 ® and the NMEA 2000 logo are registered trademarks of the National Marine Electronics Association. FLIR ® is a registered trademark of FLIR Systems, Inc. El número de registro COFETEL/IFETEL puede ser revisado en el manual a través de la siguiente página de internet. Printed in Taiwan May 2020 190-02677-91_0B OnDeck ™ Installation Instructions Important Safety Information WARNING Failure to follow these warnings, cautions, and notices could result in personal injury, damage to the vessel or device, or poor product performance. See the Important Safety and Product Information guide in the product box for product warnings and other important information. When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product specifications. In addition, connecting the power cable without the appropriate fuse in place voids the product warranty. CAUTION To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. To avoid possible personal injury or damage to the device and vessel, disconnect the vessel's power supply before beginning to install the device. To avoid possible personal injury or damage to the device or vessel, before applying power to the device, make sure that it has been properly grounded, following the instructions in the guide. NOTICE For the best possible performance, the device must be installed according to these instructions. When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel. Read all installation instructions before proceeding with the installation. If you experience difficulty during the installation, contact Garmin ® Product Support. Contacting Garmin Support • Go to support.garmin.com for help and information, such as product manuals, frequently asked questions, videos, and customer support. • In the USA, call 913-397-8200 or 1-800-800-1020. • In the UK, call 0808 238 0000. • In Europe, call +44 (0) 870 850 1241. Connector View Power button FACTORY RESETDeletes all personal data and resets default settings STATUSIndicates device status CELLIndicates cell operation POWERPower cable connection NMEA 2000NMEA 2000 ® network NETWORKGarmin Marine Network IN/OUTConnects relays and wired sensors, such as temperature, security, and shore power GPSConnects to an external GPS antenna Tools Needed • Drill • Drill bits appropriate for the surface and hardware • Phillips screwdrivers • Pencil • Solderless wire-splice connector, or solder and heat-shrink tubing Mounting Considerations NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty. • You must mount the device in a location where it will not be submerged. • You must mount the device in a location with adequate ventilation where it will not be exposed to extreme temperatures. • You must mount the device at least 102 mm (4 in.) from cables and other potential sources of interference. • You must mount the device in a location that allows room for the routing and connection of all cables. • You must mount the device with the connectors facing up when mounted on a horizontal surface or out when mounted on a vertical surface. Do not install with the connectors facing down or facing the mounting surface. The internal GPS antenna will not work if mounted in this orientation. See Installing the Antennas, page 2. • For optimal internal GPS reception, you should mount the device in a location where it is above the water line when the vessel is in the water and if possible, has a clear view of the sky. • If you mount the device in a vessel with a metal hull or with the internal GPS antenna blocked or oriented poorly, you must connect the device to an external GPS antenna (sold separately). • For the best cellular signal, mount the device where it has a clear view of the sky. If it is mounted inside of a cabin, it should be close to a window so it can receive the cellular signal. Mounting the GTB 10 Black Box Device NOTICE If you are mounting the device in fiberglass, when drilling the pilot holes, use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened. NOTE: Screws are included with the device, but they may not be suitable for the mounting surface. Before you mount the device, you must select a mounting location, and determine what screws and other mounting hardware are needed for the surface. 1 Place the black box device in the mounting location, and mark the location of the pilot holes. 2 Drill a pilot hole for one corner of the device. 3 Loosely fasten the device to the mounting surface with one corner, and examine the other three pilot-hole marks. 4 Mark new pilot-hole locations if necessary, and remove the device from the mounting surface. 5 Drill the remaining pilot holes. 6 Secure the device to the mounting location. Installing the Antennas After mounting the device, you must orient both antennas pointing toward the sky for the best reception. 1 Remove the black, rubber cap from the connector. 2 Loosely attach the antenna…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Date: 4/20/2020 Subject: Request for Short Term Confidentiality FCC-ID: IPH-03675 To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, Garmin International, Inc. hereby requests short term confidentiality for documents filed under the following exhibit types: 1. External Photographs 2. Internal Photographs 3. User / Instruction Manual 4. Test Set-up Photographs until the product will be publicly announced. Short term confidentiality release date / period: 180 days from the grant date These items contain detailed system and equipment description and related information about the product which Garmin International, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Garmin International, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are informed and aware of our obligation that we have to inform the involved TCB in written and in due time if we intend to market the product prior to the above specified confidentiality release date so that the short term confidentiality classification can be reset prior to product launch. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Best Regards, ____________________________________ Signature Name: Jeffrey C Hailey Title: Staff Compliance Engineer Company Name: Garmin International, Inc. Address: 1200 East 151st Street, Olathe, KS 66062

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Date: 4/20/2020 Subject: Request for Permanent Confidentiality FCC ID: IPH-03675 To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, and KDB 726920, Garmin International, Inc. hereby requests permanent confidentiality for documents filed under the following exhibit types: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational Description These items contain detailed system and equipment description and related information about the product which Garmin International, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Garmin International, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Best Regards, _______________________________ Signature Name: Jeffrey C Hailey Title: Staff Compliance Engineer Company Name: Garmin International, Inc. Address: 1200 East 151st Street, Olathe, KS 66062

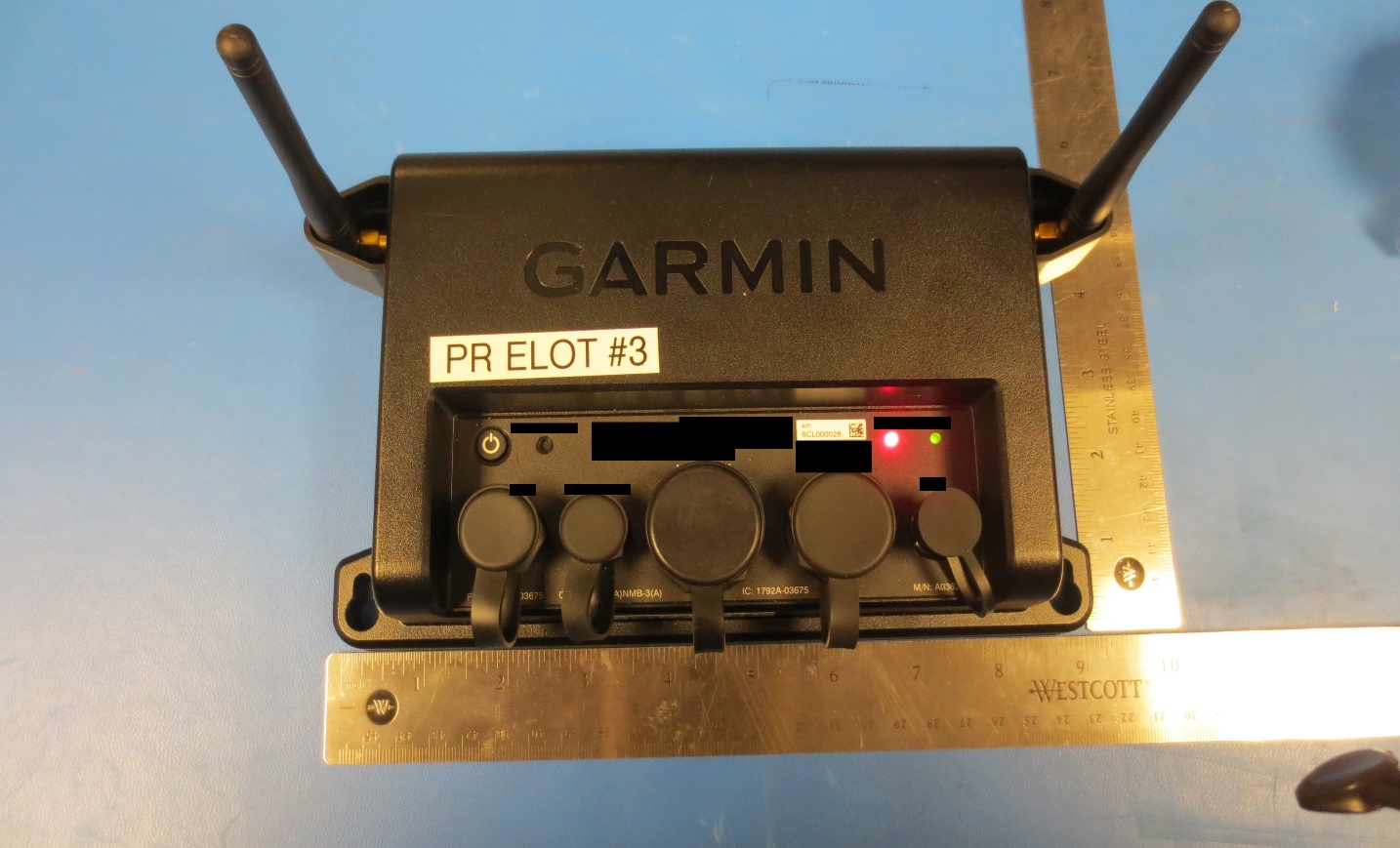

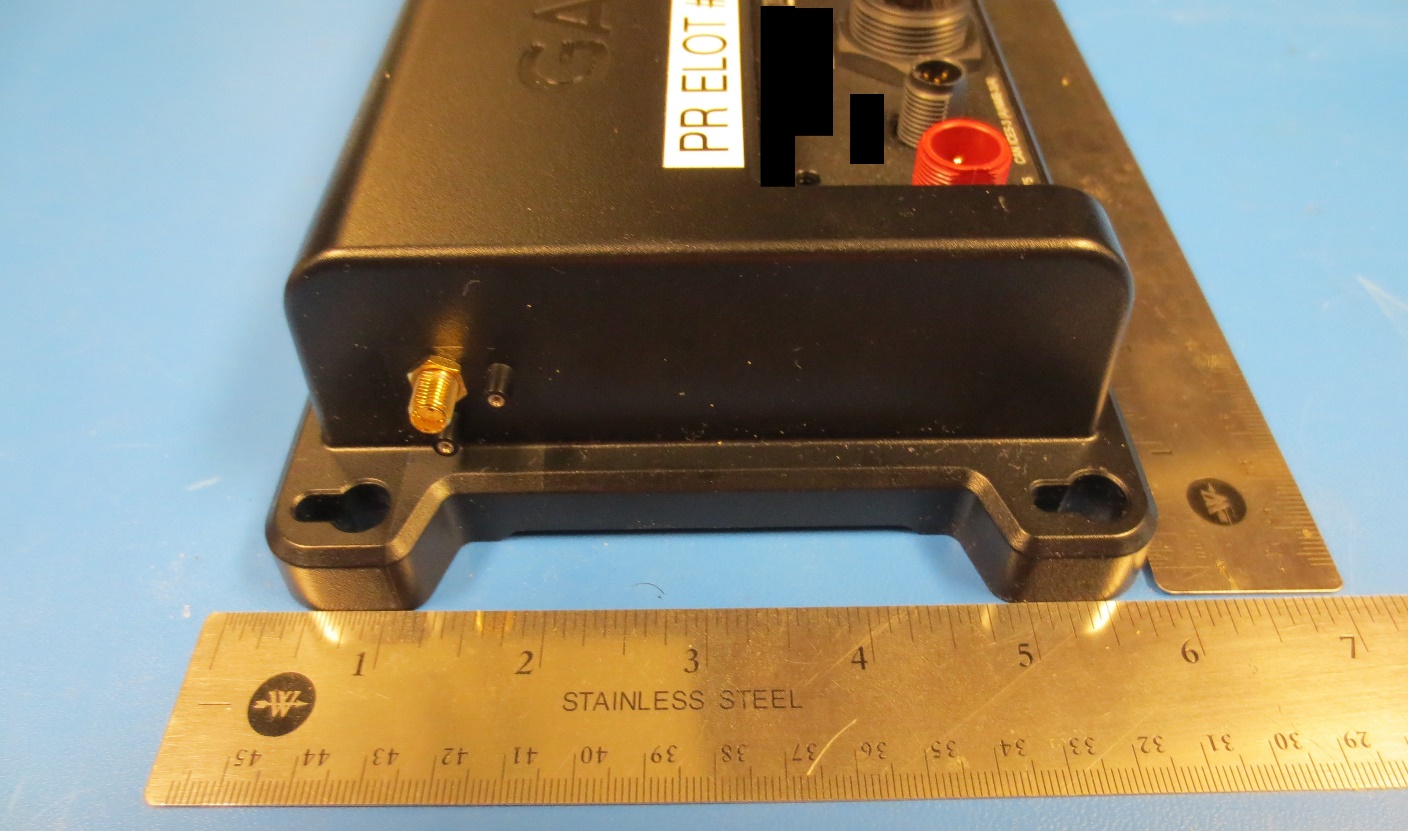

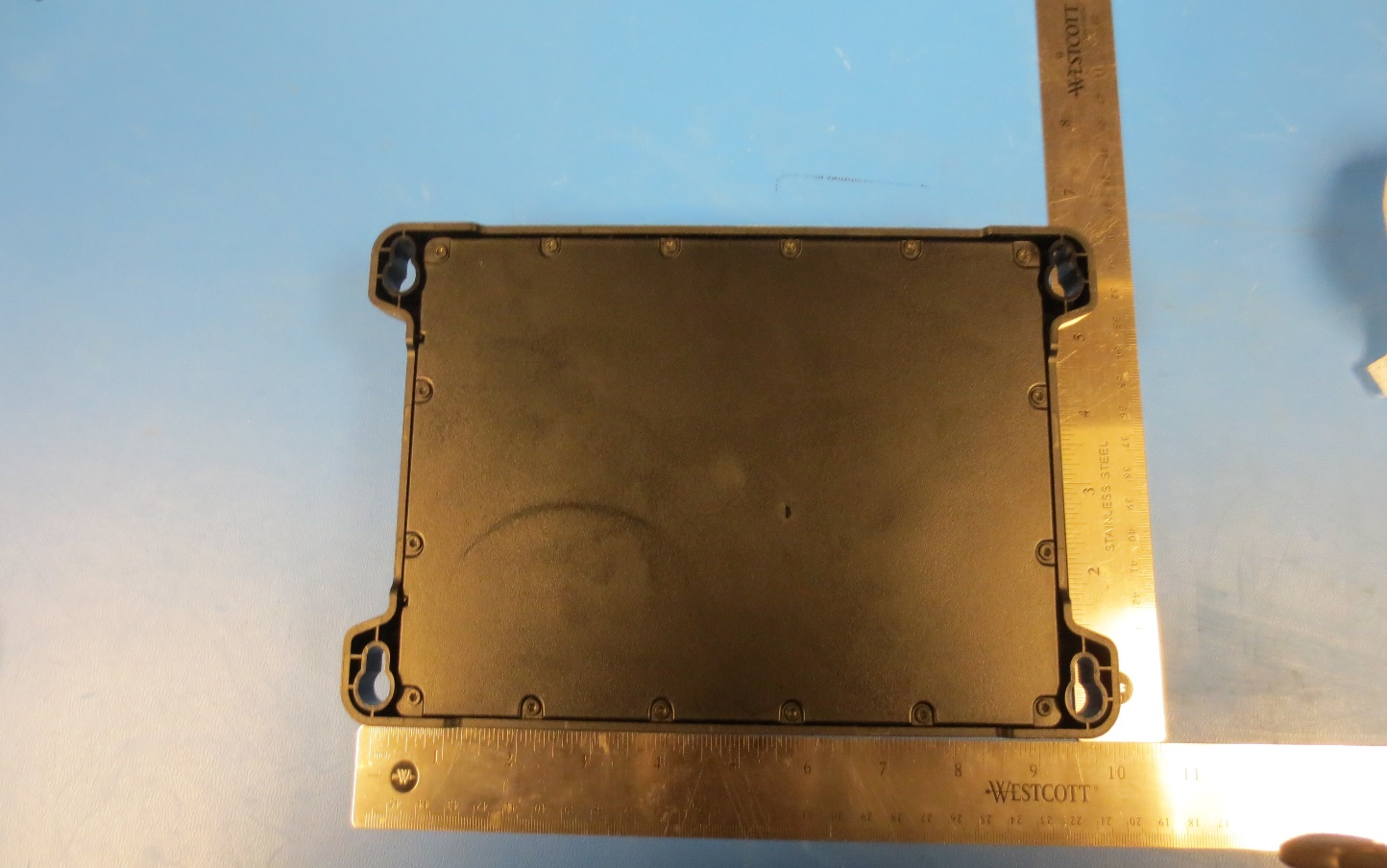

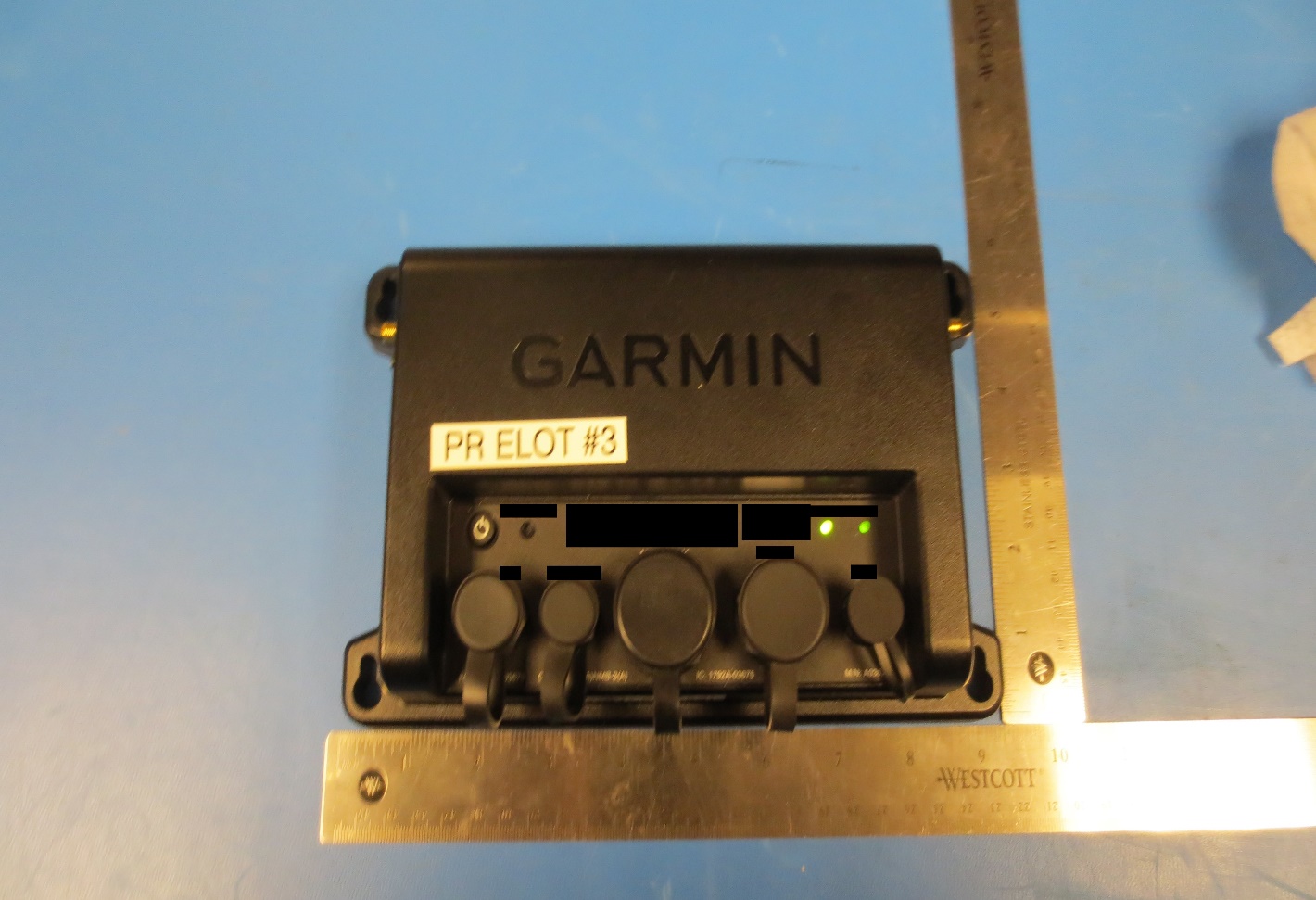

GARMIN INTERNATIONAL INC. : MODEL NO. : A03675 EXTERNAL PICTURES :

Garmin A03675 – Label :

Radio Frequency Exposure Evaluation Report FOR: Garmin International, Inc. Model Number: A03675 Product Description: N/A FCC ID: IPH-06375 IC ID: 1792A-03675 Per: CFR Part Part1 (1.1307 &1.1310), Part 2 (2.1091), FCC KDB 447498 D01 General RF Exposure Guidance v06 ISEDC RSS-102 Issue 5 Report number: EMC_GARMI-064-19001_FCC_ISED_MPE_REV6 DATE: 2020-05-22 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.0 2015-10-27 © Copyright by CETECOM Page 2 of 8 1 Assessment This RF Exposure evaluation report provides evidence for compliance of the below identified device with the RF Exposure limits for mobile devices as defined in FCC CFR Part 1 (1.1307 &1.1310), Part 2 (2.1091) and IC standard RSS-102 issue 5 under worst case conditions (measured or rated RF output power, antenna gain, distance towards human body, multiple transmitter information as presented by the applicant). In addition, maximum antenna gain or minimum distance towards the human body is calculated respectively, where relevant. The device meets the limits as stipulated by the above given FCC and IC rule parts based on available specifications for worst case conditions at 20cm distance to the body. Company Description Model # Garmin International Inc. N/A A03675 Report reviewed by: 2020-05-22 Compliance Cindy Li (Lab Manager) Date Section Name Signature Responsible for the Report: 2020-05-22 Compliance Kevin Wang (EMC Engineer) Date Section Name Signature Page 3 of 8 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Street Address: 411 Dixon Landing Road City/Zip Code Milpitas, CA 95035 Country USA Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Lab Manager: Cindy Li Responsible Project Leader: Sangeetha Sivaraman 2.2 Identification of the Client / Manufacturer Client’s Name: Garmin International, Inc. Street Address: 1200 East 151 st Street City/Zip Code Olathe, KS 66062 Country USA Identification of the Manufacturer Manufacturer’s Name: Same as Client Manufacturers Address: City/Zip Code Country Page 4 of 8 3 Equipment under Assessment Marketing name: N/A HW Version : 1 SW Version : 1.20 Firmware Version Identification Number (FVIN): N/A Hardware Version Identification Number (HVIN): A03675 Product Marketing Name (PMN): N/A Regulatory Band:  Cellular Module:  WCDMA/UMTS FDD BAND II: 1852.4 ~ 1907.6 MHz  WCDMA/UMTS FDD BAND IV: 1712.4 ~ 1752.6 MHz  WCDMA/UMTS FDD BAND V: 826.4 ~ 846.6 MHz  LTE BAND 2: 1850 ~ 1910 MHz  LTE BAND 4: 1710 ~ 1755 MHz  LTE BAND 5: 824 ~ 849 MHz  LTE BAND 12: 699 ~ 716 MHz  WLAN:  Nominal band: 2400 MHz – 2483.5 MHz;  Center to center: 2412 MHz (ch 1) – 2462 MHz (ch 11), 11 channels  BTLE / ANT:  Nominal band: 2400 MHz – 2483.5 MHz;  Center to center: 2402 MHz (ch 0) – 2480 MHz (ch 39), 40 channels Integrated Module Info:  Cellular Module:  Module name: Quectel  Model number: EG25-G  FCC/IC ID: XMR201903EG25G / 10224A-201903EG25G  WLAN:  Module name: Marvell  Model number: 88W8997  FCC/IC ID: IPH-06375 / 1792A-03675  Bluetooth / ANT:  Module name: Nordic Semiconductor  Model number: nRF51422  FCC/IC ID: TFB-TIWI1-01 / 5969A-TIWI101 Page 5 of 8 Antenna Type:  Cellular:  Antenna maximum gain: o WCDMA II: 0.4 dBi o WCDMA IV: 0.2 dBi o WCDMA V: -1.0 dBi o LTE Band 2: 0.4 dBi o LTE Band 4: 0.2 dBi o LTE Band 5: -1.0 dBi o LTE Band 12: -2.1 dBi  WLAN:  Antenna gain: 3.7 dBi  BTLE / ANT:  Antenna gain: 4.0 dBi Target TX Output Power Note 1 :  Cellular:  WCDMA Band II: 25 dBm  WCDMA Band IV: 25 dBm  WCDMA Band V: 25 dBm  LTE Band 2: 25 dBm  LTE Band 4: 25 dBm  LTE Band 5: 25 dBm  LTE Band 12: 25 dBm Maximum Conducted Output Power Note 2 :  WLAN:  802.11n HT20: 12.35 dBm  BTLE:  BTLE: 4.95 dBm  ANT:  ANT: 1.75 dBm Power Supply/ Rated Operating Voltage Range: VDC 32 :VDC, High 12 :VDC, Nominal 10 :Low Operating Temperature Range: Low -15⁰ C, Nominal 25⁰ C, High 55⁰ C Sample Revision Note 3 : Prototype Unit; Production Unit; Pre-Production Note 1: Target TX Output Power leveraged from Test Report No. “HR/2019/1001601” prepared by SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch for cellular module Quectel EG25-G (FCC ID: XMR201903EG25G, IC ID: 10224A-201903EG25G). Tune-up tolerance has been taken into account. Note 2: Maximum Conducted Output Power leveraged from Operation Description. Note 3: Pre-production PCB has new communication circuit that was made functional using wire mods. From a radio perspective the units tested are production quality per client communication. Page 6 of 8 4 RF Exposure Limits and FCC and IC Basic Rules For the specific described radio apparatus the following basic limits and rules apply for both, FCC and IC where not indicated differently. 4.1 Power Density Limits acc. to FCC 1.1310(e) / RSS-102 i5, cl. 4: FCC Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100000 1.0 30 IC 300 – 6000 0.02619 x f (MHz) 0.6834 6 4.2 Routine Environmental Evaluation Categorical Exclusion Limits acc. to FCC 2.1091(c) / RSS-102, cl. 2.5 (rounded to 1 decimal point): FCC operating frequency < 1.5GHz: excluded if ERP < 1.5W / 31.8dBm (EIRP: 33.9 dBm); operating frequency > 1.5GHz: excluded if ERP < 3.0W / 34.8dBm (EIRP: 36.9 dBm); IC 300MHz < = operating frequency < 6 GHz: excluded if EIRP < 0.0131 x f (MHz) 0.6834 W 4.3 RF Exposure Estimation (MPE Estimation) Having available the source based average output power and peak antenna gain or the ERP/EIRP of the specified device and for a known minimum distance of its radiating structures from the body of persons according to its use cases (at least 20cm) the power density at that distance can be estimated by the following formula for plane-wave equivalent…

Text truncated - open the document above for the full version.

A2LA Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V4.0 2012-07-25 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC / ISED Test Report For: Garmin International, Inc. Model Name: A03675 Product Description: N/A FCC ID: IPH-03675 IC ID: 1792A-03675 Applied Rules and Standards: 47 CFR Part 15.247 (DTS) RSS-247 Issue 2 (DTSs) & RSS-Gen Issue 5 REPORT #: EMC_GARMI-064-19001_15.247_WIFI_DTS_REV6 DATE: 2020-05-22 Test Report #: EMC_GARMI-064-19001_15.247_WIFI_DTS_REV6 FCC ID: IPH-03675 Date of Report 2020-05-22 Page 2 of 97 IC ID: 1792A-03675 TABLE OF CONTENTS 1 ASSESSMENT .............................................................................................................................................................. 3 2 ADMINISTRATIVE DATA ............................................................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT ........................................................................... 4 2.2 IDENTIFICATION OF THE CLIENT ............................................................................................................................................. 4 2.3 IDENTIFICATION OF THE MANUFACTURER ................................................................................................................................. 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................................................... 5 3.1 EUT SPECIFICATIONS ......................................................................................................................................................... 5 3.2 EUT SAMPLE DETAILS ......................................................................................................................................................... 6 3.3 ACCESSORY EQUIPMENT (AE) DETAILS ................................................................................................................................... 6 3.4 TEST SAMPLE CONFIGURATION ............................................................................................................................................. 6 3.5 JUSTIFICATION FOR WORST CASE MODE OF OPERATION ............................................................................................................ 7 4 SUBJECT OF INVESTIGATION ...................................................................................................................................... 8 5 MEASUREMENT RESULTS SUMMARY .......................................................................................................................... 8 6 MEASUREMENT UNCERTAINTY.................................................................................................................................... 9 6.1 ENVIRONMENTAL CONDITIONS DURING TESTING: ...................................................................................................................... 9 6.2 DATES OF TESTING: ............................................................................................................................................................ 9 7 MEASUREMENT PROCEDURES .................................................................................................................................. 10 7.1 RADIATED MEASUREMENT .................................................................................................................................................. 10 7.2 POWER LINE CONDUCTED MEASUREMENT PROCEDURE .......................................................................................................... 12 7.3 RF CONDUCTED MEASUREMENT PROCEDURE ....................................................................................................................... 12 8 TEST RESULT DATA .................................................................................................................................................. 13 8.1 MAXIMUM CONDUCTED (AVERAGE) OUTPUT POWER ............................................................................................................... 13 8.2 POWER SPECTRAL DENSITY ............................................................................................................................................... 24 8.3 DUTY CYCLE .................................................................................................................................................................... 44 8.4 BAND EDGE COMPLIANCE .................................................................................................................................................. 47 8.5 EMISSION BANDWIDTH 6DB AND 99% OCCUPIED BANDWIDTH ................................................................................................... 62 8.6 RADIATED TRANSMITTER SPURIOUS EMISSIONS AND RESTRICTED BANDS ................................................................................... 82 9 TEST SETUP PHOTOS ................................................................................................................................................ 96 10 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTING ......................................................................................... 96 11 HISTORY ................................................................................................................................................................... 97 Test Report #: EMC_GARMI-064-19001_15.247_WIFI_DTS_REV6 FCC ID: IPH-03675 Date of Report 2020-05-22 Page 3 of 97 IC ID: 1792A-0…

Text truncated - open the document above for the full version.

A2LA Accredited IC recognized # 3462B-1,2 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V4.0 2012-07-25 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC / ISED Test Report For: Garmin International, Inc. Model Name: A03675 Product Description: N/A FCC ID: IPH-03675 IC ID: 1792A-03675 Applied Rules and Standards: 47 CFR Part 15.247 (DTS) RSS-247 Issue 2 (DTSs) & RSS-Gen Issue 5 REPORT #: EMC_GARMI-064-19001_15.247_BTLE_DTS_REV4 DATE: 2020-05-18 Test Report #: EMC_GARMI-064-19001_15.247_BTLE_DTS_REV4 FCC ID: IPH-03675 Date of Report 2020-05-18 Page 2 of 48 IC ID: 1792A-03675 TABLE OF CONTENTS 1 ASSESSMENT .............................................................................................................................................................. 3 2 ADMINISTRATIVE DATA ............................................................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT ........................................................................... 4 2.2 IDENTIFICATION OF THE CLIENT ............................................................................................................................................. 4 2.3 IDENTIFICATION OF THE MANUFACTURER ................................................................................................................................. 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................................................... 5 3.1 EUT SPECIFICATIONS ......................................................................................................................................................... 5 3.2 EUT SAMPLE DETAILS ......................................................................................................................................................... 6 3.3 ACCESSORY EQUIPMENT (AE) DETAILS .......................…

Text truncated - open the document above for the full version.
