IPH-03690Portable Transceiver

requirements, the device should be installed and operated with a minimum of 5 mm (0.2 in.) between the device and your body. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers. You acknowledge that the Software is the property of Garmin and/or its third- party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America or the export control laws of any other applicable country. Map Data Information Garmin uses a combination of governmental and private data sources. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive. Limited Warranty THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER LEGAL RIGHTS, WHICH VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). GARMIN DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER LEGAL RIGHTS YOU MAY HAVE UNDER THE LAWS OF YOUR STATE (OR COUNTRY OR PROVINCE). FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR STATE, COUNTRY OR PROVINCE. Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This Limited Warranty does not apply to: (i) cosmetic damage, such as scratches, nicks and dents; (ii) consumable parts, such as batteries, unless product damage has occurred due to a defect in materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes; (iv) damage caused by service performed by anyone who is not an authorized service provider of Garmin; (v) damage to a product that has been modified or altered without the written permission of Garmin, or (vi) damage to a product that has been connected to power and/or data cables that are not supplied by Garmin. In addition, Garmin reserves the right to refuse warranty claims against products or services that are obtained and/or used in contravention of the laws of any country. Garmin products are intended to be used only as an aid and must not be used for any purpose requiring precise measurement of direction, distance, location or topography. For navigation products, Garmin makes no warranty as to the accuracy or completeness of the map data. This Limited Warranty also does not apply to, and Garmin is not responsible for, any degradation in the performance of any Garmin navigation product resulting from its use in proximity to any handset or other device that utilizes a terrestrial broadband network operating on frequencies that are close to the frequencies used by any Global Navigation Satellite System (GNSS) such as the Global Positioning Service (GPS). Use of such devices may impair reception…

Text truncated - open the document above for the full version.

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers. You acknowledge that the Software is the property of Garmin and/or its third- party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America or the export control laws of any other applicable country. Map Data Information Garmin uses a combination of governmental and private data sources. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive. Limited Warranty THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER LEGAL RIGHTS, WHICH VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). GARMIN DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER LEGAL RIGHTS YOU MAY HAVE UNDER THE LAWS OF YOUR STATE (OR COUNTRY OR PROVINCE). FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR STATE, COUNTRY OR PROVINCE. Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This Limited Warranty does not apply to: (i) cosmetic damage, such as scratches, nicks and dents; (ii) consumable parts, such as batteries, unless product damage has occurred due to a defect in materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes; (iv) damage caused by service performed by anyone who is not an authorized service provider of Garmin; (v) damage to a product that has been modified or altered without the written permission of Garmin, or (vi) damage to a product that has been connected to power and/or data cables that are not supplied by Garmin. In addition, Garmin reserves the right to refuse warranty claims against products or services that are obtained and/or used in contravention of the laws of any country. Garmin products are intended to be used only as an aid and must not be used for any purpose requiring precise measurement of direction, distance, location or topography. For navigation products, Garmin makes no warranty as to the accuracy or completeness of the map data. This Limited Warranty also does not apply to, and Garmin is not responsible for, any degradation in the performance of any Garmin navigation product resulting from its use in proximity to any handset or other device that utilizes a terrestrial broadband network operating on frequencies that are close to the frequencies used by any Global Navigation Satellite System (GNSS) such as the Global Positioning Service (GPS). Use of such devices may impair reception of GNSS signals. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE WARRANTIES AND REMEDIES CONTAINED IN THIS LIMITED WARRANTY ARE EXCLUSIVE AND IN LIEU OF, AND GARMIN EXPRESSLY DISCLAIMS, ALL OTHER WARRANTIES AND REMEDIES, WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY REMEDY OR OTHERWISE. THIS LIMITED WARRANTY G…

Text truncated - open the document above for the full version.

Date: May 19, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Regarding the A03690 ISPI.pdf manual, Garmin acknowledges the use of the word “mobile” on page 2 under “Radio Frequency Radiation Exposure” where “portable” should have been used. This will be corrected as a running change in this manual. Thank you, William H. Pertner Team Leader Compliance Engineering Garmin International, Inc. Phone: 913-440-5471

Authority To Act As Agent Date: July 23, 2019 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Nic Johnson of the Nebraska Center for Excellence in Electronics (NCEE Labs) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: August 1, 2020 By: William H. Pertner Lead Compliance Engineer Garmin International, Inc.

Page 1 of 1 Request for Confidentiality Date: April 27, 2020 Subject: Confidentiality Request for: Garmin International, Inc. FCC ID: IPH-03690 IC: 1792A-03690 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent ☐ Not Provided Block Diagrams ☒ Short Term ☐ Not Provided External Photos ☒ Short Term ☐ Permanent ☐ Not Provided Internal Photos ☐ Short Term ☒ Permanent ☐ Not Provided Operation Description/Theory of Operation ☐ Short Term ☐ Permanent ☒ Not Provided Parts List & Placement/BOM ☐ Short Term ☐ Permanent ☒ Not Provided Tune-Up Procedure ☐ Short Term ☒ Permanent ☐ Not Provided Schematics ☒ Short Term ☐ Not Provided Test Setup Photos ☒ Short Term ☐ Permanent ☐ Not Provided User’s Manual The above-mentioned company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality (if applicable): The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered Provided to IC applications Sincerely, By: __________________________ Nic Johnson, Technical Manager, NCEE Labs

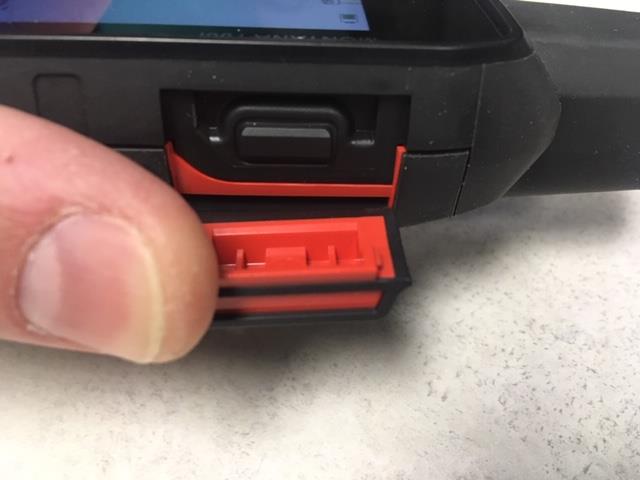

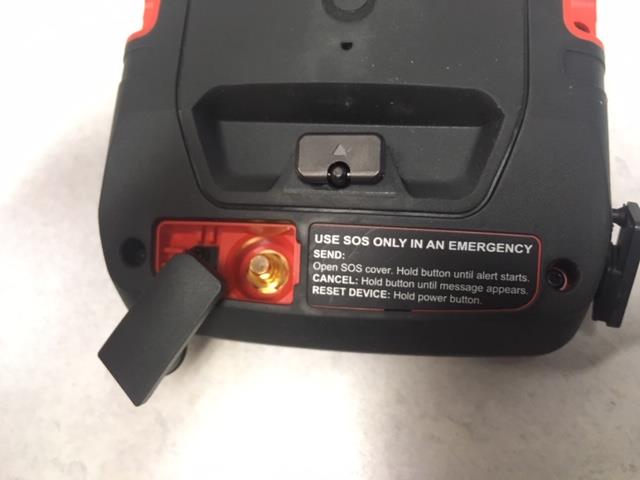

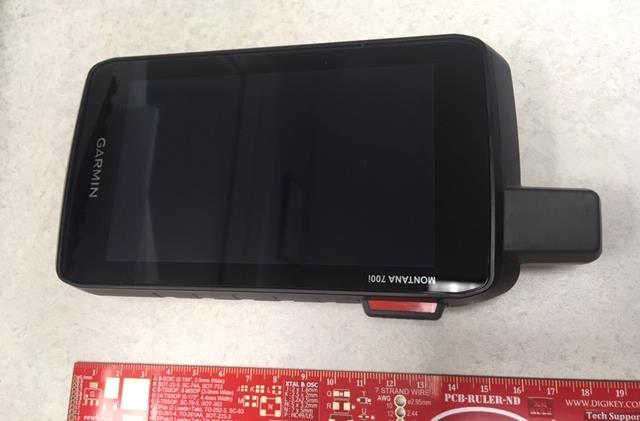

A03690 – External Photos A03690 – External Photos A03690 – External Photos A03690 – External Photos A03690 – External Photos

700 700i 750i Add Iridium and SOS Functionality Confidential Add External Passive Iridium/GNSS Antenna Port Add Camera 700 700i 750i Confidential

E-Label Information The following specific instructions are provided in the Quick Start Manual that ships with the device Label viewing directions are found in the user manual (outlined here for reference) and available on line at www.garmin.com Getting the Owner's Manual The owner's manual includes instructions for using device features and accessing regulatory information Go to www.garmin.com/manuals/A03690 The following are the specific instructions provided in the owner’s manual that is provided at www.garmin.com/manuals: Device Information Viewing Regulatory and Compliance information. 1 Go to Setup 2 Select About A03690 E-Label The above M/N, FCC ID, and IC numbers are installed in the factory and are unalterable. This information can also be found printed on the product packaging.

INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS

© 2020 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Garmin International, Inc. Dates of Test: February 25-26, 2020 1200 E. 151 st Street Test Report Number: SAR.20200219 Olathe, KS 66062 Revision B This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and IEC 62209-2:2010 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: IPH-03690 IC Certificate: 1792A-03690 Model(s): A03690 Test Sample: Engineering Unit Same as Production Serial Number: 6BC000067 Equipment Type: Wireless GPS Location Device Classification: Portable Transmitter Next to Body TX Frequency Range: 1616 – 1626 MHz; 2412 – 2462 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 1620 MHz – 32.2 dBm; 2450 MHz (b) – 16.41 dBm, 2450 MHz (g) – 16.41 dBm, 2450 MHz (n20) – 16.41 dBm Conducted Signal Modulation: FDMA-FM; DSSS, OFDM Antenna Type: Internal: WiFi; External Stubby: Satellite Application Type: Certification FCC Rule Parts: Part 2, 15C, 15E KDB Test Methodology: KDB 447498 D01 v06, KDB 248227 v02r02 Industry Canada: RSS-102 Issue 5, Safety Code 6 Maximum SAR Value: 1.19 W/kg Reported Simultaneous SAR Value: 0.03 Separation Ratio Separation Distance: 0 mm Report Number: SAR.20200219 © 2020 RF Exposure Lab, LLC Page 2 of 72 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ................................................................................................................................... 4 SAR Definition [5] .............................................................................................................................. 5 2. SAR Measurement Setup .............................................................................................................. 6 Robotic System ................................................................................................................................. 6 System Hardware .............................................................................................................................. 6 System Electronics ............................................................................................................................ 7 Probe Measurement System ............................................................................................................. 7 3. Probe and Dipole Calibration ....................................................................................................... 15 4. Phantom & Simulating Tissue Specifications ............................................................................... 16 Head & Body Simulating Mixture Characterization .......................................................................... 16 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ........................................................................ 17 Uncontrolled Environment ............................................................................................................... 17 Controlled Environment ................................................................................................................... 17 6. Measurement Uncertainty............................................................................................................ 18 7. System Verification ...................................................................................................................... 19 Tissue Verification ........................................................................................................................... 19 Test System Verification .................................................................................................................. 19 8. SAR Test Data Summary ............................................................................................................ 20 Procedures Used To Establish Test Signal ..................................................................................... 20 Device Test Condition ..................................................................................................................... 20 SAR Data Summary – 1640 MHz Body ........................................................................................... 23 SAR Data Summary – 2450 MHz Body 802.11b ............................................................................. 24 SAR Data Summary – Simultaneous Evaluation ............................................................................. 25 9. Test Equipment List ..................................................................................................................... 27 10. Conclusion ............................................................................................................................... 28 11. R eferences .............................................................................................................................. 29 A…

Text truncated - open the document above for the full version.

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. FCC/ISED Test Report Prepared for: Garmin International Inc. Address: 1200 E. 151 st Street Olathe, Kansas, 66062, USA Product: A03690 Test Report No: R20191028-24-E1D Approved by: __________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 16 June 2020 Total Pages: 70 Report Number: R20191028-24-E1 Rev D Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 70 REVISION PAGE Rev. No. Date Description 0 28 January 2020 Original – NJohnson Prepared by CFarrington A 8 June 2020 Updated calibration Table Includes NCEE Labs test report R20191028-24-E1 and its amendment in full. -NJ B 15 June 2020 Includes NCEE Labs test report R20191028-24-E1A and its amendment in full. -NJ C 16 June 2020 Updated calibration table. Includes NCEE Labs test report R20191028-24-E1B and its amendment in full. -NJ D 23 June 2020 Updated cover page Includes NCEE Labs test report R20191028-24-E1C and its amendment in full. -NJ Report Number: R20191028-24-E1 Rev C Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 3 of 70 CONT EN TS Revision Page ............................................................................................................................................................................... 2 1.0 Summary of test results ....................................................................................................................................... 4 2.0 EUT Description .................................................................................................................................................... 5 2.1 Equipment under test ........................................................................................................................................ 5 2.2 Description of test modes ................................................................................................................................ 6 2.3 Description of support units ............................................................................................................................ 6 3.0 Laboratory description ......................................................................................................................................... 7 3.1 Laboratory description ...................................................................................................................................... 7 3.2 Test personnel ..................................................................................................................................................... 7 3.3 Test equipment.................................................................................................................................................... 8 4.0 Detailed results ...................................................................................................................................................... 9 4.1 Duty Cycle ............................................................................................................................................................ 9 4.2 Peak Output Power .......................................................................................................................................... 10 4.3 Bandwidth ........................................................................................................................................................... 24 4.4 Radiated emissions .......................................................................................................................................... 35 4.5 Band edges ........................................................................................................................................................ 42 4.6 Power Spectral Density ................................................................................................................................... 53 4.6 Conducted AC Mains Emissions .................................................................................................................. 64 Appendix A: Sample Calculation ................................................................................................................................... 67 Appendix B – Measurement Uncertainty ...................................................................................................................... 69 REPORT END ..................................................................................................................................................................... 70 Report Number: R20191028-24-E1 Rev C Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 4 of 70 1.0 SU MMAR Y OF TEST R ESULT S The worst-case measurements were reported in this report. The EUT has been tested according to the following specifications: APPLIED STANDARDS AND REGULATIONS Standard Section Test Type Result FCC Part 15.35 RSS Gen, Issue 4, Section 6.10 Duty Cycle Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Peak output power Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Bandwidth Pass FCC Part 15.209 RSS-Gen Issue 4, Section 7.1 Receiver Radiated Emissions Pass FCC Part 15.209 (restricted bands), 15.247 (unrestricted) RSS-247 Issue 2 Section …

Text truncated - open the document above for the full version.

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. FCC/ISED DTS TEST REPORT Prepared for: Garmin International Inc. Address: 1200 E. 151 st Street Olathe, Kansas, 66062, USA Product: A03690 Test Report No: R20191028-24-E2C Approved By: __________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 16 June 2020 Total Pages: 88 Report Number: R20191028-24-E2A Rev A Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 88 REVI S I ON PAGE Rev. No. Date Description 0 28 February 2020 Original – NJohnson Prepared by CFarrington A 8 June 2020 Updated av…

Text truncated - open the document above for the full version.
