IPH-03831Portable Transceiver

© 2020 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product. Garmin ® , the Garmin logo, and Approach ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Express ™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Apple ® is a trademark of Apple Inc., registered in the U.S. and other countries. Windows ® is a registered trademark of Microsoft Corporation in the United States and other countries. Other trademarks and trade names are those of their respective owners. Table of Contents Introduction.....................................................................1 Device Overview.........................................................................1 Charging the Device...................................................................1 Turning On the Device................................................................1 Standby Mode.............................................................................1 Status LEDs................................................................................1 Adjusting the Eyepiece...............................................................2 Playing Golf....................................................................2 Measuring the Distance to the Pin..............................................2 Hole View....................................................................................2 Sight Something.............................................................2 Measuring the Distance to a Target...........................................2 Customizing Your Device..............................................3 Settings.......................................................................................3 Device Information.........................................................3 Device Care................................................................................3 Specifications..............................................................................3 Viewing E-label Regulatory and Compliance Information..........3 Troubleshooting.............................................................3 Ranging Accuracy.......................................................................3 Acquiring Satellite Signals..........................................................3 My device cannot find nearby golf courses................................4 Restoring All Default Settings.....................................................4 Product Updates.........................................................................4 Getting More Information............................................................4 Index................................................................................5 Table of Contentsi The measured range appears. Customizing Your Device Settings Select Settings . Tournament Mode: Disables the PinPointer and PlaysLike distance features. These features are not allowed during sanctioned tournaments. Driver Distance: Sets the average distance the ball travels on your drive. This distance appears as an arc on the hole view screen when you are on the tee box. Compass Calibration: Allows you to manually calibrate the compass sensor ( Calibrating the Compass, page 3) . System: Sets system settings, such as the text language on the device and the units of measure ( System Settings, page 3). About: Displays device information, such as the unit ID, software version, regulatory information, and license agreement (Viewing E-label Regulatory and Compliance Information, page 3). Calibrating the Compass NOTE: You must calibrate the electronic compass outdoors. Do not stand near objects that influence magnetic fields, such as cars, buildings, or overhead power lines. Your device was already calibrated at the factory, and the device uses automatic calibration by default. If the PinPointer feature is not working properly, for example, after moving long distances or after extreme temperature changes, you can manually calibrate the compass. 1 Select Settings > Compass Calibration. 2 Follow the on-screen instructions. System Settings Select Settings > System. Language: Sets the text language on the device. NOTE: Changing the text language does not change the language of user-entered data or map data. Units: Sets the unit of measure for distance. Restore Defaults : Resets all of the device settings to the factory default values (Restoring All Default Settings, page 4). Device Information Device Care NOTICE Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage. Avoid chemical cleaners, solvents, and insect repellents that can damage plastic components and finishes. Secure the weather cap tightly to prevent damage to the USB port. Cleaning the Device NOTICE Do not use a dry cloth to clean the lens. Use of a dry cloth may damage the lens. Avoid chemical cleaners and solvents that can damage plastic components. 1 Wipe the outer casing and lens with a soft, non-scratch cloth dampened with water or alcohol. 2 Wipe the outer casing dry, and allow the lens to air dry. Long-Term Storage When you do not plan to use the device for several months, you should charge the battery to at least 50% before you store the device. You should store the device in a cool, dry place with temperatures around the typical household level. After storage, you should fully recharge the device before using it. Specifications Battery typeRechargeable, built-i…

Text truncated - open the document above for the full version.

Product Environmental Programs Information about the Garmin product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance. Innovation, Science and Economic Development Canada Compliance This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF exposure compliance requirements, the device should be used as described in the manual. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers. You acknowledge that the Software is the property of Garmin and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America or the export control laws of any other applicable country. Map Data Information Garmin uses a combination of governmental and private data sources. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive. Limited Warranty THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER LEGAL RIGHTS, WHICH VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). GARMIN DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER LEGAL RIGHTS YOU MAY HAVE UNDER THE LAWS OF YOUR STATE (OR COUNTRY OR PROVINCE). FOR A 2 FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR STATE, COUNTRY OR PROVINCE. Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This Limited Warranty does not apply to: (i) cosmetic damage, such as scratches, nicks and dents; (ii) consumable parts, such as batteries, unless product damage has occurred due to a defect in materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes; (iv) damage caused by service performed by anyone who …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: January 10, 2020 Subject: FCC application for FCC ID: IPH-03831 To Whom It May Concern: Garmin International Inc. will continue to apply processes and procedures to ensure compliance with 47 CFR 2 requirements regarding products produced under Declaration of Conformity procedures for class B computer peripheral portion as applicable to this filing. Thank you, William H. Pertner Lead Compliance Engineer Garmin International, Inc.

Authority To Act As Agent Date: July 23, 2019 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Nic Johnson of the Nebraska Center for Excellence in Electronics (NCEE Labs) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: August 1, 2020 By: William H. Pertner Lead Compliance Engineer Garmin International, Inc.

022818 – 11 Request for Confidentiality Date: 3/6/2020 Subject: Confidentiality Request for: FCC ID: IPH-03831 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☒ Short Term External Photos ☒ Short Term ☐ Permanent * 3 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☒ Permanent Schematics ☒ Short Term Test Setup Photos ☒ Short Term ☐ Permanent * 3 User’s Manual Garmin International, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view until April 10, 2020. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ _Nic Johnson_____________ (Signature/Title 4 ) (Print name) 3 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

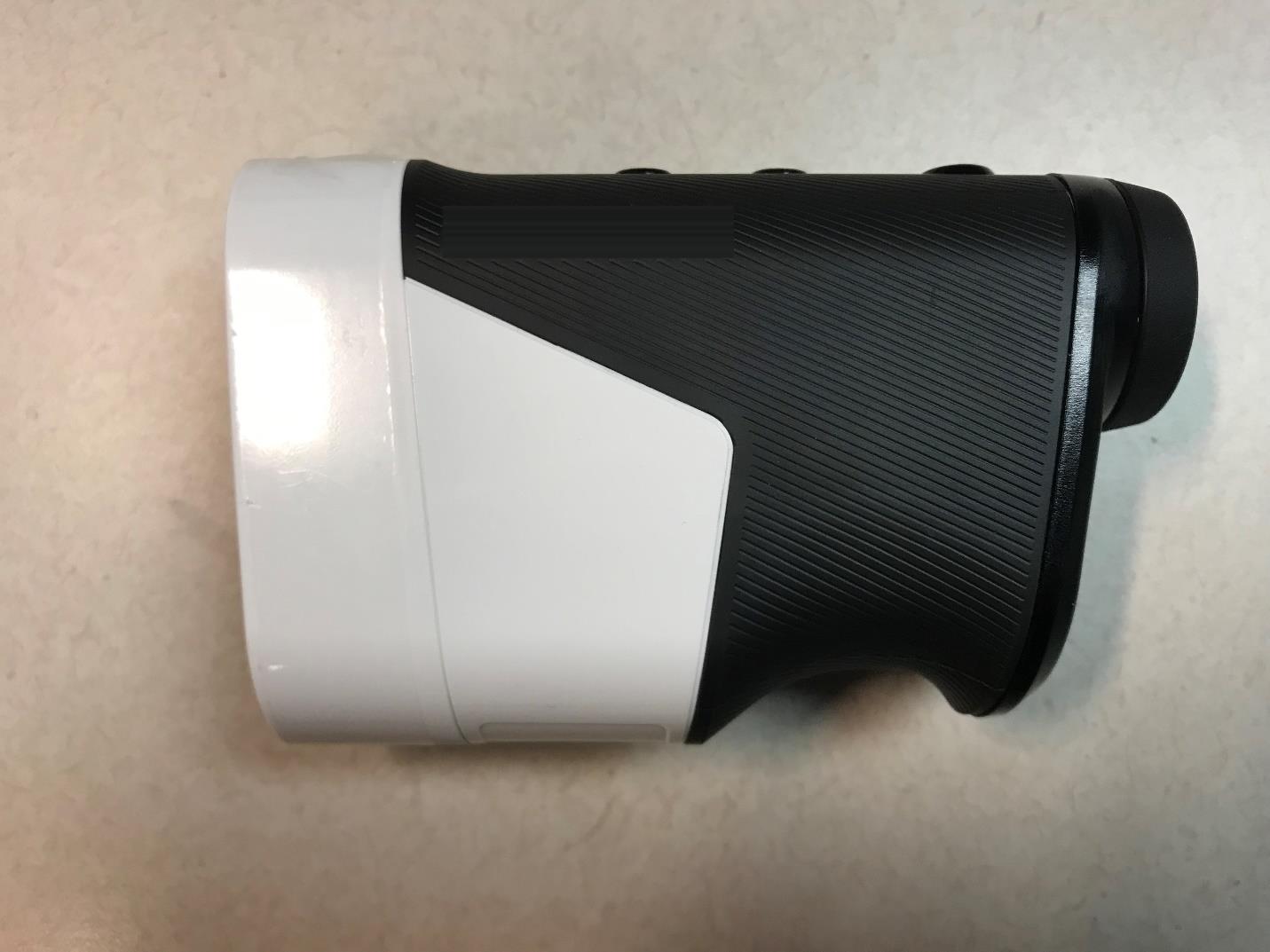

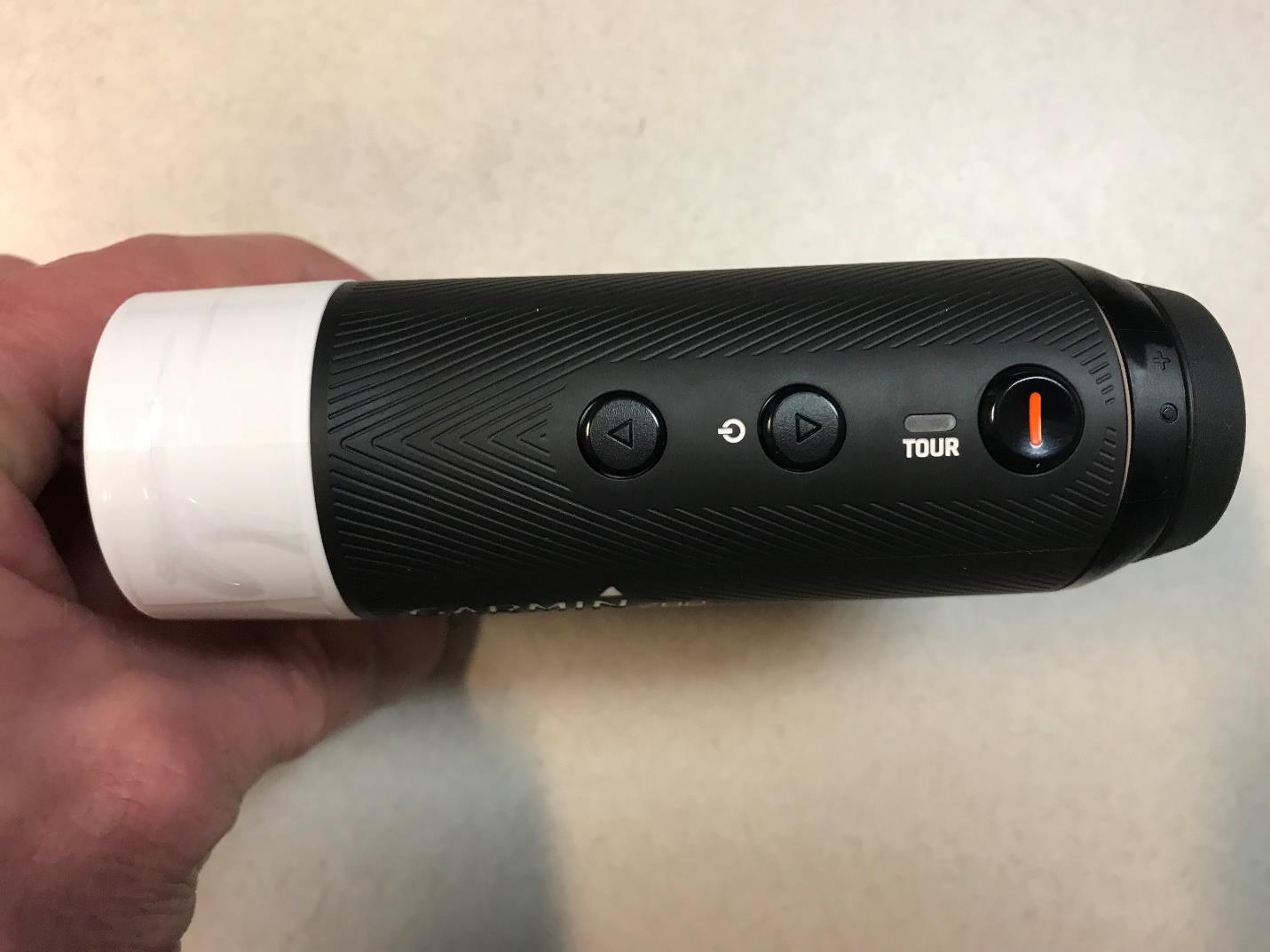

EXTERNAL PHOTOS EXTERNAL PHOTOS EXTERNAL PHOTOS EXTERNAL PHOTOS EXTERNAL PHOTOS EXTERNAL PHOTOS EXTERNAL PHOTOS 2.4 GHz antenna User’s eye

E-Label Information The following specific instructions are provided in the Quick Start Manual that ships with the device Label viewing directions are found in the user manual (outlined here for reference) and available on line at www.garmin.com Getting the Owner's Manual The owner's manual includes instructions for using device features and accessing regulatory information Go to www.garmin.com/manuals/A03831 The following are the specific instructions provided in the owner’s manual that is provided at www.garmin.com/manuals: Device Information Viewing Regulatory and Compliance information. 1 Go to Settings 2 Select About A03831 E-Label The above M/N, FCC ID, and IC numbers are viewed through the viewfinder. They are installed in the factory and are unalterable. This information can also be found printed on the product packaging.

INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS

Page 1 of 4 FCC Portable RF exposure Exemption Calculations KDB 447498 D01 1-g 10-g Limit 1 Contributor Duty Cycle 100 % 1 Tune up Tolerance 10 % 1.1 Antenna Gain 0 dBi 1 Min. Seperation 5 mm Frequency Power Power + tune up tolerance Value Limit Exempt? GHz mW no unit no unit Yes/No 2.4020 2.42 2.66 0.93 3.0 YES 2.4400 2.36 2.60 0.94 3.0 YES 2.4800 2.36 2.60 0.94 3.0 YES Value = [(power x ant. gain x [1+ tune up tolerance] x duty cycle) / (min separation distance)] x [frequency^ 0.5] Power was rounded up to the nearest 1 mW as required in the KDB Value is calculated using KDB 447498 D01, Section 4.3.1(a) as shown in red box on following page Conducted output power: CHANNEL CHANNEL FREQUENCY (MHz) AVG OUTPUT POWER (dBm) AVG OUTPUT POWER (mW) Method RESULT Transmitter Low 2402 3.832 2.42 Conducted PASS GFSK Mid 2440 3.737 2.36 Conducted PASS GFSK High 2480 3.726 2.36 Conducted PASS GFSK Page 2 of 4 Page 3 of 4 Page 4 of 4

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Amended FCC/ISED Test Report Prepared for: Garmin International Inc. Address: 1200 E. 151 st Street Olathe, Kansas, 66062, USA Product: A03831 Test Report No: R20190913-21-01B Approved by: __________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 11 March 2020 Total Pages: 43 Report Number: R20190913-21-01 Rev 0 Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 43 REVISION PAGE Rev. No. Date Description 0 31 October 2019 Original – NJohnson Prepared by KVepuri/CFarrington A 6 March 2020 Updated Section 3.3 and 4.4. Measured power measurements again with 8 MHz RBW average. Includes NCEE Labs report R20190913-21-01 and amendment in full. -NJ B 11 March 2020 Updated table of power measurements in Section 4.2. Includes NCEE Labs report R20190913-21-01A and amendment in full. -NJ Report Number: R20190913-21-01 Rev B Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 3 of 43 CONT EN TS Revision Page ............................................................................................................................................................................... 2 1.0 Summary of test results ....................................................................................................................................... 4 2.0 EUT Description .................................................................................................................................................... 5 2.1 Equipment under test ........................................................................................................................................ 5 2.2 Description of test modes ................................................................................................................................ 6 2.3 Description of support units ............................................................................................................................ 6 3.0 Laboratory description ......................................................................................................................................... 7 3.1 Laboratory description ...................................................................................................................................... 7 3.2 Test personnel ..................................................................................................................................................... 7 3.3 Test equipment.................................................................................................................................................... 8 4.0 Detailed results ...................................................................................................................................................... 9 4.1 Duty Cycle ............................................................................................................................................................ 9 4.2 Peak Output Power .......................................................................................................................................... 10 4.3 Bandwidth ........................................................................................................................................................... 11 4.4 Radiated emissions .......................................................................................................................................... 13 4.5 Band edges ........................................................................................................................................................ 21 4.6 Power Spectral Density ................................................................................................................................... 27 4.6 Conducted AC Mains Emissions .................................................................................................................. 31 Appendix A: Sample Calculation ................................................................................................................................... 34 Appendix B – Measurement Uncertainty ...................................................................................................................... 36 Appendix C – Figures....................................................................................................................................................... 37 REPORT END ..................................................................................................................................................................... 43 Report Number: R20190913-21-01 Rev B Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 4 of 43 1.0 SU MMAR Y OF TEST R ESULT S The worst-case measurements were reported in this report. The EUT has been tested according to the following specifications: APPLIED STANDARDS AND REGULATIONS Standard Section Test Type Result FCC Part 15.35 RSS Gen, Issue 4, Section 6.10 Duty Cycle Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Peak output power Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Bandwidth Pass FCC Part 15.209 RSS-Gen Issue 4, Section 7.1 Receiver Radiated Emissions Pass FCC Part 15.209 (restricted…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS 30 MHz – 1 GHz test setup TEST SETUP PHOTOS 1 GHz – 25 GHz test setup TEST SETUP PHOTOS x-axis y-axis TEST SETUP PHOTOS z-axis TEST SETUP PHOTOS Conducted Emissions, 150 kHz – 30MHz TEST SETUP PHOTOS Conducted Emissions, 150 kHz – 30MHz
