IPH-03924Hideaway Marine Stereo

® Apollo ™ MS-WB670 Installation Instructions .......................................................................................................................2 Apollo ™ MS-WB670 Installation Instructions ....................................................................................................................... 6 Garmin ® , ANT ® , FUSION ® , and the Fusion logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Apollo ™ , FUSION-Link ™ , and FUSION PartyBus ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Apple ® is a trademark of Apple Inc., registered in the USA and other countries. App Store SM is a service mark of Apple Inc., registered in the USA and other countries. Android ™ and Google Play ™ are a trademarks of Google Inc. Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. NMEA 2000 ® and the NMEA 2000 logo are registered trademarks of the National Marine Electronics Association. SiriusXM ® and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved. M/N: A03924 IC: 1792A-03924 Printed in Taiwan March 2020 190-02670-91_01 DRAFT Apollo ™ MS-WB670 Installation Instructions Important Safety Information WARNING Failure to follow these warnings and cautions could result in personal injury, damage to the vessel, or poor product performance. See the Important Safety and Product Information guide in the product box for product warnings and other important information. This device must be installed according to these instructions. Disconnect the vessel's power supply before beginning to install this product. Before applying power to this product, make sure it has been correctly grounded, following the instructions in the guide. CAUTION Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. NOTICE When drilling or cutting, always check what is on the opposite side of the surface. Do not use the stereo as a template when drilling the mounting holes because this may damage the glass display and void the warranty. You must only use the included template to correctly drill the mounting holes. You must read all installation instructions before beginning the installation. If you experience difficulty during the installation, contact FUSION ® Product Support. What's In the Box • Mounting gasket • Four 8-gauge, self-tapping screws • Two screw covers • Power and speaker wiring harness • Auxiliary-in, line-out, and subwoofer-out wiring harnesses • Dust cover Tools Needed • Phillips screwdriver • Electric drill • Drill bit (size varies based on surface material and screws used) • Rotary cutting tool or jigsaw • Silicone-based marine sealant (optional) Mounting Considerations CAUTION In high ambient temperatures and after extended use, the device enclosure may reach temperatures deemed dangerous to touch. As a result, the unit must be installed in a location where it cannot be touched during operation. NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty. When selecting a mounting location for the black box device, observe these considerations. • The device must be mounted in a location where it is not submerged. • The device must be mounted in a location with adequate ventilation where it is not exposed to extreme temperatures. • The device should be mounted so the cables can be connected easily. • To achieve IPX3 water ingress protection and optimal heat sink cooling, the device must be mounted on a vertical surface with the connectors pointing downward. • The device can be mounted on a horizontal surface, but such positioning might not achieve IPX3 water ingress protection. • To avoid interference with a magnetic compass, the device should be installed at least 15 cm (5.91 in.) away from a compass. When selecting a mounting location for the remote control, observe these considerations. • The remote control must be mounted in a location where there is at least 70 mm (2.75 in.) of clearance behind the mounting surface and you can access the controls after it is mounted. • If you need to mount the remote control outside the cabin, it must be mounted in a location well above the waterline, where it is not submerged. • If you need to mount the remote control outside the boat, it should be mounted in a location where it will not be damaged by a docks, pilings, or other pieces of equipment. Mounting the Apollo MS-WB670 Black Box Device NOTICE If you are mounting the device in fiberglass, when drilling the pilot holes, use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened. NOTE: Screws are included with the device, but they may not be suitable for the mounting surface. Before you mount the device, you must select a mounting location, and determine what screws and other mounting hardware are needed for the surface. 1 Place the black box device in the mounting location, and mark the location of the pilot holes. 2 Drill a pilot hole for one corner of the device. 3 Loosely fasten the device to the mounting surface with one corner, and examine the other three pilot-hole marks. 4 Mark new pilot-hole locations if necessary, and remove the device from the mounting surface. 5 Drill the remaining pilot holes. 6 Secure the device to the mounting location. Connection Considerations For the stereo to function correctly, you must connect it to power, to speake…

Text truncated - open the document above for the full version.

® F U S I O N E N T E R T A I N M E N T . C O M FUSION ® Apollo ™ MS-WB670 Quick Start Manual ENGLISH DRAFT Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. The Apollo WB670 wired remote control is an optional accessory for compatible FUSION ® stereos. To help you understand how the Apollo WB670 remote control works, this manual contains instructions for using the Apollo WB670 remote control with the Apollo MS-RA670 stereo. The available features and functions of the Apollo WB670 remote control may vary based on the stereo being controlled. For specific information about your stereo, see the stereo owner's manual. Getting the Owner's Manual You can get the latest owner's manual and translations of manuals from the web. 1 Go to www.fusionentertainment.com/manuals/ms-wb670. 2 Select a manual. Stereo Keys and Status LEDs Because this device is designed to be installed in a location that may not be easily accessible, almost all playback and device interaction is done through a connected remote control or stereo. In some instances, you may need to reference the LEDs or press the keys on the device itself. Stereo Keys Press to wake up the stereo Hold together with the key for more than one second to reset the stereo to factory settings Press to make the stereo discoverable to BLUETOOTH ® devices Hold together with the key for more than one second to reset the stereo to factory settings Status LEDs Icon LED color LED Indication Green Solid: the stereo is receiving power Green Blinking: the stereo is booting Solid: the stereo is functioning normally Green Blinking: the stereo is communicating over the FUSION PartyBus ™ network BlueBlinking: the stereo is discoverable to BLUETOOTH devices Solid: the stereo is connected to a BLUETOOTH device Controls NOTE: These stereo controls are available when you use a connected remote control, such as a FUSION ERX400. If you control the stereo using a grouped stereo or a different remote control, you should see the owner's manual for that device for more information. 2Quick Start Manual DRAFT Dial • Turn to adjust the volume. • Turn to move through the menus or adjust a setting. • Press to make a selection. • Press to turn on the remote control. • Press to mute and un-mute the audio. • Press and hold to turn off the remote control and stereo. • Press to open the menu. • Press to return to the previous screen from the menu. • Press and hold to exit the menu. • Press to select a source. TIP: You can turn the dial to browse, and press the dial to select the source. • Press to tune to the previous station. • Press to skip to the beginning of the track or to the previous track. • Press to pause or resume the current track. • Press to cycle through the tuning modes (auto, manual, and presets). • Press to tune to the next station. • Press to skip to the next track. Naming the Device You should enter a unique name for this device so you can easily identify it when viewing devices on the FUSION PartyBus network. 1 Select > SETTINGS. 2 Select DEVICE NAME, and enter a unique name for the device. Creating or Editing a Group Before you can create a group, you must connect multiple compatible devices to the FUSION PartyBus network. See the installation instructions provided with your device for installing and configuring the network. You can combine compatible devices on the network into groups. Grouped devices can select and play sources from any device in the group, and all grouped devices play the selected source simultaneously. This allows you to experience synchronized audio throughout your vessel. You can also control the volume for any zone from any stereo in the group. 1 Turn the dial to open the volume screen. 2 Press the dial. 3 Turn the dial, and select Edit Group. 4 Select the devices you want to add to or remove from the group. 5 Select GROUP or UNGROUP. Selecting a Source 1 Select . 2 Turn the dial to highlight a source. NOTE: If you have more than one device in a group, continue turning the dial past the end of the available sources to access the sources on other devices in the group (page 3). 3 Press the dial to select the source. Adjusting the Volume 1 Turn the dial to adjust the volume. 2 If necessary, press the dial to view all zones, and select a different zone. If you have created a group of stereos, you can control the volume of any zone from any stereo in the group (page 3). TIP: You can select ALL to control all zones at the same time. Setting the Home Zone The home zone is the speaker zone that you adjust by default when you turn the dial. The home zone can be assigned to any speaker zone on a compatible device on the FUSION PartyBus network. 1 Select > SETTINGS. 2 Select ZONE > ASSIGN HOME ZONE. 3 Select a zone. Quick Start Manual3 DRAFT Media Player Connection CAUTION Always disconnect your media player from the stereo when not in use and do not leave it in your vessel. This helps reduce the risk of theft and damage from extreme temperatures. Do not remove the media player or use your stereo in a distracting manner while operating the vessel. Check and obey all marine laws in association with use. The stereo accepts a variety of media players, including smartphones and other mobile devices. You can connect a compatible media player using a Bluetooth ® wireless connection or a USB connection to the USB port. The stereo can play media from Universal Plug and Play (UPnP) devices, such as a Network Attached Storage (NAS) device connected to the same network. The stereo can play media from a compatible Apple ® device connected to the same network using the AirPlay ® feature. USB Device Compatibility You can use a USB flash drive or the USB cable included with your media player to connect a media player or mobile device to the USB port. The stereo is compatible with Android ™ devices that support MTP mode. The stereo is compatible with media players a…

Text truncated - open the document above for the full version.

Important Safety and Product Information2 Informations importantes sur le produit et la sécurité3 guida Informazioni importanti sulla sicurezza e sul prodotto4 Wichtige Sicherheits- und Produktinformationen 5 Información importante sobre el producto y tu seguridad6 Informações importantes sobre segurança e sobre o produto6 Belangrijke veiligheids- en productinformatie7 Vigtige produkt- og sikkerhedinformationer8 Tärkeitä turvallisuus- ja tuotetietoja8 Viktig sikkerhets- og produktinformasjon9 Guiden Viktig säkerhets- och produktinformation10 重要安全和产品信息10 © 2014–2019 Garmin Ltd. or its subsidiaries Printed in Taiwan April 2019 190-00720-53_0F ® Important Safety and Product Information WARNING Failure to heed the following warnings could result in an accident or collision resulting in death or serious injury. Marine Operation Warnings •You are responsible for the safe and prudent operation of your vessel. This device does not relieve you from the responsibility of safely operating your vessel. Avoid navigational hazards and never leave the helm unattended. • Always be prepared to promptly regain control of the vessel. Use caution near hazards in the water, such as docks, pilings and other vessels. Hearing Damage Warning Listening to the stereo at high volume can cause damage to your hearing. Product Environmental Programs Information about the Garmin ® product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.fusionentertainment.com. Innovation, Science and Economic Development Canada Compliance This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF exposure compliance requirements, the device should be installed and operated with a minimum of 20 cm (7.87 in.) between the device and your body. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet that is on a different circuit from the GPS device. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers. You acknowledge that the Software is the property of Garmin and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third-party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America or the export control laws of any other applicable country. Limited 3-Year Marine Consumer Warranty Garmin New Zealand Limited, trading as FUSION ® Entertainment (‘FUSION’…

Text truncated - open the document above for the full version.

Date:02/01/2020 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized Gary Chang, International Certification Corp. No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) to act on Garmin’s behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) for equipment FCC authorization. This authorization is limited to FCC ID: IPH-03924 Consistent with the foregoing, Gary Chang is authorized to: 1) Sign Form 731, 2) Sign letters of application, 3) Request confidentiality, and 4) Exchange data and information with the FCC, and authorized TCBs on behalf of Garmin. This authorization is not assignable to other beyond Gary Chang. No party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. Sincerely, Jeffrey Hailey/Lead Compliance Engineer Garmin International Inc. Tel: 913 440-1592 [email protected] -----------------------------------------------------nothing follows----------------------------------------------------

Date: March 12, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: IPH-03924 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 10-May 2020. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant’s company name : International Certification Corp. Applicant’s company address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., Tao Yuan City 333, Taiwan (R.O.C.) Signature : Job Title and Dept. : Manager E-mail : [email protected] Tel. : 886-3-271-8628

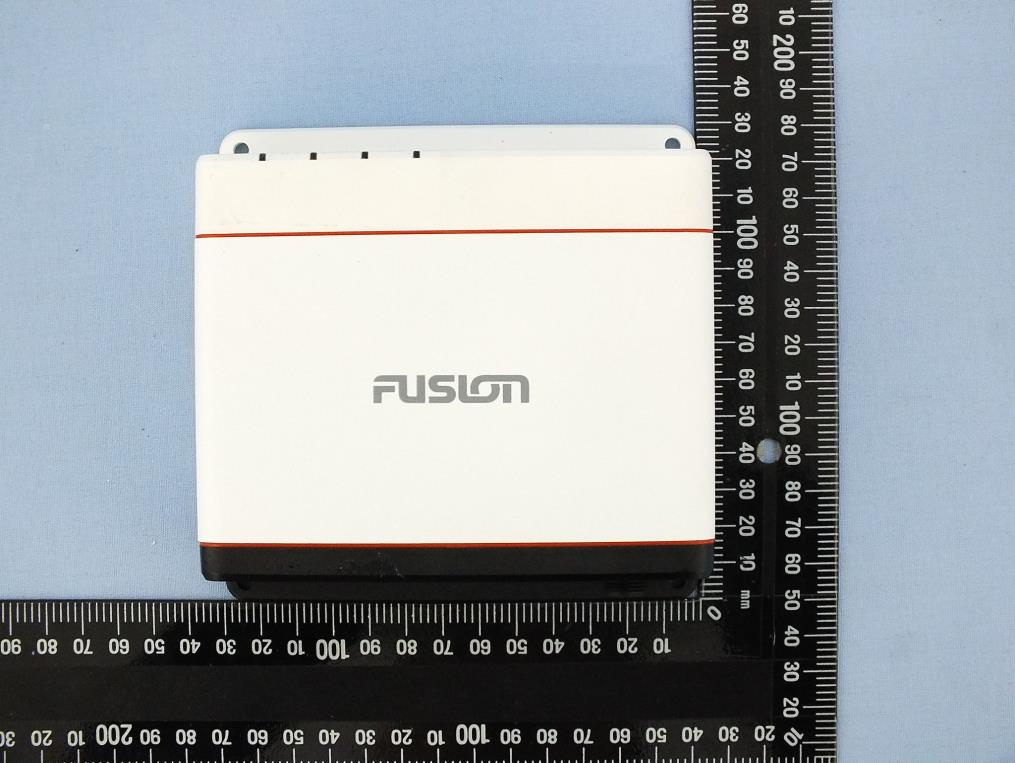

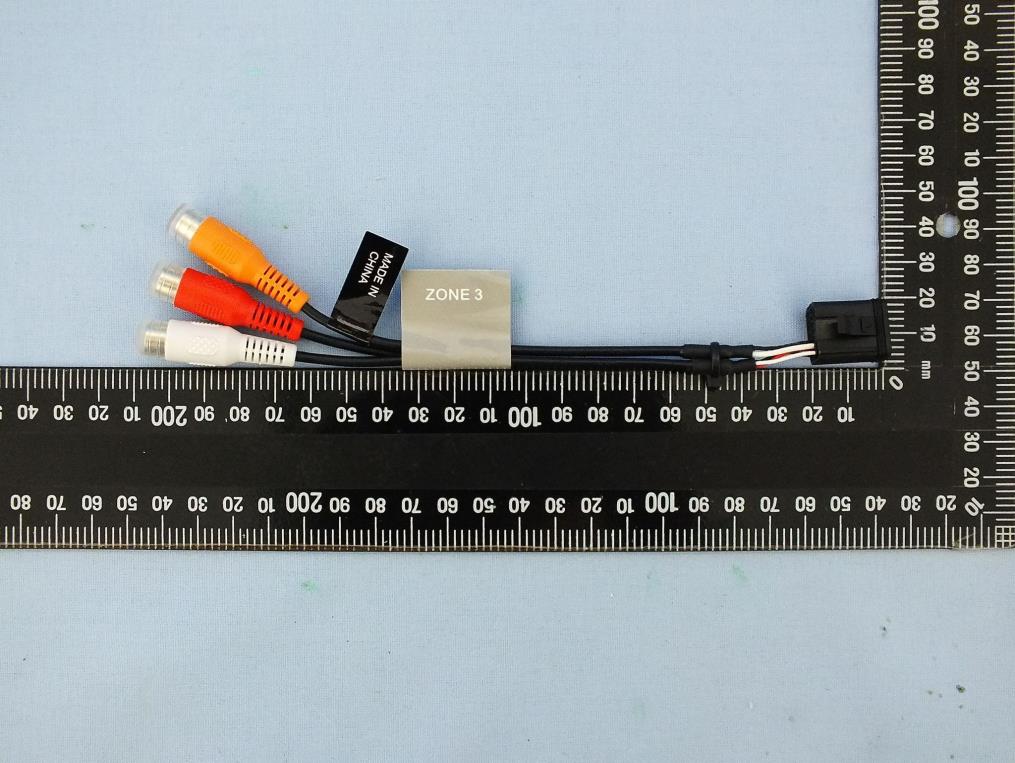

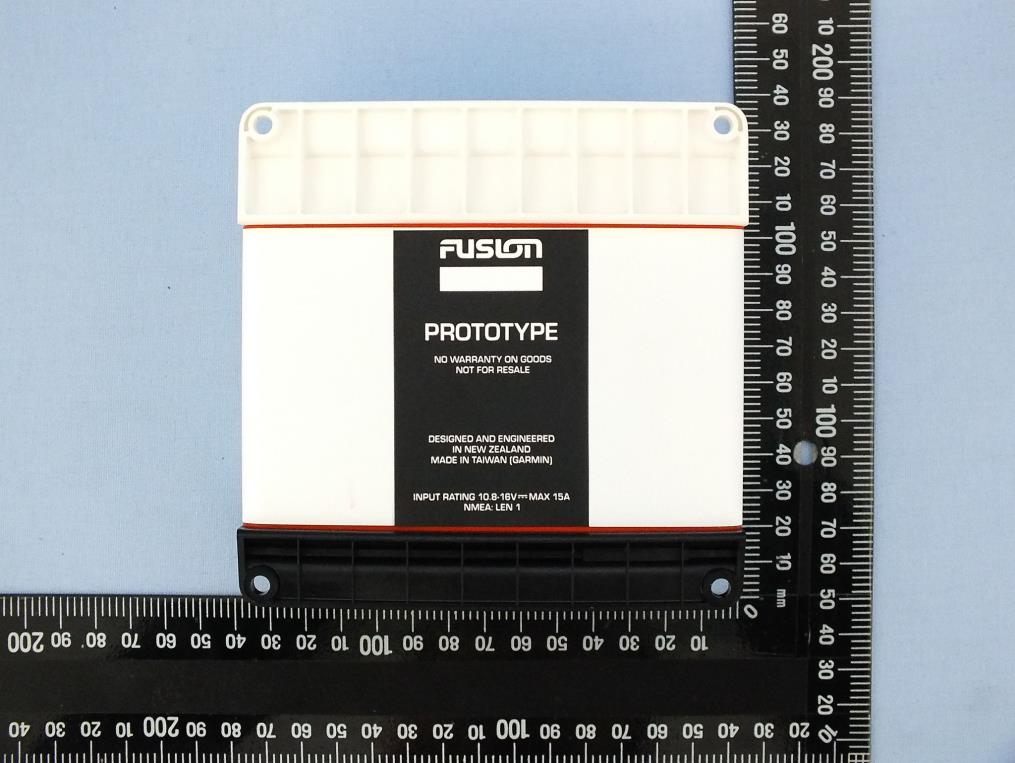

Project No.: 9N1801 Page No. : 1 of 16 Photographs of EUT Project No.: 9N1801 Page No. : 2 of 16 Project No.: 9N1801 Page No. : 3 of 16 Project No.: 9N1801 Page No. : 4 of 16 Project No.: 9N1801 Page No. : 5 of 16 Project No.: 9N1801 Page No. : 6 of 16 Project No.: 9N1801 Page No. : 7 of 16

This drawing and the specifications contained herein are the property of Garmin Ltd. Or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission CONFIDENTIAL SIZE A161-05071-XX DWG NO. REV. E 1X SCALE 2 3 SHT. OF Garmin Ltd. or its subsidiaries c/o Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. DESIGNED AND ENGINEERED IN NEW ZEALAND MADE IN TAIWAN (GARMIN) INPUT RATING 10.8-16V MAX 15A NMEA: LEN 1 75.60 mm 49.60 mm -99 PROTOTYPE NO WARRANTY ON GOODS NOT FOR RESALE This drawing and the specifications contained herein are the property of Garmin Ltd. Or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission CONFIDENTIAL SIZE A161-05071-XX DWG NO. REV. E 1X SCALE 3 3 SHT. OF Garmin Ltd. or its subsidiaries c/o Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. XXXXXXXXXXXXXX R35724 RoHS RXXX-XXXXXX CMIIT ID: XXXXXXXXXX FCC ID: IPH-03924 M/N: A03924 IC: 1792A-03924 船用音響主機 2020
台灣製造 DESIGNED AND ENGINEERED IN NEW ZEALAND MADE IN TAIWAN (GARMIN) INPUT RATING 10.8-16V MAX 15A NMEA: LEN 1 75.60 mm 49.60 mm -10 Label location FCC ID: IPH-03924 IC: 1792A-03924

Project No.: 9N1801 Page No. : 8 of 16 Project No.: 9N1801 Page No. : 9 of 16 Project No.: 9N1801 Page No. : 10 of 16 Project No.: 9N1801 Page No. : 11 of 16 Project No.: 9N1801 Page No. : 12 of 16 Project No.: 9N1801 Page No. : 13 of 16 Project No.: 9N1801 Page No. : 14 of 16 Project No.: 9N1801 Page No. : 15 of 16 Project No.: 9N1801 Page No. : 16 of 16

Report No.: FA9N1801 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : IPH-03924 Equipment : Hideaway Marine Stereo Model No. : A03924 Brand Name : FUSION Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 2.1091 Received Date : Nov. 18, 2019 Tested Date : Dec. 12 ~ Dec. 27, 2019 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA9N1801 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA9N1801 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA9N1801 Rev. 01 Initial issue Mar. 11, 2020 Report No.: FA9N1801 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA9N1801 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducte d Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2402~2480 9.94 10 1.08 20 0.003 1 0.003 Pass *Ratio = Power density / Limit. Report No.: FA9N1801 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR9N1801AD Page : 1 of 55 Report Version: Rev. 01 FCC Test Report FCC ID : IPH-03924 Equipment : Hideaway Marine Stereo Model No. : A03924 Brand Name : FUSION Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.247 Received Date : Nov. 18, 2019 Tested Date : Dec. 12 ~ Dec. 27, 2019 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR9N1801AD Page : 2 of 55 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ..................................................................................................................…

Text truncated - open the document above for the full version.
