IPH-03985Mobile Transceiver

A03985 Quick Start Manual2 Manuel de démarrage rapide9 Manuale di avvio rapido17 Schnellstartanleitung24 Guía de inicio rápido32 Manual de Início Rápido41 Snelstartgids49 Lynstartvejledning56 Aloitusopas64 Hurtigstartveiledning71 Snabbstartshandbok78 Stručný návod k obsluze85 A03985 Quick Start Manual Introduction WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Device Overview Alignment line: Align with the ball and shot target to set the target line. Button: Press to turn the device on. Hold for one second to turn the device off. With the device turned off, hold until the status LED turns blue to enter pairing mode. Charge LED: Indicates the battery status. USB port (under weather cap): Connect the USB cable to charge the device or download software updates using your computer. LED Statuses The status LED indicates the device status. The charge LED indicates the battery status. Status LED Activity Status Solid blue The device is in pairing mode. Flashing blue The device is recon‐ necting to the previously connected smartphone. 2Quick Start Manual EN Status LED Activity Status Flashing white The device is in standby mode. Flashing green The device is ready for a shot. Solid redThe device is busy. Charge LED Activity Status Flashing red The battery is charging. Solid red The battery is fully charged. Rapidly flashing red The device is unplugged and the remaining battery power is low. NOTE: The LED flashes rapidly for five seconds after the device is turned on. Pairing Your Smartphone To use this device, you must pair it with the Garmin Golf ™ app. 1From the app store on your smartphone, install and open the Garmin Golf app. 2Bring your smartphone near your device. 3Press the button to turn on your device. The first time you turn on the device, it automatically enters pairing mode, and the status LED is solid blue. 4From the or menu in the app, select Garmin Devices > Add Device, and follow the on-screen instructions. Garmin Golf App The Garmin Golf app allows you to view detailed statistics and shot analyses that are recorded on your A03985 device. For viewing on a larger display, you can mirror the Garmin Golf app to a compatible smart TV using the screen mirroring function on your smartphone. With a Garmin Golf subscription, golfers can compete with each other at over 42,000 virtual courses and participate in a weekly virtual tournament. The subscription can be purchased through the app. The Garmin Golf app syncs your data with your Garmin Connect ™ account. You can Quick Start Manual3 EN download the Garmin Golf app from the app store on your smartphone. Using the Golf Simulator Features You can use the golf simulator features in the Garmin Golf app to test your skills and help you have fun on the driving range. These features use the internal device radar to take measurements that help you analyze your practice. 1Open the Garmin Golf app on your paired smartphone. 2Select Golf Sim. 3Select a game mode. 4Follow the on-screen instructions. Preparing for a Shot 1Place the ball at the desired tee location. NOTE: The tee location must be at least 8 ft. (2.4 m) away from the net when playing indoors. 2Attach the device to the tripod mount (page 5). 3Place the device on the ground between 6 ft. and 8 ft. (1.8 m and 2.4 m) behind the tee location. NOTE: If you are using a golf mat, make sure the bottom edge of the device sits above the mat. 4Adjust the device so the red alignment line is aligned with the tee location and the target of the shot. TIP: You can lay a golf club on the ground between the alignment line and tee location to confirm they are lined up. 5If necessary, you can move the tee location up to 1 ft. (0.3 m) on either side of the target line, within a 2 x 2 ft. (0.6 x 0.6 m) hitting area that begins 6 ft. (1.8 m) from the device. This may be helpful if your tee location becomes worn during a golf simulator game mode session. NOTE: The ball and club angles are measured parallel to the target line. 4Quick Start Manual EN 6Press the button to turn on the device. 7Start a golf simulator game mode (page 4). 8Wait for the status LED to begin flashing green, and take a shot. Appendix Installing the Magnetic Tripod Mount NOTICE The mount contains a magnet. Under certain circumstances, magnets may cause damage to some electronic devices, including hard drives in laptop computers. Use caution when the mount is near electronic devices. 1Insert the top of the tripod mount into the back of the device. The tripod mount is magnetic and holds the device in place. NOTE: The tripod mount can only be installed one way. If it is not fully seated in the back of the device, you have installed it using the wrong orientation. 2Open the tripod legs. Quick Start Manual5 EN Using the Phone Mount Charging the Device WARNING This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight. NOTICE To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer. The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port 6Quick Start Manual EN on your computer. You can use the device radar features while the device is charging. NOTE: The device will not charge when outside the approved temperature range (page 7). 1Pull up the weather cap from the USB port. 2Plug the small end of the USB cable into the USB port on the device. 3Plug the large end of the USB cable into an external power source, such as an AC adapter or a USB port on your computer. 4Charge the device completely. TIP: You can turn off the device or connect it to an AC adapter to charge it faster. Viewing Battery Power You can view the remaining battery power of the device when it is connected to the Garmi…

Text truncated - open the document above for the full version.

Important Safety and Product Information2 Informations importantes sur le produit et la sécurité4 guida Informazioni importanti sulla sicurezza e sul prodotto7 Wichtige Sicherheits- und Produktinformationen9 Información importante sobre el producto y tu seguridad11 Informações importantes de segurança e do produto14 Belangrijke veiligheids- en productinformatie16 Vigtige produkt- og sikkerhedinformationer18 Tärkeitä turvallisuus- ja tuotetietoja 20 Viktig sikkerhets- og produktinformasjon22 Guiden Viktig säkerhets- och produktinformation23 Důležité bezpečnostní informace a informace o produktu25 Important Safety and Product Information WARNING Failure to heed the following warnings could result in an accident or collision resulting in death or serious injury. Battery Warnings A lithium-ion battery is used in this device. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not disassemble, modify, remanufacture, puncture or damage the device or batteries. • Do not remove or attempt to remove the non-user-replaceable battery. • Do not expose the device or batteries to fire, explosion, or other hazard. Device Warnings • Do not immerse the device or batteries in water or other liquids. • Do not leave the device exposed to a heat source or in a high- temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging. • When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging. • Do not use a power cable, data cable and/or power adapter that is not approved or supplied by Garmin ® . NOTICE Failure to heed the following notice could result in personal or property damage, or negatively impact the device functionality. Battery Notices • Contact your local waste disposal department to dispose of the device/batteries in accordance with applicable local laws and regulations. Product Environmental Programs Information about the Garmin product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance. Innovation, Science and Economic Development Canada Compliance This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF exposure compliance requirements, the device should be installed and operated with a minimum of 20 cm (7.87 in.) between the device and your body. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 2 EN This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party pro…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: April 22, 2021 SUBJECT: FCC Application for FCC ID: IPH-03985 To Whom It May Concern: Garmin will continue to apply processes and procedures to ensure compliance with 47 CFR 2 requirements regarding products produced under Supplier’s Declaration of Conformity procedure for class B computer peripheral portion as applicable to this composite filing. Sincerely, Dan Irish Senior Compliance Engineer, Outdoor Products

May 5, 2021 Federal Communications Commission Equip Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized Nic Johnson of the Nebraska Center for Excellence in Electronics to act on Garmin’s behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) for equipment FCC authorization. This authorization is limited to FCC ID: IPH-03985. Consistent with the foregoing, Nic Johnson is authorized to: 1) Sign Form 731, 2) Sign letters of application, 3) Request confidentiality, and 4) Exchange data and information with the FCC, and authorized TCBs on behalf of Garmin. This authorization is not assignable to other beyond Nic Johnson. No party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. This authorization expires May 5, 2022. Sincerely, Dan Irish Senior Compliance Engineer -----------------------------------------------------nothing follows----------------------------------------------------

Page 1 of 1 Request for Confidentiality Date: May 7, 2021 Subject: Confidentiality Request for: FCC ID: IPH-03895 IC: 1792A-03895 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent ☐ Not Provided Block Diagrams ☒ Short Term ☐ Not Provided External Photos ☒ Short Term ☐ Permanent ☐ Not Provided Internal Photos ☐ Short Term ☒ Permanent ☐ Not Provided Operation Description/Theory of Operation ☐ Short Term ☐ Permanent ☒ Not Provided Parts List & Placement/BOM ☐ Short Term ☐ Permanent ☒ Not Provided Tune-Up Procedure ☐ Short Term ☒ Permanent ☐ Not Provided Schematics ☒ Short Term ☐ Not Provided Test Setup Photos ☒ Short Term ☐ Permanent ☐ Not Provided User’s Manual The above-mentioned company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality (if applicable): The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered Provided to IC applications Sincerely, By: __________________________ Nic Johnson, Technical Manager, NCEE Labs

Dec. 11, 2020 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue PO Box 11490, Station H Ottawa, Ontario, Canada K2H 8S2 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized the following Garmin International Associates to act on Garmin's behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) and Innovation, Science and Economic Development Canada (ISED) for equipment authorization or certification. Ms. Poojita Bhattu, Compliance Engineer Mr. Doug Burroughs, Senior Compliance Engineer Mr. Jeffrey Hailey, Staff Compliance Eng ineer Mr. Dan Irish, Senior Compliance Engineer Mr. Ben Karsak, Compliance Engineering Team Lead Mr. Kiran Kumar, Senior Compliance Engineer Mr. Tim Olson, Senior Compliance Engineer Mr. Carlos Ortega, Senior Compliance Engineer Mr. William Pertner, Compliance Engineering Team Lead Mr. Cody Riggle, Compliance Engineer Mr. David Utt, Staff Compliance Engineer Mr. Jonathan Shafer, Senior Design Certification Engineer Ms. Sara Jones, Design Certification Engineer 2 Mr. Jay Everett, Team Leader, System Validation As such, the Garmin Associates listed above are authorized to: 1) sign Form 731, 2) sign letters of application, 3) request confidentiality, and 4) exchange data and information with the FCC, IC and/or authorized TCBs on behalf of Garmin. In addition, these individuals shall be considered "authorized individuals" to act on Garmin's behalf where an "authorized individual's" attestation is necessary or preferred. This authorization remains in effect until notified to the contrary by Garmin. Sincerely, Mr. Douglas Kealey, Manager Environmental and Regulatory Affairs

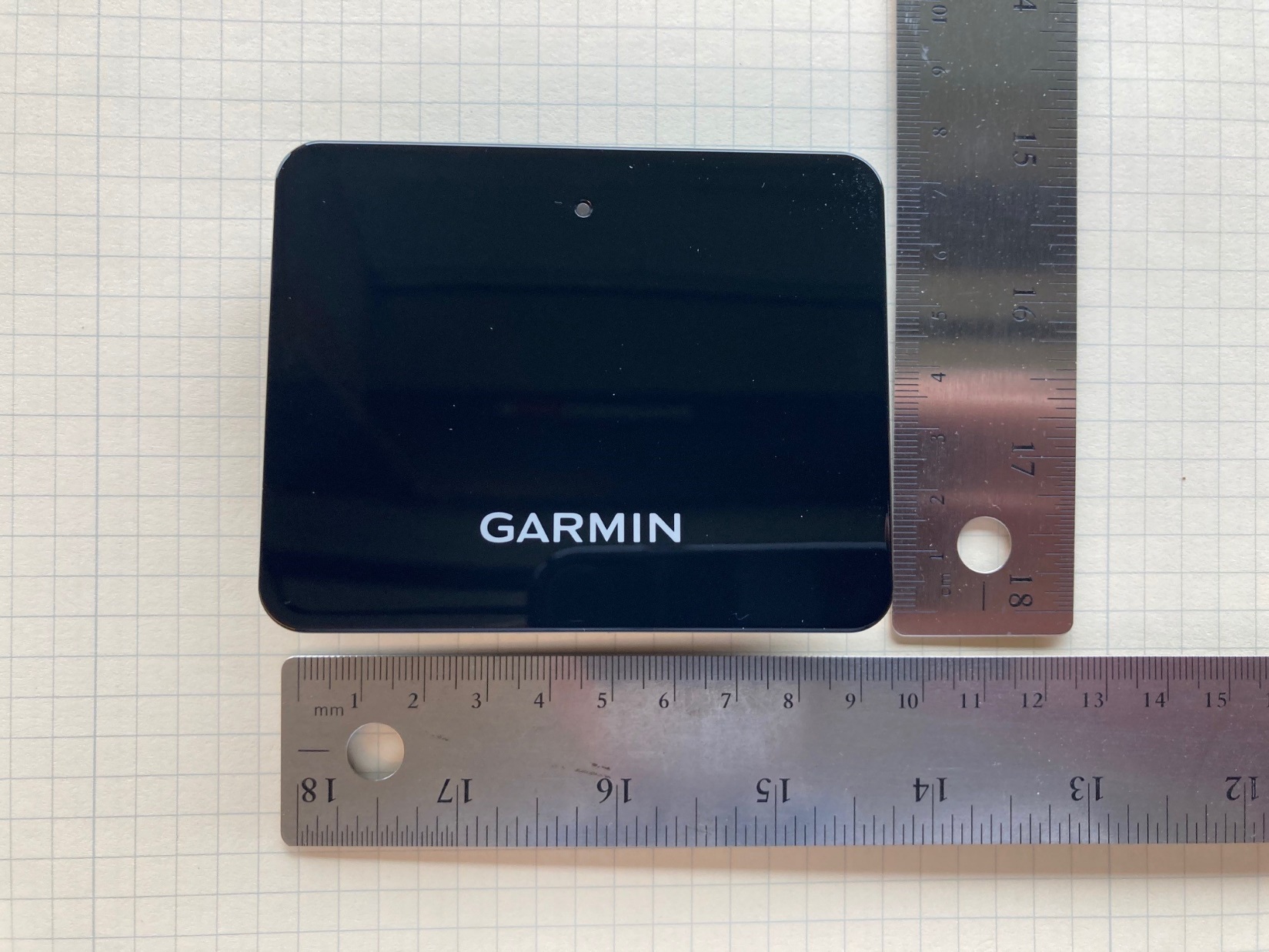

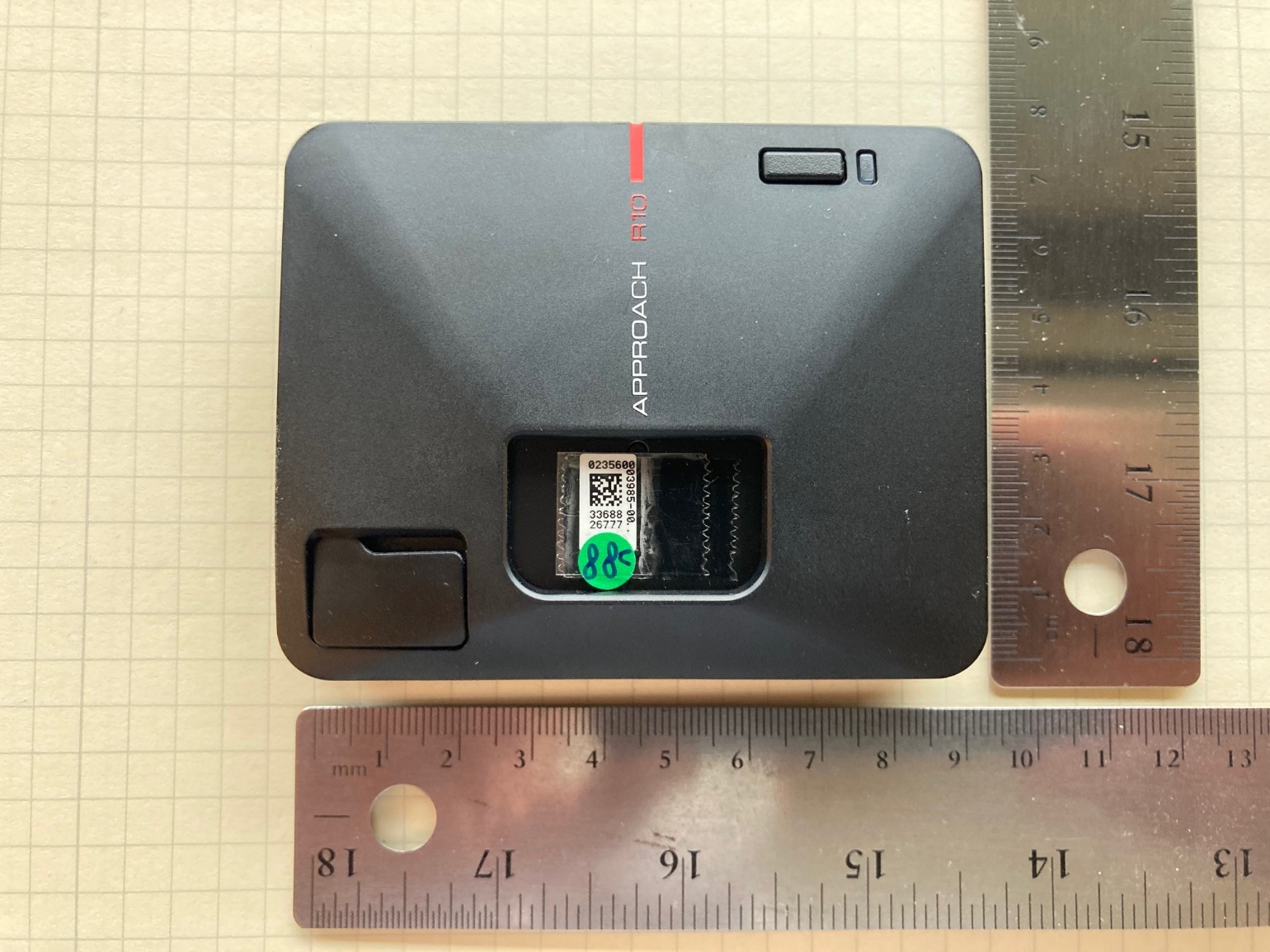

A03985 External Photographs FCC ID: IPH-03985 IC: 1792A-03985

FCC ID: IPH-03985 IC: 1792A-03985 Label Sample and Location for M/N: A03985 The label shown will be affixed to the rear of the unit. Label location Additionally, the following statements will be included in the Important Safety and Product Information manual:

A03985 Internal Photographs FCC ID: IPH-03985 IC: 1792A-03985 24 GHz Tx antenna 2.4 GHz Antenna

RF Exposure Page 1 of 3 Reference: CFR 47 FCC Part 2.1093 CFR 47 FCC Part 15.245 The limit for a transmitter operating at 24,110 MHz for general population/uncontrolled exposure is 1 mW/cm 2 RF Exposure Page 2 of 3 Total for mobile (> 20cm) use: Occupational/Controlled 0 General Population/uncontrolled 1 Transmitter Frequency Antenna Gain Power Power +05% for tolerance Power Density Limit % of limit Type MHz numerical mW mW/cm^2 mW/cm^2 Percent of limit 1 2402 - 2480 1 4 4.2 0.0008 1.0000 0.02 PK/conducted 2 24200 1 129 135.4 0.0270 1.0000 2.70 radiated TOTAL 2.72 Distance 20 cm PASS? YES Occupational/Controlled 0 General Population/uncontrolled 1 RF Exposure Page 3 of 3 Although the Field Disturbance Sensor (FDS) is intended to only operate while on the ground and the user is instructed to maintain 20cm of separation from the device while the FDS is operating, the Bluetooth radio may operate while the device is hand held or in the pocket, and for Bluetooth operation, the device could be considered as Portable. Evaluation for portable use with 5mm separation from KDB 447498 D01, 4.3 a): f(GHz) = 2.402 Power = 4 mW EIRP EIRP + 5% tolerance = 4.2 mW, round to nearest mW = 4 mW [4 mW] / [5.00 mm] • [√2.480 ] = 1.25 Limit = 3.0 EXEMPT The frequency of 2.480 GHz was chosen to provide the highest value of the frequency range.

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. DXX Test Report Prepared for: Garmin Address: 1200 E. 151st Street Olathe, Kansas 66062 Product: A03985 Test Report No: R20200722-20-E1A Approved by: __________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 1 June 2021 Total Pages: 42 Report Number: R20200722-20-E1 Rev A Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 42 REVISION PAG E Rev. No. Date Description 0 5 May 2021 Original – NJohnson Prepared by KVepuri/FLane/SProbst A 1 June 2021 Removed some non-applicable plots and data from Section 4.4 Report Number: R20200722-20-E1 Rev A Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 3 of 42 CONT EN TS Revision Page ............................................................................................................................................................................... 2 1.0 Summary of test results ....................................................................................................................................... 4 2.0 EUT Description .................................................................................................................................................... 5 2.1 Equipment under test ........................................................................................................................................ 5 2.2 Description of test modes ................................................................................................................................ 5 2.3 Description of support units ............................................................................................................................ 5 3.0 Laboratory and General Test Description ........................................................................................................ 6 3.1 Laboratory description ...................................................................................................................................... 6 3.2 Test personnel ..................................................................................................................................................... 6 3.3 Test equipment.................................................................................................................................................... 7 3.4 General Test Procedure and Setup for Radio Measuremnts ................................................................... 8 4.0 ResultS .................................................................................................................................................................... 9 4.1 Output Power ..................................................................................................................................................... 12 4.2 Bandwidth ........................................................................................................................................................... 13 4.3 Duty Cycle .......................................................................................................................................................... 14 4.4 Radiated emissions .......................................................................................................................................... 15 4.5 Band edges ........................................................................................................................................................ 21 4.6 Power Spectral Density ................................................................................................................................... 22 4.7 Conducted AC Mains Emissions .................................................................................................................. 23 Appendix A: Sample Calculation ................................................................................................................................... 26 Appendix B – Measurement Uncertainty ...................................................................................................................... 28 Appendix C – Graphs and Tables .................................................................................................................................. 29 REPORT END ..................................................................................................................................................................... 42 Report Number: R20200722-20-E1 Rev A Prepared for: Garmin The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 4 of 42 1.0 SU MMAR Y OF TEST R ESULT S The worst-case measurements were reported in this report. Summary of test results presented in this report correspond to the following section (Please see the checked box below for the rule part used): FCC Part 15.247 ☒ The EUT has been tested according to the following specifications: (1) US Code of Federal Regulations, Title 47, Part 15 (2) ISED RSS-Gen, Issue 5 (3) ISED RSS-247, Issue 2 APPLIED STANDARDS AND REGULATIONS Standard Section Test Type Result FCC Part 15.35 RSS Gen, Issue 5, Section 6.10 Duty Cycle Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Peak output power Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Bandwidth Pass FC…

Text truncated - open the document above for the full version.

A03985 – TEST SETUP PHOTOS A03985 – TEST SETUP PHOTOS A03985 – TEST SETUP PHOTOS A03985 – TEST SETUP PHOTOS A03985 – TEST SETUP PHOTOS Note: EUT was tested with and without tripod. A03985 – TEST SETUP PHOTOS A03985 – TEST SETUP PHOTOS A03985 – TEST SETUP PHOTOS A03985 – TEST SETUP PHOTOS
