• Set up (page 14). • Set up Wi‑Fi networks (page 4). •Set up your Garmin Pay ™ wallet (page 12). Pairing Your Smartphone with Your Device To use the connected features of the device, it must be paired directly through the Garmin Connect app, instead of from the Bluetooth ® settings on your smartphone. 1 From the app store on your smartphone, install and open the Garmin Connect app. 2 Bring your smartphone within 10 m (33 ft.) of your device. 3 Select LIGHT to turn on the device. The first time you turn on the device, it is in pairing mode. 4 Follow the instructions in the app to complete the pairing and setup process. Tips for Existing Garmin Connect Users 1 From the Garmin Connect app, select or . 2 Select Garmin Devices > Add Device. Connecting to a Wi‑Fi Network • Use the Garmin Connect app. • Use the Garmin Express ™ application ( www.garmin.com/express). Going for a Run The first fitness activity you record on your device can be a run, ride, or any outdoor 4Quick Start Manual activity. You may need to charge the device before starting the activity (page 18). 1 Select START, and select an activity. 2 Go outside, and wait while the device locates satellites. 3 Select START. 4 Go for a run. 5 After you complete your run, select STOP. 6 Select an option: • Select Resume to restart the activity timer. • Select Save to save the run and reset the activity timer. You can select the run to view a summary. Customizing Your Activity List 1 From the watch face, hold . 2 Select Settings > Activities & Apps. 3 Select an option: • Select an activity to customize the settings, set the activity as a favorite, change the order of appearance, and more. Quick Start Manual5 Viewing the Controls Menu The controls menu contains options, such as turning on do not disturb mode, locking the keys, and turning the device off. You can also open the Garmin Pay wallet. 1 From any screen, hold LIGHT . 2 Press UP or DOWN to scroll through the options. Following a Daily Suggested Workout Before the device can suggest a daily workout, you must have a training status estimate. 1 From the watch face, select START. 2 Select an activity. 3 Hold . 4 Select Training > My Workouts > Suggested Workout. 5 Select Do Workout. The suggested workout updates automatically to changes in training habits, recovery time. 8Quick Start Manual Bluetooth Connected Features The device has several Bluetooth connected features for your compatible smartphone using the Garmin Connect app. For more information, go to www.garmin.com /manuals/ Activity uploads: Automatically sends your activity to the Garmin Connect app as soon as you finish recording the activity. Audio prompts: Allows the Garmin Connect app to play status announcements, such as mile splits and other data, on your smartphone during a run or other activity. Bluetooth sensors: Allows you to connect Bluetooth compatible sensors, such as a heart rate monitor. Connect IQ ™ : Allows you to extend your device features with new watch faces, widgets, apps, and data fields. Find my phone: Locates your lost smartphone that is paired with your device and currently within range. Find my watch: Locates your lost device that is paired with your smartphone and currently within range. GroupTrack: Allows you join a group using LiveTrack , so others can view your position directly on screen and in real time. Phone notifications: Displays phone notifications and messages on your device. Safety and tracking features: Allows you to send messages and alerts to friends and Quick Start Manual9 family, as well as request assistance from emergency contacts set up in the Garmin Connect app. For more information, go to (page 16). Social media interactions : Allows you to post an update to your favorite social media website when you upload an activity to the Garmin Connect app. Software updates: Allows you to update your device software. Weather updates: Sends real-time weather conditions and notifications to your device. Workout and course downloads: Allows you to browse for workouts and courses in the Garmin Connect app and wirelessly send them to your device. Downloadable Features You can download features such as apps, widgets, and watch faces from Garmin ® and other providers using the Connect IQ app. Downloading Connect IQ Features Using Your Computer 1 Connect the device to your computer using a USB cable. 2 Go to apps.garmin.com, and sign in. 3 Select a Connect IQ feature, and download it. 4 Follow the on-screen instructions. Physiological Measurements These performance measurements are estimates that can help you track and understand your training activities and race 10Quick Start Manual performances. These estimates are provided and supported by Firstbeat. NOTE: The estimates may seem inaccurate at first. The device requires you to complete a few activities to learn about your performance. For more information, go to www.garmin.com /physio. Recovery Time You can use your Garmin device with wrist- based heart rate or a compatible chest heart rate monitor to display how much time remains before you are fully recovered and ready for the next hard workout. NOTE: The recovery time recommendation uses your estimate and may seem inaccurate at first. The device requires you to complete a few activities to learn about your performance. Quick Start Manual11 The recovery time appears immediately following an activity. The time counts down until it is optimal for you to attempt another hard workout. The device updates your recovery time throughout the day based on changes in sleep, stress, relaxation, and physical activity. Running Dynamics You can use your compatible device paired with a running dynamics accessory to provide real-time feedback about your running form. The running dynamics accessory has an accelerometer that measures torso movement in order to calculate six running metrics. • Cadence • Vertical oscillation • Ground contact time • Ground contact time balance • Stride length • Vertical ratio NO…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: May 26, 2020 SUBJECT: FCC Application for FCC ID: IPH-03989 To Whom It May Concern: Garmin will continue to apply processes and procedures to ensure compliance with 47 CFR 2 requirements regarding products produced under supplier's Declaration of Conformity procedure for class B computer peripheral portion as applicable to this composite filing. Sincerely, David Utt Staff Compliance Engineer Wellness & Fitness Products

May 26, 2020 Federal Communications Commission Equip Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized Ben Hewson and Art Voss of Celltech Labs Inc. (Celltech) to act on Garmin’s behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) for equipment FCC authorization. This authorization is limited to FCC ID: IPH-0398 9. Consistent with the foregoing, Ben Hewson and Art Voss are authorized to: 1)Sign Form 731, 2)Sign letters of application, 3)Request confidentiality, and 4)Exchange data and information with the FCC, and authorized TCBs on behalf of Garmin. This authorization is not assignable to other beyond Ben Hewson and Art Voss. No party to thi s application is subject t o a denial o f benefits, including FCC benefits, pursuant t o Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. This authorization expires May 26, 2021 . Sincerely, David Utt Staff Compliance Engineer, Wellness & Fitness Products -----------------------------------------------------nothing follows- ---------------------------------------------------

June 10, 2020 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 USA RE: Confidentiality Request regarding application for certification of FCC ID: IPH-03989 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Exhibit 12 – Block Diagram.pdf Operation Description Exhibit 14 – Operation Description.pdf Schematic Diagram Exhibit 15 – Schematic Diagram.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for 180 days: Exhibit Type File Name User’s Manual Exhibit 17 – User’s Manual.pdf User’s Manual Exhibit 17B – User’s Quick Start Manual.pdf External Photos Exhibit 18 – Photos – DUT External.pdf Internal Photos Exhibit 19 – Photos – DUT Internal.pdf Test Setup Photos Exhibit 20 – Photos – EMC Test Setup.pdf Sincerely, David Utt Staff Compliance Engineer Wellness & Fitness Products

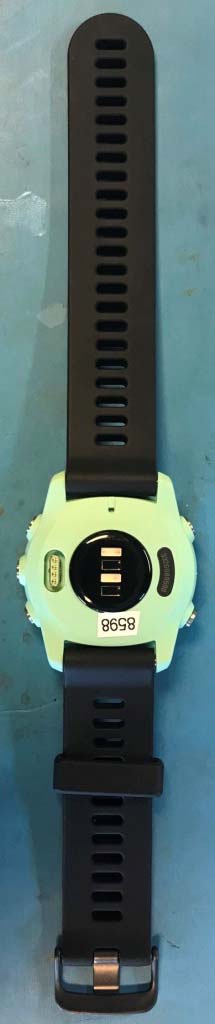

Applicant: Garmin International Incl. FCC ID: IPH-03989 Test Report S/N: 45461583-R1.0 ISED ID 1792A-03989 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 22 of 40 EXHIBIT 18 – PHOTOS – DUT EXTERNAL Figure E18.1 – External Photo – Front Applicant: Garmin International Incl. FCC ID: IPH-03989 Test Report S/N: 45461583-R1.0 ISED ID 1792A-03989 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 23 of 40 Figure E18.2 – External Photo – Back

E-Label Description The following specific instructions are provided in the user’s manual that is provided with the device: The following specific instructions are provided in the owner’s manual that is provided at www.garmin.com/manuals: Information in manual with product Information in manual on internet E-Label Description Scroll the “about” page to display the following information: Information displayed on device E-Label Description The following is provided on the exterior of the packaging that is provided with the device:

Applicant: Garmin International Incl. FCC ID: IPH-03989 Test Report S/N: 45461583-R1.0 ISED ID 1792A-03989 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 24 of 40 EXHIBIT 19 – PHOTOS – DUT INTERNAL Figure E19.1 – Internal Photo – PCB Top Applicant: Garmin International Incl. FCC ID: IPH-03989 Test Report S/N: 45461583-R1.0 ISED ID 1792A-03989 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 25 of 40 Figure E19.2 – Internal Photo – PCB Bottom Applicant: Garmin International Incl. FCC ID: IPH-03989 Test Report S/N: 45461583-R1.0 ISED ID 1792A-03989 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 26 of 40 Figure E19.3 – Internal Photo – Antenna Locations Applicant: Garmin International Incl. FCC ID: IPH-03989 Test Report S/N: 45461583-R1.0 ISED ID 1792A-03989 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 27 of 40 Figure E19.4 – Internal Photo – Cover and PCB Removed

4.00 2.19 FCC Product Model Number / HVIN A03989 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Canada Test Lab Certificate: 2470.01 FCC 47 CFR §2.1093 FCC ID: Approved By: 1200 East 151 St. Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC Registration: CA3874 IC RSS-102 Issue 5 In Accordance With: Ben Hewson, President Celltech Labs Inc. IC Registration 3874A-1 21-364 Lougheed Rd. Kelowna, BC, V1X 7R8 Olathe, KS, 66062 ISED Registration Number USA IPH-039891792A-03989 Applicant: Garmin International Inc. Test Report Serial Number: Test Report Date: SAR Test Report - New Certification 1494 Project Number: Maximum Reported 10g SAR W/kg General Pop. Limit: ISED Extremity DTS 45461584 R1.0 25 March 2020 Extremity DTS 1.93 Test Report S/N: 45461584 R1.0 Test Report Issue Date: 25 March 2020 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 2 of 52 Table of Contents 1.0 DOCUMENT CONTROL ................................................................................................................................................... 4 2.0 CLIENT AND DEVICE INFORMATION ............................................................................................................................ 5 3.0 SCOPE OF EVALUATION ................................................................................................................................................ 6 4.0 NORMATIVE REFERENCES ........................................................................................................................................... 7 5.0 STATEMENT OF COMPLIANCE ..................................................................................................................................... 8 6.0 SAR MEASUREMENT SYSTEM ...................................................................................................................................... 9 7.0 RF CONDUCTED POWER MEASUREMENT ................................................................................................................ 10 TABLE 7.0 CONDUCTED POWER MEASUREMENTS .......................................................................................................................................... 10 TABLE 7.1 CONDUCTED POWER MEASUREMENTS .......................................................................................................................................... 11 8.0 NUMBER OF TEST CHANNELS (N C ) ............................................................................................................................ 12 10.0 SAR MEASUREMENT SUMMARY .............................................................................................................................. 13 TABLE 10.0: MEASURED RESULTS ............................................................................................................................................................... 13 11.0 SCALING OF MAXIMUM MEASURED SAR ................................................................................................................ 14 TABLE 11.0 SAR SCALING ......................................................................................................................................................................... 14 12.0 SAR EXPOSURE LIMITS ............................................................................................................................................. 16 TABLE 12.0 EXPOSURE LIMITS .................................................................................................................................................................... 16 13.0 DETAILS OF SAR EVALUATION ................................................................................................................................. 17 13.0 DAY LOG ........................................................................................................................................................................................ 17 13.1 DUT SETUP AND CONFIGURATION ....................................................................................................................................................... 18 13.2 DUTY CYCLE EVALUATION .................................................................................................................................................................. 19 13.3 DUTY CYCLE EVALUATION .................................................................................................................................................................. 20 13.4 DUT POSITIONING ........................................................................................................................................................................... 21 13.5 GENERAL PROCEDURES AND REPORT .................................................................................................................................................... 21 13.6 FLUID DIELECTRIC AND SYSTEMS PERFORMANCE CHECK ........................................................................................................................... 22 13.7 SCAN RESOLUTION 100MHZ TO 2GHZ ................................................................................................................................................ 22 13.8 SCAN RESOLUTION 2GHZ TO 3GHZ ..................................................................................................................................................... 22 13.9 SCAN RESOLUTION 5GHZ TO 6GHZ ..................................................................................................................................................... 23 14.0 MEASUREMENT UNCERTAINTIES ............................................................................................................................ 24 TABLE 1…

Text truncated - open the document above for the full version.

Test Report S/N: 45461584 R1.0 Test Report Issue Date: 25 March 2020 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 51 of 53 APPENDIX E – PROBE CALIBRATION Test Report S/N: 45461584 R1.0 Test Report Issue Date: 25 March 2020 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 52 of 53 APPENDIX F – DIPOLE CALIBRATION Date: May 08, 2019 Revision No. Rev. 1.0 Test Lab Certificate No. 2470.01 2450 MHz Dipole Extended Calibration Dipole: D2450V2 Serial Number: 825 Last Calibrated: Apr. 24, 2018 Antenna Parameters with Head TSL Impedance Real (ohms) Deviation from cal(ohms) Impedance Imaginary (ohms) Deviation from cal (Ohms) Return Loss (dB) Deviation from Cal (%) Last Calibration April 2018 53.51 - +6.76 - -22.68 - Extended Cal May 08, 2019 51.76 -1.75 +8.32 +1.56 -21.10 7.00 Per KDB 865664 D01 3.2.2 §2 C, D Antenna Parameters with Body TSL Impedance Real (ohms) Deviation from cal(ohms) Impedance Imaginary (ohms) Deviation from cal(ohms) Return Loss (dB) Deviation from Cal (%) Last Calibration 48.87 - +8.62 - -21.15 - Extended Cal May 14, 2019 50.78 +1.91 +7.11 -1.51 -23.03 8.00 Per KDB 865664 D01 3.2.2 §2 C, D Date: May 08, 2019 Revision No. Rev. 1.0 Test Lab Certificate No. 2470.01 2450 MHz Dipole Extended Calibration Antenna VSWR with Head TSL ] Date: May 08, 2019 Revision No. Rev. 1.0 Test Lab Certificate No. 2470.01 2450 MHz Dipole Extended Calibration Antenna VSWR with Body TSL Test Report S/N: 45461584 R1.0 Test Report Issue Date: 25 March 2020 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 53 of 53 APPENDIX G - PHANTOM

© 2020 Celltech Labs Inc, This report shall not be reproduced in any form without the expressed written consent of Celltech Labs Inc. Test Report Serial Number: Test Report Date: Appendix D - Occupied Bandwidth Measurement Plots 45461583 R1.0 Project Number: 1 May 2020 1494 Test Report S/N: 45461583 R1.0 Test Report Issue Date: 1 May 2020 ©2020 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 2 of 29 Table of Contents APPENDIX D – OCCUPIED BANDWIDTH MEASUREMENT PLOTS .................................................................................. 3 END OF APPENDIX D .......................................................................................................................................................... 29 Table of Plots Plot D.1 – Occupied Bandwidth, 802.11b, CCK, 1Mbps ......................................................................................................... 3 Plot D.2 – Occupied Bandwidth, 802.11b, CCK, 2Mbps ......................................................................................................... 4 Plot D.3 – Occupied Bandwidth, 802.11b, DSSS, 5.5Mbps ................................................................................................... 5 Plot D.4 – Occupied Bandwidth, 802.11b, DSSS, 11Mbps .................................................................................................... 6 Plot D.5 – Occupied Bandwidth, 802.11g, OFDM, 6Mbps ...................................................................................................... 7 Plot D.5 – Occupied Bandwidth, 802.11g, OFDM, 9Mbps ...................................................................................................... 8 Plot D.6 – Occupied Bandwidth, 802.11g, OFDM, 12Mbps .................................................................................................... 9 Plot D.7 – Occupied Bandwidth, 802.11g, OFDM, 18Mbps .................................................................................................. 10 Plot D.8 – Occupied Bandwidth, 802.11g, OFDM, 24Mbps .................................................................................................. 11 Plot D.9 – Occupied Bandwidth, 802.11g, OFDM, 36Mbps .................................................................................................. 12 Plot D.10 – Occupied Bandwidth, 802.11g, OFDM, 48Mbps ................................................................................................ 13 Plot D.11 – Occupied Bandwidth, 802.11g, OFDM, 54Mbps ................................................................................................ 14 Plot D.12 – Occupied Bandwidth, 802.11n, MCS0 ............................................................................................................... 15 Plot D.13 – Occupied Bandwidth, 802.11n, MCS1 ............................................................................................................... 16 Plot D.14 – Occupied Bandwidth, 802.11n, MCS2 ............................................................................................................... 17 Plot D.15 – Occupied Bandwidth, 802.11n, MCS3 ............................................................................................................... 18 Plot D.16 – Occupied Bandwidth, 802.11n, MCS4 ............................................................................................................... 19 Plot D.17 – Occupied Bandwidth, 802.11n, MCS5 ............................................................................................................... 20 Plot D.18 – Occupied Bandwidth, 802.11n, MCS6 ............................................................................................................... 21 Plot D.19 – Occupied Bandwidth, 802.11n, MCS7 ............................................................................................................... 22 Plot D.20 – Occupied Bandwidth, BT BR, GFSK, 2402MHz ................................................................................................ 23 Plot D.21 – Occupied Bandwidth, BT BR, GFSK, 2441MHz ................................................................................................ 24 Plot D.22 – Occupied Bandwidth, BT B…
