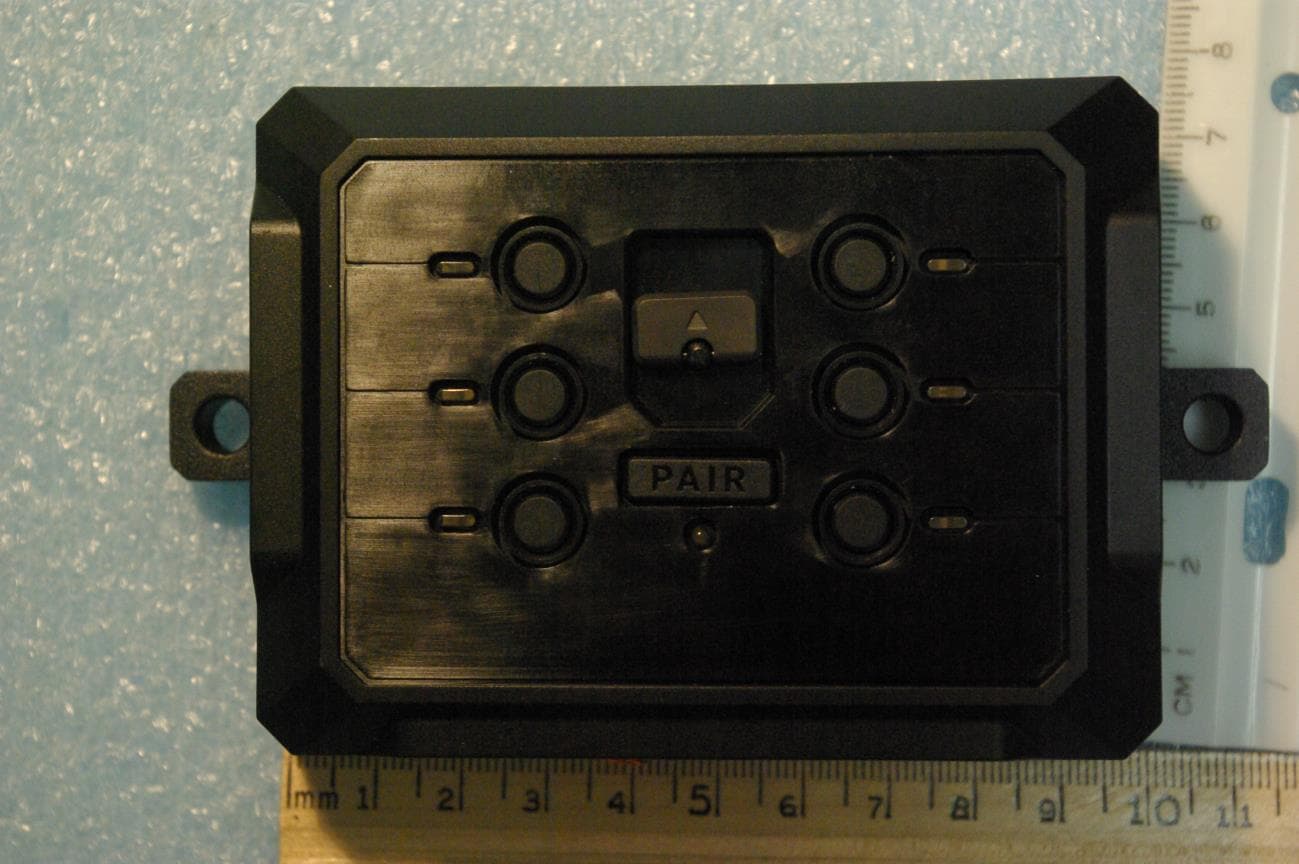

GARMIN POWERSWITCH ™ Installation Instructions Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. 1 Mount the device in your vehicle (page 2). 2 Connect the device to vehicle power (page 3). 3 Connect accessories to the device (page 4). 4 Connect a control input (optional) (page 5). 5 Pair your device with a compatible Garmin ® navigation device (page 5) or a smartphone (page 5). Device Overview Accessory switches Cover latch Pairing button Control terminals +12V terminal Device ground terminal (GND) Mounting Considerations NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty. The mounting surface must be flat to avoid damaging the device when it is mounted. • The device must be mounted close to the battery and within the range of the supplied power cable. • The mounting surface must be strong enough to support the weight of the device and protect it from excessive vibration or shock. • The location must allow room for the routing and connection of all cables. • The device must be mounted in a location that limits exposure to 2Quick Start Manual water. See the device specifications for water rating information (page 6). Mounting the Device Before you can mount the device, you must select a location and purchase the appropriate mounting hardware (page 2). NOTICE Avoid wires, gauges, air bags, air bag covers, HVAC, and other items when drilling pilot holes and attaching the mount to the vehicle. Garmin is not responsible for any damages or consequences arising from the installation. 1 Place the mount on the selected location. 2 Using the mount as a template, mark the two screw locations . 3 Drill pilot holes (optional). For some types of mounting material, drilling pilot holes is necessary. 4 Securely fasten the mount to the surface using the appropriate hardware for your mounting surface. Opening the Front Cover You must open the front cover to make electrical connections. 1 Lift the front cover latch and rotate it counter-clockwise. 2 Pull the front cover off of the device. Connecting the Device to Vehicle Power You should always confirm all electrical connections are secure and will not come loose while operating the device. 1 Connect one end of the included ground wire to the negative terminal on the vehicle battery. Quick Start Manual3 2 Connect the other end of the ground wire to the GND terminal on the device. 3 Connect the small ring end of the included 12V cable to the +12V terminal on the device. 4 Tighten the nut on the +12V terminal to a maximum torque specification of 4.52 N-m (40 lbf- in.). NOTICE Do not overtighten the +12V terminal. 5 Connect the large ring end of the 12V cable to the positive terminal on the vehicle battery. Connecting Accessories Accessory requirements: • Verify the amperage rating of each accessory before wiring it to the Garmin PowerSwitch device. The device supports accessories up to 30 A for each channel and a maximum of 100 A for the entire system. • Use 10 AWG wires for accessories that use more than 25 A. • Use 12 AWG wires for accessories that use 15 to 25 A. • Use 14 AWG wire for accessories that use less than 15 A. • Use spade terminals and shrink tubing for all accessory connections. • Crimp all spade terminal connectors securely. 1 Connect the positive wire from the accessory to one of the accessory terminals on the Garmin PowerSwitch device. 4Quick Start Manual 2 Connect the negative or ground wire to a ground stud on the vehicle frame, to a ground distribution block, or directly to the negative terminal on the battery. NOTICE Do not connect the accessory ground wires to the ground terminal (GND) on the Garmin PowerSwitch device. Connecting a Control Input You can connect to the control terminals to enable the Garmin PowerSwitch device to turn on customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle. The control terminals detect a signal from 3.3V to 18V. You can configure output functions with the Garmin PowerSwitch app. Connect the control wire from the control source in your vehicle to one of the two control terminals on the Garmin PowerSwitch device. Pairing with a Garmin Navigation Device You can pair your Garmin PowerSwitch device with a compatible Garmin navigation device. 1 Turn on power to your Garmin PowerSwitch device, and place your compatible Garmin navigation device within 3 m (10 ft.) of it. 2 On your compatible navigation device, open the Garmin PowerSwitch app. 3 Follow the on-screen instructions to complete the pairing and setup process. Pairing with Your Smartphone You can pair your Garmin PowerSwitch device with your smartphone and the Garmin PowerSwitch app to enable wireless digital switching. Quick Start Manual5 1 From the app store on your smartphone, install the Garmin PowerSwitch app. 2 Turn on power to your Garmin PowerSwitch device, and place your smartphone within 3 m (10 ft.) of your device. 3 On your smartphone, open the Garmin PowerSwitch app. 4 Follow the on-screen instructions to sign in to a Garmin account and complete the pairing and setup process. More Information Garmin Support Center Go to support.garmin.com for help and information, such as product manuals, frequently asked questions, videos, and customer support. Getting the Owner's Manual The owner's manual includes instructions for using device features and accessing regulatory information. Go to garmin.com/manuals /powerswitch. Device Information Specifications Dimensi…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND PRODUCT INFORMATION WARNING Failure to heed the following warnings could result in death or serious injury. Device Warnings • Do not install the device in a location exposed to a heat source or in a high-temperature location. To prevent the possibility of damage, install the device out of direct sunlight. • Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging. • When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging. Installation Warnings • Do not connect the device to the Controller Area Network (CAN) bus in your vehicle. • Do not connect the device to vehicles equipped with a smart charging system. CAUTION Failure to heed the following cautions could result in minor or moderate injury. Installation Cautions • Garmin ® strongly recommends having an experienced installer with proper knowledge of electrical systems install the device. Incorrectly wiring the power cables can result in damage to the device, the vehicle, or the battery and cause bodily injury. • Never reverse polarity on electrical connections. • Do not replace the 125 A fuse with a fuse of any other rating. • Do not ground accessories to the device. Always ground accessories to a common ground on the vehicle chassis or to the negative terminal on the battery. • Always verify all electrical connections are secure and make good electrical contact. Follow all torque recommendations listed in the product manual. Product Environmental Programs Information about the Garmin product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com /compliance. Innovation, Science and Economic Development Canada Compliance This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF exposure compliance requirements, the device should be installed and operated with a minimum of 20 cm (7.87 in.) between the device and your body. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to 1 radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third-party providers. You acknowledge that the Software is the property of Garmin and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin and/or its third- party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: July 16, 2020 SUBJECT: FCC Application for FCC ID: IPH-04101 To Whom It May Concern: Garmin will continue to apply processes and procedures to ensure compliance with 47 CFR 2 requirements regarding products produced under Supplier’s Declaration of Conformity procedure for class B computer peripheral portion as applicable to this composite filing. Sincerely, Tim Olson Seni or Compliance Engineer

September 21, 2020 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-04101 FCC Rules: Parts 2 and 15C Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 for 114 days (February 3, 2021) after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files File A04101 Short Term Conf ExtPho.pdf A04101 Short Term Conf IntPho.pdf A04101 Short Term Conf TSup.pdf A04101 Short Term Conf UserMan.pdf A04101 Short Term Conf UserMan 1.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 +1 913 837-3214

Page 1 of 2 July 21, 2020 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID: IPH-04101 Product: Transmitter operated under 47CFR Section 15C Dear Sirs: Garmin International, Inc. requests that the material in the Block Diagram, Operational Description, Schematics, and Tune up Procedure be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES A04101 Conf BlkDia.pdf A04101 Conf OpDes.pdf A04101 Conf Schem.pdf A04101 Conf TunPro.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Block Diagram, Operational Description, Schematics, and Tune up Procedure which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: IPH-04101 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed Block Diagram, Operational Description, Schematics, and Tune up Procedure. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry the protection sought is narrowly drawn as provided in regulations. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: July 21, 2020 Revision 1 File: A04101 Short Term Conf ExtPho Page 1 of 3 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: July 21, 2020 Revision 1 File: A04101 Short Term Conf ExtPho Page 2 of 3 Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: July 21, 2020 Revision 1 File: A04101 Short Term Conf ExtPho Page 3 of 3

A04101 Label Drawing (Dimensions in mm) Note: All text is minimum 4 point font or larger Label Placement Top of device Device 29.42 9.21 4x, R.90 S/N: XXXXXXXXX Label

Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: August 27, 2020 Revision 2 File: A04101 Short Term Conf IntPho Page 1 of 4 PCB Front Heat stake antenna connection Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: August 27, 2020 Revision 2 File: A04101 Short Term Conf IntPho Page 2 of 4 PCB Back Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: August 27, 2020 Revision 2 File: A04101 Short Term Conf IntPho Page 3 of 4 Enclosure opened Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: August 27, 2020 Revision 2 File: A04101 Short Term Conf IntPho Page 4 of 4 Antenna

Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210, RSS-247 Date: August 26, 2020 Revision 1 File: A04101 RFExp Page 1 of 1 Model: A04101 Test Number: 200615 MPE Calculator RF Exposure uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Transmitter Output power (mW) 5.0 Transmitter Output power (W) 0.005 Output Power for % duty Cycle (Watts) 100 0.005 Antenna Gain (dBi) 3 Output Power for 100% duty Cycle operation (Watts) 0.005 Antenna Gain (Numeric) 2.00 Tx Frequency (MHz) 2437 Calcualtion power (Watts) 0.01 dBd + 2.17 = dBi dBi to dBd 2.2 Antenna Gain (dBd) 0.83 Cable Loss (dB) 0.0 Adjusted Power (dBm) 6.99 Antenna minus cable (dBi) 3.00 Antenna Gain (Numeric) 2.00 Calculated ERP (mw) 6.053 EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 9.976 Radiated (EIRP) dBm 9.990 ERP = EIRP - 2.17 dB Radiated (ERP) dBm 7.820 Occupational Limit 5 mW/cm 2 Frequency (MHz) Occupational Limit (mW/cm 2 ) Public Limit (mW/cm 2 ) 50 W/m 2 30-300 1 0.2 General Public Limit 300-1,500 f/300 f/1500 1 mW/cm 2 1,500-10,000 5 1 10 W/m 2 Occupational Limit 0.6455ƒ 0.5 W/m 2 31.9 W/m 2 Frequency (MHz) Occupational Limit (W/m 2 ) Public Limit (W/m 2 ) General Public Limit 100-6,000 0.6455ƒ 0.5 0.02619ƒ 0.6834 W/m 2 6,000-15,000 50 5.4 W/m 2 48-300 1.291 300-6,000 0.02619ƒ 0.6834 6,000-15,000 50 10 f = Transmit Frequecny (MHz) f (MHz) = 2437 MHz P T = Power Input to Antenna (mW) P T (mW) = 5.0000 mW Duty cycle (percentage of operation) % = 100 % P A = Adjusted Power due to Duty cycle or Cable Loss (mW) P A (mW) = 5.00 mW G N = Numeric Gain of the Antenna GN (numeric) = 2.00 numeric S 20 = Power Density of device at 20cm (mW/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (mW/m 2 ) = 0.00 mW/m 2 S 20 = Power Density of device at 20cm (W/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (W/m 2 ) = 0.02 W/m 2 S L = Power Density Limit (W/m 2 ) S L (W/m 2 )= 5.404 W/m 2 R C = Minimum distance to the Radiating Element for Compliance (cm) R C =√ (P A G N /4π S L ) R C (cm) = 1.2 cm S C = Power Density of the device at the Compliance Distance R C (W/m 2 ) S C =(P A G N )/(4πR C ) 2 S C (W/m 2 ) = 5.40 W/m 2 R 20 = 20cm R20= 20 cm For Complaince with Canada General Population Limits, User Manual must indicate a minimum seperation distance of 1.2 cm Or in Meters for Complaince with Canada General Population Limits, a minimum seperation distance of 0.01 Meters FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW) EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW) EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW)

Testing NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: June 30, 2020 Revision 1 File: A04101 DTS TstRpt 200615 Page 1 of 33 CFR47, PART 15C - Intentional Radiators CFR47 Paragraph 15.247 and Industry Canada RSS-247 Issue 2 and RSS-GEN Issue 5 Application For Grant of Certification Model: A04101 2402-2480 MHz (DTS) Broadband Digital Transmission System FCC ID: IPH-04101 IC: 1792A-04101 Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 FCC Designation: US5305 ISED Registration: 3041A-1 Test Report Number: 200615 Test Date: June 15, 2020 Authorized Signatory: Scot D. Rogers This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 Testing NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: June 30, 2020 Revision 1 File: A04101 DTS TstRpt 200615 Page 2 of 33 Tabl e of Cont ents Table of Contents TABLE OF CONTENTS .................................................................................................. 2 REVISIONS ..................................................................................................................... 3 EXECUTIVE SUMMARY ................................................................................................ 4 OPINION / INTERPRETATION OF RESULTS ............................................................... 4 EQUIPMENT TESTED .................................................................................................... 7 Equipment Function ............................................................................................................................................ 8 Equipment Configuration.................................................................................................................................... 8 APPLICATION FOR CERTIFICATION ........................................................................... 9 APPLICABLE STANDARDS & TEST PROCEDURES ................................................ 10 TESTING PROCEDURES ............................................................................................ 10 AC Line Conducted Emission Test Procedure ................................................................................................ 10 Radiated Emission Test Procedure ................................................................................................................... 10 Antenna Port Conducted Emission Test Procedure ........................................................................................ 10 Diagram 1 Test arrangement for radiated emissions of tabletop equipment ...................................................... 11 Diagram 2 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 12 Diagram 3 Test arrangement for Antenna Port Conducted emissions ............................................................... 13 TEST SITE LOCATIONS .............................................................................................. 13 UNITS OF MEASUREMENTS ...................................................................................... 14 ENVIRONMENTAL CONDITIONS................................................................................ 14 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................. 14 INTENTIONAL RADIATORS ........................................................................................ 15 Antenna Requirements ...................................................................................................................................... 15 Restricted Bands of Operation .......................................................................................................................... 15 Testing NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: ENG1, ENG2 4405 West 259 th Terrace Model: A04101 FCC ID: IPH-04101 Louisburg, KS 66053 Test: 200615 IC: 1792A-04101 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: June 30, 2020 Revision 1 File: A04101 DTS TstRpt 200615 Page 3 of 33 Table 1 Harmonic Radiated Emissions in Restricted Bands .............................................................................. 16 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 16 General Radiated Emissions Procedure ........................................................................................................... 17 Table 2 General Radiated Emissions Data ........................................................................................................ 18 Summary of Results for General Radiated Emissions .................................................................................... 18 Operation in the Band 2400 – 2483.5 MHz ...................................................................................................... 19 Figure 1 Plot of Transmitter Operation in 2402-2480 MHz .............................................................................. 20 Figure 2 Plot of Transmitter Emissions Low Band Edge .................................................................................. 21 Figure 3 Plot of Transmitter Emissions High Band Edge .................................................................…
