IPH-04117Digital Transmission System Transceiver

GARMIN DASH CAM ™ MINI 2 Owner’s Manual © 2020 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product. Garmin ® and the Garmin logo, are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Dash Cam ™ , Garmin Drive ™ , and Garmin Express ™ , are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. The BLUETOOTH ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. microSD ® and the microSD logo are trademarks of SD-3C, LLC. Wi‑Fi ® is a registered mark of Wi-Fi Alliance Corporation. M/N: A03571 Table of Contents Getting Started...............................................................1 Installing a Memory Card............................................................1 Device Overview.........................................................................1 Installing the Device on Your Windshield...................................1 Connecting the Device to Vehicle Power...................................1 Formatting the Memory Card......................................................2 Pairing with Your Smartphone......................................2 Dash Cam Recording.....................................................2 Turning Audio Recording On or Off............................................2 Event Detection..........................................................................2 Saving Videos and Photos.........................................................2 Viewing Videos and Photos on Your Smartphone......................3 Connecting the Camera to Your Computer................................3 Multiple Camera Network..............................................3 Creating Picture-in-Picture Multi-Camera Videos.......................3 Settings...........................................................................3 Camera Settings in the Garmin Drive App..................................3 Renaming a Camera...................................................................4 Device Information.........................................................4 Status LEDs................................................................................4 Cleaning the Camera Lens.........................................................4 Updating Your Device Using the Garmin Drive App...................4 Product Updates.........................................................................4 Specifications..............................................................................4 Memory Card Specifications.......................................................4 Appendix.........................................................................4 Parked Video Recording.............................................................4 Troubleshooting.............................................................5 My camera feels warm while it is operating................................5 My memory card has degraded and needs to be replaced........5 My video recordings are blurry...................................................5 My video recordings are choppy or incomplete..........................5 Index................................................................................6 Table of Contentsi Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Installing a Memory Card To record video, you must install a compatible memory card (Memory Card Specifications, page 4). 1 Insert the memory card into the slot . 2 Press it in until it clicks. Removing the Memory Card NOTICE Removing the memory card while the camera is turned on can result in a loss of data or damage to the camera. 1 Disconnect the power cable from the camera. 2 Wait for both status LEDs to turn off. 3 Press the memory card in until it clicks. 4 Release the card. The card ejects from the slot. Device Overview Press to enable or disable audio recording. Hold to format the memory card (Formatting the Memory Card, page 2). Press to save a picture and a video clip. Hold to enter pairing mode (Pairing with Your Smartphone, page 2). Installing the Device on Your Windshield NOTICE The adhesive mount is intended for a long-term installation and can be difficult to remove. You should carefully consider the mounting location before you install the mount. Before you can install the adhesive mount onto your windshield, the ambient temperature must be from 21° to 38°C (from 70° to 100°F). 1 Clean the windshield using water or alcohol, and a lint-free cloth. The windshield must be free of dust, wax, oils, or coatings. 2 Remove the protective film from the mount adhesive. 3 Position the mount over the mounting location. TIP: The adhesive is extremely sticky. Avoid touching the adhesive to the windshield until the mount is properly positioned and aligned. 4 Press the mount firmly onto the windshield, and maintain pressure for 30 seconds. This helps to ensure the mount adhesive has proper contact with the windshield. Connecting the Device to Vehicle Power 1 Plug the power cable into the USB port on the device. 2 Route the power cable to your vehicle power outlet. You can use either of the included cables to provide power to the camera. The longer, lightweight power cable is designed to be routed out of sight. To hide the 4 m (13 ft.) cable, route it behind the vehicle trim along the windshield, doorframe, or dash. Getting Started1 3 Plug the Garmin Dash C…

Text truncated - open the document above for the full version.

© 2020 Garmin Ltd. or its subsidiaries Garmin ® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Dash Cam™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. The microSD ™ logo is a trademark of SD-3C, LLC. 2.4 GHz @ 18 dBm maximum Printed in Taiwan January 2021 190-02806-01_0A garmin.com/manuals/dashcammini2 garmin.com/driveapp support.garmin.com 1.5 m (4.9 ft.) Dash_Cam_Mini2_QSM.indd 1Dash_Cam_Mini2_QSM.indd 112/31/2020 11:12:25 AM12/31/2020 11:12:25 AM *Class 10 microSD™ card not included *Carte microSD™ de classe 10 non incluse *Scheda microSD™ di classe 10 non inclusa *microSD-Karte der Klasse 10 nicht im Lieferumfang enthalten *Tarjeta microSD™ de clase 10 no incluida TIP: To hide the 4 m (13 ft.) cable, route it behind the vehicle trim along the windshield, doorframe, or dash. * ASTUCE : pour masquer le câble de 4 m (13 pi), faites-le passer sous le ciel de toit le long du pare-brise, de la portière ou du tableau de bord. SUGGERIMENTO: per nascondere il cavo da 4 m (13 piedi), passarlo dietro all’allestimento del veicolo lungo il parabrezza, lo sportello o il cruscotto. TIPP: Verlegen Sie das 4 m (13 Fuß) lange Kabel hinter der Verkleidung des Fahrzeugs entlang der Windschutzscheibe, des Türrahmens oder des Armaturenbretts, damit es nicht zu sehen ist. SUGERENCIA: Para ocultar el cable de 4 m (13 ft), colócalo a lo largo de la moldura del parabrisas del vehículo, del marco de la puerta o del salpicadero. Dash_Cam_Mini2_QSM.indd 2Dash_Cam_Mini2_QSM.indd 212/31/2020 11:12:26 AM12/31/2020 11:12:26 AM

Important Safety and Product Information2 Informations importantes sur le produit et la sécurité6 guida Informazioni importanti sulla sicurezza e sul prodotto11 Wichtige Sicherheits- und Produktinformationen14 Información importante sobre el producto y tu seguridad18 Informações importantes de segurança e do produto23 Belangrijke veiligheids- en productinformatie26 Tärkeitä turvallisuus- ja tuotetietoja30 Viktig sikkerhets- og produktinformasjon33 Ważne informacje dotyczące bezpieczeństwa i produktu36 Правила техники безопасности и сведения об изделии39 Vigtige produkt- og sikkerhedinformationer43 Guiden Viktig säkerhets- och produktinformation46 Important Safety and Product Information WARNING Failure to heed the following warnings could result in an accident or collision resulting in death or serious injury. Choking Hazard This product contains small parts. This product is not for children under 3 years. Vehicle Installation Warnings • When installing the device in a vehicle, do not place the device where it obstructs the driver’s view of the road or interferes with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place unsecured on the vehicle dashboard . Do not place the device in front of or above any airbag . Distraction Warning This device is intended to enhance the situational awareness when used properly. If used improperly, you could become distracted by the display, which could lead to an accident causing serious personal injury or death. Only access the information displayed on the device with a glance. Always maintain awareness of your surroundings and do not stare at the display or become distracted by the display. Focusing on the display could cause you to miss obstacles or hazards. Use the device at your own risk. NOTICE Failure to heed the following notice could result in personal or property damage, or negatively impact the device functionality. Windshield Mounting Legal Restrictions Before using the device on your windshield, check the state and local laws and ordinances where you drive. Some state laws prohibit or restrict the placement of objects on the windshield of a motor vehicle. IT IS THE USER'S RESPONSIBILITY TO MOUNT THE DEVICE IN COMPLIANCE WITH ALL APPLICABLE LAWS AND ORDINANCES. Always mount your Garmin ® device in a location that does not obstruct the driver's view of the road. Garmin does not assume any responsibility for any fines, penalties, or damages that may be incurred as a result of any state or local law or ordinance relating to the use of your Garmin device. Camera Legal Notice In some jurisdictions it could be considered an invasion of privacy rights to take or publicly display photographs or videos of people or their vehicles using this product. It is your responsibility to know and comply with applicable laws and rights to privacy in your jurisdiction. 2 Product Environmental Programs Information about the Garmin product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com /aboutGarmin/environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance. Innovation, Science and Economic Development Canada Compliance This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF exposure compliance requirements, the device should be installed and operated with a minimum of 20 cm (7.8 in.) between the device and your body. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet that is on a different circuit from the GPS device. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or 3 modifications could result in permanent damage to the equipment, and void your warranty and your autho…

Text truncated - open the document above for the full version.

Page 1 of 2 December 29, 2020 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID: IPH-04117 Product: Transmitter operated under 47CFR Section 15C Dear Sirs: Garmin International, Inc. requests that the material in the Block Diagram, Operational Description, Schematics, and Tune up Procedure be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES A04117 Conf BlkDia.pdf A04117 Conf OpDes.pdf A04117 Conf Schem.pdf A04117 Conf TunPro.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Block Diagram, Operational Description, Schematics, and Tune up Procedure which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: IPH-04117 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed Block Diagram, Operational Description, Schematics, and Tune up Procedure. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry the protection sought is narrowly drawn as provided in regulations. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

February 11, 2021 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-04117 FCC Rules: Parts 2 and 15C Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until June 9, 2021 (82 days) after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files File A04117 Short Term Conf ExtPho.pdf A04117 Short Term Conf IntPho.pdf A04117 Short Term Conf TSup.pdf A04117 Short Term Conf UserMan.pdf A04117 Short Term Conf UserMan1.pdf A04117 Short Term Conf UserMan2.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 +1 913 837-3214

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mill s Road Columbia, MD 21046 Date: December 29, 2020 SUBJECT: FCC Application for FCC ID: IPH-04117 To Whom It May Concern: Garmin wil l continue to apply processes and procedures to ensure compliance with 47 CFR 2 requirements regarding products produced und er Supplier’s Declaration of Conformity procedure for class B computer peripheral portion as applicable to this composite filing. Sincerely, Tim Olson Senior Compliance Engineer

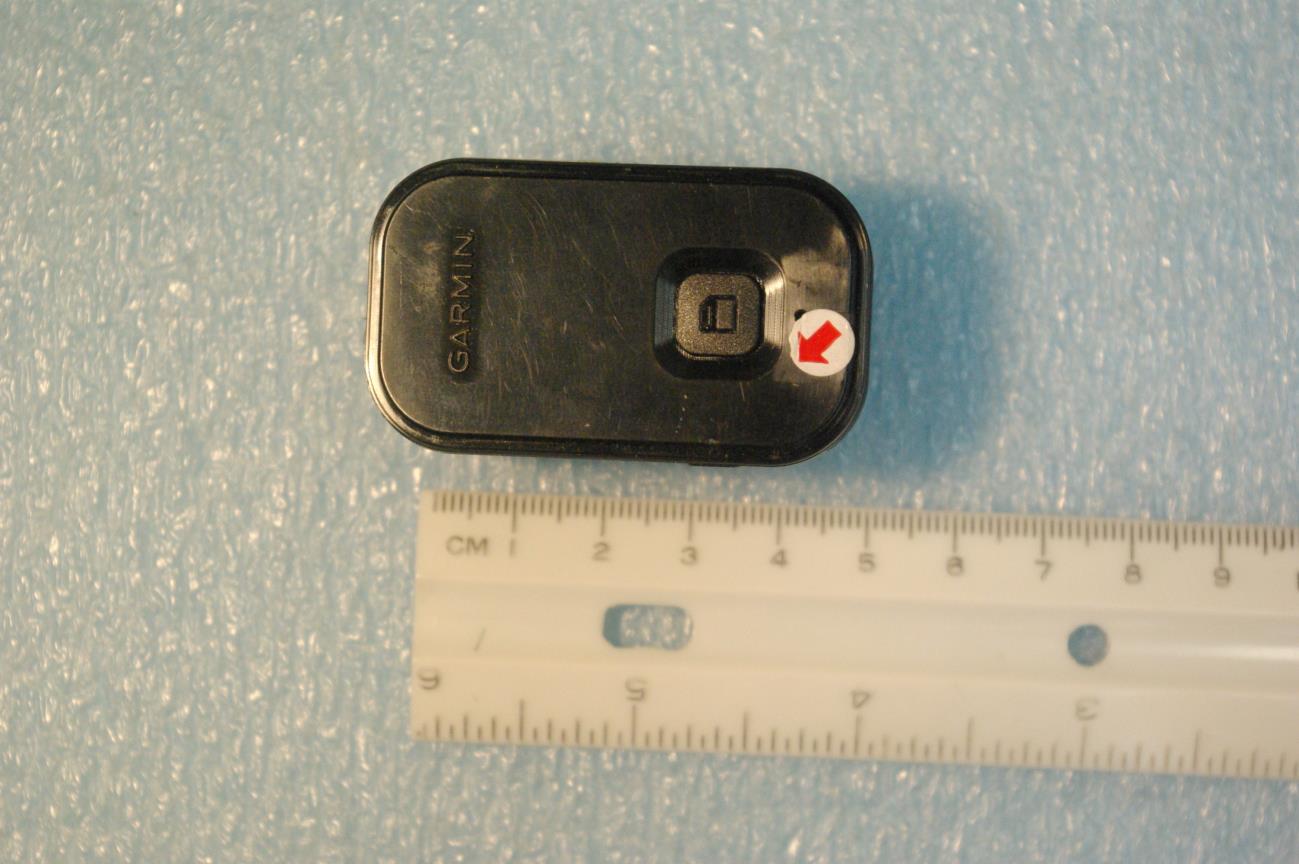

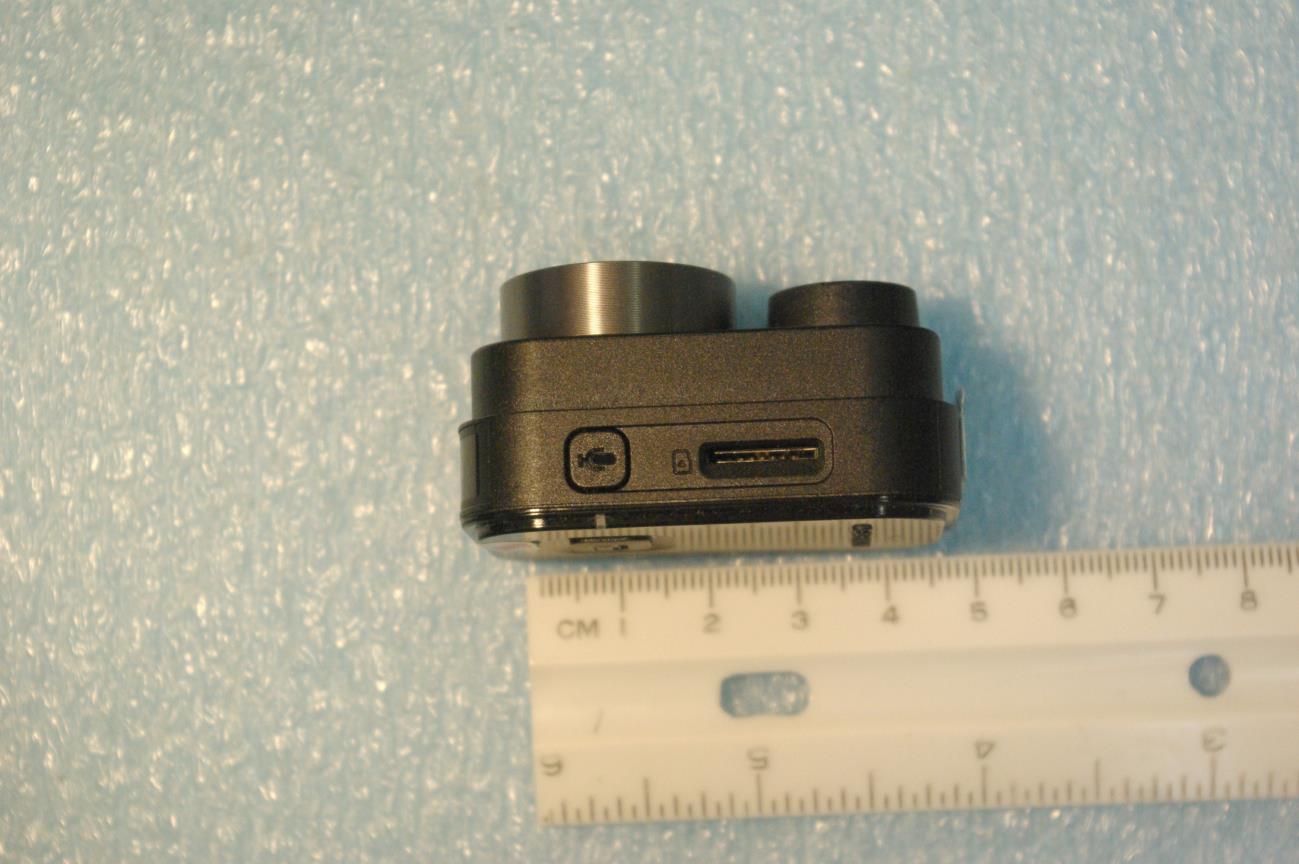

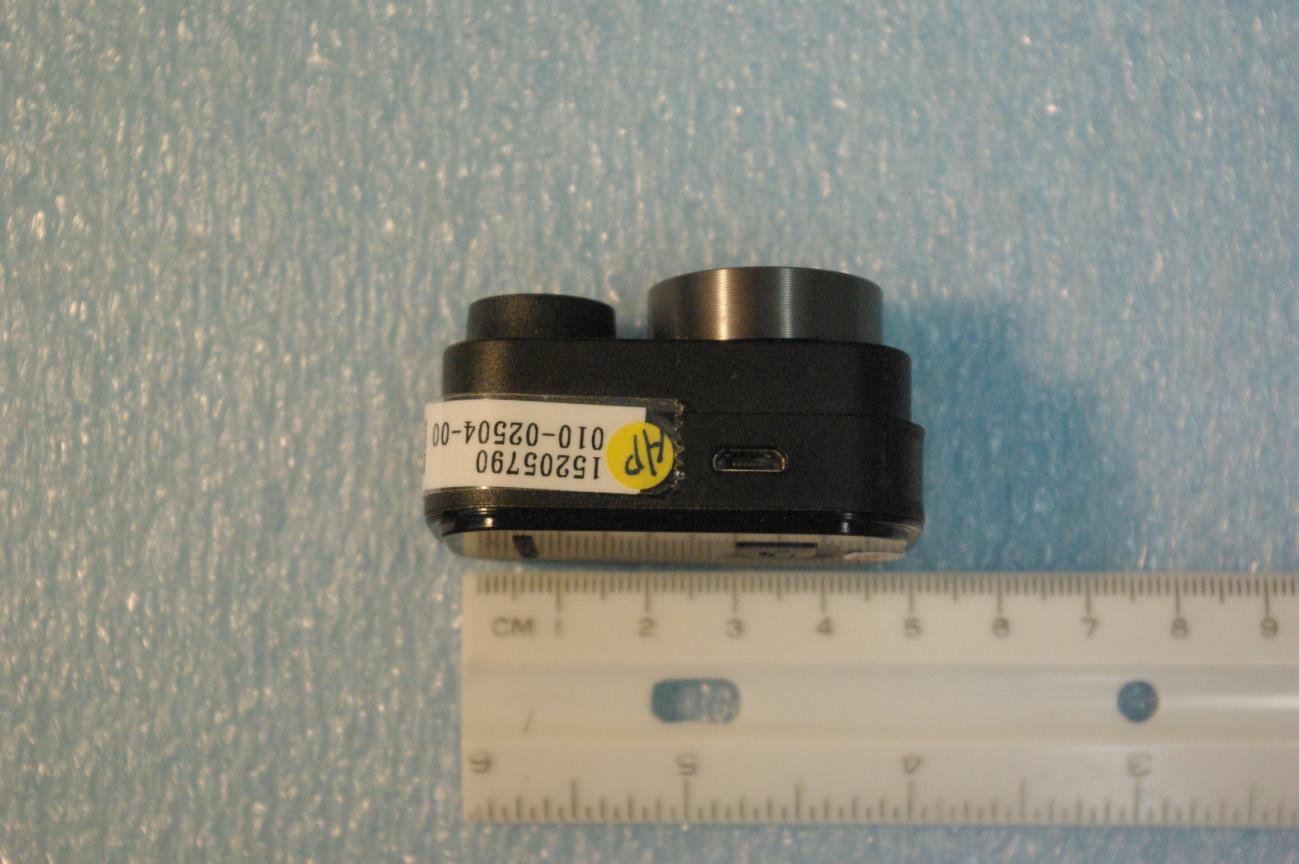

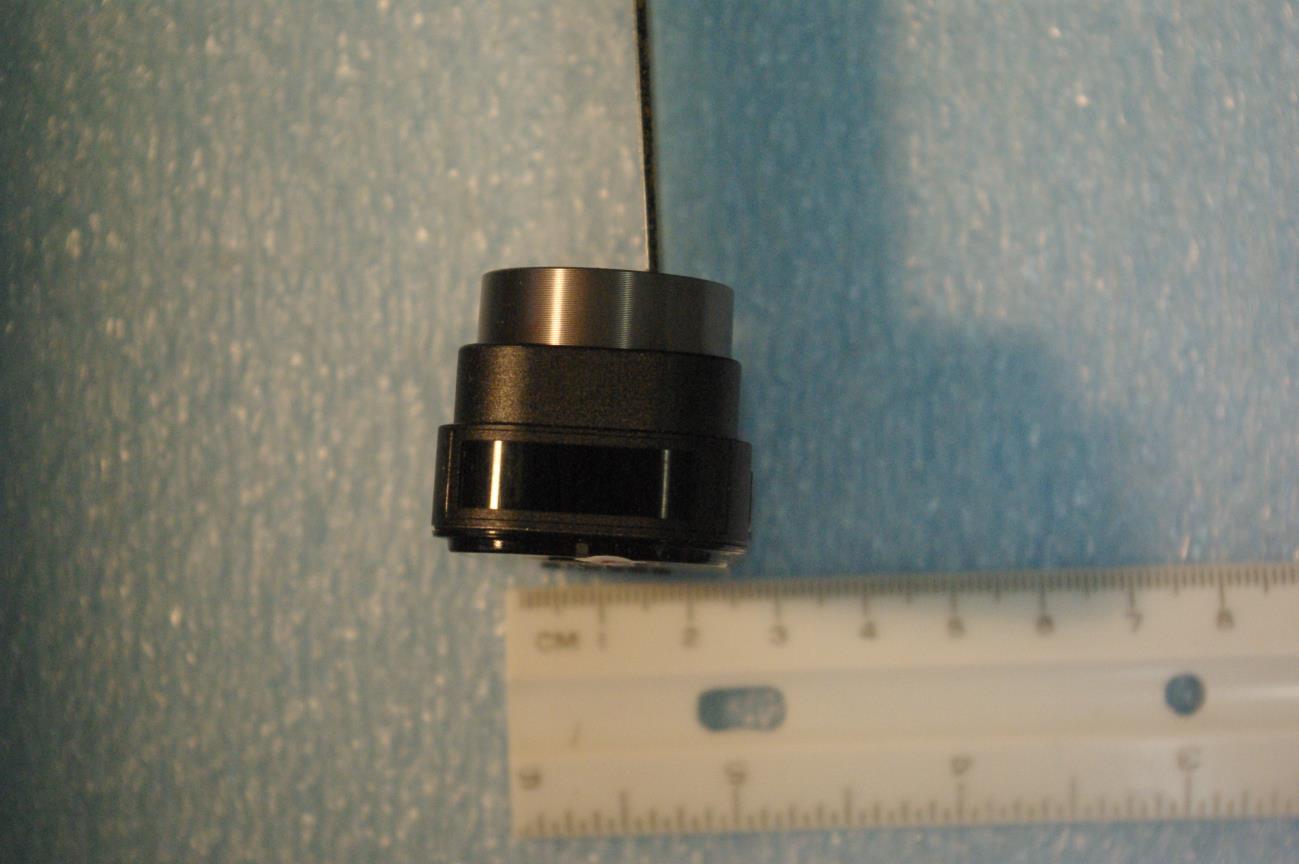

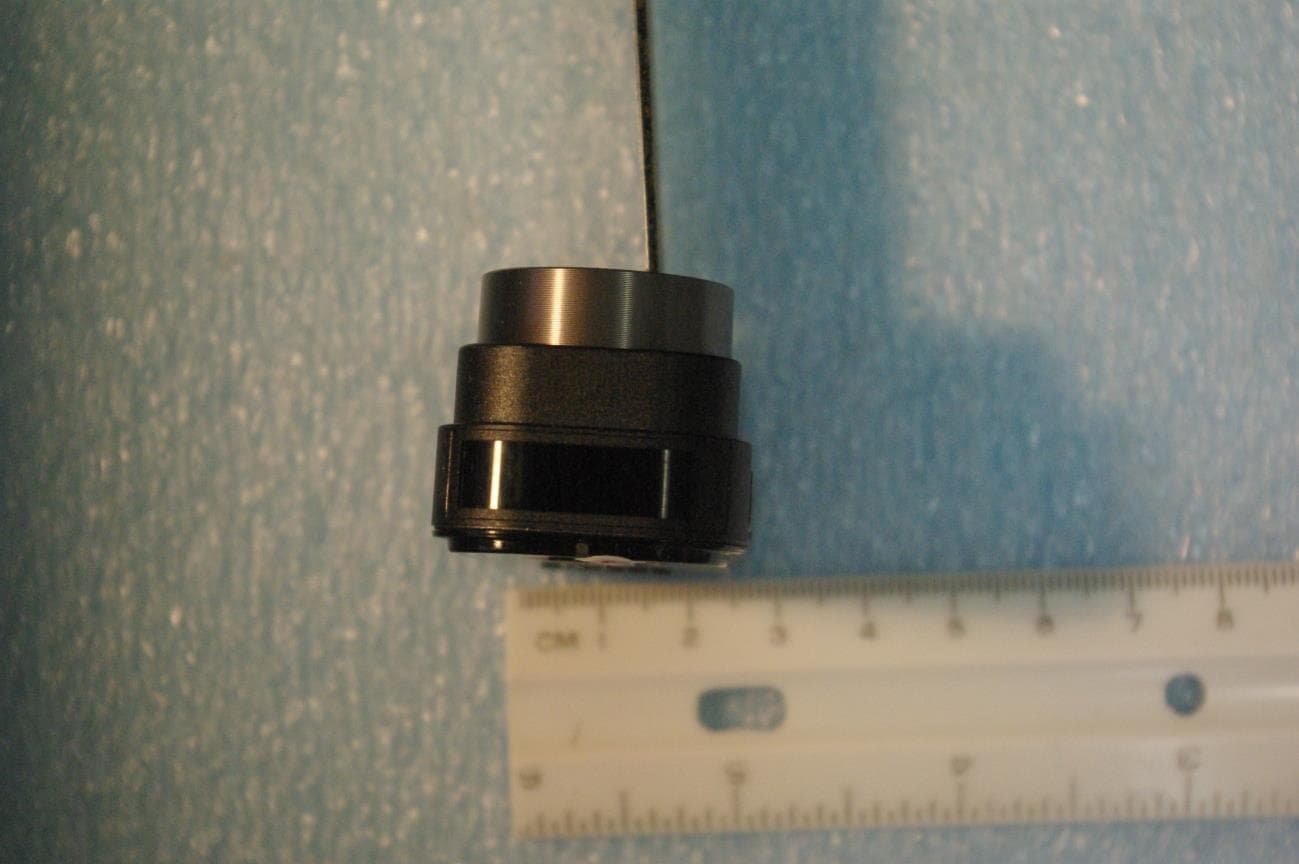

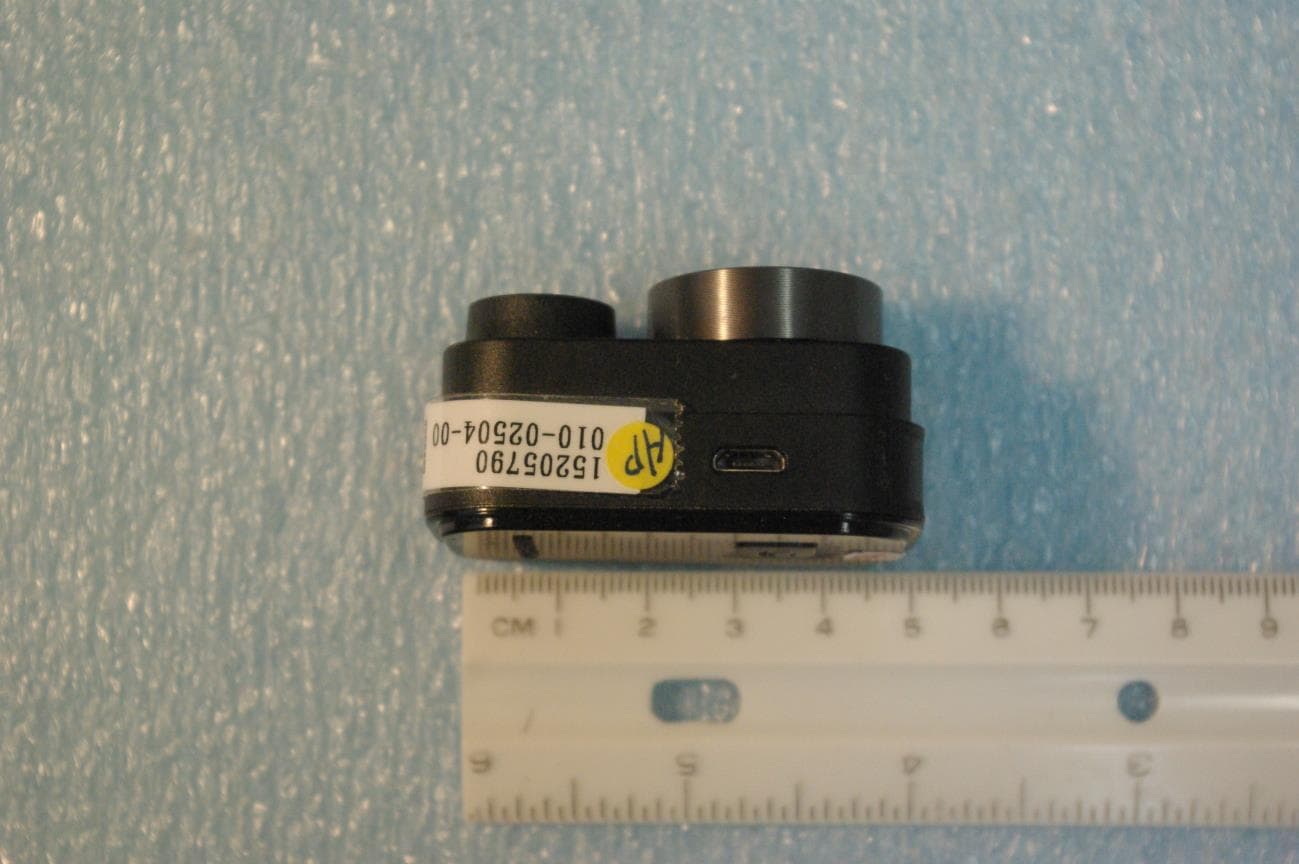

Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15.C, RSS-210, RSS-247 Date: December 29, 2020 Revision 1 File: A04117 Short Term Conf ExtPho Page 1 of 3 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15.C, RSS-210, RSS-247 Date: December 29, 2020 Revision 1 File: A04117 Short Term Conf ExtPho Page 2 of 3 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15.C, RSS-210, RSS-247 Date: December 29, 2020 Revision 1 File: A04117 Short Term Conf ExtPho Page 3 of 3

Label Drawing (Dimensions in mm) Note: All text is minimum 4 point font or larger Label Placement Bottom of device EUT Label 29.00 8.00

Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15.C, RSS-210, RSS-247 Date: December 29, 2020 Revision 1 File: A04117 Short Term Conf IntPho Page 1 of 3 PCB Front side PCB Back side Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15.C, RSS-210, RSS-247 Date: December 29, 2020 Revision 1 File: A04117 Short Term Conf IntPho Page 2 of 3 Antenna Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15.C, RSS-210, RSS-247 Date: December 29, 2020 Revision 1 File: A04117 Short Term Conf IntPho Page 3 of 3 Antenna Installed

Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-247, RSS-Gen Date: December 29, 2020 Revision 1 File: A04117 MPE Exclusion Page 1 of 1 Model: A04117 Test Number: 200924 MPE Calculator RF Exposure uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Transmitter Output power (mW) 62.2 Transmitter Output power (W) 0.062 Output Power for % duty Cycle operation (Watts) 100 0.062 Antenna Gain (dBi) -0.3 Output Power for 100% duty Cycle operation (Watts) 0.062 Antenna Gain (Numeric) 0.93 Tx Frequency (MHz) 2437 Calcualtion power (Watts) 0.062 dBd + 2.17 = dBi dBi to dBd 2.2 Antenna Gain (dBd) -2.47 Cable Loss (dB) 0.0 Adjusted Power (dBm) 17.94 Antenna minus cable (dBi) -0.30 Antenna Gain (Numeric) 0.93 Calculated ERP (mw) 35.208 EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 58.029 Radiated (EIRP) dBm 17.636 ERP = EIRP - 2.17 dB Radiated (ERP) dBm 15.466 Occupational Limit 5 mW/cm 2 Frequency (MHz) Occupational Limit (mW/cm 2 ) Public Limit (mW/cm 2 ) 50 W/m 2 30-300 1 0.2 General Public Limit 300-1,500 f/300 f/1500 1 mW/cm 2 1,500-10,000 5 1 10 W/m 2 Occupational Limit 0.6455ƒ 0.5 W/m 2 39.7 W/m 2 Frequency (MHz) Occupational Limit (W/m 2 ) Public Limit (W/m 2 ) General Public Limit 100-6,000 0.6455ƒ 0.5 0.02619ƒ 0.6834 W/m 2 6,000-15,000 50 5.4 W/m 2 48-300 1.291 300-6,000 0.02619ƒ 0.6834 6,000-15,000 50 10 f = Transmit Frequecny (MHz) f (MHz) = 2437 MHz P T = Power Input to Antenna (mW) P T (mW) = 62.1794 mW Duty cycle (percentage of operation) % = 100 % P A = Adjusted Power due to Duty cycle or Cable Loss (mW) P A (mW) = 62.18 mW G N = Numeric Gain of the Antenna GN (numeric) = 0.93 numeric S 20 = Power Density of device at 20cm (mW/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (mW/m 2 ) = 0.01 mW/m 2 S 20 = Power Density of device at 20cm (W/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (W/m 2 ) = 0.12 W/m 2 S L = Power Density Limit (W/m 2 ) S L (W/m 2 )= 5.404 W/m 2 R C = Minimum distance to the Radiating Element for Compliance (cm) R C =√ (P A G N /4π S L ) R C (cm) = 2.9 cm S C = Power Density of the device at the Compliance Distance R C (W/m 2 ) S C =(P A G N )/(4πR C ) 2 S C (W/m 2 ) = 5.40 W/m 2 R 20 = 20cm R20= 20 cm For Complaince with Canada General Population Limits, User Manual must indicate a minimum seperation distance of 2.9 cm Or in Meters for Complaince with Canada General Population Limits, a minimum seperation distance of 0.03 Meters FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW)

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: November 23, 2020 Revision 1 File: A04117 DXX TstRpt 200924 Page 1 of 49 47 CFR, PART 15C - Intentional Radiators 47 CFR Paragraph 15.249 and Industry Canada RSS-GEN Issue 5 and RSS-210 Issue 10 Application For Grant of Certification Model: A04117 2402-2480 MHz (DXX) Low Power Digital Transmitter FCC ID: IPH-04117 IC: 1792A-04117 Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 FCC Designation: US5305 ISED Registration: 3041A-1 Test Report Number: 200924 Test Date: September 24, 2020 Authorized Signatory: Scot D. Rogers This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: November 23, 2020 Revision 1 File: A04117 DXX TstRpt 200924 Page 2 of 49 Tabl e of Cont ents Table of Contents TABLE OF CONTENTS .................................................................................................. 2 REVISIONS ..................................................................................................................... 4 EXECUTIVE SUMMARY ................................................................................................ 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 6 Equipment Function ............................................................................................................................................ 7 Equipment Configuration.................................................................................................................................... 8 APPLICATION FOR CERTIFICATION ........................................................................... 9 APPLICABLE STANDARDS ........................................................................................ 10 EQUIPMENT TESTING PROCEDURES ...................................................................... 10 AC Line Conducted Emission Test Procedure ................................................................................................ 10 Radiated Emission Test Procedure ................................................................................................................... 10 Antenna Port Conducted Emission Test Procedure ........................................................................................ 11 Diagram 1 Test arrangement for Conducted emissions ..................................................................................... 12 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 13 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 14 Diagram 4 Test arrangement for Antenna Port Conducted emissions ............................................................... 15 TEST SITE LOCATIONS .............................................................................................. 15 UNITS OF MEASUREMENTS ...................................................................................... 16 ENVIRONMENTAL CONDITIONS................................................................................ 16 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................. 16 INTENTIONAL RADIATORS ........................................................................................ 17 Antenna Requirements ...................................................................................................................................... 17 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3342384349 / 3342384330 4405 West 259 th Terrace Model: A04117 FCC ID: IPH-04117 Louisburg, KS 66053 Test: 200924 IC: 1792A-04117 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: November 23, 2020 Revision 1 File: A04117 DXX TstRpt 200924 Page 3 of 49 Restricted Bands of Operation .......................................................................................................................... 17 Table 1 Radiated Emissions in Restricted Frequency Bands Data Mode 1 BT BR ........................................... 18 Table 2 Radiated Emissions in Restricted Frequency Bands Data Mode 2 BT 2EDR ...................................... 19 Table 3 Radiated Emissions in Restricted Frequency Bands Data Mode 3 BT 3EDR ...................................... 20 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 20 AC Line Conducted EMI Procedure .........................................…

Text truncated - open the document above for the full version.
