IPH-04348Hybrid Smartwatch

CONFIDENTIAL This drawing and the specifications contained herein are the property of GARMIN Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Garmin Ltd. or its subsidiaries C/O Garmin International, Inc. 1200 E. 151 st Street Olathe, Kansas 66062 USA Sheet 1 of 1 Specification Control Document Drawing Number: 190-02068-95 Description: ISPI Wearables PulseOx WW 74x105 Revision: A Drawn By: KEG 09/09/22 Revision History Rev. Date Description of Change ECO No. A 09/09/22 Production Release ---- Printing Specifications Tolerance: ±0.0787" (±2 mm) Material: 60-lb woodfree. Approved equivalents allowed. Color: Black ink all. Bindery: Saddle-stitched. Approved equivalents allowed. Folds: Not applicable. Trimmed Dimensions: 148 mm x 105 mm Finished Dimensions: 74 mm x 105 mm Notes: Content Management System (CMS) Details GUID: GUID-AC4061CE-BECA-4C76-83E2-72A183620623 Version: 1 Printed Languages EN-US, FR-FR, IT-IT, DE-DE, ES-XM, PT-BR Notes IMPORTANT SAFETY AND PRODUCT INFORMATION Important Safety and Product Information..................3 Informations importantes sur le produit et la sécurité...........11 guida Informazioni importanti sulla sicurezza e sul prodotto.......19 Wichtige Sicherheits- und Produktinformationen..............26 Información importante sobre el producto y tu seguridad.........34 Informações importantes sobre segurança e sobre o produto.......42 Important Safety and Product Information WARNING Failure to heed the following warnings could result in an accident or medical event resulting in death or serious injury. Battery Warnings A lithium-ion battery is used in this device. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not expose the device or batteries to fire, explosion, or other hazard. • Do not disassemble, modify, remanufacture, puncture, or damage the device or batteries. • Do not remove or attempt to remove the non-user-replaceable battery. Device Warnings • To avoid possible device damage, do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. • Do not operate or store the device for an extended time period outside of the applicable temperature range listed in the printed manual in the product packaging. • Do not use a power cable, data cable, and/or power adapter that is not supplied by Garmin ® or is not properly certified. Health Warnings • If you have a pacemaker or other internal electronic device, consult your physician before using a heart rate monitor. • The optical wrist heart rate monitor and pulse oximeter emit lights and flash occasionally. Consult your physician if you have epilepsy or are sensitive to bright or flashing lights. • This device may have a flashlight that can be programmed to flash at various intervals. Consult your physician if you have epilepsy or are sensitive to bright or flashing lights. • Always consult your physician before beginning or modifying any exercise program. • The device, accessories, heart rate monitor, pulse oximeter, and related data are intended to be used only for recreational purposes, not medical purposes, and are not intended to diagnose, monitor, treat, cure, or prevent any disease or condition. 3 EN • The heart rate and blood oxygen saturation readings are for reference only, and no responsibility is accepted for the consequences of any erroneous readings. • While the optical wrist heart rate monitor and pulse oximeter technologies typically provide accurate estimates of a user's heart rate and blood oxygen saturation respectively, there are inherent limitations with the technologies that may cause some of the readings to be inaccurate under certain circumstances, including the user's physical characteristics, device fit and position, and type and intensity of activity. • Activity trackers rely on sensors that track your movement and other metrics. The data provided by these devices is intended to be a close estimation of your activity and metrics tracked, but may not be completely accurate. Safety and Tracking Warning The assistance feature allows you to send your location to an emergency contact. This is a supplemental feature and should not be relied upon as a primary method to obtain emergency assistance. The Garmin Connect ™ app does not contact emergency services on your behalf. The incident detection feature is only available during certain outdoor activities. For more information, see the device owner's manual. Bicycle Warnings • Always use your best judgement, and operate the bicycle in a safe manner. • Make sure your bicycle and hardware are properly maintained and that all parts are correctly installed. Navigation Warnings If your Garmin device uses or accepts map data, follow these guidelines to ensure safe navigating. • Always carefully compare information displayed on the device to all available navigation sources, including weather conditions, maps, street/trail signs and conditions, waterway restrictions, and other factors that may affect safety. Always resolve any discrepancies or questions before continuing navigation, and defer to posted signs and conditions. • Use this device only as a navigational aid. Do not attempt to use the device for any purpose requiring precise measurement of direction, distance, location, or topography. 4 EN • Always use your best judgment and exercise common sense when making off-road navigational decisions. The device is designed to provide route suggestions only. It is not a replacement for attentiveness and proper preparation for outdoor activities. Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. • Always be mindful of the effects of the environment and the inherent risks of th…

Text truncated - open the document above for the full version.

CONFIDENTIAL This drawing and the specifications contained herein are the property of GARMIN Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Garmin Ltd. or its subsidiaries C/O Garmin International, Inc. 1200 E. 151 st Street Olathe, Kansas 66062 USA Sheet 1 of 1 Specification Control Document Drawing Number: 190-02972-01 Description: Instinct Crossover Series Quick Start Manual (ML6) Revision: B Drawn By: MET 09/07/22 Revision History Rev. Date Description of Change ECO No. A 09/07/22 Production Release ---- B 09/23/22 Removing solar charging spec 249776 Printing Specifications Tolerance: ±0.0787" (±2 mm) Material: 80-lb matte finish offset. Approved equivalents allowed. Color: Black ink. Bindery: Saddle-stitched. Approved equivalents allowed. Folds: Not applicable. Trimmed Dimensions: 148 mm x 105 mm. Finished Dimensions: 74 mm x 105 mm. Notes: Content Management System (CMS) Details GUID: GUID-5896F6FE-834C-42A5-AF3C-C780496E4BB1 Version: 2 Printed Languages EN-US, FR-FR, IT-IT, DE-DE, ES-XM, PT-BR Notes INSTINCT ® CROSSOVER SERIES Quick Start Manual.................................2 Manuel de démarrage rapide.........................12 Manuale di avvio rapido.............................23 Schnellstartanleitung...............................34 Guía de inicio rápido...............................46 Manual de início rápido.............................57 Instinct ® Crossover Series Quick Start Manual Introduction WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Always consult your physician before you begin or modify any exercise program. Getting Started When using your watch the first time, you should complete these tasks to set it up and get to know the basic features. 1Press CTRL to turn on the watch (page 3). 2Follow the on-screen instructions to complete the initial setup. During the initial setup, you can install the Garmin Connect ™ app and pair your smartphone with your watch to receive notifications and more (page 5). 3Charge the device completely (page 8). 4Start an activity (page 6). 2Quick Start Manual EN Buttons LIGHT CTRL Press to turn the device on. Press to turn the backlight on and off. Hold to view the controls menu. START GPS Press to view the activity list and start or stop an activity. Press to choose an option in a menu. Hold to view GPS coordinates and save your location. BACK SET Press to return to the previous screen. Hold to view the clock menu. Quick Start Manual3 EN DOWN ABC Press to scroll through the glance loop and menus. Hold to view the altimeter, barometer, and compass (ABC) screen. UP MENU Press to scroll through the glance loop and menus. Hold to view the menu. Using the Watch • Hold CTRL to view the controls menu. The controls menu provides quick access to frequently used functions, such as turning on do not disturb mode, turning on the battery saver feature, and turning the watch off. You can also enable tactical features, such stealth mode to turn off wireless communications and hide your GPS location, or night vision mode to use the watch with night vision goggles. NOTE: Stealth mode and night vision mode are not available on all models. • From the watch face, press UP or DOWN to scroll through the glance loop. Your watch comes preloaded with glances that provide access to health data, activity information, on-device sensors, and more. More glances are available when you pair your watch with a phone. 4Quick Start Manual EN • From the watch face, press START to start an activity or open an app (page 6). • Hold MENU to customize the watch face, adjust settings, and pair wireless sensors. Smart Features Pairing Your Phone with Your Watch To use the connected features of the Instinct ® watch, it must be paired directly through the Garmin Connect app, instead of from the Bluetooth ® settings on your phone. 1From the app store on your phone, install and open the Garmin Connect app. 2Bring your phone within 10 m (33 ft.) of your watch. 3During the initial setup, select when you are prompted to pair with your smartphone. 4Follow the instructions in the app to complete the pairing and setup process. Setting Up Your Garmin Pay ™ Wallet The Garmin Pay feature allows you to use your watch to pay for purchases in participating stores. You can add one or more participating credit or debit cards to your Garmin Pay wallet. Go to garmin.com/garminpay/banks to find participating financial institutions. 1From the Garmin Connect app, select or . 2Select Garmin Pay > Get Started. 3Follow the on-screen instructions. Quick Start Manual5 EN You can open your Garmin Pay wallet from the controls menu on your watch. See the owner's manual for more information on using the Garmin Pay feature. Connect IQ ™ Features You can add Connect IQ features to your watch from Garmin ® and other providers using the Connect IQ app. You can customize your device with watch faces, data fields, glances, and apps. Activities and Apps Your watch can be used for indoor, outdoor, athletic, and fitness activities. When you start an activity, the watch displays and records sensor data. You can create custom activities or new activities based on default activities. When you finish your activities, you can save and share them with the Garmin Connect community. Starting an Activity 1From the watch face, press START. 2The first time you start an activity, select the checkbox next to each of your favorites, and select Done. Your favorite activities appear at the top of the list, providing quick access to the ones you use most. Additional activities appear in the extended list. 3Select an activity. 4If the activity requires GPS, go outside, and wait while the watch locates satellites. 6Quick Start Manual EN 5Press START to start the activity timer. NOTE: The watch does not record your activity data until you sta…

Text truncated - open the document above for the full version.

Dec. 11, 2020 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue PO Box 11490, Station H Ottawa, Ontario, Canada K2H 8S2 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized the following Garmin International Associates to act on Garmin's behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) and Innovation, Science and Economic Development Canada (ISED) for equipment authorization or certification. Ms. Poojita Bhattu, Compliance Engineer Mr. Doug Burroughs, Senior Compliance Engineer Mr. Jeffrey Hailey, Staff Compliance Eng ineer Mr. Dan Irish, Senior Compliance Engineer Mr. Ben Karsak, Compliance Engineering Team Lead Mr. Kiran Kumar, Senior Compliance Engineer Mr. Tim Olson, Senior Compliance Engineer Mr. Carlos Ortega, Senior Compliance Engineer Mr. William Pertner, Compliance Engineering Team Lead Mr. Cody Riggle, Compliance Engineer Mr. David Utt, Staff Compliance Engineer Mr. Jonathan Shafer, Senior Design Certification Engineer Ms. Sara Jones, Design Certification Engineer 2 Mr. Jay Everett, Team Leader, System Validation As such, the Garmin Associates listed above are authorized to: 1) sign Form 731, 2) sign letters of application, 3) request confidentiality, and 4) exchange data and information with the FCC, IC and/or authorized TCBs on behalf of Garmin. In addition, these individuals shall be considered "authorized individuals" to act on Garmin's behalf where an "authorized individual's" attestation is necessary or preferred. This authorization remains in effect until notified to the contrary by Garmin. Sincerely, Mr. Douglas Kealey, Manager Environmental and Regulatory Affairs

\ Date:September 29, 2022 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized Gary Chang, International Certification Corp. No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) to act on Garmin’s behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) for equipment FCC authorization. This authorization is limited to FCC ID: IPH-04348. Consistent with the foregoing, Gary Chang is authorized to: 1) Sign Form 731, 2) Sign letters of application, 3) Request confidentiality, and 4) Exchange data and information with the FCC, and authorized TCBs on behalf of Garmin. This authorization is not assignable to other beyond Gary Chang. No party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Sincerely, Ben Karsak, Manager of Compliance Engineering Garmin International Inc. Tel: 913 440-1946 Fax: 913 397-8282 [email protected] -----------------------------------------------------nothing follows----------------------------------------------------

Date: September 29, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: IPH-04348 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after issue date. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant’s company name : International Certification Corp. Applicant’s company address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., Tao Yuan City 333, Taiwan (R.O.C.) Signature : Job Title and Dept. : Manager E-mail : [email protected] Tel. : 886-3-271-8628

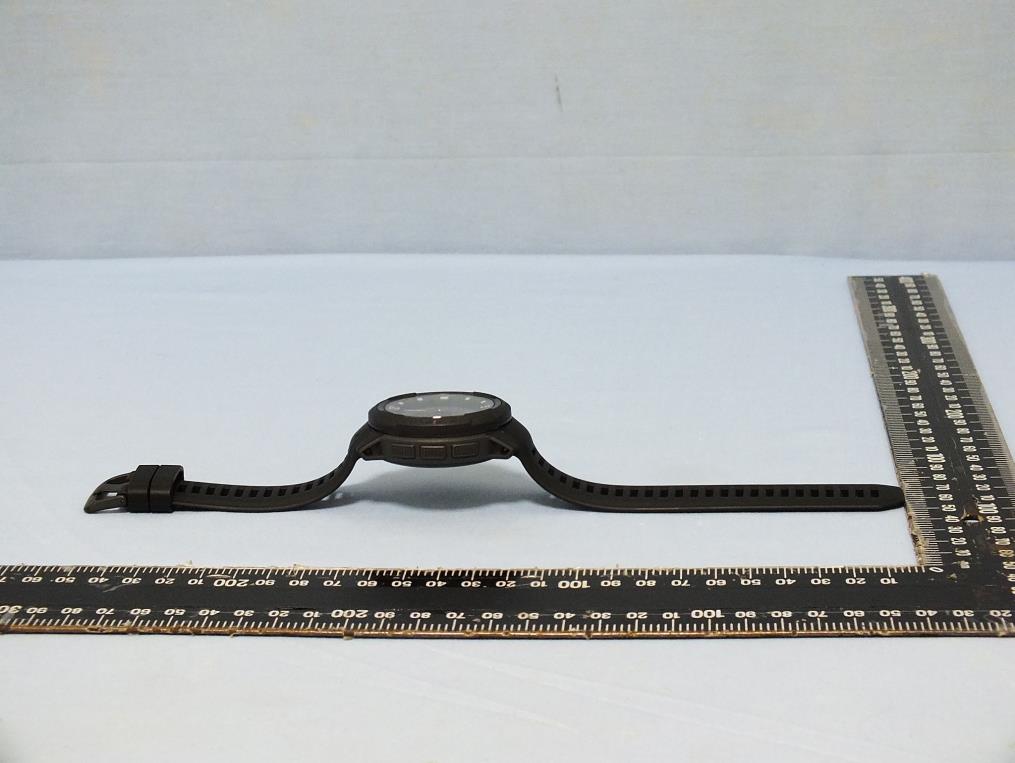

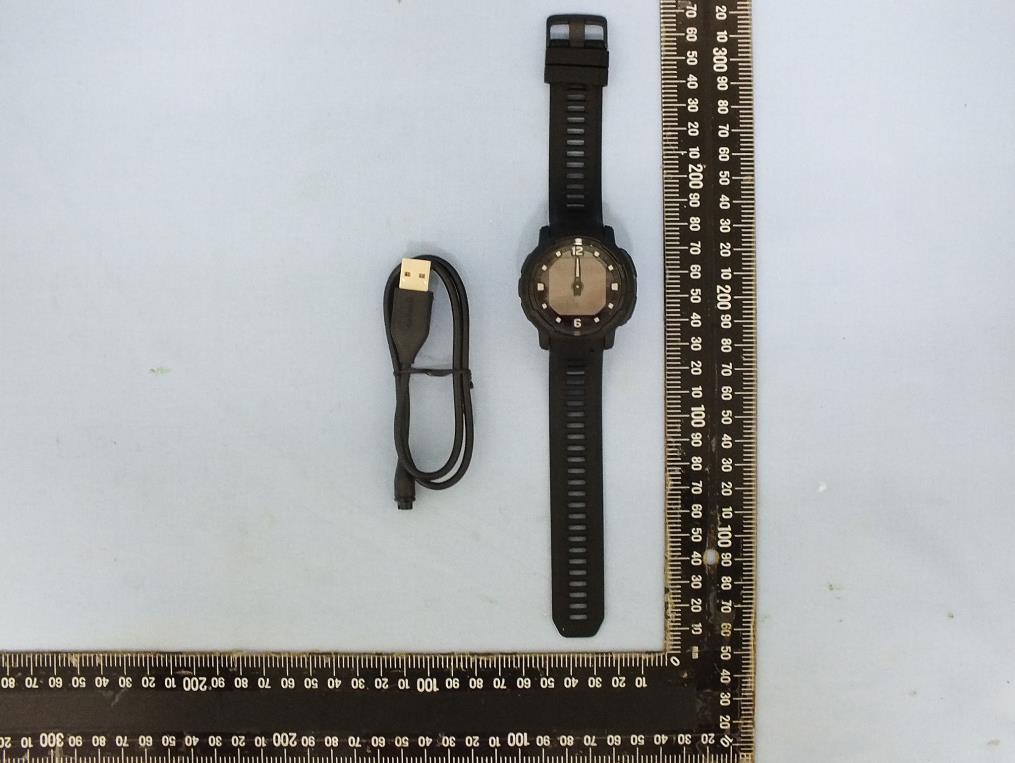

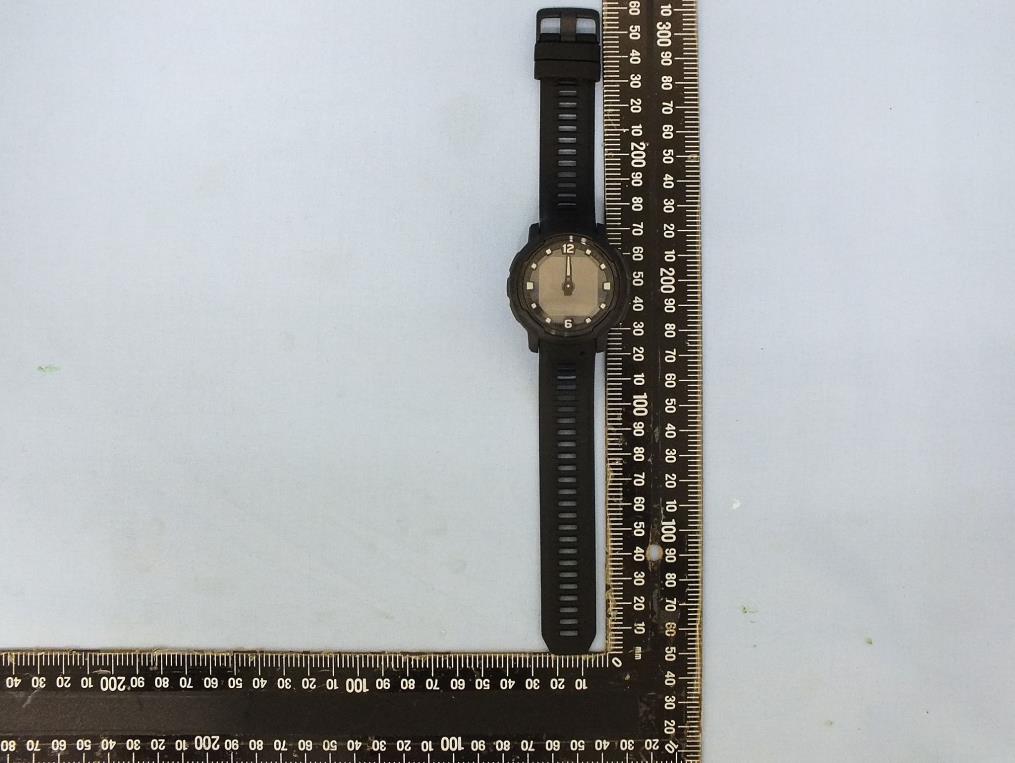

Project No.: EP271403 Page No. : 1 of 16 Photographs of EUT Project No.: EP271403 Page No. : 2 of 16 Project No.: EP271403 Page No. : 3 of 16 Project No.: EP271403 Page No. : 4 of 16 Project No.: EP271403 Page No. : 5 of 16

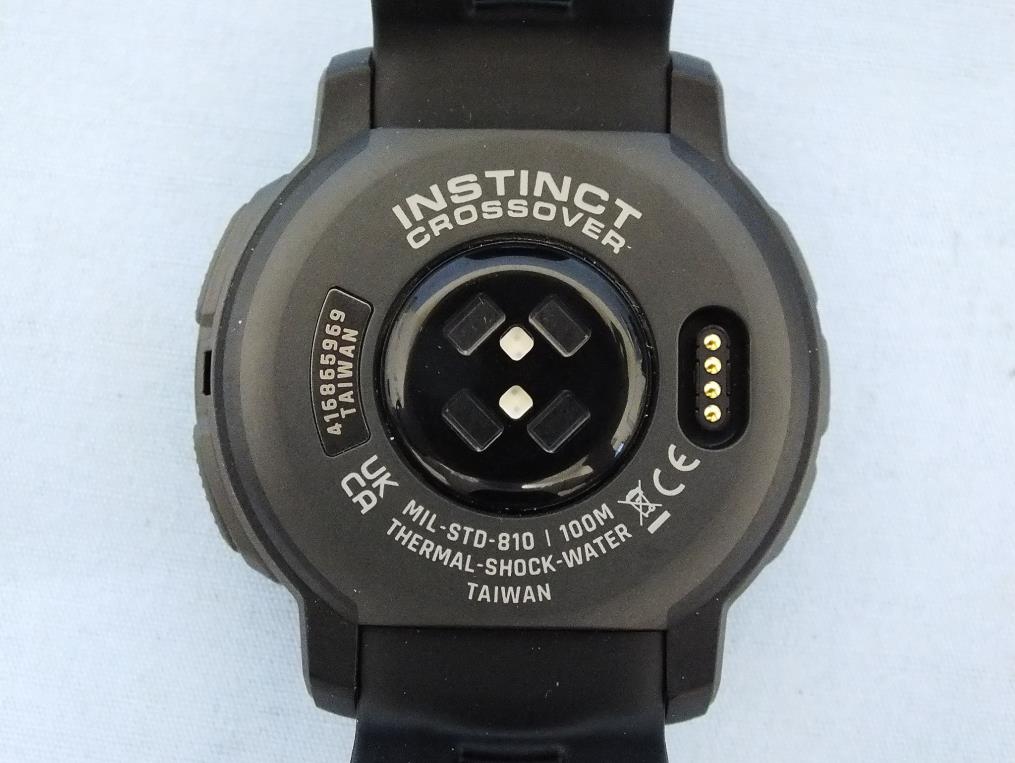

e-Labelling location

Project No.: EP271403 Page No. : 6 of 16 Project No.: EP271403 Page No. : 7 of 16 Project No.: EP271403 Page No. : 8 of 16 Project No.: EP271403 Page No. : 9 of 16 Project No.: EP271403 Page No. : 10 of 16 Project No.: EP271403 Page No. : 11 of 16 Project No.: EP271403 Page No. : 12 of 16 Project No.: EP271403 Page No. : 13 of 16 Project No.: EP271403 Page No. : 14 of 16 Project No.: EP271403 Page No. : 15 of 16 Project No.: EP271403 Page No. : 16 of 16

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/8/9 System Check_Head_13MHz DUT: CLA13-1011 Communication System: CW; Frequency: 13 MHz;Duty Cycle: 1:1 Medium: HSL_13_220809 Medium parameters used: f = 13 MHz; σ = 0.726 S/m; ε r = 54.258; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(18.36, 18.36, 18.36) @ 13 MHz; Calibrated: 2021/10/21 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2022/2/28 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.237 W/kg Pin=250mW/Zoom Scan (9x9x8)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 12.64 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.293 W/kg SAR(1 g) = 0.139 W/kg; SAR(10 g) = 0.086 W/kg Maximum value of SAR (measured) = 0.208 W/kg 0 dB = 0.208 W/kg = -6.82 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2022/8/9 #01_NFC_13.56MHz_Back_0mm Communication System: NFC ; Frequency: 13.56 MHz;Duty Cycle: 1:1 Medium: HSL_13_220809 Medium parameters used: f = 13.56 MHz; σ = 0.726 S/m; ε r = 54.247; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(18.36, 18.36, 18.36) @ 13.56 MHz; Calibrated: 2021/10/21 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2022/2/28 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 1.080 V/m; Power Drift = -0.11 dB Maximum value of SAR (interpolated) = 0 W/kg 0 dB = 0 W/kg = -999.00 dBW/kg

Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates s Schweizerischer Kalibrierdienst C Service suisse d'etalonnage Servizio svizzero di taratura S Swiss Calibration Service Accreditation No.: SCS 0108 Client Sporton Certificate No: CLA13-1011_Jul20 !CALIBRATION CERTIFICATE Object CLA13 - SN: 1011 Calibration procedure(s) QA CAL-15.v9 Calibration Procedure for SAR Validation Sources below 700 MHz Calibration date: July 08, 2020 This calibration certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature (22 ± 3)°C and humidity < 70%. Calibration Equipment used (M& TE critical for calibration) Primary Standards Power meter NRP Power sensor NRP- Z91 Power sensor NRP-Z91 Reference 20 dB Attenuator Type-N mismatch combination Reference Probe EX3DV4 DAE4 Secondary Standards Power meter E4419B PowersensorE4412A PowersensorE4412A RF generator HP 8648C Network Analyzer Agilent E8358A Calibrated by: Approved by: ID# SN: 104778 SN: 103244 SN: 103245 SN: CC2552 (20x) SN: 310982 / 06327 SN: 3877 SN: 654 ID# SN: GB41293874 SN: MY41498087 SN: 000110210 SN: US3642U01700 SN: US41080477 Name Jeton Kastrati Katja Pokovic Cal Date (Certificate No.) 01-Apr-20 (No. 217-03100/03101) 01-Apr-20 (No. 217-03100) 01-Apr-20 (No. 217-03101) 31-Mar-20 (No. 217-03106) 31-Mar-20 (No. 217-03104) 31-Dec-19 (No. EX3-3877 _Dec 19) 26-Jun-20 (No. DAE4-654_Jun20) Check Date (in house) 06-Apr-16 (in house check Jun-20) 06-Apr-16 (in house check Jun-20) 06-Apr-16 (in house check Jun-20) 04-Aug-99 (in house check Jun-20) 31-Mar-14 (in house check Oct-19) Function Laboratory Technician Technical Manager Scheduled Calibration Apr-21 Apr-21 Apr-21 Apr-21 Apr-21 Dec-20 Jun- 21 Scheduled Check In house check: Jun-22 In house check: Jun-22 In house check: Jun-22 In house check: Jun-22 In house check: Oct-20 Signature r--:::::l--==-" /7 - ~ ~ ~ Issued: July 9, 2020 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: CLA 13-1011 _Jul20 Page 1 of 6 I Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORM x,y,z not applicable or not measured Calibration is Performed According to the Following Standards: S Schweizerischer Kalibrierdienst C s Service suisse d'etalonnage Servizio svizzero di taratura Swiss Calibration Service Accreditation No.: SCS 0108 a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial- Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement procedure for the assessment of Specific Absorption Rate (SAR) from hand-held and body-mounted devices used next to the ear (frequency range of 300 MHz to 6 GHz)", July 2016 c) IEC 62209-2, 11 Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz)", March 2010 d) KDB 865664, "SAR Measurement Requirements for 100 MHz to 6 GHz" Additional Documentation: e) DASY 4/5 System Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The source is mounted in a touch configuration below the center marking of the flat phantom. • Return Loss: This parameter is measured with the source positioned under the liquid filled phantom (as described in the measurement condition clause). The Return Loss ensures low reflected power. No uncertainty required. • SAR measured: SAR measured at the stated antenna input power. • SAR normalized: SAR as measured, normalized to an input power of 1 W at the antenna connector. • SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. The reported uncertainty of measurement is stated as the standard uncertainty of measurement multiplied by the coverage factor k=2, which for a normal distribution corresponds to a coverage probability of approximately 95%. Certificate No: CLA 13-1011 _Jul20 Page 2 of 6 Measurement Conditions DASY f system con 1gurat1on, as ar as not given on page DASY Version DASY5 V52.10.4 Extrapolation Advanced Extrapolation Phantom ELl4 Flat Phantom Shell thickness: 2 ± 0.2 mm EUT Positioning Touch Position Zoom Scan Resolution dx, dy = 4.0 mm, dz = 1 .4 mm Graded Ratio= 1.4 (Z direction) Frequency 13 MHz± 1 MHz Head TSL parameters The following parameters and calculations were applied. Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 °C 55.5 0.75 mho/m Measured Head TSL parameters (22.0 ± 0.2) °C 54.7 ± 6 % 0.72 mho/m ± 6 % Head TSL temperature change during test < 0.5 °C -------- SAR result with Head TSL SAR averaged over 1 cm 3 (1 g) of Head TSL Condition SAR measured 1 W input power 0.539 W/kg SAR for nominal Head TSL parameters normalized to 1 W 0.555 W/kg ± 18.4 % (k=2) SAR averaged over 10 cm 3 (10 g) of Head TSL condition SAR measured 1 W input power 0.333 W/kg SAR for nominal Head TSL parameters normalized…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page 1 of 23 FAX : 886-3-328-4978 Issued Date : Sep. 13, 2022 Template version: 211220 FCC SAR TEST REPORT Report No. : FA271510 FCC SAR TEST REPORT FCC ID : IPH-04348 Equipment : Hybrid Smartwatch Brand Name : GARMIN Model Name : A04348 Applicant : Garmin International, Inc. 1200 E. 151st Street Olathe, KS 66062 United States Manufacturer : Garmin Corp. No.68, Zhangshu 2nd Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C) Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Aug. 03, 2022 and testing was started from Aug. 09, 2022 and completed on Aug. 09, 2022. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full. Sporton International Inc. Wensan Laboratory No.58, Aly. 75, Ln. 564, Wenhua 3rd, Rd., Guishan Dist., Taoyuan City 333010, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 23 FAX : 886-3-328-4978 Issued Date : Sep. 13, 2022 Template version: 211220 FCC SAR TEST REPORT Report No. : FA271510 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 6 4.1 Uncontrolled Environment ...................................................................................................................................... 6 4.2 Controlled Environment .......................................................................................................................................... 6 5. Specific Absorption Rate (SAR) ................................................................................................................................... 7 5.1 Introduction ............................................................................................................................................................ 7 5.2 SAR Definition ........................................................................................................................................................ 7 6. System Description and Setup .................................................................................................................................... 8 6.1 Test Site Location ................................................................................................................................................... 8 6.2 E-Field Probe ......................................................................................................................................................... 9 6.3 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 6.4 Phantom ................................................................................................................................................................10 6.5 Device Holder...........................................................................................................…

Text truncated - open the document above for the full version.
