IPH-04484Communication Control Unit

IMWW Quick Guide Product Outline Main Characteristics Operating temperature range From -30° to 80°C Input voltage From 9 to 16V Maximum Operating Current 400mA @12V Memory External Flash 64MB(512Mb) External RAM 16MB(128Mb) Description IMWW is a PCB module to display infotainment vehicle data via CAN and navigation information from smartphone app via Bluetooth . Bluetooth Bluetooth v2.1+EDR, v4.2 BLE, Support SPP profile Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Industry Canada statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference (2)This device must accept any interference, including interference that may cause undesired operation of the device Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. Para maiores informações, consulte o site da ANATEL – https://www.gov.br/anatel This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. 取得審驗證明之低功率射頻器材，非經核准，公 司、商號或使用者均不得擅自變更頻率、加大功 率或變更原設計之特性及功能。低功率射頻器材 之使用不得影響飛航安全及干擾合法通信；經發 現有干擾現象時，應立即停用，並改善至無干擾 時方得繼續使用。前述合法通信，指依電信管理 法規定作業之無線電通信。低功率射頻器材須忍 受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。 本模組於取得認證後將依規定於模組本體標示審 驗合格標籤，並要求最終產品平台廠商(OEM Integrator)於最終產品平台(End Product)上標示: 本產品內含射頻模組，其 NCC 型式認證號碼為: CCXXxxYYyyyZzW Professional installation instruction Please be advised that due to the unique function supplied by this product FCC ID:IPH-04484/Model number: IMWW, the device is intended for use with our interactive entertainment software and licensed third-party only. The product will be distributed through controlled distribution channel and installed by trained professional and will not be sold directly to the general public through retail store. 1. Installation personal This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting. 2. Installation location The product shall be installed at a location where the radiating antenna can be kept 20cm from nearby person in normal operation condition to meet regulatory RF exposure requirement. 3. Installation procedure Please refer to user’s manual for the detail. 4. Warning Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty. Instructions d'installation professionnelle Veuillez noter que l'appareil etant dedie a une fonction unique, il doit etre utilise avec notre logiciel proprietaire de divertissement interactif . Ce produit sera propose par un reseau de dist…

Text truncated - open the document above for the full version.

FCC ID.: IPH-04484 Date: October 11,2022 Federal Communications Commission Authorization and Evaluation Division ATTESTATION FCC ID: IPH-04484 Product: Communication Control Unit Model: IMWW We don’t provide any controls or software to allow operation outside the USA frequency band when we sell a product bearing the FCC ID: IPH-04484 in USA. Sincerely, ----------------------------------------------------- Name: William H. Pertner Title: Compliance Engineering Team Leader Company name: Garmin International Inc

Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: __IPH-04484___ Items to be covered by Single modular transmitters. Answer from applicant 1.The modular transmitter must have its own RF shielding.YES 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. YES 3.The modular transmitter must have its own power supply regulation.YES 4.The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). YES 5.The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. YES 6.The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). YES 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. YES 8.The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. YES Applicant/Agent name: William H. Pertner Applicant/Agent title: Compliance Engineering Team Leader Applicant/Agent Signature: Date: 2022/10/11

Declaration of Authorization We Name: Garmin International Inc Address: 1200 E. 151st. Street City: Olathe, Kansas Country: United States Declare that: Name Representative of agent: Coco Pong Agent Company name: DEKRA Testing and Certification Co., Ltd. Address: No. 85, Wenlin St., Linkou Dist., City: New Taipei City 244017 Country Taiwan, R.O.C. is authorized to apply for United States FCC, Canada ISED Certification of the following product(s): Product description: Communication Control Unit Model Number: IMWW FCC ID: IPH-04484 IC: 1792A-04484 Trademark: GARMIN on our behalf. Date: City: Name: 2022/10/11 Olathe, Kansas Function: William H. Pertner Compliance Engineering Team Leader Signature: 

FCC ID.: IPH-04484 Date: October 11,2022 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Type of Confidentiality Requested Exhibit ☒Permanent Block Diagrams ☐Short Term External Photos ☐Short Term Internal Photos ☒Permanent Operation Description/Theory of Operation ☐Permanent Parts List & Placement/BOM ☐Permanent Tune-Up Procedure ☒Permanent Schematics ☐Short Term Test Setup Photos ☐Short Term User’s Manual The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, ------------------------------------------------------ Name: William H. Pertner Title: Compliance Engineering Team Leader Company name: Garmin International Inc

May 6, 2022 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue PO Box 11490, Station H Ottawa, Ontario, Canada K2H 8S2 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized the following Garmin International Associates to act on Garmin's behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) and Innovation, Science and Economic Development Canada (ISED) for equipment authorization or certification. Mr. Chris Strauss, Compliance Engineering Team Lead Mr. William Pertner, Compliance Engineering Team Lead Mr. Jay Everett, Compliance Engineering Team Lead Mr. Mike Moranha, Compliance Engineer Ms. Poojita Bhattu, Compliance Engineer Mr. Doug Burroughs, Compliance Engineer Mr. Jeffrey Hailey, Compliance Engineer Mr. Dan Irish, Compliance Engineer Mr. Kiran Kumar, Compliance Engineer Mr. Tim Olson, Compliance Engineer Mr. Carlos Ortega, Compliance Engineer Mr. Cody Riggle, Compliance Engineer Mr. David Utt, Staff Compliance Engineer Mr. Jonathan Shafer, Design Certification Engineer Ms. Sara Jones, Design Certification Engineer As such, the Garmin Associates listed above are authorized to: 1) sign Form 731, 2) sign letters of application, 3) request confidentiality, and 4) exchange data and information with the FCC, IC and/or authorized TCBs on behalf of Garmin. In addition, these individuals shall be considered "authorized individuals" to act on Garmin's behalf where an "authorized individual's" attestation is necessary or preferred. This authorization remains in effect until notified to the contrary by Garmin. Sincerely, Ben Karsak Manager Compliance Engineering Garmin International, Inc.

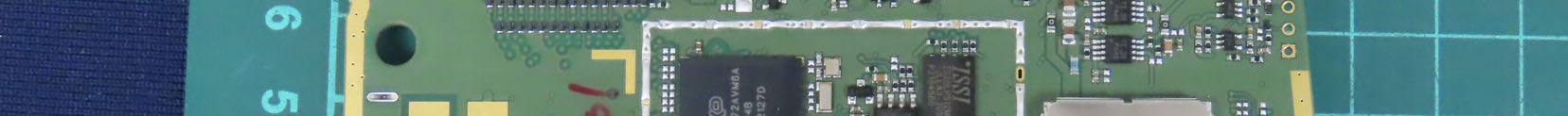

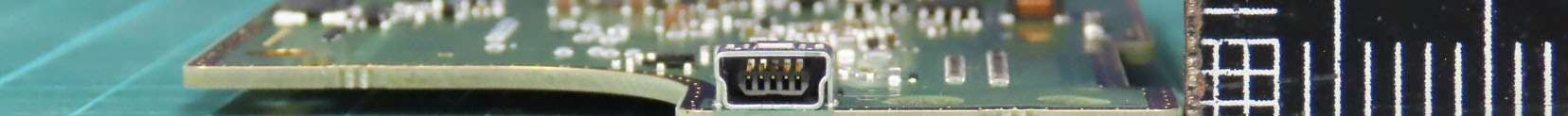

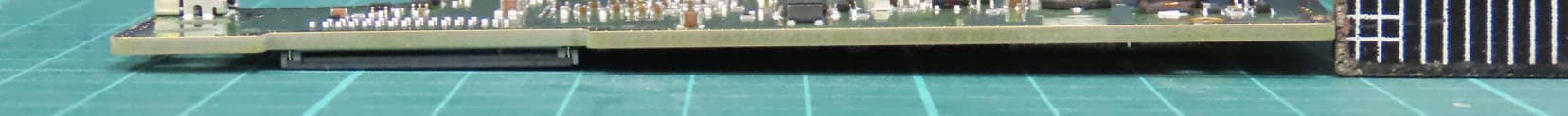

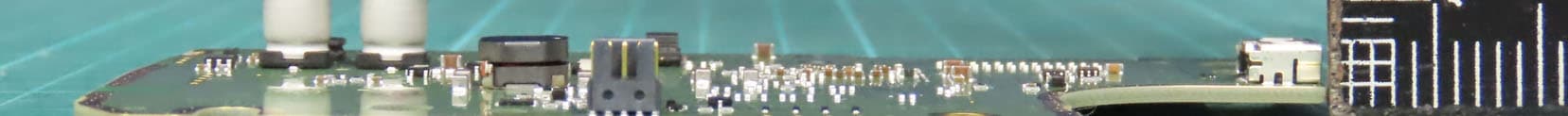

Report No: 2290126R-Product Photos Page: 2 of 6 (1) EUT Photo (2) EUT Photo Report No: 2290126R-Product Photos Page: 3 of 6 (3) EUT Photo (4) EUT Photo Report No: 2290126R-Product Photos Page: 4 of 6 (5) EUT Photo (6) EUT Photo

Label Label location See the red marked as below

Report No: 2290126R-Product Photos Page: 5 of 6 (7) EUT Photo (8) EUT Photo RF Antenna Report No: 2290126R-Product Photos Page: 6 of 6 (9) EUT Photo (10) EUT Photo

Report No.: 2290126R-RFUSMPEV02-A Page: 1 of 7 RF Exposure Report Product Name : Communication Control Unit Model No. : IMWW FCC ID : IPH-04484 Applicant : Garmin International Inc. Address : 1200 East 151st. Street Olathe KS 66062 United States Of America (Excluding The States Of Alaska Date of Receipt : Sep. 06, 2022 Date of Declaration : Nov. 03, 2022 Report No. : 2290126R-RFUSMPEV02-A Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 2290126R-RFUSMPEV02-A Page: 2 of 7 Product Name Communication Control Unit Applicant Garmin International Inc. Address 1200 East 151st. Street Olathe KS 66062 United States Of America (Excluding The States Of Alaska Manufacturer Garmin International Inc. Model No. IMWW FCC ID IPH-04484 Trade Name GARMIN Applicable Standard KDB 447498 D01 v06 Minimum test separation distance ≥ 20 cm For low power devices Test Result Complied Documented By : (Senior Project Specialist / April Chen) Tested By : ( Senior Engineer / Alan Chen ) Approved By : ( Manager / Tim Sung ) Report No.: 2290126R-RFUSMPEV02-A Page: 3 of 7 Revision History Report No. Ve r s i o n Description Issued Date 2290126R-RFUSMPEV02-A V1.0 Initial issue of report. Nov. 03, 2022 Report No.: 2290126R-RFUSMPEV02-A Page: 4 of 7 1. General Information 1.1. EUT Description Product Name Communication Control Unit Trade Name GARMIN Model No. IMWW FCC ID IPH-04484 Note: For more detailed information please refer to report No.: 2290126R-RFUSBT2V01-A and 2290126R-RFUSBLEV01-A. . Report No.: 2290126R-RFUSMPEV02-A Page: 5 of 7 1.2. Test Facility USA : FCC Registration Number: TW0033 Canada : CAB Identifier Number: TW3023 / Company Number: 26930 Site Description : Accredited by TAF Accredited Number: 3023 Test Laboratory : DEKRA Testing and Certification Co., Ltd Address : No. 5-22, Ruishukeng Linkou District, New Taipei City, 24451, Taiwan Performed Location : No. 26, Huaya 1st Rd., Guishan Dist.,Taoyuan City 333411, Taiwan, R.O.C. Phone Number : +886-3-275-7255 Fax Number : +886-3-327-8031 Email Address : [email protected] Website : http://www.dekra.com.tw Report No.: 2290126R-RFUSMPEV02-A Page: 6 of 7 2. RF Exposure Evaluation 2.1. Standard Applicable According to KDB 447498 D01 (7.1), A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. 2.2. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 2290126R-RFUSMPEV02-A Page: 7 of 7 2.3. Test Result of RF Exposure Evaluation Product : Communication Control Unit Test Item : RF Exposure Evaluation Band Frequency (MHz) E.I.R.P (dBm) E.I.R.P (mW) Power Density at R = 20 cm (mW/cm2) Limit (mW/cm2) Bluetooth 2480 3.660 2.323 0.0005 1 Note: The conducted output power is refer to report No.: 2290126R-RFUSBT2V01-A and 2290126R-RFUSBLEV01-A from the DEKRA.
