IPH-04780IVI Unit

Garmin TGWW In-Vehicle Infotainment Unit Manual Content 1. Introduction ......................................................................................................................... 3 2. Specification ....................................................................................................................... 4 2.1. Hardware specifications ..................................................................................... 4 2.2. Bluetooth Specifications .................................................................................... 6 2.3. Wi-Fi Specifications ............................................................................................. 6 2.4. AM/FM ...................................................................................................................... 6 3. Applications ........................................................................................................................ 7 3.2. Intercom Mode ....................................................................................................... 7 3.3. 3-way call ................................................................................................................ 7 1. Introduction TGWW IVI Unit is an entertainment system designed for two-wheel motorcycle. The IVI unit does not include a display but provides bluetooth functions for connecting with smartphone, as well as headphones. It also supports multimedia features such as AM/FM radio, Bluetooth music, USB music, and CarPlay/Android Auto. The target market of IVI unit is worldwide sold globally (in North America, Europe, Japan, Korea, Taiwan, etc.) and configure with different countries' variations by supporting corresponding AM/FM frequency bands or Wi- Fi bands. Caution Environment temperature Operating temperature: -20°C ~ +70°C Storage temperature : -20°C ~ +70°C System Architecture 2. Specification 2.1. Hardware specifications Input Voltage: 12V Maximum Current Consumption : Less than 14A Hardware Features : Function Description Remarks Bluetooth One smartphone and two headsets Ver2.1 +EDR Wi-Fi Yes 2.4GHz / 5.0GHz GNSS Yes USB One port for data transmission and charging One port for charging only 3A , 5V CAN Yes 500Kpbs Video output One LVDS Resolution 800x480 For 3 rd party display Audio output To external 2/4 channels speakers Max 25W Radio AM/FM Yes SiriusXM Yes, optional for USA/Canada SKU CB Radio Interface Yes Appearance Connection definition No. Type Function Supplier MPN 1 HSD 4+2P USB SMK CSC5006-5GA2F 2 12P IVI Main JAE MX34Q12ATF8 3 Fakra BT2 SMK CRC5001-6403F 4 Mini-Fakra Wi-Fi/GNSS/BT1 SMK CRC5004-9602F 5 HSD 4+2P USB SMK CSC5006-5GF2F 6 HSD LVDS SMK CSC5004- 6C03FSZ 7 Mini-Fakra DAB/SXM/AM&FM SMK CRC5004-9603F 8 20P EAU Main JAE MX34Q20ATF8T40 9 12P CB Radio JAE MX34Q12ATF8 2.2. Bluetooth Specifications Support bluetooth V2.1+ EDR and Class2 Frequency range Bluetooth 2400 to 2485 MHz Maximum RF output power Class2: up to +4dBm Modulation GFSK, π/4 DQPSK, 8DPSK Channel spacing 1MHz Number of channels 79 channels Channel bandwidth 1MHz 2.3. Wi-Fi Specifications Frequency range Wi-Fi 2400 to 2500 MHz Maximum RF output power <16 dBm Modulation 802.11 b/g/n Number of channels CH6 Channel bandwidth 20MHz Frequency range Wi-Fi 5150 to 5250 MHz Maximum RF output power <16 dBm Modulation 802.11 a/n/ac Number of channels CH44 Channel bandwidth 20MHz Frequency range Wi-Fi 5725 to 5850 MHz Maximum RF output power <16 dBm Modulation 802.11 a/n/ac Number of channels CH 157 Channel bandwidth 20MHz 2.4. AM/FM Support frequency range: FM : 76 ~ 108 MHz, step 100/200KHz AM : 522 ~ 1710 KHz, step 9/10KHz 3. Applications 3.1. Media source - Radio AM/FM - USB music - Bluetooth music - Radio SiriusXM - Wired/wireless Apple CarPlay - Wired/wireless Android Auto 3.2. Intercom Mode The intercom mode is the build-in feature and there is a switch to turn on or off. When intercom mode is on, both the rider and the passenger can talk to each other directly through their respective Bluetooth headsets. Upon detecting someone being talking, the system will perform mixing and lower the volume of the audio which is playing simultaneously (e.g. music); if no voices are detected, the system will cancel the mixing and resume the volume of the audio. 3.3. 3-way call When Intercom mode is active during a Bluetooth phone call, rider and passenger can communicate with far-end caller through their respective Bluetooth headsets。 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference t…

Text truncated - open the document above for the full version.

June 21, 2023 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue PO Box 11490, Station H Ottawa, Ontario, Canada K2H 8S2 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized the following Garmin International Associates to act on Garmin's behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) and Innovation, Science and Economic Development Canada (ISED) for equipment authorization or certification. Mr. Chris Strauss, Compliance Engineering Team Lead Mr. William Pertner, Compliance Engineering Team Lead Mr. Jay Everett, Compliance Engineering Team Lead Mr. Mike Moranha, Compliance Engineer Ms. Poojita Bhattu, Compliance Engineer Mr. Jeffrey Hailey, Compliance Engineer Mr. Dan Irish, Compliance Engineer Mr. Kiran Kumar, Compliance Engineer Mr. Tim Olson, Compliance Engineer Mr. Carlos Ortega, Compliance Engineer Mr. David Utt, Staff Compliance Engineer Mr. Jonathan Shafer, Design Certification Engineer Ms. Sara Jones, Design Certification Engineer Mr. Jacky Yeung, Compliance Engineer As such, the Garmin Associates listed above are authorized to: 1) sign Form 731, 2) sign letters of application, 3) request confidentiality, and 4) exchange data and information with the FCC, IC and/or authorized TCBs on behalf of Garmin. In addition, these individuals shall be considered "authorized individuals" to act on Garmin's behalf where an "authorized individual's" attestation is necessary or preferred. This authorization remains in effect until notified to the contrary by Garmin. Sincerely, Ben Karsak Manager Compliance Engineering Garmin International, Inc.

Date:January 18, 2024 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized Gary Chang, International Certification Corp. No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) to act on Garmin’s behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) for equipment FCC authorization. This authorization is limited to FCC ID: IPH-04780. Consistent with the foregoing, Gary Chang is authorized to: 1) Sign Form 731, 2) Sign letters of application, 3) Request confidentiality, and 4) Exchange data and information with the FCC, and authorized TCBs on behalf of Garmin. This authorization is not assignable to other beyond Gary Chang. No party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Sincerely, William H. Pertner, Team Leader Compliance Engineering Garmin International Inc. Tel: 913 440-5471 [email protected]

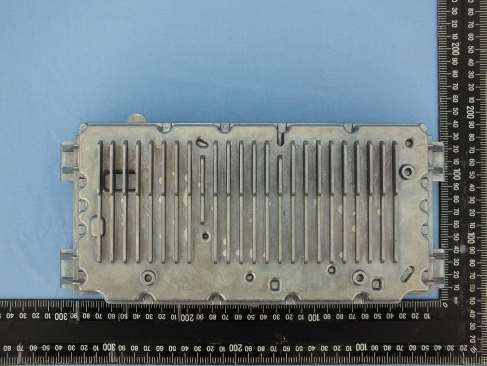

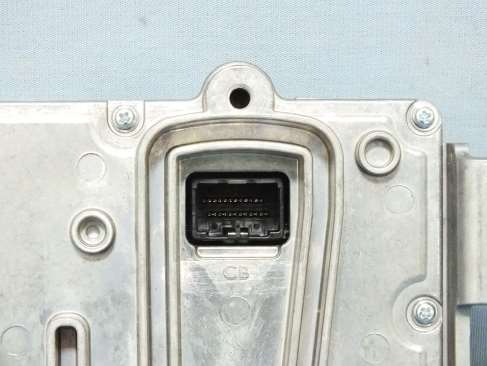

Project No.: EP3D1301 Page No. : 1 of 19 Photographs of EUT Project No.: EP3D1301 Page No. : 2 of 19 Project No.: EP3D1301 Page No. : 3 of 19 Project No.: EP3D1301 Page No. : 4 of 19 Project No.: EP3D1301 Page No. : 5 of 19

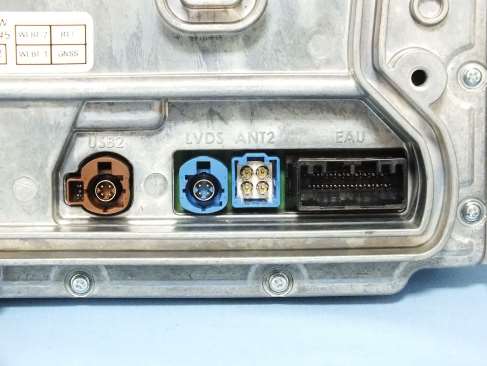

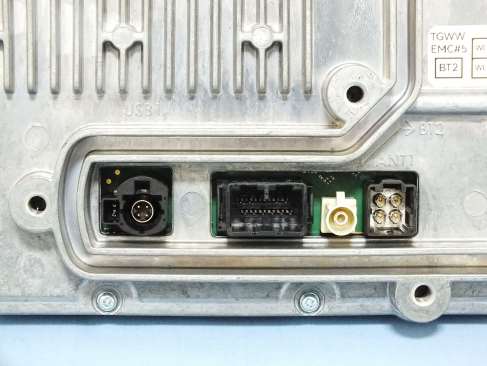

Label location Back Side Bottom Side

Project No.: EP3D1301 Page No. : 6 of 19 Project No.: EP3D1301 Page No. : 7 of 19 Project No.: EP3D1301 Page No. : 8 of 19 Project No.: EP3D1301 Page No. : 9 of 19 Project No.: EP3D1301 Page No. : 10 of 19 Project No.: EP3D1301 Page No. : 11 of 19 Project No.: EP3D1301 Page No. : 12 of 19 Project No.: EP3D1301 Page No. : 13 of 19 Project No.: EP3D1301 Page No. : 14 of 19 Project No.: EP3D1301 Page No. : 15 of 19 Antenna photo Model: 39212 Project No.: EP3D1301 Page No. : 16 of 19 Project No.: EP3D1301 Page No. : 17 of 19 Model: 39213, 39215, 39216 32915 32916 32913 Project No.: EP3D1301 Page No. : 18 of 19 Project No.: EP3D1301 Page No. : 19 of 19

Report No.: FA3D1301 Page : 1 of 6 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. FCC RF Exposure Report FCC ID : IPH-04780 Equipment : IVI Unit Model No. : TGWW Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 2.1091 Received Date : Dec. 15, 2023 Tested Date : Dec. 18 ~ Dec. 29, 2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA3D1301 Page : 2 of 6 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. Table of Contents 1 EXPOSURE EVALUATION OF PORTABLE DEVICES ....................................................................... 4 1.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm ................................... 4 1.2 REFERENCE GUIDANCE ..................................................................................................................... 5 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 5 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 1.5 EXEMPTION CALCULATION ................................................................................................................ 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA3D1301 Page : 3 of 6 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. Release Record Report No. Version Description Issued Date FA3D1301 Rev. 01 Initial issue Jan. 25, 2024 FA3D1301 Rev. 02 Evaluation results are re-evaluated Feb. 19, 2024 Report No.: FA3D1301 Page : 4 of 6 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. 1 EXPOSURE EVALUATION OF PORTABLE DEVICES 1.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm Frequency (MHz) 5 10 15 20 25 30 35 40 Separation distance (mm) 2450 10 19 29 38 48 57 67 77 SAR Test Exclusion Threshold (mW) 3600 8 16 24 32 40 47 55 63 5200 7 13 20 26 33 39 46 53 5400 6 13 19 26 32 39 45 52 5800 6 12 19 25 31 37 44 50 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: FA3D1301 Page : 5 of 6 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. 1.2 REFERENCE GUIDANCE 447498 D01 General RF Exposure Guidance v06 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 1.5 EXEMPTION CALCULATION Frequency Range (MHz) Maximum Conducted Power (dBm) Maximum Tune Up Limit (dBm) Maximum Tune Up Limit (mW) SAR Test Exclusion Threshold @ 40 mm Pass/ Fail 2412-2462 (WiFi) 18.16 18.5 70.79 77 Pass 5745-5825 (WiFi) 5.75 6.0 3.98 44 Pass Frequency Range (MHz) Maximum Conducted Power (dBm) Maximum Tune Up Limit (dBm) Maximum Tune Up Limit (mW) SAR Test Exclusion Threshold @ 5 mm Pass/ Fail 2402 ~ 2480 (BT1) 0.97 1 1.26 10 Pass 2402 ~ 2480 (BT2) -0.11 0 1.00 10 Pass 2402 ~ 2480 (ComboBT) 0.81 1 1.26 10 Pass Report No.: FA3D1301 Page : 6 of 6 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corporation (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No.30-2, Ding Fwu …

Text truncated - open the document above for the full version.

BT/WiFiAntenna report 原田工業株式会社 HARADA INDUSTRY CO., LTD. 〒140-0013 東京都品川区南大井6-26-2 大森ベルポートB館 4F 4F, Omori Bellport Building B, 6-26-2 Minamioi, Shinagawa-ku, Tokyo TEL：03-3765-4321 FAX：03-3763-0130 Summary •39215 (FEEDER length 2000mm) ・・・ BT/ WLAN-1 •39216 (FEEDER length 1700mm) ・・・WLAN-2 •39212 (FEEDER length 280mm) ・・・ BT2 •39213 (FEEDER length 390mm) ・・・ BT1 BT/WiFiantenna specifications (FEEDER length 2000mm) Electrical specifications (39215, FEEDER length 2000mm) Itemspecification Frequency 2.4GHz（2400～2500MHz） 5GHz （5150～5850MHz） PolarizationRight-handed circular polarization (RHCP) Gain 2.4GHz:-3dBi or higher (including cable loss) 5GHz: -6dBi or more (including cable loss) VSWR 2.4GHz: 3 or less 5 GHz: 3.5 or less Nominal impedance50Ω Sense resistor 10kΩ ±5% (voltage 12V, current 1.8mA or less) *Cable used: 1.5DS-QEHB 2000mm BT/ WiFiVSWR evaluation result Evaluation result (39215, FEEDER length 2000mm) VSWR satisfies Spec. within the band. BT/ WiFiantenna gain evaluation result (zenith) Evaluation result (39215, FEEDER length 2000mm) Gain (zenith) satisfies Spec. within the band. (zenith)(zenith)(zenith) BT/ WiFiantenna gain evaluation result (average) (reference) Evaluation result (39215, FEEDER length 2000mm) (average)(average)(average) BT/ WiFiradiation pattern Evaluation result (39215, FEEDER length 2000mm) YZ Plane Maximum gain: 0.3 dBi YZ Plane Maximum gain: 0.3 dBi YZ Plane Maximum gain: -0.3 dBi BT/WiFiantenna specifications (FEEDER length 1700mm) Electrical specifications (39216, FEEDER length 1700mm) Itemspecification Frequency 2.4GHz（2400～2500MHz） 5GHz （5150～5850MHz） PolarizationRight-handed circular polarization (RHCP) Gain 2.4GHz: -2.4dBi or higher (including cable loss) 5GHz: -5dBic or more (including cable loss) VSWR 2.4GHz: 3 or less 5 GHz: 3.5 or less Nominal impedance50Ω Sense resistor 10kΩ ±5% (voltage 12V, current 1.8mA or less) *Cable used: 1.5DS-QEHB 1700mm BT/ WiFiVSWR evaluation result Evaluation result (39216, FEEDER length 1700mm) VSWR satisfies Spec. within the band. BT/ WiFiantenna gain evaluation result (zenith) Evaluation result (39216, FEEDER length 1700mm) Gain (zenith) satisfies Spec. within the band. (zenith)(zenith)(zenith) BT/ WiFiantenna gain evaluation result (average) (reference) Evaluation result (39216, FEEDER length 1700mm) (average)(average)(average) BT/ WiFiradiation pattern Evaluation result (39216, FEEDER length 1700mm) YZ Plane Maximum gain: 1.2 dBi YZ Plane Maximum gain: 1.2 dBi YZ Plane Maximum gain: 0.8 dBi BT antenna specifications (FEEDER length 280mm) Electrical specifications (39212, FEEDER length 280mm) Itemspecification Frequency 2.4GHz（2400～2485MHz） PolarizationRight-handed circular polarization (RHCP) Gain1dBi or higher (including cable loss) VSWR2or less Nominal impedance50Ω Sense resistor 10kΩ ±5% (voltage 12V, current 1.8mA or less) *Cable used: 1.5DS-2VH 280mm BT antenna gain evaluation result Evaluation result (39212, FEEDER length 280mm) VSWR satisfies Spec. within the band. BT/VSWR evaluation result Evaluation result (39212, FEEDER length 280mm) Gain (zenith) satisfies Spec. within the band. (zenith) BT antenna gain evaluation result (average) (reference) Evaluation result (39212, FEEDER length 280mm) (average) BT radiation pattern Evaluation result (39212, FEEDER length 280mm) YZ Plane Maximum gain: 3.8 dBi BT radiation pattern Evaluation result (39213, FEEDER length 390mm) YZ Plane Maximum gain: 3.6 dBi

Report No.: FR3D1301AN Page : 1 of 20 Report Version: Rev. 01 FCC Test Report FCC ID : IPH-04780 Equipment : IVI Unit Model No. : TGWW Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.407 Received Date : Dec. 15, 2023 Tested Date : Dec. 18 ~ Dec. 29, 2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR3D1301AN Page : 2 of 20 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Reference Guidance ............................................................................................................................ 10 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.8 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Facility ..................................................................................................................................... 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ....................................................................................................... 13 3.1 Emission Bandwidth ............................................................................................................................. 13 3.2 Conducted Output Power ..................................................................................................................... 14 3.3 Power Spectral Density ........................................................................................................................ 15 3.4 Unwanted Emissions ............................................................................................................................ 16 3.5 Frequency Stability ............................................................................................................................... 19 4 TEST LABORATORY INFORMATION ............................................................................................... 20 Appendix A. Emission Bandwidth Appendix B. Conducted Output Power Appendix C. Power Spectral Density Appendix D. Unwanted Emissions Appendix E. Frequency Stability Report No.: FR3D1301AN Page : 3 of 20 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR3D1301AN Rev. 01 Initial issue Jan. 25, 2024 Report No.: FR3D1301AN Page : 4 of 20 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions Note 1 N/A 15.407(b) 15.209 Unwanted Emissions [dBuV/m at 3m]: 40.11MHz 32.58 (Margin -7.42dB) - PK Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) Conducted Output Power Max Power [dBm]: 5725~5850MHz: 5.75 Pass 15.407(a) Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass N/A means Not Applicable. Note 1 : The EUT consumes DC power from battery, so the test is not required. Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR3D1301AN Page : 5 of 20 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 2 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 2 MCS 0-15 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 2 MCS 0-9 Note: OFDM BPSK, QPSK, 16QAM, 64QAM and 256QAM modulation. 1.1.2 Antenna Details Ant. No. Brand Model Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5725~5850 1 HARADA 39215 RHCP R-SMA 0.3 -0.3 2 HARADA 39216 RHCP R-SMA 1.2 0.8 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc 1.1.4 Accessories N/A Report No.: FR3D1301AN Page : 6 of 20 Report Vers…

Text truncated - open the document above for the full version.

Report No.: FR3D1301CO Page : 1 of 14 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : IPH-04780 Equipment : IVI Unit Model No. : TGWW Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Dec. 25, 2023 Tested Date : Dec. 25 ~ Dec. 29, 2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR3D1301CO Page : 2 of 14 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 6 1.3 Test Standards ....................................................................................................................................... 8 1.4 Reference Guidance .............................................................................................................................. 8 1.5 Deviation from Test Standard and Measurement Procedure ................................................................. 8 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION ....................................................................................................................... 9 2.1 Testing Facility ....................................................................................................................................... 9 2.2 The Worst Test Modes and Channel Details ......................................................................................... 9 3 TRANSMITTER TEST RESULTS ....................................................................................................... 10 3.1 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 10 4 TEST LABORATORY INFORMATION ............................................................................................... 14 Appendix A. Unwanted Emissions Into Restricted Frequency Bands Report No.: FR3D1301CO Page : 3 of 14 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR3D1301CO Rev. 01 Initial issue Jan. 25, 2024 Report No.: FR3D1301CO Page : 4 of 14 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 42.55MHz 33.55 (Margin -6.45dB) - PK Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR3D1301CO Page : 5 of 14 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) WLAN Operating Frequency 802.11b/g/n: 2412 MHz ~ 2462 MHz 802.11a/n/ac: 5745 ~ 5825 MHz Modulation Type 802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11a/g/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) BT Operating Frequency 2402 MHz ~ 2480 MHz Modulaton Type Bluetooth BR(1Mbps): GFSK Bluetooth EDR (2Mbps): π/4-DQPSK Bluetooth EDR (3Mbps): 8-DPSK 1.1.2 Antenna Details For WiFi Ant. No. Brand Model Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5725~5850 1 HARADA 39215 RHCP R-SMA 0.3 -0.3 2 HARADA 39216 RHCP R-SMA 1.2 0.8 For BT1 Ant. No. Brand Model Type Connector Gain (dBi) 1 HARADA 39213 RHCP R-SMA 3.6 …
