IPH-05022.4G RF LED CONTROLLER

INSTRUCTION INTRODUCTION · This is a 3 zone RF Touch Remote Control, which adopt the most advance PWM control technology, can control all kinds of DC led lights. Such as led strips light, led module, led source etc. · It can control 3 zones separately, 30 meters tops control distance. SPECIFICATION · Working temperature：-20~55°C · Battery: CR2032*1 · Radio Frequency: 2.4G · Control distance: 30 meters CONTROL METHOD · Static colors: Warm-Cool White · Dynamic modes: ①Warm White Fade in&out ②Cool White Fade in&out ③Warm+Cool White Fade in&out ④Warm White Flash · Brightness: 1-100(in static color) · Speed: 16 levels(in dynamic modes) CONTROL METHOD · Press the ring to adjust warm white to cool white. · Press “ ” to turn on & select all lights, Press“ ” to turn off all lights. · Press Zone number to select and turn on/off the zone light. · Press “ ” to increase brightness. · Press “ ” to reduce brightness. · Press “ ” to increase speed in dynamic modes. · Press “ ” to reduce speed in dynamic modes. · Press “ ” to Increase dynamic mode. · Press “ ” to Reduce dynamic mode. · Long Press Master ON or Zone1,2,3 for 100% brightness white color. · Long Press Master OFF for 10% brightness white color. CONTROL METHOD · Press the ring to adjust brightness. · Press “ ” to turn on & select all lights, Press“ ” to turn off all lights. · Press Zone number to select and turn on/off the zone light. · Press “ ” to increase brightness. · Press “ ” to reduce brightness. · Press “ ” to increase speed in dynamic modes. · Press “ ” to reduce speed in dynamic modes. · Press “ ” to Increase dynamic mode. · Press “ ” to Reduce dynamic mode. · Long Press Master ON or Zone1,2,3 for 100% brightness white color. · Long Press Master OFF for 10% brightness white color. CONTROL METHOD 2. CW CONTROL METHOD 1. DIM · Static colors: Single Color · Dynamic modes: ①Flash ②Fade in&out ③Blasting Flash · Brightness: 1-100(in static color) · Speed: 16 levels(in dynamic modes) 4. RGBW 3. RGB · Static colors: 1.6 Million Colors + White · Dynamic modes: ①RGB Jumping Change ②RGB Fade in&out ③7 Colors Jumping Change ④7 Colors Flash ⑦White Fade in&out ⑨Green Fade in&out + Flash 3 times






























ᶍWhite Fade in&out + Flash 3 times · Brightness: 1-100(in static color) · Speed: 16 levels(in dynamic modes) CONTROL METHOD · Press the ring to select color. · Press “ ” to turn on & select all lights, Press“ ” to turn off all lights. · Press Zone number to select and turn on/off the zone light. · Press “ ” to increase brightness. · Press “ ” to reduce brightness. · Press “ ” to increase speed in dynamic modes. · Press “ ” to reduce speed in dynamic modes. · Press “ ” to Increase dynamic mode. · Press “ ” to Reduce dynamic mode. · Long Press Master ON or Zone1,2,3 for 100% brightness white color. · Long Press Master OFF for 10% brightness white color. · Press the ring to adjust brightness. · Press the ring to select color. · Press “ ” to turn on & select all lights, Press“ ” to turn off all lights. · Press Zone number to select and turn on/off the zone light. · Press “ ” to increase brightness. · Press “ ” to reduce brightness. · Press “ ” to increase speed in dynamic modes. · Press “ ” to reduce speed in dynamic modes. · Press “ ” to Increase dynamic mode. · Press “ ” to Reduce dynamic mode. · Long Press Master ON or Zone1,2,3 for 100% brightness white color. · Long Press Master OFF for 10% brightness white color. ⑤Cool White Flash ⑥Warm+Cool White Flash ⑤7 Colors Fade ⑥7 Colors Fade in&out ⑧Red Fade in&out + Flash 3 times ⑩Blue Fade in&out + Flash 3 times ⑫Automatic Cycle · This RF Remote can adjust brightness/color infinitely, its control mode is wireless control. You could adjust light to the appropriate lighting brightness or color in accordance with your actual need. · Link: Long press any number(1,2,3) button of the 3 zone in 3 seconds once you switch the light. The link is done once the light blink 3 times. · Unlink: Long press the number(1,2,3) button of the linked zone in 3 seconds once you switch on the light. The unlink is done once the light blinks 9 times. Tips: 1. Link the device to remote before using it. 2. Control before click the Zone number(Master ON or Zone1,2,3). · Static colors: 1.6 Million Colors + White · Dynamic modes: ①RGB Jumping Change ②RGB Fade in&out ③7 Colors Jumping Change ④7 Colors Flash ⑦White Fade in&out ⑨Green Fade in&out + Flash 3 times






























ᶍWhite Fade in&out + Flash 3 times · Brightness: 1-100(in static color) · Speed: 16 levels(in dynamic modes) ⑩Blue Fade in&out + Flash 3 times ⑫Automatic Cycle ⑧Red Fade in&out + Flash 3 times Master ON Master OFF Brightness Brightness+ Brightness- Zone1 Speed+ Speed- Mode+ Mode- Zone3 Zone2 Master ON Master OFF Color Temp Brightness+ Brightness- Zone1 Speed+ Speed- Mode+ Mode- Zone3 Zone2 Master ON Master OFF Color Brightness+ Brightness- Zone1 Speed+ Speed- Mode+ Mode- Zone3 Zone2 DIM CW RGB(W) ⑤7 Colors Fade ⑥7 Colors Fade in&out INSTRUCTION INTRODUCTION · This is a 3 zone RF receiver, which adopt the most advance PWM control technology, can control all kinds of DC led lights. Such as led strips light, led module, led source etc. · It can control 3 zones separately, 30 meters tops control distance. SPECIFICATION · Working temperature：-20~55°C · Input voltage: DC12-24V · Radio Frequency: 2.4G · Control distance: 30 meters CONTROL METHOD · Input voltage:DC12-24V · Output: W-/C-/V+/V+ · Output Current: 6A*2CH · Output Power：Max144W(12V), Max288W(24V) CIRCUIT DIAGRAM CIRCUIT DIAGRAM 2. CW CIRCUIT DIAGRAM 1. DIM · Input voltage:DC12-24V · Output: V-/V-/V-/V+ · Output Current: 4A*3CH · Output Power：Max144W(12V), Max288W(24V) 4. RGBW 3. RGB CIRCUIT DIAGRAM A C 8 5 - 2 6 5 V DC12-24V DC12-24V A C 8 5 - 2 6 5 V A C 8 5 - 2 6 5 V DC12-24V DC12-24V · Input voltage:DC12-24V · Output: R/G/B/V+ · Output Current: 4A*3CH · Output Power：Max144W(12V), Max288W(24V) A C 8 5 - 2 6 5 V DC12-24V DC12-24V · Input voltage:DC12-24V · Output: R/G/B/W…

Text truncated - open the document above for the full version.

Garmin International Inc 2020. 3.26 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized h ereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5 301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Hadid Jones/Team Lead Compliance Engineering Contact information / address: 1200E.151st. Street, Olathe, KS, USA, 66062

Garmin International Inc 202 0. 3.26 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR E UT NAME: 2.4G RF LED CONTROLLER Tra demark: N/A FCC ID: IPH-0502 MODEL : JM-DST- 0502 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the -Bl ock Diagram -Schematics -Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: C lient’s name / title : Hadid Jones/Team Lead Compliance Engineering Contact information / address: 1200E.151st. Street, Olathe, KS, USA, 66062

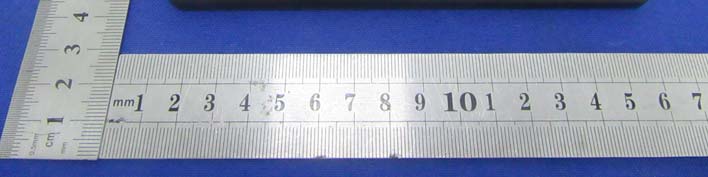

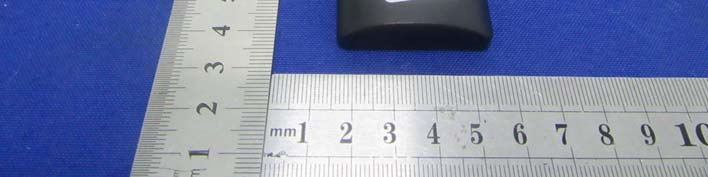

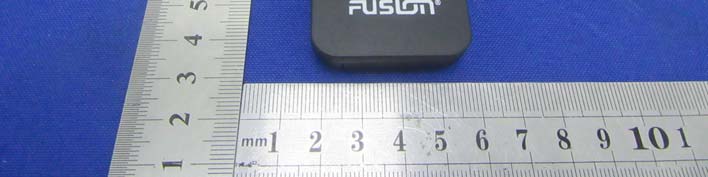

External Photos

40*20mm Label Location 2.4G RF LED CONTROLLER Model: JM-DST-0502 FCC ID: IPH-0502 IC: 1792A-0502 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: IPH-0502 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.411-9.960.10-10±1-9.000.13<50.039103.00YES GFSK2.442-10.130.10-10±1-9.000.13<50.039353.00YES GFSK2.473-10.860.08-10±1-9.000.13<50.039603.00YES Conclusion: For the max result : 0.03960≤3.0, the SAR testing is not required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000173E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 40 Test Report FCC: IPH-0502 Product Name: 2.4G RF LED CONTROLLER Trademark: N/A Model Name : JM-DST-0502 Prepared For : Garmin International Inc Address : 1200E.151st. Street, Olathe, KS, USA, 66062 Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Feb. 24, 2020 to Mar. 04, 2020 Date of Report : Mar. 04, 2020 Report No.: BCTC2002000173E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000173E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 40 TEST RESULT CERTIFICATION Applicant’s name ................. : Garmin International Inc Address ................................. : 1200E.151st. Street, Olathe, KS, USA, 66062 Manufacture's Name ............ : SHENZHEN JINGMEI ELECTRONIC TECHNOLOGY CO.,LTD Address ................................. : 1B6F, Jiuwei Yusheng Industrial Zone, Bao'an District, Shenzhen, Guangdong, China Product description Product name ........................... : 2.4G RF LED CONTROLLER Trademark ................................. : N/A Model and/or type reference : JM-DST-0502 Standards ............................. : FCC Part15.247 ANSI C63.10:2013 KDB558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fang Zhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000173E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 40 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 RADIATED EMISSION LIMITS 14 3.2.2 TEST PROCEDURE 15 3.2.3 DEVIATION FROM TEST STANDARD 15 3.2.4 TEST SETUP 16 3.2.5 EUT OPERATING CONDITIONS 17 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 18 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION 22 3.3.1 TEST REQUIREMENT: 22 3.3.2 TEST PROCEDURE 22 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 23 3.3.5 EUT OPERATING CONDITIONS 23 4 . POWER SPECTRAL DENSITY TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000173E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 40 Table of Contents Page 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . BANDWIDTH TEST 28 5.1 APPLIED PROCEDURES / LIMIT 28 5.1.1 TEST PROCEDURE 28 5.1.2 DEVIATION FROM STANDARD 28 5.1.3 TEST SETUP 28 5.1.4 EUT OPERATION CONDITIONS 28 5.1.5 TEST RESULTS 29 6 . PEAK OUTPUT POWER TEST 31 6.1 APPLIED PROCEDURES / LIMIT 31 6.1.1 TEST PROCEDURE 31 6.1.2 DEVIATION FROM STANDARD 31 6.1.3 TEST SETUP 31 6.1.4 EUT OPERATION CONDITIONS 31 6.1.5 TEST RESULTS 32 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 33 7.1 APPLICABLE STANDARD 33 7.2 TEST PROCEDURE 33 7.3 DEVIATION FROM STANDARD 33 7.4 TEST SETUP 33 7.5 EUT OPERATION CONDITIONS 33 8 . DUTY CYCLE OF TEST SIGNAL 36 8.1 STANDARD REQUIREMENT 36 8.2 FORMULA 36 9 . ANTENNA REQUIREMENT 37 9.1 STANDARD REQUIREMENT 37 9.2 EUT ANTENNA 37 10 . EUT TEST PHOTO 38 11 . EUT PHOTO 39 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000173E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 40 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: RSS-247 Issue 2: February 2017 FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark RSS-GEN 8.8 RSS-247 3.1 15.207 Conducted Emission PASS RSS-247 5.2 (a) 15.247 (a)(2) 6dB Bandwidth PASS RSS-247 5.4 (d) 15.247 (b) Peak Output Power PASS RSS-247 5.5 15.247 (c) Radiated Spurious Emission PASS RSS-247 5.2 (b) 15.247 (d) Power Spectral Density PASS RSS-247 5.5 15.205 Restricted Band of Operation PASS RSS-247 5.5 15.247 (c) Band Edge (Out of Band Emissions) PASS RSS-Gen.6.8 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2002000173E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 40 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber R…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd.
