StreetPilot ® 7200 owner’s manual 7200_OM.indd 18/24/2005 8:33:36 AM © Copyright 2005 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 st Street, Olathe, Kansas 66062, U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K. Tel. 44/0870.8501241 Fax 44/0870.8501251 Garmin Corporation No. 68, Jangshu 2 nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® , StreetPilot ® , and MapSource ® are registered trademarks and City Navigator ™ is a trademark of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. XM Radio is a trademark of XM Satellite Radio Inc. October 2005 Part Number 190-00454-00 Rev. A Printed in Taiwan Verify CE or CE1777! 7200_OM.indd 28/24/2005 8:33:36 AM

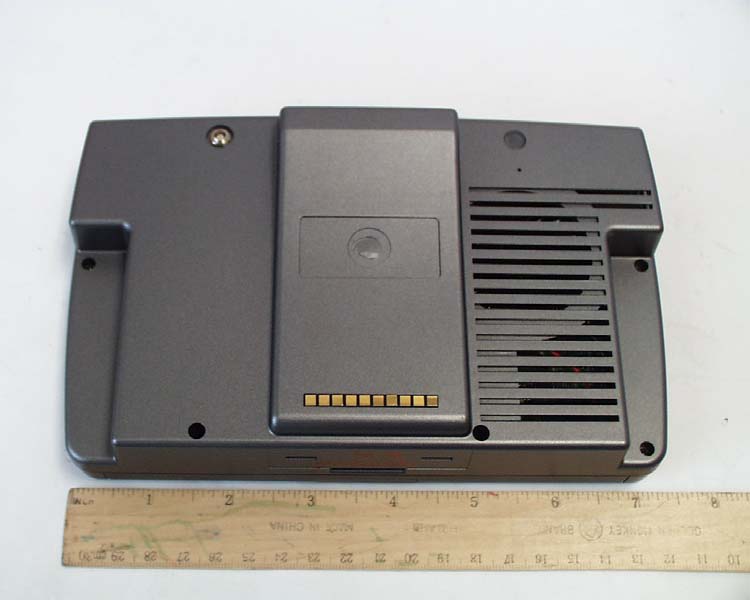

StreetPilot 7200 Owner’s Manual i PREFACE PREFACE Quick Tips • To find an address, see page 3. • To learn about the map, see page 8. • To adjust the backlight brightness, see page 16. • To clean and store your StreetPilot, see page 24. • To turn off the GPS receiver to use indoors, see page 10. Manual Conventions Serial Number Record the serial number (8-digit number located on the back of the unit, under the Auto Mount bracket) in case your StreetPilot 7200 needs service or you want to buy additional maps. Serial Number: ___ ___ ___ ___ ___ ___ ___ ___ Contact Garmin If you encounter any difficulty while using your StreetPilot 7200, or if you have any questions, in the U.S.A. contact Garmin Product Support by phone at 913/397.8200 or 800/800.1020, Monday–Friday, 8 AM–5 PM Central Time; or by e-mail at [email protected]. In Europe, contact Garmin (Europe) Ltd. at 44/0870.8501241. The unit has no user-serviceable parts. If you ever have a problem with your unit, take it to an authorized Garmin dealer for repairs. The unit is fastened shut with screws. Any attempt to open the case to change or modify the unit in any way voids your warranty and may result in permanent damage to the equipment. Congratulations on purchasing the Garmin ® StreetPilot ® 7200. 7200_OM.indd 18/24/2005 8:33:36 AM ii StreetPilot 7200 Owner’s Manual TABLE OF CONTENTS TABLE OF CONTENTS Preface .......................................i Quick Tips ..........................................i Manual Conventions ..........................i Serial Number ....................................i Contact Garmin ..................................i Warning ..................................iv Caution ...................................v Caring for Your StreetPilot 7200 .....vi Find It and Go! ..........................1 Finding a Restaurant ...............1 Following Your Route ........................ 2 Where To? ..........3 Finding an Address ..............3 Finding a Place by Browsing the Map 4 Finding Streets and Cities .................4 Finding Recently Found Places ........4 Changing Your Search Area ..............5 Finding a Place Near Another Place .5 Narrowing Your Search .....................5 My Locations .....................7 Saving Places You Find ....................7 Finding Saved Places .......................7 Editing Saved Places ........................7 Going Home ......................................8 Deleting a Saved Place .....................8 Setting a Home Location ...................8 Viewing the Map and Other Pages .......................................9 Viewing the Map Page ......................9 Trip Computer .................................10 Turn List ..........................................10 Voice Directions ..............................10 GPS Info .........................................11 Creating and Editing Routes .12 Creating a New Route .....................12 Editing a Saved Route ....................13 Saving the Active Route ..................13 Navigating a Saved Route ..............13 Recalculating the Route ..................13 Adding a Detour to a Route ............13 Stopping Your Route ....................... 13 Adding Avoidances ..........................14 Using The Logs .......................15 Adjusting the Track Log ..................15 Using the Mileage Logs ..................15 Listening to Music ..................16 XM Radio ........................................16 Listening to Music over the Vehicle’s Speakers ......................................19 Watching Videos .....................21 Connecting a Video Device .............21 Video Settings ................................. 21 7200_OM.indd 28/24/2005 8:33:37 AM StreetPilot 7200 Owner’s Manual iii TABLE OF CONTENTS Customizing the StreetPilot 7200 23 Customizing the General Settings ..23 Changing the Map Settings .............25 Changing the Navigation Settings ...26 Adjusting the Traffic Settings .......... 27 Changing the Screen Settings ........27 Viewing Unit Information (About) ....27 Restoring the Settings .....................28 Adjusting the Volume ......................28 Traffic Information with an FM TMC Traffic Receiver ...........29 Connecting the GTM 10 to Your 7200 . 29 Viewing Traffic Events .....................29 Understanding Traffic Symbols .......29 Changing the Traffic Settings .......... 29 Adding a Subscription .....................30 Switching Between Providers .........31 Appendices .............................32 Using the Remote Control ...............32 Installing the StreetPilot in Your Vehicle .. 33 USB Mass Storage .........................34 Connecting the GXM 30 ..................35 Custom POIs (Points of Interest) ....36 Technical Specifications .................. 37 Changing the Fuse ..........................37 Not waterproof ................................37 Using a Remote Antenna ................38 Updating the Software and Map Data . 38 Software License Agreement ..........38 FCC Compliance .............................39 Weather Data Warranty .................. 40 XM Satellite Radio Service Agreement ... 41 DoC Here .................................42 Index ........................................43 7200_OM.indd 38/24/2005 8:33:37 AM iv StreetPilot 7200 Owner’s Manual PREFACE Warning This manual uses the term Warning to indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. When installing the unit in a vehicle, place the unit securely so that it does not interfere with vehicle operating controls or obstruct the driver’s view of the road (see diagram). Do not mount where driver’s field of vision is blocked. Do not place unsecured on the vehicle dash. Do not mount in front of an airbag field of deployment. When navigating, carefully compare information displayed on the unit to…

Text truncated - open the document above for the full version.

StreetPilot 7200 Owner’s Manual 1 FIND IT AND GO! FIND IT AND GO! Use the Garmin ® StreetPilot ® 7200 to find your destination and go to it. Finding a Restaurant ➋ Touch Food, Hotel.... ➌ Touch Food & Drink. ➊ Touch Where To? ➍ Touch a food category. ➏ Touch Go To. ➎ Touch the place. 7200_OM.indd 18/24/2005 8:33:39 AM 2 StreetPilot 7200 Owner’s Manual FIND IT AND GO! Following Your Route Follow the route to your destination using the map. As you travel, your StreetPilot guides you to your destination with voice prompts, arrows, and directions along the top of the map. If you depart from the original route, your StreetPilot recalculates the route and provides new route instructions. For more information about using the map, see pages 8–10. Your route is marked with a magenta line. Follow the arrows.A checkered flag marks your destination. 7200_OM.indd 28/24/2005 8:33:40 AM StreetPilot 7200 Owner’s Manual 3 WHERE TO? WHERE TO? Finding an Address ➊ From the Menu page, touch Where To?. Touch Address. ➍ Enter the street name and touch Done. ➌ Enter the address number and touch Done. ➎ Select the street and then select the city. ➏ Select the address, if necessary. Touch Go To. ➋ Touch a state. 7200_OM.indd 38/24/2005 8:33:41 AM 4 StreetPilot 7200 Owner’s Manual WHERE TO? Finding a Place by Browsing the Map From the Menu page, touch Browse Map to view different parts of the map. Touch and drag the map to move it. Touch and to zoom in and out. ➋ Touch Go To, or touch Advanced for more options. Finding Streets and Cities From the Menu page, touch Streets & Cities to search for a city, street, intersection, or exit. Finding Streets & Cities is very similar to finding an address. Finding Recently Found Places Your StreetPilot stores the last 50 places you have found in Recent Finds. The most recently found places appear at the top. ➋ Select an item from the list. ➊ From the Find menu, touch Recent Finds. Touch Category to display recent finds of a certain category, such as Food, Hotel.... Changing Your Search Area You can change the search parameters to find places in a different area. ➊ Touch any object on the map. Touch Review. ➋ Touch Go To, or touch Advanced for more options. Finding a Place Near Another Place After you find a place, press the Find key. The Find menu opens and searches for items around the place you just found. Narrowing Your Search You can spell the item’s name to narrow your search results list. ➊ Touch any object on the map. Touch Review. ➊ Touch any object on the map. Touch Review. 7200_OM.indd 48/24/2005 8:33:43 AM StreetPilot 7200 Owner’s Manual 5 WHERE TO? Finding a Place by Browsing the Map From the Menu page, touch Browse Map to view different parts of the map. Touch and drag the map to move it. Touch and to zoom in and out. ➋ Touch Go To, or touch Advanced for more options. Finding Streets and Cities From the Menu page, touch Streets & Cities to search for a city, street, intersection, or exit. Finding Streets & Cities is very similar to finding an address. Finding Recently Found Places Your StreetPilot stores the last 50 places you have found in Recent Finds. The most recently found places appear at the top. ➋ Select an item from the list. ➊ From the Find menu, touch Recent Finds. Touch Category to display recent finds of a certain category, such as Food, Hotel.... ➊ From the search ➋ Select one of the Changing Your Search Area You can change the search parameters to find places in a different area. ➊ Touch any object on the map. Touch Review. ➋ Touch Go To, or touch Advanced for more options. Finding a Place Near Another Place After you find a place, press the Find key. The Find menu opens and searches for items around the place you just found. Narrowing Your Search You can spell the item’s name to narrow your search results list. ➊ Touch any object on the map. Touch Review. results list, touch Near.... search options. 7200_OM.indd 58/24/2005 8:33:44 AM 6 StreetPilot 7200 Owner’s Manual WHERE TO? ➋ Touch Go To, or touch Advanced for more options. ➊ From the search ➋ Enter the name. Touch Done. results list, touch Spell. Saving Places You Find After you have found a place you want to save, select it on the results list. The information page opens, as shown below. ➊ From the ➋ Touch Add As Favorite. information page, touch Advanced. Finding Saved Places Your saved places are stored in the Favorites category in My Locations. From the Find Menu, touch My Locations > Favorites. Editing Saved Places From the Menu page, touch Tools > My Data > Favorites. ➍ Touch an item to edit it. ➌ Touch Edit. ➋ Touch the location to edit. ➊ Touch Edit/Review Favorites 7200_OM.indd 68/24/2005 8:33:46 AM StreetPilot 7200 Owner’s Manual 7 MY LOCATIONS ➋ Touch Go To, or touch Advanced for more options. ➊ From the search ➋ Enter the name. Touch Done. results list, touch Spell. MY LOCATIONS Saving Places You Find After you have found a place you want to save, select it on the results list. The information page opens, as shown below. ➊ From the ➋ Touch Add As Favorite. information page, touch Advanced. Finding Saved Places Your saved places are stored in the Favorites category in My Locations. From the Find Menu, touch My Locations > Favorites. Editing Saved Places From the Menu page, touch Tools > My Data > Favorites. ➍ Touch an item to edit it. ➌ Touch Edit. ➋ Touch the location to edit. ➊ Touch Edit/Review Favorites 7200_OM.indd 78/24/2005 8:33:47 AM 8 StreetPilot 7200 Owner’s Manual MY LOCATIONS Going Home After you set your Home Location, open the Find Menu and touch Go Home. Viewing the Map Page From the Menu page, touch View Map to open the map. Touch an area of the map to see additional information, as shown below. The position icon shows your current location. Deleting a Saved Place From the Menu page, touch Tools > My Data > Favorites > Delete Favorites. ➊ Touch By Selection. ➋ Touch a saved location. ➌ Touch Delete. Setting a Home Location You can set a Home Location for the place y…

Text truncated - open the document above for the full version.

StreetPilot 7200 Owner’s Manual 11 VIEWING THE MAP AND OTHER PAGES GPS Info The GPS Info page displays the GPS receiver status, including current satellite coverage, receiver status, and position accuracy. To access this page, open the Menu page and touch Tools > GPS Info. From the map, you can touch the signal strength bars while the receiver is establishing a fix to view the GPS Info page. Sky view Satellite signal strength bars The sky view provides an overhead view of each satellite position relative to your unit’s last known location. The outer circle represents the horizon. The inner circle represents an elevation of 45° above the horizon. Any satellite depicted near the center is directly overhead. A signal strength bar appears for each satellite in view. A hollow bar indicates the GPS receiver has found the satellite and is collecting data. A solid bar indicates the GPS receiver has collected the necessary data, and the satellite is ready for use. GPS Settings From the Menu page, touch Tools > GPS Info > GPS Settings. You can also access the GPS Settings by touching the GPS Settings button on the GPS Info page. Use Indoors—touch Yes to turn the GPS receiver off and use the unit indoors. Set Position—if the GPS receiver has not established a fix on your location, you can enter your current location. From the GPS Settings page, touch Set Position. Select your location using the map and touch OK. WAAS — 7200_OM.indd 118/24/2005 8:33:50 AM 12 StreetPilot 7200 Owner’s Manual CREATING AND EDITING ROUTES CREATING AND EDITING ROUTES Creating a New Route From the Menu page, touch Tools > My Data > Routes. ➊ Touch Create New Saved Route. ➋ Select a starting point and touch Next. ➌ Select an ending point and touch Next. ➍ To add a point, select Yes and touch Next. ➎ Select a midpoint and touch Next. ➏ Select an option and touch Next. ➐ Select your preference and touch Next. ➑ Touch Finish. Editing a Saved Route From the Menu page, touch Tools > My Data > Routes, ➋ Touch the route you want to edit. ➊ Touch Edit/Review Routes. Saving the Active Route From the Menu page, touch Tools > My Data > Routes > Save Active Route. Navigating a Saved Route From the Menu page, touch Tools > My Data > Routes > Navigate Saved Route. Touch the route you want to navigate. Recalculating the Route From the Menu page, touch Tools > My Data > Routes > Recalculate Route. Adding a Detour to a Route If you need to take a detour from your current route, open the Menu page and touch Detour. Select a detour distance or a road to detour around. The unit calculates a new route. Stopping Your Route From the Menu page, touch Stop. 7200_OM.indd 128/24/2005 8:33:52 AM StreetPilot 7200 Owner’s Manual 13 CREATING AND EDITING ROUTES Creating a New Route From the Menu page, touch Tools > My Data > Routes. ➊ Touch Create New Saved Route. ➋ Select a starting point and touch Next. ➌ Select an ending point and touch Next. ➍ To add a point, select Yes and touch Next. ➎ Select a midpoint and touch Next. ➏ Select an option and touch Next. ➐ Select your preference and touch Next. ➑ Touch Finish. Editing a Saved Route From the Menu page, touch Tools > My Data > Routes, ➋ Touch the route you want to edit. ➊ Touch Edit/Review Routes. Saving the Active Route From the Menu page, touch Tools > My Data > Routes > Save Active Route. Navigating a Saved Route From the Menu page, touch Tools > My Data > Routes > Navigate Saved Route. Touch the route you want to navigate. Recalculating the Route From the Menu page, touch Tools > My Data > Routes > Recalculate Route. Adding a Detour to a Route If you need to take a detour from your current route, open the Menu page and touch Detour. Select a detour distance or a road to detour around. The unit calculates a new route. Stopping Your Route From the Menu page, touch Stop. 7200_OM.indd 138/24/2005 8:33:53 AM 14 StreetPilot 7200 Owner’s Manual CREATING AND EDITING ROUTES Adding Avoidances ➌ Touch the down ➋ Touch Navigation. ➊ From the Menu ➍ Select the road types arrow and touch Avoidance Setup. you want to avoid. page, touch Settings. Creating Custom Avoids You can enter specific areas and roads to avoid in your routes. From the Avoidance Setup menu, touch Custom Avoids. ➊ Touch Add New Avoid Area. ➍ Touch Finish. ➌ Touch the second corner and touch Next. ➋ Touch the first corner and touch Next. 7200_OM.indd 148/24/2005 8:33:55 AM StreetPilot 7200 Owner’s Manual 15 USING THE LOGS Adding Avoidances ➌ Touch the down ➋ Touch Navigation. ➊ From the Menu ➍ Select the road types arrow and touch Avoidance Setup. you want to avoid. page, touch Settings. Creating Custom Avoids You can enter specific areas and roads to avoid in your routes. From the Avoidance Setup menu, touch Custom Avoids. ➊ Touch Add New Avoid Area. ➍ Touch Finish. ➌ Touch the second corner and touch Next. ➋ Touch the first corner and touch Next. Adjusting the Track Log As you travel, the StreetPilot creates a bread crumb trail (track log) of your movement. From the Menu page, touch Tools > My Data > Track Log. Recording—turn off or on the track log recorder. Percentage Full —displays the current percentage capacity of the track log. To clear the track log, touch Percentage Full > Yes > OK. Using the Mileage Logs USING THE LOGS 7200_OM.indd 158/24/2005 8:33:57 AM 16 StreetPilot 7200 Owner’s Manual LISTENING TO MUSIC LISTENING TO MUSIC With your 7200, you can listen to XM Radio, MP3 files, and music played over an external device, such as a CD player or MP3 player. You can then broadcast music (and all of the 7200’s audio output) over your vehicle’s speakers. XM Radio The GXM ™ 30 Smart Antenna enables the 7200 to receive XM signals. You must have a GXM 30 connected to your 7200 and have activated the service to listen to XM Radio. See page XX for information about connecting your GXM 30 and activating service. Opening XM Radio After you have connected the GXM 30 and activated your XM Radio service, you can listen to XM Radio. ➋ Touch Music. ➊…

Text truncated - open the document above for the full version.

StreetPilot 7200 Owner’s Manual 21 WATCHING VIDEOS ➏ Turn on your vehicle’s radio and tune it to the frequency you selected in the previous step. The 7200’s audio output is broadcast over your vehicle’s speakers. ➍ Touch FM Transmitter and then Next. ➊ From the Music page, touch the volume button. ➋ Touch Advanced. ➌ Touch Audio Output. ➎ Use the + and - to select a frequency and touch Done. WATCHING VIDEOS You can watch DVD videos and monitor a backup camera using your 7200. Connecting a Video Device Video Settings 7200_OM.indd 218/24/2005 8:34:00 AM 22 StreetPilot 7200 Owner’s Manual WATCHING VIDEOS To change StreetPilot settings, open the Menu page and touch Settings. See the following pages for more information. ➋ Touch the setting. ➊ Touch Settings. Customizing the General Settings From the Menu page, touch Settings > General. GPS From the Menu page, touch Settings > General > GPS. See page 10. Language From the Menu page, touch Settings > General > Language Voice Language —select the language for the vocal prompts. Text Language —select the language for the text. Note: This setting does not affect the text in the map.... Speech Rate—select the rate at which prompts are spoken. Phonetics—turn off and on the phonetics feature, which 7200_OM.indd 228/24/2005 8:34:00 AM StreetPilot 7200 Owner’s Manual 23 CUSTOMIZING THE STREETPILOT 7200 To change StreetPilot settings, open the Menu page and touch Settings. See the following pages for more information. ➋ Touch the setting. ➊ Touch Settings. Customizing the General Settings From the Menu page, touch Settings > General. GPS From the Menu page, touch Settings > General > GPS. See page 10. Language From the Menu page, touch Settings > General > Language Voice Language —select the language for the vocal prompts. Text Language —select the language for the text. Note: This setting does not affect the text in the map.... Speech Rate—select the rate at which prompts are spoken. Phonetics—turn off and on the phonetics feature, which CUSTOMIZING THE STREETPILOT 7200 7200_OM.indd 238/24/2005 8:34:00 AM 24 StreetPilot 7200 Owner’s Manual CUSTOMIZING THE STREETPILOT 7200 allows the vocal prompts to more correctly pronounce words. Audio From the Menu page, touch Settings > General > Audio Audio Output—select Internal Speaker or FM Transmitter. For more information about broadcasting the 7200 Audio over your vehicle’s stereo using the FM Transmitter, see page XX. Attention Tone— turn on or off the attention tone sounded before voice prompts. Touch screen Tone—turn off or on the tone sounded each time you touch of the screen. Keypress Tone—???? No keys Speed-Adjusted Volume—Wally? Video Input From the Menu page, touch Settings > General > Video Input Type —select the video input type: DVD/video or Backup Camera. Reverse Response—select how the 7200 handles reversing the automobile when a Backup Camera is used. Volume —opens the volume adjustment screen. See page XX for more information. Proximity Alerts From the Menu page, touch Settings > General > Proximity Alerts. This adjust the visual and audio notifications for custom POIs you have loaded on the 7200. See page 23 for more information. Audio Notification Visual Notification Continuous Notification 7200_OM.indd 248/24/2005 8:34:01 AM StreetPilot 7200 Owner’s Manual 25 CUSTOMIZING THE STREETPILOT 7200 Units From the Menu page, touch Settings > General > Units. Change units of measure to Metric or Statute, Custom. Time Zone From the Menu page, touch Settings > General > time Zone. Select a time zone or city. Time Format From the Menu page, touch Settings > General > Time Format. Choose a 12- or 24-hour time format or UTC. Daylight Saving From the Menu page, touch Settings > General > Daylight Saving. Select on or off, or Auto. Safe Mode From the Menu page, touch Settings > General > Safe Mode. Turn on or off the Safe Mode, which disables all unit functions that require significant operator attention and could become a distraction while driving. Changing the Map Settings From the Menu page, touch Settings > Map. Map Detail—adjust the amount of detail shown on the map. Displaying more detail causes the map to redraw slowly. Orientation—change the perspective of the map. • 2D North Up—display the map in 2 dimensions (2- D) with North at the top. • 2D Track Up—display the map in 2 dimensions (2- D) with your direction of travel at the top. 7200_OM.indd 258/24/2005 8:34:01 AM 26 StreetPilot 7200 Owner’s Manual CUSTOMIZING THE STREETPILOT 7200 recalculating” message here. Continuous Auto Routing —Hmmm Avoidance Setup—see page 13. Adjusting the Traffic Settings See page 21. Changing the Screen Settings From the Menu page, touch Settings > Screen. Brightness—select Manual Brightness and then touch to decrease the brightness of the backlight or to increase it. Select Auto for automatic brightness adjustment. Calibrate Touch Screen —if you think the touch screen is not responding properly, you can calibrate the screen. Viewing Unit Information (About) From the Menu page, touch Settings > About > StreetPilot . The unit’s software version, audio version, and unit ID are listed. FM Traffic Receiver’s Unit ID If you have a FM Traffic Receiver, you can view the FM Traffic Receiver’s unit ID through the 7200. Connect the GTM 10 to the 7200 using the USB cable. From the Menu page, touch Settings > About > FM Traffic Receiver . Or, from the Menu page, touch Settings > Traffic > Traffic Receiver > Subscriptions > Add Subscription. The GTM 10’s unit ID is shown. • 3D Track Up—display the map in 3 dimensions (3-D), Track Up orientation. This is the default map view. Color Mode —choose Day for a bright background. Select Night for a black background. Select Auto to automatically switch between the two. Auto Zoom—disable or enable automatic zooming on the map for optimal viewing. Route Color—select the color of the route line. Dim Roads—dim roads that are not on your route. Map Data Fields—adjust the width of the data field…

Text truncated - open the document above for the full version.

StreetPilot 7200 Owner’s Manual 31 TRAFFIC Switching Between Providers If you have more than one service provider, you can let the 7200 use the best provider for your area, or you can manually select a provider. The 7200 uses the selected provider until you select Auto again or a different provider. ➋ Touch Traffic Receiver. ➊ Touch Traffic. ➌ Touch Providers. ➍ Select a provider or touch Auto. Adding a Subscription Your GTM 10 may have a trial subscription or you may be in an area with free service. You can also add subscriptions to expand your service area. Write down your FM Traffic Receiver’s unit ID; see below or page 17. Go to http://www.garmin.com/fmtraffic to purchase a traffic subscription and get a 25-character traffic subscription code. ➏ Touch Next. ➌ Touch Traffic Receiver. ➍ Touch Subscriptions. ➐ Enter the code and touch Next. ➑ Touch OK. ➎ Touch Add Subscription ➊ Touch Settings. ➋ Touch Traffic. 7200_OM.indd 318/24/2005 8:34:06 AM 32 StreetPilot 7200 Owner’s Manual APPENDICES Installing the StreetPilot in Your Vehicle You can use the permanent or temporary adhesive disks or the non-skid friction mount to mount the StreetPilot in your vehicle. Installing the Adhesive Disks 1. Clean and dry the area of the dashboard where you will install the base. 2. Remove one side of the backing from the adhesive and place the adhesive on the bottom of the mounting base. 3. Orient the mounting base so the locking lever is facing you and then position the base on the cleaned area. Apply pressure to adhere the base to the dashboard. NOTE: The permanent adhesive disk is extremely diffi cult to remove. Only install if you are sure you want to leave the mount in that location. Attaching the StreetPilot to the Base 1. Slide the locking lever on the mounting base to the left (unlocked position). 2. Slide the bottom of the StreetPilot into the mounting base until it clicks into place. 3. Slide the locking lever to the right. Locking leverRelease tab MENUMAP BACKSPEAK IN OUT PAGE ZOOM 1 ABC 2 DEF 3 GHI 4 JKL 5 MNO 6 PQRS 7 TUV 8 WXYZ 9 0 VOL APPENDICES Using the Remote Control The remote control operates using two AAA batteries. To use the remote, aim it toward the IR window on the StreetPilot. The MENU, Map, and SPEAK keys have the same function as the keys on the unit. (ZOOM) IN—zooms into the map. (ZOOM) OUT—zooms out of the map. BACK—returns to the previous page and cancels data entry. Thumb Stick—highlights options and moves the map pointer. Press in to make a selection. Page ▲ and ▼—scrolls through lists. Alphanumeric Keys—enters numbers and letters. To enter letters or numbers, press the key repeatedly until the correct character appears. 7200_OM.indd 328/24/2005 8:34:07 AM StreetPilot 7200 Owner’s Manual 33 APPENDICES Installing the StreetPilot in Your Vehicle You can use the permanent or temporary adhesive disks or the non-skid friction mount to mount the StreetPilot in your vehicle. Installing the Adhesive Disks 1. Clean and dry the area of the dashboard where you will install the base. 2. Remove one side of the backing from the adhesive and place the adhesive on the bottom of the mounting base. 3. Orient the mounting base so the locking lever is facing you and then position the base on the cleaned area. Apply pressure to adhere the base to the dashboard. NOTE: The permanent adhesive disk is extremely diffi cult to remove. Only install if you are sure you want to leave the mount in that location. Attaching the StreetPilot to the Base 1. Slide the locking lever on the mounting base to the left (unlocked position). 2. Slide the bottom of the StreetPilot into the mounting base until it clicks into place. 3. Slide the locking lever to the right. Locking leverRelease tab 7200_OM.indd 338/24/2005 8:34:08 AM 34 StreetPilot 7200 Owner’s Manual APPENDICES USB Mass Storage Loading files to your SD Card 7200_OM.indd 348/24/2005 8:34:08 AM StreetPilot 7200 Owner’s Manual 35 APPENDICES Connecting the GXM 30 Position the antenna where it has a clear view …

Text truncated - open the document above for the full version.
