IPH-A2552Marine Radar

Important Safety and Product Information............................................................................................................................................................................................................ 2 Informations importantes sur le produit et la sécurité........................................................................................................................................................................................... 3 Informazioni importanti sulla sicurezza e sul prodotto.......................................................................................................................................................................................... 4 Wichtige Sicherheits- und Produktinformationen.................................................................................................................................................................................................. 5 Información importante sobre el producto y tu seguridad..................................................................................................................................................................................... 6 Informações importantes de segurança e do produto.......................................................................................................................................................................................... 7 Informações importantes sobre segurança e o produto....................................................................................................................................................................................... 8 Belangrijke veiligheids- en productinformatie....................................................................................................................................................................................................... 9 Vigtige produkt- og sikkerhedsinformationer.......................................................................................................................................................................................................10 Tärkeitä turvallisuus- ja tuotetietoja.................................................................................................................................................................................................................... 11 Viktig sikkerhets- og produktinformasjon............................................................................................................................................................................................................ 12 Viktig säkerhets- och produktinformation............................................................................................................................................................................................................ 12 Ważne informacje dotyczące bezpieczeństwa i produktu...................................................................................................................................................................................13 Důležité bezpečnostní informace a informace o produktu.................................................................................................................................................................................. 14 Правила техники безопасности и сведения об изделии................................................................................................................................................................................ 15 Važne informacije o sigurnosti i proizvodu..........................................................................................................................................................................................................16 Σημαντικές πληροφορίες για την ασφάλεια και το προϊόν................................................................................................................................................................................. 17 Önemli Güvenlik ve Ürün Bilgileri....................................................................................................................................................................................................................... 18 重要安全和产品信息...........................................................................................................................................................................................19 © 2013–2014 Garmin Ltd. or its subsidiaries December 2014Printed in Taiwan190-01610-90_0B Important Safety and Product Information WARNING Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. Marine Operation Warnings •You are responsible for the safe and prudent operation of your vessel. This device is a tool that will enhance your capability to operate your vessel. It does not relieve you from the responsibility of safely operating your vessel. Avoid navigational hazards and never leave the helm unattended. • Use this device only as a navigational aid. Do not attempt to use the device for any purpose requiring precise measurement of direction, distance, location, or topography. • Always be prepared to promptly regain control of the vessel. Use caution near hazards in the water, such as docks, pilings and other vessels. • If the device has navigating capabilities, when navigating, carefully compare information displayed on the device to all available navigation sources, including information from visual sightings, local waterway rules and restrictions, and maps. For safety, always resolve any discrepancies or questions before continuing navigation. • If the device uses maps, use the electronic chart in the device only to facilitate, not to replace, the use of authorized government charts. Official government charts and not…

Text truncated - open the document above for the full version.

GMR ™ radar Series Installation Instructions To obtain the best performance and to avoid damage to your boat, install the device according to these instructions. Read all installation instructions before proceeding with the installation. If you experience difficulty during the installation, contact Garmin ® Product Support. Important Safety Information WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. The radar transmits electromagnetic energy. Ensure that the radar is installed according to the recommendations in these instructions and that all personnel are clear of the path of the radar beam before transmitting. When properly installed and operated, the use of this radar conforms to the requirements of ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields. When the radar is transmitting, do not look directly at the antenna at close range; eyes are the most sensitive part of the body to electromagnetic energy. When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product specifications. In addition, connecting the power cable without the appropriate fuse in place will void the product warranty. CAUTION This device should be used only as a navigational aid. Do not attempt to use the device for any purpose requiring precise measurement of direction, distance, location, or topography. Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. NOTICE When drilling or cutting, always check what is on the opposite side of the surface. Registering Your Device Help us better support you by completing our online registration today. • Go to http://my.garmin.com . • Keep the original sales receipt, or a photocopy, in a safe place. Contacting Garmin Product Support • Go to www.garmin.com/support and click Contact Support for in-country support information. • In the USA, call (913) 397.8200 or (800) 800.1020. • In the UK, call 0808 2380000. • In Europe, call +44 (0) 870.8501241. Tools Needed • #2 Phillips screwdriver • 5 mm hex wrench • Drill and 15.0 mm ( 19 / 32 in.) drill bit • 17 mm ( 21 / 32 in.) wrench and torque wrench • A length of 3.31 mm² (12 AWG) copper wire to ground the radar housing (and voltage converter, if applicable). • Marine sealant Mounting Considerations When selecting a mounting location, observe these considerations. • It is highly recommended that the device is mounted out of range of people, with the vertical beam width above head height. To avoid exposure to harmful radio frequency (RF) levels, the device should not be mounted closer to people than the maximum safe distance value listed in the product specifications. • The device should be mounted high above the ship’s keel line with minimal blockage of the radar beam. Obstructions may cause blind and shadow sectors, or generate false echoes. The higher the installation position, the farther the radar can detect targets. • The device should be mounted on a flat surface or a platform that is parallel to the vessel's water line and is sturdy enough to support the device's weight. The weight for each model is listed in the product specifications. • The radar beam spreads vertically 11.5° above and 11.5° below À the radar's radiating element. On vessels with higher bow angles at cruise speed, the installation angle can be lowered to point the beam slightly downward to the waterline while at rest. Shims can be used if necessary. • The device should be mounted away from heat sources, such as smoke stacks and lights. • The device should be mounted at a different level than horizontal spreaders and mast crosstrees. • To avoid interference with a magnetic compass, the device should not be mounted closer to a compass than the compass-safe distance value listed in the product specifications. • Other electronics and cables should be mounted more than 2 m (6.5 ft.) from the radar beam path. • GPS antennas should be either above or below the radar beam path. • The device should be mounted at least 1 m (40 in.) from any transmitting equipment. • The device should be mounted at least 1 m (40 in.) away from cables carrying radio signals such as VHF radios, cables, and antennas. • The device should be mounted at least 2 m (6.5 ft.) away from Single Side Band (SSB) radios. Preparing the Surface and the Radar for Mounting Before you can mount the radar, you must choose a suitable mounting location (Mounting Considerations, page 1). 1 Select an option: • If you are using a pre-drilled Garmin compatible Furuno ® or Raymarine ® mount, proceed to step 3. • Secure the included mounting template to the surface at the chosen mounting location, along the bow-stern axis as indicated on the template. 2 Determine which of the two mounting-hole patterns indicated on the template are appropriate for the mounting surface and drill the four mounting holes using a 15 mm ( 19 / 32 in.) drill bit. 3 Remove the hatch on the front of the pedestal by loosening the screw and lifting the hatch off of the hinges. July 2015Printed in Taiwan190-01818-02_0B 4 Apply the included Petrolatum Primer to one half of the threads of the four threaded rods. 5 Insert the ends of the threaded rods coated in Petrolatum Primer into the pedestal, matching the hole pattern drilled in step 2. 6 Tighten the threaded rods À using a 5 mm hex wrench Á . To avoid damaging the pedestal, you should stop tightening the threaded rods when they no longer turn easily. 7 Install the isolators  over the threaded rods, and push them securely onto the four raised locations on the bottom of the pedestal. Mounting the Radar Before you can mount the radar, you must first select a mounting location, and prepare the mounting surface and the radar (Preparing…

Text truncated - open the document above for the full version.

September 18, 2015 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-A2552 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 80 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Schematics, Block Diagram, Parts List, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics A2552 Conf Schem.pdf Block diagram A2552 Conf BlkDia.pdf Operational Description A2552 Conf OpDes.pdf Parts List A2552 Conf PartsList.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

September 18, 2015 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-A2552 FCC Rules: Parts 2 and 80 Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 45 days after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files Exhibit File External Photos A2552 Short Term Conf ExtPho.pdf Internal Photos A2552 Short Term Conf IntPho.pdf Test Setup Photos A2552 Short Term Conf TSup.pdf User Manual A2552 Short Term Conf UserMan.pdf User Manual A2552 Short Term Conf UserMan 1.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 +1 913 837-3214

Page 1 of 2 September 18, 2015 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-A2552 PRODUCT: Transmitter operated under 47CFR Section 15C Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Block Diagram, Parts List, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES A2552 Conf BlkDia.pdf A2552 Conf OpDes.pdf A2552 Conf Schem.pdf A2552 Conf PartsList.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: IPH-A2552 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, Parts List, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

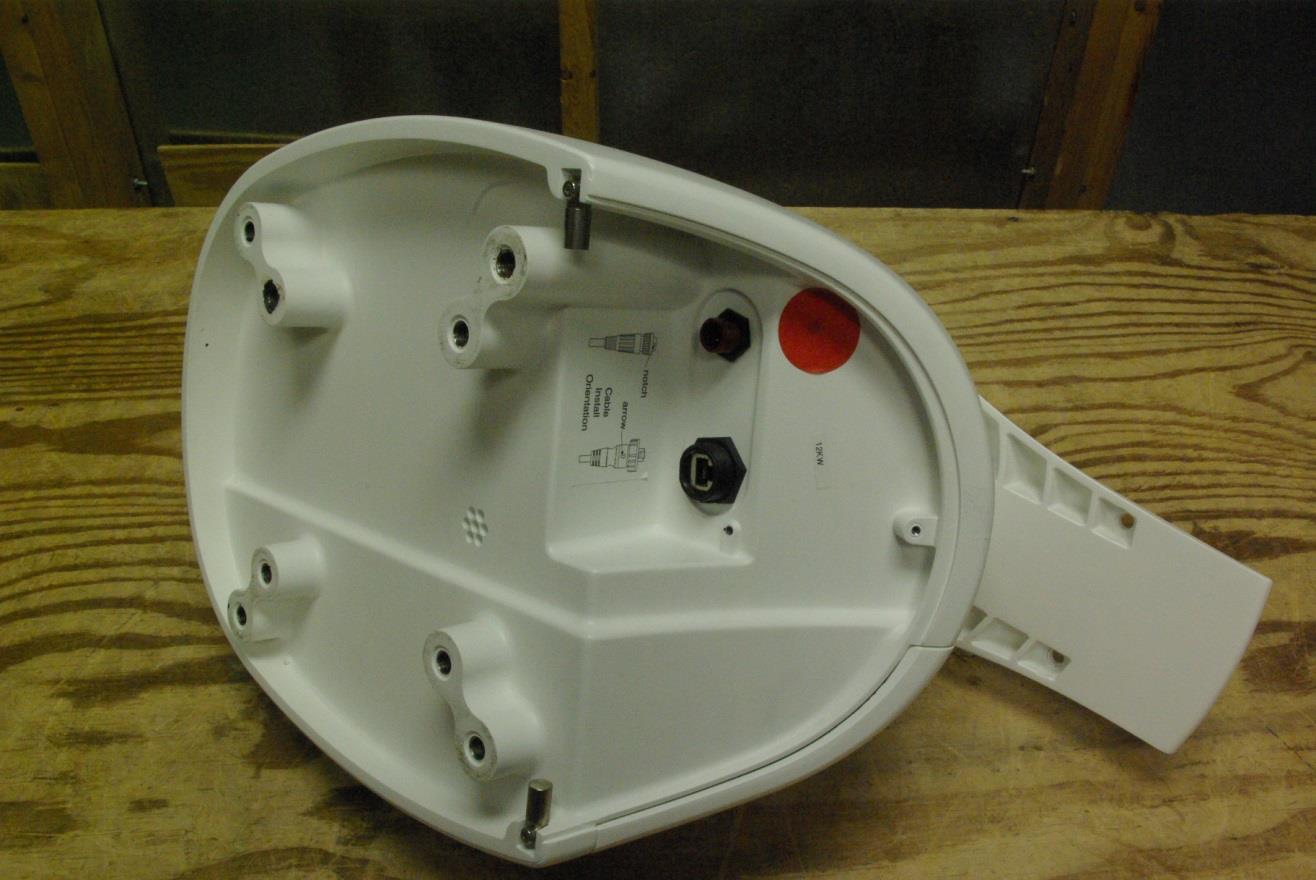

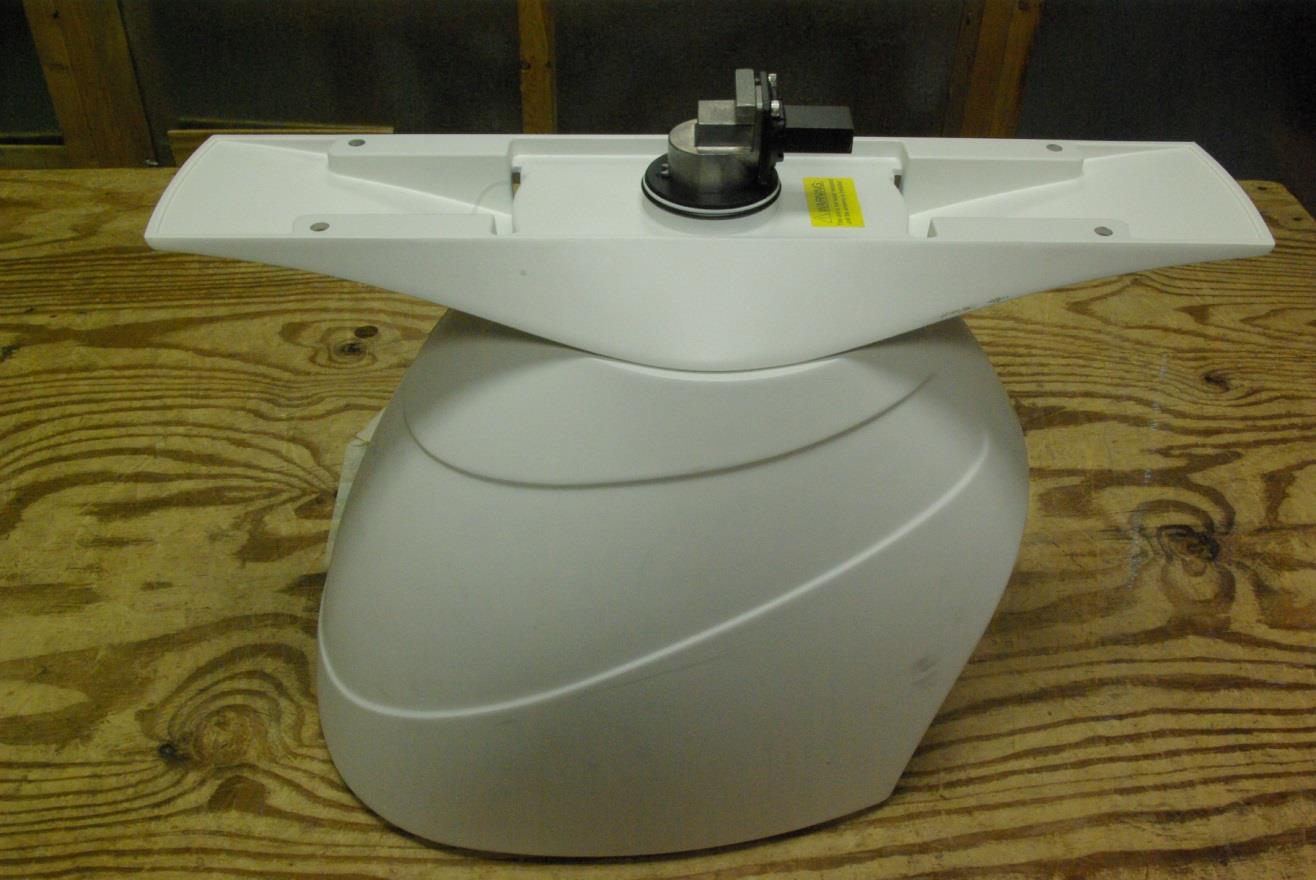

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 18, 2015 Revision 1 File: A2552 Short Term Conf ExtPho Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 18, 2015 Revision 1 File: A2552 Short Term Conf ExtPho Page 2 of 2

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 18, 2015 Revision 1 File: A2552 LabelSmpl Page 1 of 1 Label Sample Label Placement

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 18, 2015 Revision 1 File: A2552 Short Term Conf IntPho 150604 Page 1 of 1 Internal Photographs of Transmitter PCB

Subject: Tune-Up At the factory during production the transceiver functional performance is evaluated and final tested on a pass or fail basis using a Minimum Performance Specification and Recommended Test Methodology. Conforming products in production continue while nonconforming products are removed from production. The user does not have the option to tune because it is not offered and any device that fails in the field will require return to a Garmin service center.

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 8, 2015 Revision 1 File: A2552 RFExp Page 1 of 2 MPE Calculation page 6-foot antenna array MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)29 Output PowerdBd + 2.17 = dBidBi to dBd2.2 Tx Frequency (MHz)9400Maximum (Watts)12.000000Antenna Gain (dBd)26.83 Cable Loss (dB)0.0(dBm)40.79Antenna minus cable (dBi)29.00 Calculated ERP (mw)5783373.572EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw)9531938.817Radiated (EIRP) dBm69.792 ERP = EIRP - 2.17 dB Occupational Limit Radiated (ERP) dBm67.622 0.00000mW/cm 2 50.00000W/m 2 General Public Limit 0.02619ƒ0.6834mW/cm 2 10.00000W/m 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz)Occupational Limit (W/m 2 )Public Limit (W/m 2 ) 100-6,0000.6455ƒ 0.5 6,000-15,00050 300-6,0000.02619ƒ 0.6834 6,000-15,0005010 EIRPSSDistanceDistanceDistanceDistance milliwattsmW/cm 2 W/m 2 cmmeterinchesFeet 9531938.8170.758537.585281000.0010.00393.7032.81 9531938.8170.936459.36454900.009.00354.3329.53 9531938.8170.999859.99851871.008.71342.9128.58 9531938.8171.1852011.85199800.008.00314.9626.25 9531938.8171.3484913.48493750.007.50295.2824.61 9531938.8171.5480215.48015700.007.00275.5922.97 9531938.8171.7953317.95332650.006.50255.9121.33 9531938.8172.1070221.07021600.006.00236.2219.69 9531938.8172.5075325.07529550.005.50216.5418.04 9531938.8173.0341130.34110500.005.00196.8516.40 9531938.8173.7458237.45815450.004.500177.1714.76 9531938.8174.7408047.40797400.004.000157.4813.12 9531938.8174.9870349.87032390.003.900153.5412.80 9531938.8176.1920661.92062350.003.500137.8011.48 9531938.8178.4280884.28084300.003.000118.119.84 9531938.81710.03012100.30117275.002.750108.279.02 9531938.81718.96319189.63190200.002.00078.746.56 Frequency (MHz) Occupational Limit minimum Distance (meters) Occupational Limit minimum Distance (cm / inches) Public Limit minimum distance (meters) Public Limit minimum distance (cm / inches) 300-1,500N/AN/AN/AN/A 1,500-10,0003.90390 / 1538.70870 / 342 FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 Power density (S) EIRP -------= mW/cm^2 4 pr^2 r (cm) EIRP (mW) Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 8, 2015 Revision 1 File: A2552 RFExp Page 2 of 2 4-foot antenna array MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)27 Output PowerdBd + 2.17 = dBidBi to dBd2.2 Tx Frequency (MHz)9400Maximum (Watts)12.000000Antenna Gain (dBd)24.83 Cable Loss (dB)0.0(dBm)40.79Antenna minus cable (dBi)27.00 Calculated ERP (mw)3649062.031EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw)6014246.804Radiated (EIRP) dBm67.792 ERP = EIRP - 2.17 dB Occupational Limit Radiated (ERP) dBm65.622 0.00000mW/cm 2 50.00000W/m 2 General Public Limit 0.02619ƒ0.6834mW/cm 2 10.00000W/m 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz)Occupational Limit (W/m 2 )Public Limit (W/m 2 ) 100-6,0000.6455ƒ 0.5 6,000-15,00050 300-6,0000.02619ƒ 0.6834 6,000-15,0005010 EIRPSSDistanceDistanceDistanceDistance milliwattsmW/cm 2 W/m 2 cmmeterinchesFeet 6014246.8040.478604.785991000.0010.00393.7032.81 6014246.8040.590865.90862900.009.00354.3329.53 6014246.8040.747817.47810800.008.00314.9626.25 6014246.8040.976739.76732700.007.00275.5922.97 6014246.8040.999459.99446692.006.92272.4422.70 6014246.8041.3294413.29440600.006.00236.2219.69 6014246.8041.9143919.14394500.005.00196.8516.40 6014246.8042.9912429.91241400.004.00157.4813.12 6014246.8044.9802149.80214310.003.10122.0510.17 6014246.8045.3177653.17762300.003.00118.119.84 6014246.8046.3285863.28576275.002.750108.279.02 6014246.8047.6575876.57577250.002.50098.438.20 6014246.8049.4538094.53799225.002.25088.587.38 6014246.8049.8884098.88400220.002.20086.617.22 6014246.8049.9789199.78911219.002.19086.227.19 6014246.80410.35367103.53673215.002.15084.657.05 6014246.80410.85257108.52575210.002.10082.686.89 Frequency (MHz) Occupational Limit minimum Distance (meters) Occupational Limit minimum Distance (cm / inches) Public Limit minimum distance (meters) Public Limit minimum distance (cm / inches) 300-1,500N/AN/AN/AN/A 1,500-10,0003.10310 / 1226.92692 / 272 FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 Power density (S) EIRP -------= mW/cm^2 4 pr^2 r (cm) EIRP (mW)

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 18, 2015 Revision 1 File: A2552 Garmin TstRpt 150604 Page 1 of 29 Test Report CFR47 part 80(E), RSS-238 Market Label: AA2552 9300-9500 MHz Marine Radar Equipment FCC ID: IPH-A2552 IC: 1792A-A2552 For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Test Report Number: 150604 IC Test Site Registration: 3041A-1 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 18, 2015 Revision 1 File: A2552 Garmin TstRpt 150604 Page 2 of 29 Test Report For Application of Certification For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Market Label: AA2552 Marine Radar Equipment Frequency Range: 9300-9500 MHz FCC ID: IPH-A2552 IC: 1792A-A2552 Test Date: June 6, 2015 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-A2552 4405 West 259 th Terrace Model: AA2552 IC: 1792A-A2552 Louisburg, KS 66053 Test #: 150604 SN: ENG #9 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 80, RSS-238 Date: September 18, 2015 Revision 1 File: A2552 Garmin TstRpt 150604 Page 3 of 29 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 6 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 6 Equipment Configuration ...................................................................................................................................... 6 APPLICATION FOR CERTIFICATION ........................................................................... 7 ENVIRONMENTAL CONDITIONS.................................................................................. 8 UNITS OF MEASUREMENTS ........................................................................................ 8 TEST SITE LOCATIONS ................................................................................................ 8 LIST OF TEST EQUIPMENT .......................................................................................... 9 APPLICABLE STANDARDS & TEST PROCEDURES ................................................ 10 TEST PROCEDURES ................................................................................................... 10 Radiated Emission Test Procedure ..................................................................................................................... 10 Diagram 1 Test setup for radiated emissions tested on Open Area Test Site (OATS) ....................................... 11 Diagram 2 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 12 RADIO FREQUENCY POWER OUTPUT ..................................................................... 13 Measurements Required ...................................................................................................................................... 13 Test Arrangement Radio Frequency Power Output ...........................................................…

Text truncated - open the document above for the full version.
