IPH-A4390Smart Watch

VENU SQ 2 Quick Start Manual M/N: AA4390 VENU SQ 21 EN © 2022 Garmin Ltd. or its subsidiaries Garmin, the Garmin logo, and ANT+ are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Connect IQ, Garmin Connect, Garmin Express, Garmin Pay and Venu are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. The BLUETOOTH ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Advanced heartbeat analytics by Firstbeat Analytics. Wi-Fi ® is a registered mark of Wi-Fi Alliance Corporation. Other trademarks and trade names are those of their respective owners. M/N: AA4390 2VENU SQ 2 EN Quick Start Manual Introduction WARNING See the Important Safety and Product Information guide in the previous pages for product warnings and other important information. Always consult your physician before you begin or modify any exercise program. Device Overview Action button: Press to turn on the device. Press to start and stop the activity timer. Hold for 2 seconds to view the controls menu, including device power. Hold for 5 seconds to request assistance (page 6). Back button: Press to return to the previous screen, except during an activity. During an activity, press to mark a new VENU SQ 23 EN lap, start a new set or pose, or advance to the next stage of a workout. Hold to view a menu of device settings and options for the current screen. Touchscreen: Swipe up or down to scroll through widgets, features, and menus. Tap to select. Double-tap to wake the device. Swipe right to return to the previous screen. During an activity, swipe right to view the watch face and widgets. From the watch face, swipe right to view the shortcut feature. Setting Up Your Watch To take full advantage of the VENU Sq 2 features, complete these tasks. yPair your smartphone with the Garmin Connect app (page 3). ySet up your Garmin Pay wallet (page 5). ySet up safety features (page 6). Pairing Your Smartphone To set up the VENU Sq 2 device, it must be paired directly through the Garmin Connect app, instead of from the Bluetooth ® settings on your smartphone. 1 From the app store on your smartphone, install and open the Garmin Connect app. 2 Press to turn on the device. 3 Follow the instructions in the app to 4VENU SQ 2 EN complete the pairing and setup process. Using the Controls Menu The controls menu contains customizable shortcuts, such as locking the touchscreen and turning the device off. 1 From any screen, hold for 2 seconds. 2 Select an option. Apps and Activities Your device includes a variety of preloaded apps and activities. Apps: Apps provide interactive features for your device, such as navigating to saved locations. Activities: Your device comes preloaded with indoor and outdoor activity apps, including running, cycling, strength training, golfing, and more. When you start an activity, the device displays and records sensor data, which you can save and share with the Garmin Connect community. Starting an Activity When you start an activity, GPS turns on automatically (if required). VENU SQ 25 EN 1 Press . 2 Select an activity. 3 If the activity requires GPS signals, go outside to an area with a clear view of the sky, and wait until the device is ready. 4 Press to start the activity timer. The device records activity data only while the activity timer is running. Stopping an Activity 1 Press . 2 Select an option: • To save the activity, tap . • To discard the activity, tap . Setting Up Your Garmin Pay Wallet The Garmin Pay feature allows you to use your watch to pay for purchases in participating stores. You can add one or more participating credit or debit cards to your Garmin Pay wallet. Go to Garmin. com/garminpay/banks to find participating financial institutions. 1 From the Garmin Connect app, select or . 2 Select Garmin Pay > Get Started. 3 Follow the on-screen instructions. You can open your Garmin Pay wallet from the controls menu on your device. See the owner’s manual for more information on using Garmin Pay. 6VENU SQ 2 EN Safety and Tracking Features CAUTION Incident detection and assistance are supplemental features and should not be relied on as a primary method to obtain emergency assistance. The Garmin Connect app does not contact emergency services on your behalf. The VENU Sq 2 device has safety and tracking features that must be set up with the Garmin Connect app. NOTICE To use these features, you must be connected to the Garmin Connect app using Bluetooth technology. You can enter emergency contacts in your Garmin Connect account. Assistance: Allows you to send an automated message with your name, LiveTrack link, and GPS location to your emergency contacts. Incident detection: When the VENU Sq 2 device detects an incident during an outdoor walk, run, or bike activity, the device sends an automated message, LiveTrack link, and GPS location to your emergency contacts. LiveTrack: Allows friends and family to follow your races and training activities in real time. You can invite followers using VENU SQ 27 EN email or social media, allowing them to view your live data on a Garmin Connect tracking page. Connect IQ Features You can add Connect IQ features to your watch from Garmin and other providers using the Connect IQ app. You can customize your device with watch faces, data fields, widgets, and apps. Syncing the Time with GPS Each time you turn on the device and acquire satellites, the device automatically detects your time zones and the current time of day. You can also manually sync the time with GPS when you change time zones, and to update for daylight saving time. 1 From the watch face, hold . 2 Select > System > Time > Time Source > Auto. 3 From the watch face, hold and select > Controls Menu. 4 Select a shortcut to remove it, and add Set Time With GPS to the controls menu. 5 From the watch face, hold to enter the controls menu. 6 Select and…

Text truncated - open the document above for the full version.

CONFIDENTIAL This drawing and the specifications contained herein are the property of GARMIN Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Garmin Ltd. or its subsidiaries C/O Garmin International, Inc. 1200 E. 151 st Street Olathe, Kansas 66062 USA Sheet 1 of 1 Specification Control Document Drawing Number: 190-02068-34 Description: ISPI Fitness PulseOx WW 2.4x5.15 Revision: F Drawn By: MSM 01/08/2019 Revision History Rev. Date Description of Change ECO No. D 07/09/20 Update RSS and RF topics 209270 E 07/20/21 Various updates, ANATEL URL, PL phone number 226877 F 04/25/22 Added PAP 22 recycling mark and coin cell update 241591 Printing Specifications Tolerance: ±0.0787" (±2 mm) Material: Cover: 150-lb matte. 60-lb wood-free. Approved equivalents allowed. Color: Black ink. Bindery: Perfect-bound. Approved equivalents allowed. Folds: Not applicable. Trimmed Dimensions: 4.8 x 5.15 in. Finished Dimensions: 2.4 x 5.15 in. Notes: Content Management System (CMS) Details GUID: GUID-9A60DC30-20C7-44C2-A7A1-C623FF5DD7B6 Version: 10 Printed Languages EN-US, FR-FR, IT-IT, DE-DE, ES-XM, PT-BR, NL-NL, DA-DK, FI-FI, NB-NO, SV-SE, PL-PL, CS-CZ, SL-SI, HR-HR, RO-RO Notes IMPORTANT SAFETY AND PRODUCT INFORMATION Important Safety and Product Information.........3 Informations importantes sur le produit et la sécurité . 11 guida Informazioni importanti sulla sicurezza e sul prodotto...........................19 Wichtige Sicherheits- und Produktinformationen....26 Información importante sobre el producto y tu seguridad...........................34 Informações importantes sobre segurança e sobre o produto............................42 Belangrijke veiligheids- en productinformatie......49 Vigtige produkt- og sikkerhedinformationer.......56 Tärkeitä turvallisuus- ja tuotetietoja............63 Viktig sikkerhets- og produktinformasjon........69 Guiden Viktig säkerhets- och produktinformation....75 Ważne informacje dotyczące bezpieczeństwa i produktu...........................81 Důležité bezpečnostní informace a informace o produktu...........................88 Pomembne informacije o varnosti in izdelku.......94 Važne informacije o proizvodu i sigurnosti........101 Informaţii importante privind siguranţa şi produsul...107 Important Safety and Product Information WARNING Failure to heed the following warnings could result in an accident or medical event resulting in death or serious injury. Battery Warnings A lithium-ion battery is used in this device. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not expose the device or batteries to fire, explosion, or other hazard. • Do not disassemble, modify, remanufacture, puncture or damage the device or batteries. • Do not remove or attempt to remove the non-user- replaceable battery. Health Warnings • If you have a pacemaker or other internal electronic device, consult your physician before using a heart rate monitor. • The Garmin ® optical wrist heart rate monitor and pulse oximeter sensor emit green, red, and infrared light and flash occasionally. Consult your physician if you have epilepsy or are sensitive to bright or flashing lights. • Always consult your physician before beginning or modifying any exercise program. • The Garmin device, accessories, heart rate monitor, pulse oximeter sensor, and related data are intended to be used only for recreational purposes and not for medical purposes, and are not intended to diagnose, monitor, treat, cure, or prevent any disease or condition. • The heart rate and blood oxygen saturation readings are for reference only, and no responsibility is accepted for the consequences of any erroneous readings. • While the Garmin optical wrist heart rate monitor technology typically provides an accurate estimate of a user's heart rate, there are inherent limitations with the technology that may cause some of the heart rate readings to be inaccurate under certain circumstances, including the user's physical characteristics, fit of the device, and type and intensity of activity. • While the Garmin pulse oximeter sensor technology typically provides an accurate estimate of a user's blood oxygen saturation, there are inherent limitations with the technology that may cause some of the oxygen saturation readings to be inaccurate under certain circumstances, including the user's physical 3 EN characteristics, fit of the device, position of the device, and movement. • Garmin activity trackers rely on sensors that track your movement and other metrics. The data and information provided by these devices is intended to be a close estimation of your activity and metrics tracked, but may not be completely accurate, including step, sleep, distance, heart rate, oxygen saturation, and calorie data. Device Warnings • Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging. • When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging. • Do not use a power cable, data cable and/or power adapter that is not approved or supplied by Garmin. Safety and Tracking Warning The assistance feature allows you to send your location to an emergency contact. This is a supplemental feature and should not be relied upon as a primary method to obtain emergency assistance. The Garmin Connect ™ app does not contact emergency services on your behalf. The incident detection feature is only available while you are tracking …

Text truncated - open the document above for the full version.

Dec. 11, 2020 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue PO Box 11490, Station H Ottawa, Ontario, Canada K2H 8S2 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized the following Garmin International Associates to act on Garmin's behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) and Innovation, Science and Economic Development Canada (ISED) for equipment authorization or certification. Ms. Poojita Bhattu, Compliance Engineer Mr. Doug Burroughs, Senior Compliance Engineer Mr. Jeffrey Hailey, Staff Compliance Eng ineer Mr. Dan Irish, Senior Compliance Engineer Mr. Ben Karsak, Compliance Engineering Team Lead Mr. Kiran Kumar, Senior Compliance Engineer Mr. Tim Olson, Senior Compliance Engineer Mr. Carlos Ortega, Senior Compliance Engineer Mr. William Pertner, Compliance Engineering Team Lead Mr. Cody Riggle, Compliance Engineer Mr. David Utt, Staff Compliance Engineer Mr. Jonathan Shafer, Senior Design Certification Engineer Ms. Sara Jones, Design Certification Engineer 2 Mr. Jay Everett, Team Leader, System Validation As such, the Garmin Associates listed above are authorized to: 1) sign Form 731, 2) sign letters of application, 3) request confidentiality, and 4) exchange data and information with the FCC, IC and/or authorized TCBs on behalf of Garmin. In addition, these individuals shall be considered "authorized individuals" to act on Garmin's behalf where an "authorized individual's" attestation is necessary or preferred. This authorization remains in effect until notified to the contrary by Garmin. Sincerely, Mr. Douglas Kealey, Manager Environmental and Regulatory Affairs

Date: June 1, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: IPH-A4390 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after issue date. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant’s company name : International Certification Corp. Applicant’s company address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., Tao Yuan City 333, Taiwan (R.O.C.) Signature : Job Title and Dept. : Manager E-mail : [email protected] Te l . : 886-3-271-8628

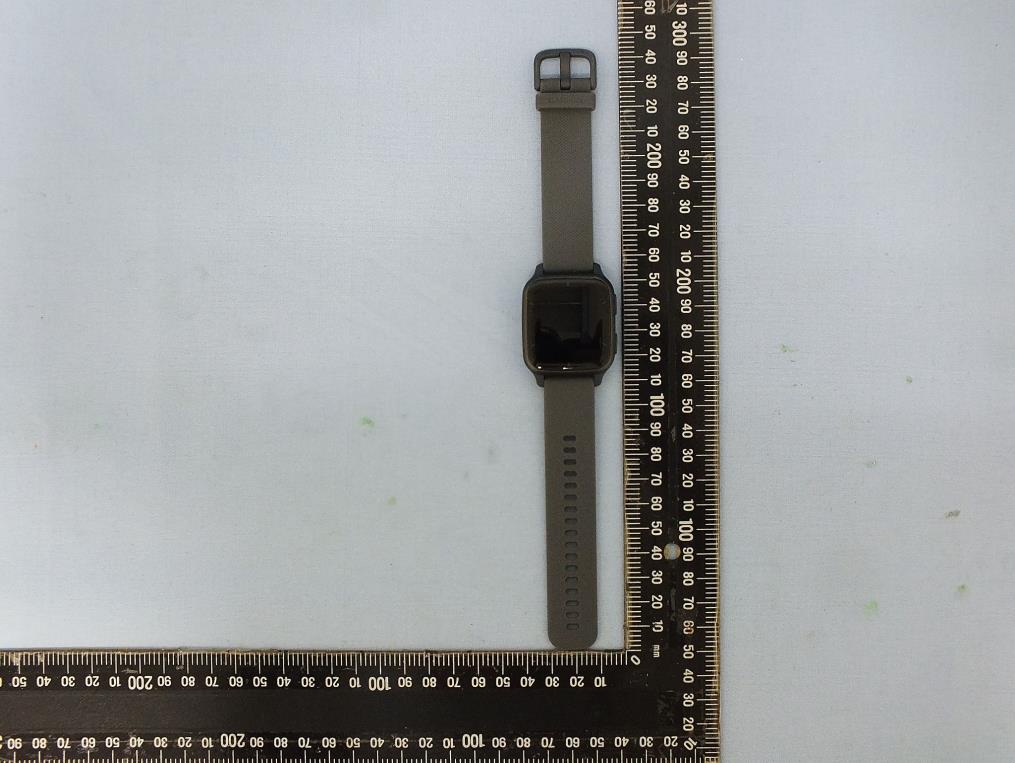

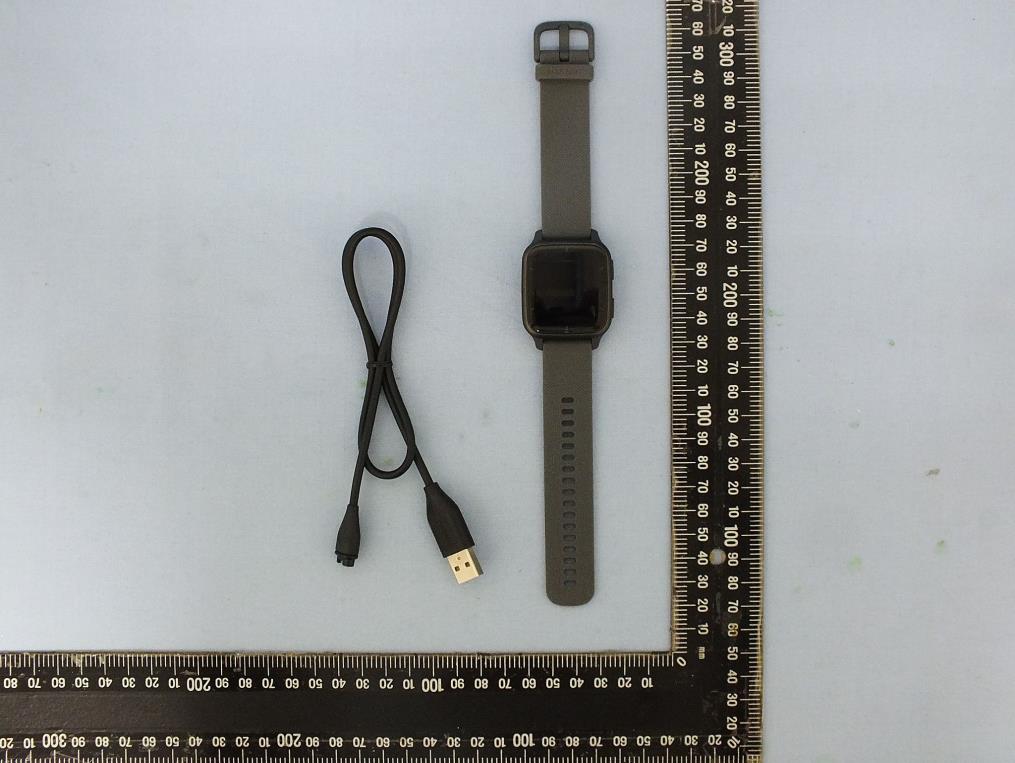

Project No.:EP240703 Page No. : 1 of 14 Photographs of EUT Project No.:EP240703 Page No. : 2 of 14 Project No.:EP240703 Page No. : 3 of 14 Project No.:EP240703 Page No. : 4 of 14 Project No.:EP240703 Page No. : 5 of 14

e-labeling location FCC ID：IPH-A4390 IC: 1792A-A4390

Project No.:EP240703 Page No. : 6 of 14 Project No.:EP240703 Page No. : 7 of 14 Project No.:EP240703 Page No. : 8 of 14 Project No.:EP240703 Page No. : 9 of 14 Project No.:EP240703 Page No. : 10 of 14 Project No.:EP240703 Page No. : 11 of 14 Project No.:EP240703 Page No. : 12 of 14 Project No.:EP240703 Page No. : 13 of 14 Project No.:EP240703 Page No. : 14 of 14

Report No.: FR240703AF Page : 1 of 16 Report Version: Rev. 01 FCC Test Report FCC ID : IPH-A4390 Equipment : Smart Watch Model No. : AA4390 Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.249 Received Date : Apr. 07, 2022 Tested Date : May. 05 ~ May. 09, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR240703AF Page : 2 of 16 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Facility ..................................................................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ....................................................................................................... 11 3.1 Radiated Emission ............................................................................................................................... 11 3.2 20dB and Occupied Bandwidth ............................................................................................................ 14 3.3 AC Power Line Conducted Emissions ................................................................................................. 15 4 TEST LABORATORY INFORMATION ............................................................................................... 16 APPENDIX A. RADIATED EMISSION APPENDIX B. 20DB AND OCCUPIED BANDWIDTH APPENDIX C. AC POWER LINE CONDUCTED EMISSIONS Report No.: FR240703AF Page : 3 of 16 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR240703AF Rev. 01 Initial issue May 30, 2022 Report No.: FR240703AF Page : 4 of 16 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 0.788MHz 25.56 (Margin -20.44dB) - AV Pass 15.249(a) Field Strength of Fundamental Meet the requirement of limit Pass 15.249(a)(d) Field Strength of Harmonics and Emissions Radiated outside of the Specified Frequency Bands Meet the requirement of limit Pass 15.215(c) 20dB bandwidth Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR240703AF Page : 5 of 16 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Modulation Ch. Freq. (MHz) Channel Number Data Rate 2402-2480 GFSK 2402-2480 1-79 [79] 1 Mbps 1.1.2 Antenna Details Ant. No. Brand Model Type Connector Gain (dBi) 1 Garmin 117-01806-0X PIFA No -2.08 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Type 5Vdc from adapter 3.87Vdc from battery 1.1.4 Accessories No. Equipment Description 1 Battery Brand: Garmin Model: 361-00136-20 Power Rating: 3.87V, 205mAh 2 USB cable Brand: GARMIN Model: 320-01069-10 Power line: 0.52m shielded without core Report No.: FR240703AF Page : 6 of 16 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2402 21 2422 41 2442 61 2462 2 2403 22 2423 42 2443 62 2463 3 2404 23 2424 43 2444 63 2464 4 2405 24 2425 44 2445 64 2465 5 2406 25 2426 45 2446 65 2466 6 2407 26 2427 46 2447 66 2467 7 2408 27 2428 47 2448 67 2468 8 2409 28 2429 48 2449 68 2469 9 2410 29 2430 49 2450 69 2470 10 2411 30 2431 50 2451 70 2471 11 2412 31 2432 51 2452 71 2472 12 2413 32 2433 52 2453 72 2473 13 2414 33 2434 53 2454 73 2474 14 2415 34 2435 54 2455 74 2475 15 2416 35 2436 55 2456 75 2476 16 2417 36 2437 56 2457 76 2477 17 2418 37 2438 57 2458 77 2478 18 2419 38 2439 58 2459 78 2479 19 2420 39 2440 59 2460 79 2480 20 2421 40 2441 60 2461 --- --- 1.1.6 Test Tool and Duty …

Text truncated - open the document above for the full version.

Report No.: FR240703CO Page : 1 of 11 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : IPH-A4390 Equipment : Smart Watch Model No. : AA4390 Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.249 47 CFR FCC Part 15.225 Received Date : Apr. 07, 2022 Tested Date : May 09, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR240703CO Page : 2 of 11 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 6 1.3 Test Standards ....................................................................................................................................... 7 1.4 Reference Guidance .............................................................................................................................. 7 1.5 Deviation from Test Standard and Measurement Procedure ................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Facility ....................................................................................................................................... 8 2.2 The Worst Test Modes and Channel Details ......................................................................................... 8 3 TRANSMITTER TEST RESULTS ......................................................................................................... 9 3.1 Unwanted Emissions into Restricted Frequency Bands ........................................................................ 9 4 TEST LABORATORY INFORMATION ............................................................................................... 11 Appendix A. Unwanted Emissions Into Restricted Frequency Bands Report No.: FR240703CO Page : 3 of 11 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR240703CO Rev. 01 Initial issue May 30, 2022 Report No.: FR240703CO Page : 4 of 11 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.209 15.249(a) 15.225(d) Radiated Emissions [dBuV/m at 3m]: 633.34MHz 30.57 (Margin -15.43dB) - PK Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR240703CO Page : 5 of 11 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) ANT+ Operating Frequency 2402 MHz ~ 2480 MHz Modulaton Type GFSK BT Operating Frequency 2402 MHz ~ 2480 MHz Modulaton Type Bluetooth 5.0 LE: GFSK NFC Operating Frequency 13.553 – 13.567 Modulaton Type ASK 1.1.2 Antenna Details LE / ANT+ Ant. No. Brand Model Type Connector Gain (dBi) 1 Garmin 117-01806-0X PIFA No -2.08 NFC Ant. No. Brand Model Type Connector Gain (dBi) Remarks 1 INPAQ TECH CO LTD NF-C-F9-R0-120 Loop No --- --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Type 5Vdc from adapter 3.87Vdc from battery Report No.: FR240703CO Page : 6 of 11 Report Version: Rev. 01 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber1 / (03CH01-WS) Tested Date May 09, 2022 Instrument Brand Model No. Serial No. Calibration Date Calibration Until Receiver R&S ESR3 101657 Mar. 15, 2022 Mar. 14, 2023 Spectrum Analyzer R&S FSV40 101498 Nov. 29, 2021 Nov. 28, 2022 Loop Antenna R&S HFH2-Z2 100330 Nov. 08, 2021 Nov. 07, 2022 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-522 Jun. 30, 2021 Jun. 29, 2022 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120 D BBHA 9120 D 1096 Dec. 03, 2021 Dec. 02, 2022 Horn Antenna 18G-40G SCHWARZBECK BBHA 9170 BBHA 9170508 Jan. 11, 2022 Jan. 10, 2023 Preamplifier EMC EMC02325 980225 Jun. 29, 2021 Jun. 28, 2022 Preamplifier Agilent 83017A MY39501308 Sep. 28, 2021 Sep. 27, 2022 Preamplifier EMC EMC184045B 980192 Jul. 14, 2021 Jul. 13, 2022 Loop Antenna Cable KOAX KABEL 101354-BW 101354-BW Oct. 05, 2021 Oct. 04, 2022 LF cable 3M Woken CFD400NL-LW CFD400NL-001 Oct. 05, 2021 Oct. 04, 2022 LF cable 11M EMC EMCCFD400-NW-N W-11000 200801 Oct. 05, 2021 Oct. 04, 2022 LF cable 1M EMC EMCCFD400-NM-N M-1000 160502 Oct. 05, 2021 Oct. 04, 2022 RF Cable EMC EMC104-35M-35M- 8000 210920 Oct. 05, 2021 Oct. 04, 2022 RF Cable HUBER+SUHNER SUCOFLEX104 MY16019/4 Oct. 05, 2021 Oct. 04, 2022 Measurement Software AUDIX e3 6.120210g NA NA Note: Calibration Interval of instruments listed above is one year. Report No.: FR240703CO Page : 7 of 11 Report Version: Rev. 01 1.3 Test Standards 47 CFR FCC Part 15.247 47 CFR FCC Part 15.247 47 CFR FCC Part 15.247 ANSI C63.10-2013 1.4 Reference Guidance FCC KDB 558074 D01 15.247 Meas Guidance v05r02 1.…

Text truncated - open the document above for the full version.

Report No.: FR240703NF Page : 1 of 16 Report Version: Rev. 01 FCC Test Report FCC ID : IPH-A4390 Equipment : Smart Watch Model No. : AA4390 Brand Name : GARMIN Applicant : Garmin International, Inc. Address : 1200 E. 151st Street Olathe, KS 66062 United States Standard : 47 CFR FCC Part 15.225 Received Date : Apr. 07, 2022 Tested Date : May 09 ~ May 10, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR240703NF Page : 2 of 16 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 6 1.3 Test Setup Chart .................................................................................................................................... 6 1.4 The Equipment List ............................................................................................................................…

Text truncated - open the document above for the full version.
