IPH-B3556Handheld GPS

Quick Start Manual AB3556 Viewing Device Information You can view device information, such as the E-label, unit ID, software version, regulatory information and license agreement: Select Main menu > Setup > About. Important Safety and Product Information2 Informations importantes sur le produit et la sécurité5 guida Informazioni importanti sulla sicurezza e sul prodotto9 Wichtige Sicherheits- und Produktinformationen12 Información importante sobre el producto y tu seguridad15 Informações importantes sobre segurança e sobre o produto19 Belangrijke veiligheids- en productinformatie22 Vigtige produkt- og sikkerhedinformationer25 Tärkeitä turvallisuus- ja tuotetietoja 28 Viktig sikkerhets- og produktinformasjon30 Guiden Viktig säkerhets- och produktinformation33 Ważne informacje dotyczące bezpieczeństwa i produktu36 Důležité bezpečnostní informace a informace o produktu39 Правила техники безопасности и сведения об изделии42 Pomembne informacije o varnosti in izdelku45 Važne informacije o proizvodu i sigurnosti48 Important Safety and Product Information WARNING Failure to heed the following warnings could result in an accident or collision resulting in death or serious injury. Battery Warnings Replaceable alkaline or NiMH batteries can be used with this device. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not disassemble, modify, remanufacture, puncture or damage the device or batteries. • Do not expose the device or batteries to fire, explosion, or other hazard. • Do not use a sharp object to remove the removable batteries. • KEEP BATTERIES AWAY FROM CHILDREN. NEVER PUT BATTERIES IN MOUTH. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately. • Only replace batteries with correct replacement batteries. Using other batteries presents a risk of fire or explosion. Device Warnings • Do not immerse the device or batteries in water or other liquids. • Do not leave the device exposed to a heat source or in a high- temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging. • When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging. Vehicle Installation Warnings • When installing the device in a vehicle, do not place the device where it obstructs the driver’s view of the road or interferes with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place unsecured on the vehicle dashboard . Do not place the device in front of or above any airbag . • The windshield mount may not stay attached to the windshield in all circumstances. Do not place the mount where it will become a distraction if it should become detached. Keep your windshield clean to help ensure that the mount stays on the windshield. Street Navigation Warnings If your Garmin ® device accepts street maps and suggests routes that follow roads, follow these guidelines to ensure safe on-road navigation. • Always use your best judgment, and operate the vehicle in a safe manner. Do not become distracted by the device while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the device screen while driving. • Do not input destinations, change settings, or access any functions requiring prolonged use of the device controls while driving. Pull over in a safe and legal manner before attempting such operations. • When navigating, carefully compare information displayed on the device to all available navigation sources, including road signs, road closures, road conditions, traffic congestion, weather conditions, and other factors that may affect safety while driving. For safety, always resolve any discrepancies before continuing navigation, and defer to posted signs and conditions. • The device is designed to provide route suggestions. It is not a replacement for driver attentiveness and good judgement. Do not follow route suggestions if they suggest an illegal maneuver or would place the vehicle in an unsafe situation. Off-Road Navigation Warnings If your Garmin device is able to suggest off-road routes for various outdoor activities, such as biking, hiking, and all-terrain vehicles, follow these guidelines to ensure safe off-road navigation. • Always use your best judgment and exercise common sense when making off-road navigational decisions. The Garmin device is designed to provide route suggestions only. It is not a replacement for attentiveness and proper preparation for outdoor activities. Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. • Always carefully compare information displayed on the device to all available navigation sources, including trail signs, trail conditions, weather conditions, and other factors that may affect safety while navigating. For safety, always resolve any 2 EN discrepancies before continuing navigation, and defer to posted signs and conditions. • Always be mindful of the effects of the environment and the inherent risks of the activity before embarking on off-road activities, especially the impact that weather and weather-related trail conditions can have on the safety of your activity. Ensure that you have the proper gear and supplies for your activity before navigating along unfamiliar paths and trails. NOTICE Failure to heed the following notice could result in personal or property damage, or negatively impact the device functionality. Battery Notices • Con…

Text truncated - open the document above for the full version.

XY PlaneTotal (Max.)Horizontal (Max.)Vertical (Max.)LHCP (Max.)RHCP (Max.)Total (Min.) Horizontal (Min.)Vertical (Min.)LHCP (Min.)RHCP (Min.)Total (Avg.)Horizontal (Avg.)Vertical (Avg.)LHCP (Avg.)RHCP (Avg.) 2390 MHz-5.66-8.13-6.59-10.97-5.67-16.99-29.60-25.50-41.88-30.36-8.53-16.28-10.53-16.29-10.18 2400 MHz-5.36-7.54-6.68-10.51-5.38-16.47-26.71-25.54-31.53-27.99-8.43-15.40-10.60-15.76-10.05 2410 MHz-5.15-6.89-6.78-10.24-5.21-16.31-25.83-25.94-26.05-26.49-8.43-14.93-10.78-15.29-10.04 2420 MHz-4.97-6.27-6.70-9.94-5.11-16.47-27.55-26.62-21.65-26.19-8.35-14.54-10.89-14.79-9.99 2430 MHz-4.74-5.69-6.42-9.72-4.99-16.08-32.27-25.91-19.35-27.37-8.13-14.42-10.76-14.14-9.89 2440 MHz-4.32-5.15-6.06-9.48-4.64-14.96-46.33-23.77-17.13-29.12-7.65-14.13-10.32-13.33-9.56 2450 MHz-4.18-4.89-5.88-9.58-4.57-13.54-33.05-22.04-16.13-31.31-7.29-13.71-10.04-12.74-9.36 2460 MHz-3.99-4.66-5.78-9.45-4.48-11.97-27.19-20.32-15.76-34.08-6.90-13.08-9.77-12.13-9.13 2470 MHz-4.07-4.70-5.53-9.52-4.60 -11.01-27.69-19.03-15.51-32.29-6.73-12.76-9.72-11.75-9.10 2480 MHz-4.26-4.85-5.53-9.53-4.84-11.41-27.14-18.31-16.22-30.62-6.80-12.53-9.92-11.57-9.29 2490 MHz-3.98-4.51-5.03-8.48-4.70-11.73-27.54-17.73-16.74-26.83-6.52-12.02-9.83-10.98-9.17 2500 MHz-4.15-4.60-5.13-8.38-4.99-12.80-27.93-17.87-17.96-25.43-6.89-12.13-10.39-11.03-9.77 XZ PlaneTotal (Max.)Horizontal (Max.)Vertical (Max.)LHCP (Max.)RHCP (Max.)Total (Min.)Horizontal (Min.)Vertical (Min.)LHCP (Min.)RHCP (Min.)Total (Avg.)Horizontal (Avg.)Vertical (Avg.)LHCP (Avg.)RHCP (Avg.) 2390 MHz0.02-4.06-1.35-0.83-0.42-16.96-24.36-21.32-31.10-27.38-5.17-9.61-7.91-11.91-7.94 2400 MHz0.00-4.13-1.29-0.88-0.35-17.82-23.89-20.23-43.94-27.43-5.10-9.43-7.88-12.11-7.82 2410 MHz-0.12-4.13-1.38-1.10-0.24-18.87-23.78-21.61-32.73-27.33-5.13-9.35-7.98-12.11-7.80 2420 MHz-0.17-4.35-1.43-1.29-0.28-18.78-23.18-22.94-29.66-28.66-5.16 -9.35-8.06-12.09-7.82 2430 MHz-0.15-4.54-1.41-1.37-0.26-18.60-22.37-23.94-30.43-31.32-5.09-9.27-8.03-12.00-7.75 2440 MHz0.09-4.33-1.31-1.36-0.05-17.71-21.28-24.90-28.73-34.12-4.86-9.02-7.87-11.64-7.54 2450 MHz0.13-4.20-1.31-1.55-0.02-16.75-20.67-25.43-25.65-38.41-4.75-8.93-7.81-11.39-7.43 2460 MHz0.18-3.91-1.14-1.670.02-15.64-19.26-26.62-25.86-40.87-4.61-8.75-7.76-11.18-7.31 2470 MHz0.13-3.84-1.17-1.62-0.07-14.60-19.24-27.49-25.78-34.06-4.62-8.78-7.82-11.11-7.32 2480 MHz-0.07-4.02-1.38-1.63-0.31-13.59-20.51-29.34-25.01-30.93-4.82-9.05-8.09-11.22-7.51 2490 MHz0.15-3.81-1.14-1.25-0.14-14.18-21.03-31.75-29.82-26.67-4.60-8.91-7.98-10.94-7.30 2500 MHz-0.20-4.31-1.37-1.46-0.59-15.68-21.73-38.66-40.98-24.13-5.00-9.40-8.52-11.23-7.71 YZ PlaneTotal (Max.) Horizontal (Max.)Vertical (Max.)LHCP (Max.)RHCP (Max.)Total (Min.)Horizontal (Min.)Vertical (Min.)LHCP (Min.)RHCP (Min.)Total (Avg.)Horizontal (Avg.)Vertical (Avg.)LHCP (Avg.)RHCP (Avg.) 2390 MHz-1.51-9.88-1.52-4.78-4.26-16.64-57.49-20.12-25.12-22.39-7.24-19.70-7.93-11.29-10.66 2400 MHz-1.63-9.33-1.65-5.02-4.27-17.22-44.15-20.89-25.21-23.25-7.24-19.18-7.96-11.35-10.66 2410 MHz-1.79-9.11-1.81-5.35-4.28-17.83-39.40-21.72-25.20-24.73-7.33-18.80-8.07-11.50-10.74 2420 MHz-2.00-9.05-2.04-5.72-4.37-18.30-34.43-22.46-25.61-26.82-7.47-18.54-8.23-11.68-10.89 2430 MHz-2.12-9.08-2.16-5.96-4.38-18.94-32.09-24.17-26.72-29.56-7.54-18.42-8.32-11.77-10.98 2440 MHz-2.05-9.03-2.10-5.96-4.23-18.52-30.41-24.27-26.55-30.50-7.38-18.12-8.18-11.60-10.84 2450 MHz-2.09-9.24-2.16-5.89-4.16-18.36-28.90-24.51-27.43-30.46-7.36-17.94-8.18-11.59-10.84 2460 MHz-2.11-9.32-2.20-5.70-4.04-18.31-28.02 -24.32-28.22-29.78-7.33-17.74-8.18-11.58-10.86 2470 MHz-2.31-9.33-2.41-5.80-4.12-18.48-29.51-23.83-29.17-29.34-7.47-17.79-8.35-11.77-11.02 2480 MHz-2.67-9.28-2.80-6.19-4.34-19.97-31.36-25.20-33.56-29.70-7.79-18.02-8.71-12.15-11.40 2490 MHz-2.58-8.75-2.75-6.26-4.18-20.77-33.74-25.62-45.28-28.82-7.71-17.96-8.66-12.09-11.37 2500 MHz-2.78-8.87-3.28-6.77-4.64-22.08-36.89-26.85-33.40-27.79-8.18-18.35-9.16-12.49-11.82 3D Total Frequency (MHz) Total Peak Gain (dBi) Horizontal Peak Gain (dBi) Vertical Peak Gain (dBi) LHCP Peak Gain (dBi) RHCP Peak Gain (dBi) Total Directivity (dBi) Horizontal Directivity (dBi) Vertical Directivity (dBi) LHCP Directivity (dBi) RHCP Directivity (dBi) Total Avg Gain (dB) Horizontal Avg Gain (dB) Vertical Avg Gain (dB) LHCP Avg Gain (dB) RHCP Avg Gain (dB) Total Efficiency (%) Horizontal Efficiency (%) Vertical Efficiency (%) LHCP Efficiency (%) RHCP Efficiency (%) Upper HEM (dB) Lower HEM (dB) Peak Gain @Theta (deg) Peak Gain @Phi (deg) 23900.02-3.81-0.60-0.82-0.364.917.565.407.816.92-4.89-11.37-6.00-8.62-7.2832.447.3025.1413.7318.71-9.26-6.87139.000.00 24000.00-3.82-0.50-0.86-0.264.817.375.457.746.90-4.81-11.19-5.95-8.60-7.1633.037.6025.4313.8019.23-9.10-6.84139.000.00 2410-0.05-3.80-0.60-1.07-0.154.777.285.407.626.96-4.82-11.07-5.99-8.69-7.1132.987.8125.1713.5219.46-9.03-6.89137.00187.00 2420-0.09-4.00-0.79-1.22-0.174.787.035.297.586.96-4.88-11.02-6.08-8.80-7.1332.547.9024.6413.1719.37-9.01-6.99137.00187.00 2430-0.05-4.03-0.79-1.27-0.134.776.855.267.496.92-4.82-10.88-6.05-8.76-7.0632.998.1624.8313.3019.69-8.88-6.98136.00188.00 24400.21-3.78-0.60-1.210.104.786.805.23 7.336.92-4.58-10.58-5.83-8.54-6.8134.848.7526.1014.0120.84-8.56-6.79135.00189.00 24500.27-3.64-0.53-1.360.154.756.775.237.076.86-4.48-10.40-5.76-8.44-6.7135.679.1226.5514.3321.34-8.38-6.74134.00189.00 24600.35-3.30-0.46-1.420.224.686.835.216.856.80-4.33-10.12-5.66-8.27-6.5836.879.7227.1514.9021.97-8.15-6.66134.00189.00 24700.35-3.20-0.55-1.280.214.716.835.176.966.84-4.35-10.03-5.72-8.24-6.6336.719.9226.7915.0021.71-8.09-6.74133.00191.00 24800.16-3.40-0.88-1.34-0.014.706.755.067.016.86-4.54-10.15-5.94-8.35-6.8835.129.6625.4714.6120.51-8.21-6.99133.00191.00 24900.45-3.13-0.77-0.900.254.796.705.017.137.01-4.34-9.84-5.77-8.03-6.7536.8510.38 26.4615.7421.11-7.93-6.83133.00192.00 25000.14-3.63-1.23-1.13-0.104.866.504.967.167.14-4.72-10.12-6.19-8.29-7.2333.759.7224.0414.8418.91-8.25-7.26132.00193.00

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Garmin International Inc Address : 1200 E. 151st. Street City: Olathe Kansas Country: United States To: Tele fication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Ne therlands Subje ct: Request for confidentiality FCC ID: IPH-B3556 Reference number: ###### Dear FCC TCB, 1. Long -Term Confidentiality Pursuant t o 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2020- 04-01 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period For selling purpose, please do not show all photos on the site until 2020/08/18.

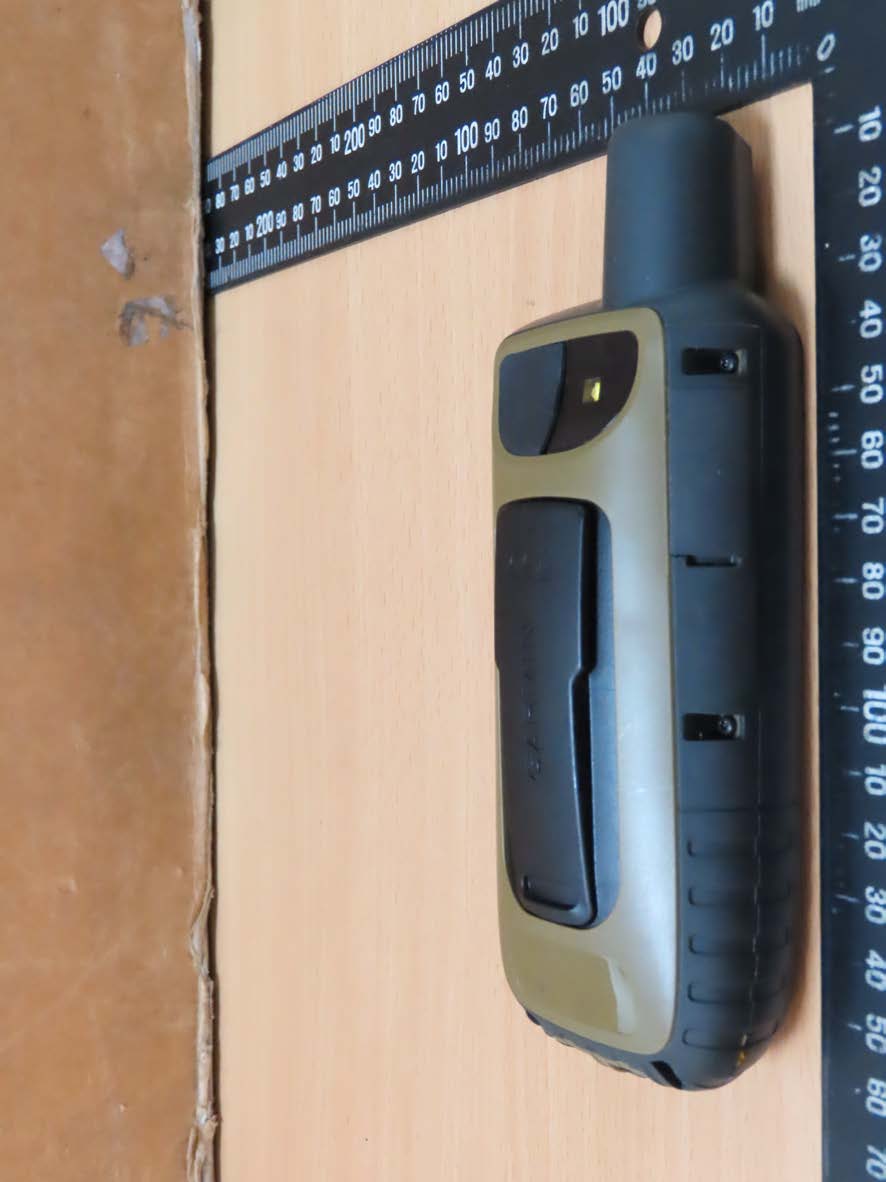

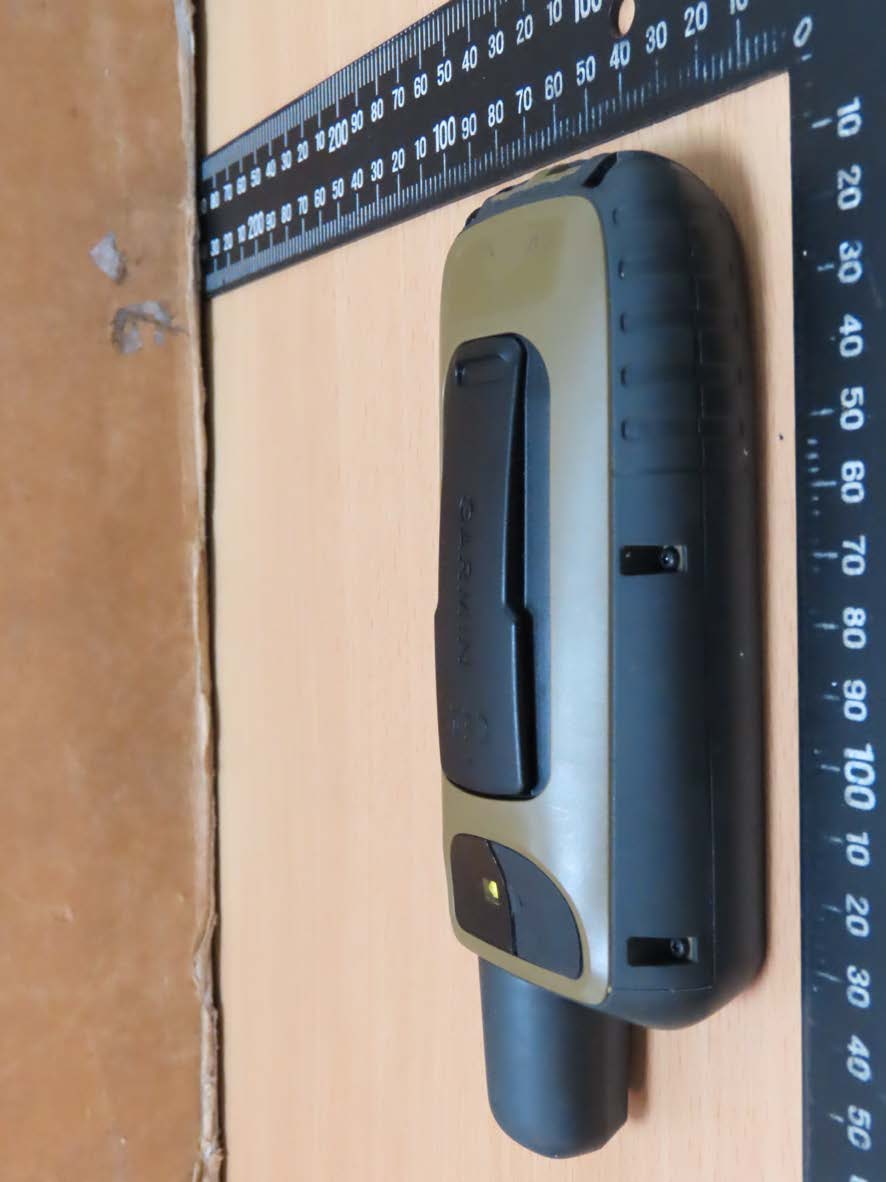

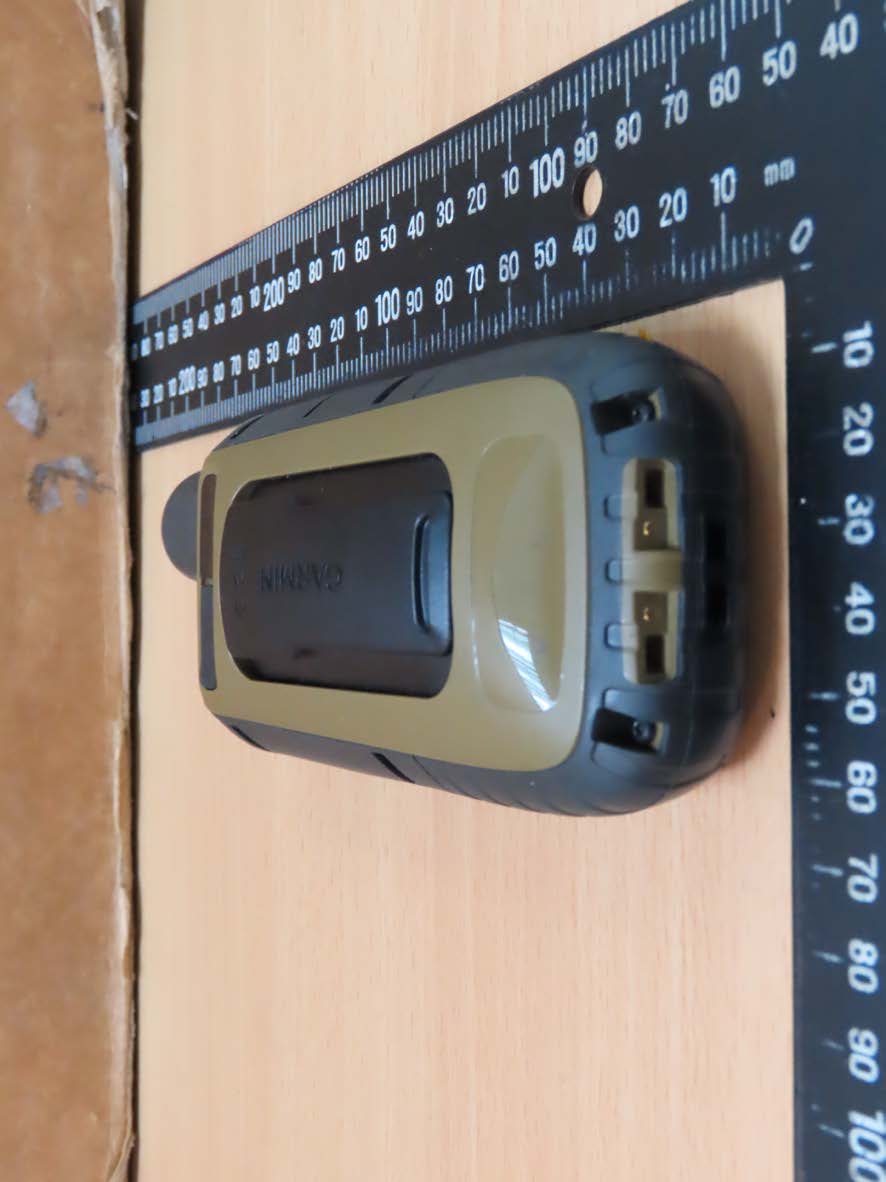

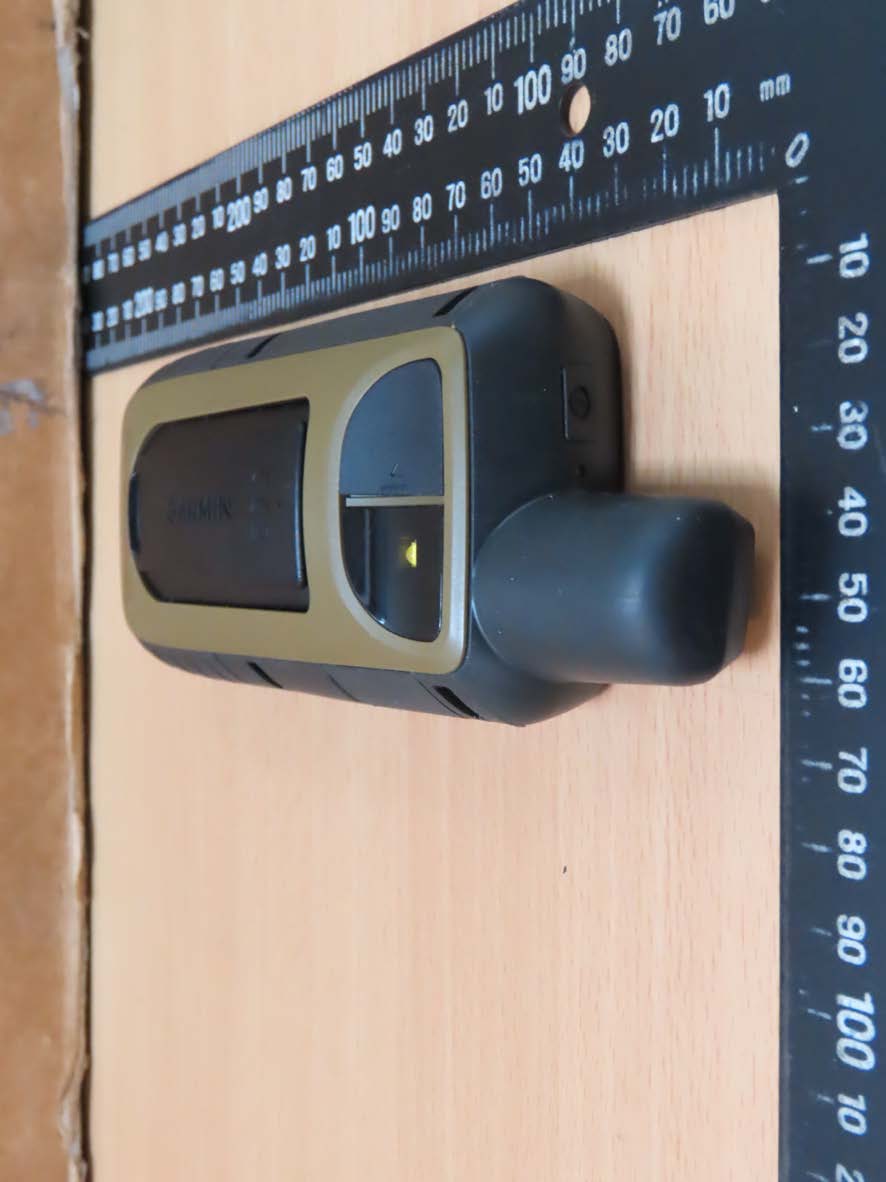

Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 30

E-label description Viewing Device Information You can view device information, such as the E-label, unit ID, software version, regulatory information and license agreement: Step 1, Turn on the device and you should see the home screen. Step 2, select Main menu. Step 3, select Setup. Step 4, select About. You will find this in the About page.

Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 30

Registration number: W6M21912-19555-C-1 FCC ID: IPH-B3556 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) WLAN EIRP = max. conducted output power + antenna gain + tune up EIRP =8.72 dBm + (0.35 dBi [antenna gain claimed by manufacturer] +0.28 dBm [tune up] = 9.35 dBm = 8.6099 mW Bluetooth Normal, EDR EIRP = max. conducted output power + antenna gain + tune up EIRP =3.22 dBm + (0.35 dBi [antenna gain claimed by manufacturer] +0.28 dBm [tune up] = 3.85 dBm = 2.4266 mW BLE EIRP = max. conducted output power + antenna gain + tune up EIRP =3.59 dBm + (0.35 dBi [antenna gain claimed by manufacturer] +0.41 dBm [tune up] = 4.35 dBm = 2.7227 mW 3.3 Exemption Limits for Routine Evaluation according to FCC KDB Publication RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 According to 447498 D01 General RF Exposure Guidance v06: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 3.3.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table . Worldwide Testing Services(Taiwan) Co., Ltd. Page 23 of 71 Registration number: W6M21912-19555-C-1 FCC ID: IPH-B3556 Table: SAR evaluation — Exemption limits for routine evaluation based on frequency and separation distance WLAN MHz 5 10 15 20 25 mm 2462 9.98 18.97 28.95 37.94 47.92 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2462 56.90 66.87 76.85 85.84 95.82 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2412-2462 MHz Max. output power level at 5 mm separation distance at 2462 MHz according to table is: 9.98 mW The product is exempt from SAR Evaluation/Testing because the output power of 8.6099 mW is below the exemption limit of 9.98 mW. Bluetooth Normal, EDR MHz 5 10 15 20 25 mm 2480 9.95 18.92 28.87 37.84 47.79 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2480 56.74 66.69 76.63 85.61 95.56 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2402-2480 MHz Max. output power level at 5 mm separation distance at 2480 MHz according to table is: 9.95 mW The product is exempt from SAR Evaluation/Testing because the output power of 2.4266 mW is below the exemption limit of 9.95 mW. Worldwide Testing Services(Taiwan) Co., Ltd. Page 24 of 71 Registration number: W6M21912-19555-C-1 FCC ID: IPH-B3556 BLE MHz 5 10 15 20 25 mm 2480 9.95 18.92 28.87 37.84 47.79 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2480 56.74 66.69 76.63 85.61 95.56 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2402-2480 MHz Max. output power level at 5 mm separation distance at 2480 MHz according to table is: 9.95 mW The product is exempt from SAR Evaluation/Testing because the output power of 2.7227 mW is below the exemption limit of 9.95 mW. Worldwide Testing Services(Taiwan) Co., Ltd. Page 25 of 71

of Applicant: Garmin International Inc Address: 1200 E. 151st Street Olathe, Kansas United States 66062 Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M21912-19555-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Handheld GPS Model No.: AB3556 FCC ID: IPH-B3556 Registration number: W6M21912-19555-C-1 FCC ID: IPH-B3556 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 N OTES .......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .............................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ................................................................................................... 3 1.4 APPLICATION DETAILS ................................................................................................................. 4 1.5 G ENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.6 T EST STANDARDS ......................................................................................................................... 6 2 TECHNICAL TEST ......................................................................................................................... 7 2.1 S UMMARY OF TEST RESULTS ........................................................................................................ 7 2.2 TEST ENVIRONMENT .................................................................................................................... 7 2.3 T EST EQUIPMENT LIST ................................................................................................................. 8 2.4 GENERAL TEST PROCEDURE ...................................................................................................... 11 3 TEST RESULTS (ENCLOSURE) ................................................................................................ 13 3.1 PEAK OUTPUT POWER (TRANSMITTER) ...................................................................................... 14 3.2 E QUIVALENT ISOTROPIC RADIATED POWER (EIRP) .................................................................. 23 3.3 EXEMPTION LIMITS FOR ROUTINE EVALUATION ACCORDING TO FCC KDB PUBLICATION ....... 23 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS .................................................... 26 3.5 S PURIOUS EMISSIONS (TX) ......................................................................................................... 27 3.6 CARRIER FREQUENCY SEPARATION ........................................................................................... 29 3.7 NUMBER OF HOPPING FREQUENCIES .......................................................................................... 32 3.7.1 Pseudorandom Frequency Hopping Sequence ................................................................. 34 3.7.2 Coordination of hopping sequences to other transmitters ................................................ 34 3.7.3 System Receiver Hopping Capability ............................................................................... 34 3.8 T IME OF OCCUPANCY (DWELL TIME) ........................................................................................ 35 3.9 20 DB BANDWIDTH ..................................................................................................................... 45 3.9.1 System Receiver Input Bandwidth ..................................................................................... 48 3.10 MINIMUM 6 DB BANDWIDTH ..................................................................................................... 49 3.11 RADIATED EMISSION ON THE BAND EDGE .................................................................................. 73 3.12 PEAK POWER SPECTRAL DENSITY ............................................................................................. 81 3.13 R ADIATED EMISSION FROM DIGITAL PART ................................................................................ 87 3.14 POWER LINE CONDUCTED EMISSION ......................................................................................... 88 APPENDIX ................................................................................................................................................ 1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 93 Registration number: W6M21912-19555-C-1 FCC ID: IPH-B3556 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this …

Text truncated - open the document above for the full version.

Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Set Up Photo of Conducted Emission charge stand Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 adapter charge Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 data Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Set Up Photo of Radiated Emission EMI charge stand Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 adapter charge Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 data Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 battery Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 27 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 RF Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 28 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B3556 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 29 of 30 Registration number: W6M21912-19555-FCC FCC ID: IPH-B35 56 Set Up Photo of RF Conducted Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 30 of 30
