IPH-C2401Outdoor GPS

GPSMAP ® 65/65S Quick Start Manual DRAFT Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Device Overview GNSS antenna Buttons Power button Mini-USB port (under weather cap) microSD ® card slot (under batteries) Battery compartment Mounting spine Battery cover D-ring Battery Information WARNING The temperature rating for the device may exceed the usable range of some batteries. Alkaline batteries can rupture at high temperatures. NOTICE Alkaline batteries lose a significant amount of their capacity as the temperature decreases. Use lithium batteries when operating the device in below freezing conditions. Installing Batteries The handheld device operates using two AA batteries (not included). Use NiMH or lithium batteries for best results. 1 Turn the D-ring counter-clockwise, and pull up to remove the cover. 2 Insert two AA batteries, observing polarity. 2Quick Start Manual DRAFT 3 Replace the battery cover, and turn the D-ring clockwise. Turning On the Device Hold . Buttons FINDSelect to open the search menu. MARK Select to save your current location as a waypoint. QUITSelect to cancel or return to the previous menu or page. Select to scroll through the main pages. ENTER Select to select options and acknowledge messages. MENU Select to open the options menu for the page that is currently open. Select twice to open the main menu (from any page). PAGE Select to scroll through the main pages. Select , , , or to select menu options and move the map cursor. INSelect to zoom in on the map. OUTSelect to zoom out on the map. Adjusting the Backlight Brightness Extensive use of screen backlighting can significantly reduce battery life. You can adjust the backlight brightness to maximize battery life. NOTE: The backlight brightness may be limited when the battery is low. 1 Select . 2 Select or . Quick Start Manual3 DRAFT The device may feel warm when the backlight setting is high. Acquiring Satellite Signals It may take 30 to 60 seconds to acquire satellite signals. 1 Go outdoors to an open area. 2 If necessary, turn on the device. 3 Wait while the device searches for satellites. A question mark flashes while the device determines your location. 4 Select to open the status page. shows the satellite signal strength. When the bars are full, the device has acquired satellite signals. GPS and Other Satellite Systems Using GPS and another satellite system together offers increased performance in challenging environments and faster position acquisition than using GPS only. However, using multiple systems can reduce battery life more quickly than using GPS only. Your device can use these Global Navigation Satellite Systems (GNSS). Multi-band systems use multiple frequency bands and allow for more consistent track logs and improved positioning. GPS multi-band: A satellite constellation built by the United States. GLONASS: A satellite constellation built by Russia. GALILEO multi-band: A satellite constellation built by the European Space Agency. QZSS multi-band: A satellite constellation built by Japan. IRNSS (NavIC): A satellite constellation built by India. Pairing a Smartphone with Your Device 1 Bring your compatible smartphone within 10 m (33 ft.) of your device. 2 From the main menu on your device, select Setup > Bluetooth. 3 On your compatible smartphone, enable Bluetooth ® technology, and open the Garmin Connect ™ app. 4 Follow the on-screen instructions in the Garmin Connect app to pair your device. 4Quick Start Manual DRAFT 5 Download and open the Garmin Explore ™ app. 6 Log in to the Garmin Explore app using your Garmin Connect username and password. 7 Select the device option to pair your device with the Garmin Explore app. Connected Features Connected features are available for your GPSMAP device when you pair the device to a compatible smartphone using the Garmin Connect app. Additional features are available when you connect your paired device to the Garmin Explore app on your smartphone. Go to garmin.com /apps for more information. EPO Downloads: Allows you to download an extended prediction orbit file to quickly locate GPS satellites and reduce the time it takes to get an initial GPS fix using the Garmin Connect app. Garmin Explore: The Garmin Explore app syncs and shares waypoints, tracks, and routes with your device. You can also download maps to your smartphone for offline access. LiveTrack: Allows friends and family to follow your activities in real time. You can invite followers using email or social media, allowing them to view your live data on a Garmin Connect tracking page. Phone notifications: Displays phone notifications and messages on your GPSMAP device using the Garmin Connect app. Software Updates: Allows you to receive updates for your device software using the Garmin Connect app. Navigation WARNING The device cannot calculate automotive routes using the included maps. Do not use the device for the automobile navigation, unless you have installed Garmin ® City Navigator ® street maps. Waypoints Waypoints are locations you record and store in the device. Waypoints can mark where you are, where you are going, or where you have been. You can add details about the location, such as name, elevation, and depth. Quick Start Manual5 DRAFT You can add a .gpx file that contains waypoints by transferring the file to the GPX folder. Creating a Waypoint You can save your current location as a waypoint. 1 Select MARK. 2 If necessary, select a field to make changes to the waypoint. 3 Select Done. Navigating to a Waypoint 1 Select FIND > Waypoints. 2 Select a waypoint. 3 Select Go. By default, your route to the waypoint appears as a straight, colored line on the map. Routes A route is a sequence of waypoints or locations that leads you to your final destination. Creating a Route 1 Select Route Planner > Create Route > Select First Point. 2 Select a category. 3 Select the first point in the …

Text truncated - open the document above for the full version.

dBi XY Plane XZ Plane YZ Plane Total (Max.) -0.07 -0.80 1.14 Horizontal (Max.) -0.11 -6.77 -1.38 Vertical (Max.) -7.56 -1.95 -0.48 LHCP (Max.) -2.73 -1.33 -1.31 RHCP (Max.) -3.30 -6.40 -0.96 Total (Min.) -13.27 -14.23 -8.87 Horizontal (Min.) -51.10 -53.98 -17.01 Vertical (Min.) -23.34 -14.30 -29.18 LHCP (Min.) -44.01 -20.22 -21.32 RHCP (Min.) -34.44 -42.75 -25.87 Total (Avg.) -5.28 -6.65 -3.13 Horizontal (Avg.) -7.52 -13.14 -6.32 Vertical (Avg.) -13.92 -8.22 -8.72 LHCP (Avg.) -8.88 -8.99 -5.66 RHCP (Avg.) -9.86 -14.70 -7.63 deg XY Plane XZ Plane YZ Plane Total (Max.) 130.00 179.00 141.00 Horizontal (Max.) 129.00 139.00 -96.00 Vertical (Max.) 177.00 179.00 139.00 LHCP (Max.) 249.00 179.00 -179.00 RHCP (Max.) 133.00 16.00 142.00 Total (Min.) 335.00 -127.00 3.00 Horizontal (Min.) 204.00 -129.00 -24.00 Vertical (Min.) 118.00 -127.00 -84.00 LHCP (Min.) 335.00 -111.00 169.00 RHCP (Min.) 309.00 86.00 18.00 Total (Avg.) 77.00 16.00 42.00 Horizontal (Avg.) 71.00 35.00 70.00 Vertical (Avg.) 57.00 16.00 34.00 LHCP (Avg.) 55.00 16.00 15.00 RHCP (Avg.) 68.00 42.00 25.00 dBi XY Plane XZ Plane YZ Plane Total (Max.) -0.25 -1.19 1.12 Horizontal (Max.) -0.28 -6.84 -1.40 Vertical (Max.) -7.30 -2.35 -0.34 LHCP (Max.) -2.79 -1.67 -1.64 RHCP (Max.) -3.53 -6.66 -1.08 Total (Min.) -12.87 -13.68 -8.88 Horizontal (Min.) -32.75 -45.74 -16.90 Vertical (Min.) -23.54 -13.88 -27.93 LHCP (Min.) -41.23 -19.24 -22.96 RHCP (Min.) -35.02 -51.98 -36.28 Total (Avg.) -5.12 -6.69 -3.12 Horizontal (Avg.) -7.29 -13.07 -6.39 Vertical (Avg.) -13.62 -8.30 -8.65 LHCP (Avg.) -8.74 -9.10 -5.66 RHCP (Avg.) -9.69 -14.97 -7.75 deg XY Plane XZ Plane YZ Plane Total (Max.) 129.00 179.00 141.00 Horizontal (Max.) 128.00 138.00 -96.00 Vertical (Max.) 36.00 179.00 139.00 LHCP (Max.) 249.00 178.00 -178.00 RHCP (Max.) 132.00 17.00 142.00 Total (Min.) 337.00 -127.00 5.00 Horizontal (Min.) 204.00 -131.00 -24.00 Vertical (Min.) 122.00 -126.00 -83.00 LHCP (Min.) 337.00 -112.00 169.00 RHCP (Min.) 359.00 86.00 18.00 Total (Avg.) 81.00 16.00 41.00 Horizontal (Avg.) 73.00 36.00 72.00 Vertical (Avg.) 50.00 16.00 32.00 LHCP (Avg.) 58.00 17.00 15.00 RHCP (Avg.) 75.00 47.00 25.00 dBi XY Plane XZ Plane YZ Plane Total (Max.) -0.09 -1.30 1.28 Horizontal (Max.) -0.15 -6.57 -1.20 Vertical (Max.) -6.97 -2.46 -0.02 LHCP (Max.) -2.41 -1.72 -1.63 RHCP (Max.) -3.62 -6.35 -1.05 Total (Min.) -12.16 -12.75 -8.72 Horizontal (Min.) -27.23 -38.91 -16.79 Vertical (Min.) -22.69 -13.15 -27.70 LHCP (Min.) -34.39 -18.93 -24.10 RHCP (Min.) -40.87 -40.96 -27.84 Total (Avg.) -4.66 -6.43 -2.84 Horizontal (Avg.) -6.75 -12.69 -6.16 Vertical (Avg.) -13.10 -8.06 -8.32 LHCP (Avg.) -8.22 -8.95 -5.40 RHCP (Avg.) -9.20 -15.09 -7.47 deg XY Plane XZ Plane YZ Plane Total (Max.) 252.00 179.00 141.00 Horizontal (Max.) 252.00 137.00 -96.00 Vertical (Max.) 175.00 179.00 139.00 LHCP (Max.) 248.00 178.00 119.00 RHCP (Max.) 133.00 -88.00 142.00 Total (Min.) 340.00 -128.00 7.00 Horizontal (Min.) 204.00 -132.00 -24.00 Vertical (Min.) 122.00 -127.00 -83.00 LHCP (Min.) 337.00 -127.00 169.00 RHCP (Min.) 359.00 88.00 18.00 Total (Avg.) 53.00 16.00 41.00 Horizontal (Avg.) 51.00 36.00 87.00 Vertical (Avg.) 57.00 15.00 32.00 LHCP (Avg.) 58.00 17.00 63.00 RHCP (Avg.) 95.00 55.00 25.00 dBi XY Plane XZ Plane YZ Plane Total (Max.) -0.23 -1.77 1.17 Horizontal (Max.) -0.31 -6.81 -1.52 Vertical (Max.) -6.93 -2.94 0.03 LHCP (Max.) -2.43 -2.13 -1.61 RHCP (Max.) -3.95 -6.12 -1.35 Total (Min.) -11.42 -12.01 -9.22 Horizontal (Min.) -27.26 -32.72 -16.48 Vertical (Min.) -23.70 -13.13 -26.96 LHCP (Min.) -35.70 -18.35 -24.80 RHCP (Min.) -51.65 -51.65 -21.67 Total (Avg.) -4.68 -6.52 -2.91 Horizontal (Avg.) -6.75 -12.67 -6.32 Vertical (Avg.) -12.90 -8.23 -8.24 LHCP (Avg.) -8.19 -9.08 -5.46 RHCP (Avg.) -9.36 -15.39 -7.65 deg XY Plane XZ Plane YZ Plane Total (Max.) 251.00 179.00 141.00 Horizontal (Max.) 251.00 137.00 -97.00 Vertical (Max.) 179.00 179.00 139.00 LHCP (Max.) 247.00 178.00 -144.00 RHCP (Max.) 131.00 -88.00 142.00 Total (Min.) 342.00 -129.00 8.00 Horizontal (Min.) 203.00 -133.00 -24.00 Vertical (Min.) 123.00 97.00 -83.00 LHCP (Min.) 338.00 -127.00 169.00 RHCP (Min.) 0.00 90.00 17.00 Total (Avg.) 54.00 16.00 41.00 Horizontal (Avg.) 51.00 40.00 91.00 Vertical (Avg.) 57.00 15.00 31.00 LHCP (Avg.) 57.00 17.00 73.00 RHCP (Avg.) 99.00 55.00 25.00 dBi XY Plane XZ Plane YZ Plane Total (Max.) -0.34 -2.25 1.03 Horizontal (Max.) -0.43 -7.09 -1.58 Vertical (Max.) -7.06 -3.39 -0.05 LHCP (Max.) -2.52 -2.62 -1.54 RHCP (Max.) -4.20 -6.13 -1.67 Total (Min.) -10.97 -11.58 -9.58 Horizontal (Min.) -30.33 -28.94 -16.18 Vertical (Min.) -21.18 -13.21 -27.45 LHCP (Min.) -42.53 -18.08 -25.25 RHCP (Min.) -41.20 -40.88 -20.58 Total (Avg.) -4.77 -6.59 -2.98 Horizontal (Avg.) -6.85 -12.73 -6.46 Vertical (Avg.) -12.81 -8.32 -8.26 LHCP (Avg.) -8.40 -9.23 -5.52 RHCP (Avg.) -9.40 -15.11 -7.78 deg XY Plane XZ Plane YZ Plane Total (Max.) 250.00 179.00 141.00 Horizontal (Max.) 250.00 137.00 -116.00 Vertical (Max.) 177.00 179.00 139.00 LHCP (Max.) 247.00 178.00 -144.00 RHCP (Max.) 255.00 -88.00 143.00 Total (Min.) 346.00 -129.00 9.00 Horizontal (Min.) 203.00 -134.00 -24.00 Vertical (Min.) 122.00 96.00 -82.00 LHCP (Min.) 338.00 -128.00 170.00 RHCP (Min.) 1.00 129.00 -176.00 Total (Avg.) 52.00 16.00 42.00 Horizontal (Avg.) 50.00 56.00 93.00 Vertical (Avg.) 58.00 16.00 31.00 LHCP (Avg.) 55.00 17.00 70.00 RHCP (Avg.) 47.00 63.00 25.00 dBi XY Plane XZ Plane YZ Plane Total (Max.) -0.57 -2.54 0.89 Horizontal (Max.) -0.65 -7.34 -1.54 Vertical (Max.) -7.13 -3.62 -0.13 LHCP (Max.) -2.87 -2.91 -1.42 RHCP (Max.) -4.26 -6.06 -1.95 Total (Min.) -10.38 -11.18 -10.08 Horizontal (Min.) -36.39 -26.21 -16.19 Vertical (Min.) -20.45 -14.08 -25.02 LHCP (Min.) -40.84 -18.54 -27.13 RHCP (Min.) -44.64 -47.77 -23.64 Total (Avg.) -4.96 -6.70 -3.04 Horizontal (Avg.) -7.07 -12.72 -6.64 Vertical (Avg.) -12.80 -8.52 -8.13 LHCP (Avg.) -8.69 -9.44 -5.59 RHCP (Avg.) -9.61 -14.92 -7.90 deg XY Plane XZ Plane YZ Plane Total (Max.) 250.00 179.00 141.00 Horizontal (Max.) 250.00 137.00 -115.0…

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Garmin International Inc Address : 1200 E. 151st. Street City: Olathe Kansas Country: United States To: T elefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Su bject: Request for confidentiality FCC ID: IPH-C2401 Reference number: ###### Dear FCC TCB, 1 . Long-Term Confidentiality P ursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) P ursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): I nternal Photos User’s Manual Test Set-up Photos External Photos Justification: For selling purpose, please do not show all photos on the site until 2020/09/04. D ate: 2020-07-10 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) S hort-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) F CC must be informed when marketing begins earlier. 4) R elease takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or befor e ex piration of the STC period

July 09, 2020 Federal Communications Commission Equip Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized Annabel Ou (Certification Commissioner), Worldwide Testing Services (Taiwan) Co., Ltd, 6F., No.58, Ln. 188, Ruiguang Rd., Neihu Dist.,Taipei City 11491, Taiwan ( R. O. C.) to act on Garmin’s behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) for equipment FCC authorization. This authorization is limited to FCC ID: IPH-C2401. Consistent with the foregoing, Annabel Ou is authorized to: 1) Sign Form 731, 2) Sign letters of application, 3) Request confidentiality, and 4) Exchange data and information with the FCC, and authorized TCBs on behalf of Garmin. This authorization is not assignable to other beyond Annabel Ou. No party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. This authorization expires July 08, 2021 Sincerely, Dan Irish Senior Compliance Engineer -----------------------------------------------------nothing follows---------------------------------------------------- June 4, 2020 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue PO Box 11490, Station H Ottawa, Ontario, Canada K2H 8S2 To Whom It May Concern: Pursuant to 47 CFR 2.911, Garmin International, Inc. (Garmin) has authorized the following Garmin International Associates to act on Garmin's behalf for the sole and express purpose of processing applications to the Federal Communication Commission (FCC) and Innovation, Science and Economic Development Canada (ISED) for equipment authorization or certification. Ms. Poojita Bhattu, Compliance Engineer, Outdoor Products Mr. Doug Burroughs, Senior Compliance Engineer, Wellness & Fitness Products Mr. Jeffrey Hailey, Lead Compliance Eng ineer, Marine Products Mr. Dan Irish, Senior Compliance Engineer, Consumer Automotive Products Mr. Hadid Jones, Team Leader, Compliance Engineering Mr. Tim Olson, Senior Compliance Engineer, Consumer Automotive & Auto OEM Products Mr. William Pertner, Lead Compliance Engineer, Outdoor Products Mr. Cody Riggle, Compliance Engineer, Marine Products Mr. David Utt, Staff Compliance Engineer, Wellness & Fitness Products As such, the Garmin Associates listed above are authorized to: 1) sign Form 731, 2) sign letters of application, 3) request confidentiality, and 4) exchange data and information with the FCC, IC and/or authorized TCBs on behalf of Garmin. In addition, these individuals shall be considered "authorized individuals" to act on Garmin's behalf where an "authorized individual's" attestation is necessary or preferred. This authorization remains in effect until notified to the contrary by Garmin. Sincerely, Mr. Douglas Kealey, Manager Environmental and Regulatory Affairs

FEDERAL COMMUNICATIONS COMMISSION SUPPLIERS DECLARATION OF CONFORMITY (SDoC) Equipment: Outdoor GPS Trademark(s): GARMIN Manufacturer: Garmin International Inc FCC ID in case other parts of this equipment are subject to certification: IPH-C2401 This device complies with Part 15 of the FCC Rules. Ope ration is subject to the following two conditions: (1 ) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. T he following test reports are subject to this declaration: Test report number: Issue date: W6M22004-19834-P-15B July 31, 2020 T he following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Garmin International Inc Name/Title (legal representative): Dan Irish Address: 1200 E. 151st. Street Olathe Kansas United States Phone: 913-440-1309 Fax: 913 397-8282 E-mail: [email protected] Date: 2020-07-09 Signature: FCC

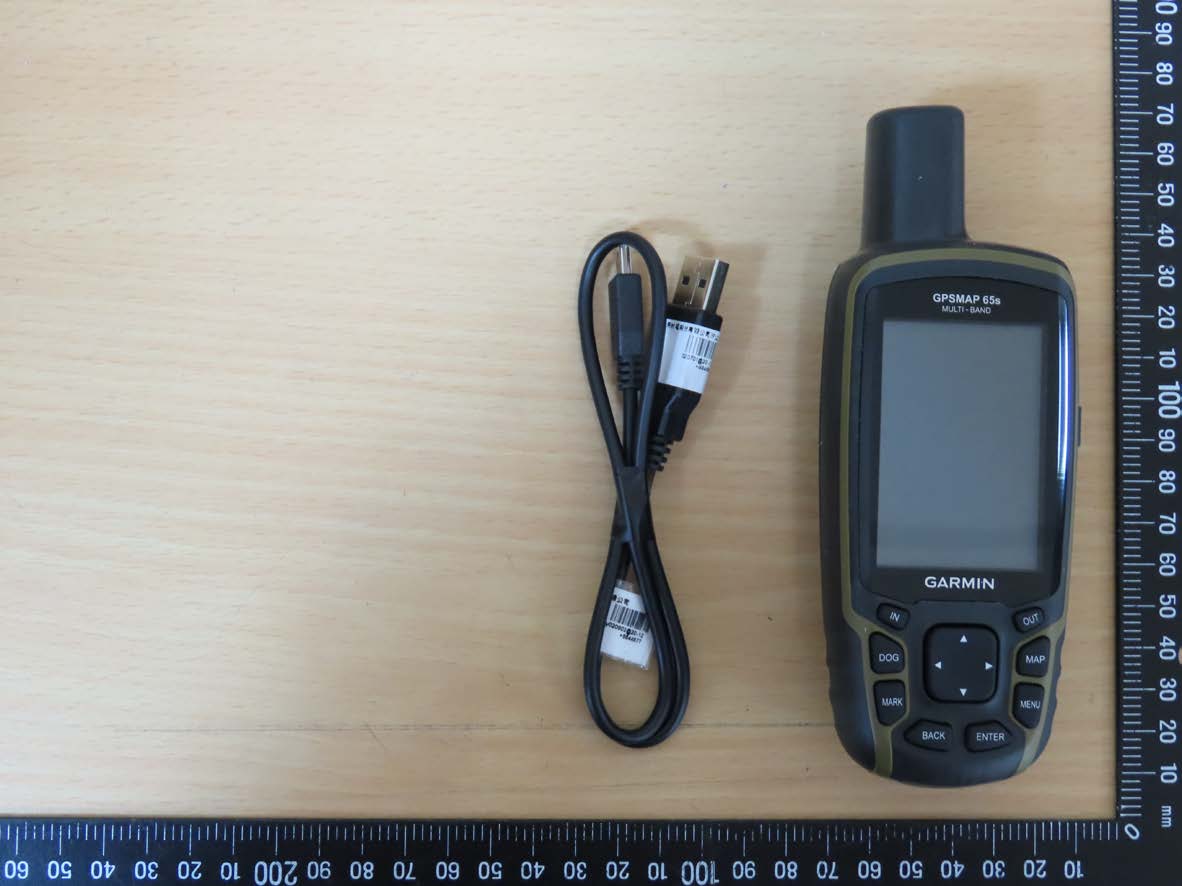

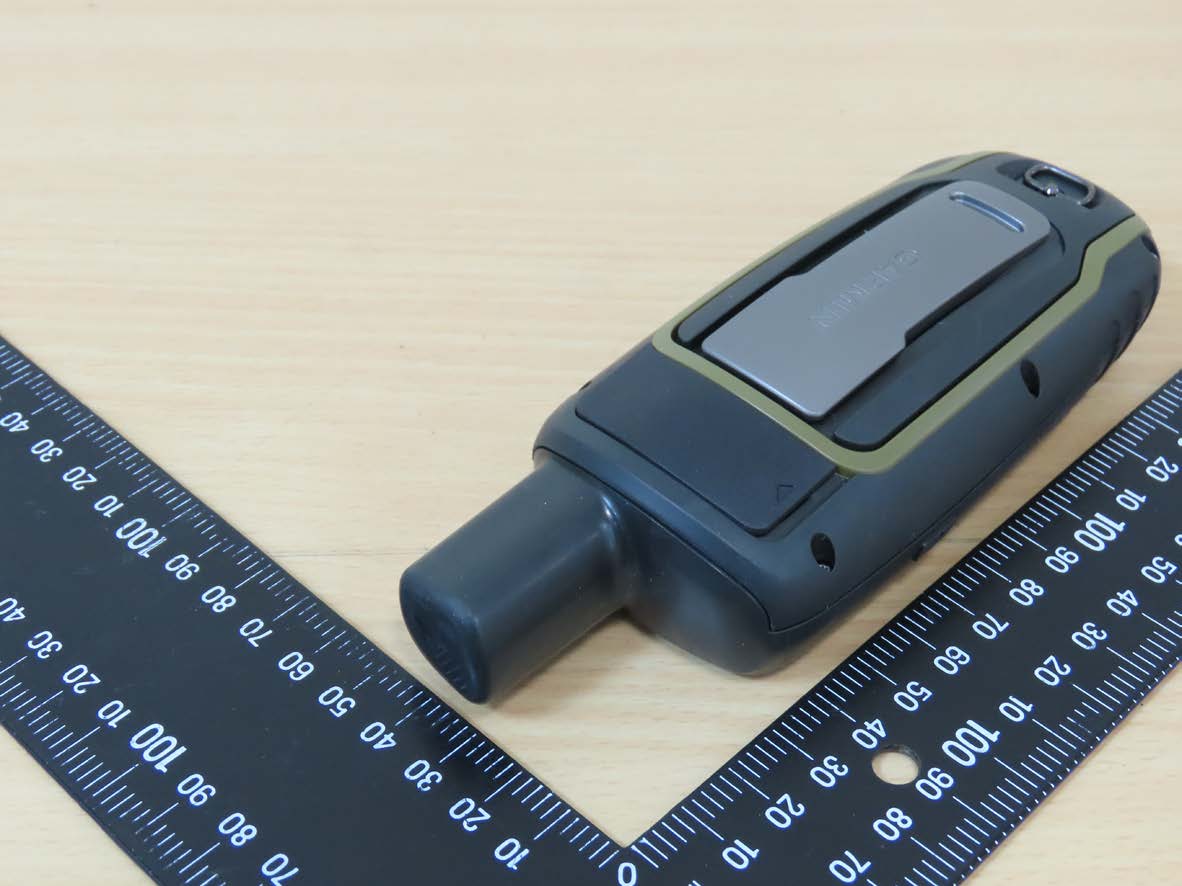

Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 24

E-label description Viewin g Device Information You can view devic e information, suc h as th e E-label , un it ID, softwar e version, regulatory information and license agreement: Step 1, Press MENU button twice to enter Main Menu. Step 2, Select Setup. Step 3, Scroll page and select About. You will find this in the About page:

Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 24

R egistration number: W6M22004-19834-C-1 FCC ID: IPH-C2401 3.2 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) BT2.0 EIRP = max. conducted output power + antenna gain EIRP =4.15 dBm + (1.3 dBi [antenna gain claimed by manufacturer] = 5.45 dBm = 3.51 mW BT4.0 EIRP = max. conducted output power + antenna gain EIRP =-4.45 dBm + (1.3 dBi [antenna gain claimed by manufacturer] = -3.15 dBm = 0.48 mW 3.3 Exemption Limits for Routine Evaluation according to FCC KDB Publication RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 3.3.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table . Table: SAR evaluation — Exemption limits for routine evaluation based on frequency and separation distance MHz 5 10 15 20 25 mm 2480 9.95 18.92 28.87 37.84 47.79 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2480 56.74 66.69 76.63 85.61 95.56 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2402-2480 MHz BT2.0 Max. output power level at 5 mm separation distance at 2480 MHz according to table is: 9.95 mW The product is exempt from SAR Evaluation/Testing because the output power of 3.51 mW is below the exemption limit of 9.95 mW. BT4.0 Max. output power level at 5 mm separation distance at 2480 MHz according to table is: 9.95 mW The product is exempt from SAR Evaluation/Testing because the output power of 0.48 mW is below the exemption limit of 9.95 mW. Worldwide Testing Services(Taiwan) Co., Ltd. Page 19 of 56

o f Applicant: Garmin International Inc Address: 1200 E. 151st Street Olathe, Kansas United States 66062 Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 I ndustry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M22004-19834-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Outdoor GPS Model No.: AC2401 FCC ID: IPH-C2401 Registration number: W6M22004-19834-C-1 FCC ID: IPH-C2401 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 NOTES .......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .............................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ................................................................................................... 3 1.4 APPLICATION DETAILS ................................................................................................................. 4 1.5 GENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.6 TEST STANDARDS ......................................................................................................................... 5 2 TECHNICAL TEST ......................................................................................................................... 6 2.1 S UMMARY OF TEST RESULTS ........................................................................................................ 6 2.2 TEST ENVIRONMENT .................................................................................................................... 6 2.3 T EST EQUIPMENT LIST ................................................................................................................. 7 2.4 GENERAL TEST PROCEDURE ...................................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ................................................................................................ 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ...................................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER ................................................................................ 19 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS ............................................................................ 19 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS .................................................... 20 3.5 SPURIOUS EMISSIONS (TX) ......................................................................................................... 21 3.6 CARRIER FREQUENCY SEPARATION ........................................................................................... 23 3.7 N UMBER OF HOPPING FREQUENCIES .......................................................................................... 26 3.7.1 Pseudorandom Frequency Hopping Sequence ................................................................. 28 3.7.2 Coordination of hopping sequences to other transmitters ................................................ 28 3.7.3 System Receiver Hopping Capability ............................................................................... 28 3.8 TIME OF OCCUPANCY (DWELL TIME) ........................................................................................ 29 3.9 20DB BANDWIDTH ..................................................................................................................... 35 3.9.1 System Receiver Input Bandwidth ..................................................................................... 38 3.10 M INIMUM 6 DB BANDWIDTH ..................................................................................................... 39 3.11 RADIATED EMISSION ON THE BAND EDGE .................................................................................. 42 3.12 PEAK POWER SPECTRAL DENSITY ............................................................................................. 48 3.13 R ADIATED EMISSION FROM DIGITAL PART ................................................................................ 51 3.14 P OWER LINE CONDUCTED EMISSION ......................................................................................... 52 APPENDIX .............................................................................................................................................. 56 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 56 Registration number: W6M22004-19834-C-1 FCC ID: IPH-C2401 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 56 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance…

Text truncated - open the document above for the full version.

Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Set Up Photo of Radiated Emission EMI Charge Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Battery Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Data Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 RF Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Set Up Photo of Conducted Emission Charge Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 24 Registration number: W6M22004-19834-FCC FCC ID: IPH-C2401 Data Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 24
