IPH-E3545Low Power Transmitter

TD 50 INSTALLATION INSTRUCTIONS Important Safety Information WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. CAUTION Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. NOTICE When drilling or cutting, always check what is on the opposite side of the surface. Mounting Considerations NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty. The mounting surface must be flat to avoid damaging the device when it is mounted. Using the included hardware and template, you can flush mount the device in the dashboard. If you want to mount the device using an alternative method where it appears flat with the front of the dashboard, you must purchase a flat- mount kit (professional installation recommended) from your Garmin ® dealer. When selecting a mounting location, observe these considerations. • The mounting location should be at or below eye level to provide optimal viewing as you operate your vessel. • The mounting surface must be strong enough to support the weight of the device and protect it from excessive vibration or shock. • To avoid interference with a magnetic compass, the device should not be installed closer to a compass than the compass-safe distance value listed in the product specifications. • The area behind the mounting surface must allow room for the routing and connection of the cables. Mounting the Device NOTICE Be careful when cutting the hole to flush mount the device. There is only a small amount of clearance between the case and the mounting holes, and cutting the hole too large could compromise the stability of the device after it is mounted. To avoid potential damage to the powder coating, use only the included screws to mount the device. Using screws other than the ones included will void your warranty. The included template and hardware can be used to flush mount the device in your dashboard. There are three options for hardware based on the mounting surface material. • You can drill pilot holes and use the included wood screws. • You can drill holes and use the included nut plates and machine screws. The nut plates can add stability to a thinner surface. • You can punch holes, tap them to M3, and use the included machine screws. 1 Trim the template and make sure it fits in the location where you want to mount the device. 2 Secure the template to the selected location. 3 Using a 3.6 mm ( 9 / 64 in.) drill bit, drill one or more of the holes inside the corners of the solid line on the template to prepare the mounting surface for cutting. 4 Using a jigsaw or rotary tool, cut the mounting surface along the inside of the solid line indicated on the template. 5 Place the device in the cutout to test the fit. 6 If necessary, use a file and sandpaper to refine the size of the cutout. 7 After the device fits correctly in the cutout, ensure the mounting holes on the device line up with the larger 7.2 mm ( 9 / 32 in.) holes on the template. 8 If the mounting holes on the device do not line up, mark the new hole locations. 9 Based on your mounting surface, drill or punch and tap the larger holes: • Drill 3.2 mm ( 1 / 8 in.) pilot holes for the included wood screws, and skip to step 18. • Drill 7.2 mm ( 9 / 32 in.) holes for the included nut plate and machine screws. • Punch and tap M4 holes for the included machine screws, and skip to step 18. 10 If using the nut plates, starting in one corner of the template, place a nut plate over the larger hole drilled in step 9. The smaller hole on the nut plate should line up with the smaller hole on the template. 11 If the smaller 3.6 mm ( 9 / 64 in.) hole on the nut plate does not line up with the smaller hole on the template, mark the new location. 12 Repeat steps 10 and 11 for each nut plate. 13 Using a 3.6 mm ( 9 / 64 in.) drill bit, drill the smaller holes. 14 Remove the template from the mounting surface. 15 Starting in one corner of the mounting location, place a nut plate on the back of the mounting surface, lining up the large and small holes. The raised portion of the nut plate should fit into the larger hole. Printed in Taiwan April 2020 190-02728-90_01 DRAFT 16 Secure the nut plate to the mounting surface by fastening an included M3 screw through the smaller 3.6 mm ( 9 / 64 in.) hole. 17 Repeat steps 15 and 16 for each of the nut plates along the top and bottom of the device. 18 If you will not have access to the back of the device after you mount it, connect all necessary cables to the device before placing it into the cutout. NOTE: To prevent corrosion of the metal contacts, cover unused connectors with the attached weather caps. 19 Place the device into the cutout. 20 Secure the device to the mounting surface using the included M3 screws or wood screws, depending on the mounting method. 21 Snap the trim caps into place. Connection Considerations The marine instrument connects to power and to data sources through a NMEA 2000 ® network. Although the instrument cannot directly receive NMEA ® 0183 data, it can display NMEA 0183 data from sources connected to a GNX ™ 20 or GNX 21 device (sold separately) on the same NMEA 2000 network. The instrument can also receive data from Nexus ® instruments and sensors using a device (sold separately). NMEA 2000 Connection Considerations NOTICE If you are connecting to an existing NMEA 2000 network, identify the NMEA 2000 power cable. Only one NMEA 2000 power cable is required for the NMEA 2000 network to operate properly. A NMEA 2000 Power Isolator (010-11580-00) should be used in installations where …

Text truncated - open the document above for the full version.

Important Safety and Product Information2 Informations importantes sur le produit et la sécurité5 guida Informazioni importanti sulla sicurezza e sul prodotto7 Wichtige Sicherheits- und Produktinformationen10 Información importante sobre el producto y tu seguridad12 Informações importantes sobre segurança e sobre o produto15 Belangrijke veiligheids- en productinformatie17 Vigtige produkt- og sikkerhedinformationer19 Tärkeitä turvallisuus- ja tuotetietoja21 Viktig sikkerhets- og produktinformasjon23 Guiden Viktig säkerhets- och produktinformation25 Правила техники безопасности и сведения об изделии27 Important Safety and Product Information WARNING Failure to heed the following warnings could result in death or serious injury. Battery Warnings A lithium-ion battery is used in this device. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury. • Do not disassemble, modify, remanufacture, puncture or damage the device or batteries. • Do not expose the device or batteries to fire, explosion, or other hazard. Device Warnings • Do not leave the device exposed to a heat source or in a high- temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not operate the device outside of the following temperature range: from -20° to 55°C (from -4° to 131°F). • When storing the device for an extended time period, store within the following temperature range: from 0° to 25°C (from 32° to 77°F). • Do not use a power cable, data cable and/or power adapter that is not approved or supplied by Garmin ® . CAUTION Failure to heed the following cautions could result in minor or moderate injury. Casting To avoid injury, always be cautious of your surroundings when casting the device. NOTICE Failure to heed the following notice could result in personal or property damage, or negatively impact the device functionality. Battery Notice Contact your local waste disposal department to dispose of the device/batteries in accordance with applicable local laws and regulations. GPS Notice The navigation device may experience degraded performance if you use it in proximity to any device that uses a terrestrial broadband network operating close to the frequencies used by any Global Navigation Satellite System (GNSS), such as the Global Positioning Service (GPS). Use of such devices may impair reception of GNSS signals. Lost Devices Garmin is not responsible for lost devices. Product Environmental Programs Information about the Garmin product recycling program and WEEE, RoHS, REACH, and other compliance programs can be found at www.garmin.com/aboutGarmin/environment. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. 2 EN Innovation, Science and Economic Development Canada Compliance This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency Radiation Exposure This device is a mobile transmitter and receiver that uses an internal antenna to send and receive low levels of radio frequency (RF) energy for data communications. The device emits RF energy below the published limits when operating in its maximum output power mode and when used with Garmin authorized accessories. To comply with RF exposure compliance requirements, the device should be used as described in the manual. The device should not be used in other configurations. This device must not be co-located or operated in conjunction with any other transmitter or antenna. Software License Agreement BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) …

Text truncated - open the document above for the full version.

Page 1 of 2 February 26, 2020 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID: IPH-E3545 Product: Transmitter operated under 47CFR Section 15C Dear Sirs: Garmin International, Inc. requests that the material in the Block Diagram, Operational Description, Schematics, and Tune up Procedure be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES E3545 Conf BlkDia.pdf E3545 Conf OpDes.pdf E3545 Conf Schem.pdf E3545 Conf TunPro.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Block Diagram, Operational Description, Schematics, and Tune up Procedure which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: IPH-E3545 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed Block Diagram, Operational Description, Schematics, and Tune up Procedure. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry the protection sought is narrowly drawn as provided in regulations. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

February 26, 2020 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-E3545 1200 East 151st Street CORES number: 0005088588 Olathe, KS 66062 Re: Grant Deferral Date May 15, 2020 To Whom It May Concern: Please be advised Garmin International, Inc. requests the associated application be processed and defer issuance of the Grant of Authorization until May 15, 2020. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

February 26, 2020 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005088588 Equipment: FCC ID: IPH-E3545 FCC Rules: Parts 2, 15C To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be uploaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Block Diagram, Operational Description, Schematics, and Tune up Procedure be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. CONFIDENTIAL FILES E3545 Conf BlkDia.pdf E3545 Conf OpDes.pdf E3545 Conf Schem.pdf E3545 Conf TunPro.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

March 9, 2020 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-E3545 FCC Rules: Parts 2 and 15C Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 180 days after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files File E3545 Short Term Conf ExtPho.pdf E3545 Short Term Conf IntPho.pdf E3545 Short Term Conf TSup.pdf E3545 Short Term Conf UserMan.pdf E3545 Short Term Conf UserMan 1.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 +1 913 837-3214

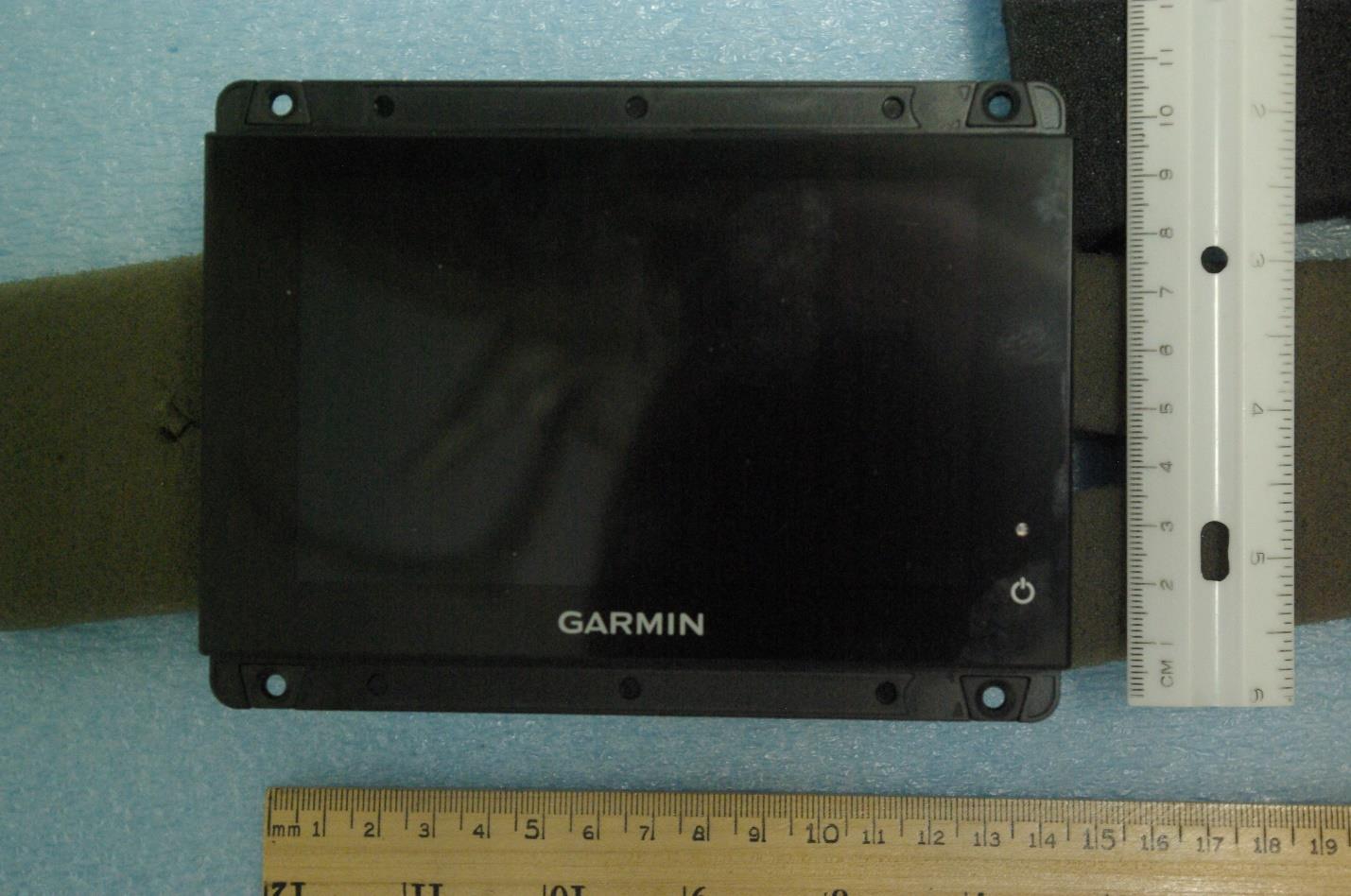

Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249 Date: February 19, 2020 Revision 1 File: E3545 Short Term Conf ExtPho Page 1 of 3 External photographs Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249 Date: February 19, 2020 Revision 1 File: E3545 Short Term Conf ExtPho Page 2 of 3 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249 Date: February 19, 2020 Revision 1 File: E3545 Short Term Conf ExtPho Page 3 of 3

Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249 Date: February 19, 2020 Revision 1 File: E3545 Short Term Conf IntPho Page 1 of 4 Internal Photographs Front of PCB Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249 Date: February 19, 2020 Revision 1 File: E3545 Short Term Conf IntPho Page 2 of 4 Back of PCB Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249 Date: February 19, 2020 Revision 1 File: E3545 Short Term Conf IntPho Page 3 of 4 Antenna Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249 Date: February 19, 2020 Revision 1 File: E3545 Short Term Conf IntPho Page 4 of 4 Back of Display

Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-210 RSS-247 Date: February 26, 2020 Revision 1 File: E3545 MPE Exclusion Page 1 of 1 Model: E3545 Test Number: 190806 MPE Calculator RF Exposure uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 NOTE: need to update cell below value Transmitter maximum Output power operating at 100% (Watts) 0.0720 Antenna Gain (dBi) 2 0.07 Antenna Gain (Numeric) 1.58 Tx Frequency (MHz) 2437 Calcualtion power (Watts) 0.07 dBd + 2.17 = dBi dBi to dBd 2.2 Antenna Gain (dBd) -0.17 Cable Loss (dB) 0.0 Adjusted Power (dBm) 18.57 Antenna minus cable (dBi) 2.00 Calculated ERP (mw) 69.236 EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 114.112 Radiated (EIRP) dBm 20.573 ERP = EIRP - 2.17 dB Radiated (ERP) dBm 18.403 Occupational Limit 5 mW/cm 2 Frequency (MHz) Occupational Limit (mW/cm 2 ) Public Limit (mW/cm 2 ) 50 W/m 2 30-300 1 0.2 General Public Limit 300-1,500 f/300 f/1500 1.0 mW/cm 2 1,500-10,000 5 1 10.0 W/m 2 Occupational Limit 0.6455ƒ 0.5 W/m 2 39.66212 W/m 2 Frequency (MHz) Occupational Limit (W/m 2 ) Public Limit (W/m 2 ) General Public Limit 100-6,000 0.6455ƒ 0.5 0.02619ƒ 0.6834 W/m 2 6,000-15,000 50 5.40397 W/m 2 48-300 1.291 300-6,000 0.02619ƒ 0.6834 6,000-15,000 50 10 f = Transmit Frequecny (MHz) f (MHz) = 2437 P T = Power Input to Antenna (mW) P T (mW) = 72.0000 Duty cycle (percentage of operation) % = 100 P A = Adjusted Power due to Duty cycle or Cable Loss (mW) P A (mW) = 72.00 G N = Numeric Gain of the Antenna GN (numeric) = 1.58 S 20 = Power Density of device at 20cm (W/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (W/m 2 ) = 0.23 S L = Power Density Limit (W/m 2 ) S L (W/m 2 )= 5.404 R C = Minimum distance to the Radiating Element for Compliance (cm) R C =√ (P A G N /4π S L ) R C (cm) = 4.1 S C = Power Density of the device at the Compliance Distance R C (W/m 2 ) S C =(P A G N )/(4πR C ) 2 S C (W/m 2 ) = 5.40 R 20 = 20cm R20= 20 For Complaince with Canada General Population Limits, User Manual must indicate a minimum seperation distance of 4.1 cm FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW)

Testing NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: February 26, 2020 Revision 3 File: E3545 DTS TstRpt 190806 r3 Page 1 of 60 Application For Grant of Certification 47 CFR, PART 15C - Intentional Radiators 47 CFR Paragraph 15.247 and Industry Canada RSS-GEN and RSS-247 Model: E3545 2402-2480 MHz (DTS) Broadband Digital Transmission System FCC ID: IPH-E3545 IC: 1792A-E3545 Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 FCC Designation: US5305 ISED Registration: 3041A-1 Test Report Number: 190806 Test Date: August 6, 2019 Authorized Signatory: Scot D. Rogers This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 Testing NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: February 26, 2020 Revision 3 File: E3545 DTS TstRpt 190806 r3 Page 2 of 60 Tabl e of Cont ents Table of Contents TABLE OF CONTENTS .................................................................................................. 2 REVISIONS ..................................................................................................................... 4 FOREWORD ................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 6 EQUIPMENT TESTED .................................................................................................... 8 Equipment Function ............................................................................................................................................ 9 Equipment Configuration.................................................................................................................................. 10 APPLICATION FOR CERTIFICATION ......................................................................... 11 APPLICABLE STANDARDS & TEST PROCEDURES ................................................ 12 TESTING PROCEDURES ............................................................................................ 12 AC Line Conducted Emission Test Procedure ................................................................................................ 12 Radiated Emission Test Procedure ................................................................................................................... 12 Antenna Port Conducted Emission Test Procedure ........................................................................................ 13 Diagram 1 Test arrangement for radiated emissions of tabletop equipment ...................................................... 14 Diagram 2 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 15 Diagram 3 Test arrangement for Antenna Port Conducted emissions ............................................................... 16 TEST SITE LOCATIONS .............................................................................................. 16 LIST OF TEST EQUIPMENT ........................................................................................ 17 UNITS OF MEASUREMENTS ...................................................................................... 18 ENVIRONMENTAL CONDITIONS................................................................................ 18 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................. 18 INTENTIONAL RADIATORS ........................................................................................ 18 Antenna Requirements ...................................................................................................................................... 18 Testing NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 Test: 190806 IC: 1792A-E3545 Phone/Fax: (913) 837-3214 Test to: CFR47 15C, RSS-Gen RSS-247 Date: February 26, 2020 Revision 3 File: E3545 DTS TstRpt 190806 r3 Page 3 of 60 Restricted Bands of Operation .......................................................................................................................... 19 Table 1 Harmonic Radiated Emissions in Restricted Bands Data (Mode 2 BLE (GMSK)) .............................. 19 Table 2 Harmonic Radiated Emissions in Restricted Bands Data (Mode 3 802.11b) ....................................... 20 Table 3 Harmonic Radiated Emissions in Restricted Bands Data (Mode 4 802.11g) ....................................... 21 Table 4 Harmonic Radiated Emissions in Restricted Bands Data (Mode 5 802.11n) ....................................... 22 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 22 General Radiated Emissions Procedure ........................................................................................................... 23 Table 5 General Radiated Emissions Data ........................................................................................................ 24 Summary of Results for General Radiated Emissions .................................................................................... 24 Operation in the Band 2400 – 2483.5 MHz ..…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. SN’s: 3998030586, 3998030578 4405 West 259 th Terrace Model: E3545 FCC ID: IPH-E3545 Louisburg, KS 66053 …
