IPH-F3ARGD01Low Power Transmitter (2400-2483.5 MHz)

F3ARGD01 Quick Start Manual WARNING See the Important Safety and Product Information guide in the GPS device product box for product warnings and other important information. Always consult your physician before you begin or modify any exercise program. Getting Started When using your device for the first time, you should complete these tasks to set up the device and learn about the basic features. 1 Charge the device (page 7). 2 Put on the optional heart rate monitor (page 7). 3 Go for a run (page 3). 4 Upload your run to Garmin Connect™ (page 4). 5 Register the device (page 10). 6 Get more information (page 10). DRAFT Keys  Select to turn the backlight on and off. Hold to turn the device on and off.  Select to unlock the device. Select to start and stop the timer. Select to choose an option or to acknowledge a message.  Select to mark a new lap. Select to return to the previous screen.  Select to scroll through the data screens, options, and settings. Hold to scroll quickly. 2 DRAFT Status Icons Icons appear at the top of the home screen. A flashing icon means the device is searching for a signal. A solid icon means the signal was found or the sensor is connected. GPS Bluetooth ® Heart rate Going for a Run The device comes partially charged. You may need to charge the device (page 7) before going for a run. 1 Hold to turn on the device. 2 From the time of day screen, select a key, and select to unlock the device. 3 Go outside, and wait while the device locates satellites. The satellite bars turn green, and the timer screen appears. 3 DRAFT 4 Select to start the timer. 5 Go for a run. 6 After you complete your run, select to stop the timer. 7 Select an option: • Select Resume to restart the timer. • Select Save to save the run and reset the timer. A summary appears. NOTE: You can now upload your run to Garmin Connect. • Select Discard to delete the run. Using Garmin Connect You can upload all of your activity data to Garmin Connect for comprehensive analysis. With Garmin Connect, you can view a map of your activity, and share your activities with friends. 1 Connect the device to your computer using the USB cable. 4 DRAFT 2 Go to www.garminconnect.com /start. 3 Follow the on-screen instructions. Garmin Connect Connect with your friends on Garmin Connect . Garmin Connect gives you the tools to track, analyze, share, and encourage each other. Record the events of your active lifestyle including runs, walks, rides, swims, hikes, triathlons, and more. To sign up for a free account, go to www.garminconnect.com /start. Store your activities: After you complete and save an activity with your device, you can upload that activity to Garmin Connect and keep it as long as you want. Analyze your data: You can view more detailed information about your activity, including time, distance, elevation, heart rate, calories burned, an overhead map view, pace and speed charts, and customizable reports. Plan your training: You can choose a fitness goal and load one of the day-by-day training plans. 5 DRAFT Share your activities: You can connect with friends to follow each other's activities or post links to your activities on your favorite social networking sites. Connected Features The Forerunner has several connected features for your compatible smartphone or wireless device. For more information, go to www.garmin.com/intosports/apps. LiveTrack: Allows friends and family to follow your races and training activities in real time. You can invite followers using email or social media, allowing them to view your live data on a Garmin Connect tracking page. Activity upload to Garmin Connect: Automatically sends your activity to Garmin Connect as soon as you finish recording the activity. Social media interactions: Allows you to post an update to your favorite social media website when you upload an activity to Garmin Connect. Pairing Your Smartphone with Your Forerunner 1 Go to www.garmin.com/intosports/apps, and download the Garmin Connect Mobile application to your smartphone. 2 Bring your smartphone within 33 ft. (10 m) of your Forerunner. 3 From the Forerunner home screen, select Settings > Bluetooth > Pair Mobile Device. 4 Open the Garmin Connect Mobile application, and follow the on-screen instructions to connect a device. The instructions are provided during the initial setup or by selecting > My Device. 6 DRAFT Charging the Device WARNING This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information. NOTICE To prevent corrosion, thoroughly dry the contacts and the surrounding area before charging or connecting to a computer. 1 Plug the USB cable into a USB port on your computer. 2 Align the charger posts with the contacts on the back of the device, and press the charger  until it clicks. 3 Charge the device completely. Putting On the Heart Rate Monitor NOTE: If you do not have a heart rate monitor, you can skip this task. 7 DRAFT You should wear the heart rate monitor directly on your skin, just below your breastplate. It should be snug enough to stay in place during your activity. 1 Snap the heart rate monitor module  onto the strap. The Garmin ® logos (on the module and the strap) should be right-side up. 2 Wet the electrodes  on the back of the strap to create a strong connection between your chest and the transmitter. 3 If the heart rate monitor has a contact patch  , wet the contact patch. 4 Wrap the strap around your chest, and connect the strap hook  to the loop  . 8 DRAFT The Garmin logos should be right-side up. 5 Bring the device within 10 ft. (3 m) of the heart rate monitor. After you put on the heart rate monitor, it is active and sending data. History History includes time, distance, calories, average pace or speed, lap data, and optional ANT+™ sensor information. NOTE: When the device memory is full, your oldest data is overwritten. Viewing History 1 From the home screen, …

Text truncated - open the document above for the full version.

Important Safety and Product Information .........1 Informations importantes relatives au produit et à la sécurité .......................................................5 Información importante sobre el producto y tu seguridad .................................9 Important Safety and Product Information  WARNING Failure to avoid the following potentially hazardous situations could result in death or serious injury. Off-Road Navigation Warnings Some Garmin recreational products are able to suggest off-road routes for various outdoor activities, such as biking, hiking, and all-terrain vehicles. Follow these guidelines to ensure safe off-road navigation. • Always use your best judgment and exercise common sense when making off-road navigational decisions. The Garmin device is designed to provide route suggestions only. It is not a replacement for attentiveness and proper preparation for outdoor activities. Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. • Always carefully compare information displayed on the device to all available navigation sources, including trail signs, trail conditions, weather conditions, and other factors that may affect safety while navigating. For safety, always resolve any discrepancies before continuing navigation, and defer to posted signs and conditions. • Always be mindful of the effects of the environment and the inherent risks of the activity before embarking on off-road activities, especially the impact that weather and weather-related trail conditions can have on the safety of your activity. Ensure that you have the proper gear and supplies for your activity before navigating along unfamiliar paths and trails. 190-00720-39_0A.indd 16/28/2013 7:38:38 AM 2 Health Warnings • Always consult your physician before beginning or modifying any exercise program. If you have a pacemaker or other implanted electronic device, consult your physician before using a heart rate monitor. • The device, the heart rate monitor, and other Garmin accessories are consumer devices, not medical devices, and could suffer from interference from external electrical sources. The heart rate readings are for reference only, and no responsibility is accepted for the consequences of any erroneous readings. Battery Warnings If these guidelines are not followed, the internal lithium-ion battery may experience a shortened life span or may present a risk of damage to the GPS device, fire, chemical burn, electrolyte leak, and/or injury. • Do not leave the device exposed to a heat source or in a high- temperature location, such as in the sun in an unattended vehicle. To prevent damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not puncture or incinerate the device or battery. • When storing the device for an extended time, store within the following temperature range: from 32°F to 77°F (from 0°C to 25°C). • Do not operate the device outside of the following temperature range: from -4°F to 122°F (from -20°C to 50°C). • Contact your local waste disposal department to dispose of the device/ battery in accordance with applicable local laws and regulations. Additional User-Replaceable Battery Warnings: • Do not use a sharp object to remove the battery. • Keep the battery away from children. • Do not disassemble, puncture, or damage the battery. • If using an external battery charger, only use the Garmin accessory approved for your product. • Only replace the battery with the correct replacement battery. Using another battery presents a risk of fire or explosion. To purchase a replacement battery, see your Garmin dealer or the Garmin Web site. • Replaceable coin cell batteries may contain perchlorate material. Special handling may apply. See www.dtsc .ca.gov/hazardouswaste/perchlorate. Additional Non-User-Replaceable Battery Warning: Do not remove or attempt to remove the non-user-replaceable battery. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, 190-00720-39_0A.indd 26/28/2013 7:38:38 AM 3 including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet that is on a different circuit from the GPS device. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Industry Canada Compliance Category I radiocommunication devices comply with Industry Canada Standard RSS-210. Category II radiocommunication devices comply with Industry Canada Standard RSS-310. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (…

Text truncated - open the document above for the full version.

Page 1 of 2 August 13, 2013 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-F3ARGD01 PRODUCT: Low power Transmitters operated under paragraph 15.249 Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia F3ARGD01.pdf Conf OpDes F3ARGD01.pdf Conf Schem F3ARGD01.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-F3ARGD01 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

August 13, 2013 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-F3ARGD01 FCC Rules: Parts 2 and 15C Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 180 days after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files Exhibit File External Photos Short Term Conf ExtPho F3ARGD01.pdf Internal Photos Short Term Conf IntPho F3ARGD01.pdf Test Setup Photos Short Term Conf TSup F3ARGD01.pdf User Manual Short Term Conf UserMan F3ARGD01.pdf User Manual Short Term Conf UserMan F3ARGD01 1.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 +1 913 837-3214

August 13, 2013 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-F3ARGD01 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 15.249 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem F3ARGD01.pdf Block diagram Conf BlkDia F3ARGD01.pdf Operational Description Conf OpDes F3ARGD01.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

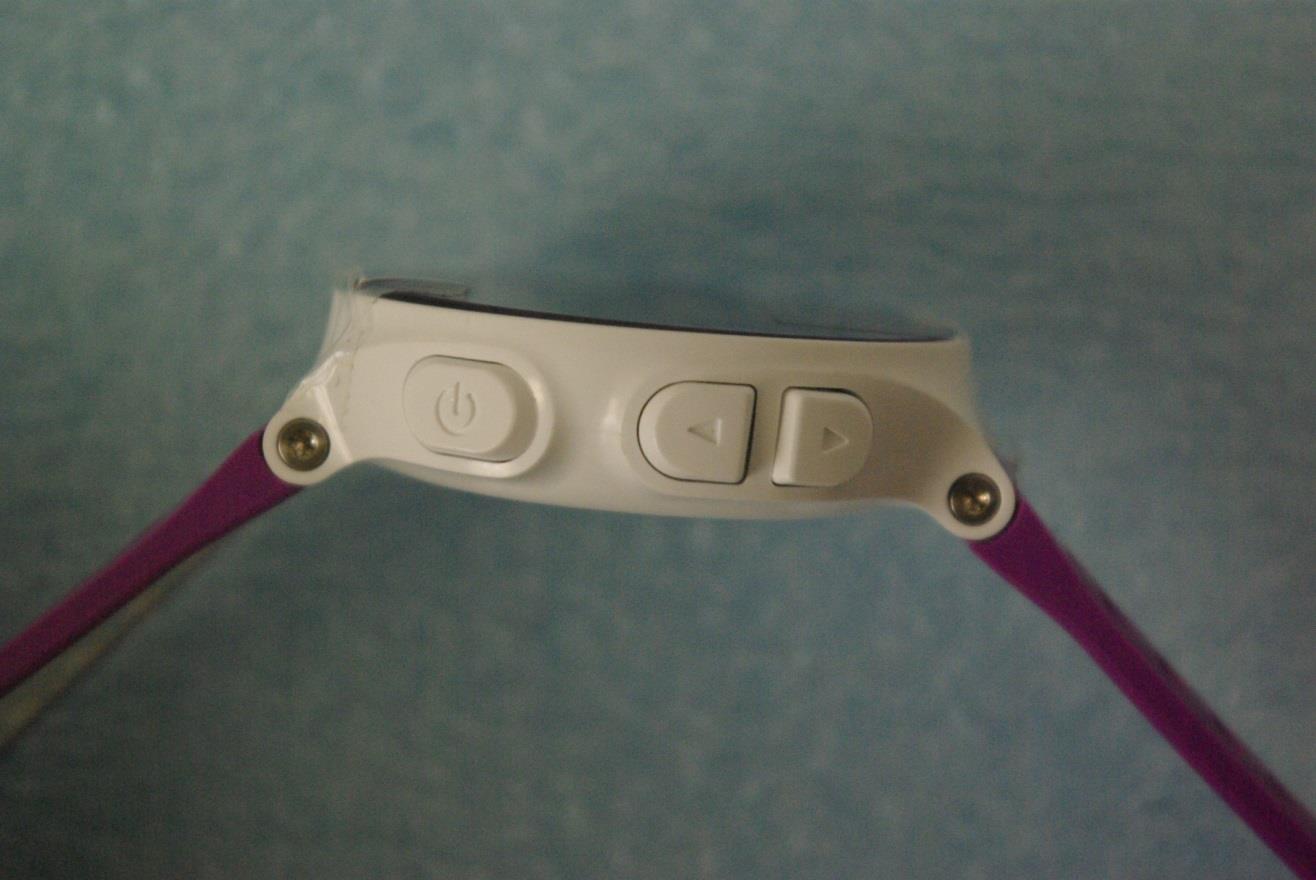

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: September 12, 2013 Revision 1 File: Short Term Conf ExtPho F3ARGD01 Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: September 12, 2013 Revision 1 File: Short Term Conf ExtPho F3ARGD01 Page 2 of 2

Label Diagram and Placement Label is located on outer back surface of device. Text is 4 point font or larger.

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: September 12, 2013 Revision 1 File: Short Term Conf IntPho F3ARGD01 Page 1 of 1 Internal Photographs

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: August 13, 2013 Revision 1 File: TunPro F3ARGD01 Page 1 of 1 Tune-up Procedure Each unit is tested during unit production by measuring the output strength. The unit is then given pass/fail status based on the measured output strength. The pass/fail threshold is determined by engineering during product development. Compliant samples continue through production and non-compliant units are removed.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 2, 2013 Revision 1 File: Garmin F3ARGD01 TstRpt 130614 Page 1 of 31 Application For Grant of Certification FOR FOR Model: F3ARGD01 2402-2480 MHz Low Power Transmitter FCC ID: IPH-F3ARGD01 IC: 1792A-F3ARGD01 FOR Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Test Report Number: 130614 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 2, 2013 Revision 1 File: Garmin F3ARGD01 TstRpt 130614 Page 2 of 31 Engineering Test Report For Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.249 and Industry Canada RSS-210 License Exempt Intentional Radiator For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Model: F3ARGD01 Low Power Transmitter Frequency Range 2402-2480 MHz FCC ID#: IPH-F3ARGD01 IC: 1792A-F3ARGD01 Test Date: June 14, 2013 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 2, 2013 Revision 1 File: Garmin F3ARGD01 TstRpt 130614 Page 3 of 31 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 6 Equipment Configuration.................................................................................................................................... 6 APPLICATION FOR CERTIFICATION ........................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT TESTING PROCEDURES ........................................................................ 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Diagram 1 Test arrangement for Conducted emissions ....................................................................................... 9 Radiated Emission Test Procedure ................................................................................................................... 10 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 10 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 11 TEST SITE LOCATIONS .............................................................................................. 12 UNITS OF MEASUREMENTS ...................................................................................... 12 ENVIRONMENTAL CONDITIONS................................................................................ 12 LIST OF TEST EQUIPMENT ........................................................................................ 13 INTENTIONAL RADIATORS ........................................................................................ 14 Antenna Requirements ...................................................................................................................................... 14 Restricted Bands of Operation .......................................................................................................................... 14 Table 1 Harmonic Radiated Emissions in Restricted Bands Data (Protocol 1) ................................................. 15 Table 2 Harmonic Radiated Emissions in Restricted Bands Data (Protocol 2) ................................................. 16 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 16 General Radiated Emissions Procedure ........................................................................................................... 17 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: July 2, 2013 Revision 1 File: Garmin F3ARGD01 TstRpt 130614 Page 4 of 31 Table 3 General Radiated Emissions from EUT Data (Highest Emissions) ...................................................... 17 Summary of Results for General Radiated Emissions ......................................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: August 13, 2013 Revision 1 File: Short Term Conf TSup F3ARGD01 Page 1 of 1 Test setup photographs
