IPH-GMR18MARINE RADAR TRANSMITTER

GMR 18 marine radar installation instructions 190-00800-02_0A.indd 11/15/2007 3:54:50 PM © 2007 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Jangshu 2 nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. This trademark may not be used without the express permission of Garmin. January 2007 Part Number 190-00800-02 Rev. A Printed in Taiwan 190-00800-02_0A.indd 21/15/2007 3:54:50 PM GMR 18 Marine Radar Installation Instructions 1 Welcome Thank you for choosing the Garmin GMR 18. The GMR 18 utilizes the performance of Garmin radar and provides overlay and color information when combined with a marine multi-function display (MFD). Product Registration Help us better support you by completing our online registration today! Connect to our Web site at www.garmin.com/registration/. Use this area to record the serial number (8-digit number located on the bottom of the GMR 18) in case your GMR 18 needs service. Keep the original sales receipt, or a photocopy, in a safe place. Serial Number: ___ ___ ___ ___ ___ ___ ___ __ Contact Garmin Contact Garmin if you have any questions while using your GMR 18. In the USA contact Garmin Product Support by phone: (913) 397-8200 or (800) 800-1020, Monday–Friday, 8 AM–5 PM Central Time; or go to www.garmin.com/support/, and click Product Support. In Europe, contact Garmin (Europe) Ltd. at +44 (0) 870.8501241 (outside the UK) or 0808 2380000 (within the UK). Note: The Garmin GMR 18 has no user-serviceable parts. If you encounter a problem with your unit, please take it to an authorized Garmin NMEA dealer or contact Garmin Product Support for repairs. Packing List Before installing and getting started with your unit, please check to see that your package includes the following items. If any parts are missing, please contact your Garmin dealer immediately. Standard Package: • GMR 18 radar unit • Power—marine network cable • Installation manual • Mount kit hardware • Grommet for marine cable 190-00800-02_0A.indd 11/15/2007 3:54:50 PM 2 12.° 12.° 12.° 12.° INSTAllATIoN Scanner Installation The following section covers the installation and setup of the GMR 18 marine radar. The GMR 18 only operates with components of the Garmin Marine Network, and MFD's (mulit-function displays). See your Garmin dealer or the Garmin Web site for more details. To complete the installation, you need the appropriate fasteners, tools, and mounts. These items should be available at most marine dealers. Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. When drilling or cutting, always check fi rst to see what is on the other side of the surface. If you experience diffi culty with the installation, contact Garmin Product Support or seek the assistance of a professional installer. Installation Guidelines To maximize the performance of the radar, please observe the following installation guidelines: • An ideal scanner mounting location is high above the ship’s keel line with a minimal part of the vessel’s structure or rigging blocking the radar beam. Obstructions in the path of the radar beam may cause blind and shadow sectors, or generate false echoes. The higher the installation position, the further the scanner can detect targets. • Avoid mounting the scanner on the same level as smoke stacks, horizontal spreaders, or crosstrees on a mast. Do not install the scanner near heat sources where it may be subjected to smoke or hot air from smoke stacks or heat from lights. • The mounting surface or platform should be sturdy enough to support the weight of the scanner (15.8 lbs/7.17 kg), fl at as possible, and parallel with the vessel’s water line. • It is recommended that the radar scanner be mounted out of range of personnel (horizontal beam width above head height). When the scanner is transmitting, do not look directly at the antenna at close range, eyes are the most sensitive part of the body to electromagnetic energy. When properly installed and operated, the use of this radar conforms to the requirements of ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields. • A “Compass Safe Distance” must be maintained between the compass and the scanner. The Compass Safe Distance is measured from the center point of the compass to the nearest point on the scanner. Standard compass = 1 m Standby Steering and Emergency compasses = 0.6 m • Mount…

Text truncated - open the document above for the full version.

January 19, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005-0885-88 Re: Short-term and permanent Confidentiality for submittal information regarding FCC ID number IPH-GMR18 PRODUCT: Marine Radar operated under part 80. Dear Sirs: Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos IPHGMR18 Ext Photos.pdf Internal Photos IPHGMR18 Internal Photo.pdf Test Setup Photos IPHGMR18 Test Setup Photo.pdf User Manual GMR18 Installation Manual.pdf Permanent Garmin International, Inc. also requests that the material in the Schematics, Operational Description, Parts list and Block diagram be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Garmin International, Inc. submits the following information. Schematics 014-01169-00.pdf Schematics 014-01127-99.pdf Schematics 014-01127--00.pdf Schematics 014-01126-00.pdf Operational Description GMR18_24_Operational_Description.pdf Part List 011-01487-00.pdf Part List 011-01487-01.pdf Part List 011-01487-10.pdf Part List 011-01487-20.pdf Part List 011-01487-30.pdf ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Part List 011-01487-31.pdf Part List 011-01487-40.pdf Part List 011-01487-50.pdf Part List 011-01487-60.pdf Part List 011-01125-00.pdf Part List 011-01126-00.pdf Part List 011-01127-00.pdf Part List 011-01127-99.pdf Part List 011-01169-00.pdf Block Diagram IPHGMR18 Block Diagram.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, Schematics, Parts list, and block diagram, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-GMR18 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, confidential Parts list, and schematics. As such, this material is treated as highly confidential business information and not available as general information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

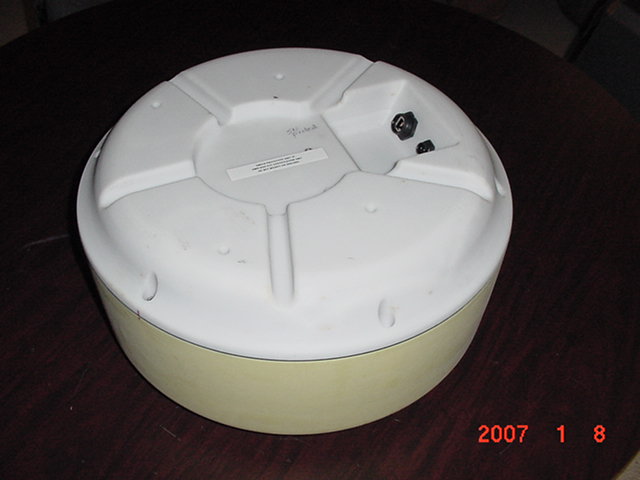

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 1 of 1 IPHGMR18 Ext Photos 1/19/2007 Equipment photographs for GMR 18/24.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 1 of 1 IPHGMR18 Label 1/16/2007 FCC ID label location photograph for GMR18.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 1 of 8 IPHGMR18 Internal Photo 1/19/2007 Internal photographs of GMR18, GMR24. Internal Photographs ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 2 of 8 IPHGMR18 Internal Photo 1/19/2007 Photograph Modulator ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 3 of 8 IPHGMR18 Internal Photo 1/19/2007 Down Converter ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 4 of 8 IPHGMR18 Internal Photo 1/19/2007 Processor ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 5 of 8 IPHGMR18 Internal Photo 1/19/2007 Rotation Detector ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 6 of 8 IPHGMR18 Internal Photo 1/19/2007 GMR18 antenna assembly GMR24 antenna assembly ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 7 of 8 IPHGMR18 Internal Photo 1/19/2007 GMR18 antenna ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80 and RSS-138 Page 8 of 8 IPHGMR18 Internal Photo 1/19/2007 GMR24 antenna

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80, RSS-138 Page 1 of 1 IPHGMR18 Tune 1/19/2007 Tuning procedure for GMR18/GMR24. There are no field adjustable tuning options. The only adjustment is to the 345vdc supply voltage for the magnetron driver circuitry, which is set at the factory.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC: 1792A-GMR18 Louisburg, KS 66053 Test #: 061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80, RSS-138 Page 1 of 3 IPHGMR18 MPE Claculations 1/19/2007 RF Exposure for GMR18/GMR24 The GMR18/GMR24 is a marine mount radar system operating in the marine services authorized under part 80 of CFR 47. Per 2.1091(c) of CFR 47, the equipment is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use. The radiating structure for the device is typically mounted more than 270 centimeters away and located outside the crafts helm. Due to the location of the antenna, normal operating conditions, and use the unit will satisfy the requirements for RF Exposure per CFR rule 1.1311. MPE calculations are shown below demonstrating compliance. ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC: 1792A-GMR18 Louisburg, KS 66053 Test #: 061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80, RSS-138 Page 2 of 3 IPHGMR18 MPE Claculations 1/19/2007 GMR18 MPE calculations. MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)22.2 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)9400Average (Watts)4.0000Antenna Gain (dBd)20.03 Cable Loss (dB)0.0(dBm)36.02Antenna minus cable (dBi)22.20 Calculated ERP (mw) 402772.668EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 663834.763Radiated (EIRP) dBm58.221 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm56.051 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,50031.333333336.266666667 1,500-10,00051 EIRPDistanceDistanceSDistance milliwattscminches mW/c m 2 Feet 663834.7631000.00393.700.0528332.808399 663834.763900.00354.330.0652229.5275591 663834.763800.00314.960.0825426.2467192 663834.763700.00275.590.1078122.9658793 663834.763600.00236.220.1467419.6850394 663834.763500.00196.850.2113116.4041995 663834.763400.00157.480.3301613.1233596 663834.763375.00147.640.3756512.3031496 663834.763370.00145.670.3858812.1391076 663834.763365.00143.700.3965211.9750656 663834.763360.00141.730.4076111.8110236 663834.763350.00137.800.4312411.4829396 663834.763325.00127.950.5001310.6627297 663834.763300.00118.110.586969.84251969 663834.763275.00108.270.698539.02230971 663834.763250.0098.430.845228.20209974 663834.763230.0090.550.998617.54593176 663834.763220.0086.611.091457.21784777 663834.763215.0084.651.142817.05380577 663834.763212.0083.461.175386.95538058 663834.763210.0082.681.197886.88976378 663834.763200.0078.741.320666.56167979 663834.763190.0074.801.463336.2335958 663834.763180.0070.871.630445.90551181 663834.763160.0062.992.063535.24934383 663834.763150.0059.062.347844.92125984 663834.763140.0055.122.695224.59317585 663834.763130.0051.183.125824.26509186 663834.763110.0043.314.365813.60892388 663834.763105.0041.344.791503.44488189 663834.763100.0039.375.282633.2808399 Frequency (MHz) Occupational Limit minimum Distance (feet) Public Limit minimum distance (feetm) 300-1,500N/AN/A 1,500-10,0003.507.60 FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP (mW) ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC: 1792A-GMR18 Louisburg, KS 66053 Test #: 061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 80, RSS-138 Page 3 of 3 IPHGMR18 MPE Claculations 1/19/2007 GMR24 MPE calculations. MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)23.7 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)9400 Average (Watts)4.0000Antenna Gain (dBd)21.53 Cable Loss (dB)0.0(dBm)36.02Antenna minus cable (dBi)23.70 Calculated ERP (mw) 568931.515EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 937691.526Radiated (EIRP) dBm59.721 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm57.551 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,50031.333333336.266666667 1,500-10,00051 EIRPDistanceDistanceSDistance milliwattscminches mW/cm 2 Feet 937691.5261000.00393.700.0746232.80839895 937691.526900.00354.330.0921229.52755906 937691.526800.00314.960.1165926.24671916 937691.526700.00275.590.1522822.96587927 937691.526600.00236.220.2072819.68503937 937691.526500.00196.850.2984816.40419948 937691.526400.00157.480.4663713.12335958 937691.526375.00147.640.5306212.30314961 937691.526370.00145.670.5450612.13910761 937691.526365.00143.700.5601011.97506562 937691.526360.00141.730.5757611.81102362 937691.526350.00137.800.6091411.48293963 937691.526325.00127.950.7064510.66272966 937691.526300.00118.110.829109.842519685 937691.526275.00108.270.986709.022309711 937691.526270.00106.301.023588.858267717 937691.526265.00104.331.062578.694225722 937691.526250.0098.431.193918.202099738 937691.526240.0094.491.295477.874015748 937691.526225.0088.581.473967.381889764 937691.526210.0082.681.692046.88976378 937691.526200.0078.741.865486.56167979 937691.526190.0074.802.067016.233595801 937691.526180.0070.872.303065.905511811 937691.526160.0062.992.914815.249343832 937691.526150.0059.063.316414.921259843 937691.526140.0055.123.807104.593175853 937691.526130.0051.184.415334.265091864 937691.526122.0048.035.013384.002624672 937691.526110.0043.316.166873.608923885…

Text truncated - open the document above for the full version.

APPLICATION For FCC And INDUSTRY CANADA GRANT OF CERTIFICATION FOR Models: 011-01487-00 and 011-001487-02 Marine Radar Equipment GPN’s 011-01487-00 and 011-001487-02 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report Number: 061128 TEST REPORT For APPLICATION of CERTIFICATION Marine transmitter (CFR47 part 80, RSS-138) For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Models: 011-01487-00 and 011-001487-02 GPN’s: 011-01487-00 and 011-001487-02 Marine Radar Equipment FREQUENCY: 9300 – 9500 MHz FCC ID: IPH-GMR18 IC: 1792A-GMR18 Test Date: November 28, 2006 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID#: IPH-GMR18 4405 West 259 th Terrace MODEL: GMR 18 and GMR 24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 SN: Proto 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 80, RSS-138 Page 3 of 27 GMR18 GMR24 FCC IC application Test Report 1/22/2007 TABLE OF CONTENTS TABLE OF CONTENTS 3 FORWARD 4 LIST OF TEST EQUIPMENT 4 EQUIPMENT CONFIGURATION 5 2.1033(C) APPLICATION FOR CERTIFICATION 6 2.1046 RF POWER OUTPUT 7 Measurements Required 7 Test Arrangement 7 2.1047 MODULATION CHARACTERISTICS 11 Measurements Required 11 Test Arrangement 11 Results 11 2.1049 OCCUPIED BANDWIDTH 11 Measurements Required 11 Results 11 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 13 Measurements Required 13 Test Arrangement 13 Results 13 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 13 Measurements Required 13 Test Arrangement 13 Results 21 2.1055 FREQUENCY STABILITY 21 Measurements Required 21 Results 22 APPENDIX 23 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID#: IPH-GMR18 4405 West 259 th Terrace MODEL: GMR 18 and GMR 24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 SN: Proto 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 80, RSS-138 Page 4 of 27 GMR18 GMR24 FCC IC application Test Report 1/22/2007 FORWARD In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2005, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, 80(E), and RSS-138 the following information is submitted. List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz) RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz) RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID#: IPH-GMR18 4405 West 259 th Terrace MODEL: GMR 18 and GMR 24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 SN: Proto 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 80, RSS-138 Page 5 of 27 GMR18 GMR24 FCC IC application Test Report 1/22/2007 Equipment Configuration 1. GMR18 / GMR24 with Network Port Expander and Chartplotter. 2. GMR18 / GMR24 with Chartplotter only. Garmin Marine Network Chartplotter (i.e. GPSMAP 3006C/3010C) Marine Radar Scanner GMR18 (011-01487-00 / GMR24 (011-01487-02) DC Source (10.5 to 35 VDC) Marine Radar Scanner GMR18 (011-01487-00 / GMR24 (011-01487-02) Garmin Marine Network Chartplotter (i.e. GPSMAP 3006C/3010C) Garmin Network Port Expander GMS10 DC Source (10.5 to 35 VDC) NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID#: IPH-GMR18 4405 West 259 th Terrace MODEL: GMR 18 and GMR 24 IC:1792A-GMR18 Louisburg, KS 66053 Test #:061128 SN: Proto 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 80, RSS-138 Page 6 of 27 GMR18 GMR24 FCC IC application Test Report 1/22/2007 2.1033(c) Application for Certification (1) Manufacturer: GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Telephone: (913) 397-8200 (2) FCC and IC Identification: Models 011-01487-00 AND 011- 001487-02, FCC I.D.: IPH-GMR18 IC: 1792A-GMR18 (3) Copy of the installation and operating manual: Refer to exhibit for Draft Instruction Manual. (4) Emission Type: 15M5P0N (5) Frequency Range: 9,410 MHz (typical); 9300-9500 MHz (6) Operating Power Level: 4,000 Watts peak power Maximum Average Power = 2.3 watts (7) Max Power allowed as defined in 80.215(M)(3): 20.0 Watts EIRP. (8) Power into final amplifier: 3600 Vdc @ 3.0A maximum = 10,800 watts 4 kW peak transmitter power, calculated averages 100ns pulse = 0.922 Watts average 120ns pulse = 0.553 Watts average 250ns pulse = 1.576 Watts average 970ns pulse = 2.235 Watts average 1000ns pulse = 1.152 Watts average (9) Tune Up Procedure for Output Power: Refer to Exhibit for Transmitter Alignment Procedure. (10) Circuit Diagrams; description of circuits, frequency stability, spurious suppression, and power and modulation limiting: Refer to Exhibit for Circuit Diagrams and band-pass filter information. Refer to Exhibit for Theory of Operation. (11) Photograph or drawing of the Identification Plate: Refer to Exhibit for Photograph or Drawing. (12) Drawin…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC: 1792A-GMR18 Louisburg, KS 66053 Test #: 061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80, RSS-138 Page 1 of 2 IPHGMR18 Test setup Photo 1/19/2007 Test setup photographs for GMR18/24 3 meter test setup ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR18/GMR24 IC: 1792A-GMR18 Louisburg, KS 66053 Test #: 061128 FCCID#: IPH-GMR18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80, RSS-138 Page 2 of 2 IPHGMR18 Test setup Photo 1/19/2007 10-meter test setup
