IPH-O2416LOW POWER TRANSMITTER (2400-2483.5 MHz)

F4ARGA00 Quick Start Manual WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Always consult your physician before you begin or modify any exercise program. Getting Started When using your device for the first time, you should complete these tasks to set up the device and learn about the basic features. 1 Charge the device (page 6). 2 Put on the optional heart rate monitor (page 7). 3 Go for a run ( page 3). 4 Upload your run to Garmin Connect™ (page 6). 5 Get more information (page 10). DRAFT Keys À Select to turn the backlight on and off. Hold to turn the device on and off. Á Select to start and stop the timer. Select to choose the highlighted menu item.  Select to scroll through the data screens, options, and settings. à Select to scroll through activity monitor data. Select to mark a new lap. Select to return to the previous screen. Status Icons A flashing icon means the device is searching for a signal. A solid icon means the signal was found or the sensor is connected. 2 DRAFT GPS status Heart rate status Foot pod status Going For a Run The device comes partially charged. You may need to charge the device (page 6) before going for a run. 1 Put on the optional heart rate monitor (page 7). 2 Hold to turn on the device. 3 Select . 4 Go outside, and wait while the device locates satellites. It may take a few minutes to locate satellite signals. When satellites are located, displays solid. 5 When using a heart rate monitor, wait while the device connects to the sensor. When the device detects the heart rate monitor, a message appears and displays solid. 6 Select Start to start the timer. 7 Go for a run. Time À , distance Á , pace  , calories burned à , beats per minute Ä , and heart rate zone Å are recorded while the timer is running. 3 DRAFT 8 After you complete your run, select to stop the timer. 9 Select an option: • Select Resume to restart the timer. NOTE: After a few seconds, a summary appears. • Select Save to save the run and reset the timer. A summary appears. NOTE: You can now upload your run to Garmin Connect (page 6). • Select Discard to delete the run. 4 DRAFT Putting On the Heart Rate Monitor NOTE: If you do not have a heart rate monitor, you can skip this task. NOTE: The device may cause chafing when used for long periods of time. To alleviate this issue, apply an anti-friction lubricant or gel to the center of the module where it contacts your skin. NOTICE Do not apply anti-friction gel or lubricant on the electrodes. Do not use gels or lubricants that contain sunscreen. You should wear the heart rate monitor directly on your skin, just below your breastplate. It should be snug enough to stay in place during your activity. 1 Push one tab À on the strap through the slot Á in the heart rate monitor module. 2 Press the tab down. 3 Wet the electrodes  on the back of the module to create a strong connection between your chest and the heart rate monitor module. 7 DRAFT 4 Wrap the strap around your chest and attach it to the other side of the heart rate monitor module. The Garmin ® logo should be right-side up. 5 Bring the device within 3 m (10 ft.) of the heart rate monitor. After you put on the heart rate monitor, it is active and sending data. Pairing ANT+ ™ Sensors The first time you connect an ANT+ sensor to your device, you must pair the device and sensor. After the initial pairing, the device automatically connects to the sensor when you go for a run and the sensor is active and within range. NOTE: If your device was packaged with a heart rate monitor, the device and sensor are already paired. 1 Put on the heart rate monitor (page 7). 2 Select . 8 DRAFT 3 Bring the device within 1 cm of the center of the heart rate monitor, and wait while the device connects to the sensor. NOTE: Stay 10 m (33 ft.) away from other ANT+ sensors while pairing. When the device detects the heart rate monitor, a message appears and displays solid. Turning On the Activity Monitor The activity monitor feature records your daily step count, step goal, distance traveled, and calories burned for each recorded day. Your calories burned includes your base metabolism plus activity calories. Select an option: • During the initial setup, select Yes to turn on activity monitoring. • Select > Settings > Activity Monitor > Turn On. Your total number of steps taken during the day appears beneath the time of day. The step count is updated periodically. TIP: You can select to scroll through your activity monitor data. History You can view your last seven running sessions on your device, and you can upload and view unlimited running sessions on Garmin Connect. When the device memory is full, your oldest data is overwritten. NOTE: Run history is not recorded while the timer is stopped or paused. 9 DRAFT Viewing History 1 Select > History. 2 Select an option: • Select Daily Steps to view your step count, goal, distance traveled, and calories burned for each recorded day. • Select Runs to view the date, time, distance, pace, calories burned, and lap data for your saved running sessions. NOTE: You can also view your average heart rate and heart rate zone for saved running sessions using an optional heart rate monitor. • Select Records to view your personal record time, distance, and pace over various distances. Device Information Resetting the Device If the device stops responding, you may need to reset it. This does not erase any of your data or settings. 1 Hold for 15 seconds. The device turns off. 2 Hold for one second to turn on the device. Getting More Information • Go to www.garmin.com/intosports . • Go to www.garmin.com/learningcenter. • Go to http://buy.garmin.com, or contact your Garmin dealer for information about 10 DRAFT optional accessories and replacement parts. Getting the Owner's Manual You can get the latest owner's manual from the web. 1 Go to www.garmin.com/support. 2 Select Manuals. 3 Follow the on-screen i…

Text truncated - open the document above for the full version.

Important Safety and Product Information........................................1 Informations importantes relatives au produit et à la sécurité ......................5 Información importante sobre el producto y tu seguridad ................9 Important Safety and Product Information  WARNING Failure to avoid the following potentially hazardous situations could result in death or serious injury. Off-Road Navigation Warnings Some Garmin recreational products are able to suggest off-road routes for various outdoor activities, such as biking, hiking, and all-terrain vehicles. Follow these guidelines to ensure safe off-road navigation. • Always use your best judgment and exercise common sense when making off-road navigational decisions. The Garmin device is designed to provide route suggestions only. It is not a replacement for attentiveness and proper preparation for outdoor activities. Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. • Always carefully compare information displayed on the device to all available navigation sources, including trail signs, trail conditions, weather conditions, and other factors that may affect safety while navigating. For safety, always resolve any discrepancies before continuing navigation, and defer to posted signs and conditions. ISPI_fitness_small_NA3_2.4x5.15.indd 12/12/2014 8:13:30 AM 2 • Always be mindful of the effects of the environment and the inherent risks of the activity before embarking on off-road activities, especially the impact that weather and weather-related trail conditions can have on the safety of your activity. Ensure that you have the proper gear and supplies for your activity before navigating along unfamiliar paths and trails. Health Warnings • Always consult your physician before beginning or modifying any exercise program. If you have a pacemaker or other implanted electronic device, consult your physician before using a heart rate monitor. • The device, the heart rate monitor, and other Garmin accessories are consumer devices, not medical devices, and could suffer from interference from external electrical sources. The heart rate readings are for reference only, and no responsibility is accepted for the consequences of any erroneous readings. Battery Warnings If these guidelines are not followed, the internal lithium- ion battery may experience a shortened life span or may present a risk of damage to the GPS device, fire, chemical burn, electrolyte leak, and/or injury. • Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. To prevent damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not disassemble, modify, remanufacture, puncture or damage the device. • Do not immerse or expose the device to water or other liquids, fire, explosion, or other hazard. • When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging. • Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging. • Contact your local waste disposal department to dispose of the device/battery in accordance with applicable local laws and regulations. Additional User-Replaceable Battery Warnings: • Do not use a sharp object to remove the battery. ISPI_fitness_small_NA3_2.4x5.15.indd 22/12/2014 8:13:30 AM 3 • Keep the battery away from children. • Never put batteries in mouth. If swallowed, contact a physician or poison control center. • Do not disassemble, puncture, or damage the battery. • If using an external battery charger, only use the Garmin accessory approved for your product. • Only replace the battery with the correct replacement battery. Using another battery presents a risk of fire or explosion. To purchase a replacement battery, see your Garmin dealer or the Garmin Web site. • Replaceable coin cell batteries may contain perchlorate material. Special handling may apply. See www.dtsc .ca.gov/hazardouswaste/perchlorate. Additional Non-User-Replaceable Battery Warning: Do not remove or attempt to remove the non-user- replaceable battery. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet that is on a different circuit from the GPS device. • Consult the dealer or an experienced radio/TV technician for help. ISPI_fitness_small_NA3_2.4x5.15.indd 32/12/2014 8:13:30 AM 4 This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Industry Canada …

Text truncated - open the document above for the full version.

Page 1 of 2 May 5, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-O2416 PRODUCT: Low power Transmitters operated under paragraph 15.249 Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia F4ARGA00.pdf Conf OpDes F4ARGA00.pdf Conf Schem F4ARGA00.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-O2416 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

May 5, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-O2416 FCC Rules: Parts 2 and 15C Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 45 days after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files Exhibit File External Photos Short Term Conf ExtPho F4ARGA00.pdf Internal Photos Short Term Conf IntPho F4ARGA00.pdf Test Setup Photos Short Term Conf TSup F4ARGA00.pdf User Manual Short Term Conf UserMan F4ARGA00 1.pdf User Manual Short Term Conf UserMan F4ARGA00 2.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 +1 913 837-3214

May 5, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-O2416 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 15.249 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem F4ARGA00.pdf Block diagram Conf BlkDia F4ARGA00.pdf Operational Description Conf OpDes F4ARGA00.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

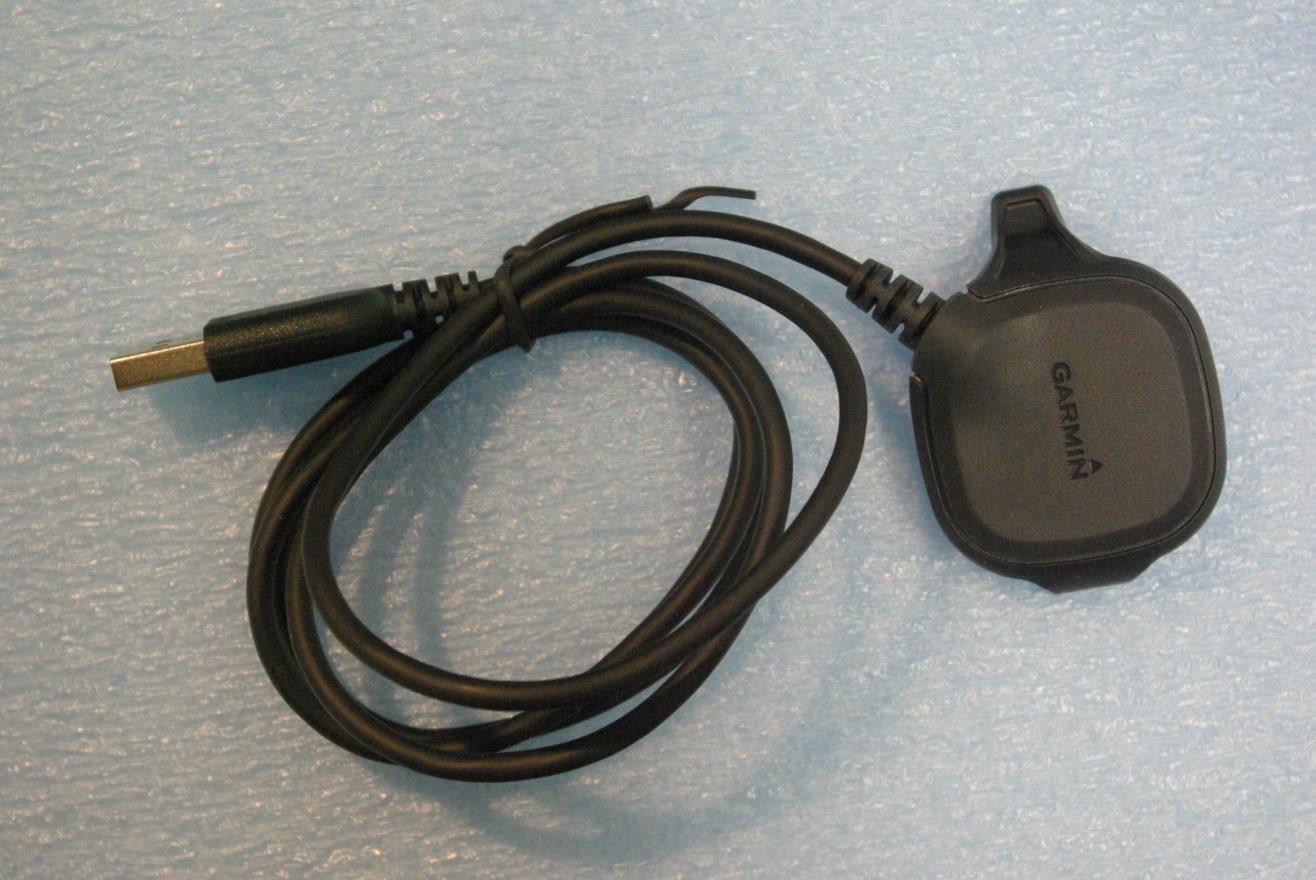

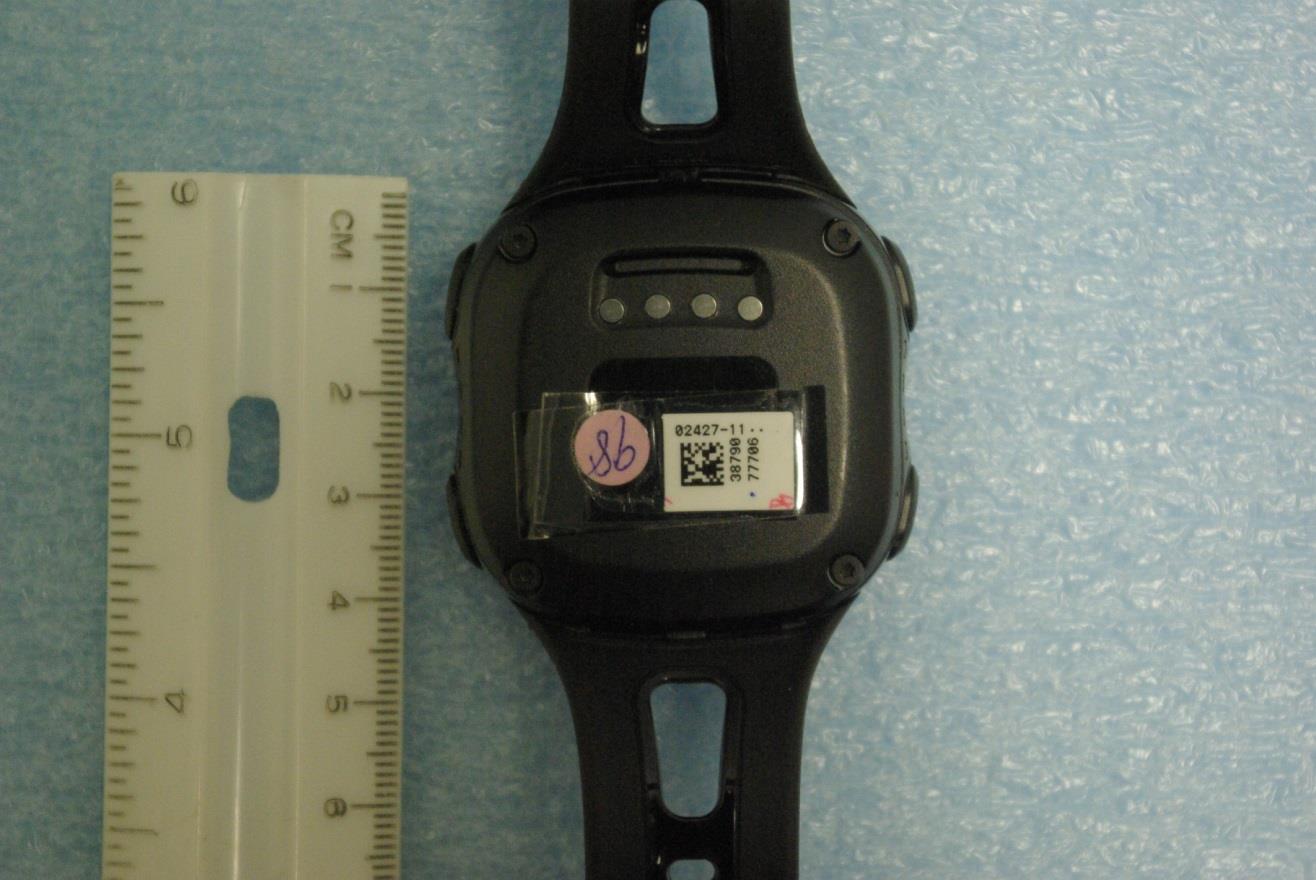

Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 6, 2014 Revision 1 File: Short Term Conf ExtPho F4ARGA00 Page 1 of 4 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 6, 2014 Revision 1 File: Short Term Conf ExtPho F4ARGA00 Page 2 of 4 Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 6, 2014 Revision 1 File: Short Term Conf ExtPho F4ARGA00 Page 3 of 4 Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 6, 2014 Revision 1 File: Short Term Conf ExtPho F4ARGA00 Page 4 of 4

Label Drawing and Placement Note: All text is minimum 4 point font or larger Back of device Label Device

Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 5, 2014 Revision 1 File: Short Term Conf IntPho F4ARGA00 Page 1 of 1 Internal Photographs

Rogers Labs, Inc. Garmin International, Inc. 4405 W. 259th Terrace Model: F3ARGD01 SN: 362000009 FCC ID#: IPH-F3ARGD01 Louisburg, KS 66053 Test #: 130614 IC: 1792A-F3ARGD01 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: August 13, 2013 Revision 1 File: TunPro F3ARGD01 Page 1 of 1 Tune-up Procedure Each unit is tested during unit production by measuring the output strength. The unit is then given pass/fail status based on the measured output strength. The pass/fail threshold is determined by engineering during product development. Compliant samples continue through production and non-compliant units are removed.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 5, 2014 Revision 1 File: Garmin F4ARGA00 TstRpt 140124 Page 1 of 32 Application For Grant of Certification FOR FOR Model: F4ARGA00 2402-2480 MHz Low Power Transmitter FCC ID: IPH-O2416 IC: 1792A-O2416 FOR Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Test Report Number: 140124 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 5, 2014 Revision 1 File: Garmin F4ARGA00 TstRpt 140124 Page 2 of 32 Engineering Test Report For Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.249 and Industry Canada RSS-210 License Exempt Intentional Radiator For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Model: F4ARGA00 Low Power Transmitter Frequency Range 2402-2480 MHz FCC ID#: IPH-O2416 IC: 1792A-O2416 Test Date: January 24, 2014 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 5, 2014 Revision 1 File: Garmin F4ARGA00 TstRpt 140124 Page 3 of 32 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 6 Equipment Configuration.................................................................................................................................... 7 APPLICATION FOR CERTIFICATION ........................................................................... 8 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 9 EQUIPMENT TESTING PROCEDURES ........................................................................ 9 AC Line Conducted Emission Test Procedure .................................................................................................. 9 Radiated Emission Test Procedure ..................................................................................................................... 9 Diagram 1 Test arrangement for Conducted emissions ..................................................................................... 10 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 11 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 12 TEST SITE LOCATIONS .............................................................................................. 12 LIST OF TEST EQUIPMENT ........................................................................................ 13 UNITS OF MEASUREMENTS ...................................................................................... 14 ENVIRONMENTAL CONDITIONS................................................................................ 14 INTENTIONAL RADIATORS ........................................................................................ 14 Antenna Requirements ...................................................................................................................................... 14 Restricted Bands of Operation .......................................................................................................................... 14 Table 1 Harmonic Radiated Emissions in Restricted Bands Data ..................................................................... 15 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 15 AC Line Conducted EMI Procedure ................................................................................................................ 16 Figure 1 AC Line Conducted emissions of EUT line 1 (EUT AC Adapter) ..................................................... 17 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. SN: 38790 77706 4405 W. 259th Terrace Model: F4ARGA00 FCC ID#: IPH-O2416 Louisburg, KS 66053 Test #: 140124 IC: 1792A-O2416 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: May 5, 2014 Revision 1 File: Garmin F4ARGA00 TstRpt 140124 Page 4 of 32 Figure 2 AC Line Conducted emissions of EUT line 2 (EUT AC Adapter) ..................................................... 17 Figure 3 AC Line Conducted emissions of EUT line 1 (EUT-USB-CPU) ........................................................ 18 Figur…

Text truncated - open the document above for the full version.
