IUWSPEEDSTERField Disturbance Sensor

BUSHNELL SPEEDSTER OPERATORS MANUAL REGULATORY STATEMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Your Bushnell® Speedster™ is a precision instrument designed to provide many years of enjoyment. This booklet will help you achieve optimum performance by explaining its adjustments and features as well as how to care for this precise speed and statistic measuring instrument. To ensure optimal performance and longevity, please read these instructions before using your Bushnell Speedster. INTRODUCTION Your Bushnell Speedster uses digital technology and DSP (Digital Signal Processing) to provide instantaneous and accurate speed measurements to +/- One Mile Per Hour (MPH) accuracy. The Bushnell Speedster is a handy, multi-functional speed gun for all kinds of sports enthusiasts. Track everything from pitching speeds to cars at the racetrack. The Bushnell Speedster measures the speed of a baseball at 10- 110 MPH from 60 feet away from the ball, and the speed of a racecar from 10-200 MPH at 650 feet away. Unlike any other speed gun available, the Speedster allows you to keep statistics for baseball and softball, and provides last and average speeds for any type of object measured. BATTERY INSTALLATION Your Bushnell Speedster operates on six AA batteries. To install, remove the battery cover (A) by depressing both sides of the handle bottom. Remove the battery cartridge (B) and install the batteries so that the positive (+) and negative (-) terminals of the batteries match the markings inside the battery cartridge. Re-insert the battery cartridge with batteries in place and then place battery cover back onto the handle. GENERAL OPERATION Your Bushnell Speedster operates on six AA batteries. Make sure they have been installed according to the instructions listed in the battery installation section. A QUICK START LESSON Your Bushnell Speedster can be turned on by pressing the POWER button on the right side of the user panel below the LCD display (See fig. 1 ). This button will turn on the unit or turn it off at any time during the operation of the Speedster. Your Bushnell Speedster can be configured for many different modes of operation. These will be described in detail in later sections of this manual. TARGET SPEED AQUISITION A target can be anything that is moving. To acquire the speed of a target, with the Speedster powered on, aim the Speedster at the target and depress the trigger. There will be a RADAR ACTIVE icon appear in the upper right corner of the LCD display. This indicates the Doppler Radar is functioning. The speed of the target will appear on the LCD display. When the speed appears, release the trigger and the last speed displayed will “lock” on the display for easy viewing. There are certain mathematical properties of Doppler Radar that affect the accuracy of your Bushnell Speedster. Please read COSINE AFFECT ON TARGET VELOCITY later in this manual. As a quick reference to accuracy, remember to keep your targets direction of travel in a direct line with you. Fig. 1 USER INPUT SWITCHES AND SCREENS Definitions for SETUP Screen: SESSIONResume: Continues average and last speed display and calculations from previous session Clear Memory:Clears both average and last speed memory, display and calculations UNITSMPH:Speed will be displayed in Miles Per Hour KPH:Speed will be displayed in Kilometers Per Hour MODESpeed Only: Allows the user to capture speed Speed + Baseball Stats:Allows the user to record speed and enter Baseball Statistics To move from one field to the next, or from SESSION to UNITS, SESSION needs to be in bold. Once it is, press ENTER. Now UNITS will be highlighted. To change from MPH to KPH, press the ↓ arrow key and KPH will appear. To move to MODE, press ENTER and then the ↓ arrow key. Once you have selected session, Units of measure, and Mode, press the PAGE button. SCREEN DESCRIPTIONS Screen One – Bushnell Intro Logo (Graphic not same as what is displayed on LCD) Screen Two – Setup Edit Fields and Options 1. Session a. Resume i) Continue recording and updating stored information (1) Avg (2) Last (3) All Pitcher statistics (Pitches, Balls, Strikes) b. Clear Memory i) Clears (erases) all stored Pitchers’ information, Last and Avg statistics 2. Mode a. Speed Only i) Unit will record and store limited information, no pitcher statistics stored (1) Current speed (2) Last speed (3) Average (Sum of all recorded speeds ÷ Number of recorded speeds) b. Speed + Baseball Stats i) Unit will record and store information for up to eight separate pitchers (1)…

Text truncated - open the document above for the full version.

April 11, 2001 TIMCO TCB Services acting as agents for the Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: PROGRESS INSTRUMENTS, INC. 807 Northwest Commerce Drive Lee’s Summit, Missouri 64081 Ralph Garvin, Design Engineer RE: Confidentiality for schematics Equipment:FCC ID: IUWSPEEDSTER FCC Rules:Part 2 and 15.245 Gentlemen: Progress Instruments requests that the material in the schematic diagrams be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 CFR 0.459, following the grant of certification. In support of this request, Progress Instruments submits the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the schematic diagrams which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID number IUWSPEEDSTER. 3. Explanation of the degree to which the information is commercial or financial, or contains trade secrete or is privileged: This material includes a detailed schematic of the device. As such this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is ought is employed in the design and manufacture of wireless microphone systems transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 l Page 2April 11, 2001 5. Explanation of how disclosure of this information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Progress Instrument’s engineering department and personnel, who have designed the equipment and manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Progress Instrument. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is ought is kept confidential by Progress Instrument. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in the rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of the digital modulation technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in the design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. Thus, equipment is designed for commercial, industrial and governmental applications. As such, unlike most consumer equipment, this equipment will be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. 9. Any other information that the party seeking confidential treatment believes may be useful in assessing whether its request for confidentiality should be granted: See item 8 above. Note that the equipment for which approval is being sought will be employed in applications that inherently place a premium on security. The special fee for request of confidentiality will be submitted with the application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures

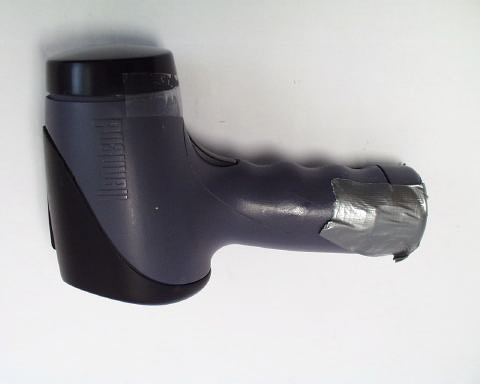

ROGERS LABS, INC.Progress Instruments, Inc. 4405 W. 259th TerraceMODEL: SpeedSTER Louisburg, KS 66053Test #: 010306FCCID#: IUWSPEEDSTER Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15cPage 1 of 1 SPEEDSTERExtPho.doc 04/09/2001 Eternal Photographs of SpeedSTER

BUSHNELL SPEEDSTER FCC ID LABEL FCC ID: IUWSPEEDSTER

ROGERS LABS, INC.Progress Instruments, Inc. 4405 W. 259th TerraceMODEL: SpeedSTER Louisburg, KS 66053Test #: 010306FCCID#: IUWSPEEDSTER Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15cPage 1 of 1 SPEEDSTERLabelLoc.doc 04/11/2001 Label Location Photographs of SpeedSTER The FCC ID ( IUWSPEEDSTER) will be imprinted into the pastic battery cap located at the base of the handle. The type size will be large enough to be legible without the aid of magnification (possibly 10 point) and shall state; FCC ID: IUWSPEEDSTER.

ROGERS LABS, INC.Progress Instruments, Inc. 4405 W. 259th TerraceMODEL: SpeedSTER Louisburg, KS 66053Test #: 010306FCCID#: IUWSPEEDSTER Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15cPage 1 of 2 SPEEDSTERintPho.doc 04/09/2001 Internal Photographs of SpeedSTER ROGERS LABS, INC.Progress Instruments, Inc. 4405 W. 259th TerraceMODEL: SpeedSTER Louisburg, KS 66053Test #: 010306FCCID#: IUWSPEEDSTER Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15cPage 2 of 2 SPEEDSTERintPho.doc 04/09/2001

BUSHNELL SPEEDSTER OPERATIONAL DESCRIPTION 1. UNIT DESCRIPTION –Bushnell SpeedSTER is a one piece, battery powered speed monitoring, doppler radar device that can discriminate an objects speed. The transmitter, receiver and antenna are integral to the unit. The receiver is a two-channel I/Q quadrature output. The unit transmits in the K band at 24.150 GHz +/- .1GHZ. The transmitter is a Gunn diode cavity stabilized, Continuous Wave oscillator. All received signals are digitally processed and converted to data for display or storage. Data from the SpeedSTER is digitized, object speed can be displayed and collected for analysis. 2. INTENDED PURPOSE – The SPEEDSTER is designed to be used for monitoring and data logging speed. These data are then used to provide real time visual speed prompts for sports enthusiasts and historical speed data for statistical studies. The SPEEDSTER is to be used only in stationary applications, as it is not capable of processing data while on a moving platform. 3. SETUP – The SPEEDSTER is intended for use by sports enthusiasts wishing to display and track the speed of moving objects such as baseballs. DC power is supplied to the SPEEDSTER by the onboard double a batteries. When power is applied operation is automatic and new data maybe taken by pressing the trigger. All usage is to be performed in a stationary position.

TEST REPORT For APPLICATION of CERTIFICATION For PROGRESS INSTRUMENTS, INC. 807 Northwest Commerce Drive Lee’s Summit, Missouri 64081 Ralph Garvin, Design Engineer MODEL: SPEEDSTER Field Disturbance Monitor Frequency 24.125 GHz FCC ID: IUWSPEEDSTER Test Date:March 15, 2001 Certification Date:March 15, 2001 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Progress Instruments, Inc. 4405 W. 259th TerraceMODEL: SpeedSTER Louisburg, KS 66053Test #: 010306FCCID#: IUWSPEEDSTER Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15cPage 2 of 27 CERTIFICATION\PROGRESSSPEEDSTER.doc 04/09/2001 TABLE OF CONTENTS FORWARD:.....................................................................................................................3 1)APPLICABLE STANDARDS & TEST PROCEDURES............................................3 2.1033(b) Application for Certification............................................................................................................4 2)EQUIPMENT TESTED..............................................................................................5 3)EQUIPMENT FUNCTION AND TESTING PROCEDURES......................................5 4)EQUIPMENT AND CABLE CONFIGURATIONS......................................................5 Conducted Emission Test Procedure................................................................................................................5 Radiated Emission Test Procedure...................................................................................................................5 5)LIST OF TEST EQUIPMENT....................................................................................6 6)UNITS OF MEASUREMENTS..................................................................................7 7)TEST SITE LOCATIONS..........................................................................................7 8)SUBPART B – UNINTENTIONAL RADIATORS......................................................7 Conducted EMI...................................................................................................................................................7 Radiated EMI......................................................................................................................................................7 Data: EUT and System Radiated Emissions (9 Highest) :................................................................................10 Summary of Results for Conducted Emissions:................................................................................................10 Summary of Results for Radiated Emissions:...................................................................................................10 Statement of Modifications:..............................................................................................................................10 9)SUBPART C - INTENTIONAL RADIATORS..........................................................11 15.203 Antenna Requirements........................................................................................................................11 Restricted Bands of Operation Per 15.205.....................................................................................................11 Data 15.205:......................................................................................................................................................11 15.209 Radiated Emissions Limits; General Requirements..........................................................................12 Radiated EMI....................................................................................................................................................12 Data 15.209:......................................................................................................................................................13 Summary of Results for Radiated Emissions:...................................................................................................13 15.245 Operation in the Band 24,075-24,175 MHz.......................................................................................13 Radiated Emissions of Intentional Radiator:.....................................................................................................18 Statement of Modifications:..............................................................................................................................18 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Progress Instruments, Inc. 4405 W. 259th TerraceMODEL: SpeedSTER Louisburg, KS 66053Test #: 010306FCCID#: IUWSPEEDSTER Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15cPage 3 of 27 CERTIFICATION\PROGRESSSPEEDSTER.doc 04/09/2001 FORWARD: The following is submitted for consideration in obtaining a Grant of Certification for low power intentional radiators operated under CFR 47, paragraph 15.245. Name of Applicant: PROGRESS INSTRUMENTS, INC. 807 Northwest Commerce Drive Lee’s Summit, Missouri 64081 Model: SPEEDSTER Speed monitor FCC I.D.: IUWSPEEDSTER Frequency Range: 24,075 MHz to 24,175 MHz Maximum Operating Power: 2,500 mV/m @ 3 Meters (128 dBμV/m @ 3 meters) 1)Applicable Standards & Test Procedures a)In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 1999, Part 2, Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.925, 2.926, 2.1031 through 2.1057, Part 15C Paragraph 15.245, and FCC Document FCC98-58 the following is submitted: b…

Text truncated - open the document above for the full version.

ROGERS LABS, INC.Progress Instruments, Inc. 4405 W. 259th TerraceMODEL: SpeedSTER Louisburg, KS 66053Test #: 010306FCCID#: IUWSPEEDSTER Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15cPage 1 of 1 SPEEDSTERTSup.doc 04/09/2001 Test Setup Photographs of SpeedSTER
