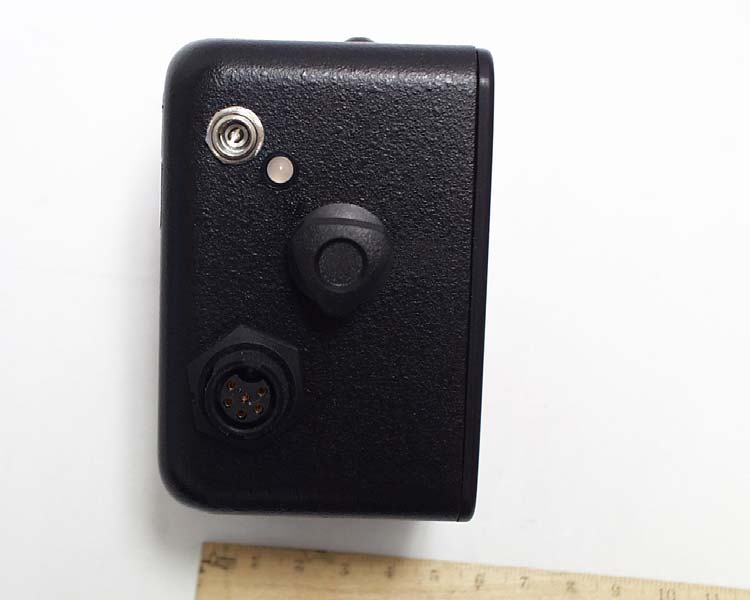

IVQDRU-IIFIELD DISTURBANCE SENSOR


OPERATOR’S MANUAL P/N 006-0857-00 REV. 0 Copyright 2006 Kustom Signals, Inc. All rights reserved Printed in the United States of America This publication may not be reproduced, stored in a retrieval system or transmitted in whole or in part in any form or by any means electronic, mechanical, photocopying, recording, or otherwise without prior written permission of Kustom Signals, Inc., 9325 Pflumm, Lenexa, Kansas 66215-3347. TABLE OF CONTENTS INTRODUCTION .....................................................................1 SYSTEM OPERATION Radar Side View ...............................................................2 Configuration Options ......................................................3 Installation.........................................................................6 Monitoring Target Speeds.................................................6 Tuning Fork Test...............................................................7 GENERAL INFORMATION Theory of Operation..........................................................9 Serial Port Output ...........................................................11 LED Indicator .................................................................11 Interference .....................................................................12 Recommended Care & Maintenance ..............................13 KSI Radar Microwave Emission ....................................14 TROUBLESHOOTING GUIDE Troubleshooting .............................................................16 TECHNICAL SPECIFICATIONS Microwave ......................................................................18 General ............................................................................18 REFERENCES FCC Rules .......................................................................19 WARRANTY ..........................................................................21 INTRODUCTION 1 INTRODUCTION This Directional Radar Unit, known as DRU II, is designed and built for target speed sensing applications. The DRU II has been completely redesigned for flexibility, simple operation, small size and extremely low current consumption. The DRU II is intended for uses in traffic, industrial, and sports products. Examples of these applications are the Kustom Signals S.M.A.R.T. series trailers, Pole Mounted Speed Displays and StealthStat statistics gathering systems. The DRU II is designed to be an extremely flexible unit. Kustom Signals provides PC software to allow the user to setup the DRU II to operate in many different configurations. The radar itself is incredibly simple to operate--just connect it to a compatible display or PC, and power it up. The DRU II will output RS232 speed data in the selected output protocol as long as the unit is powered. With a size of only 3.5”x 3”x 2.25” the DRU II is a complete one-piece unit, that can easily be mount to the user’s equipment. The DRU II sets a new standard for low current consumption. This dramatically improves run times in battery-operated applications. Although the DRU has no frills outside, it has Kustom Signals' uncompromising quality inside to give you years of trouble-free, accurate, reliable, speed measurements. SYSTEM OPERATION 2 RADAR SIDE VIEW A B F C D A. RUBBER WASHER: Rests on mounting screw between mounting bracket and radar unit. B. MOUNTING BRACKET SCREW: Connects bracket to radar unit. C. INDICATOR LED: Strongest target direction indicator. D. POWER CONNECTOR: Provides screw down connection to the provided power cable E. DATA CONNECTOR: Connections for bi-directional RS232 serial data cable. SYSTEM OPERATION 3 CONFIGURATION OPTIONS The DRU II was designed to give the user a configurable radar unit that can be setup for their needs. A simple PC program let the user select: 1. Target Direction: The DRU II can output speeds for targets traveling in the direction of: a. Approaching Only b. Receding Only c. Approaching and Receding d. Non Directional (all targets output) 2. Sensitivity (Range): The DRU II can be set for sensitivity from 5 (most sensitive) to 1 (least sensitive). SYSTEM OPERATION 4 3. Target Tracking: The DRU II can be set to Vehicle or Sports tracking. With vehicle tracking, targets are acquired with a longer tracking history and have a 2 second target hang time. Sports’ tracking has a quick acquisition time and only a ½ second target hang time. 4. Units of Measure: The DRU II can output speeds in: a. Miles per hour (MPH) b. Kilometer per hour (km/hr) c. Feet per second (Ft/Sec) d. Meters per second (Mt/Sec) Note: All speeds are calculated in tenth units of measure. The user selects if they want the output in tenth or units. 5. Target Speed Range: The DRU II can quickly be set to the Standard speed range for speeds from 5 – 120 MPH or the Full speed range for speeds from 1 – 150 MPH. For more flexibility the user can input a Low Cutoff speed (speeds below this are not reported) and a High Cutoff speed (speeds above this are not reported.) 6. Output Protocol: The DRU II can output one of several different protocols. Including outputs in HEX, ASCII, multiple targets, tenth units, and many more. 7. Output Baud Rate: The DRU II can be set to output RS232 data at rates of (19200, 9600, 4800, 2400, or 1200) baud. SYSTEM OPERATION 5 8. Output Update Rate: The DRU II can be set to output packets of speed data at rates of (8 times per second, 4 times a second, 2 times a second, once a second, upon speed change, or when the user’s equipment polls for data) Note: If Output Update Rate is set to upon speed change, the DRU II outputs speeds immediately when the speeds changes by at least one unit or once every two seconds if the speed is not changing. If the DRU II is set to the Polled output, data is output when the DRU II receives characters [“*P”] or [“*P”0x0D]. Once all the selections have been made, click the Send Setting button to send the configuration data to the DRU II. SYSTEM OPERATION 6 INSTALLA…
