IVX27861-2-27T27 MHz Remote Control Transmitter

APPLICANT : TYCO PLAYTIME FCC ID : IVX27861-2-27T CIRCUIT DESCRIPTION Q1 and Q2 form a stable multivibrator which is controlled by switches SW1 and SW2. The output of the multivibrator is mixed with the 49.86 MHz carrier of crystal oscillator Q3 at the base of Q4 the RF amplifier/buffer. The antenna is inductively coupled to the output stage through L4 and the matching network of C6, C7, and L3. Energy is supplied by a 9 volt battery. ANTENNA AND GROUND CIRCUITRY This unit makes use of an attached flexible 5” antenna. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: TYCO PLAYTIME FCC ID: IVX27861-2-27T EXHIBIT #: 11

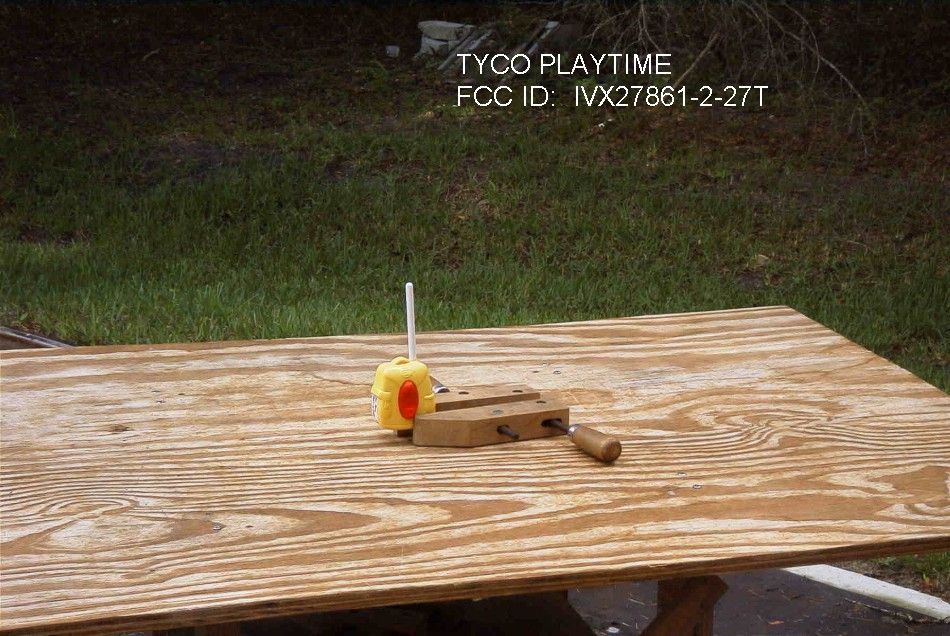

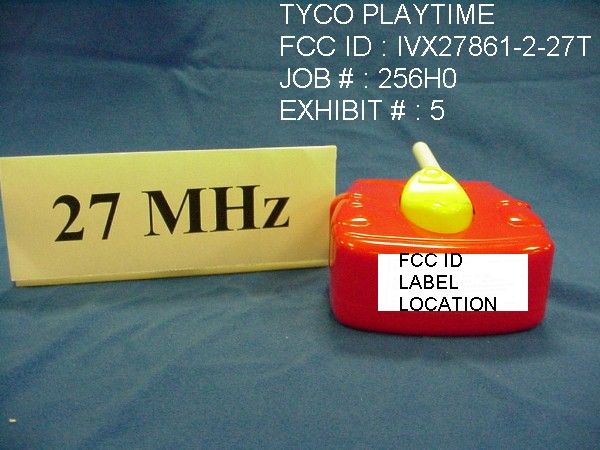

TABLE OF CONTENTS APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST AND TEST PROCEDURE PAGE 2......TEST PROCEDURE CONTINUED PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3A-3B........INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........OCCUPIED BANDWIDTH PLOT - CW EXHIBIT 11...........CIRCUIT DESCRIPTION EXHIBIT 12...........TEST SET UP PHOTO APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T REPORT #: T:\CUS\T\TYCO\256H0\256H0.RPT PAGE #: TABLE OF CONTENTS LIST APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 4.___Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 5.___Horn 40-60GHz: ATM Part #19-443-6R 6.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 7.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 8.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 9.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 Cal 7/19/99 10._X_Open Area Test Site #1-3meters Cal. 12/22/99 11.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 12.___Signal Generator: HP 8614A, S/N 2015A07428 Cal. 5/29/99 13._X_Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/23/97 14.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 15.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 16.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 17.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 18.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 99o with a humidity of 25%. APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T REPORT #: T:\CUS\T\TYCO\256H0\256H0.RPT PAGE #: 1 APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T TEST PROCEDURE CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: TYCO PLAYTIME FCC ID: IVX27861-2-27T REPORT #: T:\CUS\T\TYCO\256H0\256H0.RPT PAGE #: 2 APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: PEAK EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 27.15 32.70 0.20 11.75 44.65 35.35 V 54.29 24.80 0.80 9.61 35.21 4.79 V 81.44 25.90 0.80 12.13 38.83 1.17 V 108.58 11.90 0.80 8.38 21.08 22.42 V 135.73 9.20 0.80 15.32 25.32 18.18 V 162.87 14.40 0.90 17.17 32.47 11.03 V 190.02 13.40 0.90 13.67 27.97 15.53 V 217.16 13.60 1.20 12.42 27.22 18.78 V 244.31 20.90 1.20 13.21 35.31 10.69 V 271.45 26.20 1.40 14.00 41.60 4.40 V SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: Mario R. de Aranzeta DATE: JULY 31, 2000 APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T REPORT #: T:\CUS\T\TYCO\256H0\256H0.RPT PAGE #: 3 APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.227 REQUIREMENTS: The field strength of any emissions appearing outside the 26.96-27.28 MHz band shall not exceed 100 uV/m (15.209). THE GRAPH IN EXHIBIT 10 REPRESENTS THE WORSE CASE OCCUPPIED BANDWIDTH EMISSIONS FOR THIS DEVICE. METHOD OF MEASUREMENT: A small sample of the transmitter output was fed into the spectrum analyzer and the attached plot was taken. The vertical scale is set to -10 dBm per division. The horizontal scale is set to 5 kHz per division. TEST RESULTS: The unit DOES meet the FCC requirements. PERFORMED BY: Mario R. de Aranzeta JULY 31, 2000 APPLICANT: TYCO PLAYTIME FCC ID : IVX27861-2-27T REPORT #: T:\CUS\T\TYCO\256H0\256H0.RPT PAGE #: 4
