IVX39237T49 MHz R/C Transmitter

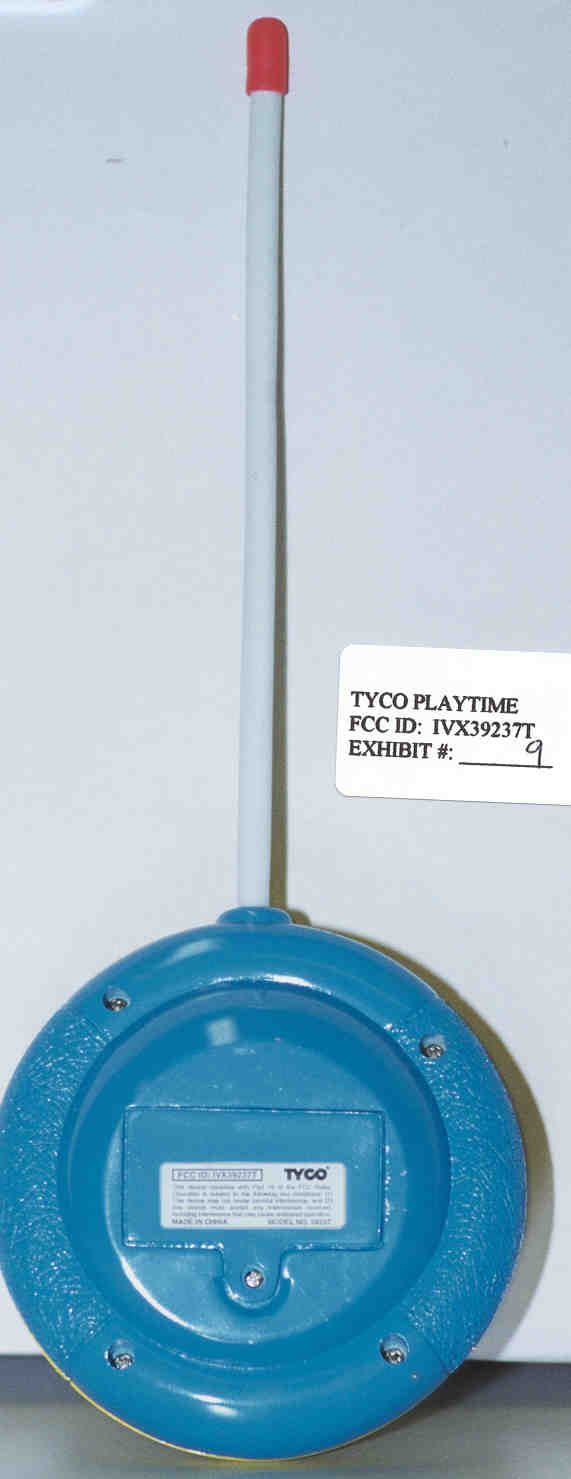

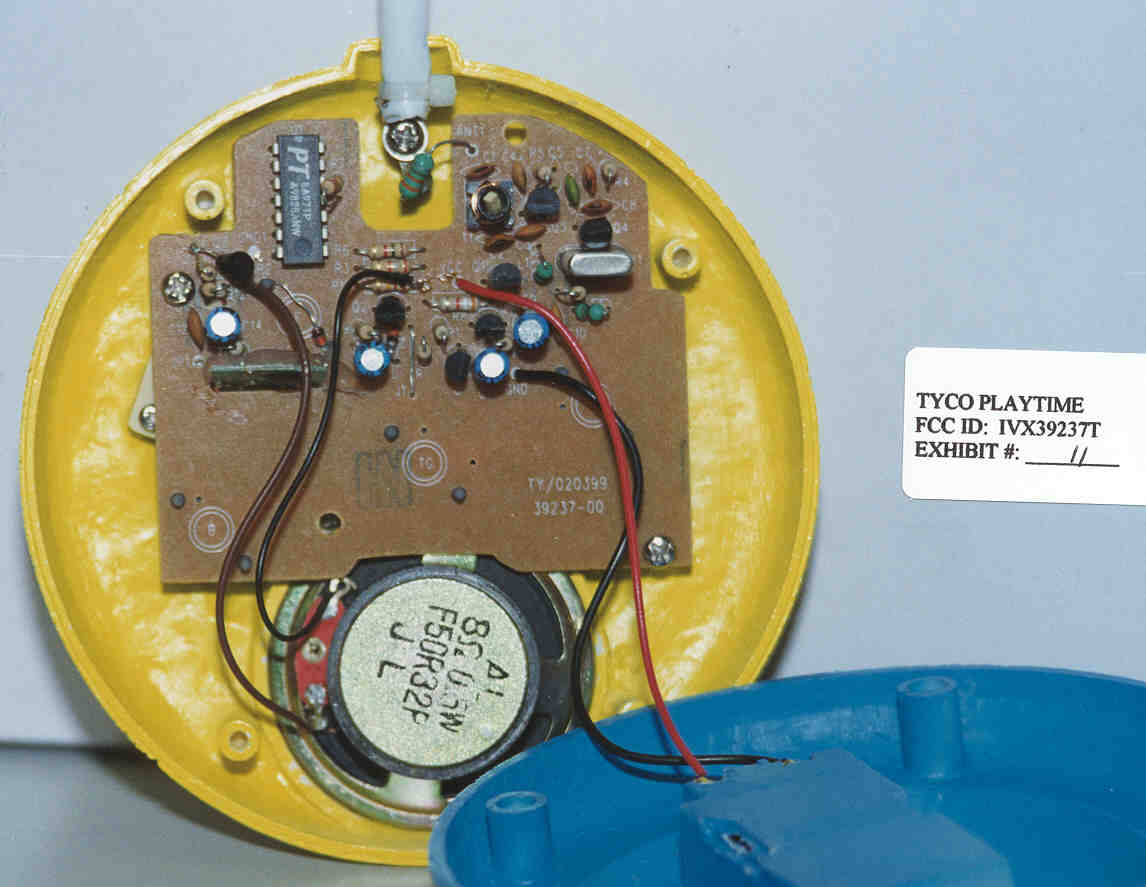

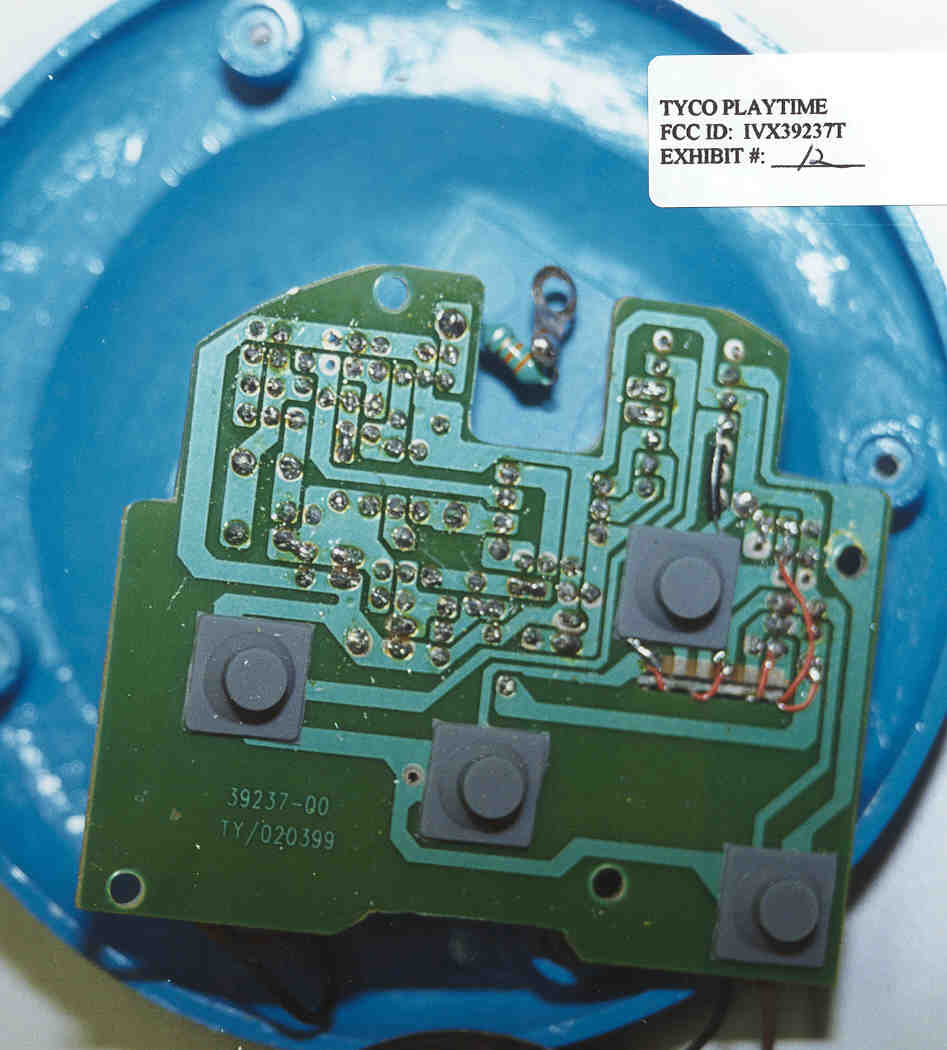

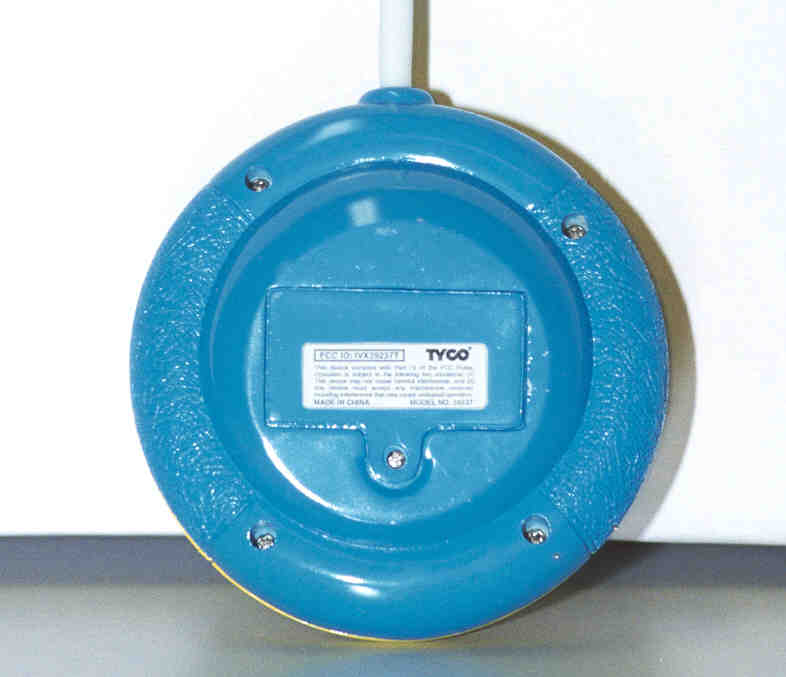

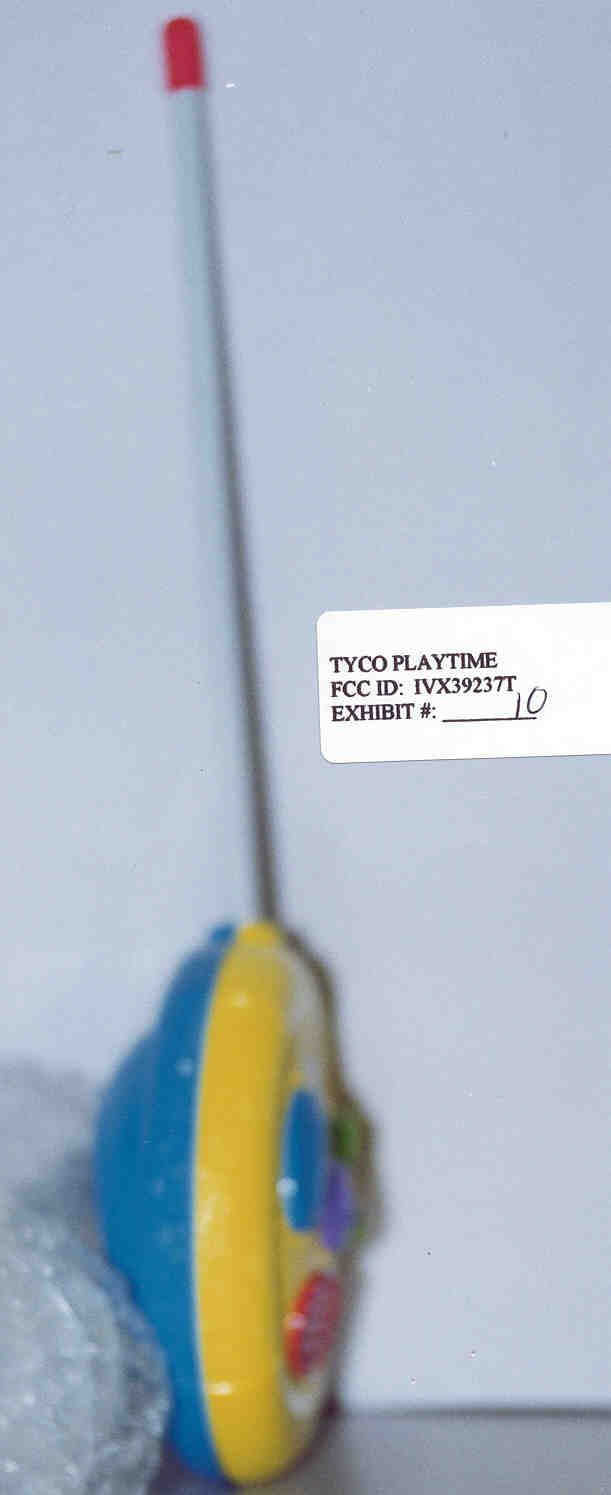

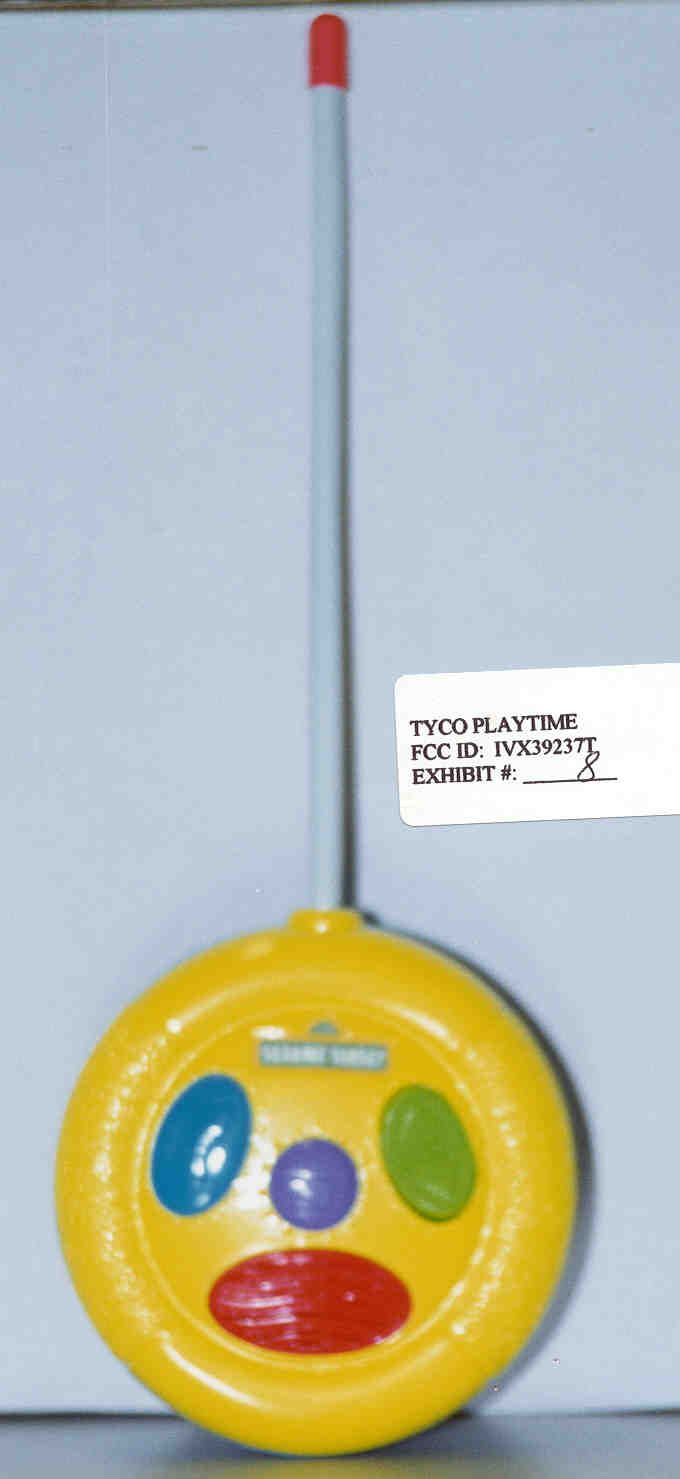

TABLE OF CONTENTS LIST APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T TEST REPORT CONTAINING: PAGE 1......TEST PROCEDURE PAGE 2......TEST PROCEDURE CONTD. & CIRCUIT DESCRIPTION PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............POWER OF ATTORNEY LETTER EXHIBIT 2............BLOCK DIAGRAM EXHIBIT 3............SCHEMATIC EXHIBIT 4A-4B........PARTS LIST EXHIBIT 5A-5D........INSTRUCTION MANUAL EXHIBIT 6............FCC ID LABEL SAMPLE EXHIBIT 7............SKETCH OF LOCATION EXHIBIT 8............EXTERNAL PHOTO - FRONT VIEW EXHIBIT 9............EXTERNAL PHOTO - REAR VIEW EXHIBIT 10...........EXTERNAL PHOTO - SIDE VIEW EXHIBIT 11...........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 12...........INTERNAL PHOTO - COPPER SIDE EXHIBIT 13...........OCCUPIED BANDWIDTH PLOT - CW APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T REPORT #: F:\CUS\T\TYCO\TYC128H9.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 6/26/98 2. Signal Generator, Hewlett Packard 8640B, cal. 10/1/98 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 10/30/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/15/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 10/30/98 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80oC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T REPORT #: F:\CUS\T\TYCO\TYC128H9.RPT PAGE #: 1 TEST PROCEDURES CONTINUED APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. CIRCUIT_DESCRIPTION: The transmitter is triggered by switches SW2, SW3, SW4 at the input of U1. The output of U1 varies the base bias of Q5, the output stage. The RF signal starts with the crystal oscillator Q4. From Q4 the signal is coupled to the base of Q5 via C6. The modulated output of Q5 is coupled to the output low pass filter via C3. The low pass filter made up of C2, T2, Ca and L3 and then to the antenna. ANTENNA_AND_GROUND_CIRCUITRY This unit makes use of a external 5" antenna. The antenna is inductively coupled. This unit is powered from a 9.0V battery. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T REPORT #: F:\CUS\T\TYCO\TYC128H9.RPT PAGE #: 2 APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: PEAK EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 49.86 62.20 0.25 10.99 73.44 6.56 V NO OTHER EMISSIONS NOTED. SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: S. S. SANDERS DATE: APRIL 6, 1999 APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T REPORT #: F:\CUS\T\TYCO\TYC128H9.RPT PAGE #: 3 APPLICANT: TYCO PLAYTIME FCC ID: IVX39237T NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.235 REQUIREMENTS: The field strength of any emissions appearing between the band edges and up to 10 kHz above and below the band edges shall be attenuated at least 26 dB below the level of the unmodu- lated carrier or to the general limits of 15.209, whichever permits the higher emission levels. THE GRAPH IN EXHIBIT 13 REPRESENTS THE EMISSIONS…
