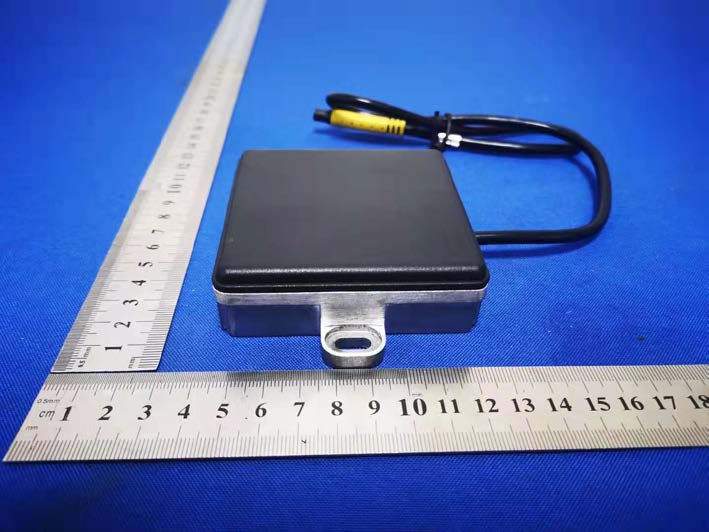

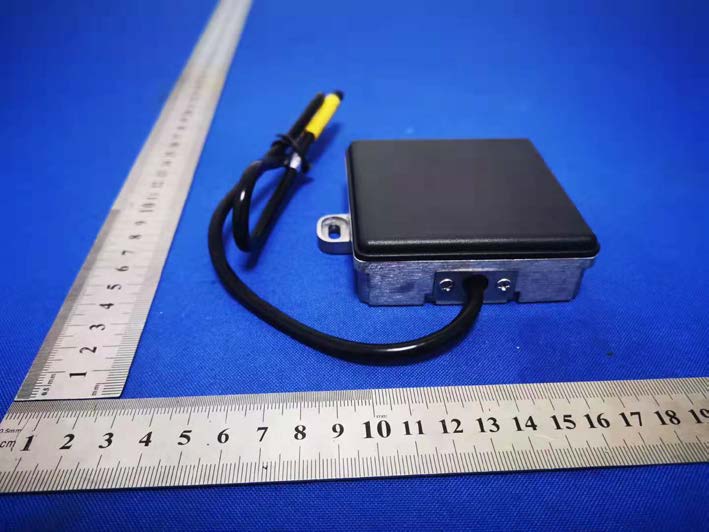

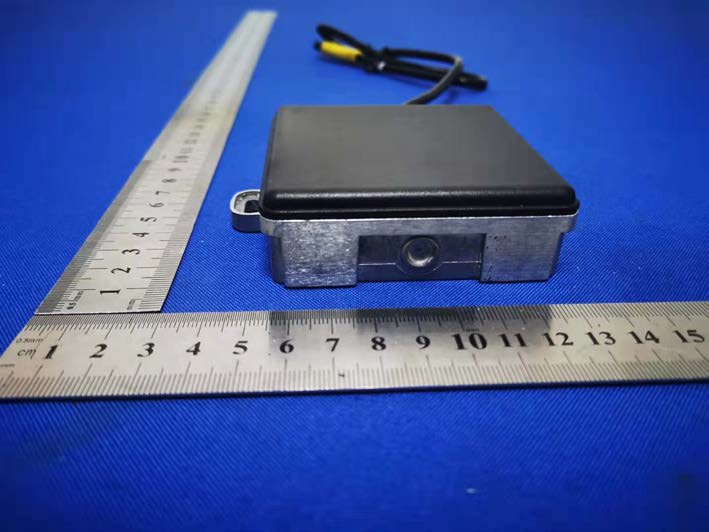

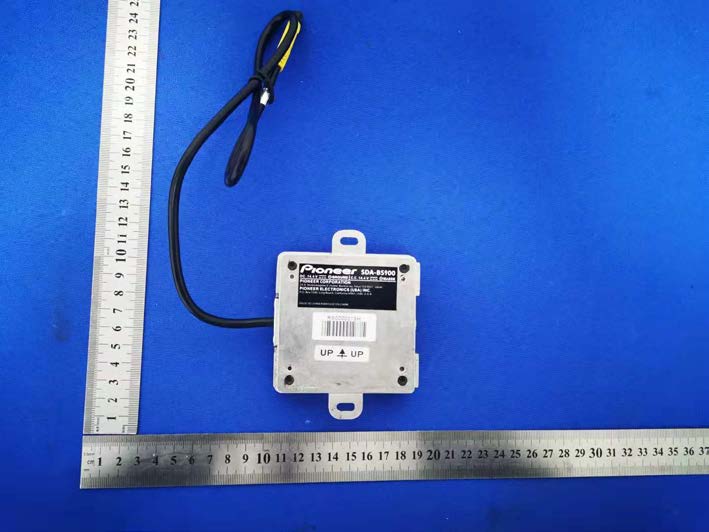

IYASDA-BS900Blind Spot Detection/ Lane Change Assist System

Owner’sManual SDA-BS900 Blind Spot Detection/ Lane Change Assist System Version1.2 1 TableofContents I.......Items List.............................................................................................................2 II......Technical Specification.........................................................................................3 III.....Installation Diagram............................................................................................3 IV......Wire Connection Diagram..................................................................................4 V......Installation Guide.................................................................................................5 VI.....Alert Conditions..................................................................................................8 VII....How does it Alert................................................................................................8 VIII...Troubleshooting..................................................................................................9 IX......Technical Support Info........................................................................................9 X......Limited Warranty................................................................................................9 XI......To Obtain Warranty Service..............................................................................10 RadarSensor2PCS 2 I.Itemslist NumberItemNameQuantityPicture 1 2 MainHarness &Extension Cable 1SET 3 4 LEDIndicator2PCS 6 7 Adjustable Buzzer 1PC Radar Puck Bracket 5 LED Indicator Housing 2PCS 2PCS Installation Angle Tool 1PC 8 9 Drill Bit and Rivets Zip Ties Drill 1PC& Rivets 12PCS 10PCS 3 II.TechnicalSpecification III.InstallationDiagram The system will be only activated at the speed over 18mph DetectionAngle70 degrees ( Horizontal ) SpeedAccuracy <0.5mph Speed Restriction DirectionofMovementVehicles Approaching or Vehicles You Are Passing DetectionRange -6.5ft to 80ft OperatingVoltage8V to 30V WaterproofRadars: IP67 / Cables: NOT waterproof WorkingCurrent WorkingTemperature < 0.4A -20°C ~ + 70°C LED LED R-Lamp L-Lamp Buzzer L-SENSOR R-SENSOR +12V CAUTION This product (blind spot safety system) functions as an aid for notifying presence of obstacles in vehicle blind spots. Be sure to look both sides of a vehicle to confirm safe maneuver. 4 Red Black Pink Orange Green ReverseTrigger IV.WireConnectionDiagram L_sensor L_LEDindicator R_sensor R_LEDindicator Buzzer ACC/IGN GND L_lamp R_lamp Red Yellow Yellow Black Red 5 V.InstallationGuide 1.Sensor Installation Use Supplied Tool to Set Proper Radar Puck Angle: the default installation angle is: 38 degree. Depending on actual situation, the install angle could be adjusted accordingly: 38°38° 6 Mounting Radar Pucks with Provided Adjustable Brackets Please follow directions below: 1) Prepare Materials:2) Mount the sensor module on the bracket: 3) After found angle set, firmly screw or bolt the bracket to the car: from side 7 2. Installation of the left/right turn signal. Step 2. Using the voltage multi-meter, locate the left and right isolated* turn signal trigger wires behind the tail lamp. Once verified, connect the left and right signal wires of the BSS2x wire harness to the correct signal wires. * Vehicles with shared bulb for turn and brake light will cause confusion to systems behavior, in this case integrate wires from front isolated turn signals or side markers Fig.1Fig.2Fig.3 3. LED indicator installation: Step 3. Place the LED indicators where it is visible for the driver. Ideally on the A-pillar. Fig.4Fig.5 4. Speaker location: Step 4. While installing the speaker, make sure it is not obstructed by any panels inside the vehicle. Fig.6 Step 5. Tuck the wires neatly to hide and prevent wire pinch. 8 VI.Alertconditions: 1. When the vehicle is on, the system would start detecting objects in the blind area in the lane next to and behind the vehicle 80 ft. (Fig.7) 2. When vehicles are approaching, and their speed is faster than our own speed. 3. When you are passing vehicles, and their speed is slower than your own speed. Fig.7 VII.Howdoesitalert? A. Blind detection on right side: 1. R-LED indicator will be activated and indicator will light up when there is an object approaching to the right side blind area of your vehicle at speed over 18 mph (see Fig.7). 2. If the right turn signal of your vehicle is triggered at the same time, the R-LED indicator will blink and the buzzer will be beeping as well at speed over 18 mph. B. Blind detection on left side: 1. L-LED indicator will be activated and indicator will light up when there is an object approaching to the left side blind area of your vehicle at speed over 18 mph (see Fig.7). 2. If the left turn signal of your vehicle is triggered at the same time, the L-LED indicator will be blink and the buzzer will be beeping as well at speed over 18 mph. C. The LED and buzzer will not light up (no activity) if there is no object approaching to the blind area of your vehicle. D. When in reverse, the buzzer speaker will beep to give cross traffic notification and the LED will indicate the direction of incoming vehicles (or objects) are approaching. Notifications will not alert, for standing objects under 6 mph reverse speed. Sensors the metal bumper or other metal module are covered by 9 VIII.Troubleshooting: NO.IssueReasonSolution 1LEDlightdoesnot work Incorrect not making contact connection or pins Check the harness and make sureconnectioniscorrect LEDlightisbrokenReplaceLEDlight 2OppositeLED indicator Microwave sensor or LED indicators are plugged in to the oppositeconnector MakesureREDisdriversideand YELLOWispassengerside. 3BuzzerdoesnotworkWrong connection or pins not makingcontact Check the harness and make sureconnectioniscorrect DefectivebuzzerspeakerReplacebuzzer 4Sensors work does not Findthebestlocationwherethe sensors cannot be blocked by any metal 5Unitdoesnotwork after connected…
