IYZ3351Keyless Go W211 Typ 3312

82Controls in detailOpening and closing Opening and closing You will find detailed information about your vehicle's functions in the "Controls in detail" section. You will find this section most useful if you are already familiar with the ba-sic functions of your vehicle.If you are not yet familiar with the basic functions, the "Getting start-ed" section will provide you with more information. You will find the reference to the appropriate page no. at the start of each section. The vehicle's equipment includes two keys. Emergency key element release catches 4 have different colours to help distinguish between the two keys.The key allows you to unlock the ve-hicle from some distance. Only use the key in the immediate vicinity of the vehicle, to prevent theft.The key locks and unlocks the fol-lowing centrally:
the doors
the boot lid
the fuel filler flap Key 1 Battery check lamp 2 ‹ Locking button 3 Š Boot unlocking button 4 Emergency key element release catch 5 Œ Unlocking button Key P 80.35-2083-31 online version (Edition C, 01/02) 83 Controls in detail Opening and closing Factory settingUnlocking the vehicle centrally Press the Œ button. The turn signals flash once.The anti-theft alarm system* (EDW) is switched off. If you do not open either a door or the boot lid after you have unlocked your vehicle, it will relock itself after approximately 40 seconds. Locking the vehicle centrally  Press the ‹ button. The turn signals flash three times if the doors and boot are closed.The active drive authorisation system and the anti-theft alarm system* (ATA) are activated. !Do not expose the key to high levels of electromagnetic radia-tion. Doing so may cause it to function erratically. Risk of accident G Do not leave children alone in the vehicle. They could open a door from the inside and thereby endan-ger themselves or others. online version (Edition C, 01/02) 84Controls in detailOpening and closingIndividual settingsIf you frequently drive alone, you may wish to change the function of the key. Pressing the Œ button will then only unlock the driver's door and the fuel filler flap.  Press both the Œ and ‹ buttons simultaneously for about 6 seconds until battery check lamp 1 flashes twice. The key will then function as fol-lows:Unlocking the driver's door  Press the Œ button once. Unlocking the vehicle centrally  Press the Œ button twice. Locking the vehicle centrally  Press the ‹ button. Restoring the factory setting  Press both the Œ and ‹ buttons simultaneously for about 6 seconds until battery check lamp 1 flashes twice. online version (Edition C, 01/02) 85 Controls in detail Opening and closing Checking the battery Press the Œ or ‹ button. The battery check lamp lights up briefly if the battery is suffi-ciently charged. If the battery is not sufficiently charged, prob-lem-free key operation can no longer be guaranteed. Change the batteries immediately (  page 402). Unlocking the boot lidYou can unlock the boot separately.  Press and hold the Š button until the boot unlocks. Opening the boot lidThe handle is located in the recess for the rear licence plate.  Lift up the boot lid.The vehicle must be unlocked. !The boot lid automatically swings upwards. Always ensure that there is sufficient clear-ance. iIf the vehicle was previously locked centrally, it is only nec-essary to close the boot lid again. It will then be locked au-tomatically. P 80.20-2344-31 !Do not place the key in the open boot. There is a risk of being locked out. online version (Edition C, 01/02) 86Controls in detailOpening and closingLocking the boot separately Close the boot lid.  Remove the emergency key ele-ment from the key (  page 400).  Insert the emergency key ele-ment in the boot lock. 1 To unlock 2 To lock  Turn the key clockwise to posi-tion 2 . The boot remains locked, even if the vehicle is unlocked central-ly. Summer opening / convenience closing featureSummer opening: The sliding / tilting sunroof* or the panorama sliding sunroof* and the side windows are opened and the ventilation* for the driver's seat is switched on.  Point the tip of the key at the driver's door handle.  Unlock the vehicle and hold down the Œ button until the side windows and the sliding /tilting sunroof* are opened to the required position. Convenience closing feature The sliding / tilting sunroof* or the panorama sliding sunroof* and the side windows are closed. P 80.20-2345-31 iIf the boot has been locked sep-arately, it is only possible to un-lock it using the emergency key element. iThe summer opening function can only be operated using the key's infra-red connection. online version (Edition C, 01/02) 87 Controls in detail Opening and closing  Lock the vehicle and hold down the ‹ button until the side windows and the sliding / tilting sunroof* are completely closed. Or using KEYLESS GO*:  Lock the vehicle.  Press and hold the locking but-ton on the door handle until the side windows and the sliding /tilting sunroof* are completely closed. Before leaving the vehicle, ensure that all the side windows and the sliding / tilting sunroof* are proper-ly closed. When you touch the door handle, your vehicle checks whether the key you have is the correct one for your vehicle. If the key is the correct one, your vehicle unlocks
the doors
the boot lid
the fuel filler flap Points to bear in mind
Always carry the KEYLESS GO key on your person.
Never store the KEYLESS GO key together with
electronic equipment such as a mobile phone or anoth-er KEYLESS GO key,
metallic objects such as coins or foil, since this could impair its effec-tiveness. Risk of injury G Monitor the closing procedure to en-sure that nobody can become trapped. KEYLESS GO*Risk of accident G Do not leave children alone in the vehicle. They could open a door from the inside and thereby endan-ger themselves or others. !Do not expose the KEYLESS GO key to high levels of electromag-netic radiation. Doing so may cause it to function erratically. onlin…

Text truncated - open the document above for the full version.

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. MARQUARDT GMBH, Schlossstraße 16, 78604 Rietheim-Weilheim / Germany would like the following documents regarding this submission for FCC ID: IYZ3351 to be kept confidential. KEYLESS GO W211 - 3312 1. Page 1 of 1 Annex no. 7 document “Block diagram” 2. Page 1 of 2 Annex no. 8 document “Schematics” 3. Page 2 of 2 Annex no. 8 document “Schematics” 4 Page 1 to 14 of 14 Annex no. 5 document “Technical description”. The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Manfred Dudde

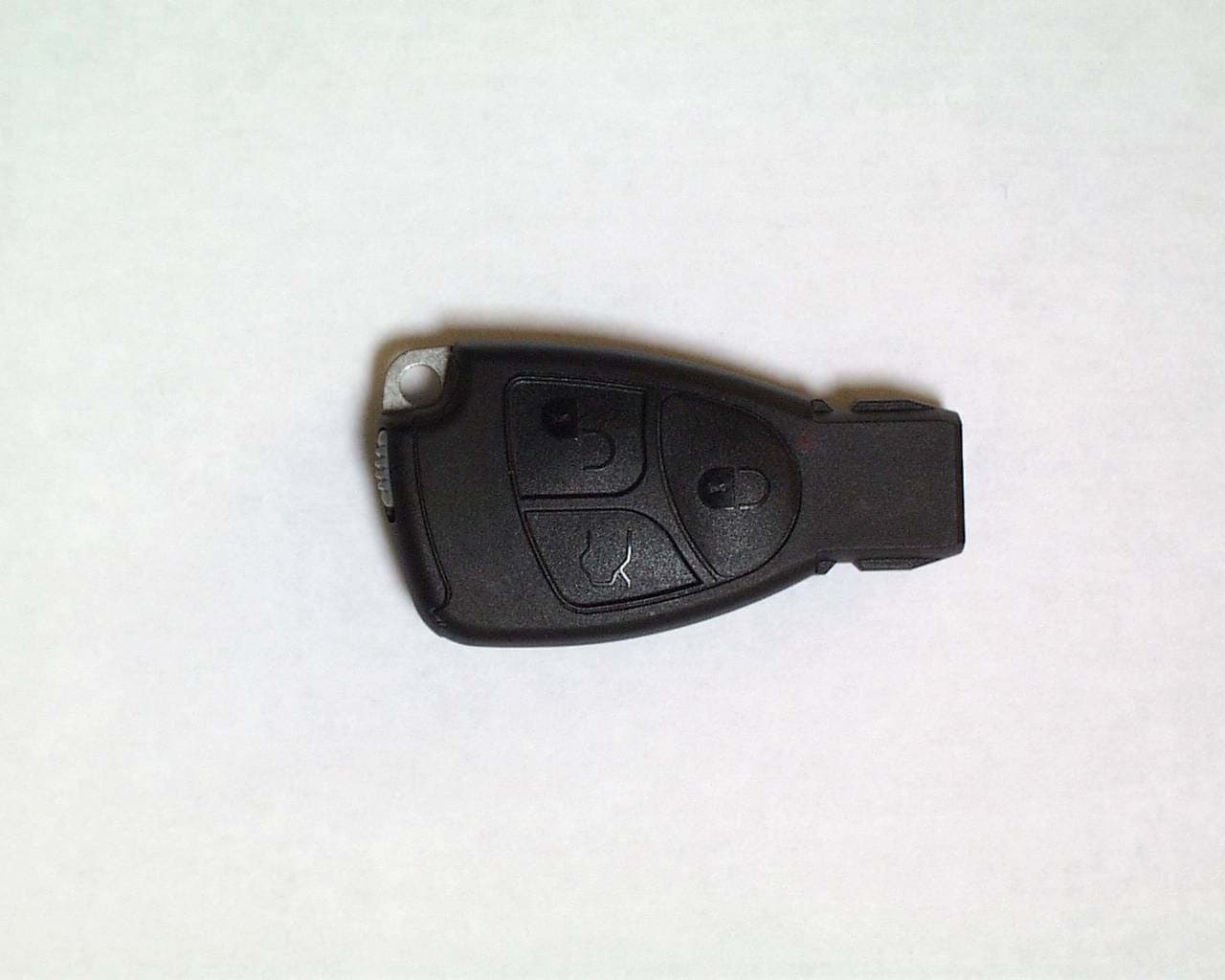

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE FCC ID : IYZ3351 Annex No.4 Page 2 of 2 SKETCH OF FCC ID LABLE LOCATION

Annex No.2 Page 2 of 2 Internal Photographs of the Equipment Under Test INTERNAL COMPONENT SIDE PHOTO Annex No.2 Page 2 of 2 INTERNAL SOLDER SIDE PHOTO

Page 1 of 20 m. dudde hochfrequenz-technik Rottland 5a Datum: 14.02.02 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com TEST REPORT No.: 02001338 Date : 2002.07.19 EQUIPMENT UNDER TEST: Trade Name: Marqurdt Keyless Go W211 Model: Key Typ 3312 Serial No: none Prototype Equipment Category: Transceiver Manufacturer: Marquardt GmbH Address: Schloßstrasse 16 D-78604 Rietheim-Weilheim Germany Phone: +49 (0)7424 / 99-1891 Fax: +49 (0)7424 / 99-2541 E-mail: [email protected] RELEVANT STANDARD: 47 CFR Part 15C - Intentional Radiators USED: ANSI C63.4-1992 TEST REPORT PREPARED BY: Ralf Trepper m.dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 E-mail: [email protected] TEST PERSONNEL: SIGNATURE OF THE COMPANY OFFICIAL: Ralf Trepper Manfried Dudde FCC ID: IYZ3351 Test Report : 02001338 Page 2 of 20 Issue Date: 19.07.2002 EUT: Keyless Go W211 Typ 3312 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 email [email protected] CONTENTS 1 GENERAL INFORMATION .................................................................................................................. 4 1.1 Purpose ................................................................................................................................................................... 4 1.2 Limits and Reservations .......................................................................................................................................... 4 1.3 Test Location ........................................................................................................................................................... 4 1.4 Manufacturer ....................................................................................................Fehler! Textmarke nicht definiert. 1.5 Dates ................................................................................................................Fehler! Textmarke nicht definiert. 2 PRODUCT DESCRIPTION ................................................................................................................... 5 2.1 Equipment Under Test (EUT) ............................................................................................................................. 5 2.2 EUT Peripherals ...................................................................................................................................................... 5 2.4 Modifications Required for Compliance.............................................................................................................. 5 4 ANTENNA REQUIREMENT ..................................................................................................................... 7 4.1 Regulation ............................................................................................................................................................... 7 4.2 Result ...................................................................................................................................................................... 7 5 RADIATED EMISSIONS ............................................................................................................................ 8 5.1 Regulation ............................................................................................................................................................... 8 5.2 Test Equipment ....................................................................................................................................................... 9 5.3 Test Procedures ...................................................................................................................................................... 9 5.4 Calculation of Field Strength Lirnits....................................................................................................................... 10 5.5 Calculation of Average Correction Factor ............................................................................................................. 10 5.6 Field Strength Calculation ..................................................................................................................................... 10 5.7 Test Results...................................................................................................................................................... 11 5.7.1 Model : Keyless Go W211 Typ 3312..................................................Fehler! Textmarke nicht definiert. 5.7.2 Model : Keyless Go W211 Typ 3312....................................................................................................... 11 6 CONDUCTED EMISSIONS TESTS ........................................................................................................ 12 6.1 Regulation ............................................................................................................................................................. 12 6.2 Test Equipment ..................................................................................................................................................... 12 6.3 Test Procedures .................................................................................................................................................... 12 6.4 Test Results........................................................................................................................................................... 12 7 PERIODIC OPERATION CHARACTERISTICS.................................................................................. 13 7.1 Periodic Operation................................................................................................................................................. 13 7.1.1 Regulatio…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT

Annex No.6 Page 1 of 1 Test Setup Photos : Keyless Go W211 Typ 3312 EUT
