Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Managing Directors: Dr. Peter Havel (Sprecher / CEO) Dr. Jens Butenandt Patrick van Welij Phone: +49 (0) 9421 55 22-0 Fax: +49 (0) 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany TÜV SÜD Product Service Report on the FCC and IC Testing of the Marquardt GmbH Passive Car Entry Key Model: BK1 In accordance with FCC 47 CFR Part 15 F and ISED RSS-220 and ISED RSS-Gen Prepared for: Marquardt GmbH Schloss-Str. 16 78604 Rietheim-Weilheim German y FCC ID: IYZBK1 IC: 2701A-BK1 COMMERCIAL-IN-CONFIDENCE Date: 2020-10-01 Document Number: TR-64038-83123-07 | Issue 2 RESPONSIBLE FOR NAME DATE SIGNATURE Project Management Alex Fink 2020-10-01 SIGN-ID 405743 Authorised Signatory Markus Biberger 2020-10-01 SIGN-ID 405840 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules. Engineering Statement: This measurement shown in this report were made in accordance with the procedures described on test pages. All reporded testing was carried out on a sample equipment to demonstrate limited compilance with with FCC 47 CFR Part 15 F and ISED RSS-220 and RSS-GEN. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing Alex Fink 2020-10-01 SIGN-ID 405743 Laboratory Accreditation DAkkS Reg. No. D-PL-11321-11-02 DAkkS Reg. No. D-PL-11321-11-03 Laboratory recognition Registration No. BNetzA-CAB-16/21-15 Industry Canada test site registration 3050A-2 Executive Statement: A sample of this product was tested and found to be compilant with FCC 47 CFR Part 15 F:2019 and ISED RSS-220:2018 and ISED RSS-Gen:2019 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD Product Service with all reasonable skill and care. The document is confiden- tial to the potential Client and TÜV SÜD Product Service. No part of this document may be reproduced without the prior written ap- proval of TÜV SÜD Product Service. © 2020 TÜV SÜD Product Service. ACCREDITATION Our BNetzA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our BNetzA Accred- itation. Results of tests not covered by our BNetzA Accreditation Schedule are marked NBA (Not BNetzA Accredited). Document Number: TR-64038-83123-07 | Issue 2 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 54 Content 1 Report Summary ............................................................................................................................. 2 1.1 Modification Report .................................................................................................................. 2 1.2 Introduction .............................................................................................................................. 2 1.3 Brief Summary of Results ........................................................................................................ 3 1.4 Product Information ................................................................................................................. 4 1.5 EUT Modifications Record ....................................................................................................... 6 1.6 Test Location ........................................................................................................................... 6 2 Test Details ...................................................................................................................................... 7 2.1 Bandwidth of Signal ................................................................................................................. 7 2.2 Peak Power ........................................................................................................................... 11 2.3 Radiated Emissions ............................................................................................................... 14 2.4 Radiated Emissions in GPS bands........................................................................................ 43 2.5 RF Exposure .......................................................................................................................... 50 3 Measurement Uncertainty ............................................................................................................. 53 Annex to Test Report TR-64038-83123-07 | Issue: 01 Document Number: TR-64038-83123-07 | Issue 2 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 54 1 Report Summary 1.1 Modification Report Alternations and additions of this report will be issued to the holders of each copy in the form of a com- plete document. Issue Description of changes Date of Issue 1 First Issue 2020-08-21 2 UWB device subclass and section for signal deactivation added 2020-10-01 Table 1: Report of Modifications 1.2 Introduction Applicant Marquardt GmbH Manufacturer Marquardt GmbH Model Number(s) BK1 Serial Number(s) 47BA99B6 Hardware Version(s) --- Software Version(s) --- UWB device subclass Hand-held Communication Device Additional information No data port in the radio terminal available Number of Samples Tested 1 Test Specification(s) / Issue / Date FCC 47 CFR Part15 F: 2019, FCC 47 CFR Part15 C: 2019 and ISED RSS-220, Issue 1, Amd. 1: 2018 ISED RSS-Gen, Issue 5, Amd. 1: 2019 Test Plan/Issue/Date --- Order Number Date 6200401493-G51 2020-02-28 Date of Receipt of EUT 2020-07-29 Start of Test 2020-07-28 Finish of Test 2020-08-21 Name of Engineer(s) Alex Fink Related Document(s) ANSI C63.10:2013 Document Number: TR-64038-83123-07 | Issue 2 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 54 1.3 Brief Summary of Results A brief summary of the tests carried out in accordance with FCC 47 CFR Part 15 F and ISED RSS-220 and RSS-Ge…

Text truncated - open the document above for the full version.

Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 27 of 54 -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 8G 10G18G Level in dBm Frequency in Hz Preview Result 1V-RMSPreview Result 1H-RMS RSS220 5.3.1dFinal_Result RMS Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 28 of 54 Final Results: Frequency RMS Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm ms kHz cm deg dB 6440.000000 -42.13 1000.0 1000.000 150.0 H -79.0 -53.8 6440.000000 -42.13 1000.0 1000.000 150.0 H -79.0 -53.8 -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 6 6,1 6,2 6,3 6,4 6,5 6,6 6,7 6,8 6,9 7 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMSCritical_Freqs RMS EN 302 065-2 LT1Final_Result RMS EN 302 065-2 LT1 Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 29 of 54 Transmitting continuously, Channel 5– final measurement in y axis Frequency range 9 kHz – 30 MHz: 10 20 30 40 50 60 70 80 90 100 110 120 130 9k203050100k200 3005001M2M 3M5M10M20 30M Level in dBμV/m Frequency in Hz Preview Result 2V-AVG Preview Result 1V-PK+ Preview Result 2H-AVG Preview Result 1H-PK+ FCC Part 15C Electric Field Strength 3m QP+AV (9k-30M) Final_Result QPK Final_Result CAV Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 30 of 54 Frequency range 30 MHz – 1 GHz: Final Results: Frequency Qua- siPeak Limit Mar- gin Meas. Time Band- width Height Pol Azi- muth Corr. MHz dBμV/m dBμV/m dB ms kHz cm deg dB/m 30.030000 25.36 40.00 14.64 1000.0 120.000 205.0 H -11.0 25.8 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 30M 5060 80100M200300400500 8001G Level in dBμV/m Frequency in Hz Preview Result 1V-PK+Preview Result 1H-PK+ FCC Part 15C Electric Field Strength 3m QPFinal_Result QPK Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 31 of 54 Frequency range 1 GHz – 40 GHz: -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 1G2G3G4G5G678G Level in dBm Frequency in Hz Preview Result 1V-RMSPreview Result 1H-RMS RSS220 5.3.1dFinal_Result RMS -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 8G 10G18G Level in dBm Frequency in Hz Preview Result 1V-RMSPreview Result 1H-RMS RSS220 5.3.1dFinal_Result RMS Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 32 of 54 Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 39846.000000 -63.75 -61.30 2.45 1000.0 1000.000 122.0 V -31.0 -85.1 -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 18G 30G40G Level in dBm Frequency in Hz Preview Result 1H-RMSPreview Result 1V-RMS RSS220 5.3.1dFinal_Result RMS RSS220 5.3.1d Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 33 of 54 Mean Power Spectral Density Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 6568.000000 -41.50 -41.30 0.20 1000.0 1000.000 150.0 V -149.0 -53.4 -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 6 6,1 6,2 6,3 6,4 6,5 6,6 6,7 6,8 6,9 7 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMS Critical_Freqs RMSFinal_Result RMS Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 34 of 54 Transmitting continuously, Channel 9 - Preliminary pre-scans for the worst-case orientation x axis Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 7894.000000 -46.34 -41.30 5.04 1000.0 1000.000 150.0 H -62.0 -51.8 -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 7,5 7,6 7,7 7,8 7,9 8 8,1 8,2 8,3 8,4 8,5 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMSCritical_Freqs RMS EN 302 065-2 LT1Final_Result RMS EN 302 065-2 LT1 Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 35 of 54 y axis Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 7862.000000 -42.47 -41.30 1.17 1000.0 1000.000 150.0 V -122.0 -51.8  Worst case orientation is y axis -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 7,5 7,6 7,7 7,8 7,9 8 8,1 8,2 8,3 8,4 8,5 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMSCritical_Freqs RMS EN 302 065-2 LT1Final_Result RMS EN 302 065-2 LT1 Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 36 of 54 z axis Final Results: Frequency RMS Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBm dBm dB ms kHz cm deg dB 7862.000000 -46.16 -41.30 4.86 1000.0 1000.000 150.0 V -90.0 -51.8 -85 -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 7,5 7,6 7,7 7,8 7,9 8 8,1 8,2 8,3 8,4 8,5 Level in dBm Frequency in GHz Preview Result 1H-RMSPreview Result 1V-RMSCritical_Freqs RMS EN 302 065-2 LT1Final_Result RMS EN 302 065-2 LT1 Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 37 of 54 Transmitting continuously, Channel 9– final measurement in y axis Frequency range 9 kHz – 30 MHz: 10 20 30 40 50 60 70 80 90 100 110 120 130 9k203050100k200 3005001M2M 3M5M10M20 30M Level in dBμV/m Frequency in Hz Preview Result 2V-AVG Preview Result 1V-PK+ Preview Result 2H-AVG Preview Result 1H-PK+ PK+ AVG FCC Part 15C Electric Field Strength 3m QP+AV (9k-30M) Final_Result QPK Final_Result CAV Document Number: TR-64038-83123-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 38 of 54 Frequency range 30 MHz – 1 GHz: Final Results: Frequency Qua- siPeak Limit Mar- gin Meas. Time Band- width Height Pol Azi- muth Corr. MHz dBμV/m dBμV/m dB ms kHz cm deg dB/m 30.120000 27.03 40.00 12.97 1000.0 120.000 206.0 H 214.0 25.7 0 5 10 15 20 25 30 …

Text truncated - open the document above for the full version.

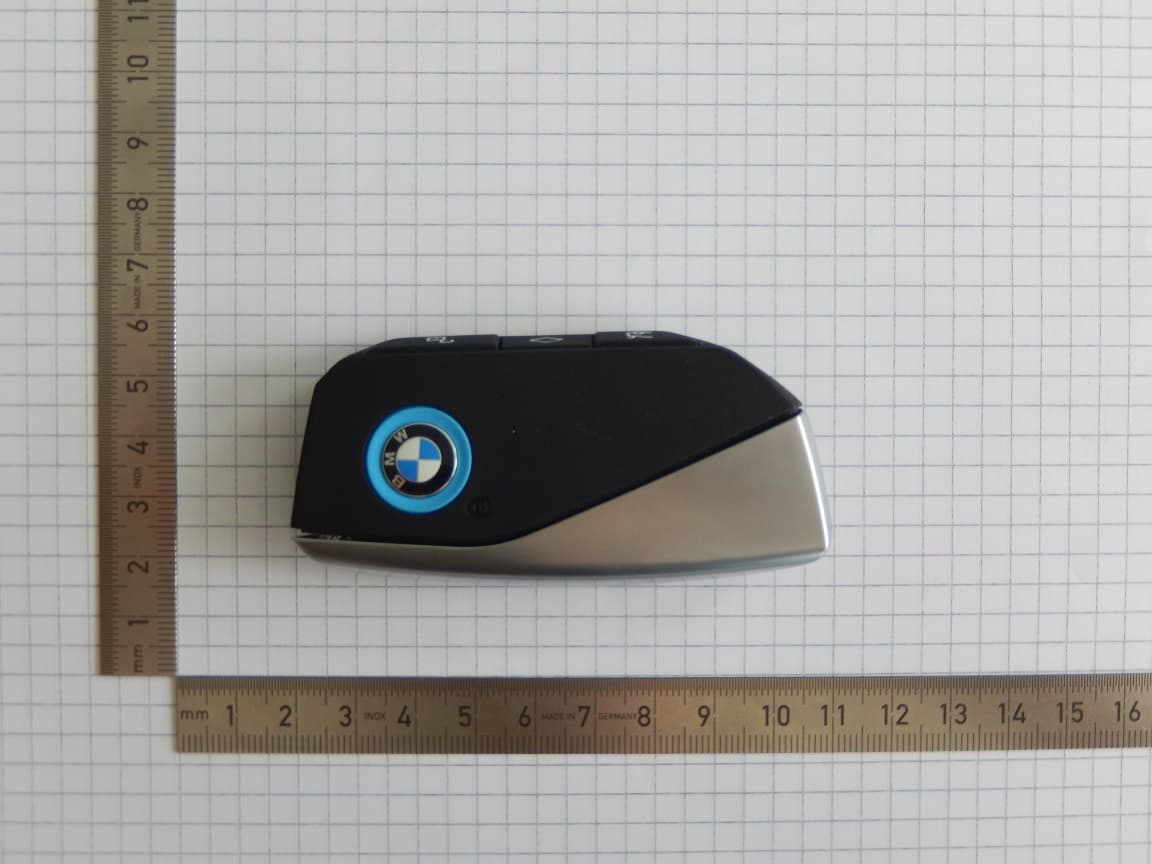

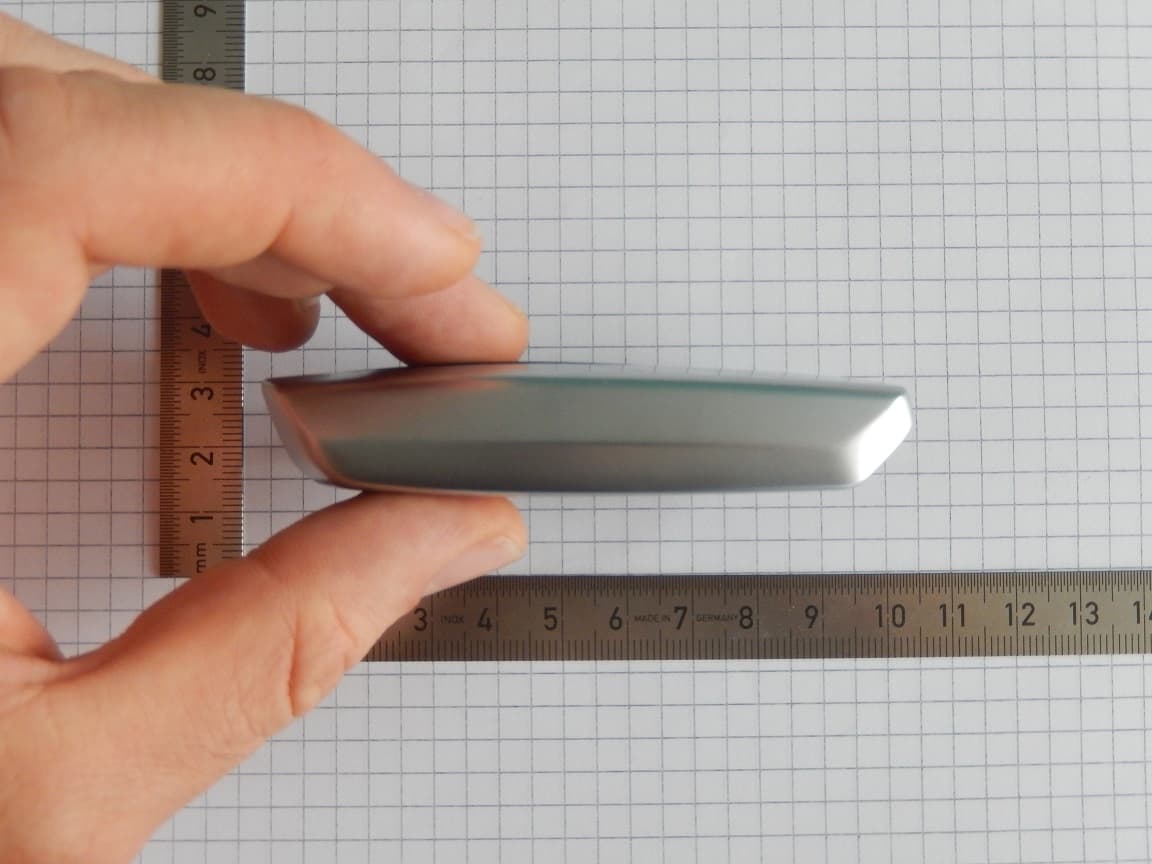

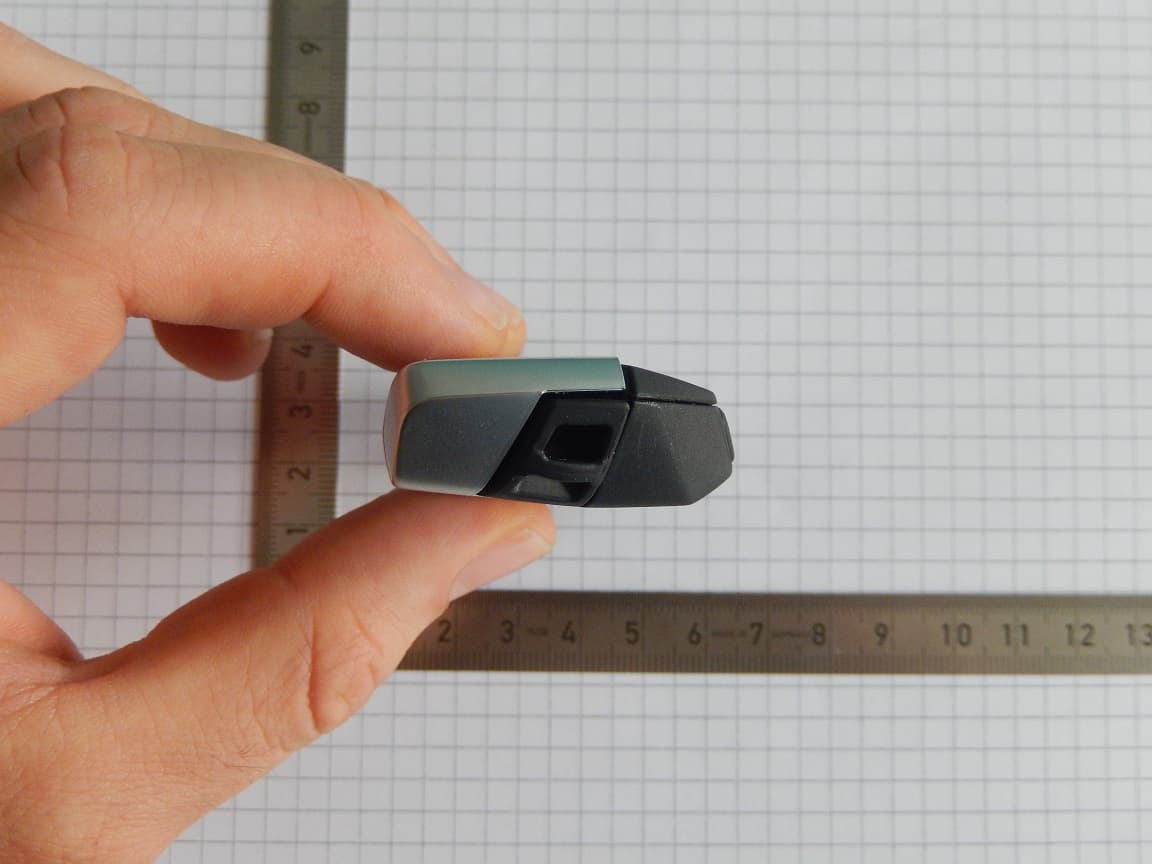

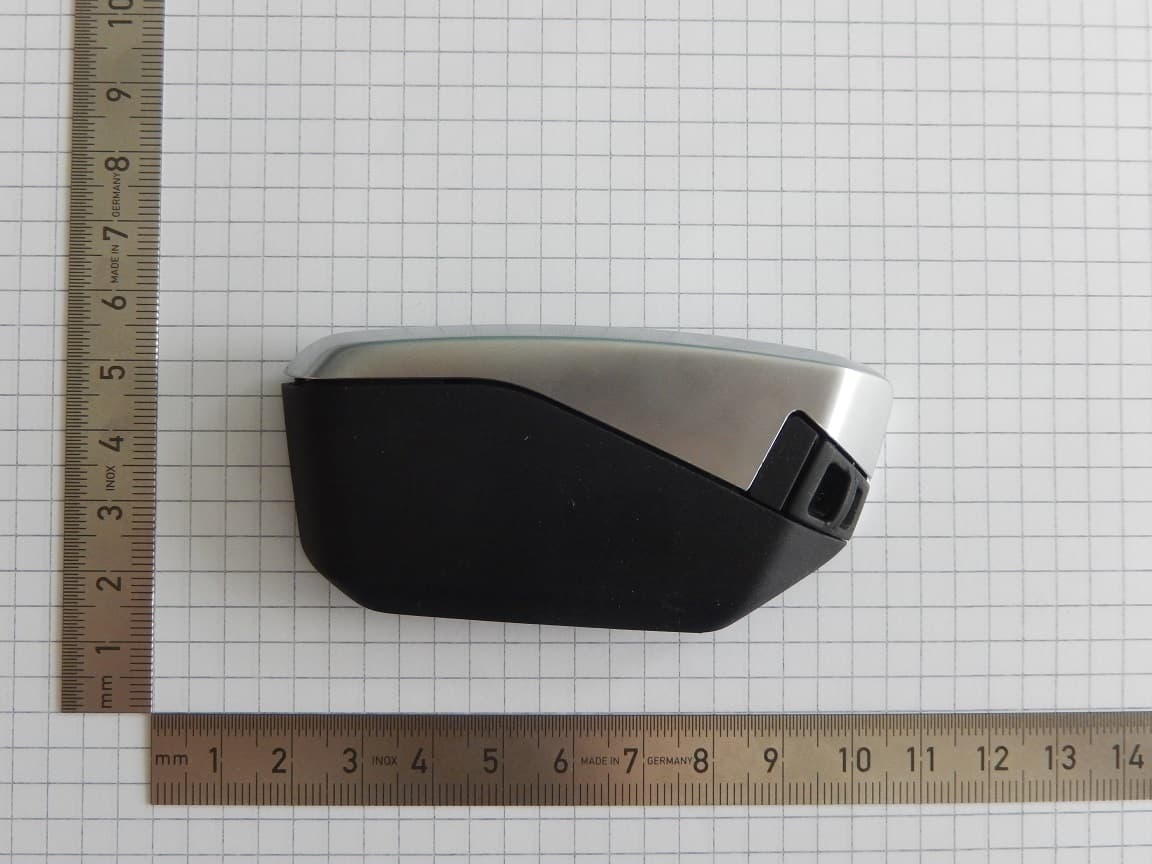

Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 8 Annex to Test Report TR-640387-83123-07 Ed.1 (RF) | Issue: 01 1 Photographs Taken During Testing 1.1 Equipment Under Test (EUT) Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 8 Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 8 Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 4 of 8 Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 5 of 8 1.2 Test Setup Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 6 of 8 Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 7 of 8 Document Number: Annex to TR-640387-83123-07 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 8 of 8 +
