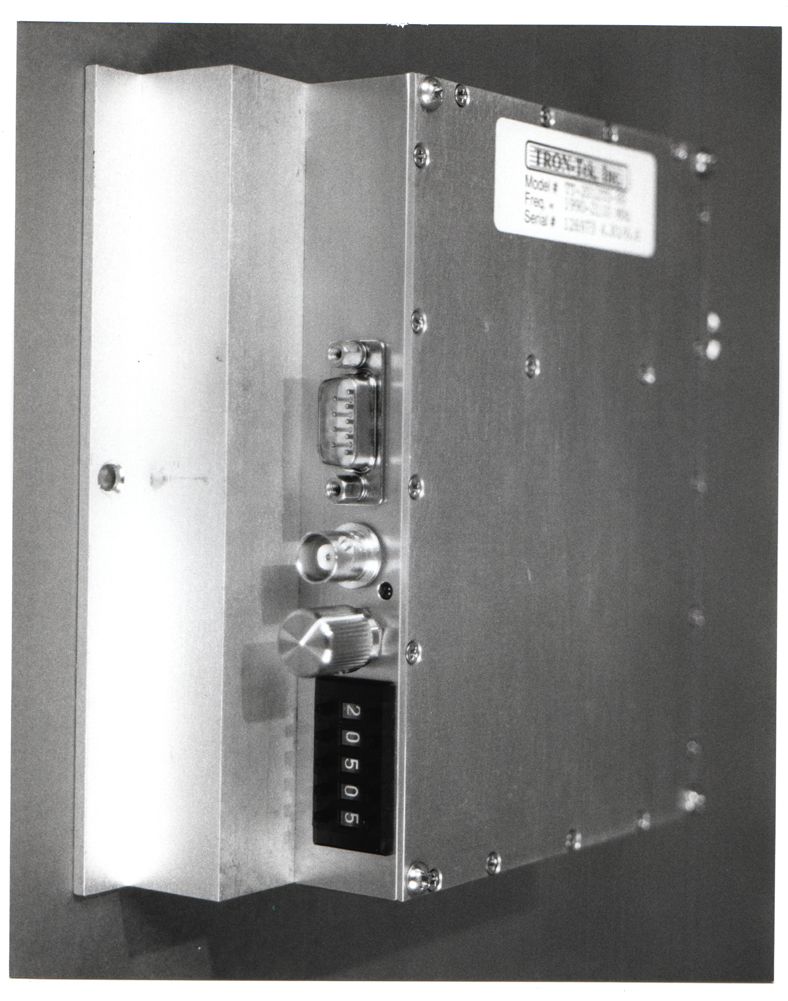

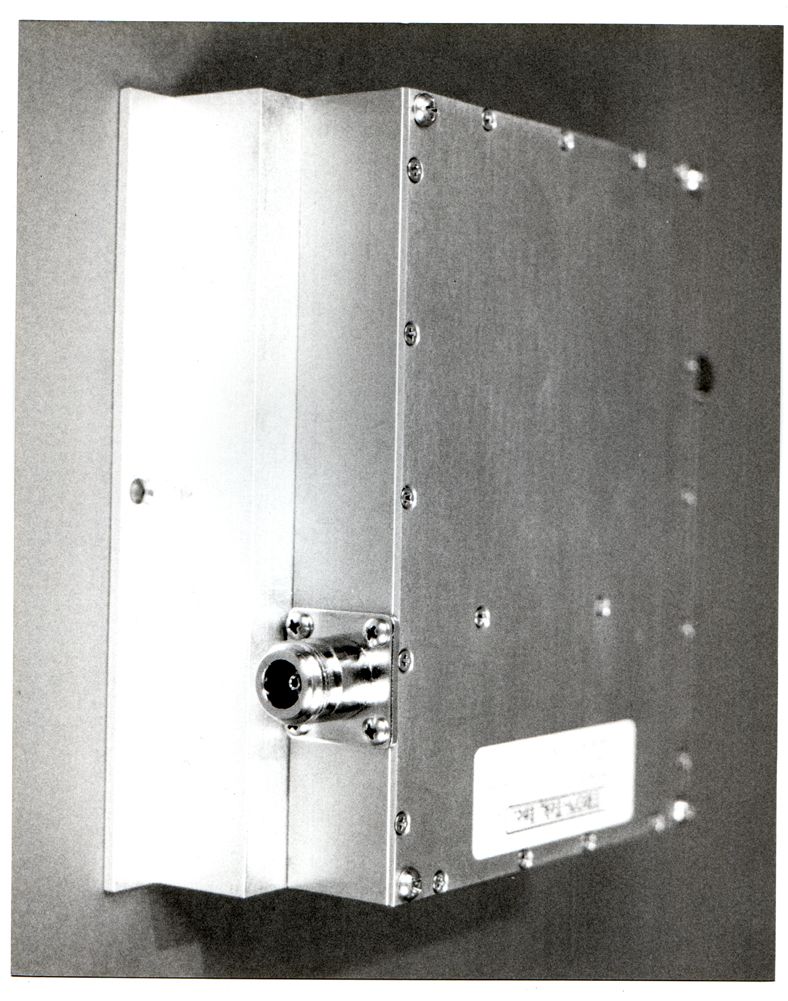

IZ3-TT-2012TS-ABAuxiliary Broadcast Transmitter

Owner-Service Manual TT-2012TS-AB and TT-2412TS-AB The Tron-Tek transmitter does not require an Owner-Service Manual. The transmitter installs into various other end unit components. The end units, such as Tower Cameras and Repeater Systems, contain owner- service manuals for explanation of the units. The transmitter is simply a component in a larger system.

FCC LABELING REQUIREMENTS TRON-Tek, Inc. FCC-ID NO. I23-TT-2012TS-AB This device complies with part 15 of the FCC Rules. Operationis subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. FCC Part 15 Complinace Statement FCC Identifying Label

FCC LABELING REQUIREMENTS This device complies with part 15 of the FCC Rules. Operationis subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. FCC Part 15 Compliance Statement FCC Identifying Label TRON-Tek, Inc. FCC ID: IZ3-TT-2012TS-AB

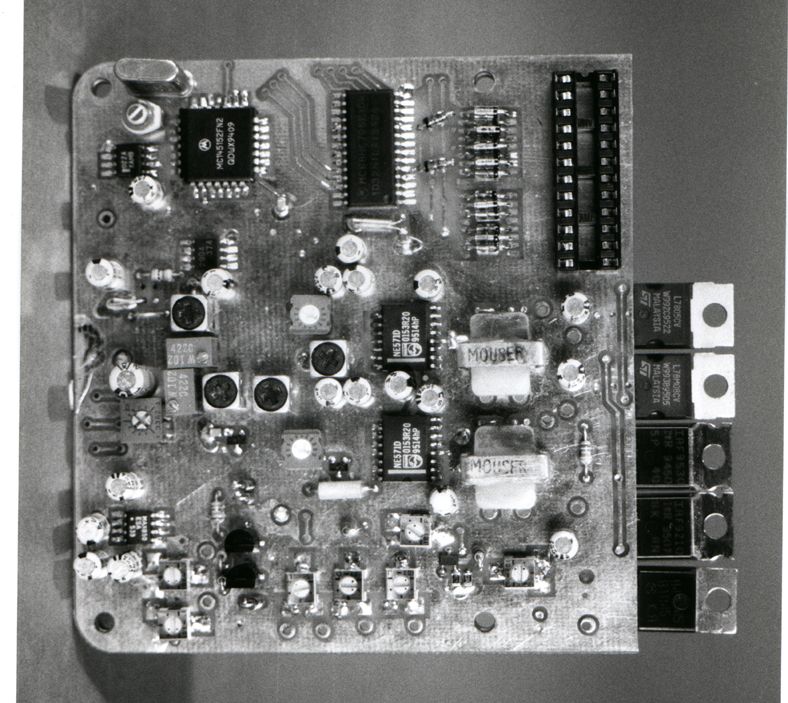

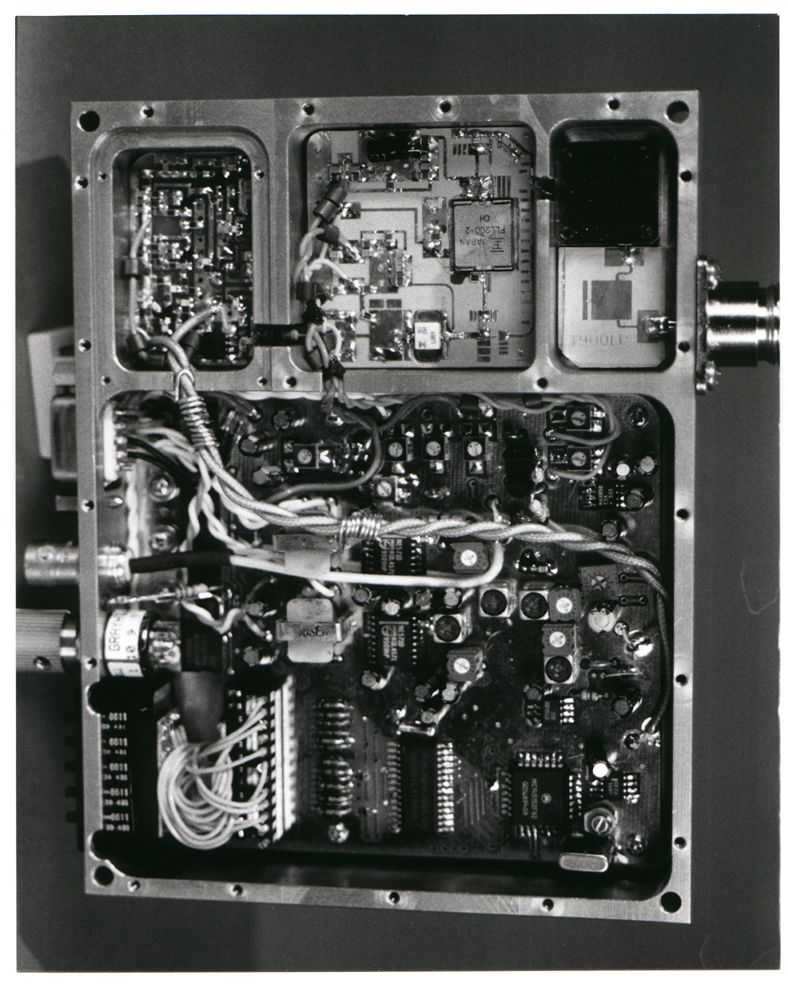

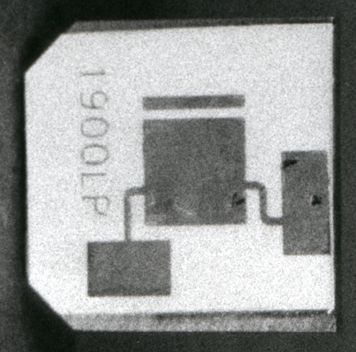

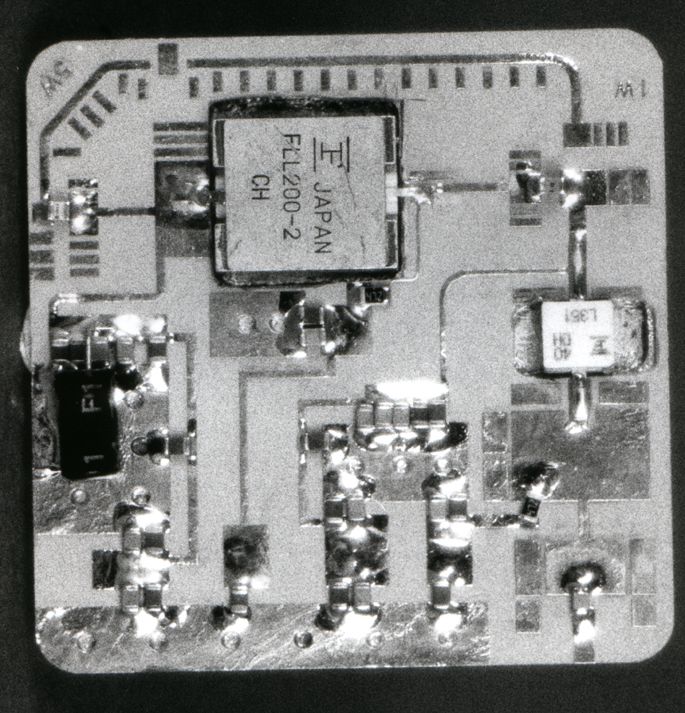

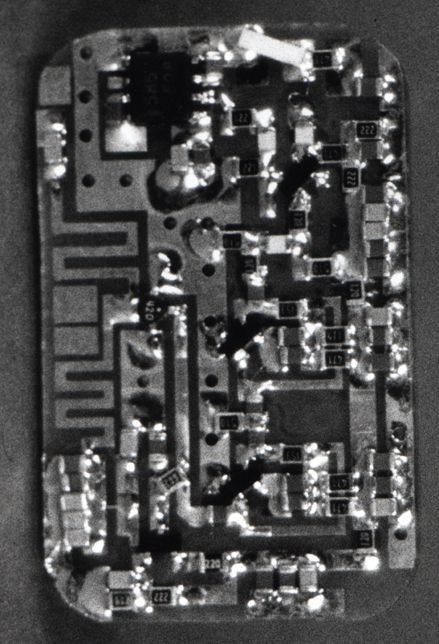

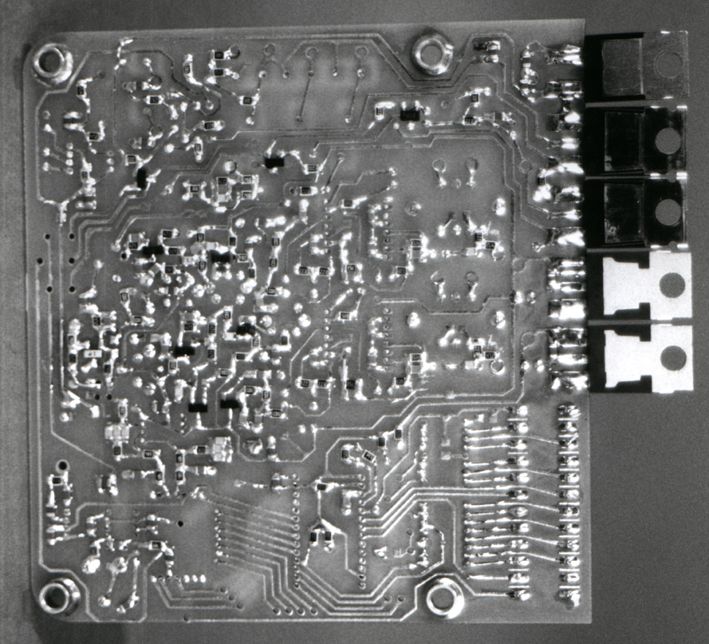

THEORY OF OPERATION: Control Board Assembly Power Supplies: Power is supplied through J1. Pins 1 and 2 are +12 volts; pins 3 and 4 are ground. Ferrite beads are used on all connections on J1 to minimize RF leakage to the power lines. C1 and C2 provide additional RF fil te ring of t he 12 volts before it passes through D1, which provides reverse polarity protection for the transmitter. Filter capacitors are used on the inputs and outputs of the regulators to prevent unwanted oscillations. U2 is a fixed +5 volt regulator used primarily for the logic and prescaler circuits. U1 is a fixed +8 volt regulator used for the audio, video circuits and miscellaneous operational amplifiers. Q2, 5, 6, and R8-15 form a variable voltage regulator for the driver FET that is adjusted by R14 for proper drive levels to the final amplifier. Q1, 3, 4 and R2-6 form a variable voltage regulator for the final amplifier. R16- 20 and S1 are placed in the feedback portion of the regulator to provide a selectable voltage output to the PA. Selection of the voltage applied to the final amplifier allows different power levels to be achieved. R19 sets power output to 12 Watt while R20 sets the output power to 2 Watts. R37-40, 51, C36-40, C95, and U5 Generates the negative 2-volt bias required for the FET’s on the PA. Q7 and Q8 disable the variable voltage regulators to prevent power from being applied to the PA until the PLL provides a lock detect condition. R44 and C27 remove the narrow pulses originating from the lock detect output of U6 pin 28. Video circuits: Video is connected through J2 to the 525-line video pre-emphasis network of R22-26, C12, and L1. R25 allows for the adjustment of the network due to tolerance deviation of components. This network also forms a 75-ohm termination for the video. D4 and D5 provide deviation limiting. R28 adjusts video deviation of the transmitter. C11 and C13 remove the D.C. component of the video signal. Audio circuits: Audio for sub-carrier 1 is connected through pins 6 (high) and 7 (low) of J1 to T1, which is configured as a 600-ohm balanced coupling transformer. The output of T1 is terminated with R79 and A.C. coupled to U7 by C48. U7 is a dual gain control circuit. Channel 1(pins 1,2,3,5,6,7,8) is configured to amplify the audio while channel 2 (pins 9,10,11,12,14,15,16) acts as a limiter and provides a 2: 1 compression of the audio signal. R62-64, C59-61 and Q11 form a three pole 10 KHz low-pass filter. R65 is used to adjust the deviation of the sub-carrier. R66-70, C62-65, L2, D8, and Q12 form a series tuned colpitts oscillator. L2 is a variable inductor for tuning the frequency of the oscillator. Sub-carrier frequencies available are 4.83Mhz, 5.8Mhz, 6.2Mhz, 6.8Mhz and 7.5Mhz. C62 couples the audio to the oscillator. D8 is the varactor diode, which modulates the sub carrier. Q13 is a buffer amplifier and L3 and C67 provides tuning (peaking) for the amplifier. R74 is used to adjust the sub- carrier insertion level. THEORY OF OPERATION: Control Board Assembly Audio circuits: Audio for sub-carrier 2 is connected through pins 8 (high) and 9 (low) of J1 to T2, which is configured as a 600-ohm balanced coupling transformer. The output of T2 is terminated with R78 and A.C. coupled to U8 by C71. U8 is a dual gain control circuit. Channel 1(pins 1,2,3,5,6,7,8) is configured to amplify the audio while channel 2 (pins 9,10,11,12,14,15,16) acts as a limiter and provides a 2: 1 compression of the audio signal. R86-88, C82-84 and Q14 form a three pole 10 KHz low-pass filter. R89 is used to adjust the deviation of the sub-carrier. R90-94, C85-88, L4, D9, and Q15 form a series tuned colpitts oscillator. L2 is a variable inductor for tuning the frequency of the oscillator. Sub-carrier frequencies available are 4.83Mhz, 5.8Mhz, 6.2Mhz, 6.8Mhz and 7.5Mhz. C85 couples the audio to the oscillator. D9 is the varactor diode, which modulates the sub carrier. Q16 is a buffer amplifier and L5 and C90 provides tuning (peaking) for the amplifier. R98 is used to adjust the sub- carrier insertion level. PLL circuits: PLL IC: It is beyond the scope of this document to discuss the theory of Phase Locked Loop design only the support circuits and operation will be detailed. U6 is a low frequency CMOS PLL. It contains a reference oscillator, selectable-reference divider, two output phase detector, 10-bit programmable divide-by-N counter, 6-bit programmable divide-by-A counter, dual modulus controller, and a lock detect circuit. If combined with a VCO, dual modulus, and loop filter, then frequency synthesis up to the devices frequency limit can be achieved. Tron-Tek, Inc. equipment also incorporates a Micro-Controller to allow operation only within the user designated frequencies of 1990- 2110, 2025-2135 and 2450-2499. Additionally this equipment utilizes an external temperature compensated reference oscillator (TCXO). VCO: See VCO section for description. Dual Modulus: U4 is a Dual Modulus which divides the VCO frequency by 64 or 65 depending on the status of the A counter within U6. Control of the divide ratio is provided by U6 pin 9. R36 provides proper input load. C28 A.C. couples the VCO frequency into U4. R53 provides an output load while C34 A.C. couples the output of U4 into the U6 Pin 1. The A and N counter then divide this frequency and present it to the phase detector for comparison to the reference frequency. C31-33 and C35 provide de-coupling for U4. THEORY OF OPERATION: Control Board Assembly PLL circuits: Loop Filter/Buffer: R45-50, C17-25, and U3 form the low pass loop filter. This filter removes the narrow pulses inherent in the phase detector and provides a loop error signal. The video, audio and loop filter signals are summed at the base of Q9, which buffers this signal. R35 provides a load for the buffer and R34 decouples the high frequency of the VCO while coupling the control voltage to the VCO. TCXO: R41, R43, R52, R100, C42, C43, Q10, Y1, and C45-47 form a 16MHz oscillator. C47 and R5…

Text truncated - open the document above for the full version.

Control Board Active Part List NumberQuantityPart NumberPart DesignatorDescriptionManufacturer 12MMBT2222Q5, Q6SOT-23 TransistorAny 22PN2222Q3, Q4TO-92 TransistorAny 38MMBTH10Q9, Q10, Q11, Q12SOT-23 TransistorAny Q13, Q14,Q15, Q16 42MMBF4393LT1Q7, Q8SOT-23 TransistorMotorola 52836AD8, D9SOT-23 DiodeAny 6178LO8U1TO-220 8V RegAny 7178LO5U2TO-220 5V RegAny 8112022ADU3SO-8 Dual ModMotorola 91LM358U4SO-8 Op AmpHarris 101Max 851U5SO-8 Neg BiasMaxim 111MC145152DW2U6SOG-28 PLLMotorola 122NE570U7, U8SO-16 CompndrPhillips 131MC68HC705E5DWU9SOG-28 ProcMotorola 14116 Mhz CrystalY1CrystalAny 15132 Mhz CrystalY2CrystalAny 162IRF 9520Q1, Q2TO-220 FetIRF 171MBR1045D1TO-220 DiodeMotorola

Tune-Up Procedures TT-2012TS-AB and TT-2412TS-AB The Tron-Tek transmitter does not requires user-end tune-up procedures. This unit installs into various other units, including Tower Cameras and Repeater Systems. The tune-up procedures are provided for the finished product.

FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 Date: August 17, 2000 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Tron-Tek, Inc. Equipment: TT-2012TS-AB FCC ID: IZ3-TT-2012TS-AB FCC Rules: 74F, 74.602, 74.637 Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cvr FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 LIST OF EXHIBITS (FCCCERTIFICATION(TRANSMITTERS) - REVISED 9/28/98) APPLICANT: Tron-Tek, Inc. FCC ID: IZ3-TT-2012TS-AB BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. DOCUMENTATION: 2.1033(c) (3) USER MANUAL (9) TUNE UP INFO (10) SCHEMATIC DIAGRAM (10) CIRCUIT DESCRIPTION BLOCK DIAGRAM PARTS LIST ACTIVE DEVICES 5. PART 90.203(e) & (g) ATTESTATION BY M.F.A. INC. A. TESTIMONIAL & STATEMENT OF CERTIFICATION B. STATEMENT OF QUALIFICATIONS FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: IZ3-TT-2012TS-AB NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT August 17, 2000 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 TABLE OF CONTENTS RULEDESCRIPTIONPAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . Standard Test Conditions and Engineering Practices 6 2.1046(a) Carrier Output Power (Conducted) 7 2.1051 Unwanted Emissions (Transmitter Conducted) 9 2.1053(a) Field Strength of Spurious Radiation 13 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 16 2.1047(a) Audio Low Pass Filter (Voice Input) 22 2.1047(a) Audio Frequency Response 24 2.1055(a)(1) Frequency Stability (Temperature Variation) 27 2.202(g) Necessary Bandwidth and Emission Bandwidth 30 FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.1of30. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85224 c) Report Number: d0080049 d) Client: Tron-Tek, Inc. 6570-B E. 51st St. Tulsa, OK 74145 e) Identification: TT-2012TS-AB FCC ID: IZ3-TT-2012TS-AB Description: Broadcast Transmitter f) EUT Condition: Not required unless specified in individual tests. g) Report Date: August 17, 2000 EUT Received: May 26, 2000 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.2of30. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 74F, 74.602, 74.637 Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Tron-Tek, Inc. 6570-B E. 51st St. Tulsa, OK 74145 MANUFACTURER: Tron-Tek, Inc. (c)(2): FCC ID: IZ3-TT-2012TS-AB MODEL NO: TT-2012TS-AB (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 18M0F5W, 18M0F9W (c)(5): FREQUENCY RANGE, MHz : 1990.5 to 2110.5 (c)(6): POWER RATING, Watts: 2 to 12 Switchable x Variable N/A (c)(7): MAXIMUM POWER RATING, Watts: 12 (74.637) FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.3of30. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of…

Text truncated - open the document above for the full version.

FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.13 of 30. AMENDED December 8, 2000 NAME OF TEST: Field Strength of Spurious Radiation SPECIFICATION: 47 CFR 2.1053(a) GUIDE: ANSI/TIA/EIA-603-1992, Paragraph 1.2.12 MEASUREMENT PROCEDURE 1.2.12.1 Definition: Radiated spurious emissions are emissions from the equipment when transmitting into a non-radiating load on a frequency or frequencies which are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. 1.2.12.2 Method of Measurement A) Connect the equipment as illustrated B) Adjust the spectrum analyzer for the following settings: 1) Resolution Bandwidth≤3 kHz. 2) Video Bandwidth≥10 kHz 3) Sweep Speed≤2000 Hz/second 4) Detector Mode = Positive Peak C) Place the transmitter to be tested on the turntable in the standard test site. The transmitter is transmitting into a non-radiating load which is placed on the turntable. The RF cable to this load should be of minimum length. FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.14 of 30. AMENDED December 8, 2000 NAME OF TEST: Field Strength of Spurious Radiation (Cont.) D) For each spurious measurement the test antenna should be adjusted to the correct length for the frequency involved. This length may be determined from a calibration ruler supplied with the equipment. Measurements shall be made from the lowest radio frequency generated in the equipment to the tenth harmonic of the carrier, except for the region close to the carrier equal to±the test bandwidth (see section 1.3.4.4). E) For each spurious frequency, raise and lower the test antenna from1mto4mtoobtain a maximum reading on the spectrum analyzer with the test antenna at horizontal polarity. Repeat this procedure to obtain the highest possible reading. Record this maximum reading. F) Repeat step E) for each spurious frequency with the test antenna polarized vertically. G) Reconnect the equipment as illustrated. H) Keep the spectrum analyzer adjusted as in step B). I) Remove the transmitter and replace it with a substitution antenna (the antenna should be half-wavelength for each frequency involved). The center of the substitution antenna should be approximately at the same location as the center of the transmitter. At lower frequencies, where the substitution antenna is very long, this will be impossible to achieve when the antenna is polarized vertically. In such case the lower end of the antenna should be 0.3 m above the ground. FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.14.2 of 30. AMENDED December 8, 2000 NAME OF TEST: Field Strength of Spurious Radiation (Cont.) J) Feed the substitution antenna at the transmitter end with a signal generator connected to the antenna by means of a non- radiating cable. With the antennas at both ends horizontally polarized and with the signal generator tuned to a particular spurious frequency, raise and lower the test antenna to obtain a maximum reading at the spectrum analyzer. Adjust the level of the signal generator output until the previously recorded maximum reading for this set of conditions is obtained. This should be done carefully repeating the adjustment of the test antenna and generator output. K) Repeat step J) with both antennas vertically polarized for each spurious frequency. L) Calculate power in dBm into a reference ideal half-wave dipole antenna by reducing the readings obtained in steps J) and K) by the power loss in the cable between the generator and the antenna and further corrected for the gain of the substitution antenna used relative to an ideal half-wave dipole antenna. M) The levels recorded in step L) are absolute levels of radiated spurious emissions in dBm. The radiated spurious emissions in dB can be calculated by the following: Radiated spurious emissions dB = 10log 10 (TX power in watts/0.001) – the levels in step l) NOTE: It is permissible that other antennas provided can be referenced to a dipole. Test Equipment: Asset Description s/n Cycle Last Cal (as applicable) Per ANSI C63.4-1992/2000 Draft, 10.1.4 TRANSDUCER i00088 EMCO 3109-B 25MHz-300MHz 2336 12 mo. Sep-00 i00065 EMCO 3301-B Active Monopole 2635 12 mo. Sep-00 i00089 Aprel 2001 200MHz-1GHz 001500 12 mo. Sep-00 i00103 EMCO 3115 1GHz-18GHz 9208-3925 12 mo. Sep-00 AMPLIFIER i00028 HP 8449A 2749A00121 12 mo. Mar-00 SPECTRUM ANALYZER i00029 HP 8563E 3213A00104 12 mo. Aug-00 i00033 HP 85462A 3625A00357 12 mo. May-00 i00048 HP 8566B 2511AD1467 6 mo. May-00 FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.15 of 30. AMENDED December 8, 2000 NAME OF TEST: Field Strength of Spurious Radiation FREQUENCY TUNED, MHz FREQUENCY EMISSION, MHz LEVEL dbm, ERP LEVEL dbc, ERP 1990.600 3981.03 -77.2 -118.2 2049.600 4098.85 -78.0 -119.0 1990.600 5971.54 -73.1 -114.1 2049.600 6148.69 -74.3 -115.3 1990.600 7962.25 -73.4 -114.4 2049.600 8198.26 -74.6 -115.6 1990.600 9953.43 -73.2 -114.2 2049.600 10247.94 -74.3 -115.3 1990.600 11943.78 -73.5 -114.5 2049.600 12297.62 -73.8 -114.8 FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 PAGE NO.29 of 30. AMENDED December 8, 2000 OPERATING TEMPERATURE SPECIFICATIONS The Transmitter was tested on Channel 4 2050.5 Mhz Temperature – Degrees CelsiusMeasured Frequency -30 2050.497 -20 2050.504 -10 2050.506 0 2050.505 10 2050.504 20 2050.504 30 2050.504 40 2050.503 50 2050.509 The unit has a drift of 12 hKz over temperature, which lies well within the 0.002 ppm or 41 kHz drift.

FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 ADDENDEUM Page 1 NAME OF TEST: Emissions g00b0012: 2000-Nov-28 Tue 09:05:00 STATE: 0:General MODULATING SIGNAL Item 4 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: IZ3-TT-2012TS-AB MFA p0050013, d0080049 ADDENDUM Page 2 NAME OF TEST: Emission Masks (Occupied Bandwidth) g00b0007: 2000-Nov-27 Mon 14:49:00 STATE: 2:High Power CORR'D RES BW 30 kHz VBW 30 kHz SWP 90.0 msec ATTEN 20 dBREF 40.6 dBm 10 dB/ POS P K CENTER 2.049 8 GHz SPAN 30.0 MHz OFFSET 30.6 dB MKR 2.050 27 GHz 28.00 dBm POWER: HIGH MODULATION: VIDEO ITEM 7 SUPERVISED BY: Morton Flom, P. Eng.
