JBWTXFM5Automobile Security Device

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit G : Users Manual FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] User’s Manual User’s Manual (page 2)

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit C : Block Diagram FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] Block Diagram

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit E : Test Report FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected]

12753 Moore St. ! Cerritos, CA ! 90703 ! U.S.A. (562) 404-9998 Local ! (800) 421-3536 National ! (562) 404-9698 Fax [email protected] Email ! http://www.blackwidowsecurity.com Website June 21, 2001 Les Payne DNB Engineering 5969 Robinson Ave Riverside, CA 92503 Subject: Authorization Letter Dear Les: This letter is confirming our authorization for DNB Engineering to act on behalf of David Levy Company for all purposes relating to FCC testing, submittal, certification, up to and including the signing of related documents. DNB Engineering shall continue to act as authorized agent for David Levy Company until further written notice. The David Levy Company hereby certifies that we are not subject to a denial of federal benefits, that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 853(A). Sincerely, Derek Hamilton National Sales Manager David Levy Company

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit B : External Photographs FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] JBXTXFM5 : Top Side (Front) JBXTXFM5 : Bottom Side (Rear)

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit A : ID Label / Location Info FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] FCC ID Label Information

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit H : Internal Photos FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] JBXTXFM5 : Bottom PCB – Top Side JBXTXFM5 : Bottom PCB – Bottom Side JBXTXFM5 : Top PCB – Bottom Side JBXTXFM5 : Top PCB – Top Side

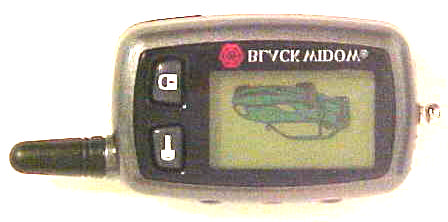

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit I : Operational Description FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] Black Widow Remote Transceiver M/N TXFM5 The David Levy M/N TXFM5 comes with a multi-function LCD Remote Transceiver featuring two-way communication with the vehicle. Each time a remote button is pressed, the LED will flash and the remote will beep to indicate that a transmission is taking place. If the remote is within two-way communication range, the LCD will display the status of the system. The remote is also equipped with a built-in chime that will play a tune as confirmation of some features such as remote starting, clock setting, etc. Button 1 Arms and Disarms the system. This button also activates the system’s Panic feature. Button 2 Activates the system’s Remote Start feature. Button 3 Activates the system’s Auxiliary Function, commonly used for trunk release.* Button 4 Activates the system’s Auxiliary 2 Function. Button 5 Confirms the system’s status. This button also activates the LCD backlight for night time use.

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit D : Schematics FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] Schematics Schematics

REPORT: RV38020 FCC ID: JBWTXFM5 1 CERTIFICATION FOR INTENTIONAL RADIATOR per Part 15 Subpart C (CFR 47, 15.201, - 15.209 &15.231) Vehicle Security System Transmitter Model No. TXFM5 447.0 MHz PREPARED FOR APPLICANT: David Levy Corporation Inc. 12753 Moore Street Cerritos, CA 90703 PREPARED BY: DNB ENGINEERING, INC. 3535 W. Commonwealth Ave. Fullerton, CA 92833 (714) 870-7781 ENGINEERING, INC. REPORT: RV38020 FCC ID: JBWTXFM5 2 TRANSMITTAL SUMMARY Unit tested: Vehicle Security System Remote Transmitter Model #: TXFM5 FCC ID: JBWTXFM5 Specifications: ANSI C63.4 1992 and CFR 47 FCC part 15 Subpart C Purpose of Report: This report was prepared to document the status of the Vehicle Security System remote Transmitter (447 MHz) with requirements of the standards listed above. Requirements not applicable to EUT Part 15.37 - Not applicable Emergency Broadcast System - Not applicable Spread Spectrum Exhibit - Not applicable Scanning Receiver - Not applicable Test Summary The EUT’s compliance status according to the tests performed is as follows. REQUIREMENTS STATUS FCC part 15 Subpart C per 15.201-, 15.209 & 15.231 COMPLIANT The report shall not be reproduced, except in full, without the written approval of DNB ENGINEERING, INC. Results contained in this report relate only to the item tested. The TXFM5 (Black Widow) Remote Transmitter met all the criteria pertaining to standards called out for testing. REPORT: RV38020 FCC ID: JBWTXFM5 3 TABLE OF CONTENTS Section Title Page # 1.0 Administration Data 4 1.1.1 Request for Certification 5 1.2 Related Submittals/Grants 5 1.3 Purpose of Test 5 2.0 Test Description 6 2.1 Test Configuration 6 2.2 Equipment Description 6 2.3 Mode of Operation 6 2.4 Antenna Requirements 6 2.5 Circuit Description 6 2.6 Schematics 6 2.7 Photographs of EUT 7 – 9 3.0 Emissions 10 3.1 Radiated Emissions Test Setup and Procedure 10 3.1.1 Spurious Radiation Test Site 10 – 11 3.1.2 Example of Calculation 12 3.1.3 Field Strength of Fundamental 12 3.1.4 Harmonic Radiated Emissions 12 3.1.5 Spurious Emissions Not Associated with Fundamental 12 Test Equipment 13 Data sheets for Fundamental and Harmonic Tests 14 – 19 3.1.6 Duty Cycle Correction 20 Plots for Duty cycle 21 – 26 3.1.7 Occupied Bandwidth 27 Plots for Occupied Bandwidth 28 – 39 3.1.8 Photographs of Radiated Test Setup 40 – 43 4.0 Label Requirements 44 4.1 Addition Label Required 44 4.2 Photograph of Label Placement and Contents 44 5.0 Schematics 45 - 47 Uncertainty Tolerance 48 Information Pertaining to Equipment Manufactured After Compliance Testing 49 Appendix A Owners Manual 50 – 52 REPORT: RV38020 FCC ID: JBWTXFM5 4 1.0 ADMINISTRATIVE DATA Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this application. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing this application. Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 15 Subpart C (CFR 47, 15.201 – 15.209 and 15.231). The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The same test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same Interconnecting Cables arranged in identical placement to that in the test set-up, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. All changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. Bryan Broaddus (Para. 1.1) Manager, Test Dept. DNB Engineering, Inc. Tel. (714) 870-7781 FAX (714) 870-5081 REPORT: RV38020 FCC ID: JBWTXFM5 5 1.1.1 Request for Certification Per 2.1033(b)1: Applicant: David Levy Corporation Inc 12753 Moore Street Cerritos, CA 90703 Contact: Derek Hamilton Phone: (562) 577-8578 Equipment Under Test: Vehicle Security System Remote Transmitter FCC ID: JBWTXFM5 1.2 Related Submittals/Grants None. 1.3 Purpose of Tests The purpose of this series of tests was to demonstrate the Electromagnetic Compatibility (EMC) characteristics of the EUT. The following tests were performed: REQUIREMENTS STATUS FCC part 15 Subpart C Per 15.201- 15.209 &15.231 COMPLIANT REPORT: RV38020 FCC ID: JBWTXFM5 6 2. TEST DESCRIPTION 2.1 Test Configuration Configuration Unit Name - Processor, Monitor Printer, Cable, etc. (indent for features of a unit) Style/Model/ Part No. Comments/ FCC ID# A Vehicle Security Remote (447 MHz) Black Widow JBWTXFM5 2.2 Equipment Description Please see Appendix A 2.3 Mode of Operation EUT was placed in three orthogonal positions to determine worst case emissions. Fresh batteries were used for final measurements. 2.4 Antenna Requirement - per 15.203 The antenna is internally fixed. 2.5 Circuit Description - per 2.1033(b)4 Please see Appendix A. 2.6 Schematics Please see section 5.0 REPORT: RV38020 FCC ID: JBWTXFM5 7 2.7 Photographs of EUT - per 2.1033(b)(7) JBWTXFM5 – Front View JBWTXFM5 – Rear View REPORT: RV38020 FCC ID: JBWTXFM5 8 Photographs of EUT - per 2.1033(b)(7) continued Internal PCB # 1 – Circuit Side Internal PCB # 1 – Component Side REPORT: RV38020 FCC ID: JBWTXFM5 9 Photographs of EUT - per 2.1033(b)(7) continued Internal PCB # 2 – Component Side Internal PCB # 2 – Circuit Side REPORT: RV38020 FCC ID: JBWTXFM5 10 3. EMISSIONS Per FCC Part 15 Subpart C 3.1 Radiated Emissions Test Setup and Procedur…

Text truncated - open the document above for the full version.

REPORT: RV38020 FCC ID: JBWTXFM5 25 No Automatic Pulse Mode Pulse Train = 42.65msec REPORT: RV38020 FCC ID: JBWTXFM5 26 No Automatic Pulse Mode Minimum Pulse Width (Individual) = 700usec REPORT: RV38020 FCC ID: JBWTXFM5 27 3.1.5 3.1.7 Occupied Bandwidth The transmitter’s occupied bandwidth at (447 MHz) was measured with respect to the 20dB down point of the center frequency. Part 15.231 (c) stipulates that emissions shall be no wider than 0.25% of the center frequency for devices operating above 70 MHz and below 900 and shall be attenuated by at least 20 dB below the level of the fundamental or to the general radiated emission limits in Part 15.209, whichever is the lesser attenuation. Part 15.209 (a) specifies that the emissions from an intentional radiator shall not exceed the field strength levels in the 216 to 960 MHz band of 200 uV/m (46 dBuV/m). When transmitting at 447.64 MHz, emissions measured at the 0.25% bandwidth of 447.64 MHz (band edge) were 45.1 dBuV/m (< 46 dBuV/m). Lower band edge calculated as 446.5209 MHz Lower 20dB down point is 447.440 MHz (Between 446.521 and 448.759 MHz) Transmitting signal fall below 37dBuV/m at 447.375 MHz (<46 dBuV/m) Upper band edge calculated as 448.7591 MHz Upper 20dB down point is 447.84 MHz (Between 446.521 and 448.759 MHz) Transmitting signal falls below 37dBuV/m at 447.924 MHz (<46 dBuV/m) Plots showing the occupied bandwidth are provided on pages 28 thru 39. REPORT: RV38020 FCC ID: JBWTXFM5 28 Occupied Bandwidth Antenna Vertical / EUT Vertical REPORT: RV38020 FCC ID: JBWTXFM5 29 REPORT: RV38020 FCC ID: JBWTXFM5 30 Occupied Bandwidth Antenna Vertical / EUT Vertical REPORT: RV38020 FCC ID: JBWTXFM5 31 Occupied Bandwidth Antenna Vertical / EUT Vertical REPORT: RV38020 FCC ID: JBWTXFM5 32 Occupied Bandwidth Antenna Vertical / EUT Horizontal REPORT: RV38020 FCC ID: JBWTXFM5 33 Occupied Bandwidth Antenna Vertical / EUT Horizontal REPORT: RV38020 FCC ID: JBWTXFM5 34 Occupied Bandwidth Antenna Vertical / EUT Horizontal REPORT: RV38020 FCC ID: JBWTXFM5 35 Occupied Bandwidth Antenna Horizontal / EUT Horizontal REPORT: RV38020 FCC ID: JBWTXFM5 36 Occupied Bandwidth Antenna Horizontal / EUT Horizontal REPORT: RV38020 FCC ID: JBWTXFM5 37 Occupied Bandwidth Antenna Horizontal / EUT Horizontal REPORT: RV38020 FCC ID: JBWTXFM5 38 Occupied Bandwidth Antenna Horizontal / EUT Vertical REPORT: RV38020 FCC ID: JBWTXFM5 39 Occupied Bandwidth Antenna Horizontal / EUT Vertical REPORT: RV38020 FCC ID: JBWTXFM5 40 Occupied Bandwidth Antenna Horizontal / EUT Vertical REPORT: RV38020 FCC ID: JBWTXFM5 41 3.1.8 Photographs of Radiated Test Setup – per 2.1033(b)(7) Radiated Emissions, Fundamental (and Harmonics) Horizontal Polarization EUT in position 1 Vertical Polarization EUT in position 2 REPORT: RV38020 FCC ID: JBWTXFM5 42 Radiated Emissions, Fundamental (and Harmonics) 30-200 Mhz (Biconical Antenna) REPORT: RV38020 FCC ID: JBWTXFM5 43 Radiated Emissions, Fundamental (and Harmonics) 200-1000 Mhz (Log Periodic Antenna) REPORT: RV38020 FCC ID: JBWTXFM5 44 Radiated Emissions, Fundamental (and Harmonics) 1000-18000 Mhz (DRG Horn Antenna) REPORT: RV38020 FCC ID: JBWTXFM5 45 4. LABELING REQUIREMENTS - PER 2.1033(B)(7) Label will be constructed of 0.02-inch plastic attached as shown on the equipment with permanent adhesive. All information on the label will be etched or screened. All methods will exceed the expected lifetime of the equipment. The label will be large enough to allow all information to be readily legible. 4.1 Additional Label Required Shown above is a copy of the label with the Part 15.19 Compliance Statement, Location of required information is checked “below”. The label will be placed in a conspicuous location on the device. 4.2 Photograph of Label Placement and Contents Because of the small size of this device the information in 4.1 may be placed in the documentation provided to the user. The FCC ID shall be placed upon the unit. This is in accordance with FCC Part 15.19 (a) (5). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. REPORT: RV38020 FCC ID: JBWTXFM5 46 5. SCHEMATIC DIAGRAMS REPORT: RV38020 FCC ID: JBWTXFM5 47 REPORT: RV38020 FCC ID: JBWTXFM5 48 REPORT: RV38020 FCC ID: JBWTXFM5 49 UNCERTAINTY TOLERANCE DNB Engineering’s Riverside Facility (3 and 10 meter Open Area Test Sites) are within acceptable uncertainty tolerances per ANSI C63.4 (1992) sections 5.4.6.1 and 5.4.6.2. ANSI C63.4 (1992) 5.4.6.1 Site Attenuation. A measurement site shall be considered acceptable for radiated electromagnetic field measurements if the horizontal and vertical NSA derived from measurements, i.e., the “measured NSA,” are within ?4 dB of the theoretical NSA (5.4.6.3) for an ideal site. 5.4.6.1 NSA Tolerance. The ?4 dB tolerance in 5.4.6.1 includes instrumentation calibration errors, measurement technique errors, and errors due to site anomalies. These errors are analyzed in ANSI C63.6-1988 [3], wherein it is shown that the performance of a well-built site contributes only 1 dB of the total allowable tolerance. REPORT: RV38020 FCC ID: JBWTXFM5 50 INFORMATION PERTAINING TO EQUIPMENT MANUFACTURED AFTER COMPLIANCE TESTING It is prudent that manufacturers have an established Quality Assurance program to spot check their products on a periodic basis, either based upon time or quantities produced. Obviously, a change in the engineering design should be sufficient justification for a re-test. The Quality assurance test need not be formal Verification or Certification such as required during the initial production of the product. However, it should be sufficient in scope to assure that the EMI characteristics of the product have not changed to the degree that the product exceeds the FCC limits. If a new model of a product is produced, it must undergo…

Text truncated - open the document above for the full version.

Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503-8620 www.dnbenginc.com Federal Communications Commission 19 Sep 2002 Exhibit F : Test Setup Photos FCC Confirmation Number : EA846123 FCC ID: JBWTXFM5 Date of Submission: 19 Sep 2002 To Whom It May Concern, Please review the attached information concerning the above referenced application and let me know if you require any corrections or additional information. Thank you for your time and consideration in this matter. C.L. Payne III DNB Engineering, Inc. Manager, Riverside Facility 5969 Robinson Avenue Riverside, CA 92503-8620 (909) 637-2630 Fx: (909) 637-2704 E-mail: [email protected] JBXTXFM5 : EUT Position #1 JBXTXFM5 : EUT Position #2 JBXTXFM5 : Biconical Horiz JBXTXFM5 : Log Periodic Vert JBXTXFM5 : DRG Vertical
