JCHAWR-8214ADSL Wireless Router

1 Table of Contents Specification-----------------------------------------------------------------------------------------------------3 Package Contents---------------------------------------------------------------------------------------------4 Hardware Connecting----------------------------------------------------------------------------------------5 LED Indicators--------------------------------------------------------------------------------------------------6 General Setting-------------------------------------------------------------------------------------------------7 Status------------------------------------------------------------------------------------------------------12 Router-----------------------------------------------------------------------------------------------12 ADSL------------------------------------------------------------------------------------------------13 PPP --------------------------------------------------------------------------------------------------14 USB Driver Procedures------------------------------------------------------------------------------------15 Installation USB Driver Procedures-------------------------------------------------------------15 Microsoft Windows 98SE---------------------------------------------------------------------15 Microsoft Windows 2000----------------------------------------------------------------------20 Microsoft Windows ME------------------------------------------------------------------------23 Microsoft Windows XP------------------------------------------------------------------------27 Uninstallation USB Driver Procedures---------------------------------------------------------30 Microsoft Windows 98SE---------------------------------------------------------------------30 Microsoft Windows 2000----------------------------------------------------------------------32 Microsoft Windows ME------------------------------------------------------------------------34 Microsoft Windows XP------------------------------------------------------------------------36 Advanced Setting--------------------------------------------------------------------------------------------38 ADMINISTRATION------------------------------------------------------------------------------------38 WAN -------------------------------------------------------------------------------------------------38 LAN/DHCP----------------------------------------------------------------------------------------42 DNS--------------------------------------------------------------------------------------------------43 NAT --------------------------------------------------------------------------------------------------44 Port Forwarding----------------------------------------------------------------------------------46 Wireless--------------------------------------------------------------------------------------------47 ADSL Configuration----------------------------------------------------------------------------48 RIP Configuration-------------------------------------------------------------------------------49 Diagnostic Test-----------------------------------------------------------------------------------50 Router Table--------------------------------------------------------------------------------------52 MAC Filtering-------------------------------------------------------------------------------------53 SECURITY-----------------------------------------------------------------------------------------------54 2 Admin Password--------------------------------------------------------------------------------54 User Password-----------------------------------------------------------------------------------55 Misc Configuration------------------------------------------------------------------------------56 System Log---------------------------------------------------------------------------------------58 Code Update--------------------------------------------------------------------------------------59 Status------------------------------------------------------------------------------------------------------60 Router-----------------------------------------------------------------------------------------------60 ADSL------------------------------------------------------------------------------------------------61 LAN --------------------------------------------------------------------------------------------------62 WAN -------------------------------------------------------------------------------------------------63 ATM--------------------------------------------------------------------------------------------------64 TCP connections--------------------------------------------------------------------------------65 Learned MAC Table----------------------------------------------------------------------------66 PPP Status----------------------------------------------------------------------------------------67 3 Specification SpecificationModel Name:4 Port ADSL Wireless Router Annex A / Annex B/UR2 ChipsetADSL Wireless Router Chip:(CX82310-14/24) ARM940T Processor Line ConnectionRJ-11(2 wires) Line/Phone , RJ-45 (4 port) , Connection FeaturesHigh speed Asymmetric Digital Subscriber Line (ADSL) connection to the telephone line DMT modulation and demodulation Supports splitter less ADSL implementation Tone detection for low power mode ATM SAR performed in software driver Compliant with ADSL standardsFull-rate ANSI T1.413 Issue 2 and ITU G.dmt (G.992.1) standards Splitter less ITU G.lite (G.992.2) specification Full-rate adaptive modemMaximum downstream rate of 8 Mbps Maximum upstream rate of 1 Mbps G.lite adaptive modemMaximum downstream rate of 1.5 Mbps Maximum upstream rate of 512 Kbps WAN Mode SupportPPP over ATM (RFC 2364) PPP over Ethernet (RFC 2516) LAN Mode SupportBridged/routed Ethernet over ATM (RFC 2684/1483) Classical IP over ATM (RFC 1577) and PPP over Ethernet (RFC 2516) Bridge Mode SupportEthernet to ADSL self-learning Transparent Bridging (IEEE 802.1D) Su…

Text truncated - open the document above for the full version.

Request for Confidentiality Date:10/06/2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: JCHAWR-8214 Please be advised that the following information is to be held confidential and behalf of APPLICANT NAME: • Part List • Schematics • Block diagram • Operational description The application contains technical information which Well Communication Corp. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory ______________________ Vincent Hsiao

AmericanTCB CERTIFICATION APPLICATION Well Communication Corp. 11F, No. 778, Chung Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. This TESTING AND CERTIFICATION AGREEMENT ("Agreement") is made effective as of the latter date of execution below, by and between American Telecommunication Certification Body (ATCB) and Well Communication Corp., collectively referred to as "the Parties". In consideration of the mutual covenants in this Agreement, ATCB or its subcontractors will perform certification inspection services to determine if Applicant's device(s) are in compliance with the laws, regulations and technical standards (hereinafter "Certification Regulations") of the national authorities specified by Applicant in Schedule A. 1. General 1.1 This Agreement is for the purpose of testing and certification and applies to all tests, audits, and certifications for the Devices, and will be performed in accordance with the Certification Regulations of the national authorities specified in Schedule A. 1.2 ATCB retains full discretion to determine if the Devices are compliant with the Certification Regulations of the Countries. In the event that certification is not issued for the aforementioned Devices, ATCB agrees to advise Applicant in writing of the reasons therefor. 1.3 This Agreement may not be assigned to or acquired by any other person, firm, or corporation without ATCB's written authorization. 2. Scope of Performance 2.1 The scope of performance between the Parties shall be agreed to by contract, purchase order or other mutually agreed-upon schedule or order. 2.2. ATCB may accept test data from any ISO/IEC Guide 25 accredited laboratory or FCC-Listed Laboratory and evaluate the Devices on the basis of this data. ATCB may also choose to accept test data from ISO Guide 25 accredited laboratories owned by Applicant 2.4 If requested for sample purposes (as required by the FCC), client shall supply ATCB, at no charge, with at least one test sample of each Device, including the necessary peripherals, connecting cables, accessories or other hardware or software (hereinafter collectively referred to as "support equipment") required for testing, evaluation, and assessment. 2.5 Applicant shall supply ATCB, at no charge, with all technical documentation and materials required for the testing, evaluation, and assessment of such Devices and support equipment, including pertinent test results and certificates. 2.6 Applicant recognizes that Device samples, including support equipment, may be damaged or completely destroyed when subjected to ATCB's testing and evaluation process. Applicant shall hold ATCB harmless for any such damage or destruction to its equipment. 2.7 ATCB shall evaluate, assess and test (as necessary) Applicant's equipment within 30 business days of ATCB's receipt of such Devices, support equipment and technical documentation, and to work diligently until certification is granted or denied, or Applicant decides to abandon testing, evaluation, and assessment on such Devices. 2.8 Upon completion of testing, evaluation, or assessment, ATCB shall advise Applicant via an abbreviated report whether the results are favorable, and what, if any, conditions, limitations or qualifications to the requested Certification exist. 2.9 Applicant agrees that a full report is available to Applicant only by special request, and for the separate charge specified. 2.10 Where testing, evaluation, and assessment results in certification, ATCB shall certify Applicant's equipment as compliant with the laws, regulations and/or standards of the Countries within 30 business days from the date testing, evaluation, and assessment is completed. 2.10.1 Section 2.11 may be dependent upon a timely response by the United States Federal Communications Commission (FCC) or its foreign equivalent. 2.10.2 In the event of product certification, Applicant may request that ATCB return or destroy Applicant's Device sample(s), equipment support, and technical documentation. Applicant shall bear all costs associated with the return or destruction of such equipment test sample(s) and support equipment. 2.11 Where testing, evaluation, and assessment does not result in certification, ATCB shall provide cost-free storage for each Device sample, support equipment, and technical documentation for a period not to exceed 30 days, provided Applicant agrees to re-testing within this period when notified of the Device's failure. 2.12 If Applicant does not collect or accept receipt of the Device sample(s), support equipment and technical documentation, despite ATCB having sent notice pursuant to subsection 2.12.1, ATCB reserves the right to dispose of them at Applicant's expense. 2.13 Applicant shall retain all documents forwarded to it by ATCB as required by the Certification Regulations of the Countries. AmericanTCB CERTIFICATION APPLICATION 2.14 Applicant shall notify ATCB immediately of any modifications made or planned in the design or technical construction of a Device, or of any planned or implemented changes in Applicant's approved quality assurance system which may render ATCB's certification inapplicable to a Device produced. 2.14.1 For Device modifications notified to ATCB under section 2.14, ATCB will decide in its good engineering judgment whether additional testing is required in order for the Device, as modified, to be manufactured or sold under the certification originally issued. 2.14.2 If Applicant's Device, as modified, does not comply with the Certification Regulations of the Countries, Applicant shall immediately endeavor to obtain compliance under the same Certification Regulations and shall, concurrently, remove any reference to the original certification indicating ATCB's approval or certification, from its Device, as modified. Applicant also agrees that a new certificate issued for a Device, as modified, must reference a model identifier number distinct from the one used in the certification originally issued b…

Text truncated - open the document above for the full version.

Made in Taiwan Tested To Comply With FCC Standards For HOME OR OFFICE USE Model No. : AWR-8214 POWER : AC 12V/800mA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. FCC ID : JCHAWR-8214 0470 45.00 mm 29.00 mm

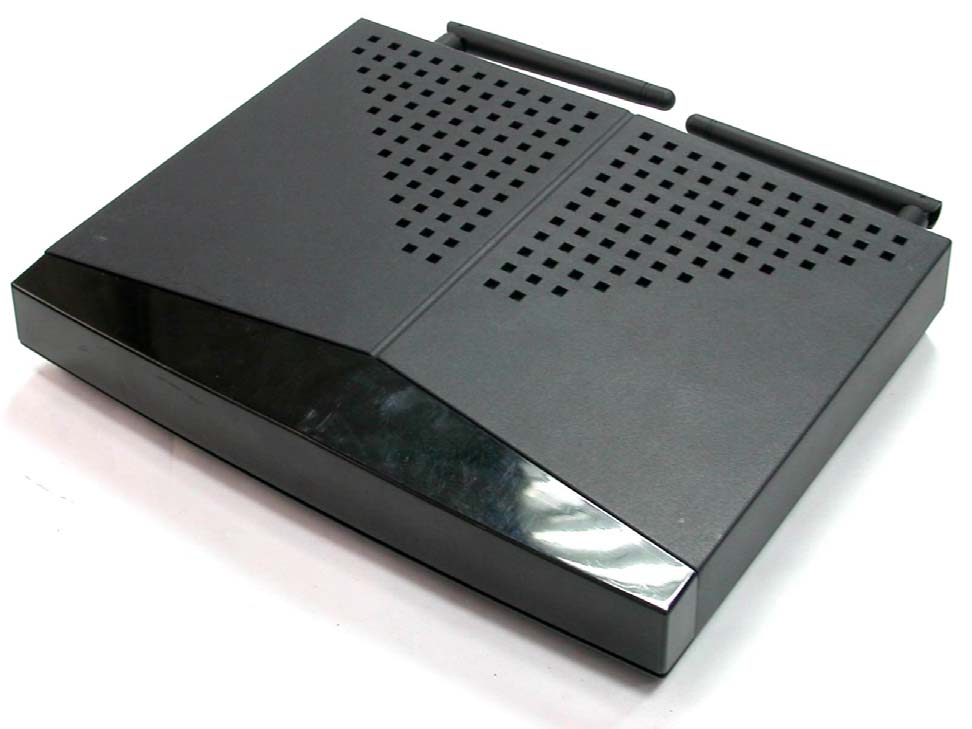

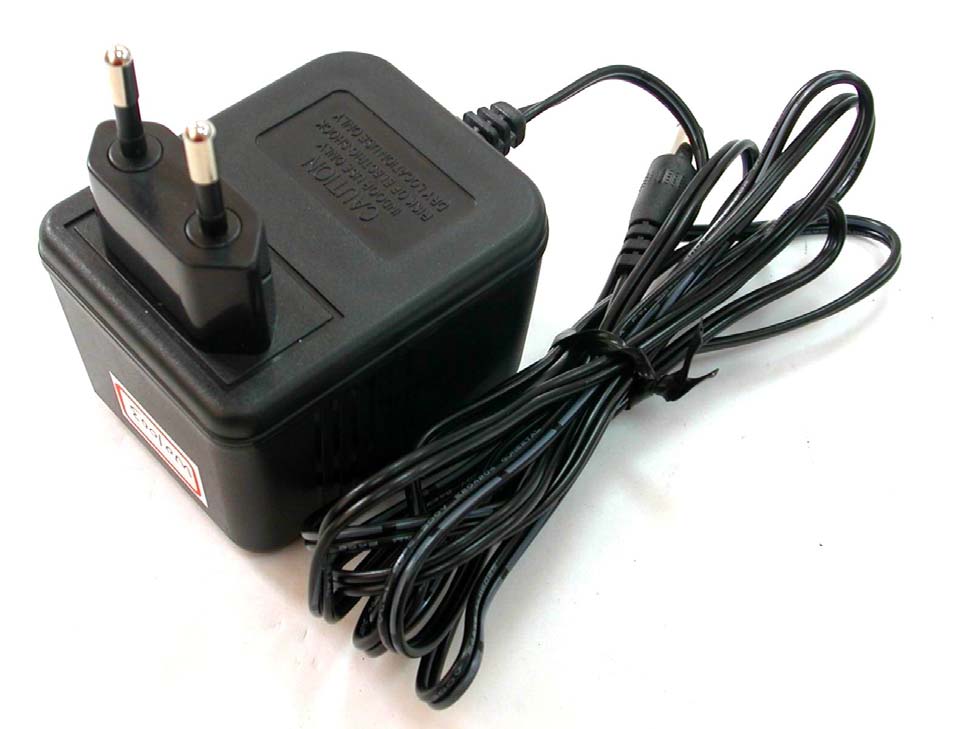

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT EUT : ADSL Wireless Router Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Model No. : AWR-8214 Granted FCC ID : JCHAWR-8214 Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel: 11 Channel Modulation Skill : DBPSK, DQPSK, DCCK Power Type : By the Power adaptor M/N: MW41-1200800A I/P: 120Vac, 60Hz O/P: 12Vac, 800mA Applicant : Well Communication Corp. 11F, No. 778, Chung Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, equation for predicting RF fields, by the Friis Transmission Formula: Power density at the specific separation (portable): 2 22 /540.1 )20(4 584.1865.48 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R482.2 4 584.1865.48 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 2.482 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (2 / 10) = 1.584

Test Report ----------------------------------------------------------------------------- 1/47 Report No.: W0115002 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 MEASUREMENT REPORT of 2.4 GHz Wireless device Applicant : Well Communication Corp. Model No. : AWR-8214, AWR-8214B EUT : ADSL Wireless Router FCC ID : JCHAWR-8214 Report No. : W0115002 Tested by : Training Research Co., Ltd. TEL : 886-2-26461146 FAX : 886-2-26461778 No. 15, Lane 530, Pa-Lian RD., Sec. 1, Hsichih City, Taipei Hsien, Taiwan, R.O.C. Test Report ----------------------------------------------------------------------------- 3/47 Report No.: W0115002 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Tables of Contents I. GENERAL ....................................................................................................................... 5 1.1 Introduction ................................................................................................................ 5 1.2 Description of EUT .................................................................................................... 5 1.3 Description of Support Equipment ............................................................................ 6 1.4 Configuration of System Under Test ......................................................................... 9 1.5 Verify the Frequency and Channel ........................................................................... 12 1.6 Test Procedure .......................................................................................................... 13 1.7 Location of the Test Site ........................................................................................... 13 1.8 General Test Condition ............................................................................................. 13 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators................ 14 III. Section 15.203 : Antenna Requirement.......................................................................... 14 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units .............. 15 4.1 Test Condition & Setup ............................................................................................ 15 4.2 List of Test Instruments ............................................................................................ 15 4.3 Test Configuration .................................................................................................... 16 4.4 Test Result of Conducted Emissions ........................................................................ 18 V. Section 15.247(a) : Technical Description of the EUT.................................................. 22 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System .................................. 23 6.1 Test Condition & Setup ............................................................................................ 23 6.2 Test Instruments Configuration ................................................................................ 23 6.3 List of Test Instruments ............................................................................................ 23 6.4 Test Result of Bandwidth ........................................................................................... 24 VII. Section 15.247(b) : Power Output ................................................................................. 28 7.1 Test Condition & Setup ............................................................................................ 28 7.2 List of Test Instruments ............................................................................................ 29 7.3 Test Result ................................................................................................................ 29 Test Report ----------------------------------------------------------------------------- 4/47 Report No.: W0115002 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 VIII. Section 15.247(c) : Spurious Emissions (Radiated) .................................................. 30 8.1 Test Condition & Setup ............................................................................................ 30 8.2 List of Test Instruments ............................................................................................ 31 8.3 Test Instruments Configuration ................................................................................ 32 8.4 Test Result of Spurious Radiated Emissions ............................................................ 34 8.5 Test Result of Bandedge ............................................................................................. 38 IX. Section 15.247(d) : Power Spectral Density .................................................................. 41 9.1 Test Condition & Setup ............................................................................................ 41 9.2 Test Instruments Configuration ................................................................................ 41 9.3 List of Test Instruments .............................................................................................. 41 9.4 Test Result of Power Spectral Density ..................................................................... 42 Appendix A: Set Up Procedure ............................................................................................ 46 Appendix B: Antenna Specification .................................................................................... 47 Test Report ----------------------------------------------------------------------------- 5/47 Report No.: W0115002 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 I. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of applicant in support that the cable gateway certification in accordance with Part 2 Subpart J and Part 15 Subpart A/B/C of th…

Text truncated - open the document above for the full version.

Test Report ----------------------------------------------------------------------------- 39/47 Report No.: W0115002 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Channel 1 This is the hard copy of our bandedge measurement generated by our bandedge testing program. The picture shown above is the bandedge of channel 1. 1. The lobe right by the fundamental side is already 20dB below the highest emission level. 2. The emissions recorded in the restricted band (<2400MHz) is do comply with the Part 15.209(a) – under the limited line marked in red color. 3. The equipment setting was RBW=100K, VBW=100K, Sweep time=100ms. Test Report ----------------------------------------------------------------------------- 40/47 Report No.: W0115002 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Channel 11 This is the hard copy of our bandedge measurement generated by our bandedge testing program. The picture shown above is the bandedge of channel 11. 1. The lobe right by the fundamental side is already 20dB below the highest emission level. 2. The emissions recorded in the restricted band (>2483.5MHz) is do comply with the Part 15.209(a) – under the limited line marked in red color. 3. The equipment setting was RBW=100K, VBW=100K, Sweep time=100ms. 4. The restricted band 2483.5~2500M under the 15.205 limit. (See this plot)

Test configuration Conducted Emissions Test Placement of Unintentional Conducted Emissions Test Placement of Intentional Test Instruments Configuration Front View of the Test Configuration of Unintentional Rear View of the Test Configuration Unintentional Front View of the Test Configuration of Intentional Rear View of the Test Configuration Intentional
