GIGA-BYTE TECHNOLOGY CO., LTD 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. TEL No: 886-2-8912-4000 FAX No.: 886-2-8912-6322 Attestation for FCC Declaration of Conformity FCC ID: JCK-ANK Data: June 21, 2010 Please be notified that we, the undersigned, GIGA-BYTE TECHNOLOGY CO., LTD .declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001 (106165R-ITUSP02V02). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Andy Chen / Director GIGA-BYTE TECHNOLOGY CO., LTD Tel: 886-2-8912-4000 Fax: 886-2-8912-6322 Email: [email protected]

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-ANK 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Tel : 886-2-8912-4000 Federal Communications Commission June 21 , 2010 Authorization and Evaluation Division ATTESTATION FCC ID: JCK-ANK Product: Logitech Revue Model: D-R0001 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Andy Chen / Director GIGA-BYTE TECHNOLOGY CO., LTD

RF_160, Issue 02 GIGA-BYTE TECHNOLOGY CO., LTD Declaration of Authorization We Name: GIGA-BYTE TECHNOLOGY CO., LTD Address: 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. City: Taipei ............................................................ . ........................ Country: Taiwan. .................................................................. . ............ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Logitech Revue Type designation: D-R0001 Trademark: Logitech on our behalf. Date: ...... 2010/06/21 ... .. City: ...... Taipei ...... .. Name: ...... Andy Chen ...... .. (2) Function: Director Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Giga Byte Technology Co., Ltd No. 6, Bau Chiang Road, Hsin-Tien City, Taipei, Taiwan Tel: 886-2-8912-4000 FAX: 886-2-8912-6322 Data: Jul. 13, 2010 Office of Engineering and Technology Federal Communication Commission 7435 Oakland Mills Road Columbia, MID 21046-1609 Subject : Supercede Request for FCC ID JCK-ANK To Whom It May Concern, Since Giga Byte Technology Co., Ltd (the applicant) would like to add short-term confidentiality for inner photo, external photo, setup photo and user manual and add operation description to long- term confidentiality, we here request you to supersede two documents, (D-R0001) Confidentiality and (D-R0001) TestRpt which will be replaced by documents Confidential and (D-R0001) TestRpt_20100713. The reasons we need to supercede: 1. (D-R0001) Confidentiality without short term confidentiality. 2. (D-R0001) TestRpt including operation description. Giga Byte Technology Co., Ltd (the applicant) attests that none of the products certified under FCC ID: JCK-ANK has been marketed in the U.S. since the certification was granted on 05 July 2010“. Please kindly accept and proceed our request. Thanks for your understanding.

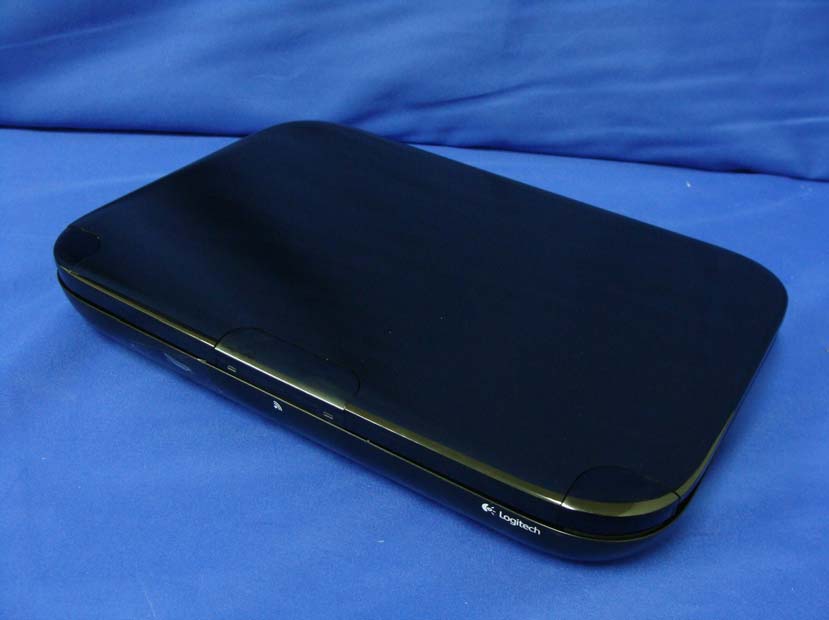

Report No.: 106165R-RFUSP28V01 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-ANK 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Tel : 886-2-8912-4000 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-ANK 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Tel : 886-2-8912-4000 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 106165R-RFUSP28V01 Page : 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 106165R-RFUSP28V01 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 106165R-RFUSP28V01 Page : 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 106165R-RFUSP28V01 Page : 5 of 8 (9) EUT Photo (10) EUT Photo Antenna Report No.: 106165R-RFUSP28V01 Page : 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 106165R-RFUSP28V01 Page : 7 of 8 (13) EUT Photo (14) EUT Photo GFSK Module Antenna WiFi Module Antenna 18cm Report No.: 106165R-RFUSP28V01 Page : 8 of 8 (15) EUT Photo

Report No. 106165R-RFUSP28V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Logitech Revue Model No. D-R0001 FCC ID JCK-ANK Applicant GIGA-BYTE TECHNOLOGY CO., LTD Address 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Date of Receipt June 09, 2010 Date of Declaration June 22, 2010 Report No. 106165R-RFUSP28V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 106165R-RFUSP28V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 106165R-RFUSP28V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Logitech Revue Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is –3.99 dBi in logarithm scale. Output Power Into Antenna & RF Exposure Evaluation Distance (-3.99 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2405.00 0.9840 0.00078 13 2441.00 0.7727 0.00061 24 2474.00 0.6223 0.00049 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 106165R-RFUSP28V01 Page : 1 of 46 Test Report Product Name Logitech Revue Model No D-R0001 FCC ID. JCK-ANK Applicant GIGA-BYTE TECHNOLOGY CO., LTD Address No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Date of Receipt June 09, 2010 Issue Date June 22, 2010 Report No. 106165R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 106165R-RFUSP28V01 Page : 2 of 46 Test Report Certification Issue Date: June 22, 2010 Report No.: 106165R-RFUSP28V01 Product Name Logitech Revue Applicant GIGA-BYTE TECHNOLOGY CO., LTD Address No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Manufacturer GIGA-BYTE TECHNOLOGY CO., LTD Model No. D-R0001 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name Logitech Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Eason Hung ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 106165R-RFUSP28V01 Page : 3 of 46 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 7 1.3. Tested System Details .................................................................................................... 8 1.4. Configuration of Tested System...................................................................................... 9 1.5. EUT Exercise Software .................................................................................................. 9 1.6. Test Facility...................................................................................................................10 2. Conducted Emission.................................................................................................. 11 2.1. Test Equipment............................................................................................................. 11 2.2. Test Setup .................................................................................................................... 11 2.3. Limits ............................................................................................................................ 12 2.4. Test Procedure ............................................................................................................. 12 2.5. Uncertainty ................................................................................................................... 12 2.6. Test Result of Conducted Emission.............................................................................. 13 3. Peak Power Output .................................................................................................... 15 3.1. Test Equipment............................................................................................................. 15 3.2. Test Setup .................................................................................................................... 15 3.3. Limits ............................................................................................................................ 15 3.4. Test Procedure ............................................................................................................. 15 3.5. Uncertainty ................................................................................................................... 15 3.6. Test Result of Peak Power Output ............................................................................... 16 4. Radiated Emission ..................................................................................................... 17 4.1. Test Equipment............................................................................................................. 17 4.2. Test Setup .................................................................................................................... 18 4.3. Limits ............................................................................................................................ 19 4.4. Test Procedure ............................................................................................................. 19 4.5. Uncertainty ................................................................................................................... 20 4.6. Test Result of Radiated Emission................................................................................. 21 5. RF antenna conducted test ....................................................................................... 25 5.1. Test Equipment............................................................................................................. 25 5.2. Test Setup .................................................................................................................... 25 5.3. Limits ............................................................................................................................ 25 5.4. Test Procedure ............................................................................................................. 26 5.5. Uncertainty ................…
