JCK-GN-BC01802.11g PCI Wireless Router

AirCruiser G Desktop Router 1 ʳ ʳ ʳ AirCruiser™ G Desktop Router GN-BCO1 ʳ ʳ User’s Guide 2 Contents Chapter 1 Introduction ..................................................... 1 Overview..........................................................................................1 Features...........................................................................................1 Package Contents ..........................................................................2 AirCruiser G Desktop Router Rear Panel ....................................2 Chapter 2 Installation .................................................... 3 Installing the Router.......................................................................3 Chapter 3 Connections & Configuration ........................ 7 Making a Wired Connection ..........................................................7 Chapter 4 Configuring the AirCruiser G Desktop Router ........... 9 Chapter 5 AirCruiser G Desktop Router Settings ........ 12 Login to the AirCruiser G Desktop Router.................................12 AirCruiser G Desktop Router Configuration Utility ..................13 Chapter 6 Advanced Settings ..................................... 14 The Network Configuration Screen ............................................14 The Wireless Configuration Screen ...........................................20 The Static Routing Table Screen ................................................25 The Virtual Server Screen............................................................26 The Firewall Rule Screen .............................................................28 The DNS Configuration Screen ...................................................29 Remote Access Screen................................................................31 Chapter 7 Using Management Tools ............................ 32 The PPP Monitor Screen..............................................................32 Manage Port Configuration Screen ............................................33 The Reboot Screen.......................................................................34 AirCruiser G Desktop Router 3 The Initialization Screen ..............................................................35 The Change Password Screen....................................................36 The Change WAN MAC Screen ...................................................37 The Upgrade Firmware Screen ...................................................38 The Backup / Restore Screen......................................................39 The Log Information Screen........................................................40 The Ping Screen ...........................................................................41 The About Screen.........................................................................42 Configuration Buttons .................................................................43 Smart Setup Button......................................................................43 Setup Wizard Button ....................................................................43 The Status Button.........................................................................44 WAN Ethernet Status....................................................................46 ARP Table ......................................................................................47 Routing Table................................................................................48 The Logout Button .......................................................................49 Chapter 8 Troubleshooting............................................ 50 Appendix A: Connection Troubleshooting .................. 52 Appendix B Glossary ..................................................... 56 Appendix C Regulatory.................................................. 59 Appendix D Specifications ............................................ 61 Appendix G Warranty..................................................... 62 AirCruiser G Desktop Router 1 Chapter 1 Introduction Overview The AirCruiser G Desktop Router, also known by its model name GN-BC01, has all the features a modern wireless router should. It’s a single port 10/100Mbps Wi-Fi access point, firewall and ADSL router in a PCI board. Yes, that’s correct – a wireless router on an averaged sized PCI board. Don’t be fooled by its striking similarity to a typical wireless PCI adapter; two Ethernet ports plus an antenna connector are the key to distinguish it from an ordinary wireless adapter. The antenna that comes included with the AirCruiser G Desktop Router is unlike any other - there is a blue LED atop the tip which will flash at intervals – fast flashing indicates faster transmissions. It has a beefed up 3dBi gain compared with the 2dBi antennas that are bundled with most standard routers on the market and that translates into better wireless performance! The AirCruiser G Desktop Router’s PCI form factor is a breakthrough in wireless networking technology. Now, end-user’s can realize significant space-saving benefits on their desks, shelves or wherever they’d traditionally deploy a wireless router. Once installed and connected, the AirCruiser G Desktop Router allows users to share network resources over the 10/100Mbps LAN port as well as enjoy wireless speeds of up to 54Mbps. For added versatility, it is also compatible with the 802.11b wireless standard. GIGABYTE raises the bar on easy-to-use and setup wireless home networking user experience with the AirCruiser G Desktop Router. Features • Interoperability with 54Mbps (802.11g) and 11Mbps (802.11b) devices • Single 10/100Mbps Ethernet LAN port • Built-in SmartSetup 3 • Wake On LAN function • Hardware reset button • 64 / 128-bit WEP • Wi-Fi® Protected Access (WPA) • Dynamic DNS • UPnP™ (Universal Plug and Play) • Network Address Translation (NAT) • VPN pass-through • 802.1x RADIUS Authentication Package Contents Please check that the AirCruiser…

Text truncated - open the document above for the full version.

Chapter 7 Using Management Tools The instructions in this chapter will help you how to use the management tools of the web-based utility to effectively manage your AirCruiser G Desktop Router. The PPP Monitor Screen The PPP Monitor screen displays the WAN (Internet) connection status. Click theDisconnect button to end your current session. Click the Connect button to re-connect to the ISP. Figure 7-1 – PPP Monitor Screen AirCruiser G Desktop Router 33 Manage Port Configuration Screen The Manage Port Configuration screen allows you to change the port on which the AirCruiser’s configuration utility runs. The default is Port 80 but users can change this to any port they wish (like 8080, 8000 or else port). In this case, to access the AirCruiser G configuration utility, you would type http://192.168.1.254:8080 Figure 7-2 – Manage Port Config screen The Reboot Screen The Reboot screen allows you to reboot the AirCruiser G Desktop Router. You are also automatically brought to this screen after you confirm OK to any change of Router settings. Figure 7-3 – Reboot Router AirCruiser G Desktop Router 35 The Initialization Screen The Initialization screen allows you to reset the AirCruiser G back to its original factory settings. To initialize the router, use the tip of a pencil or a paperclip to press and hold the init button for 5 seconds and release. Figure 7-4 – Router Init Screen The Change Password Screen The Change Password screen allows the administrator to create a new password for the AirCruiser G. To change an existing password, enter your account and new password and after re-typing the password to confirm, click theSubmit button. Note: Remember to enter this new password when logging into the AirCruiser G Desktop Router. Figure 7-5 – Change Password AirCruiser G Desktop Router 37 The Change WAN MAC Screen The Change WAN MAC screen allows you to assign a new MAC address. If your ISP asks you to use the original MAC address, chose the Assign WAN MAC option and enter a new WAN MAC address in the New WAN MAC Address field and click the Submit button. If you want to restore the factory default MAC address, choose the Restore Default WAN MAC option and click theSubmit button. Figure 7-6 – Change WAN MAC address The Upgrade Firmware Screen The Upgrade Firmware screen allows you to update the current AirCruiser G Desktop Router firmware to the latest version directly from the GIGABYTE website. Click the Browse button to locate the firmware file which you just downloaded from the GIGABYTE website, and then click Upgrade. Figure 7-7 – Upgrade Firmware AirCruiser G Desktop Router 39 The Backup / Restore Screen The Backup / Restore screen allows you to save the current configuration settings of the AirCruiser G Desktop Router as a temp file onto your computer. To revert the Router back to a previously saved configuration settings, click the Browse to locate the saved configuration file. Then, click the Restore button. Figure 7-8 – Backup/Restore configurations The Log Information Screen The AirCruiser G Desktop Router keeps logs of all port activity and events which cause a state change. Figure 7-9 – Event Log Screen AirCruiser G Desktop Router 41 The Ping Screen ‘Pinging' involves sending a packet of data to a site and recording how long it takes for the site to acknowledge receipt. This is useful if you think that a web site might be slow or unavailable. Type the IP Address and click the Ping button to start. Figure 7-10 – Ping screen The About Screen The About screen displays the AirCruiser G Desktop Router name as well as the firmware version. Figure 7-11 – About Screen AirCruiser G Desktop Router 43 Configuration Buttons There are four buttons on the top left panel of the configuration menu; SmartSetup, Setup Wizard, Status, and Logout. These buttons are useful for accessing status information or setup wizard. Smart Setup Button SmartSetup automatically detects your ISP connection type, and opens the proper ISP login screen. Setup Wizard Button Setup Wizard is similar to Smart Setup, but also presents you with a LAN setup screen which allows you to set basic LAN configuration. Figure 7-12 – Setup Wizard/LAN Setup The Status Button On the Status page the router’s current connection and configuration information is displayed for the following; LAN Ethernet, WAN Ethernet, ARP Table, DHCP Lease Table, Routing Table, UPnP Port Mapping Table. Figure 7-13 – Status LAN IP Address Displays the primary IP address being used by the Local (LAN) port of the Router. The default is 192.168.1.254 LAN Netmask Displays the IP Subnet Mask being used by the Local (LAN) port of the router. Default is 255.255.255.0 LAN DHCP Status Identifies if the Router’s built-in DHCP server is active for the attached devices on the LAN. AirCruiser G Desktop Router 45 LAN DHCP Start IP The starting IP number in the range possible IP addresses issued by the DHCP server. LAN DHCP End IP The last IP number in the range possible IP addresses issued by the DHCP server. ISP Number The number of ISP accounts configured in the current session. ISP Name System assigned name given to the ISP. WAN Ethernet Status The WAN Status displays the associated MAC address and IP address pairs of your LAN devices. In the example below, only the AirCruiser G Router is in the ARP Table. Figure 7-14 – WAN Status MAC The field displays the MAC address used by the WAN port of the router. MTU The maximum size of the packet sent from your computer to the Internet. Rx packets The number of received packets of this port after resetting or manually initializing. AirCruiser G Desktop Router 47 Tx packets The number of transmitted packets of this port after resetting or manually initializing. Rx bytes The current bandwidth (receive) on the WAN port. Rx bytes The current bandwidth (transmit) on the WAN port. ARP Table The ARP Table displays the associated MAC address and IP address pairs of your LAN devices. In the example below, only the AirCruiser G Router is …

Text truncated - open the document above for the full version.

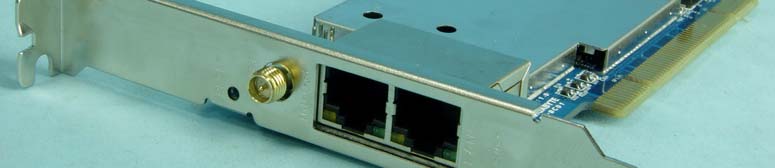

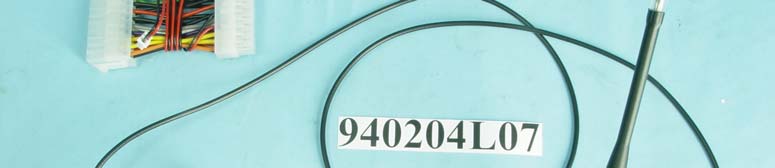

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

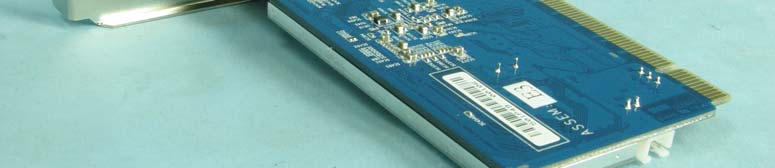

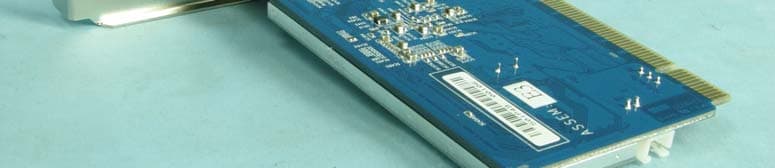

FCC label location:

Page 3 Page 4 Page 5

FCC ID: JCK-GN-BC01 Report No. RF940204L07 Operational Description This device is a 802.11g PCI Wireless Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with Reversed SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: JCK-GN-BC01 Report No: SA940204L07 1 RF EXPOSURE REPORT REPORT NO.: SA940204L07 MODEL NO.: GN-BC01 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, ROC ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: JCK-GN-BC01 Report No: SA940204L07 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: JCK-GN-BC01 Report No: SA940204L07 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: JCK-GN-BC01 Report No: SA940204L07 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 1.9953 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241259.7040.0241.0 6243764.8630.0261.0 11246264.1210.0251.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241257.5440.0231.0 6243760.3950.0241.0 11246259.7040.0241.0

FCC ID: JCK-GN-BC01 Report No.: RF940204L071Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940204L07 MODEL NO.: GN-BC01 RECEIVED: Feb. 04, 2005 TESTED: Feb. 15 ~ Feb. 21, 2005 ISSUED: Feb. 22, 2005 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, ROC ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: JCK-GN-BC01 Report No.: RF940204L072Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ......................................................................................................4 2.SUMMARY OF TEST RESULTS ..............................................................................5 2.1MEASUREMENT UNCERTAINTY ...........................................................................5 3.GENERAL INFORMATION.......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: .......................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................10 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................10 4.TEST TYPES AND RESULTS ................................................................................ 11 4.1CONDUCTED EMISSION MEASUREMENT ......................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 11 4.1.2 TEST INSTRUMENTS............................................................................................ 11 4.1.3 TEST PROCEDURES ............................................................................................ 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 12 4.1.5 TEST SETUP ......................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 13 4.1.7 TEST RESULTS ..................................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ..............................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 26 4.2.2 TEST INSTRUMENTS............................................................................................ 27 4.2.3 TEST PROCEDURES ............................................................................................ 28 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 28 4.2.5 TEST SETUP ......................................................................................................... 29 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 29 4.2.7 TEST RESULTS ..................................................................................................... 30 4.36dB BANDWIDTH MEASUREMENT .....................................................................39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 39 4.3.2 TEST INSTRUMENTS............................................................................................ 39 4.3.3 TEST PROCEDURE............................................................................................... 40 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 40 4.3.5 TEST SETUP ......................................................................................................... 40 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 40 4.3.7 TEST RESULTS ..................................................................................................... 41 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................47 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 47 4.4.2 INSTRUMENTS...................................................................................................... 47 4.4.3 TEST PROCEDURES ............................................................................................ 48 FCC ID: JCK-GN-BC01 Report No.: RF940204L073Report Format Version 2.0.2 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 48 4.4.5 TEST SETUP ......................................................................................................... 48 4.4.6 EUT OPERATING CONDITIONS ........................................................................... 48 4.4.7 TEST RESULTS ..................................................................................................... 49 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................50 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................. …

Text truncated - open the document above for the full version.

FCC ID: JCK-GN-BC01 Report No.: RF940204L0768Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: JCK-GN-BC01 Report No.: RF940204L0769Report Format Version 2.0.2 RADIATED EMISSION TEST
