JCK-GN-BR01G802.11g Wireless Router

i AirCruiser™ G Wireless Router GN-BR01G User’s Guide ii Contents Chapter 1 Introduction ..................................................... 1 Overview ................................................................................................1 Features .................................................................................................1 Package Contents .................................................................................2 AirCruiser G Wireless Router Rear Panel ..........................................2 AirCruiser G Wireless Router Front Panel .........................................3 Chapter 2 Installation .................................................... 4 Installing the Router .............................................................................4 Chapter 3 Connections & Configuration ........................ 7 Making a Wired/Wireless Connection.................................................8 Chapter 4 Configuring the AirCruiser G Wireless Router ........................................................................................... 9 Chapter 5 AirCruiser G Wireless Router Settings ....... 12 Login to the AirCruiser G Wireless Router ......................................12 AirCruiser G Wireless Router Configuration Utility ........................13 Chapter 6 Advanced Settings ..................................... 14 The Network Configuration Screen...................................................14 The Wireless Configuration Screen ..................................................20 The Static Routing Table Screen.......................................................25 The Virtual Server Screen ..................................................................26 The Firewall Rule Screen ...................................................................28 The DNS Configuration Screen .........................................................29 Remote Access Screen ......................................................................31 Chapter 7 Using Management Tools ............................ 32 iii The PPP Monitor Screen ....................................................................32 Manage Port Configuration Screen...................................................33 The Reboot Screen .............................................................................34 The Initialization Screen.....................................................................35 The Change Password Screen ..........................................................36 The Change WAN MAC Screen .........................................................37 The Upgrade Firmware Screen..........................................................38 The Backup / Restore Screen ............................................................39 The Log Information Screen ..............................................................40 The Ping Screen..................................................................................41 The About Screen ...............................................................................42 Configuration Buttons........................................................................43 Smart Setup Button............................................................................43 Setup Wizard Button...........................................................................43 The Status Button ...............................................................................44 WAN Ethernet Status ..........................................................................46 ARP Table ............................................................................................48 Routing Table ......................................................................................49 The Logout Button..............................................................................50 Chapter 8 Troubleshooting............................................ 51 Appendix A: Connection Troubleshooting .................. 53 Appendix B Glossary ..................................................... 57 Appendix C Regulatory.................................................. 60 Appendix D Specifications ............................................ 62 Appendix G Warranty..................................................... 63 1 Chapter 1 Introduction Overview Thank you for purchasing the 54Mbps AirCruiser G Wireless Router. With the advantages of 54 Mbps high-speed wireless data rates and 4-ports 10/100 wired Ethernet, the AirCruiser G Wireless Router is the ideal networking device for you to share a broadband connection in your home or office. The AirCruiser G Wireless Router gives you a simple, cost-effective wireless networking solution. Providing transmission speeds of up to 54Mbps, the AirCruiser G Wireless Router allows users to share network resources, retrieve emails, download large files, conduct a video conference, and distribute or display digital photos, videos or MP3 files. Furthermore, the router supports up to 128-bit WEP encryption to safeguard your privacy on-line. To get the most from your 54M AirCruiser G Wireless Router, please read through this manual completely. Features • Interoperability with 54Mbps (802.11g) and 11Mbps (802.11b) devices • 4 10/100Mbps Ethernet LAN port • Single 10/100Mbps WAN port • Built-in SmartSetup 3 • Wake On LAN function • Hardware reset button • 64 / 128-bit WEP • Wi-Fi® Protected Access (WPA) • Dynamic DNS • UPnP™ (Universal Plug and Play) • Network Address Translation (NAT) • VPN pass-through • 802.1x RADIUS Authentication 2 Package Contents Please check that the AirCruiser G Wireless Router package contents include: • AirCruiser G Wireless Router • Detachable External 2.4GHz antenna • Cat. 5 Ethernet patch cable • AirCruiser G Quick Installation Guide • Resource CD • Power adaptor If there are any missing or damaged parts, please contact your local distributor or dealer immediately. If a replacem…

Text truncated - open the document above for the full version.

26 The Virtual Server Screen The PPPoE/DHCP/Static Tab A Virtual Server allows computers on the WAN side of the network to connect with a PC server on the LAN side of the network. Figure 6-10 – Virtual Server setup For example, a PC on the LAN side with an IP address of 192.168.1.1 would have the following virtual server settings: ¾ Protocol: TCP ¾ Port: 21 ¾ Virtual Server IP: 192.168.1.1 ¾ Enable: enable In this case, any PC on the WAN side of the network can connect to the internal FTP server (192.168.1.1) using the IP address on the WAN end of the AirCruiser G Wireless Router. 27 The DMZ Tab The DMZ feature allows you to specify the IP address of the computer that will be placed outside the firewall of your network. Figure 6-11 – DMZ setup With a firewall setup, it is often necessary to place some clients outside of the firewall while leaving the others protected. You can do this using a Demilitarized Zone (DMZ) to test or configure some applications (e.g. Internet games, video conferencing, or VPN connections) or create a server connecting to the Internet through the Intranet. Enter the IP Address of your computer (e.g. 192.168.1.2) into the LAN IP Address field and click the Submit button. Note: DMZ servers pose a security risk. A computer designated as the default DMZ server loses much of the protection of the firewall, and is exposed to exploits from the Internet. If compromised, the DMZ server can be used to attack your network. 28 The Firewall Rule Screen The Firewall Rule screen displays your network security settings. Use this screen to quickly create network security policies to prevent unauthorized access to your network. Figure 6-12 – Firewall One Touch settings Response Ping From WAN When enabled, prevents this Router and its privately assigned IP addresses from being broadcasted to the Internet. Allow Remote Management When enabled, allows remote configuration access via the Internet (WAN), else only local (LAN) access is allowed. Allow Microsoft NetBIOS Pass-through A File and Printer sharing security, that when enabled, only allows NetBIOS. Enable DoS Protection When enabled, Denial of Service type attacks are prevented. 29 The DNS Configuration Screen Figure 6-13 – DNS Config screen DNS Relay DNS Relay will set your PC's DNS entries to point to the Router’s Gateway address, which will then forward DNS queries to the DNS server used by the Router. This is needed when using DHCP to assign IP address to the PC’s in you LAN. The default value of DNS relay is Enable. Dynamic DNS The AirCruiser G Wireless Router offers a Dynamic Domain Name Server (DDNS) service that allows you to assign a fixed host and domain name to a dynamic Internet IP address. This gives Internet users the ability to connect with a virtual sever using a FQDN, rather than with an IP address. Before using this feature, you must first register an account with the dynamic DNS service. (http://www.dyndns.org ) 30 Service Provider From this pull down menu, enter the DDNS service with which you have membership. Domain Name This is the DDNS URL assigned by the DDNS service. Login Name Enter the User Name for your DDNS account. Password Enter the Password for your DDNS account. Wildcards If your dynamic DNS provider allows using wildcards in resolving your URL, you may select Enable to activate this function. 31 Remote Access Screen Wake On LAN Table With Wake-on-LAN, a router user can keep his systems turned off while away and simply click the Wake On LAN activation button on this page to remotely instruct the AirCruiser G to boot up the host system. You also have the option of Wake On & Enable NETBIOS services of any PC in the local LAN Domain. For this feature, you need either the IP address or the MAC address of your LAN devices. Key in either values, click enable, and press Wake On LAN to perform the function. Figure 6-14 – Wake on LAN IP Address The IP Address of the LAN network device which you want to wakeup MAC Address The MAC Address of the LAN network device which you want to wakeup 32 Chapter 7 Using Management Tools The instructions in this chapter will help you how to use the management tools of the web-based utility to effectively manage your AirCruiser G Wireless Router. The PPP Monitor Screen The PPP Monitor screen displays the WAN (Internet) connection status. Click the Disconnect button to end your current session. Click the Connect button to re-connect to the ISP. Figure 7-1 – PPP Monitor Screen 33 Manage Port Configuration Screen The Manage Port Configuration screen allows you to change the port on which the AirCruiser’s configuration utility runs. The default is Port 80 but users can change this to any port they wish (like 8080, 8000 or else port). In this case, to access the AirCruiser G configuration utility, you would type http://192.168.1.254:8080 Figure 7-2 – Manage Port Config screen 34 The Reboot Screen The Reboot screen allows you to reboot the AirCruiser G Wireless Router. You are also automatically brought to this screen after you confirm OK to any change of Router settings. Figure 7-3 – Reboot Router 35 The Initialization Screen The Initialization screen allows you to reset the AirCruiser G back to its original factory settings. To initialize the router, use the tip of a pencil or a paperclip to press and hold the init button for 5 seconds and release. Figure 7-4 – Router Init Screen 36 The Change Password Screen The Change Password screen allows the administrator to create a new password for the AirCruiser G. To change an existing password, enter your account and new password and after re-typing the password to confirm, click the Submit button. Note: Remember to enter this new password when logging into the AirCruiser G Wireless Router. Figure 7-5 – Change Password 37 The Change WAN MAC Screen The Change WAN MAC screen allows you to assign a new MAC address. If your ISP asks you to use the original MAC address, chose the Assign WAN MAC option and enter a new WAN MAC address in…

Text truncated - open the document above for the full version.

42 The About Screen The About screen displays the AirCruiser G Wireless Router name as well as the firmware version. Figure 7-11 – About Screen 43 Configuration Buttons There are four buttons on the top left panel of the configuration menu; SmartSetup, Setup Wizard, Status, and Logout. These buttons are useful for accessing status information or setup wizard. Smart Setup Button SmartSetup automatically detects your ISP connection type, and opens the proper ISP login screen. Setup Wizard Button Setup Wizard is similar to Smart Setup, but also presents you with a LAN setup screen which allows you to set basic LAN configuration. Figure 7-12 – Setup Wizard/LAN Setup 44 The Status Button On the Status page the router’s current connection and configuration information is displayed for the following; LAN Ethernet, WAN Ethernet, ARP Table, DHCP Lease Table, Routing Table, UPnP Port Mapping Table. Figure 7-13 – Status LAN IP Address Displays the primary IP address being used by the Local (LAN) port of the Router. The default is 192.168.1.254 LAN Netmask Displays the IP Subnet Mask being used by the Local (LAN) port of the router. Default is 255.255.255.0 LAN DHCP Status Identifies if the Router’s built-in DHCP server is active for the attached devices on the LAN. 45 LAN DHCP Start IP The starting IP number in the range possible IP addresses issued by the DHCP server. LAN DHCP End IP The last IP number in the range possible IP addresses issued by the DHCP server. ISP Number The number of ISP accounts configured in the current session. ISP Name System assigned name given to the ISP. 46 WAN Ethernet Status The WAN Status displays the associated MAC address and IP address pairs of your LAN devices. In the example below, only the AirCruiser G Router is in the ARP Table. Figure 7-14 – WAN Status MAC The field displays the MAC address used by the WAN port of the router. MTU The maximum size of the packet sent from your computer to the Internet. Rx packets The number of received packets of this port after resetting or manually initializing. Tx packets The number of transmitted packets of this port after resetting or manually initializing. 47 Rx bytes The current bandwidth (receive) on the WAN port. Rx bytes The current bandwidth (transmit) on the WAN port. 48 ARP Table The ARP Table displays the associated MAC address and IP address pairs of your LAN devices. In the example below, only the AirCruiser G Router is in the ARP Table. Figure 7-15 – ARP Table 49 Routing Table The Routing Table displays the AirCruiser G RIP routing details. Figure 7-16 – Routing Table Destination The IP address of the destination network address. Netmask The subnet of that destination IP address. Gateway Gateway of the destination IP address. Metric Hop count to the destination network. Interface Type of interface used. 50 The Logout Button On the Logout page confirms that you have successfully logged out of the AirCruiser G Configuration. Figure 7-17 – Logout confirmation screen 51 Chapter 8 Troubleshooting This section provides solutions to common problems that may occur during installation, configuration or use of the AirCruiser G Wireless Router. Q: I can’t remember the password or IP address of the router. A: You can resolve this by pressing the “Init” button on your Router. The Router will reboot and all settings (including the default password) will be restored to their default values. Q: I can’t connect to the Internet. A: 1. Check that the power cord is connected properly, and the router’s power LED is lit green. 2. Verify that all the configuration settings are correct. 3. Check that your ADSL/Cable Modem is operating normally, and/or you have ISP service available. 4. Check that all network cabling is properly connected. Q: I can’t access the AirCruiser G Wireless Router Web Configuration Utility. A: 1. Please check the Ethernet cable between the PC and the Router is properly connected. 2. Make sure your computer’s IP address is on the subnet where the Router locates. 3. In your PC’s TCP/IP settings, try checking the setting “Obtain and IP address automatically” and try again. 4. Make sure you are using the correct login information. The default value is ‘admin’ for both username and password. Q: Where in the network do I connect the router? A: In a typical environment, the AirCruiser G Wireless Router is installed directly onto the ADSL/Cable Modem. Plug the RJ45 Ethernet cable of the ADSL or Cable Modem into the WAN port of the Router. Q: Can the AirCruiser G Wireless Router work as a DHCP server? A: Yes. The AirCruiser G Wireless Router has a built-in DHCP server function so that apart from all the standard DHCP functions, it helps prevent IP conflicts. Q: What is WEP? A: Wired Equivalent Privacy (WEP) is a security mechanism defined within the 802.11 standard. It is designed to make the link integrity of the wireless medium equal to wired cable. Data privacy mechanism based on a 40 bits (128 bit optional) shared key algorithm, as described in the IEEE 802.11 standard. 52 Q: What is the IEEE 802.11g standard? A: The IEEE 802.11g standard specifies data rates of up to 54 Mbps in the 2.45-GHz band. It uses Orthogonal Frequency Division Multiplexing (OFDM), which is provided by this standard and is compatible with 802.11b standard offering speeds of about 11 Mbps. This standard uses Complementary Code Keying (CCK) modulation. Both 11g and 11b can operate at a range of up to 300 feet. 53 Appendix A: Connection Troubleshooting Problem: I get a timeout when trying to access the Router administration screen. Answer: Verify the router’s IP address as it sometimes will change depending on your network configuration. Open up a command terminal by clicking Start > Run, then type ‘cmd’ and click ok. At the DOS prompt, type ipconfig. The “Default Gateway” IP address is the address of your AirCruiser G. Use this number instead of 192.168.1.245 when logging in. . Problem: I can login to the router administration screen, and ever…

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location (FCC ID: JCK-GN-BR01G)

Label (1344x735x16M jpeg)

Page 3 Page 4 Page 5 Page 6

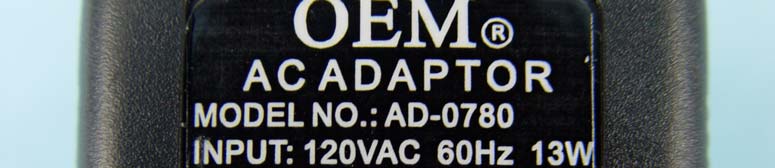

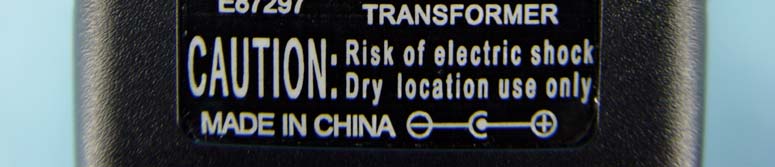

FCC ID: JCK-GN-BR01G Report No. RF940406L04 Operational Description This device is a 802.11g Wireless Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with Reversed SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: JCK-GN-BR01G Report No: SA940406L04 1 RF EXPOSURE REPORT REPORT NO.: SA940406L04 MODEL NO.: GN-BR01G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, ROC ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: JCK-GN-BR01G Report No: SA940406L04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: JCK-GN-BR01G Report No: SA940406L04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: JCK-GN-BR01G Report No: SA940406L04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.5849 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.6800.0201.0 6243763.9730.0201.0 11246263.6800.0201.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6960.0101.0 6243731.8420.0101.0 11246231.9890.0101.0

FCC ID: JCK-GN-BR01G Report No.: RF940406L041Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940406L04 MODEL NO.: GN-BR01G RECEIVED: Apr. 06, 2005 TESTED: Apr. 18 ~ Apr. 21, 2005 ISSUED: Apr. 22, 2005 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, ROC ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: JCK-GN-BR01G Report No.: RF940406L042Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ......................................................................................................4 2.SUMMARY OF TEST RESULTS ..............................................................................5 2.1MEASUREMENT UNCERTAINTY ...........................................................................5 3.GENERAL INFORMATION.......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: .......................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................10 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................10 4.TEST TYPES AND RESULTS ................................................................................ 11 4.1CONDUCTED EMISSION MEASUREMENT ......................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 11 4.1.2 TEST INSTRUMENTS............................................................................................ 11 4.1.3 TEST PROCEDURES ............................................................................................ 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 12 4.1.5 TEST SETUP ......................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 13 4.1.7 TEST RESULTS ..................................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ..............................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 20 4.2.2 TEST INSTRUMENTS............................................................................................ 21 4.2.3 TEST PROCEDURES ............................................................................................ 22 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 22 4.2.5 TEST SETUP ......................................................................................................... 23 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 23 4.2.7 TEST RESULTS ..................................................................................................... 24 4.36dB BANDWIDTH MEASUREMENT .....................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 31 4.3.2 TEST INSTRUMENTS............................................................................................ 31 4.3.3 TEST PROCEDURE............................................................................................... 32 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 32 4.3.5 TEST SETUP ......................................................................................................... 32 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 32 4.3.7 TEST RESULTS ..................................................................................................... 33 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 39 4.4.2 INSTRUMENTS...................................................................................................... 39 4.4.3 TEST PROCEDURES ............................................................................................ 40 FCC ID: JCK-GN-BR01G Report No.: RF940406L043Report Format Version 2.0.2 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 40 4.4.5 TEST SETUP ......................................................................................................... 40 4.4.6 EUT OPERATING CONDITIONS ........................................................................... 40 4.4.7 TEST RESULTS ..................................................................................................... 41 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...........................…

Text truncated - open the document above for the full version.

FCC ID: JCK-GN-BR01G Report No.: RF940406L0460Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: JCK-GN-BR01G Report No.: RF940406L0461Report Format Version 2.0.2 RADIATED EMISSION TEST
