Bluetooth Media Adapter GN-BT06T User’s Guide February 2006 - Revision 1.0 i Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. GN-BT06T Bluetooth Media Adapter ii Contents Chapter 1 Getting To Know Your BT06T.........................1 Overview..........................................................................1 Features...........................................................................1 Package Contents............................................................1 Rear Panel.......................................................................2 Front Panel......................................................................3 Side Panel........................................................................3 LEDs................................................................................4 Chapter 2 Connecting the BT06T..................................5 Transmitter Mode.............................................................5 Receiver Mode.................................................................6 Chapter 3 The GN-BT06T Utility..................................13 Installing the Utility.........................................................13 Changing the PIN Code.................................................16 Appendix A Specifications............................................18 Appendix B Warranty.....................................................19 GN-BT06T Bluetooth Media Adapter 1 Chapter 1 Getting To Know Your BT06T Overview The GIGABYTE GN-BT06T Bluetooth Media Adapter is truly a unique Bluetooth product, the only one of its kind. The GN-BT06T is the solution to eliminating running cables from your computer to your home stereo system, wirelessly streaming audio source of any format to your home stereo system. But there’s more to the GN-BT06T mode switching turns it into a Bluetooth transmitter, wirelessly streams audio source from the audio jack-in to your Bluetooth headset. Pairing button enables the GN-BT06T to easily connect to Bluetooth devices and also be connected to. Features n Extreme Solution for Bluetooth Stereo Audio n Support: ♦ Advanced Audio Distribution Profile, v1.0 ♦ Audio/Video Remote Control Profile, v1.0 n Easy Operation n Elaborate Amplifier and Speakers n Support change PIN/Passkey by USB n No driver Package Contents • GN-BT06T Bluetooth Media Adapter X 1 • Power adapter X 1 • USB Cable X 1 • RCA Cable X 1 • Line In/Out Cable X 1 • User Guide on CD-ROM X 1 If there are any missing or damaged parts, please contact your local distributor or dealer immediately. Using a power supply with a different voltage rating than the one included with the BT06T may cause damage and void the warranty for this product. GN-BT06T Bluetooth Media Adapter 2 å ç é è ê Rear Panel Figure 1: Adapter’s Rear Panel å Power Input The Power port is where you will connect the power adapter. ç Line Input Audio input from a computer or mp3 player. é Line Output Audio output to speakers or headphone. è RCA Audio Output Audio output to any speaker with RCA connector. ê Mode Switch Set the device in Transmitter mode or Receiver mode. GN-BT06T Bluetooth Media Adapter 3 Front Panel Figure 2: Adapter’s Front Panel å Power Switch Power On/OFF the GN-BT06T. ç Paring Button Pairing with Bluetooth enabled device. Side Panel Figure 3: Adapter’s Side Panel å USB Port You can change the pin key for GN-BT06T through the USB port. The USB port can also work as power in port when connecting to PC by using USB cable. ç Antenna External Antenna 2dBi å ç å ç GN-BT06T Bluetooth Media Adapter 4 LEDs Figure 4: LED Layout The table below describes the LED indicators on the front panel of the GN-BT06T. LED STATUS DESCRIPTION Green In Transmitter Mode. Orange In Receiver Mode. Power Off Power off. Flashing Blue LED In streaming Mode Status Blue & Green are Flashing by turns In pairing mode. GN-BT06T Bluetooth Media Adapter 5 Chapter 2 Connecting the BT06T The GIGABYTE GN-BT06T Bluetooth media adapter supports two operation modes: Transmitter Mode and Receiver Mode. Let you can enjoy the music from a Bluetooth Headphone or speaker and other AV device…

Text truncated - open the document above for the full version.

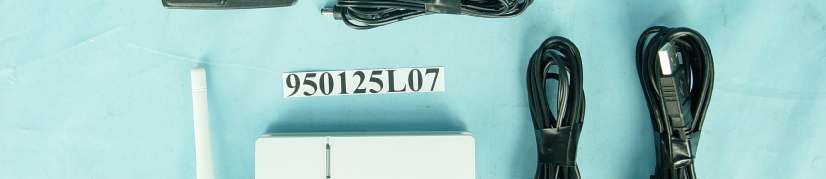

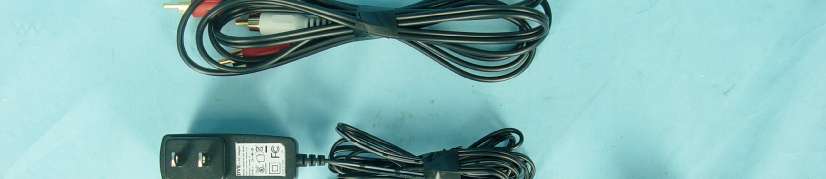

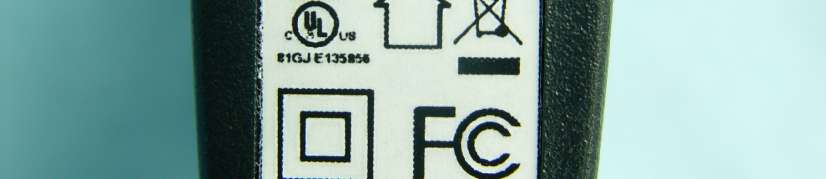

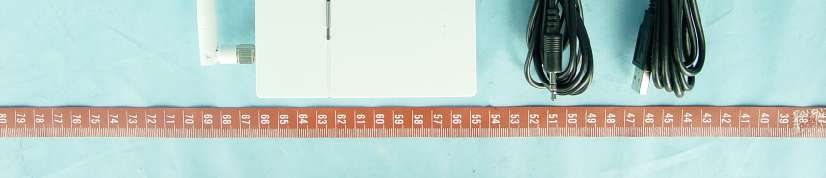

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : JCK-GN-BT06T Label Location

GIGABYTEGN-BT06T

Page 3 Page 4 Page 5

FCC ID: JCK-GN-BT06T Report No. RF950125L07 Operational Description The transmitter of the EUT (Bluetooth Media Adapter) is powered by 5Vdc from host equipment and AC adapter. The antenna is dipole antenna with UFL antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. For more detailed instruction, please take a look at the user’s manual.

FCC ID: JCK-GN-BT06T Report No: SA950125L07 1 RF EXPOSURE REPORT REPORT NO.: SA950125L07 MODEL NO.: GN-BT06T ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: JCK-GN-BT06T Report No: SA950125L07 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: JCK-GN-BT06T Report No: SA950125L07 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: JCK-GN-BT06T Report No: SA950125L07 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.7690.0101.0 6243731.6230.0101.0 11246231.9890.0101.0

Report No.: RF950125L071Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950125L07 MODEL NO.: GN-BT06T RECEIVED: Dec. 08, 2005 TESTED: Dec. 08, 2005 ~ Feb. 22, 2006 ISSUED: Feb. 24, 2006 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 Report No.: RF950125L072Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION..............................................................................................................5 2.SUMMARY OF TEST RESULTS......................................................................................6 2.1MEASUREMENT UNCERTAINTY................................................................................7 3.GENERAL INFORMATION...............................................................................................8 3.1 GENERAL DESCRIPTION OF EUT............................................................................8 3.2 DESCRIPTION OF TEST MODES..............................................................................9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST......................................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL............................11 3.3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..........................................13 3.3.4 DESCRIPTION OF SUPPORT UNITS.....................................................................13 4. TEST TYPES AND RESULTS.........................................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT............................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.........................................14 4.1.2 TEST INSTRUMENTS.............................................................................................14 4.1.3 TEST PROCEDURES.............................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD....................................................................15 4.1.5 TEST SETUP..........................................................................................................16 4.1.6 EUT OPERATING CONDITIONS.............................................................................17 4.1.7 TEST RESULTS......................................................................................................18 4.2 RADIATED EMISSION MEASUREMENT.................................................................30 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..............................................30 4.2.2 TEST INSTRUMENTS.............................................................................................31 4.2.3 TEST PROCEDURES.............................................................................................32 4.2.4 DEVIATION FROM TEST STANDARD....................................................................32 4.2.5 TEST SETUP..........................................................................................................33 4.2.6 EUT OPERATING CONDITIONS.............................................................................33 4.2.7 TEST RESULTS......................................................................................................34 4.3 NUMBER OF HOPPING FREQUENCY USED.......................................................41 4.3.1 LIMIT OF HOPPING FREQUENCY USED..............................................................41 4.3.2 TEST INSTRUMENTS.............................................................................................41 4.3.3 TEST PROCEDURES.............................................................................................41 4.3.4 DEVIATION FROM TEST STANDARD....................................................................42 4.3.5 TEST SETUP...........................................................................................................42 Report No.: RF950125L073Report Format Version 2.0.4 4.3.6 TEST RESULTS......................................................................................................42 4.4 DWELL TIME ON EACH CHANNEL.......................................................................44 4.4.1 LIMIT OF DWELL TIME USED................................................................................44 4.4.2 TEST INSTRUMENTS.............................................................................................44 4.4.3 TEST PROCEDURES.............................................................................................44 4.4.4 DEVIATION FROM TEST STANDARD....................................................................44 4.4.5 TEST SETUP..........................................................................................................45 4.4.6 TEST RESULTS......................................................................................................45 4.5 CHANNEL BANDWIDTH..........................................................................................49 4.5.1 LIMITS OF CHANNEL BANDWIDTH.......................................................................49 4.5.2 TEST INSTRUMENTS.............................................................................................49 4.5.3 TEST PROCEDURE...........…

Text truncated - open the document above for the full version.

Report No.: RF950125L0766Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST MODE A Report No.: RF950125L0767Report Format Version 2.0.4 MODE B Report No.: RF950125L0768Report Format Version 2.0.4 RADIATED EMISSION TEST MODE A Report No.: RF950125L0769Report Format Version 2.0.4 MODE B
