JCK-GN-MD01Wireless Game Adapter

GN-MD01 AirCruiser G Game Adapter User’s Manual www.gigabyte.com.tw May. 2005 Revision 1.0 GN-MD01 AirCruiser G Game Adapter 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Change direction or location of antenna. - Increase the distance between the equipment and the antenna. - Connect this equipment with a socket different from the one connected with antenna - Ask help from experienced audio/video technicians. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be install and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Caution: 1. The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 3. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. GN-MD01 AirCruiser G Game Adapter iii Contents Chapter 1 Introduction............................................................................................ 1 Overview............................................................................................................... 1 Features................................................................................................................ 1 Package Contents................................................................................................... 2 GN-MD01 Rear Panel............................................................................................... 2 Status LEDs........................................................................................................... 3 Side View.............................................................................................................. 3 Chapter 2 QUICK INSTALLATION.............................................................................. 4 Hardware Requirements........................................................................................... 4 Planning Your Network Environment............................................................................ 4 Hardware Installation................................................................................................ 6 Chapter 3 Configuration - Using A Web-Browser .......................................... 8 Using Web-based Configuration.................................................................................. 8 Configuring the Adapter for Access Point Mode Access.................................................... 9 Configuring the Adapter for Ad-Hoc Mode Access.......................................................... 23 Configuring the Adapter for Ethernet Adapter Mode Access............................................. 34 Chapter 4 Troubleshooting.................................................................................... 45 Appendix A: Glossary........................................................................................... 46 Appendix B: Specifications................................................................................... 50 Physical Interface.................................................................................................. 50 Specifications....................................................................................................... 50 Appendix C: PC Configuration............................................................................... 51 TCP/IP Settings Under Windows 2000........................................................................ 51 TCP/IP Settings under Windows XP........................................................................... 54 GN-MD01 AirCruiser G Game Adapter 1 Chapter 1 Introduction Overview Thank you for purchasing our GN-MD01 AirCruiser G Game Adapter. It works as an Access Point as well as in Ad-Hoc / Ethernet Adapter mode based on…

Text truncated - open the document above for the full version.

GN-MD01 AirCruiser G Game Adapter 28 TCP/IP Settings Manage IP parameters through TCP/IP setting screen. DHCP Mode Two (2) options are available: “Disabled”, “Client Enabled”. The default value is “Disabled”. IP Address Assign an IP address to the Game Adapter with this option. The default IP address is 192.168.1.254. Please make sure the assigned IP address is exclusive for the Game Adapter. Subnet Mask Assign a Subnet Mask for a Game Adapter. The default Subnet Mask is 255.255.255.0. Default Gateway Enter the IP address for the default router. The default gateway is 192.168.1.254. GN-MD01 AirCruiser G Game Adapter 29 System Settings-Password Setup Here you can set up administrator’s user name and password to restrict administrative Game Adapter. Key in a password and confirm, then press Apply Changes. NOTE: If you leave the password field blank, the password feature is disabled. GN-MD01 AirCruiser G Game Adapter 30 System Settings-Save/Reload Settings Save the current configuration settings as a file. Press “Reset” to restore unit settings to factory defaults. GN-MD01 AirCruiser G Game Adapter 31 Statistics Displays data packets flow status on the wireless and wired LAN. GN-MD01 AirCruiser G Game Adapter 32 Upgrade Firmware Upgrade the firmware with the latest firmware version available for download from the GIGABYTE website. GN-MD01 AirCruiser G Game Adapter 33 About View firmware information. Logout Logout from the configuration webpage when setup complete. Reboot Reboots the device. The system may need up to a minute to save your settings, please allow the system to reboot itself. GN-MD01 AirCruiser G Game Adapter 34 Configuring the Adapter for Ethernet Adapter Mode Access Status You can use this status screen to view the Game Adapter’s system information, current connection status and configuration. GN-MD01 AirCruiser G Game Adapter 35 AP Site Survey This AP Site Survey screen shows the wireless networks that the AirCruiser G Game Adapter detects. The SSID, BSSID, RSSI, Channel, Encryption, Auth, Network Type for each network are displayed. GN-MD01 AirCruiser G Game Adapter 36 Wireless Basic Settings The Game Adapter will automatically detect your wireless settings. Typically, modification to the default settings is required. Changes of these settings will influence your wireless connection and performance. SSID ESSID (or SSID as it is usually referred to) is the network name of the Game Adapter in the wireless network. You should set the same SSID name for all your wireless-equipped devices to allow dynamic clients to easily roam among them. The SSID name can be up to 32 characters in length and is case sensitive (i.e. upper case letters “A~Z” and lower case “a~z” are unique). RTS Threshold The default value of “2347” should not be changed. However, in case of inconsistent data flow, adjustment the value to a lower number and retry. Enter a value within the range 0~2347 for the port. RTS (Request To Send) is a function, requesting permission to transmit signals. RTS is a collision avoidance method used by all 802.11b wireless networking devices. In most cases you will not need to activate or administer RTS. Generally, RTS only needs to be configured if you find yourself in an Infrastructure environment where all nodes are in range of the Access Point but may be out of range of each other. 802.11g Only Mode Enabled -- No Wireless-B clients will be allowed on the network. Disabled – Both Wireless-G and Wireless-B clients will be allowed on the network. (Default setting) RF Radio Enable or disable the RF Radio function. GN-MD01 AirCruiser G Game Adapter 37 Wireless Security Setting Use this feature to set up the security types for the Game Adapter. Three security settings are available: Open System, Shared Key and WPA Pre-Shared Key. * Open System No security is invoked, allowing any device to join the network, as long as the SSID is correct. * Shared Key Only those computers that have the correct authentication key can join the network. Key Length choice Disable - No encryption will be applied. 64-bit - enter 5 hexadecimal digits. 128-bit - enter 13 hexadecimal digits. GN-MD01 AirCruiser G Game Adapter 38 * WPA Pre-Shared Key A mechanism in Wi-Fi Protected Access (WPA)—Personal that allows the use of manually entered keys or passwords to initiate WPA security. The PSK is entered on the access point or home wireless gateway and each PC that is on the Wi-Fi network. After entering the password, Wi-Fi Protected Access automatically takes over. It keeps out eavesdroppers and other unauthorized users by requiring all devices to have the matching password. Pre-Shared key - Enter a password up to 63 ASCII characters (uppercase “A~Z”, lowercase “a~z”, or numeric “0~9”) in length. GN-MD01 AirCruiser G Game Adapter 39 TCP/IP Settings Manage IP parameters through TCP/IP setting screen. DHCP Mode Two (2) options are available: “Disabled”, “Client Enabled”. The default value is “Disabled”. IP Address Assign an IP address to the Game Adapter with this option. The default IP address is 192.168.1.1. Please make sure the assigned IP address is exclusive for the Game Adapter. Subnet Mask Assign a Subnet Mask for a Game Adapter. The default Subnet Mask is 255.255.255.0. Default Gateway Enter the IP address for the default router. The default gateway is 192.168.1.254. GN-MD01 AirCruiser G Game Adapter 40 System Settings-Password Setup Here you can set up administrator’s user name and password to restrict administrative Game Adapter. Key in a password and confirm, then press Apply Changes. NOTE: If you leave the password field blank, the password feature is disabled. GN-MD01 AirCruiser G Game Adapter 41 System Settings-Save/Reload Settings Save the current configuration settings as a file. Press “Reset” to restore unit settings to factory defaults. GN-MD01 AirCruiser G Game Adapter 42 Statistics Displays data packet flow status on both wireless and wired LAN. GN-MD01 AirCruiser G Game Adapter 43 Upgrade…

Text truncated - open the document above for the full version.

Giga-Byte Technology Co., Ltd. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Attestation FCC ID JCK-GN-MD01 Product Wireless Game Adapter Model GN-MD01 Data Applies To : GN-AP03G; GN-AP05G Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature: (Name / Date)

Giga-Byte Technology Co., Ltd. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Confidentiality Request FCC ID ：JCK-GN-MD01 Product ：Wireless Game Adapter Model ：GN-MD01 Data Applies To : GN-AP03G; GN-AP05G Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below. Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application And all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: (Name / Date)

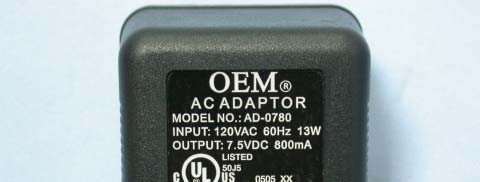

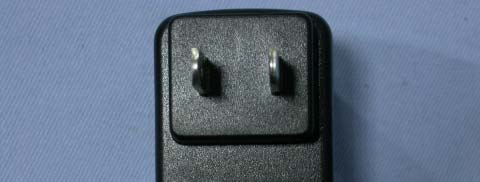

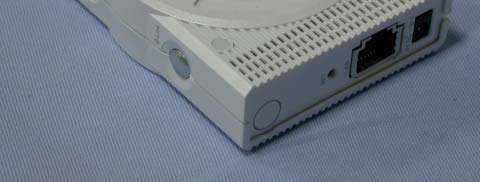

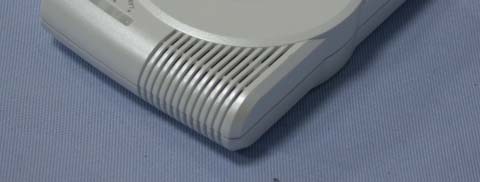

Compliance Certification Services Inc.Report No.50615402-RP2 External Photo ( Model : GN-MD01 ) Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2 External Photo ( Model : GN-AP03G ) Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2 External Photo ( Model : GN-AP05G ) Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2 Adapter

Company : GIGA-BYTE TECHNOLOGY CO., LTD. Model : GN-MD01 Product : Wireless Game Adapter Wireless Game Adapter Model No: GN-MD01 FCC IDJCK-GN-MD01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

Compliance Certification Services Inc.Report No.50615402-RP2 Internal Photo( Model : GN-MD01 ) Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2 Internal Photo( Model : GN-AP03G ) Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2 Internal Photo ( Model : GN-AP05G ) Compliance Certification Services Inc.Report No.50615402-RP2 Compliance Certification Services Inc.Report No.50615402-RP2

Compliance Certification Services Inc. Report No: 50615402-RP2 FCC ID: JCK-GN-MD01 Date of Issue: June 28, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Game Adapter Model Number : GN-MD01 Data Applies To : GN-AP03G; GN-AP05G Issued to GIGA-BYTE TECHNOLOGY CO., LTD. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 8, Jiu Ceng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 50615402-RP2 FCC ID: JCK-GN-MD01 Date of Issue: June.28, 2005 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION.......................................................................................................................5 3.2 EUT EXERCISE..................................................................................................................................5 3.3 GENERAL TEST PROCEDURES............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES.........................................................................................................................................8 5.2 EQUIPMENT.......................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH ........................................................................................................................11 7.2 PEAK POWER...................................................................................................................................17 7.3 BAND EDGES MEASUREMENT ................................................................................................23 7.4 PEAK POWER SPECTRAL DENSITY...................................................................................................40 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................46 7.6 SPURIOUS EMISSIONS ...............................................................................................................49 7.7 POWER LINE CONDUCTED EMISSIONS.............................................................................................83 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .......................................................................88 Compliance Certification Services Inc. Report No: 50615402-RP2 FCC ID: JCK-GN-MD01 Date of Issue: June.28, 2005 Page 3 1. TEST RESULT CERTIFICATION Applicant GIGA-BYTE TECHNOLOGY CO., LTD. Address NO. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test Wireless Game Adapter Model Number GN-MD01 Data Applies To GN-AP03G ; GN-AP05G Brand Name GIGA-BYTE Date of Test June .15 ~ June. 20, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: June 28,2005 June 28,2005 Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 50615402-RP2 FCC ID: JCK-GN-MD01 Date of Issue: June.28, 2005 Page 4 Different Item Model 2. EUT DESCRIPTION Product Wireless Game Adapter Model Number GN-MD01 Data Applies To GN-AP03G ; GN-AP05G Brand Name GIGA-BYTE Model Discrepancy N/A Power Supply Power by PC DC 7.5V/0.47A/3.53W DC 5V/0.71A/3.55W for GN-MD01 & …

Text truncated - open the document above for the full version.
