JCK-GN-WB01GSUSB Wireless Adapter

54Mbps Wireless USB Adapter GN-WB01GS User’s Manual http://www.gigabyte.com.tw Rev. 1.0 Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Contents CHAPTER 1 PRODUCT OVERVIEW...........................................1 1.1 I NTRODUCTION TO THE WB01GS WIRELESS USB ADAPTER.........................................1 1.2 F EATURES.................................................................................................................1 1.3 PHYSICAL DIMENSIONS & PACKAGING..........................................................................2 1.4 LED INDICATORS.......................................................................................................2 1.5 S YSTEM REQUIREMENTS............................................................................................2 CHAPTER 2 INSTALLATION.......................................................3 2-1. I NSTALLING THE WB01GS ..........................................................................................3 CHAPTER 3 USING THE WIRELESS UTILITY ...........................8 3.1. PROFILE TAB.............................................................................................................8 3.2. LINK STATUS TAB.....................................................................................................16 3.3. S ITE SURVEY TAB....................................................................................................17 3.4. STATISTICS TAB.......................................................................................................18 3.5. ABOUT TAB..............................................................................................................19 APPENDIX A TROUBLESHOOTING .........................................20 APPENDIX B SPECIFICATIONS ..................................................21 APPENDIX C REGULATORY INFORMATION ............................22 APPENDIX D WARRANTY ...........................................................23 1 Chapter 1 Product Overview 1.1 Introduction to the WB01GS Wireless USB Adapter Looking for an easy way to integrate your Desktop or Notebook into your wireless network? You found it with the GIGABYTE GN-WB01GS Wireless USB Adapter. The WB01GS is Plug-and-Play, and connects to any USB-ready PC—just plug it in and you’re ready to share data, printers, or high speed Internet access over your existing wireless network. For Desktop installation, no need to open your PC’s case. Like all USB Plug-and-Play devices, it’s a breeze to setup. Power in a small package Don’t be fooled by its small and convenient size, the GIGABYTE’s WB01GS Wireless USB Adapter is powerful. Enabling 54 Mbps wireless Internet sharing – 5 times faster than most Wireless USB adapters. High-level WEP encryption protects your network from would be hackers without a hit on performance. High-speed USB 2.0 Features a USB 2.0 interface that is up to 40 times faster than USB 1.1 allowing you to realize full 54 Mbps speed of the 802.11g wireless standard. New antenna technology provides superior range above previous-generation 802.11b adapters. The WB01GS supports office roaming for notebook PC users for shared broadband Internet access and resources. GIGABYTE’s Wireless Utility lets you create profiles that reflect specific WLAN settings for each different location or access point you connect to – the coffee shop, University, or at home. So, for powerful Notebook flexibility and wireless convenience, GIGABYTE WB01GS Wireless USB Adapter is what you’re looking for! 1.2 Features „ Conform to IEEE 802.11b and 802.11g specifications „ Wireless transmits data rate up to the maximum speed of 54Mbps „ Dynamically scales the data rate „ Proprietary Smartsetup 3™ to secure wireless network easily „ Support 64-bit /128-bit WEP encryption, TKIP, AES, 802.1x, WPA and WPA2 „ Support Quality of Service WMM „ Seamless roaming between 802.11b and 802.11g networks „ 40 faster than USB v1.1 „ Automatic power management to reduce battery consumption. „ Driver supports Windows 98SE/Me/2000/XP. 2 1.3 Physical Dimensions & Packaging Dimensions:…

Text truncated - open the document above for the full version.

Giga-Byte Technology Co., Ltd. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Attestation FCC ID JCK-GN-WB01GS Product USB Wireless Adapter Model GN-WB01GS Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature: (Name / Date)

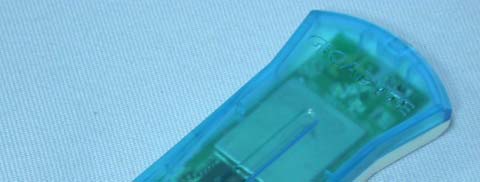

Compliance Certification Services Inc.Report No.50907401-RP1 External Photo ( Model : GN-WB01GS ) Compliance Certification Services Inc.Report No.50907401-RP1 ( Model : WiPen 802.11b/g ) Compliance Certification Services Inc.Report No.50907401-RP1

Company : GIGA-BYTE TECHNOLOGY CO., LTD. Model : GN-WB01GS Product : USB Wireless Adapter USB Wireless Adapter Model No: GN-WB01GS FCC IDJCK-GN-WB01GS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

Compliance Certification Services Inc.Report No.50907401-RP1 Internal Photo Compliance Certification Services Inc.Report No.50907401-RP1

Compliance Certification Services Inc. Report No: 50907401-SF FCC ID: JCK-GN-WB01GS Date of Issue: September 13, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For USB Wireless Adapter Trade Name: GIGABYTE Model: GN-WB01GS Issued to GIGA-BYTE TECHNOLOGY CO., LTD. No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 Compliance Certification Services Inc. Report No: 50907401-SF Date of Issue: September 13, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ....................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .........................5 3. DOSIMETRIC ASSESSMENT SYSTEM ...................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ..................................................................................................9 5. MEASUREMENT UNCERTAINTY .........................................................................................13 6. EXPOSURE LIMIT ....................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .........15 8. MEASUREMENT RESULTS ....................................................................................................16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION...................................................................................17 8.3 EUT TUNE-UP PROCEDURES......................................................................................18 8.4 SAR MEASUREMENTS RESULTS...............................................................................19 9. EUT PHOTOS.............................................................................................................................21 10. EQUIPMENT LIST & CALIBRATION STATUS....................................................................22 11. FACILITIES................................................................................................................................23 12. REFERENCES ............................................................................................................................23 13. ATTACHMENTS .......................................................................................................................24 Compliance Certification Services Inc. Report No: 50907401-SF Date of Issue: September 13, 2005 Page 4 Rev. 00 1. EUT DESCRIPTION Product USB Wireless Adapter Trade Name GIGABYTE Model Number GN-WB01GS Model Discrepancy N/A Frequency Range 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Average) 802.11b: 25.39 dBm 802.11g: 23.52 dBm Max. SAR (1g): 802.11b: 0.819 W/kg 802.11g: 0.256 W/kg Modulation Technique 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Antenna A: PCB antenna; Antenna B: PCB antenna Battery option: Only one type / model with EUT HOST IBM: M/N: 2672-I8V ; S/N: 99KPZYN Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No: 50907401-SF Date of Issue: September 13, 2005 Page 5 Rev. 00 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe EX3DV4-SN: 3554 (manufactured by…

Text truncated - open the document above for the full version.

Date/Time: 9/12/2005 10:19:06 AMDate/Time: 9/12/2005 10:23:24 AMDate/Time: 9/12/2005 10:30:31 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN 728 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.71 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 91.3 V/m; Power Drift = -0.123 dB Peak SAR (extrapolated) = 31.3 W/kg SAR(1 g) = 13.8 mW/g; SAR(10 g) = 5.99 mW/g Maximum value of SAR (measured) = 15.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 22.5 mW/g Page1 Page2 Date/Time: 9/12/2005 5:21:11 PMDate/Time: 9/12/2005 5:24:57 PMDate/Time: 9/12/2005 5:30:40 PMDate/Time: 9/12/2005 5:36:31 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Parallel Touch mode ant A DUT: GN-WB01GS; Type: 2.4GHz USB Dangle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Low CH Rate=1M bit/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.06 mW/g Low CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = -0.125 dB Peak SAR (extrapolated) = 1.85 W/kg SAR(1 g) = 0.819 mW/g; SAR(10 g) = 0.408 mW/g Maximum value of SAR (measured) = 1.12 mW/g Low CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = -0.125 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.701 mW/g; SAR(10 g) = 0.351 mW/g Maximum value of SAR (measured) = 0.952 mW/g Low CH Rate=1M bit/Z Scan (1x1x101): Measurement grid: dx=20mm, dy=20mm, dz=1mm Maximum value of SAR (measured) = 1.75 mW/g Page1 Page2 Date/Time: 9/12/2005 7:18:43 PMDate/Time: 9/12/2005 7:22:30 PMDate/Time: 9/12/2005 7:28:42 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Parallel Touch mode ant A DUT: GN-WB01GS; Type: 2.4GHz USB Dangle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Middle CH Rate=1M bit/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.02 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = -0.090 dB Peak SAR (extrapolated) = 1.64 W/kg SAR(1 g) = 0.732 mW/g; SAR(10 g) = 0.360 mW/g Maximum value of SAR (measured) = 0.995 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = -0.090 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.682 mW/g; SAR(10 g) = 0.336 mW/g Maximum value of SAR (measured) = 0.917 mW/g Page1 Page2 Date/Time: 9/12/2005 6:59:14 PMDate/Time: 9/12/2005 7:03:00 PMDate/Time: 9/12/2005 7:10:04 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Parallel Touch mode ant A DUT: GN-WB01GS; Type: 2.4GHz USB Dangle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 High CH Rate=1M bit/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.918 mW/g High CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 14.0 V/m; Power Drift = -0.073 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.659 mW/g; SAR(10 g) = 0.323 mW/g Maximum value of SAR (measured) = 0.897 mW/g High CH Ra…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 50907401-RP1 FCC ID: JCK-GN-WB01GS Date of Issue: September 14, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 72 FCC 47 CFR PART 15 SUBPART C TEST REPORT For USB Wireless Adapter Model Number : GN-WB01GS Trade Name : GIGABYTE Issued to GIGA-BYTE TECHNOLOGY CO., LTD. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 8, Jiu Ceng Ling, Jiao keng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 50907401-RP1 FCC ID: JCK-GN-WB01GS Date of Issue: September 14, 2005 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION .................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES...................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .....................................................6 3.5 DESCRIPTION OF TEST MODES .................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES .........................................................................................................................................8 5.2 EQUIPMENT ...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING ..................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT ............................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH ........................................................................................................................11 7.2 PEAK POWER ...............................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY.........................................................................................30 7.5 RADIO FREQUENCY EXPOSURE..............................................................................................35 7.6 SPURIOUS EMMISSIONS............................................................................................................36 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................68 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .......................................................................71 Compliance Certification Services Inc. Report No: 50907401-RP1 FCC ID: JCK-GN-WB01GS Date of Issue: September 14, 2005 Page 3 1. TEST RESULT CERTIFICATION Applicant: GIGA-BYTE TECHNOLOGY CO., LTD. NO. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan R.O.C. Equipment Under Test: USB Wireless Adapter Model Number: GN-WB01GS Trade Name: GIGABYTE Date of Test: September 6 ~ September 13, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 50907401-RP1 FCC ID: JCK-GN-WB01GS Date of Issue: September 14, 2005 Page 4 2. EUT DESCRIPTION Product USB Wireless Adapter Trade Name GIGABYTE Model Number GN-WB01GS Model Discrepancy N/A Power Supply Powered from host device Frequency Range IEEE 802.11b/g:2412~2462 MHz Transmit Power IEEE 802.11b: 25.36 dBm IEEE 802.11g: 23.77 dBm Modulation Technique IEEE 802.11b: DSSS IEEE 802.11g: OFDM Transmit Data Rate IEEE802.11b: 11M…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 50907401-RP1 FCC ID: JCK-GN-WB01GS Date of Issue: September 14, 2005 Page 71 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 50907401-RP1 FCC ID: JCK-GN-WB01GS Date of Issue: September 14, 2005 Page 72 Conducted Emission Set Up Photos
