JCK-GN-WB30N-RHAirCruiser N300 USB Adapter

GN-WB30N-RH AIRCRUISER N300 USB Adapter Quick Start Guide http://www.gigabyte.com.tw Rev. 1.0 Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Contents CHAPTER 1 PRODUCT OVERVIEW...........................................1 1.1 I NTRODUCTION TO THE AIRCRUISER N300 USB WIRELESS ADAPTER.........................1 1.2 F EATURES.................................................................................................................1 1.3 SYSTEM SPECIFICATIONS............................................................................................2 1.4 C ONTENTS PACKAGE..................................................................................................1 1.5 LED INDICATORS.......................................................................................................1 1.6 SYSTEM REQUIREMENTS............................................................................................1 CHAPTER 2 INSTALLATION.......................................................2 2-1. INSTALLING THE GN-WB30N-RH................................................................................2 2-2. SMARTSETUP 3..........................................................................................................4 CHAPTER 3 USING THE WIRELESS UTILITY ...........................2 3.1. PROFILE TAB.............................................................................................................2 3.2. LINK STATUS TAB.......................................................................................................1 3.3. SITE SURVEY TAB......................................................................................................2 3.4. STATISTICS TAB.........................................................................................................3 3.5. QOS .........................................................................................................................1 3.6. A BOUT TAB................................................................................................................1 APPENDIX A TROUBLESHOOTING ...........................................2 APPENDIX B REGULATORY INFORMATION ..............................3 APPENDIX C WARRANTY .............................................................4 1 Chapter 1 Product Overview 1.1 Introduction to the AIRCRUISER N300 USB Wireless Adapter This GN-WB30N-RH 802.11b/g/n Wireless Local Area Network (WLAN) USB adapter is composed of the MAC, Baseband, and radio components, USB interface, and two antennas with high throughput and MIMO (Multi-Input and Multi-Output) feature. It operates at 2.4GHz frequency band, providing fast (up to 300Mbps) and secure (WEP 64/128, TKIP, AES, WPA, WPA2 and 802.1x) connections to 802.11n networks from a single Adapter. It is backward compatible with 11b and 11g. GN-WB30N-RH overcomes environment multi-path effect by MIMO feature and to keep its stable wireless performance and running wireless anywhere. Power in a small package With the design of small and convenient size, the GIGABYTE’s GN-WB30N-RH is powerful. Enabling 54 Mbps wireless Internet sharing – 5 times faster than most Wireless USB adapters on the 802.11b network. High-level WEP encryption protects your network from would be hackers without a hit on performance. High-speed USB 2.0 Features a USB 2.0 interface that is up to 40 times faster than USB 1.1 allowing you to realize full 300 Mbps speed of the 802.11g wireless standard. New antenna technology provides superior range above previous-generation 802.11b adapters. The GN-WB30N-RH supports office roaming for notebook PC users for shared broadband Internet access and resources. GIGABYTE’s Wireless Utility lets you create profiles that reflect specific WLAN settings for each different location or access point you connect to – the coffee shop, University, or at home. With powerful Notebook flexibility and wireless convenience, GN-WB30N-RH is what you’re looking for! 1.2 Features „ Conform to IEEE 802.11b, 802.11g and draft 802.11n specification „ Wireless transmits data rate up to maximum speed…

Text truncated - open the document above for the full version.

GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Confidentiality Request FCC ID : JCK-GN-WB30N-RH Product : AirCruiser N300 USB Adapter Model : GN-WB30N-RH Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

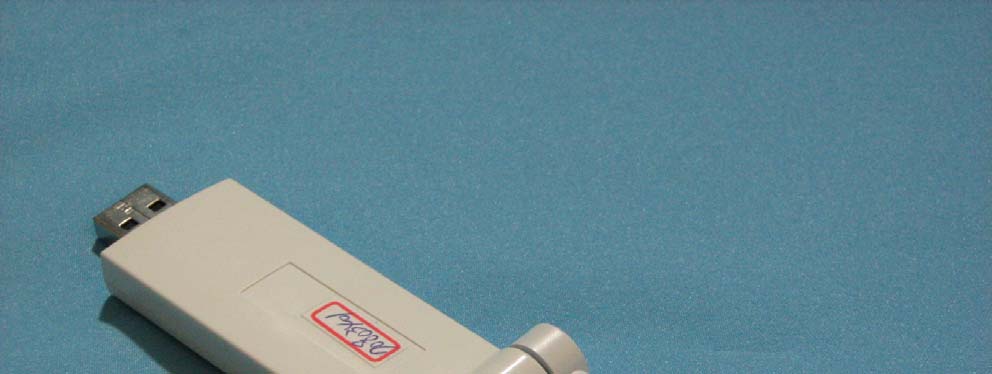

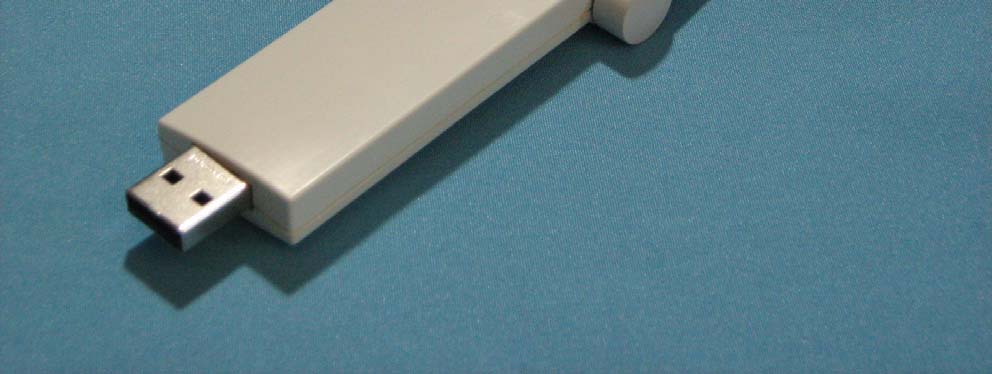

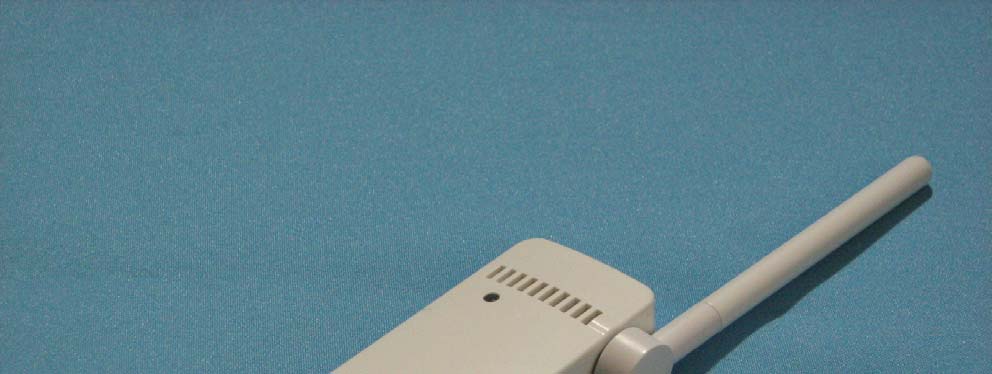

!Compliance Certification Services Inc.!!!!!Report No.Κ70803401 ! ! ! ! External Photo ( Model :GN-WB30N-RH) !

AirCruiser N300 USB Adapter Model No: GN-WB30N-RH FCC ID：JCK-GN-WB30N-RH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here

!Compliance Certification Services Inc.!!!!!Report No.Κ70803401 ! ! ! ! ! !Compliance Certification Services Inc.!!!!!Report No.Κ70803401 ! ! ! ! ! ! !Compliance Certification Services Inc.!!!!!Report No.Κ70803401 ! ! ! ! ! !

Compliance Certification Services Inc. Report No.: 70803401-SF FCC ID: JCK-GN-WB30N-RH Date of Issue: September 26, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 40 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For AirCruiser N300 USB Adapter Trade Name: GIGABYTE Model: GN-WB30N-RH Issued to GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70803401-SF Date of Issue: September 26, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION .................................................................................................................................. 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC........................................ 5 3. DOSIMETRIC ASSESSMENT SYSTEM.................................................................................................. 5 3.1 MEASUREMENT SYSTEM DIAGRAM....................................................................................... 6 3.2 SYSTEM COMPONENTS.............................................................................................................. 7 4. EVALUATION PROCEDURES ................................................................................................................ 9 5. MEASUREMENT UNCERTAINTY ....................................................................................................... 13 6. EXPOSURE LIMIT .................................................................................................................................. 14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS ........................ 15 8. MEASUREMENT RESULTS................................................................................................................... 16 8.1 SYSTEM PERFORMANCE CHECK ........................................................................................... 16 8.2 TEST LIQUID CONFIRMATION................................................................................................ 18 8.3 EUT TUNE-UP PROCEDURES AND TEST MODE .................................................................. 20 8.4 SAR MEASUREMENTS RESULTS ............................................................................................ 22 9. EUT PHOTOS........................................................................................................................................... 37 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................................... 38 11. FACILITIES.............................................................................................................................................. 39 12. REFERENCES .......................................................................................................................................... 39 13. ATTACHMENTS ..................................................................................................................................... 40 Compliance Certification Services Inc. Report No.: 70803401-SF Date of Issue: September 26, 2007 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test: AirCruiser N300 USB Adapter Trade Name: GIGABYTE Model Number: GN-WB30N-RH Date of Test: September 12 ~ 18, 2007 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Rex Lai Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70803401-SF Date of Issue: September 26, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product AirCruiser N300 USB Adapter Trade Name GIGABYTE Model Number GN-WB30N-RH Model Discrepancy N/A Frequency Range 802.11b: 2400 ~ 2483.5 MHz 802.11g: 2400 ~ 2483.5 MHz 802.11n: 2400 ~ 2483.5 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 24.41 dBm 802.11g: 28.70 dBm 802.11n(HT20): 28.25 dBm 802.11n(HT40): 27.34 dBm IBM host: 802.11b: 0.898 W/kg 802.11g: 0.441 W/kg 802.11n: 0.404 W/kg(HT20) 802.11n: 0.251 W/kg(HT40) Sony host: 802.11b: 0.581 W/kg 802.11g: 0.576 W/kg 802.11n: 0.460 W/kg(HT20) 802.11n: 0.274 W/kg(HT40) Max. SAR (1g): Dell host: 802.11b: 1.350 W/kg 802.11g: 1.120 W/kg 802.11n: 0.965 W/kg(HT20) 802.11n: 0.577 W/kg(HT40) Modulation Technique 802.11b: Direct Sequence Spread Spectrum(DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Monopole/Printed antenna Host 1 IBM T60, Model: 1951-I3V, SN: L3B2188 Host 2 Dell, Model: D600, SN: CN-0T9369-48643-4CB-0392 Host 3 Sony, Model: VGN-S44TP, SN: 28198080 8100339 Remark: The sample selected for test was prototype that approximated to production product and was provided by m…

Text truncated - open the document above for the full version.

Date/Time:9/12/2007 9:24:35 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.98 mho/m; İ r = 50.4; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.5 deg C;Liquid Temperature:24.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.3 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 97.6 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 28.5 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.23 mW/g Maximum value of SAR (measured) = 19.3 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.7 mW/g Page1 Page2 Date/Time: 9/14/2007 2:33:29PM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.96 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.6 deg C;Liquid Temperature:24.6 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.2 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 88.2 V/m; Power Drift = -0.087 dB Peak SAR (extrapolated) = 33.6 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.27 mW/g Maximum value of SAR (measured) = 16.0 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 16.1 mW/g Page1 Page2 Date/Time: 9/18/2007 2:37:42PM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.93 mho/m; İ r = 51.9; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.3 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.0 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 88.2 V/m; Power Drift = 0.187 dB Peak SAR (extrapolated) = 33.2 W/kg SAR(1 g) = 14.1 mW/g; SAR(10 g) = 6.18 mW/g Maximum value of SAR (measured) = 15.7 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.9 mW/g Page1 Page2 Date/Time: 9/12/200710:04:59 AM Test Laboratory: Compliance Certification Services Inc. 802.11b Edge Touched 90 mode T60 DUT: GN-WB30N-RH; Type: Air Cruiser N300 USB Adapter; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.97 mho/m; İ r = 50.4; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.5 deg C;Liquid Temperature:24.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH Rate=1M bit/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.017 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.66 V/m; Power Drift = -0.080 dB Peak SAR (extrapolated) = 0.051 W/kg SAR(1 g) = 0.015 mW/g; SAR(10 g) = 0.00621 mW/g Maximum value of SAR (measured) = 0.016 mW/g Page1 Page2 Date/Time: 9/12/2007 12:40:59 AM Test Laboratory: Compliance Certification Services Inc. 802.11g Edge Touched 90 mode T60 DUT: GN-WB30N-RH; Type: Air Cruiser N300 USB Adapter; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.97 mho/m; İ r = 50.4; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.5 deg C;Liquid Temperature:24.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW:…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 1 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For AirCruiser N300 USB Adapter Model : GN-WB30N-RH Brand : GIGABYTE Issued for GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 178 Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 September 3, 2007 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ........................................................................................... 5 2. EUT DESCRIPTION .................................................................................................................... 6 2.1 DESCRIPTION OF EUT & POWER........................................................................................ 6 3. DESCRIPTION OF TEST MODES............................................................................................ 7 4. TEST METHODOLOGY.............................................................................................................8 5. FACILITIES AND ACCREDITATIONS................................................................................... 8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT ............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS................................................................. 9 6. CALIBRATION AND UNCERTAINTY .................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 10 6.2 MEASUREMENT UNCERTAINTY........................................................................................ 10 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................. 11 7.1 SETUP CONFIGURATION OF EUT....................................................................................... 11 7.2 SUPPORT EQUIPMENT ..........................................................................................................11 7.3 EUT OPERATING CONDITION ............................................................................................. 12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 14 8.1 6DB BANDWIDTH .................................................................................................................. 14 8.2 99% BANDWIDTH................................................................................................................... 32 8.3 MAXIMUM PEAK OUTPUT POWER.................................................................................... 50 8.4 MAXIMUM PERMISSIBLE EXPOSURE............................................................................... 69 8.4 MAXIMUM PERMISSIBLE EXPOSURE............................................................................... 69 8.5 AVERAGE POWER ................................................................................................................. 71 8.6 POWER SPECTRAL DENSITY............................................................................................... 73 Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 4 TABLE OF CONTENTS 8.7 CONDUCTED SPURIOUS EMISSION................................................................................... 100 OUT-OF-BAND COMBINED SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT .... 117 8.8 RADIATED EMISSIONS .........................................................................................................125 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS .............................................. 125 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz .............................................. 129 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ............................................ 130 8.8.4 RESTRICTED BAND EDGES ......................................................................................... 154 8.9 POWERLINE CONDUCTED EMISSIONS............................................................................. 170 9. ANTENNA REQUIREMENT...................................................................................................... 174 9.1 STANDARD APPLICABLE..................................................................................................... 174 9.2 ANTENNA CONNECTED CONSTRUCTION ....................................................................... 174 APPENDIX SETUP PHOTOS......................................................................................................... 175 Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 5 1. TEST REPORT CERTIFICATION Applicant ： GIGA-…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 89 CH High ( 802.11n HT20 MODE-Chain 0 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 90 CH Low ( 802.11n HT20 MODE-Chain 1 ) CH Mid ( 802.11n HT20 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 91 CH High ( 802.11n HT20 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 92 CH Low ( 802.11n HT20 Combined MODE ) CH Mid (802.11n HT20 Combined MODE ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 93 CH High (802.11n HT20 Combined MODE) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 94 POWER SPECTRAL DENSITY ( 802.11n HT40 MODE ) CH Low ( 802.11n HT40 MODE-Chain 0 ) CH Mid ( 802.11n HT40 MODE-Chain 0 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 95 CH High ( 802.11n HT40 MODE-Chain 0 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 96 CH Low ( 802.11n HT40 MODE-Chain 1 ) CH Mid ( 802.11n HT40 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 97 CH High ( 802.11n HT40 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 98 CH Low ( 802.11n HT40 Combined MODE ) CH Mid (802.11n HT40 Combined MODE ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 99 CH High ( 802.11n HT40 Combined MODE ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 100 8.7 CONDUCTED SPURIOUS EMISSION LIMITS § 15.247(d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the and that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Attenuation below the general limits specified in § 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a) (see § 15.205(c)). TEST PROCEDURE The transmitter output is connected to a spectrum analyzer. The resolution bandwidth is set to 100 kHz. The video bandwidth is set to 300 kHz. The spectrum from 30 MHz to 26 GHz is investigated with the transmitter set to the lowest, middle, and highest channels in the 2.4 GHz band. TEST SETUP Combiner mode COMBINER Chaino 0 Chaino 1 Chaino 2 EUT SPECTRUM ANALYZER TEST RESULTS No non-compliance noted EUT SPECTRUM ANALYZER Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 101 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( IEEE 802.11b MODE) CH Low (30MHz~26GHz) (802.11b MODE-Chain 0 ) CH Mid (30MHz~26GHz) (802.11b MODE-Chain 0 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 102 CH High (30MHz~26GHz) ( 802.11b MODE-Chain 0 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 103 CH Low (30MHz~26GHz) (802.11b MODE-Chain 1 ) CH Mid (30MHz~26GHz) (802.11b MODE-Chain 1 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 104 CH High (30MHz~26GHz) ( 802.11b MODE-Chain 1 ) Compliance Certification Services Inc. Report No.：70803401-RP1 FCC ID：JCK-GN-WB30N-RH Date of Issue: September 3, 2007 Page 105 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( IEEE 802.11g MODE) CH Low (30MHz~26GHz) (802.11g MODE-Chain 0 ) CH Mid (30MHz~26GHz…

Text truncated - open the document above for the full version.
