GN-WI01GT AirCruiser Mach G PCI-Express Adapter User’s Manual http://www.gigabyte.com.tw Revised 1.0-1 st Version Administrative Regulations on Low Power Radio Waves Radiated Devices Article 14 Without permission granted, the frequency change, transmitting power enhance or alter of original design characteristic as well as function by companies, enterprises, or users for approved Low-power radio frequency devices is not allowed. Article 17 Low-power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, shall cease operating immediately until no interference is achieved. Article 20 A company, enterprise, or user importing, manufacturing low-power radio-frequency devices will be punished for violation of regulation hereunder, authorized frequency usage or change and power change in accordance with Telecommunications Act. Furthermore, Directorate General of Telecommunication can cancel its model certificate or recognition label. Above mentioned Legal Communications is defined as radio communications operation complying to Telecommunications Act. Low-power radio-frequency devices must susceptible with the interference from legal communications, ISM radio wave radiated devices. Content CHAPTER 1 PRODUCT OVERVIEW..............................1 1-1. INTRODUCTION.............................................................................................................1 1-2. FEATURES...................................................................................................................1 1-3. PHYSICAL DIMENSIONS/PACKAGING...............................................................................1 1-4. LED INDICATOR...........................................................................................................2 1-5. SYSTEM REQUIREMENTS..............................................................................................2 CHAPTER 2 INSTALLING THE WLAN CARD...............3 2-1. INSTALLING THE WLAN CARD (HARDWARE INSTALLATION)............................................3 2-2. INSTALLING THE DRIVER & UTILITY (WIN 98SE)...........................................................4 2-3. INSTALLING THE DRIVER & UTILITY (WIN ME)...............................................................8 2-4. INSTALLING THE DRIVER & UTILITY (WIN2000)...........................................................12 2-5. INSTALLING THE DRIVER & UTILITY (WIN XP).............................................................17 CHAPTER 3 USING THE UTILITY................................21 3-1.“PROFILE” SETTING.....................................................................................................21 3-2.“LINK STATUS” SETTING..............................................................................................28 3-3.“SITE SURVEY”...........................................................................................................29 3-4.“STATISTICS” SETTING.................................................................................................30 3-5.“ADVANCE” SETTING...................................................................................................31 3-6.“ABOUT” SETTING.......................................................................................................32 CHAPTER 4 TROUBLESHOOTING..............................33 “802.1X”, “WPA” AND “WPA-PSK” CAN NOT WORK....................................................33 CANNOT CONNECT TO AN AP.....................................................................................33 CAN CONNECT TO AN AP BUT CANNOT CONNECT TO THE INTERNET..............................33 POOR LINK QUALITY AND SIGNAL STRENGTH................................................................33 CHAPTER 5 SPECIFICATION.......................................34 Chapter 1 Product Overview 1-1.Introduction This 802.11b/g Wireless Local Area Network (WLAN) card is composed of Media Access Controller (MAC), baseband, radio components, PCI-Express interface, and one external antenna. It operates within the 2.4GHz spectrum, providing high speed (up to 54Mbps) and secure (supporting AES, 802.1x & WEP and WPA) WLAN connections. 1-2.Features Conforms to 802.11b/802.11g specification Transmits data rate up to the maximum speed of 54 Mbps Dynamically scales the data rate. External antenna. Seamless roaming between WLAN. Supports AES (Advance Encryption System), enterprise-class 802.1x security and multiple-levels WEP encryption (64-bit /128-bit/), and WPA (Wi-Fi Protected Access) Drivers support Windows 98SE/Me/2000/XP. 1-3.Physical Dimensions/Packaging Dimensions: 134mm × 121mm × 22mm Before the installation procedures, please ensure the components are not damaged during the shipping. The components include: GN-WI01GT WLAN card×1 External antenna×1 Installation CD (including User’s Manual and driver)×1 User’s Manual×1 In case of any missing or damaged accessories, please contact your local distributor or authorized reseller immediately. If you require returning the damaged product, you must pack it in the original packing material or the warranty will be voided. 1 1-4.LED Indicator ACT OFF ON ON LINK OFF ON BLINK Meaning Network card is not functioning Network card is connecting to network Network card is sending/receiving data. LED Condition of the Receiver ACT LINK 1-5.System Requirements 1-5-1. Supported Platform: IBM PC/AT compatible computer 1-5-2. Supported Operation System: Windows 98SE/Me/2000/XP 2 Chapter 2 Installing the WLAN Card The following sections will assist you to install this WLAN card. 2-1: Hardware Installation, 2-2~2-5: Software Installation, which provides users more convenient installation methods and automatically installs drivers and utilities. Please refer to different section (2-2: Windows 98SE, 2-3: Windows ME, 2-4: Windows 2000, and 2-5: Windows XP) for software installation in accordance with your operation system. 2-1. Installing the WL…
Text truncated - open the document above for the full version.
Giga-Byte Technology Co., Ltd. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Confidentiality Request FCC ID JCK-GN-WI01GT Product AirCruiser Mach G PCI-Express Adapter Model GN-WI01GT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below. Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application And all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: (Name / Date)
Transmitter Modular Approval Letter Date: Feb 15, 2006 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: JCK-GN-WI01GT Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a UFL type of connector at the transmitter end and is Embedded Antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Compliance Certificaiton Services Inc. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: JCK-GN-WI01GT” or “Contains TX FCCID: JCK- GN-WI01GT” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”.)
Compliance Certification Services Inc. Report No.:51227401 H External Photo ( Model : GN-WI01GT )
Company : GIGA-BYTE TECHNOLOGY CO., LTD. Model : GN-WI01GT Product : AirCruiser Mach G PCI-Express Adapter AirCruiser Mach G PCI-Express Adapter Model No: GN-WI01GT FCC IDJCK-GN-WI01GT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

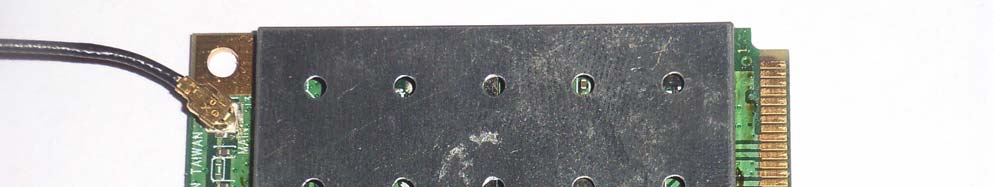

Compliance Certification Services Inc. Report No.:51227401 H Internal Photo Compliance Certification Services Inc. Report No.:51227401 H
Description of Operation The EUT is a AirCruiser Mach G PCI-Express Adapter with 11 channels. And this device provided of transmitting speed 11Mbps (802.11b mode)54Mbps (802.11g mode) , the device of RF carrier is CCK, DQPSK , DBPSK,64QAM, 16AQM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was Embedded Antenna , aprovided diversity function to improve the receiving function.It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) or Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g network. The other instruction,please have a look at the user’s manual.
Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 16 TEST RESULTS No non-compliance noted Te s t D a t a Test mode: IEEE 802.11b Channel Frequency (MHz) Reading Power(dBm) Factor (dB) Output Power(dBm) Output Power(W) Limit(W) Result Low 2412 13.16 11.1 24.26 0.26669 PASS Mid 2437 13.36 11.1 24.46 0.27925 PASS High 2462 13.18 11.1 24.28 0.26792 1 PASS Test mode: IEEE 802.11g Channel Frequency (MHz) Reading Power(dBm) Factor (dB) Output Power(dBm) Output Power(W) Limit(W) Result Low 2412 11.20 11.1 22.30 0.16982 PASS Mid 2437 12.18 11.1 23.28 0.21281 PASS High 2462 12.60 11.1 23.70 0.23442 1 PASS Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 33 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(i) and §1.1307(b)(1) of this chapter. EUT Specification EUT AirCruiser Mach G PCI-Express Adapter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 24.46dBm ( 279.25 mW) Antenna gain (Max) 3 dBi (Numeric gain: 1.9952) Evaluation applied MPE Evaluation SAR Evaluation Remark: 1. The maximum output power is 24.46 ( 279.25 mW) at 2437MHz ( with 1.9952 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 34 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d × ×× = 3770 30 Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields S GP S GP d × ×= × ×× ×=282.0 3770 )1000/(30 100 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) Yields 20 10 282.0 20 )(GP d + ×= Equation 1 Where d = MPE safe distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 35 Maximum Permissible Exposure (2.4 GHz Band) EUT output power = 279.2544mW Antenna Gain = 1.9952 (Numeric gain) S = 1.0 mW / cm^2 from 1.1310 Table 1 Substituting these parameters into the above Equation 1: Æ MPE Safe Distance =6.72148cm (For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.)
Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 FCC 47 CFR PART 15 SUBPART C TEST REPORT For AirCruiser Mach G PCI-Express Adapter Model Number: GN-WI01GT Trade Name: GIGA-BYTE Issued to GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Ta i n a n L a b . No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 2 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION....................................................................................................3 2 EUT DESCRIPTION ...........................................................................................................................4 3 TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION.......................................................................................................................5 3.2 EUT EXERCISE..................................................................................................................................5 3.3 GENERAL TEST PROCEDURES............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4 INSTRUMENT CALIBRATION........................................................................................................7 5 FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES.........................................................................................................................................8 5.2 EQUIPMENT.......................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS......................................................................................9 6 SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7 FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH ........................................................................................................................11 7.2 PEAK POWER...................................................................................................................................15 7.3 BAND EDGES MEASUREMENT ................................................................................................19 7.4 PEAK POWER SPECTRAL DENSITY...................................................................................................29 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................33 7.6 SPURIOUS EMISSIONS ...............................................................................................................36 7.7 POWER LINE CONDUCTED EMISSIONS.............................................................................................55 8 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .......................................................................58 Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 3 1 TEST RESULT CERTIFICATION Applicant :GIGA-BYTE TECHNOLOGY CO., LTD. Address :No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test :AirCruiser Mach G PCI-Express Adapter Model Number :GN-WI01GT Tr a d e N a m e :GIGA-BYTE Date of Test :November 27, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: February 13, 2006 February 13, 2006 Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 4 2 EUT DESCRIPTION Product AirCruiser Mach G PCI-Express Adapter Model Number GN-WI01GT Trade Name GIGA-BYTE Model Discrepancy N/A Power Supply Powered from Note Book Frequency Range 2412 ~ 2462 MHz Transmit Power IE…
Text truncated - open the document above for the full version.
Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 58 8 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 59 Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 60 Conducted Emission Set Up Photos Compliance Certification Services Inc. Report No: 51227401-RP1 FCC ID: JCK-GN-WI01GT Date of Issue: December 27, 2005 Page 61
