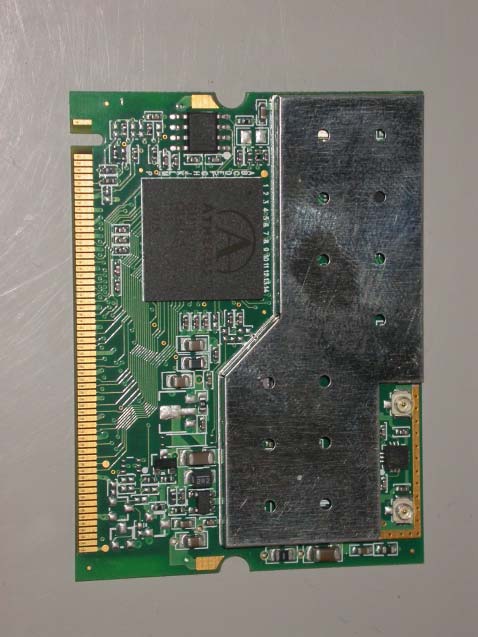

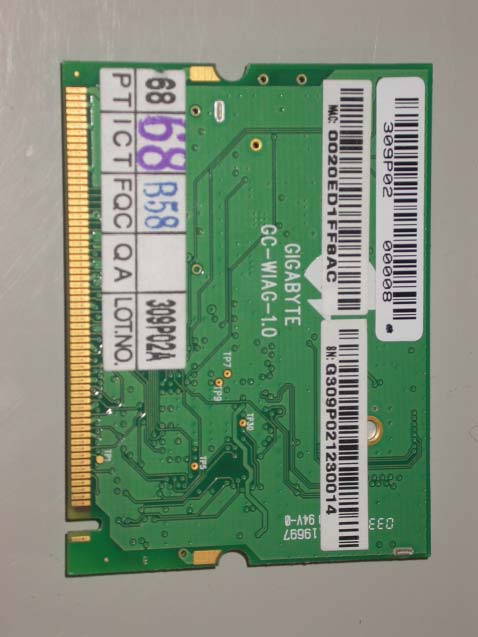

JCK-GN-WIAGIEEE 802.11b/g Wireless LAN Mini-PCI Card

GN-WIAG IEEE 802.11b/g Wireless LAN Mini-PCI Card User’s Manual http://www.gigabyte.com.tw Rev. 1.0 First Edition Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance,any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Contents CHAPTER 1. PRODUCT OVERVIEW 1 1-1. INTRODUCTION...........................................................................................................1 1-2. FEATURES.................................................................................................................1 1-3. P HYSICAL DIMENSIONS/PACKAGING.............................................................................1 1-4. LED INDICATING LIGHT...............................................................................................1 1-5. S YSTEM REQUIREMENTS...........................................................! CHAPTER 2. INSTALLING THE WLAN CARD 2 2-1. INSTALLING THE DRIVER & UTILITY (APPLICABLE TO ANY SUPPORTED OS)......................2 CHAPTER 3. USING THE UTILITY 4 3-1. LINK STATUS..............................................................................................................4 3-2. SITE SURVEY.............................................................................................................6 3-3. CONFIGURATION........................................................................................................7 3-4. STATISTICS..............................................................................................................13 3-5. DRIVER INFO............................................................................................................14 CHAPTER 4. SPECIFICATION 15 1 Chapter 1. Product Overview 1-1. Introduction This 802.11b/g Wireless Local Area Network (WLAN) card is composed of the MAC, Baseband, and radio components, Mini-PCI interface, and two built-in antennas. It operates in 2.4GHz frequency bands, providing fast (up to 108Mbps) and secure (support AES, 802.1x & WEP and WAP) connections to 802.11b and 802.11g networks from a single card. 1-2. Features „ Conforms to 802.11b/802.11g specification. „ Transmits data rate up to the maximum speed of 108Mbps. „ Dynamically scales the data rate. „ Automatic power management to reduce battery consumption. „ Built-in diversity antenna. „ Seamless roaming between 802.11b and 802.11g networks. „ Supports AES (Advance Encryption System), enterprise-class 802.1x security and multiple levels of WEP encryption (64-bit /128-bit/152-bit), and WPA (Wi-Fi Protected Access).. „ Driver supports Windows 98SE/Me/2000/XP. 1-3. Physical Dimensions/Packaging Dimensions: 59mm* 44mm* 4mm Before the installation procedures, please ensure the components are not damaged during the shipping. The shipment of the GN-WIAG includes: One GN-WIAG Wireless LAN Card One Installation CD (including User’s Guide and Driver) One User Guide Please contact your local distributor or authorized reseller immediately for any missing or damaged components. If you require returning the damaged product, you must pack it in the original packing material or the warranty will be voided. 1-4. System Requirements 1-4-1. Supported Platform: IBM PC/AT compatible computer 1-4-2. Supported Operation System: Windows 98SE/Me/2000/XP 2 Chapter 2. Installing the WLAN Card 2-1. Installing The Driver & Utility (Applicable to any supported OS) Step 1: Please make sure that you don’t plug your card yet. Step 2: Insert our setup CD into your CDROM drive, the following window will pop up. Step 3: Click “Install Wireless LAN Driver”. Step 4: Please remove the WLAN Card from your PCMCIA adapter and Click “OK”. 3 Step 5: Click “Finish”. Step 6: Please plug-in your “Gigabyte” WLAN card device ! and will install the device driver Click “OK”. Step 7: Click “Yes” , and then your installation is ok.. 4 Chapter 3. Using The Utility The Configuration & Monitor Utility is a powerful application that helps you to configure the card and monitor the statistics of the communication link. Unlike the standard method of configuring the card via the operating system utilities (e.g. Control Panel), this application permits the dynamic modification of …

Text truncated - open the document above for the full version.

Transmitter Modular Approval Letter Date: NOV. 20/2003 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID : JCK-GN-WIAG Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a UFL type of connector at the transmitter end and is soldered to the antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Ecom Sertech Corp. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: JCK-GN-WIAG” or “Contains TXFCCID: JCK-GN-WIAG” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”. Also, SAR data is available if necessary.

Company : Giga-Byte Technology Co., Ltd. Page : 1 of 4 Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model : GN-WIAG Company : Giga-Byte Technology Co., Ltd. Page : 2 of 4 Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model : GN-WIAG Company : Giga-Byte Technology Co., Ltd. Page : 3 of 4 Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model : GN-WIAG Company : Giga-Byte Technology Co., Ltd. Page : 4 of 4 Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model : GN-WIAG

Company : Giga-Byte Technology Co., Ltd. Model: GN-WIAG Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card IEEE 802.11b/g Wireless LAN Mini-PCI Card Model No: GN-WIAG FCC IDJCK-GN-WIAG This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company : Giga-Byte Technology Co., Ltd. Page : 1 of 3 Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model : GN-WIAG Company : Giga-Byte Technology Co., Ltd. Page : 2 of 3 Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model : GN-WIAG Company : Giga-Byte Technology Co., Ltd. Page : 3 of 3 Product : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model : GN-WIAG

15 Chapter 4. Specification 4-1. System Host Interface MiniPCI Type III B Operating Voltages 3.3V Typical Power (Base mode)Doze: 70mA; Receive: 350 mA; Transmit: 550 mA 4-2. RF Characteristics 802.11g (Backward Compatible to 802.11b) Frequency Bands 2412-2484 MHz (subject to local regulations) Modulation Technology OFDM and DSSS Modulation Techniques 64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK Date Rates Base mode: 54, 48, 36, 18,12, 9, 11, 6, 5.5, 2, and 1 Mbps, auto fallback Turbo mode: 108, 96, 72, 48, 36, 24, 18 and 12 Mbps auto fallback Peak Output Power 19dBm @ Nominal Temp Range at antenna connector Receive sensitivity Minimum -73dBm @54Mbps; typical -76dBm@ Nominal Temp Range Antenna connectors Two antenna connectors for supporting antenna diversity 4-3.Safety Regulation and Operating Environment EMC certification FCC Part 15 (USA) Temperature Range Operating: 0 ~ 55 deg C, Storing: -20 ~ 65 deg C Humidity 10% ~ 90% Non-condensing 4-4. Software Support Driver Windows 98SE/Me/2000/XP Security WPA; AES; 802.1X client for Windows XP; 64/128/152 bit WEP Roaming Seamless roaming among 802.11b/g access points. Management Utility Monitors the network situation. 4-5. Mechanical Dimensions 59mm*44mm*4mm Weight 13± 1 g Packaging Packaging specially used by Gigabyte. Subject to Change without Notices

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WIAG Report No.：ER03-08-058FRF Page 1 of 117 TEST REPORT Product Name ： IEEE 802.11b/g Wireless LAN Mini-PCI Card Model Number ： GN-WIAG Applicant ： Giga-Byte Technology Co., Ltd. Address ： No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, ROC Received Date ： Oct. 27, 2003 Tested Date ： Oct. 27~Nov. 12, 2003 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WIAG Report No.：ER03-08-058FRF Page 2 of 117 Test Report Certification Product Name : IEEE 802.11b/g Wireless LAN Mini-PCI Card Model Number : GN-WIAG Applicant : Giga-Byte Technology Co., Ltd. Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WIAG Report No.：ER03-08-058FRF Page 3 of 117 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION............................................................................................................ 5 1.1 General Statement ........................................................................................................................... 5 1.2 General Description of EUT & Power ............................................................................................ 5 1.3 Description of Peripherals............................................................................................................... 6 1.4 EUT & Peripherals Setup Diagram................................................................................................. 7 1.5 EUT Operating Condition............................................................................................................... 7 1.6 Description of Test Site .................................................................................................................. 8 1.7 Summary of Test Results ................................................................................................................ 8 2. CONDUCTED POWERLINE TEST ............................................................................................... 9 2.1 Test Equipments ............................................................................................................................. 9 2.2 Test Setup ....................................................................................................................................... 9 2.3 Conducted Power Line Emission Limit .......................................................................................... 10 2.4 Test Procedure ................................................................................................................................ 10 2.5 Uncertainty of Conducted Emission ............................................................................................... 10 2.6 Conducted RF Voltage Measurement ............................................................................................. 11 2.7 Photos of Conduction Test.............................................................................................................. 12-13 3. RADIATED EMISSION TEST......................................................................................................... 14 3.1 Test Equipments ............................................................................................................................. 14 3.2 Test Setup ....................................................................................................................................... 14 3.3 Radiation Limit ............................................................................................................................... 15 3.4 Test Procedures............................................................................................................................... 16 3.5 Uncertainty of Radiated Emission .................................................................................................. 16 3.6 Radiated RF Noise Measurement ................................................................................................... 17-79 3.7 Photos of Open Site ........................................................................................................................ 80-93 4. 6dB BANDWIDTH MEASUREMENT............................................................................................ 94 4.1 Test Equipments ............................................................................................................................. 94 4.2 Test Setup ....................................................................................................................................... 94 4.3 Limits of 6dB Bandwidth Measurement ..............................................................…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WIAG Report No.：ER03-08-058FRF Page 13 of 117 2.7 Photos of Conduction Test Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WIAG Report No.：ER03-08-058FRF Page 92 of 117 3.7 Photos of Open Site Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WIAG Report No.：ER03-08-058FRF Page 93 of 117
